VPI Avenger Turntable
VPI Avenger
The VPI Avenger Table was originally a project started by Harry over 12 years ago. In the process of the design, the project was dropped in mid-production due to excessive demand by HR-X customers which left the design and proto-type chassis to be mothballed. The good news about the abandoned design is Harry instead shifted his focus to starting and completing the VPI Classic Turntable.
Shortly after the development of the Prime, the forgotten Avenger and its designs were re-discovered! The working name was the "Tri-Pod Project". Being newly motivated, Harry has finally put in motion the table that will be his masterpiece! The unique iterations that had been crafted from the original process were completed as Special Editions.

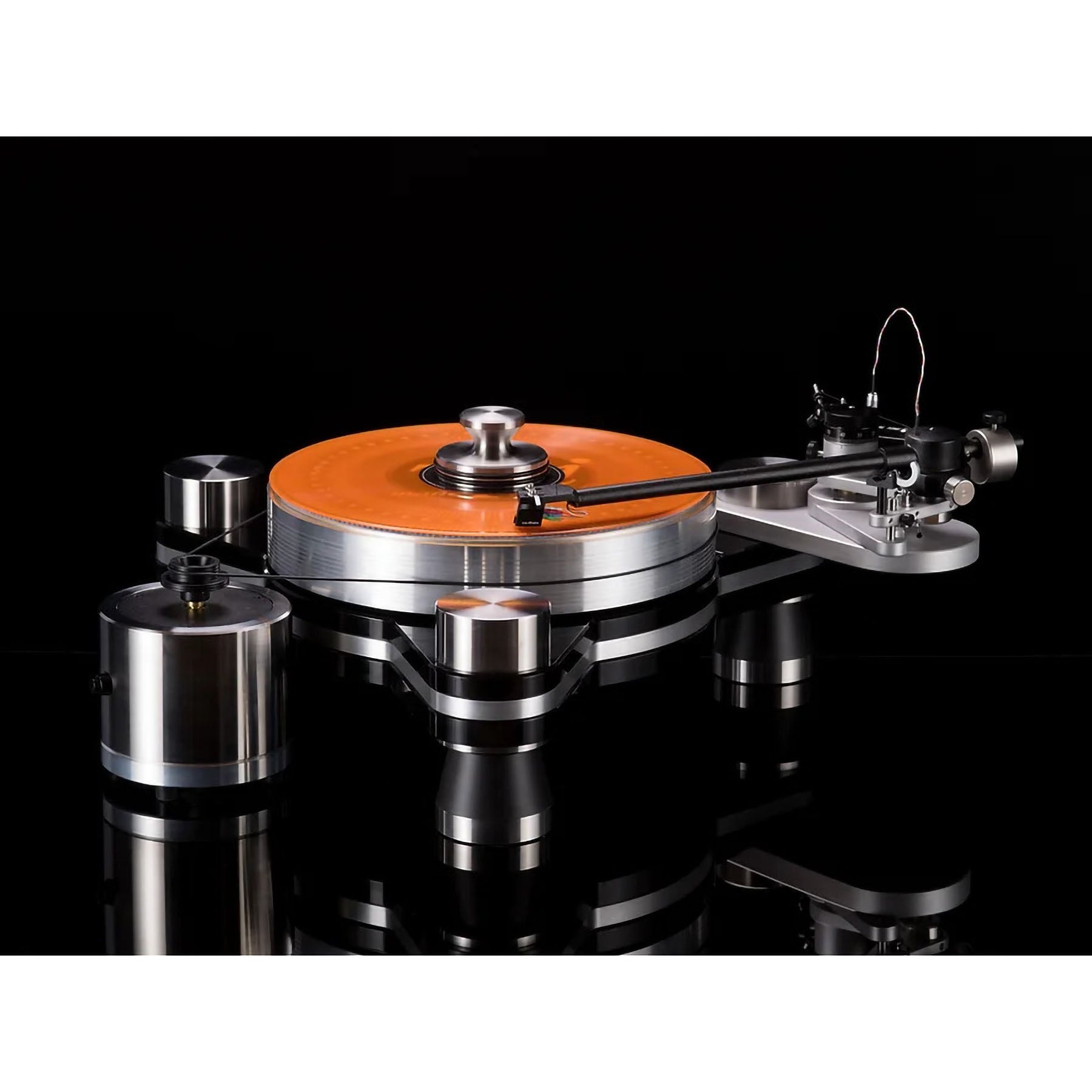

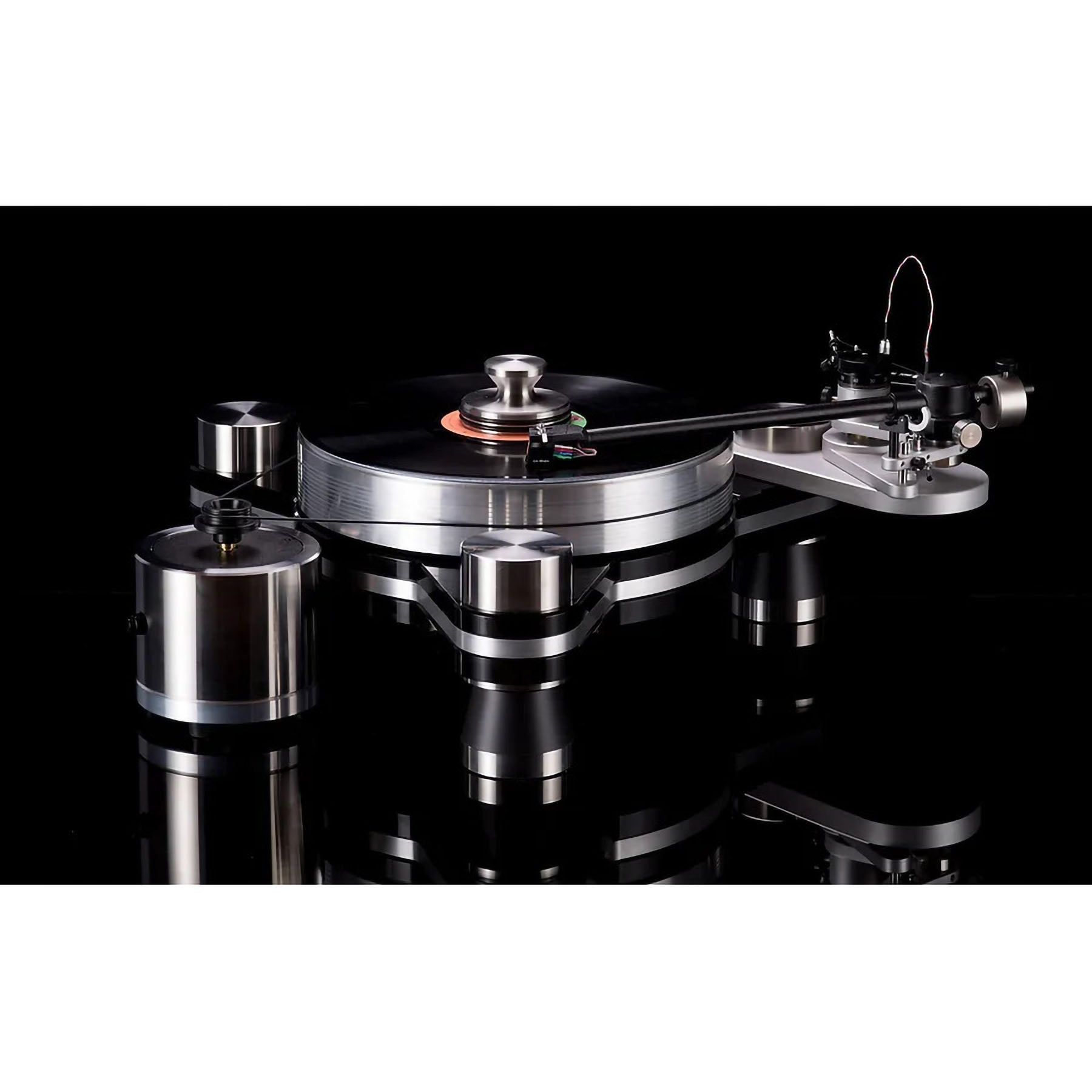

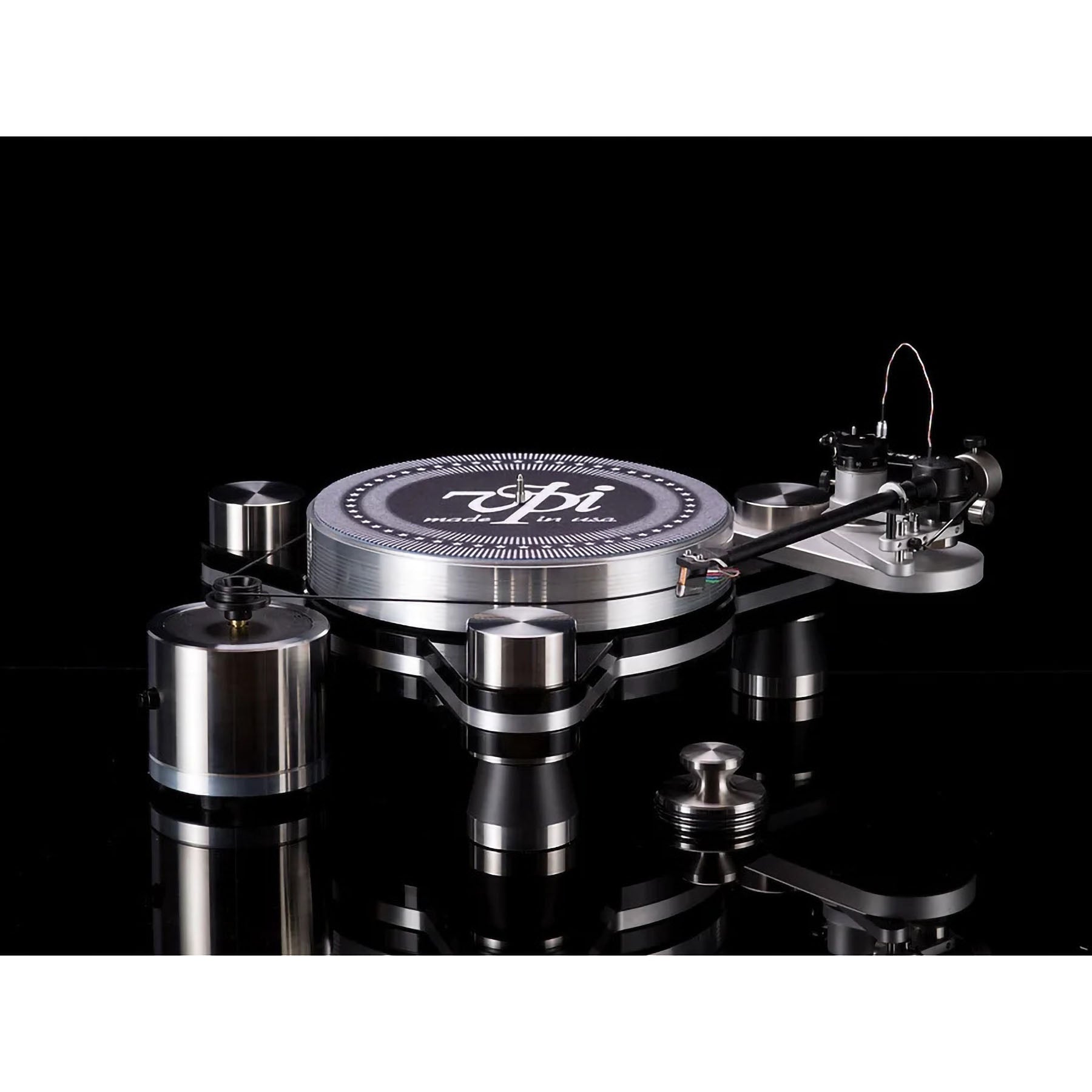

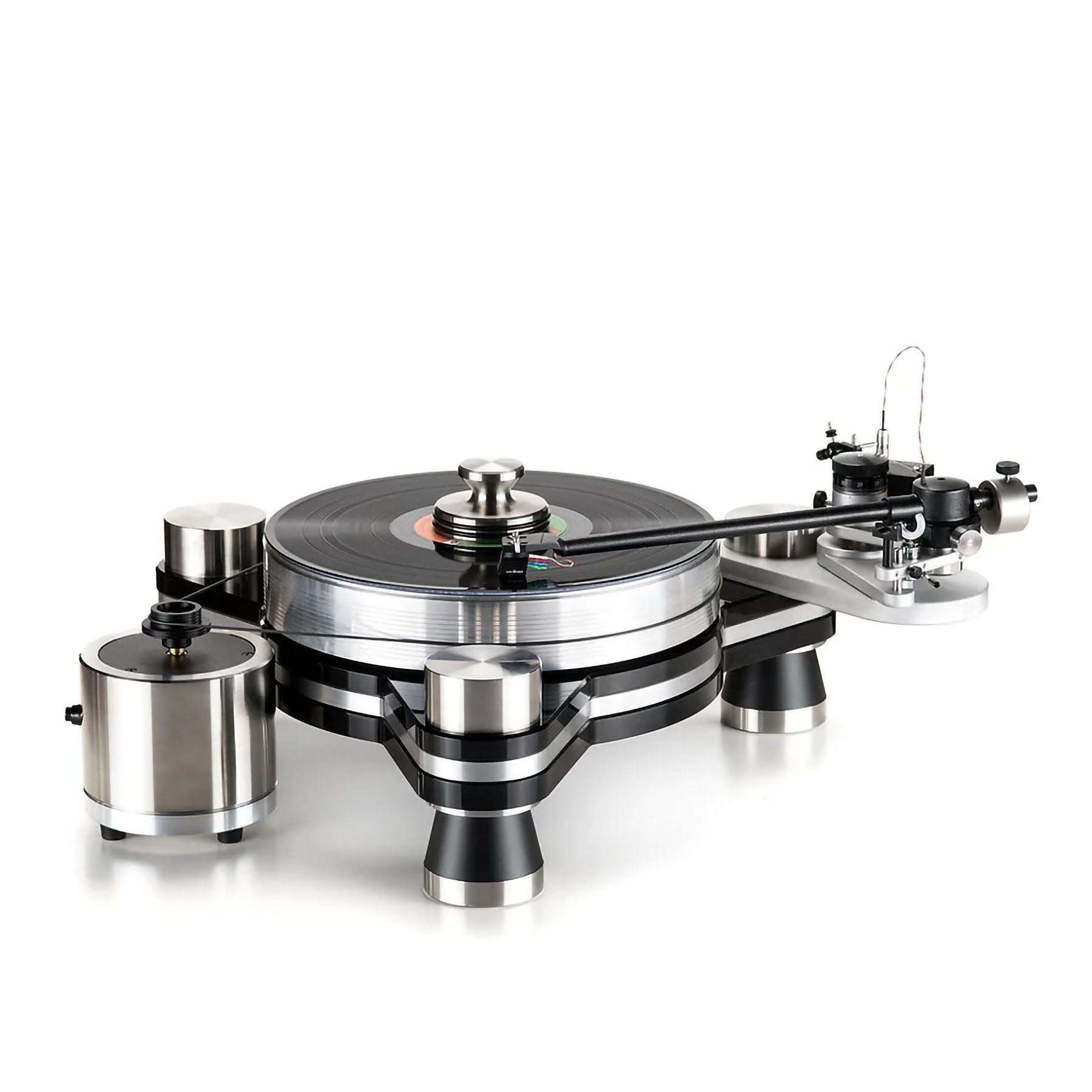

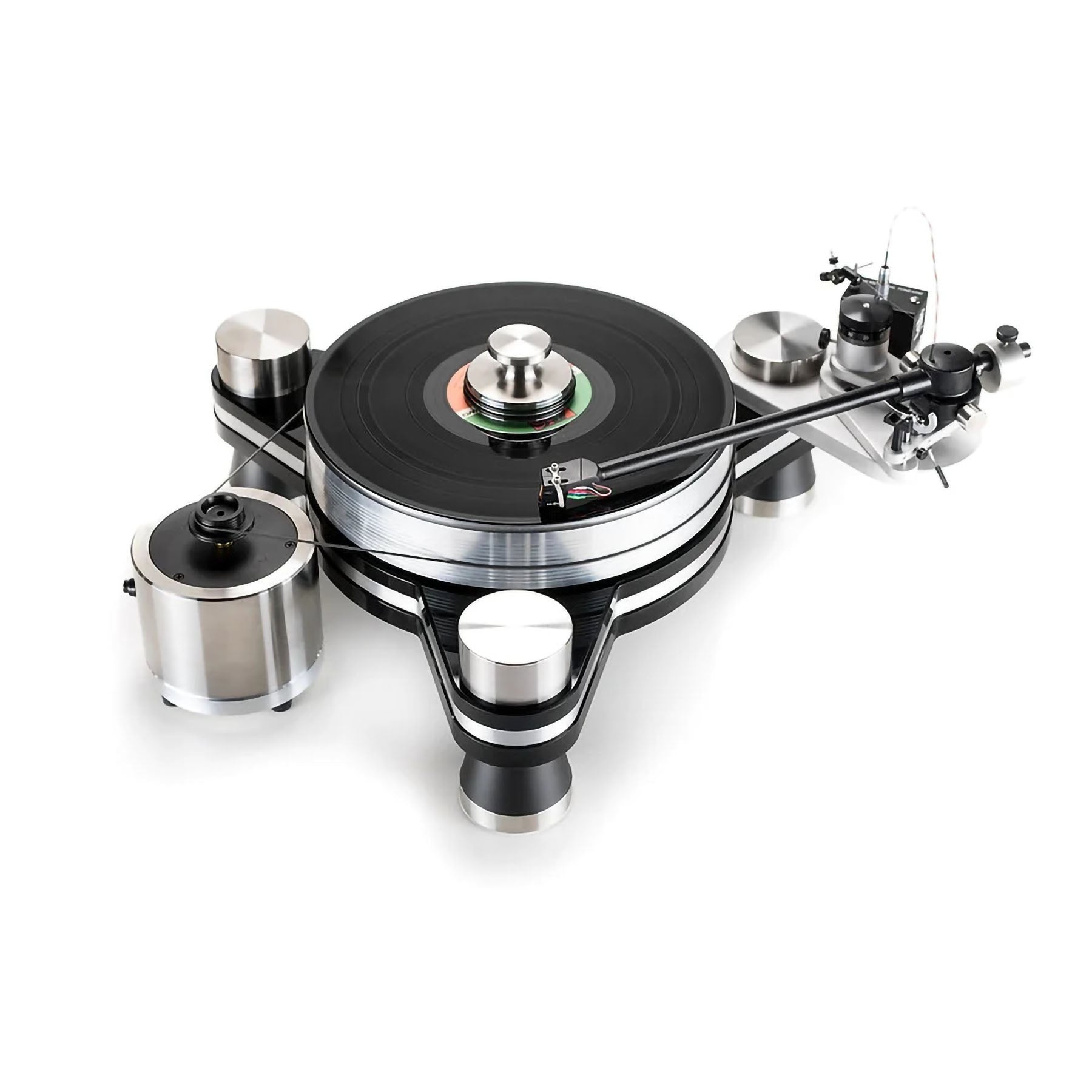

The VPI Avenger chassis is three layers of bonded acrylic/aluminum/acrylic, with damping material between layers, locked in by 3 isolation steel corner posts, 3 bolts, and the massive bearing assembly. The corner posts which hold the tonearms (up to three will fit) have adjustable machined knobs giving the user the ability to easily raise and lower the height to level the table. Fully adjustable arm boards are made from 5/8” 6061 aluminum for rigidity and grounding. The table can mount up to three arms, any manufacturer's brand, and any length.

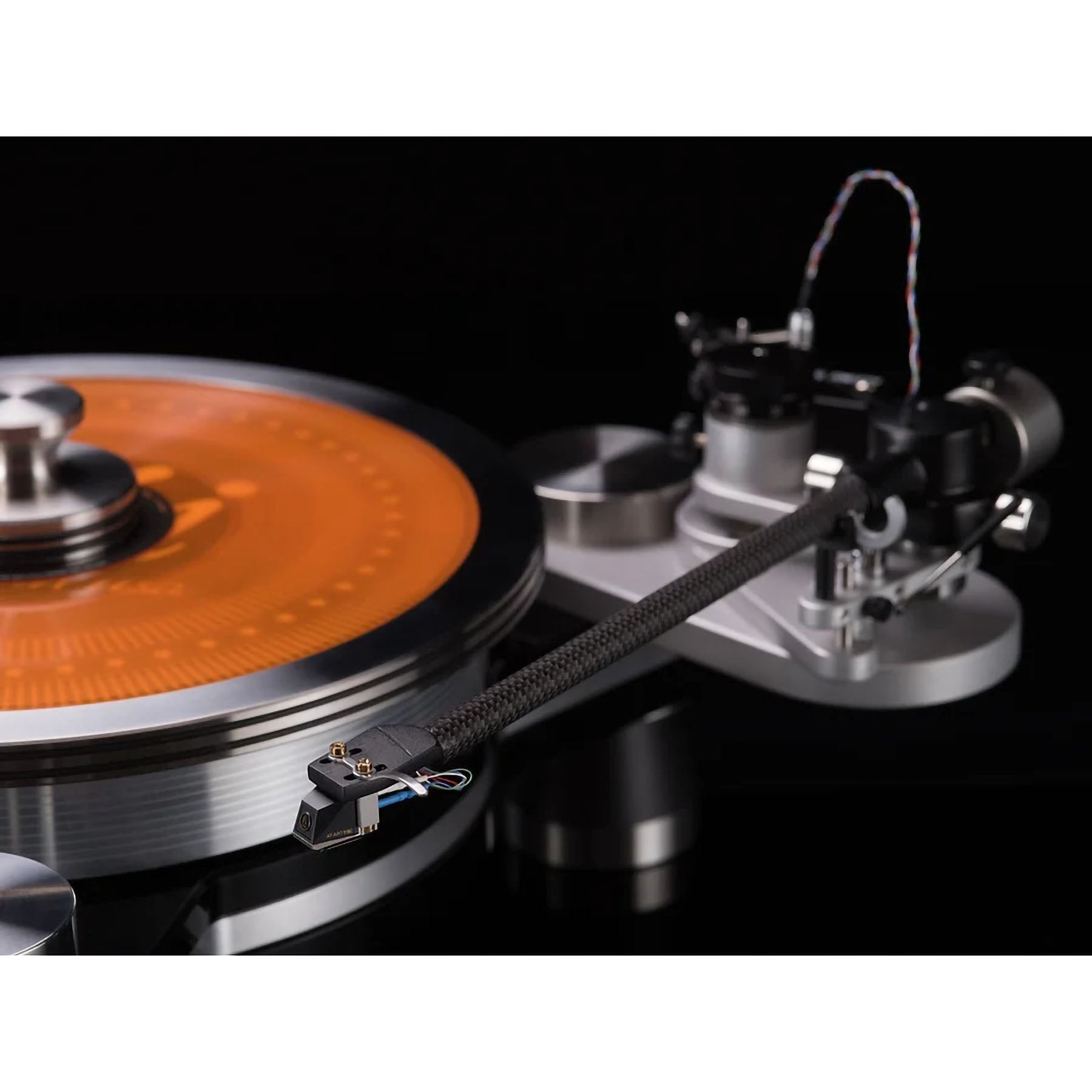

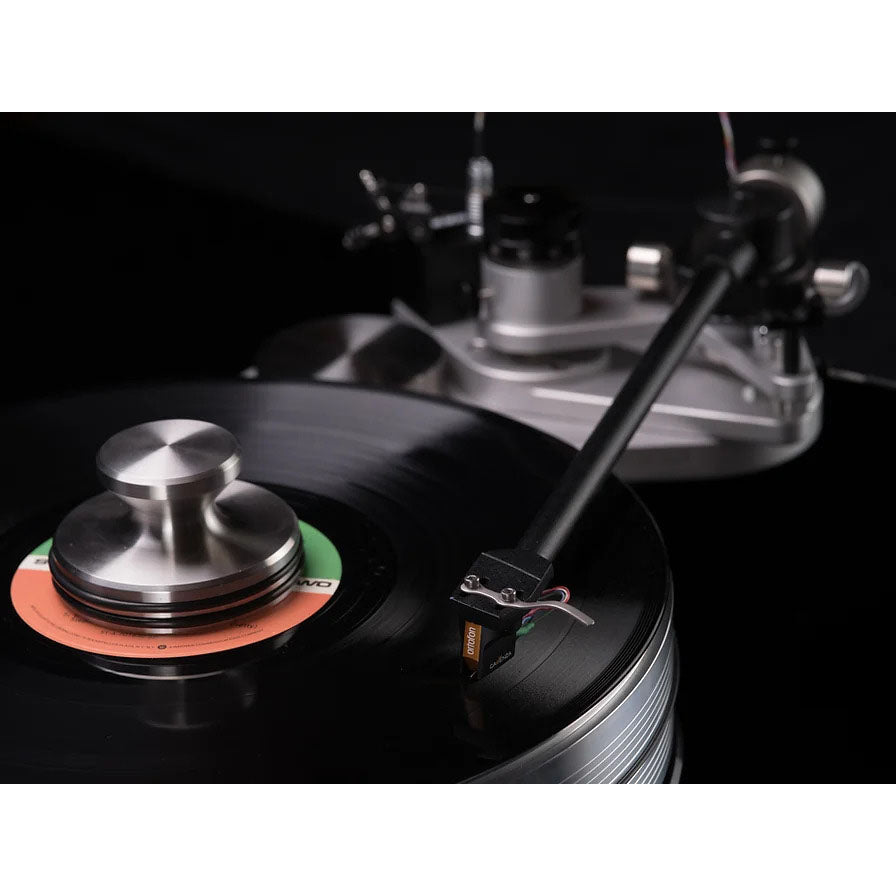

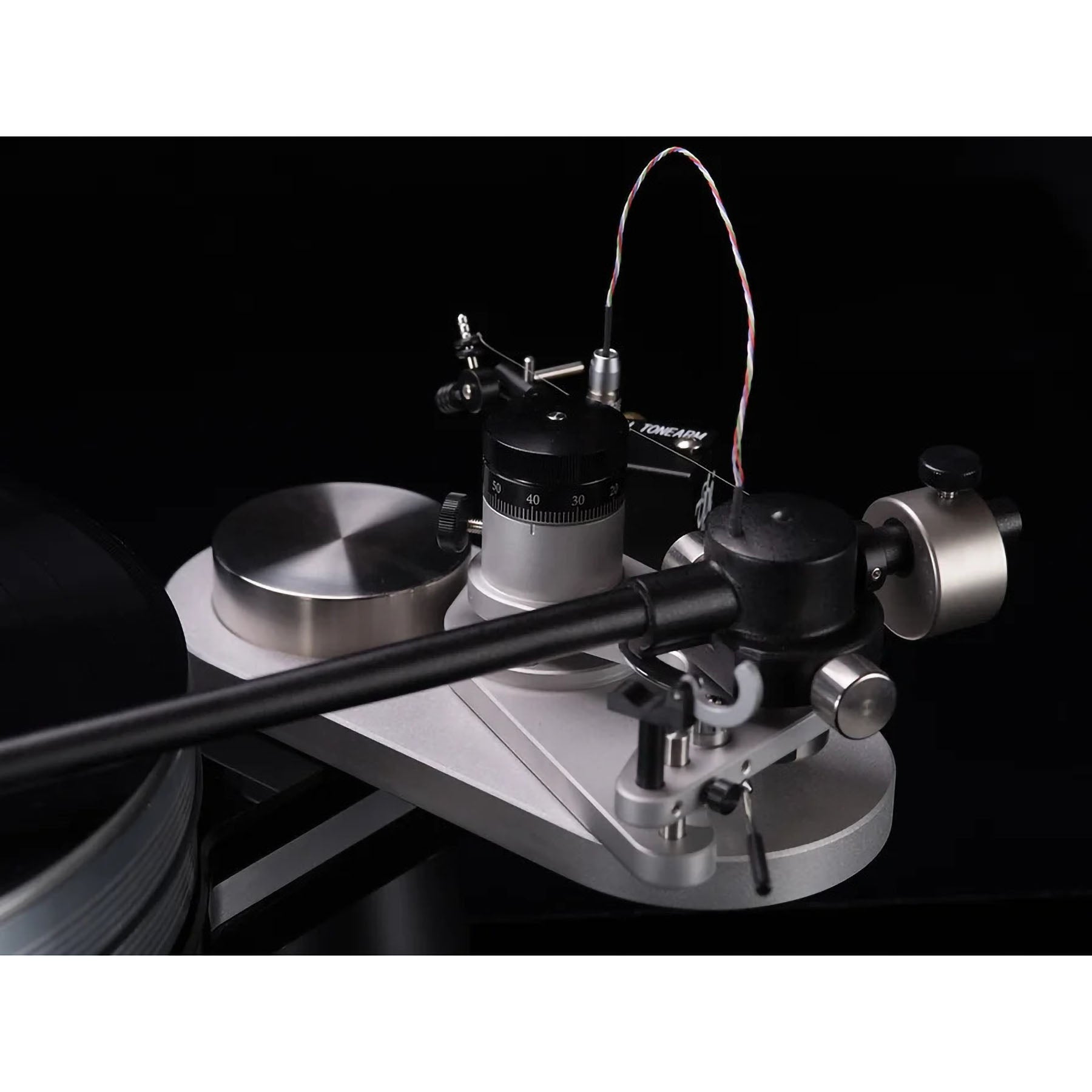

VPI JMW 12 3D Tonearm
Pivot to spindle: 300 mm
Internal Wire: VPI Copper weave
Effective length: 313.0 mm
Effective mass: 10.5g.
Overhang: 13mm
Offset angle: 17.37 degrees
Average RMS distortion: 0.267%
Material: 3D Technology Consisting of but not limited to Epoxy resin and Delrin materials
Product Notes: Adjustable Drop Counterweight, Azimuth side weights, VTA, and Limo Connection.
Available Upgrades:
-
Periphery Ring clamp for the ultimate in record warp reduction
-
Analog Drive System (ADS) for the utmost accuracy in motor speed and fine speed adjustments.
-
Avenger Rim-Drive
-
Avenger Reference Magnetic Drive
-
Avenger Reference Feet
-
JMW-12-3DR
-
Fatboy Tonearm
-
Additional JMW Tonearms
-
Additional Arm boards for third-party arms
Resources, Awards, and Reviews
Chassis Composition: Aluminum and machined acrylic

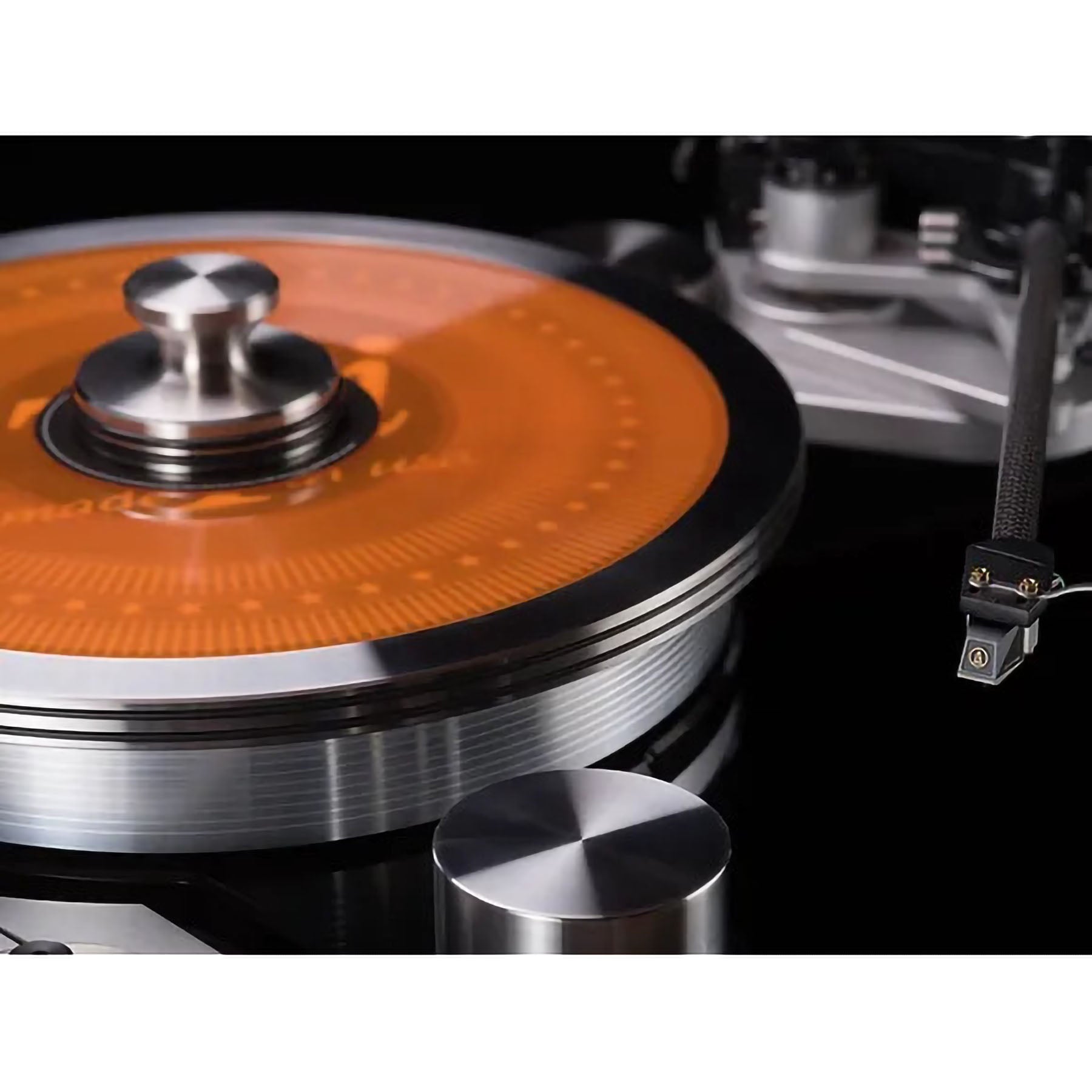

Platter Type & Size: 12" Aluminum Platter, 25LBS
Tonearm Included: JMW-12

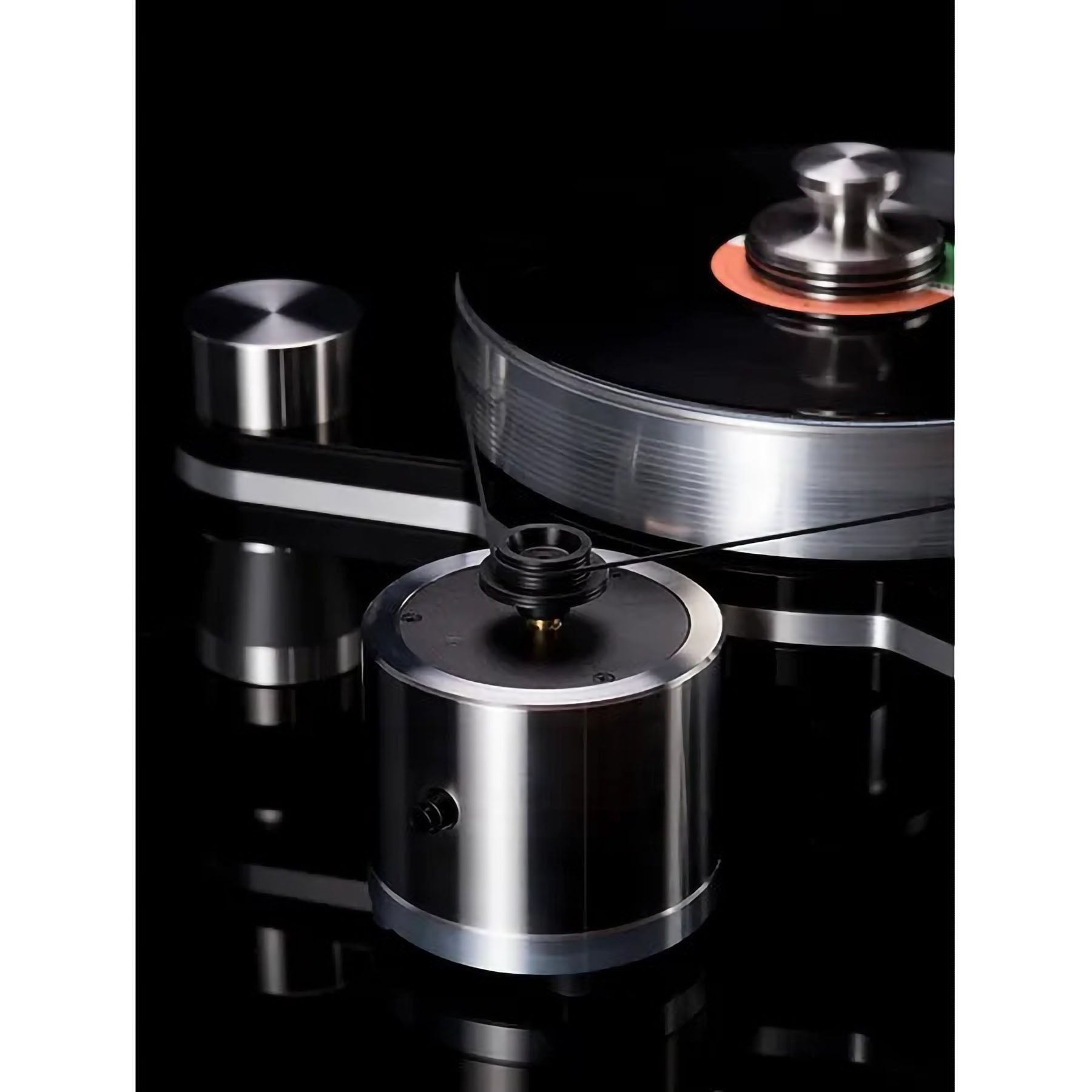

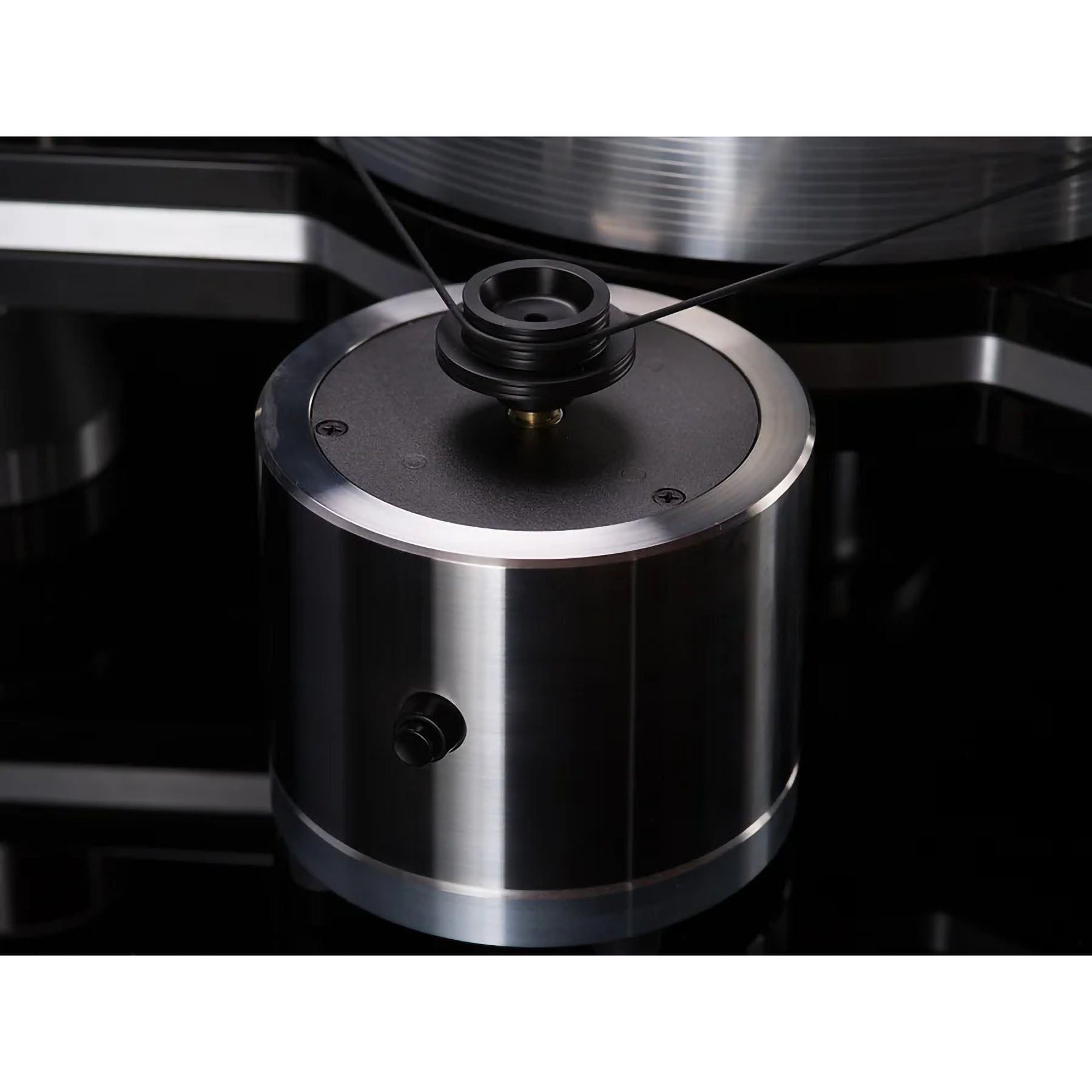

Motor: 300 RPM, 24 pole, AC synchronous motor
Wow and flutter: .03%
Speed Accuracy: .04%
Rumble: 82db down
Footprint: 23" x 20"
Overall Size: 27" x 23" x 10"
Total Weight: 68 lbs
