VPI Avenger Reference Turntable
VPI Avenger Reference

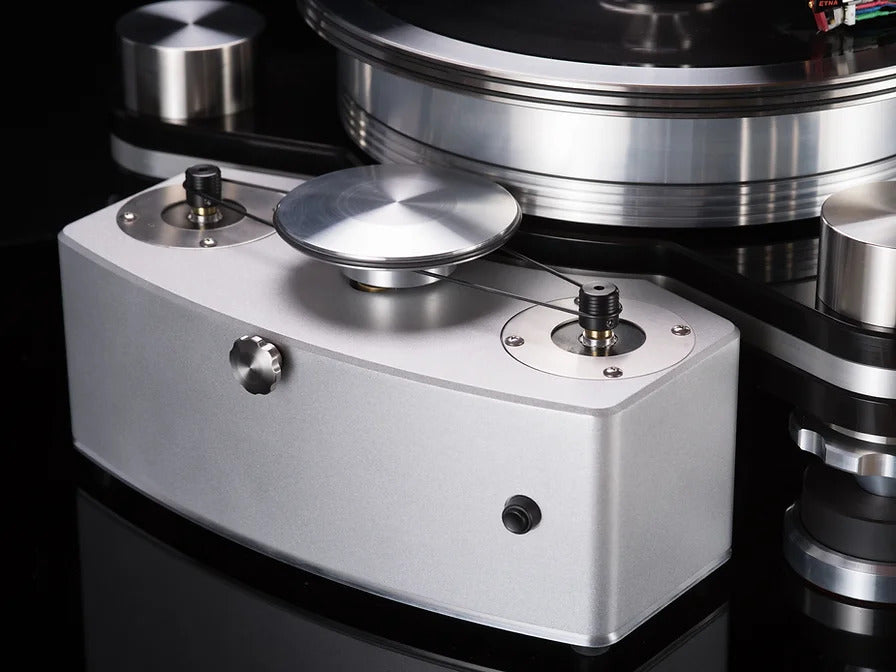

The final and polished for of the VPI Avenger Reference. This model went through an evolution with the creation of our top-of-the-line Titan turntable using the same concept of the rim drive motor assembly driving the magnetic platter. The magnets are machined into the platter at the center and do not interfere with the owner’s cartridge. Our methodology is the ultimate vibration filter for a high-end system.

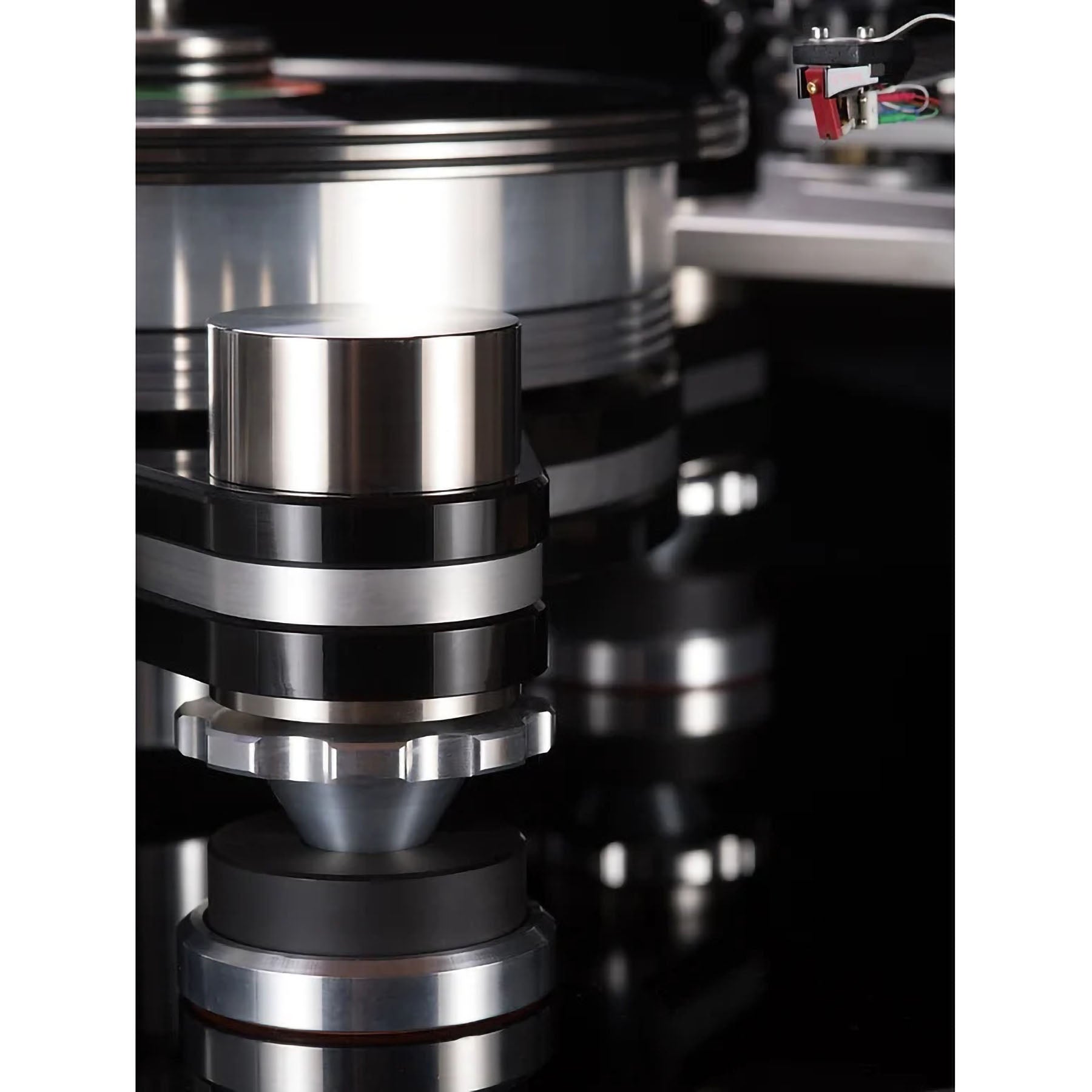

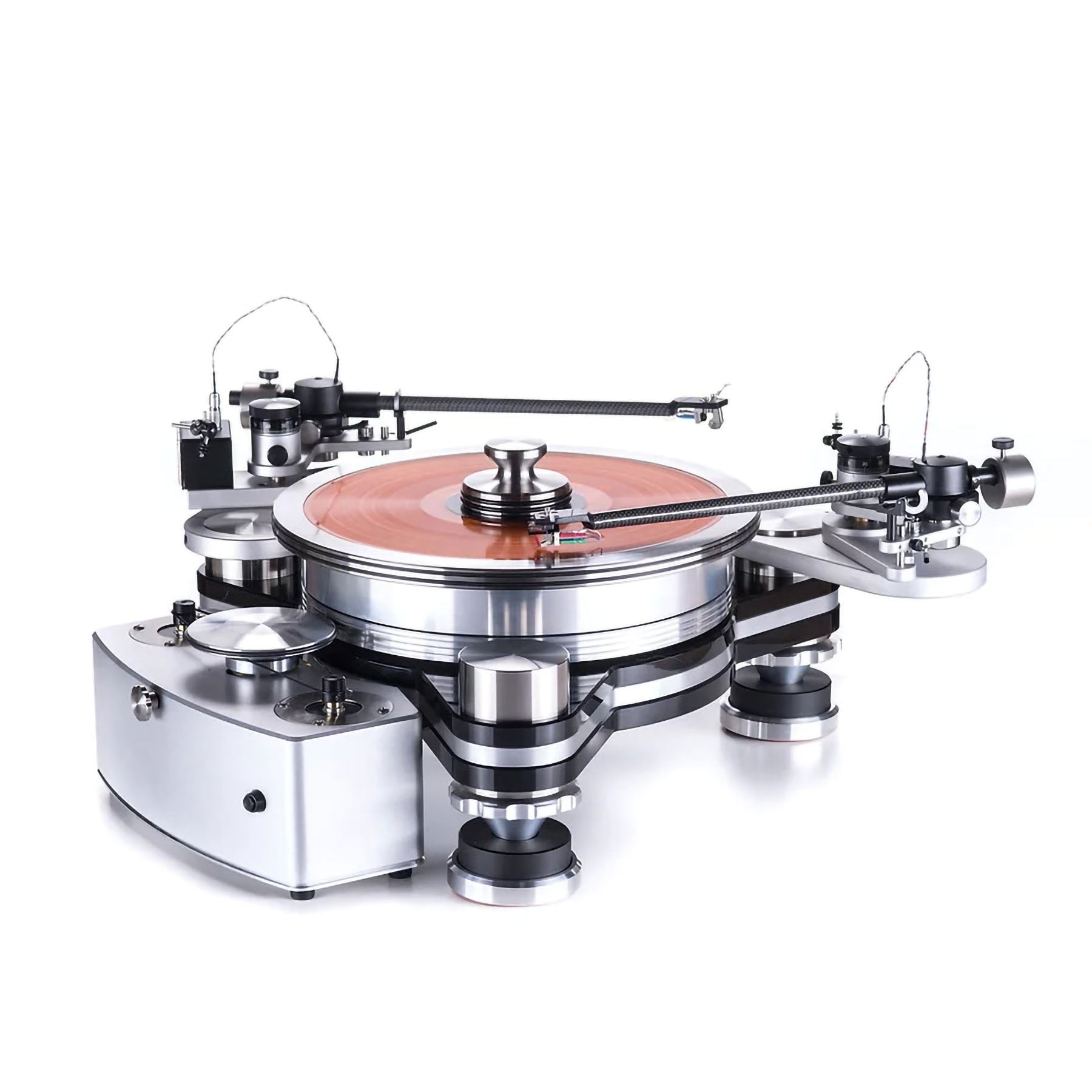

The VPI Avenger chassis is three layers of bonded acrylic/aluminum/acrylic, with damping material between layers, locked in by 3 isolation steel corner posts, 3 bolts, and the massive bearing assembly. The corner posts which hold the tonearms (up to three will fit) have adjustable machined knobs giving the user the ability to easily raise and lower the height to level the table. The corner posts connect to the cone stabilizers which sit in a machined Delrin/ball bearing isolation base reminiscent of the same used on the Prime turntable. Fully adjustable arm boards are made from 5/5” 6061 aluminum for rigidity and grounding. The table can mount up to three arms, any manufacturer's brand, and any length!

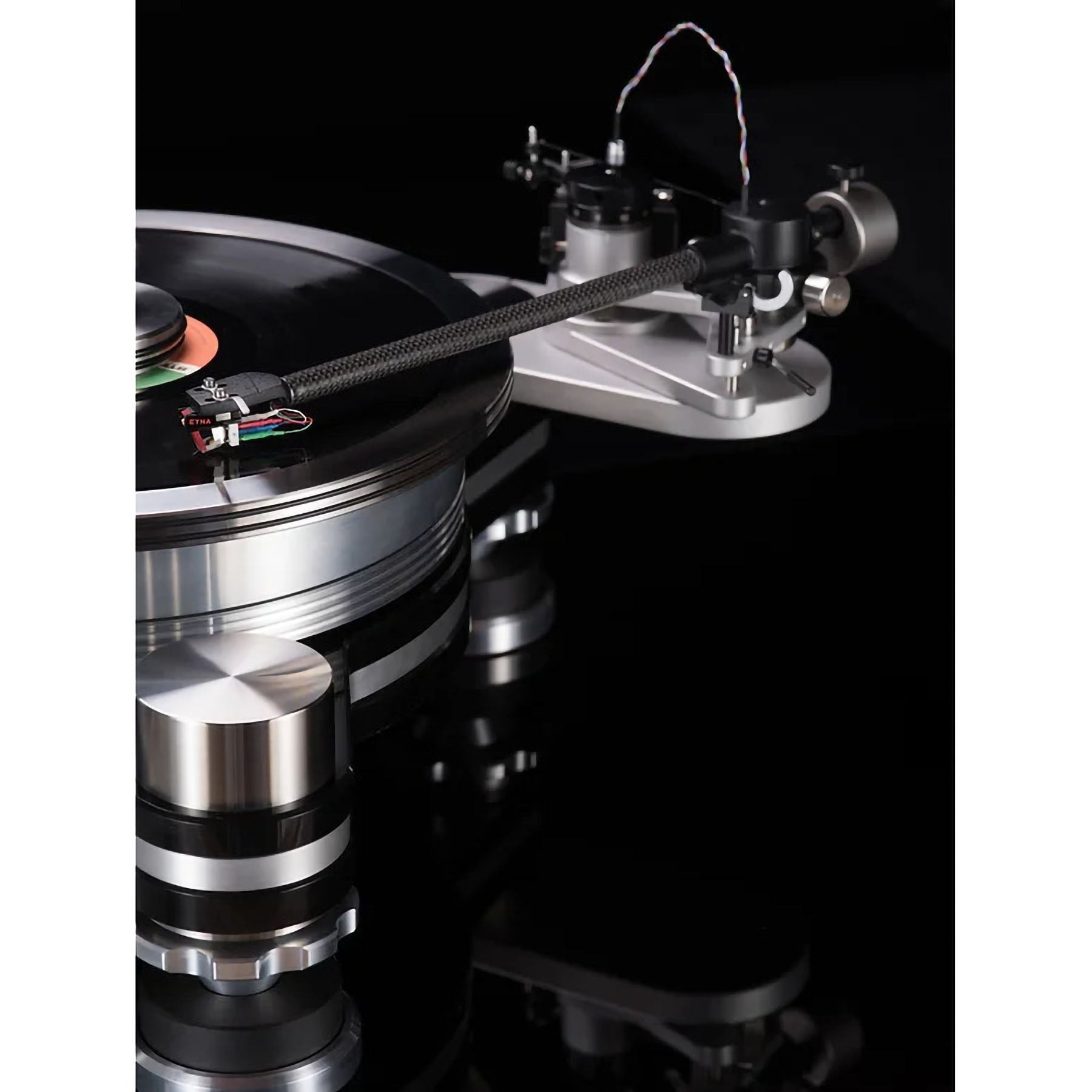

VPI Fatboy Gimbal 12-3D
Bearing Type: Full Gimbal Bearing
Pivot to spindle: 300 mm
Internal Wire: Nordost Reference Wire
Effective length: 313.0 mm
Effective mass: 12.5g.
Overhang: 13mm
Offset angle: 17.37 degrees
Average RMS distortion: 0.267%
Material: 3D Technology Consisting of but not limited to Epoxy resin and Delrin materials, copper, aluminum, and steel
Product Notes: Adjustable Drop Counterweight, Azimuth side weights, VTA, and Limo Connection.
Available Upgrades:
-
Additional Tonearms
-
Additional Arm boards for third-party arms
-
Pneumatic Air Suspension feet
Resources, Awards, and Reviews
Chassis Composition: Aluminum and machined acrylic
Platter Type & Size: 12" Aluminum Platter, 25LBS
Tonearm Included: Fatboy Gimbal 12-3D
Motor: 300 RPM, 24 pole, AC synchronous motor
Wow and flutter: .03%
Speed Accuracy: .04%
Rumble: 82db down
Footprint: 23" x 20"
Overall Size: 27" x 23" x 13"
Total Weight: 85 lbs
