Unison Research
Unison Research Unico CD Due CD Player and DAC
Unico CD Due
The Unico CDDue brings Unison Research right into the popular and versatile digital audio world.
Not just a CD player, the Unico CDDue combines a high-level DAC with Valve output stage, a top-end CD mechanism. It’s feature-rich, flexible and customizable to the listener’s preference. A variety of external sources can be connected to the Unico CDDue, including a laptop or computer for playing all known audio formats – including DSD – via USB and Bluetooth connectivity.
The hybrid design provides a rich tube sound suitable for high-end audio systems.
After ignition, the lamps warm up for about 30 seconds, and the output stage is turned off to prevent unnecessary stresses on the amplifier due to transient signals that appear before the lamps reach operating temperature. On the front, there is a disc tray, a 128 x 64 pixel graphic display, an IR sensor for the remote control, control buttons and a main switch (on the side).

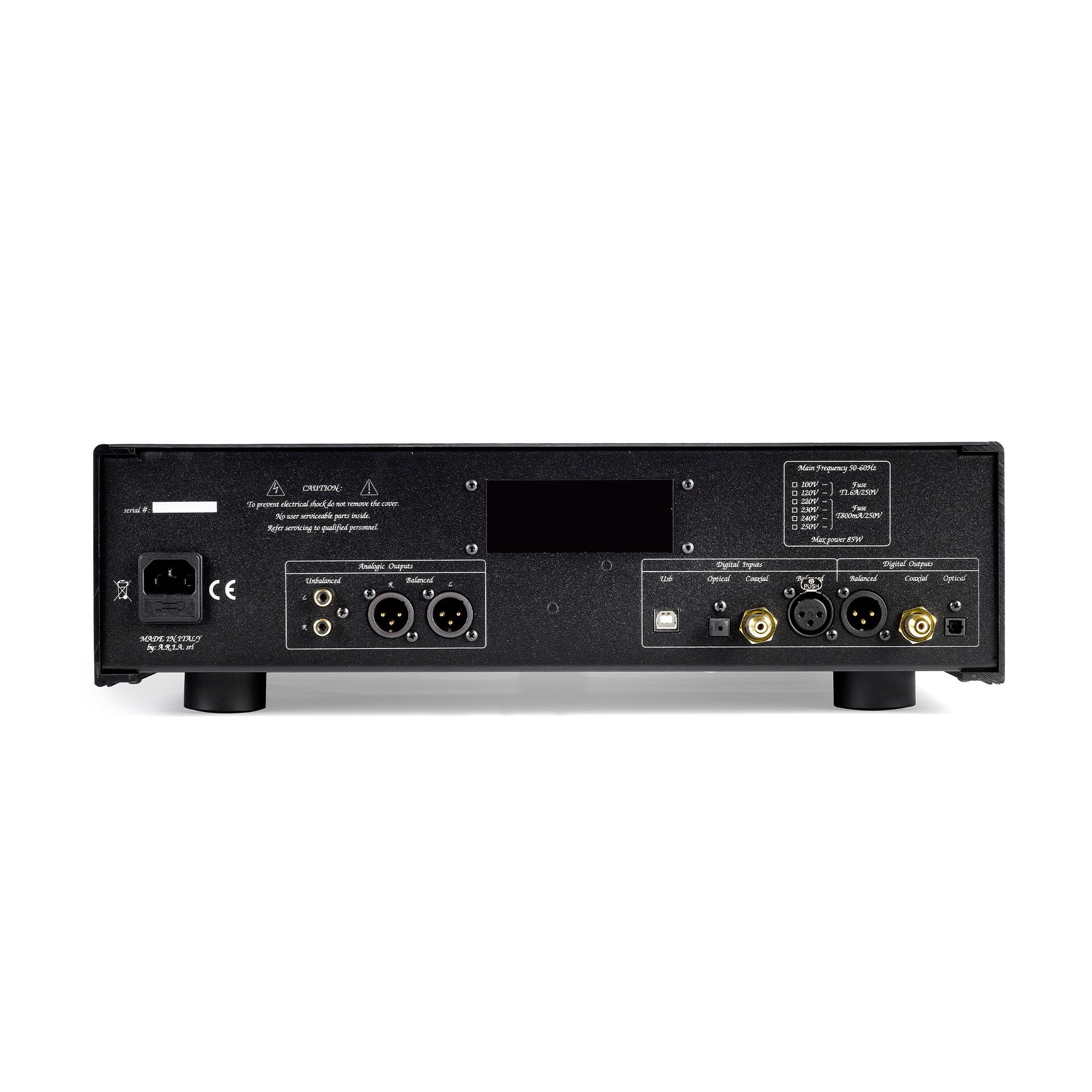

On the back there is a network connection, unbalanced and balanced outputs, Bluetooth antenna, digital inputs (USB, TOSLINK, S/PDIF, AES/EBU) and digital outputs (AES/EBU, S/PDIF, TOSLINK).
Key Features:
- High-quality CD and DAC Player
- Back-lit OLED display for information feedback
- Intuitive user interface based around RC2 remote control
- 4 x ECC83 valve output stage
- ESS Sabre DAC
- aptX Bluetooth
- Premium sand-blasted Silver finish or Black finish
Transport:
|
8829CD-KHM DVD-Loader
|
Digital Interface:
|
128 x 64 white OLED Graphic Display
|
DAC:
|
ESS Sabre ES9018k2M with Jitter Eliminator
|
Signal-to-Noise Ratio:
|
128dB (0dBFS, 1kHz, “A” weighted)
|
I/V Converter::
|
AD8597/AD8599
|
Inputs:
|
USB
S/PDIF AES/EBU Toslink aptX Bluetooth |
Sampling Frequencies:
|
44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, DSD64, DSD128, DSD256
|
Output:
|
S/PDIF
AES/EBU Toslink RCA Stereo XLR Stereo |
Output Stage:
|
Double Triode, Pure Class A differential Totem-pole 4 x 12AX7/ECC83 Valves
|
Power Consumption:
|
100W (max.)
|
Dimensions (W x D x H):
|
45 x 38 x 13cm
|
Net Weight:
|
10kg
|
