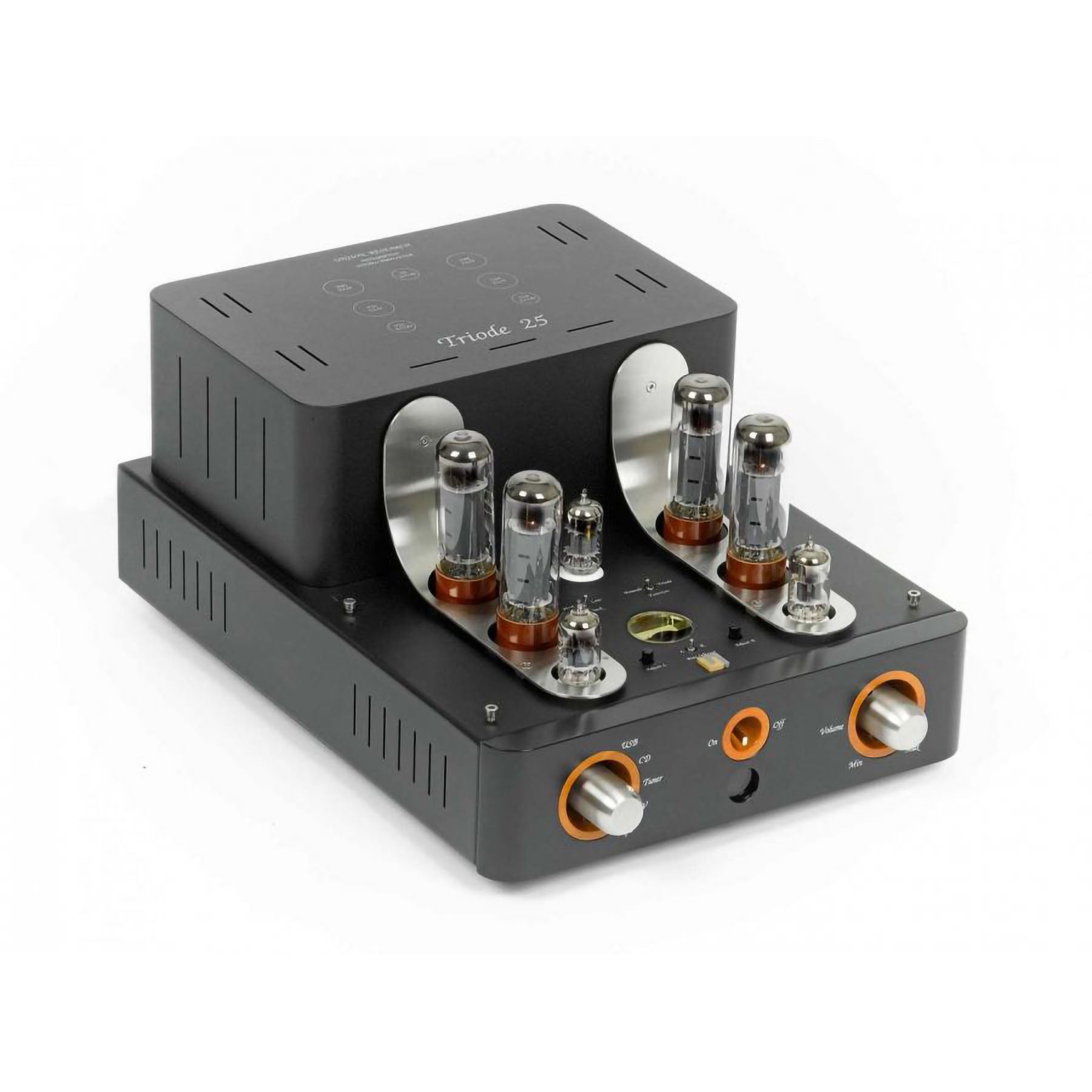

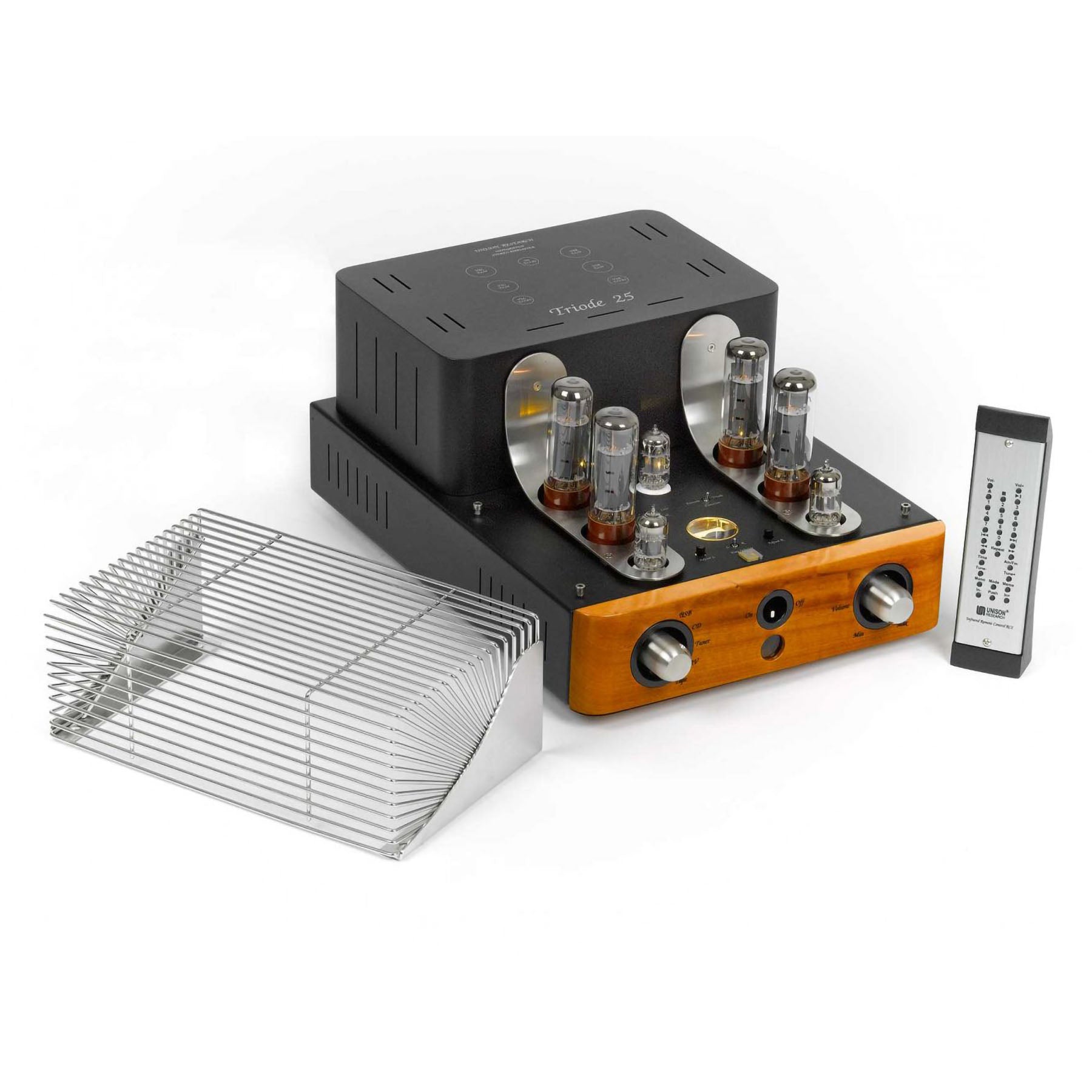

Unison Research Triode 25 Integrated Amplifier
Model
Unison Research Triode 25 Integrated Amplifier
Cherry / TRIODE 25 Only
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: Italy
Triode 25
Three amplifiers symbolize the success of Unison Research: the Simply Two, the Triode 20 and the legendary Absolute. On the occasion of the 25th anniversary of the birth of Unison Research, we pay homage to these historic devices by offering the Simply Two and the Absolute in a limited and numbered “Anniversary” edition. We’ve also decided to offer a completely new version of the Triode 20 and named it, quite appropriately, the Triode 25.
The new Triode amplifier 25 has experienced a long and painstaking design and testing period despite the considerable experience already gained in the construction of its predecessor, the Triode 20. The Triode 25 can operate in two modes: triode and pentode. The latter is capable of delivering a maximum power output of over 45 watts per channel with a load of 6 ohms with harmonic distortion extremely contained across the entire audio band.
Key Features:
- Push-pull integrated valve amplifier
- 32-bit, DSD-compatible USB input for streaming from a computer
- Switchable Triode and Pentode modes
- Premium design throughout
- Locally sourced materials
- Based on the long-standing Triode 20 design

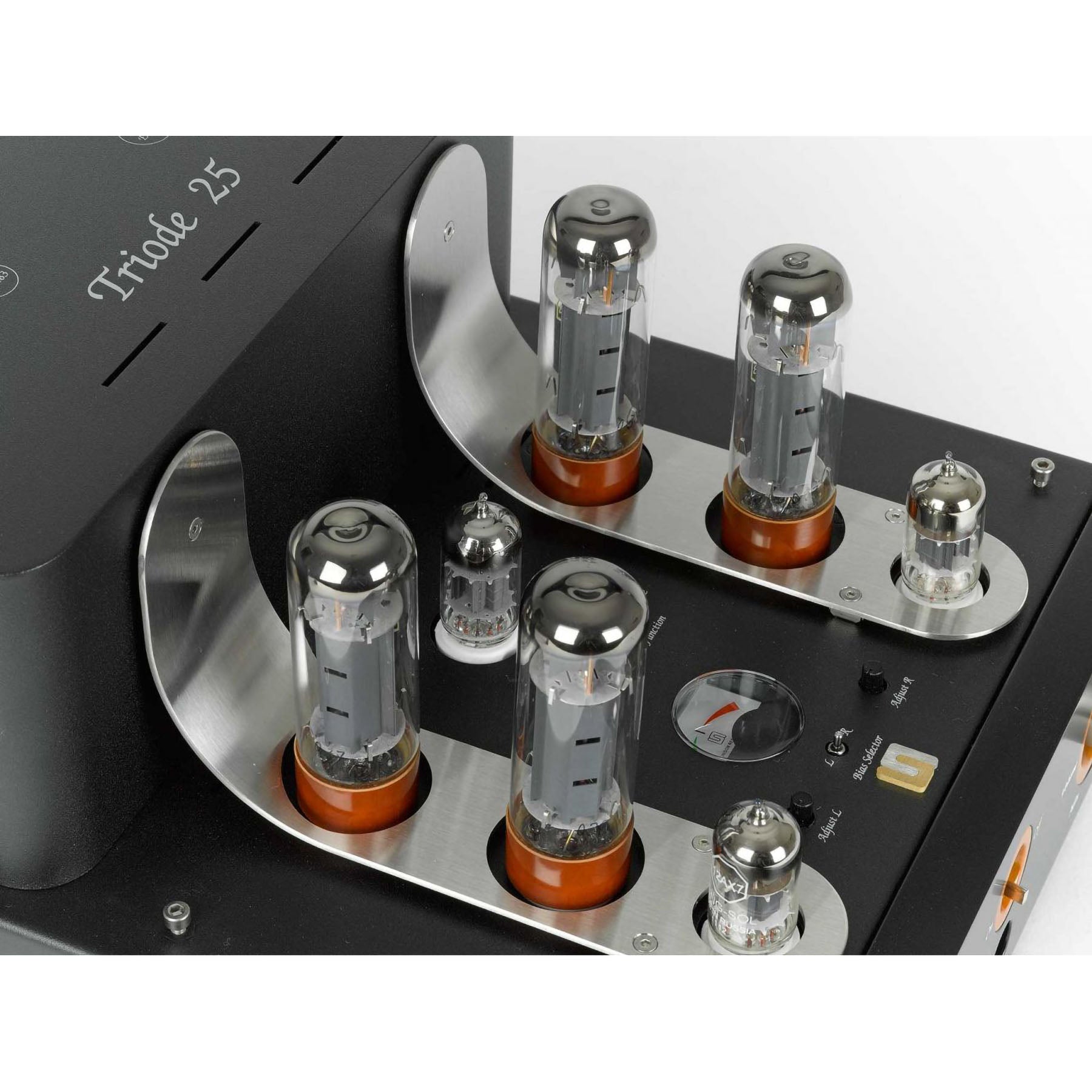

- EL34 tubes in the output stage
- RC2 remote with black wood finish included
- Premium Cherry Wood front panel (as standard, Black finish available to special order)
Output Stage: | Push-Pull, Ultralinear, Class-AB |
Output Power (per-channel): | 45W in Pentode mode 25W in Triode mode (approx.) |
Output Impedance: | 6O |
Input Impedance: | 47kO / 50pF |
Negative Feedback: | Switchable, 5dB or 1.8dB |
Valves: | 2 x ECC83 (12AX7) 1 x ECC82 (12AU7) 4 x EL34 (6CA7) |
Power Consumption: | 300W max. |
Fuses: | T3.15A (220 - 250V) |
Dimensions (W x D x H): | 30 x 45 x 20cm |
Net Weight: | 20kg |
