Unison Research Simply Italy Integrated Tube Amplifier
Unison Research Simply Italy Integrated Tube Amplifier
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: Italy
Simply Italy
We’ve taken what we’ve learned from designing our largest amplifiers, and applied to this small yet brilliant gem. The Simply Italy integrated amplifier builds on the legendary strengths of the Unison Research Simply Two, one of the most successful integrated amplifier designs in the world. This new integrated amplifier, thanks to more efficient engineering, provides better sound quality as well as better reliability and tube life.
In addition, an optional USB DAC board can be installed.
The Simply Italy was inspired by the iconic Simply Two integrated amplifier from Unison Research, and produced to celebrate the 150th anniversary of Italian unification. It's been designed to be faithful to the Unison Research tradition, by making it an integrated amplifier design that sounds great and pays attention to important audio engineering principles that reduce performance-affecting interference.
Because of the overwhelming success of the design, the Simply Italy shares many of the design features of the Simply Two. Both are ultra-linear, single-ended Class A designs that produce 12W per channel, and both use EL34 valves in the output stage and ECC82 valves in the pre-amp and driver stages to achieve Unison Research's trademark imaging, clarity and musical precision. But the Simply Italy offers a wide range of new features that were designed and developed more recently.
First, the output impedance has been adjusted from 8Ω to 6Ω, making the amplifier compatible with a greater variety of loudspeakers. Also, since a true dual-mono configuration would be impractical in such a compact amplifier, Unison Research designed a new “Quasi-Dual-Mono” power supply. In this configuration, the power transformer and first filter stage of the power supply are doubled, separating all pre-amp stages to allow for lower cross-talk and low distortion.
Thanks to Unison Research's ability to design specialised transformers in house, the Simply Italy is able to have an output stage consisting of one EL34 in a single-ended ultra-linear configuration. This mode of operation for the output transformers allows the pentode EL34s to operate almost as if they were triodes. Furthermore, an additional toggle switch allows for an adjustment of negative feedback in the circuit. This means the sound character of the amplifier can be adjusted to suit specific types of music or listening environments.

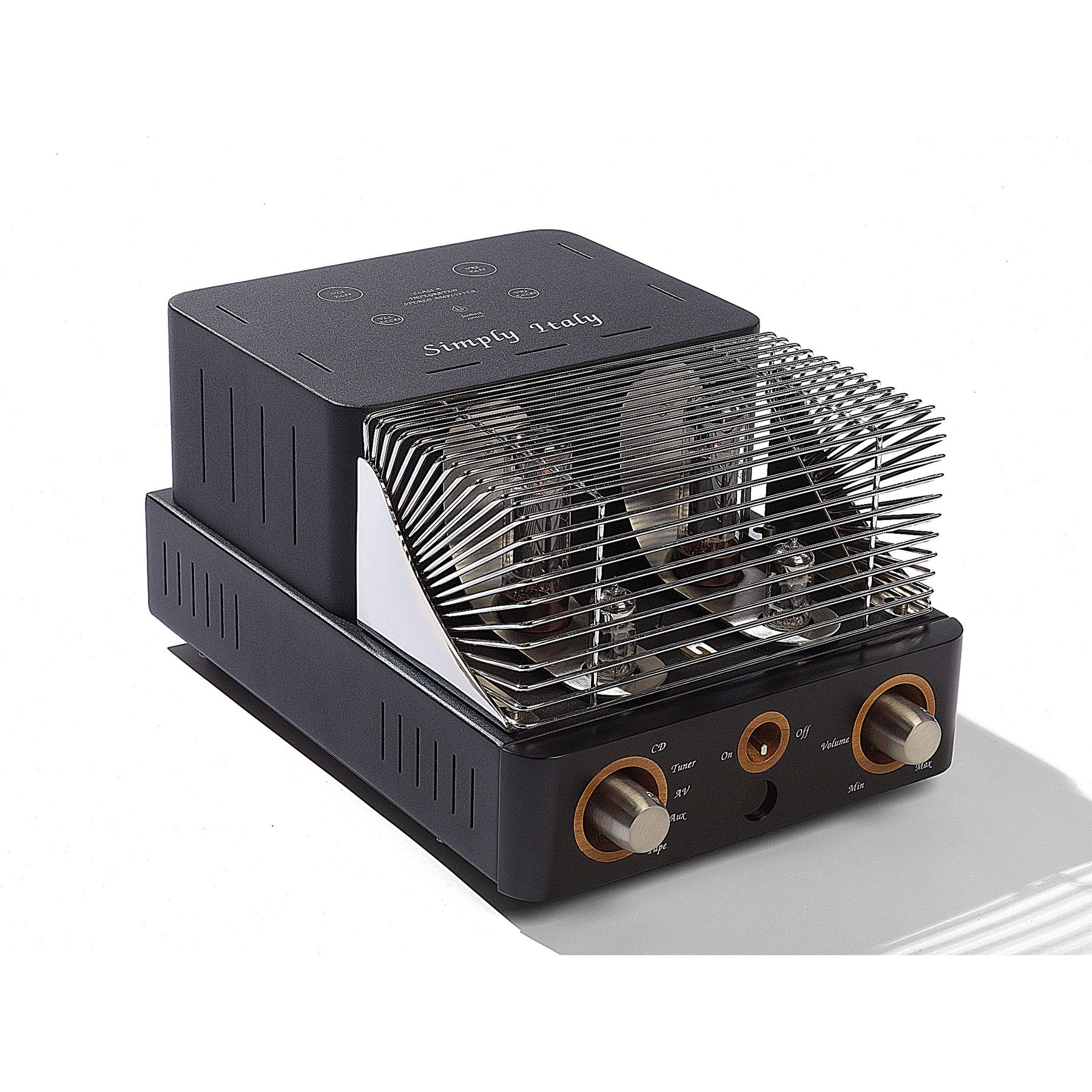

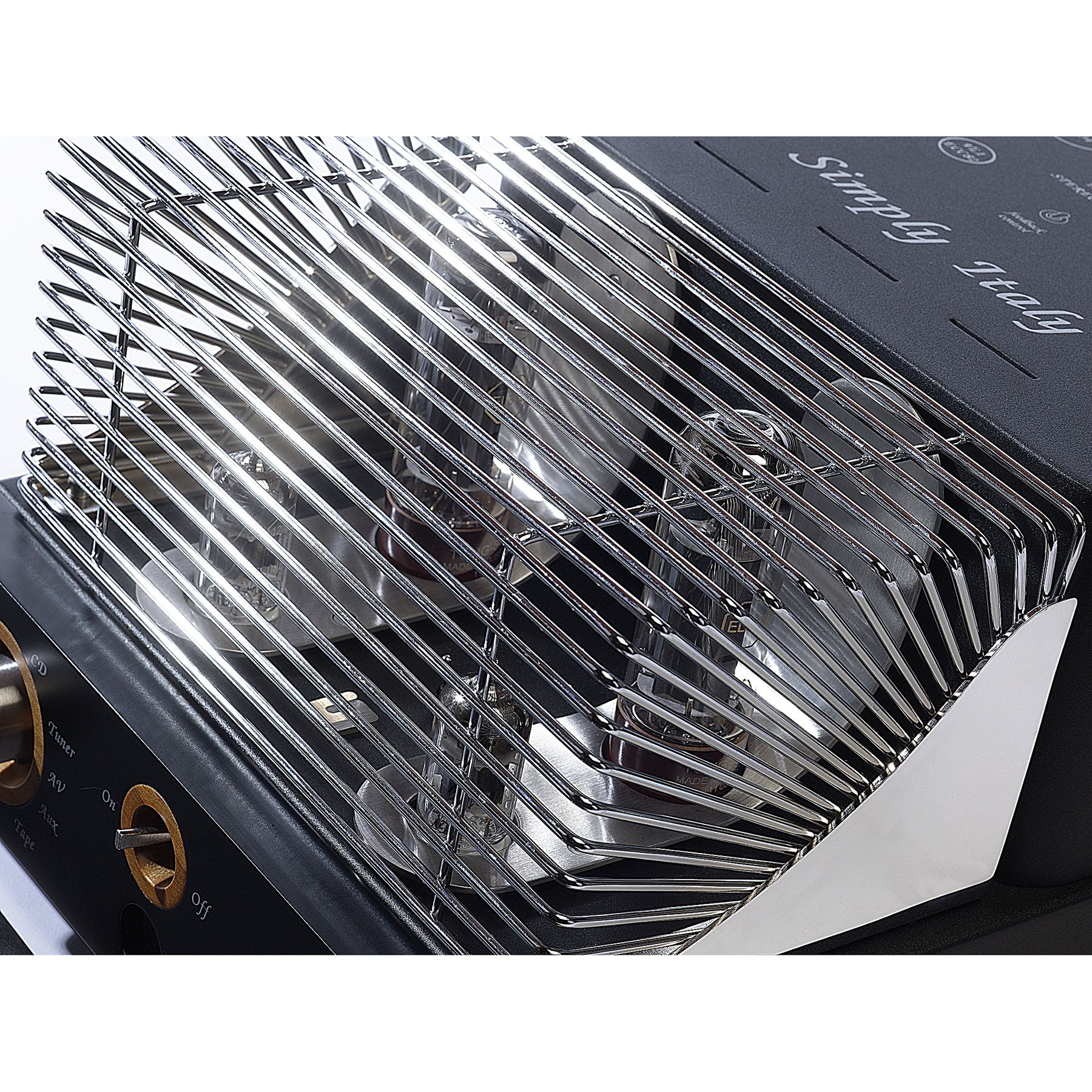

The appearance of the Simply Italy has undergone radical changes, when compared to the Simply Two. The front panel is a locally-sourced wood that's accented by contrasting wood inserts around the controls, that also acts as an anti-resonant support for the metal chassis. Then two stainless-steel bands beneath the valves add a touch of refinement, while additionally aiding performance by thermally isolating the valves from the electronic circuitry and output transformers. Finally, the control knobs are made from non-magnetic stainless-steel with a sufficient diameter and weight to provide a smooth 'flywheel' effect with excellent feel and rotational precision.

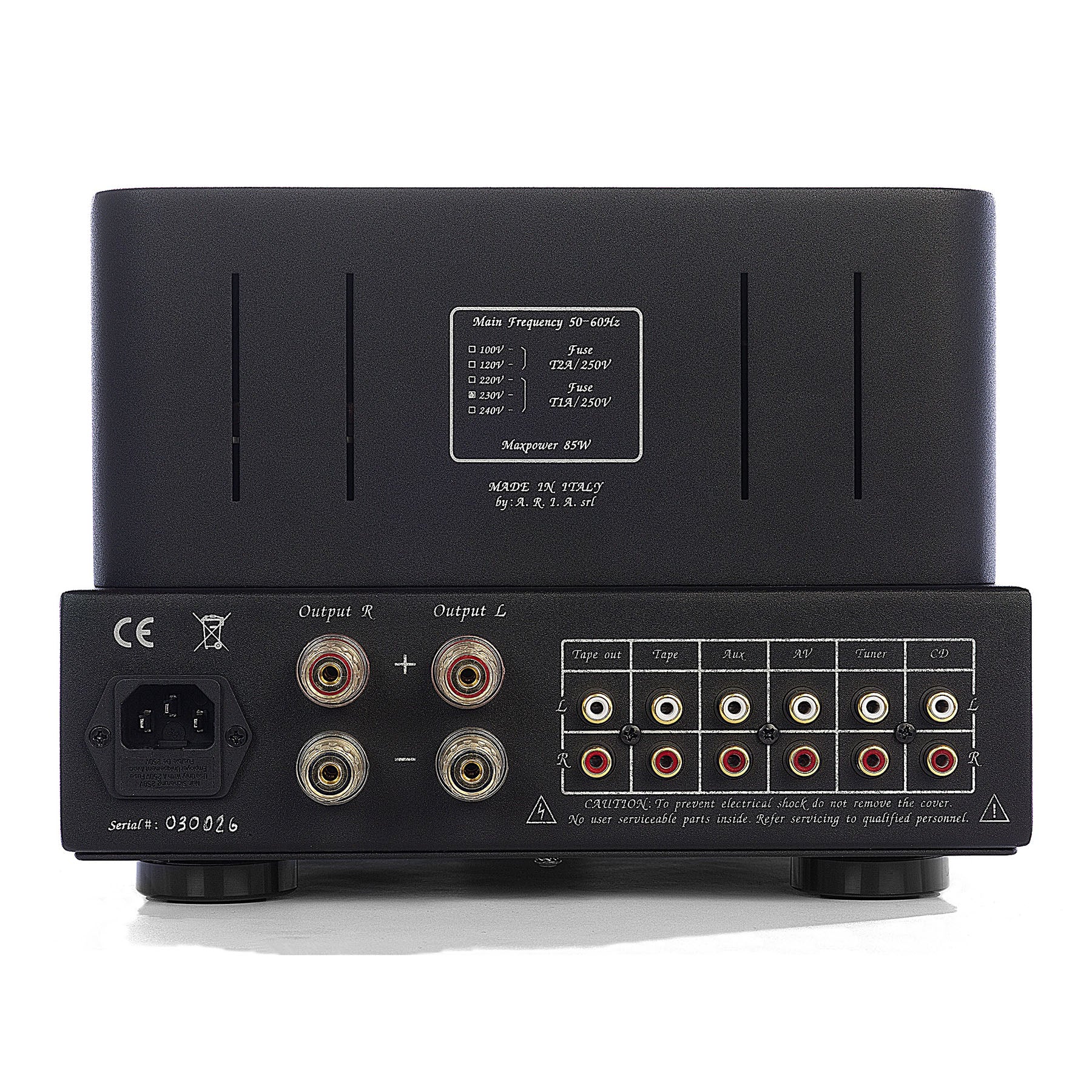

The Simply Italy is supplied with an infra-red remote handset which allows for convenient control over input switching and the premium motorised volume pot from ALPS. The back panel is finished with four large gold-plated terminal connectors that allow any type of loudspeaker cable to be connected easily, alongside clearly marked RCA inputs for multiple audio sources.
Key Features:
- Ultra-linear, single-ended Class A integrated amplifier
- Based on the iconic Simply Two design
- Combination of EL34 and ECC82 valves used
- 6Ω output impedance for easier speaker matching
- Specially designed power supply to suit compact size
- Switchable toggle for changing effects of negative feedback
- Wood panel front plate adds extra damping to metal casework
- Clearly-labelled inputs and outputs
- IR remote allows for convenient operation
- RK27 Series motorised potentiometer from ALPS used for the volume pot
- RC2 remote included
Type: | Stereo Integrated Valve Amplifier |
Output Stage: | Single-Ended, Ultra-Linear, Class A |
Output Power: | 12W per-channel (approx.) |
Output Impedance: | 6Ω |
Input Impedance: | 47kΩ / 50pF |
Negative Feedback: | Switchable, 5dB or 1.8dB |
Valves: |
2 x ECC82 (12AU7) 2 x EL34 (6CA7) |
Power Consumption: | 85W |
Fuses: | T1A from 220V-240V |
Dimensions (W x D x H): | 26 x 35 x 19cm |
Net Weight: | 15kg |
