TRIANGLE Secret LCR7 In-Wall Speaker
In-wall Speaker –Secret LCR7

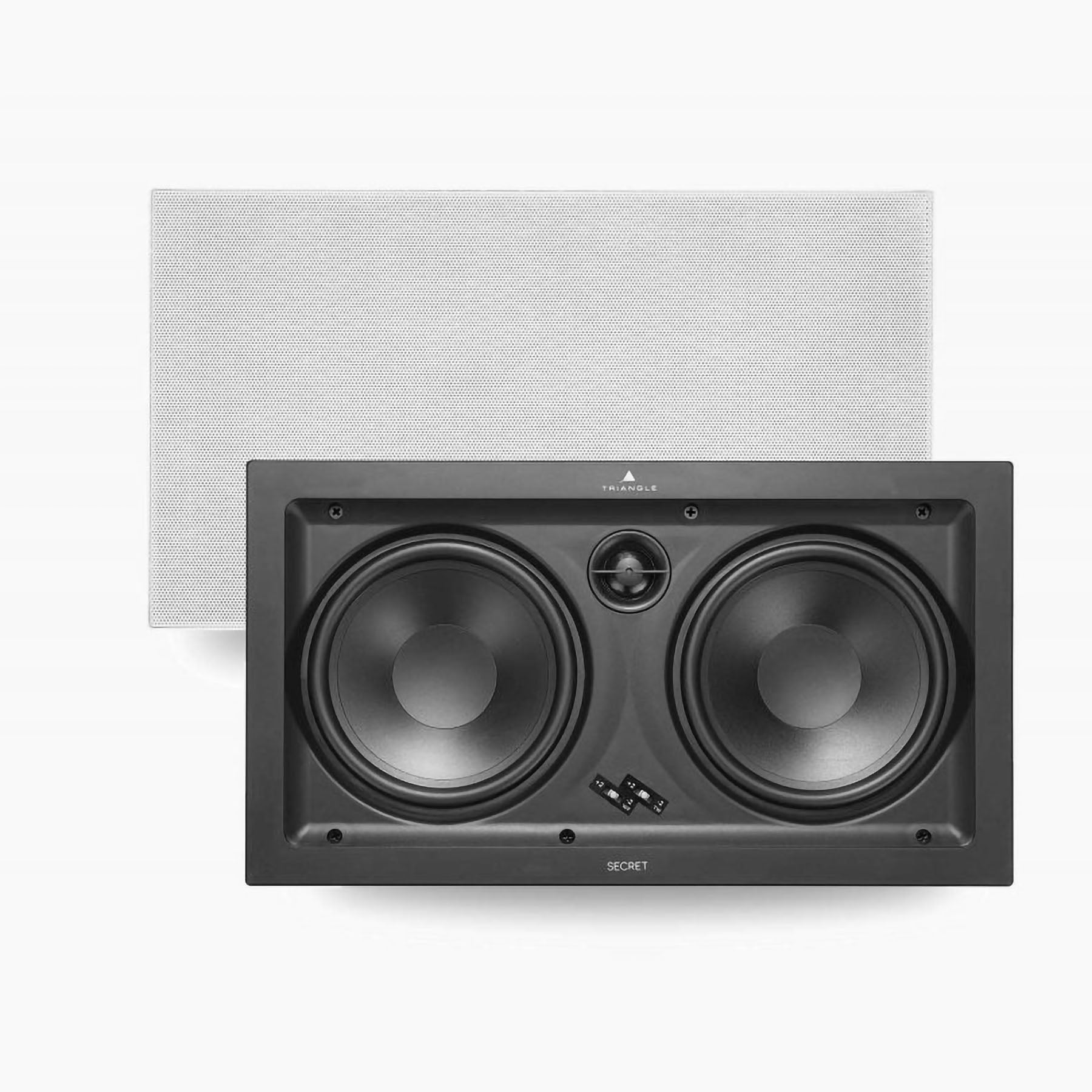

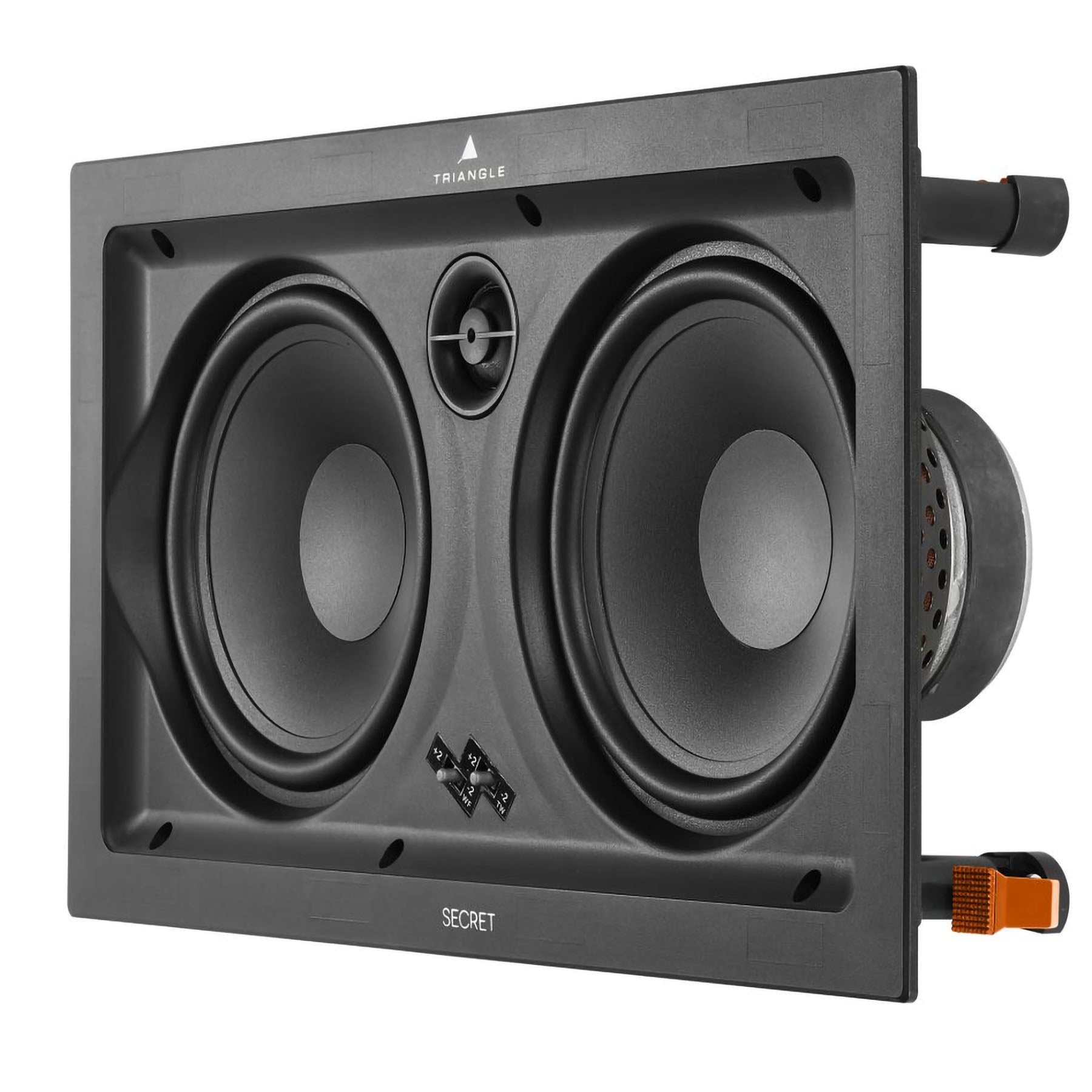

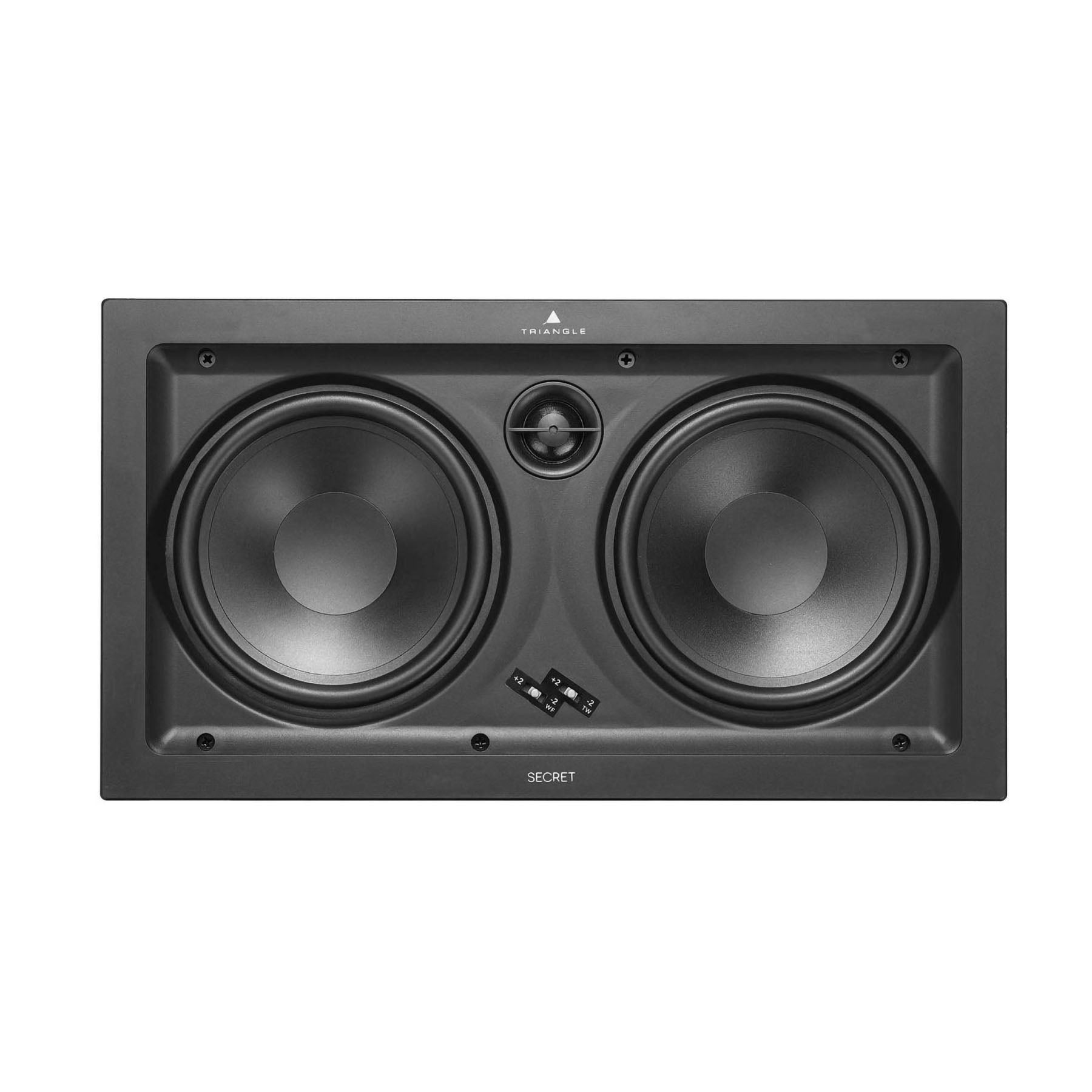

The SECRET LCR7 is a 2-way in-wall speaker equipped with two 170mm midrange/bass drivers with a polypropylene membrane, and a 25mm adjustable silk dome tweeter.
Designed for both stereo and home theater use, the LCR7 is a speaker that excels in both horizontal and vertical positions. You can use them as front, center and surround channels in your stereo and home theater setups. Its ultra-thin and magnetic protection grille can be painted to match the colors of your interior.
Versatility: Music & Home Theater
MUSIC & HOME THEATER
Designed for both stereo and home theater use, the LCR7 is a speaker that excels in both horizontal and vertical positions. You can use them as front, center and surround channels in your stereo and home theater setups.
EASY SETUP

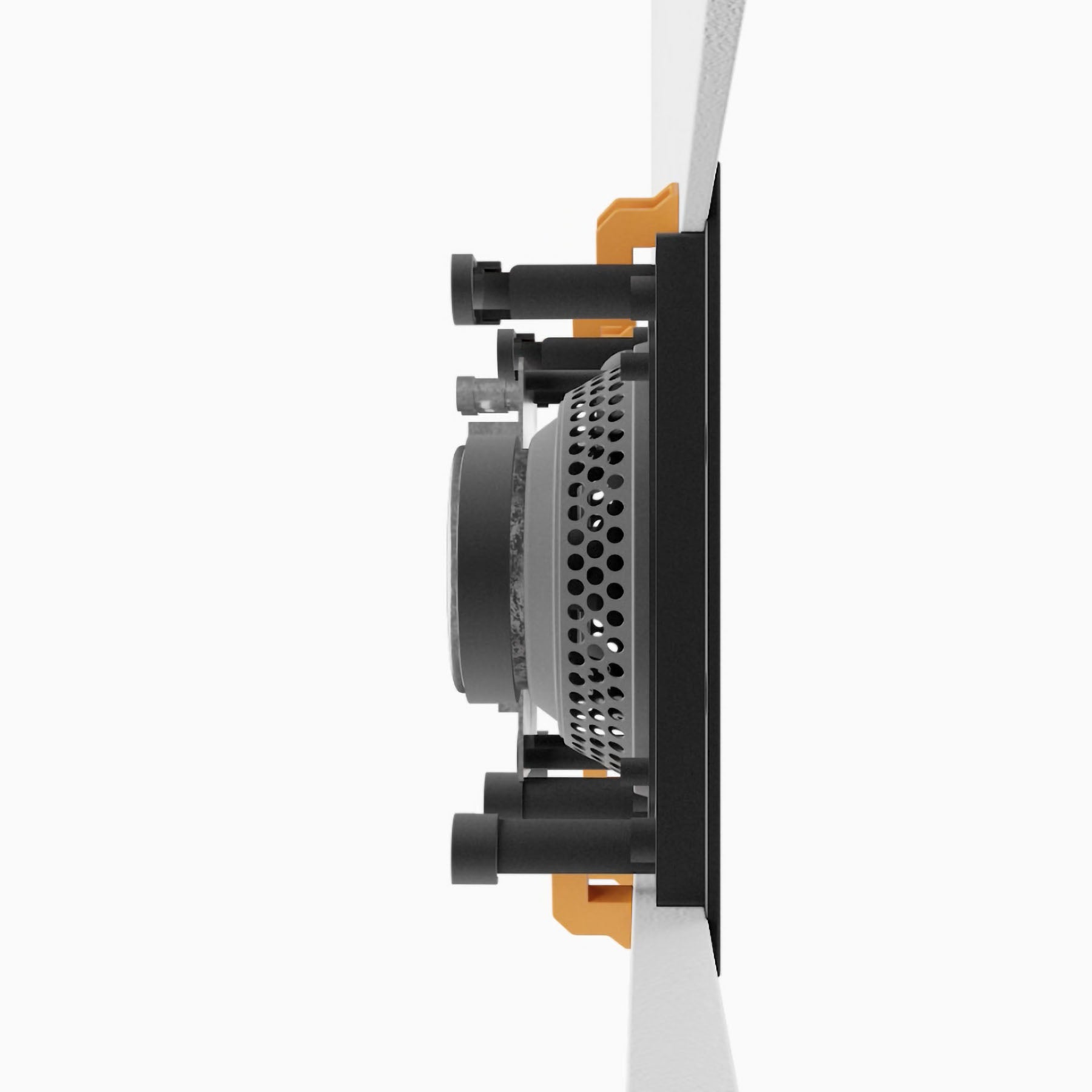

Thanks to its mounting system and shallow depth of 10 cm, the LCR7 is easy to install and guarantees a perfect fit on any type of wall. A mounting template is provided with the speaker for accurate cutting and positioning.
DISCREET INTEGRATION
Its ultra-thin and magnetic protection grille can be painted to match the colors of your interior.
ACOUSTIC EXPERTISE

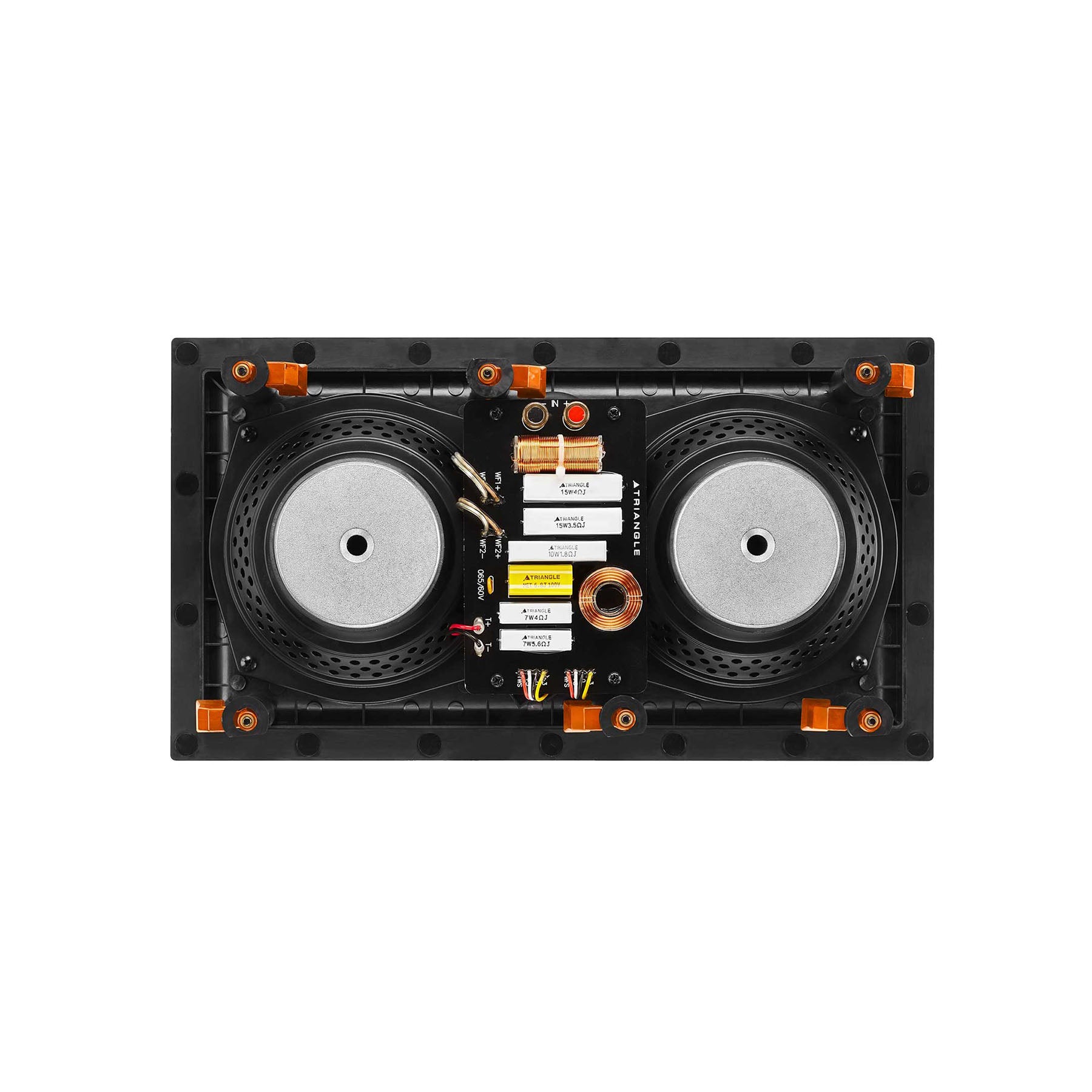

The bandwidth of 60 Hz to 20,000 Hz makes it possible to accurately reproduce every detail of your favorite music or movies. Offering an efficiency of 90dB and a maximum power handling of 140W, the LCR7 will adapt to any type of amplifier. The crossover also features a protection against potential power surges coming from the amplifier.
The terminal has push buttons for easy connection of speaker cables with cross-sections thickness ranging from 1.5 to 5mm2.
ACOUSTIC SETTINGS

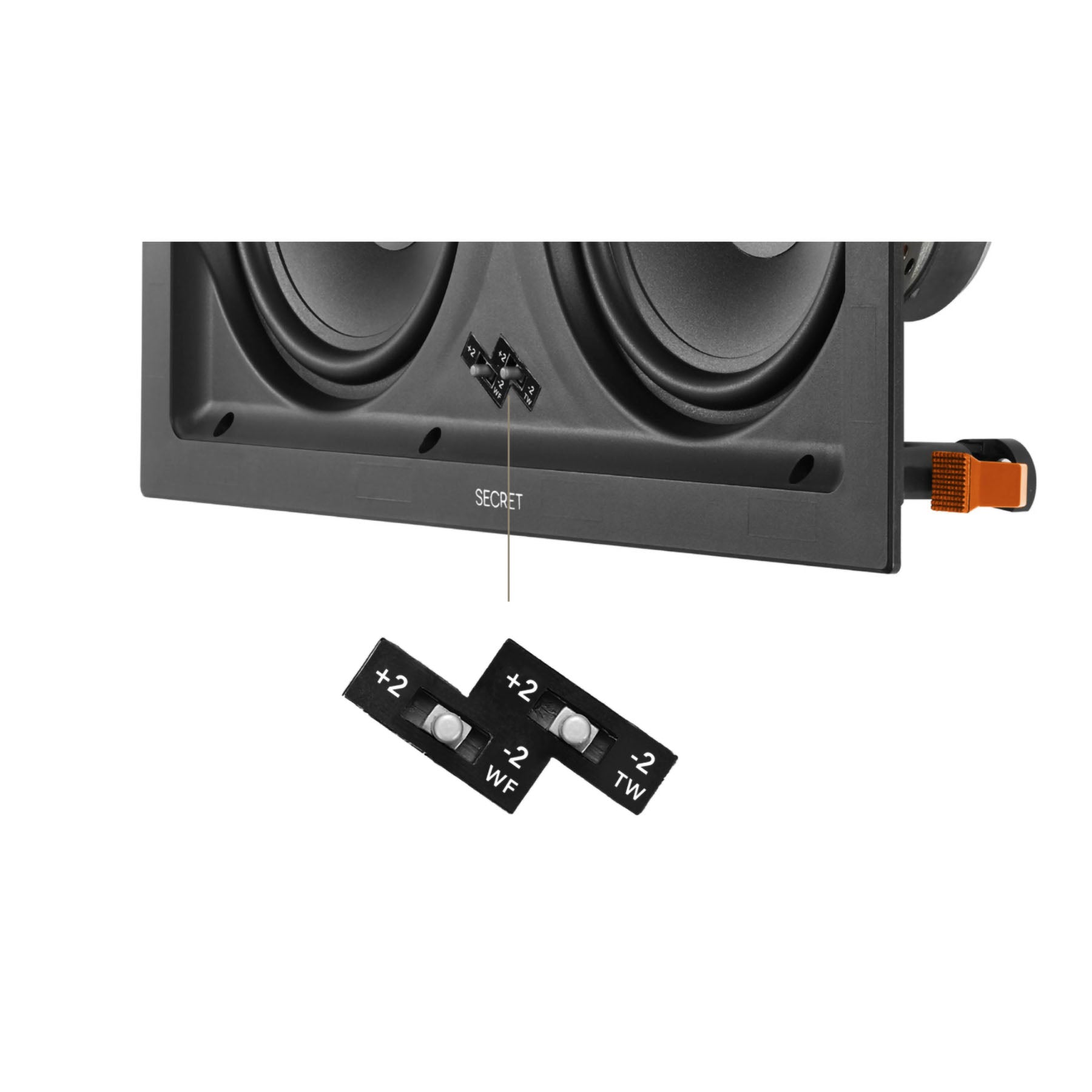

For optimum performance, the speaker adapts to the acoustic environment thanks to various sound settings. The low and high frequency levels can be adjusted in 3 positions (-2dB, 0 and +2dB) and the adjustable tweeter, makes it possible to optimize the listening position.
THE HOME THEATER OF YOUR DREAMS
Take the home theater experience to the next level by creating a high-performance multichannel system with a combination of TRIANGLE in-wall speakers from the SECRET range:
3.1 Setup

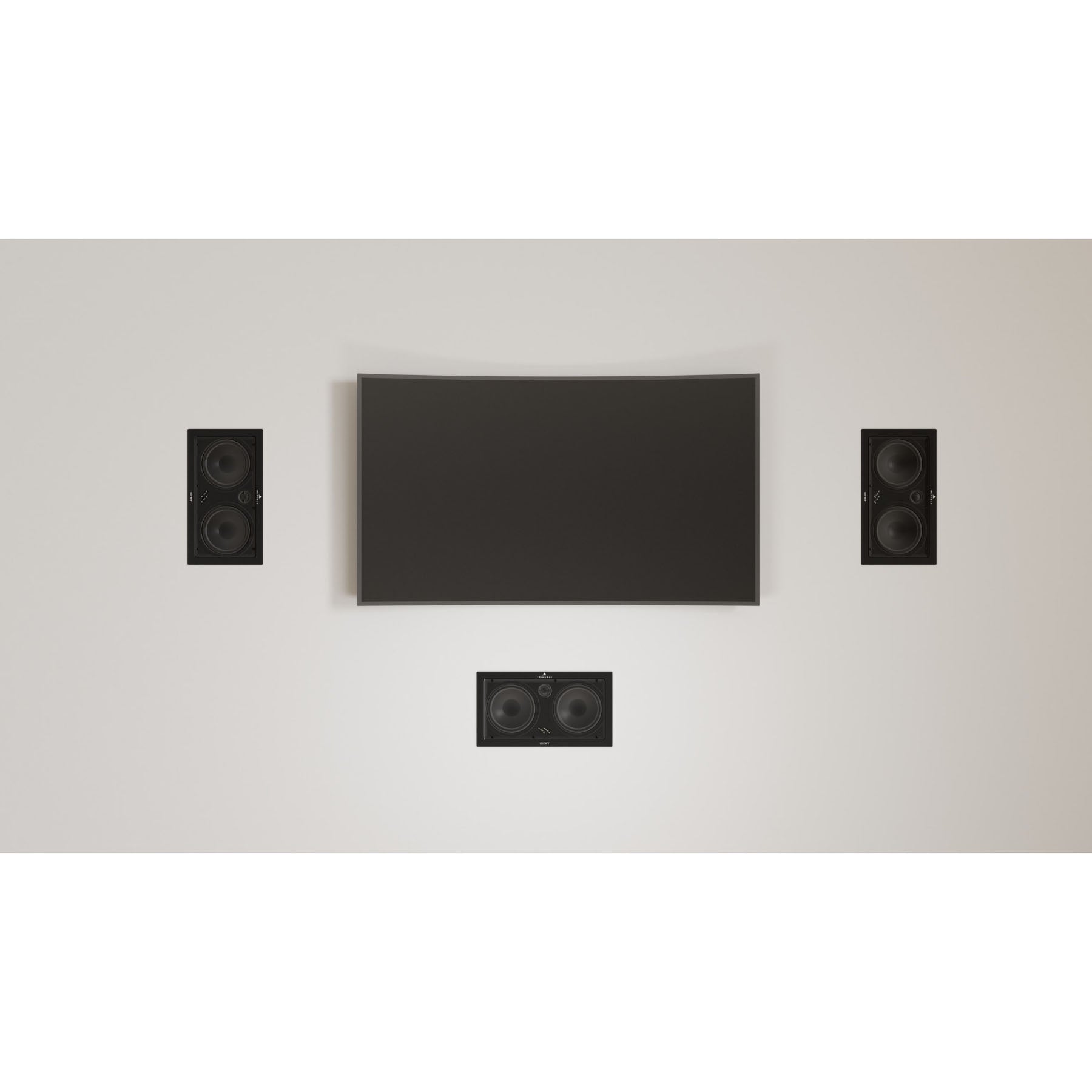

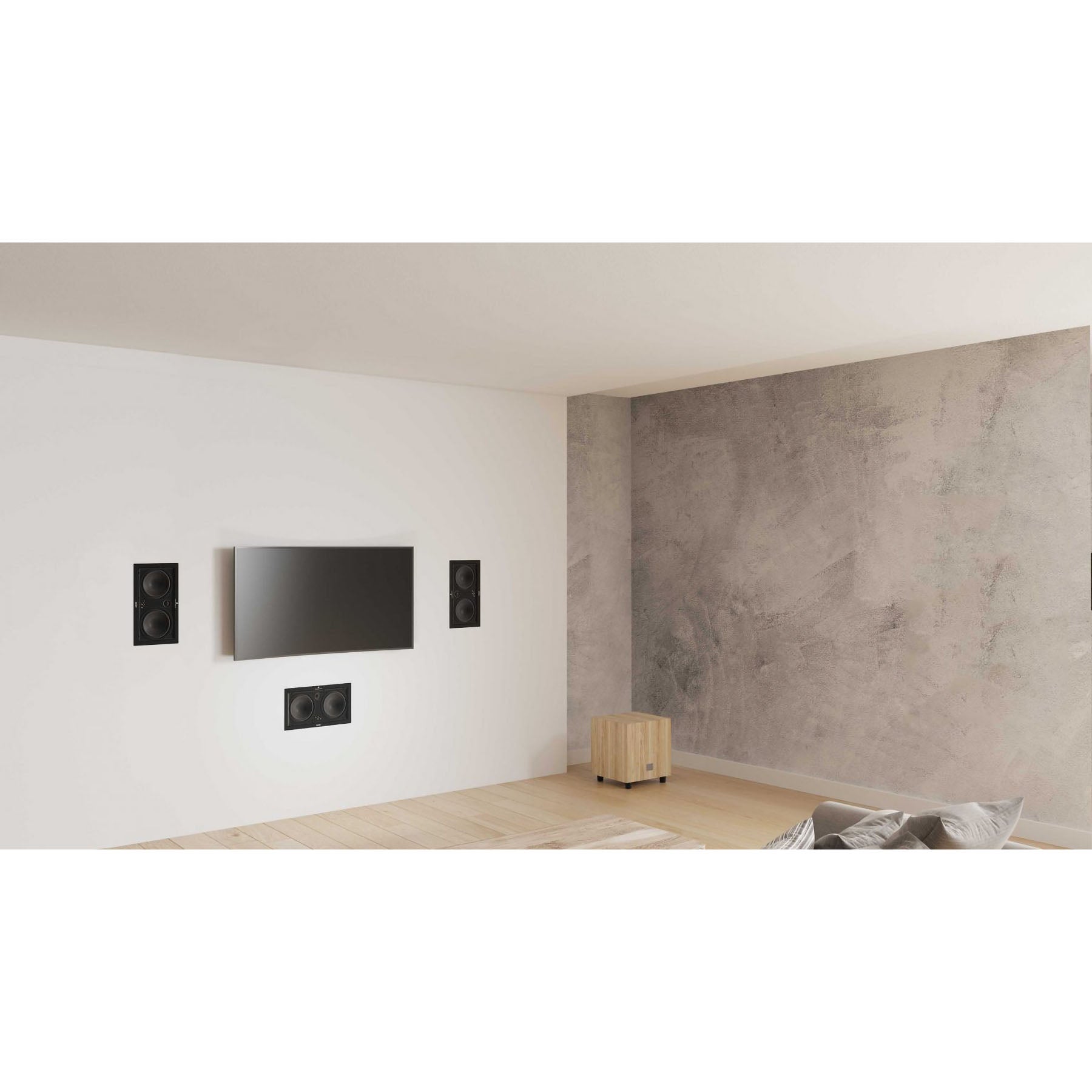

Place two LCR7 speakers vertically for the front channels and 1 speaker horizontally for the center channel. Then add a subwoofer such as the TALES 340 to support the low frequencies for a spectacular combination.
5.1 / 7.1 Setup

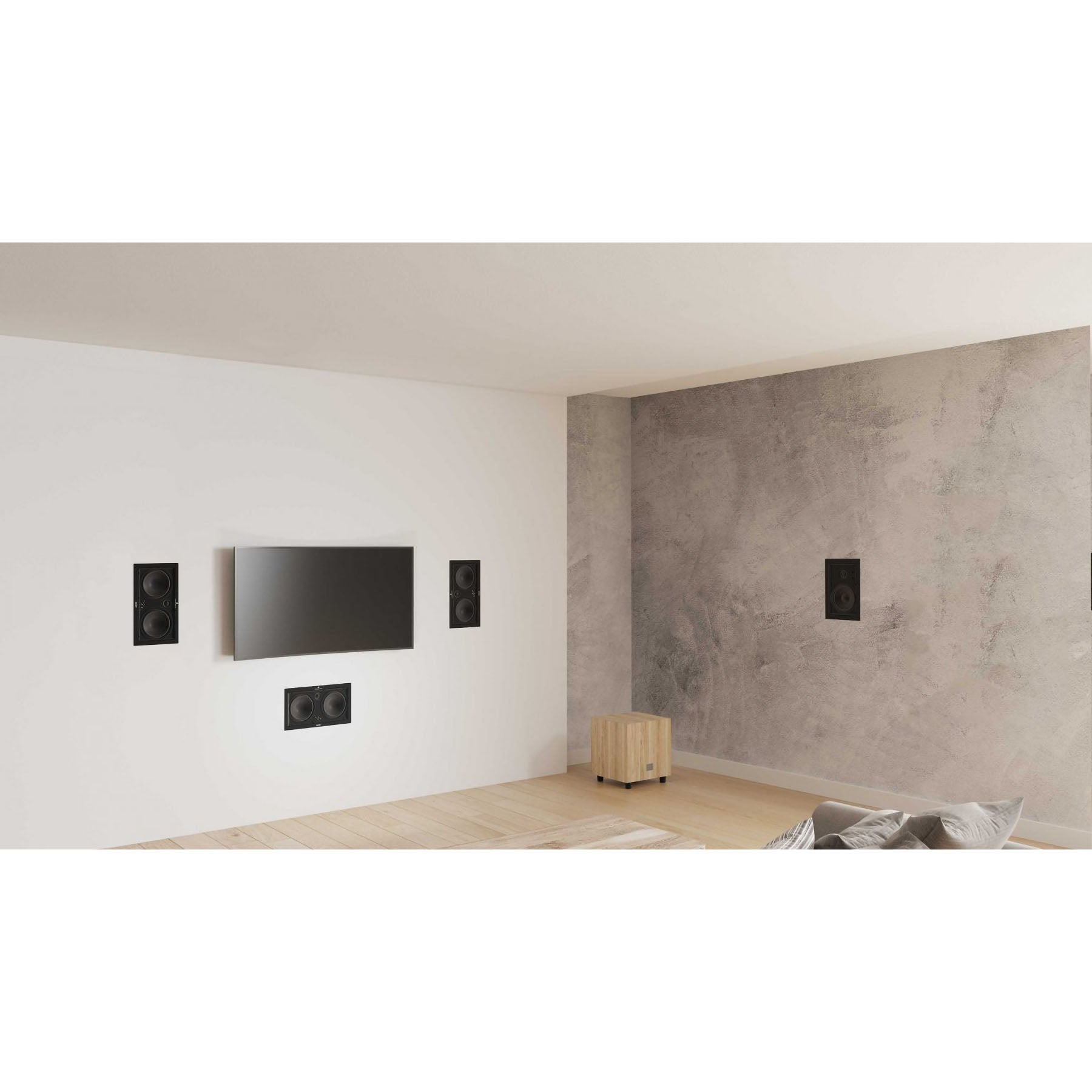

The IWT7 speakers are excellent partners for the effects channels, place them on the side and rear walls for a 360° sound immersion.
5.1.4 / 7.1.4 Setup

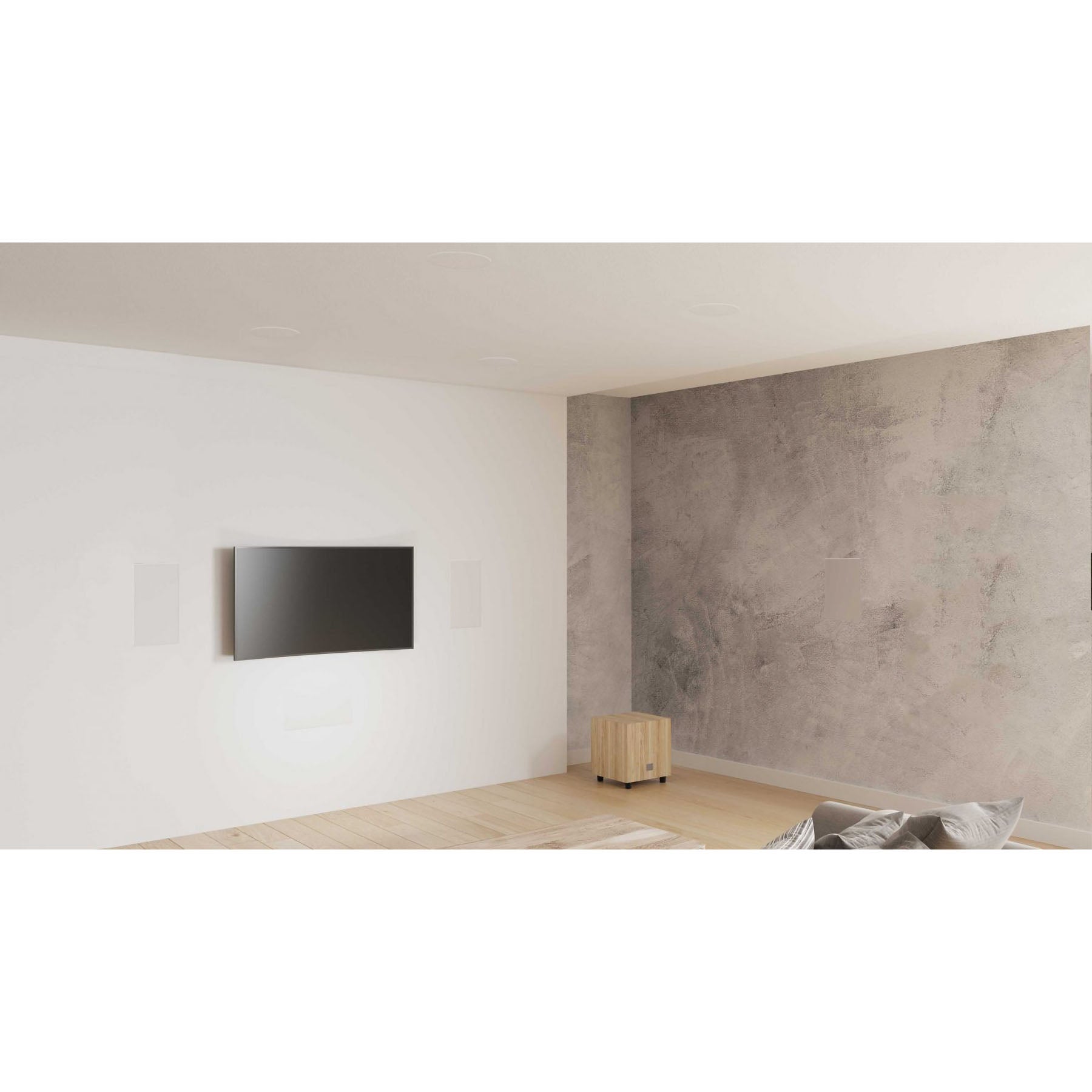

The circular ICT7 / EMT7 in-wall speakers can be placed in the ceiling to reproduce vertical sound effects and take advantage of the latest Dolby Atmos and DTS-X technologies.
Type
In-wall speaker
Driver diameter
170 mm
Tweeter diameter
25 mm
Movable tweeter
Yes
Sensitivity
90 dB/W/m
Bandwidth
(+/- 3dB) 60 HZ - 20 KHz
Power
140 W
Minimum impedance
8 ohms
MINIMUM INSTALLATION DEPTH
3,9 inches
NEEDED OPENING
14,48 x 7,48 inches
DIMENSIONS (W x H x D)
15.8x8.9x3.5 inches
Weight
2.95 kg / 4.4 lbs
