Prime Elevation Speaker

The world’s most versatile high-performance home theater speaker, Prime Elevation is an uncompromised height effects speaker for Dolby Atmos®, DTS:X® and Auro-3D® and an outstanding solution for side surrounds, rear surrounds, or even the front stage LCR speakers. Easy to mount anywhere on the wall or ceiling, Prime Elevation delivers outstanding performance even when ideal speaker placement isn’t possible.

Prime Elevation

Product Overview

SVS Prime Elevation speakers play any role in a home theater surround sound system amazingly well. Designed to easily mount directly to the wall or ceiling with the Multi-Purpose Wall Bracket (patent pending), the SVS Prime Elevation can be used as a direct-radiating height effects speaker for immersive object-based audio formats such as Dolby Atmos®, DTS:X® and Auro-3D®. With its angled front baffle, Prime Elevation can also be used as left or right fronts, a center channel, side surrounds and rear surrounds to provide crisp, dynamically charged sound in rooms of all shapes with all different architectural features.

Quick Specs

• Tweeter | 1"
• Midrange | 4.5"
• Woofer | N/A
• Freq. Response | 55 Hz-25 kHz (±3 dB)

• Dimension | 9.25” (H) 5.4” (W) 7.9” (D)

Immersive three-dimensional surround sound formats such as Dolby Atmos®, DTS:X® and Auro 3D® unleash the ultimate movie, music, TV an gaming audio experience by incorporating “height effects” emanating from overhead to create a dome of sound that blankets you for a more convincing and believable performance. Prime Elevation is an optimized height effects speaker because it directly radiates full-range sound to the listener without the frequency response limitations and perfect room conditions required of prevailing “ceiling bounce” height effects speaker designs.

Prime Elevation is also a remarkably versatile, multi-purpose home theater speaker that deftly plays the role of front, center, side surround, rear surround and/or LCR speaker when ideal placement in a room isn’t possible.

SVS Takes Immersive Three-Dimensional Surround Sound to New Heights

Home theaters running height effects speakers with Dolby Atmos®, DTS:X® and Auro-3D® represent the pinnacle of immersive home audio experiences. The prevailing approach to Dolby Atmos speakers, bouncing sound off the ceiling from below, requires perfect room conditions and frequency response limiting of the speaker and detracts from the experience.

An audio epiphany, Prime Elevation speaker direct radiating with the charged dynamics, pinpoint accuracy and subtle refinement of a high end bookshelf speaker. Place it high on a wall near the ceiling and height effects can be enjoyed at full fidelity in any room, without the compromises of ceiling bounce or in-ceiling speakers. Finally, a height effects speaker designed for breath-taking effects.

Amazingly Adaptable Multi-Angle Wall Bracket Solves Countless Speaker Placement Challenges.

The specially optimized angled front baffle, precisely tuned acoustics, high-end components and innovative Multi-Angle Wall Bracket (patent pending) combine to make Prime Elevation the world’s most versatile home theater speaker. Not all rooms are designed to be perfect home theater spaces. Prime Elevation speakers easily mount to a wall or ceiling using the included Multi-Angle Wall Bracket and ceiling mount insert, so you can take advantage of every possible installation location to create the best sounding experience possible. Also included is a universal mounting option with a ¼” 20TPI brass insert that works with many other kits.

As a finishing touch, even the magnetic SVS logo on the front grille is adjustable to accommodate positioning.

One Speaker, Endless Possibilities

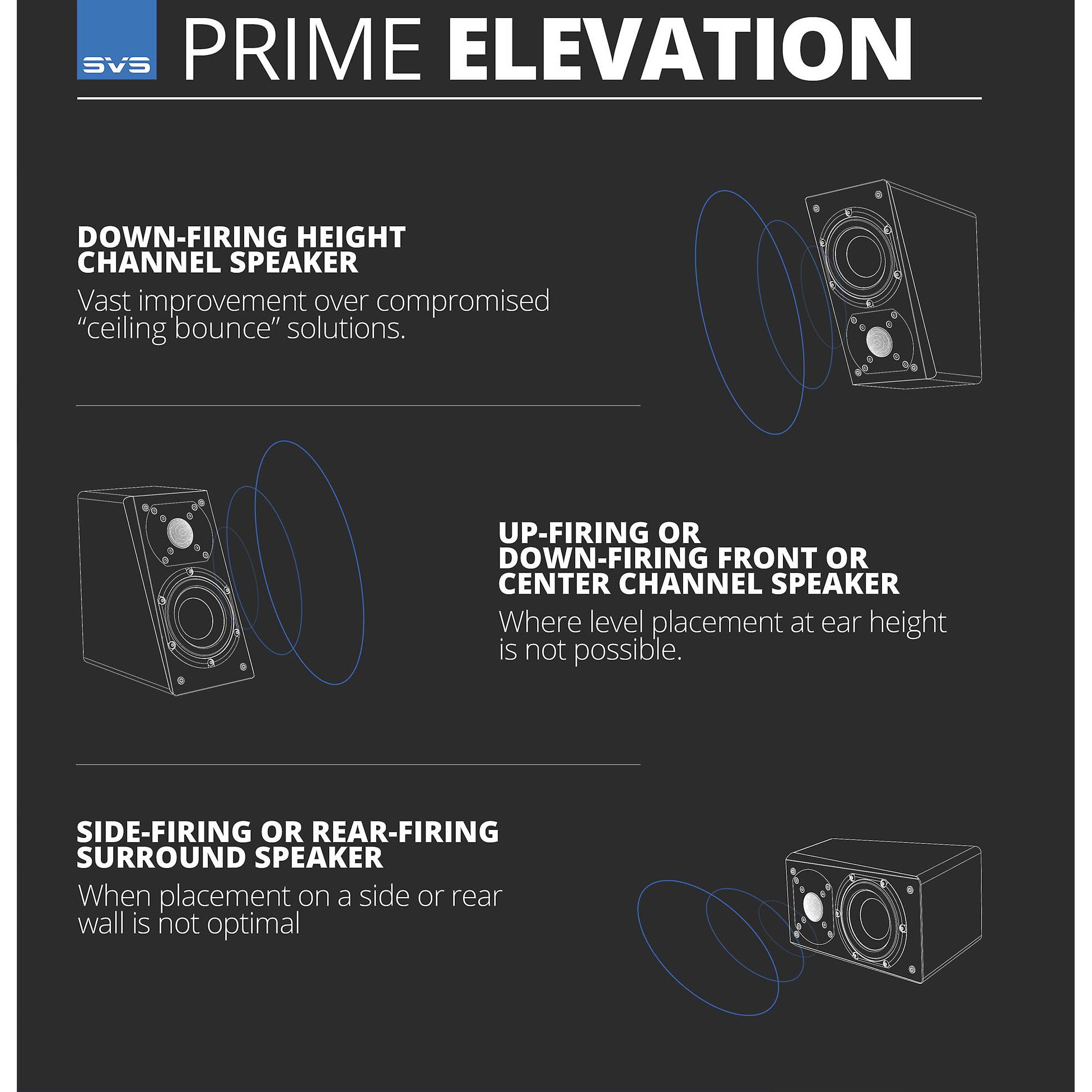

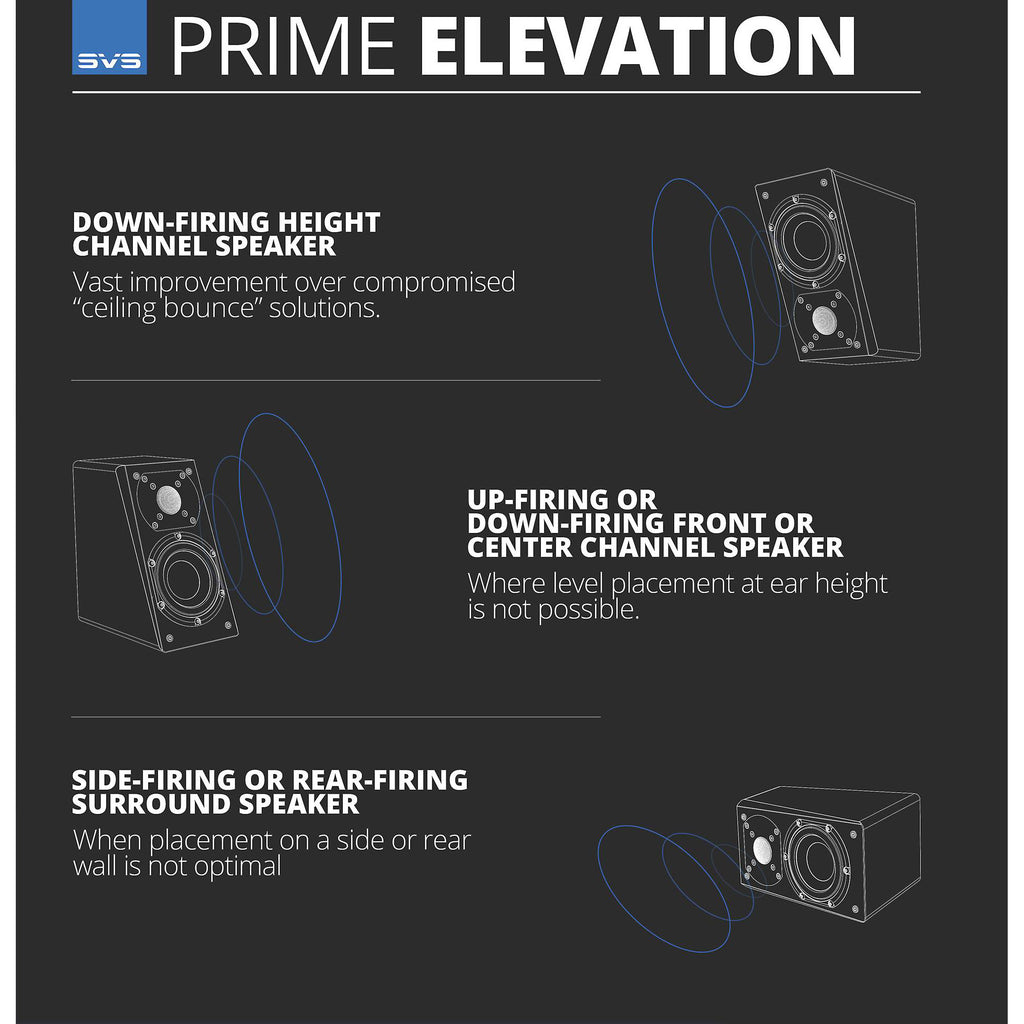

Here are the most common Prime Elevation applications. Its versatility as a speaker is only limited by your creativity.

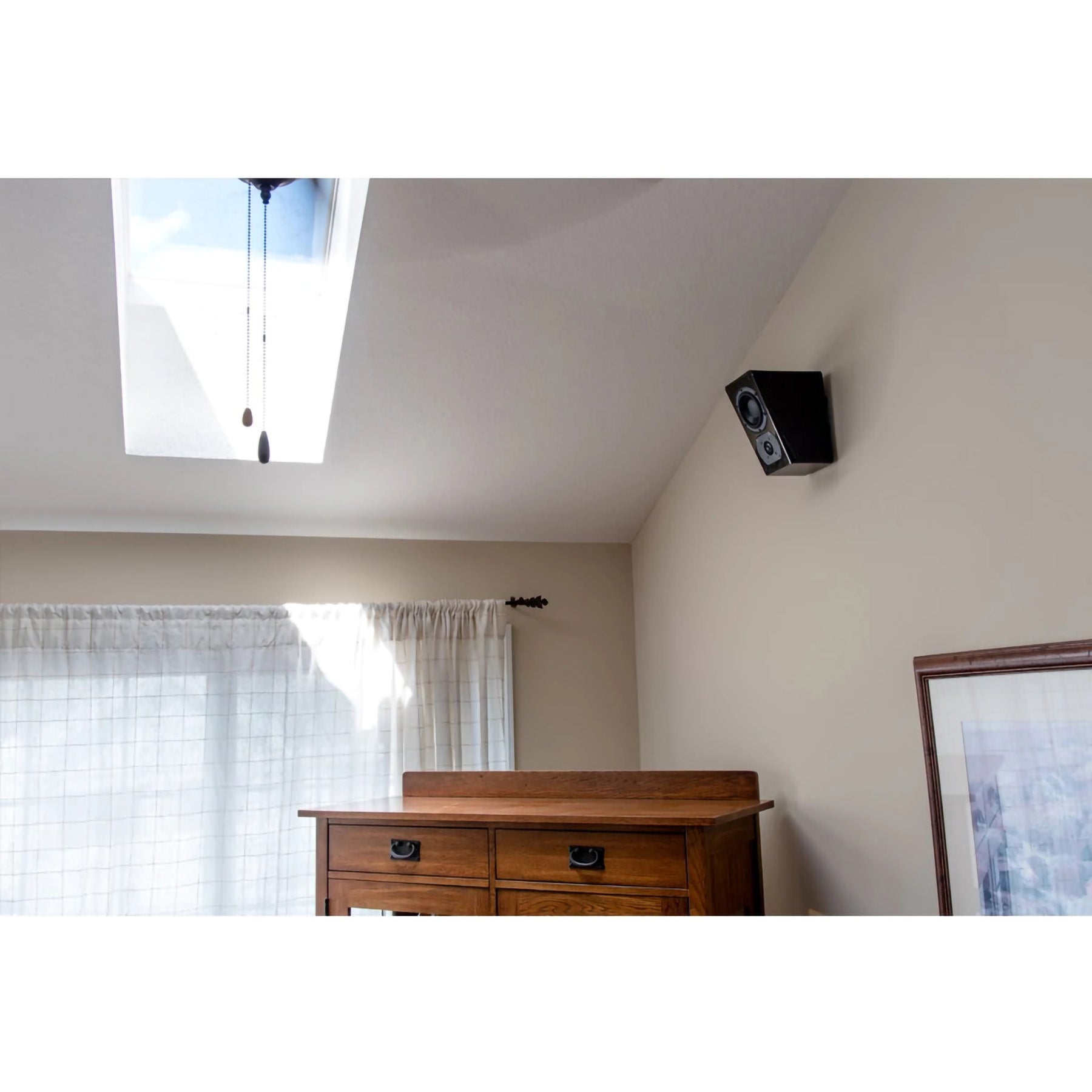

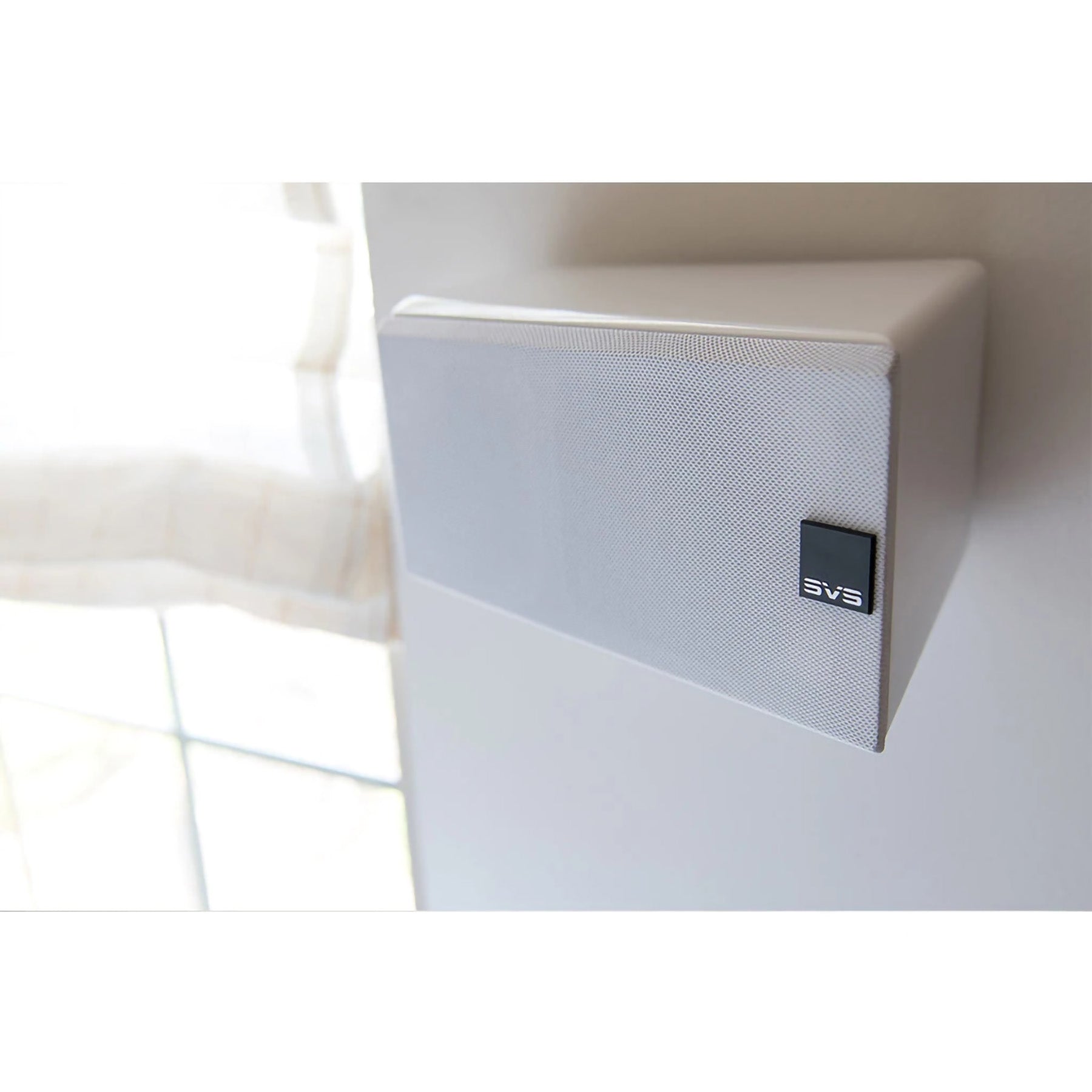

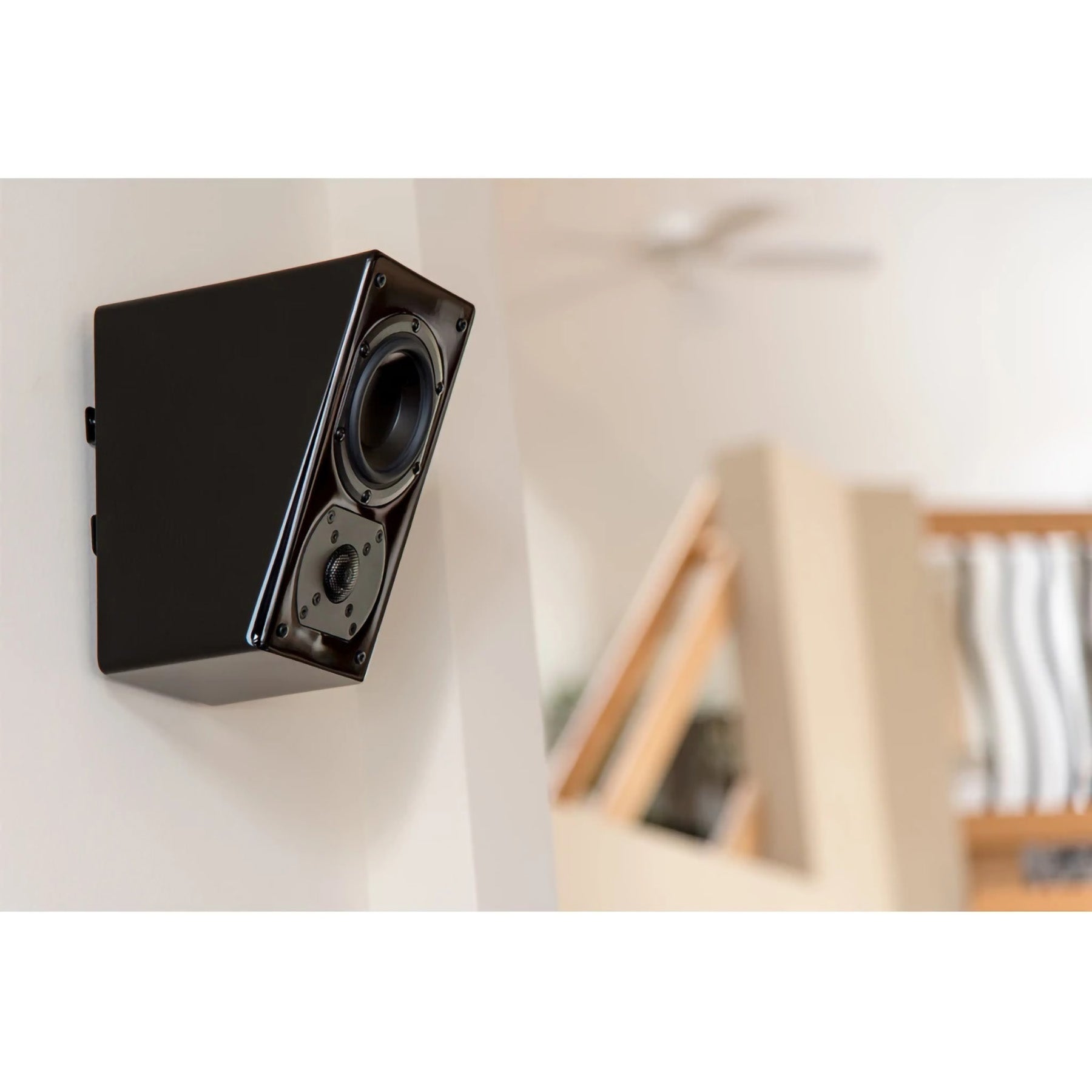

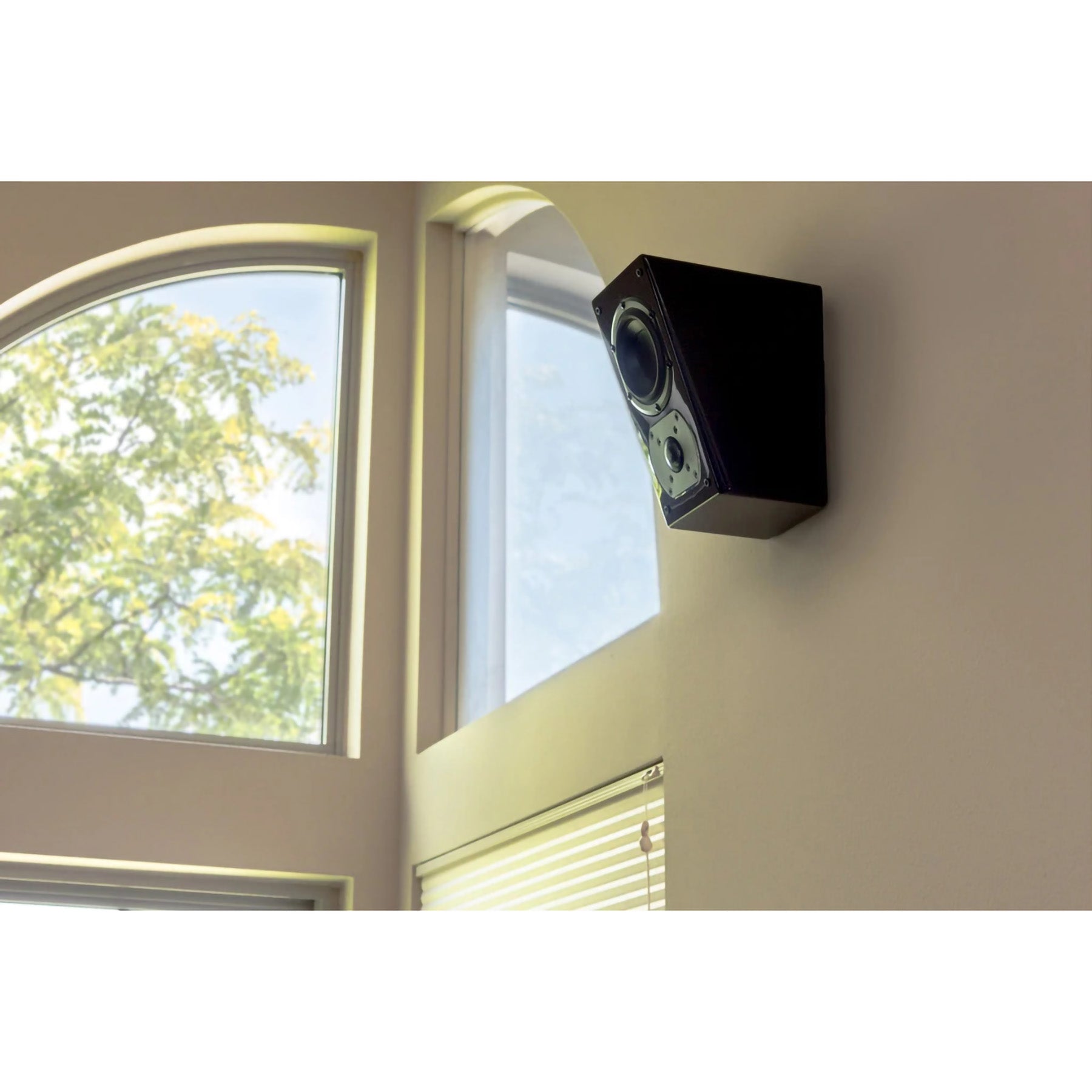

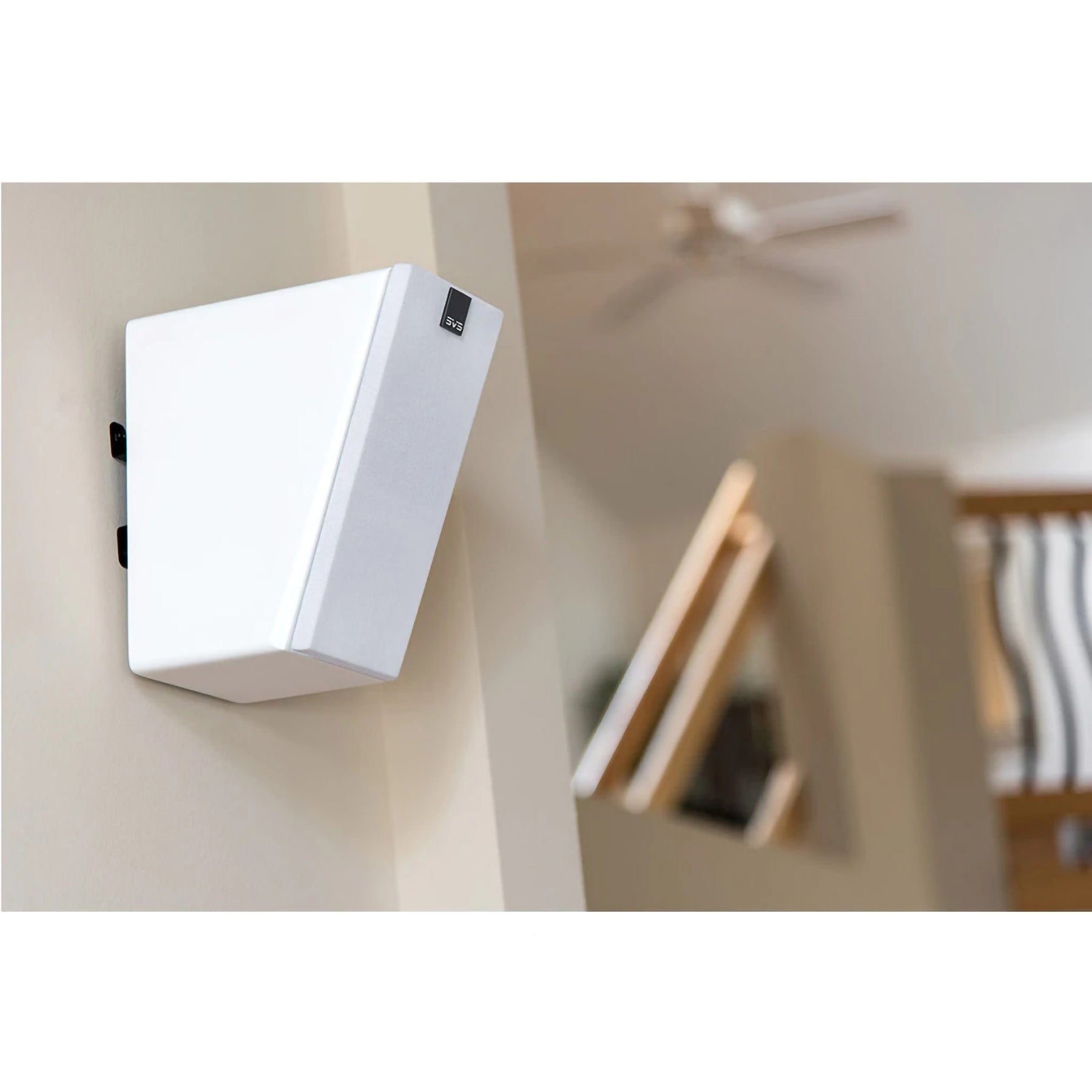

Down-Firing Height Effects Speaker – Placed high on a side wall, the directly radiated sound is a vast improvement over compromised “ceiling bounce” solutions.

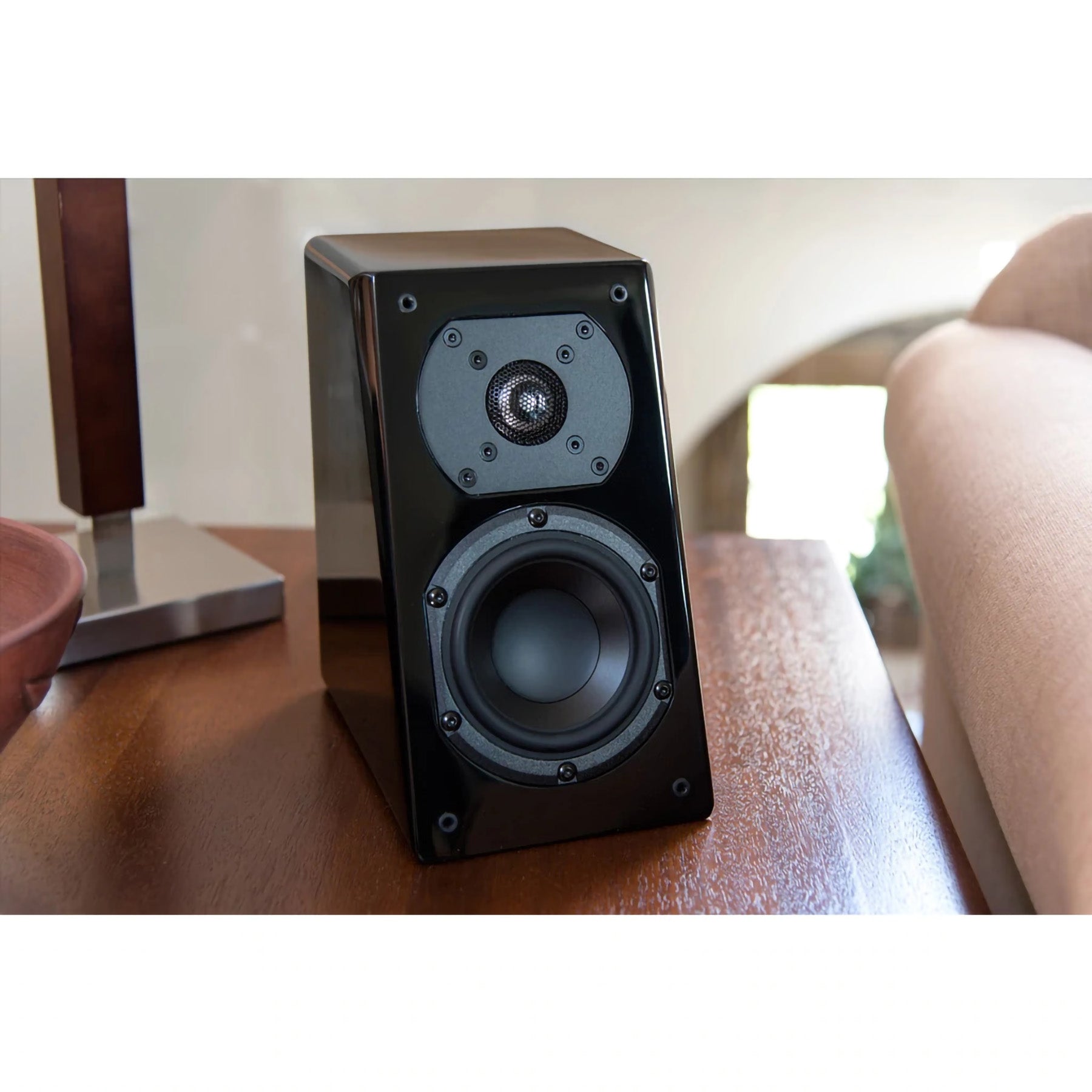

Up or Down-Firing Front, LCR or Center Channel Speaker - Placed above or below the viewing area, directed at listener, when placement at ear level isn’t possible.

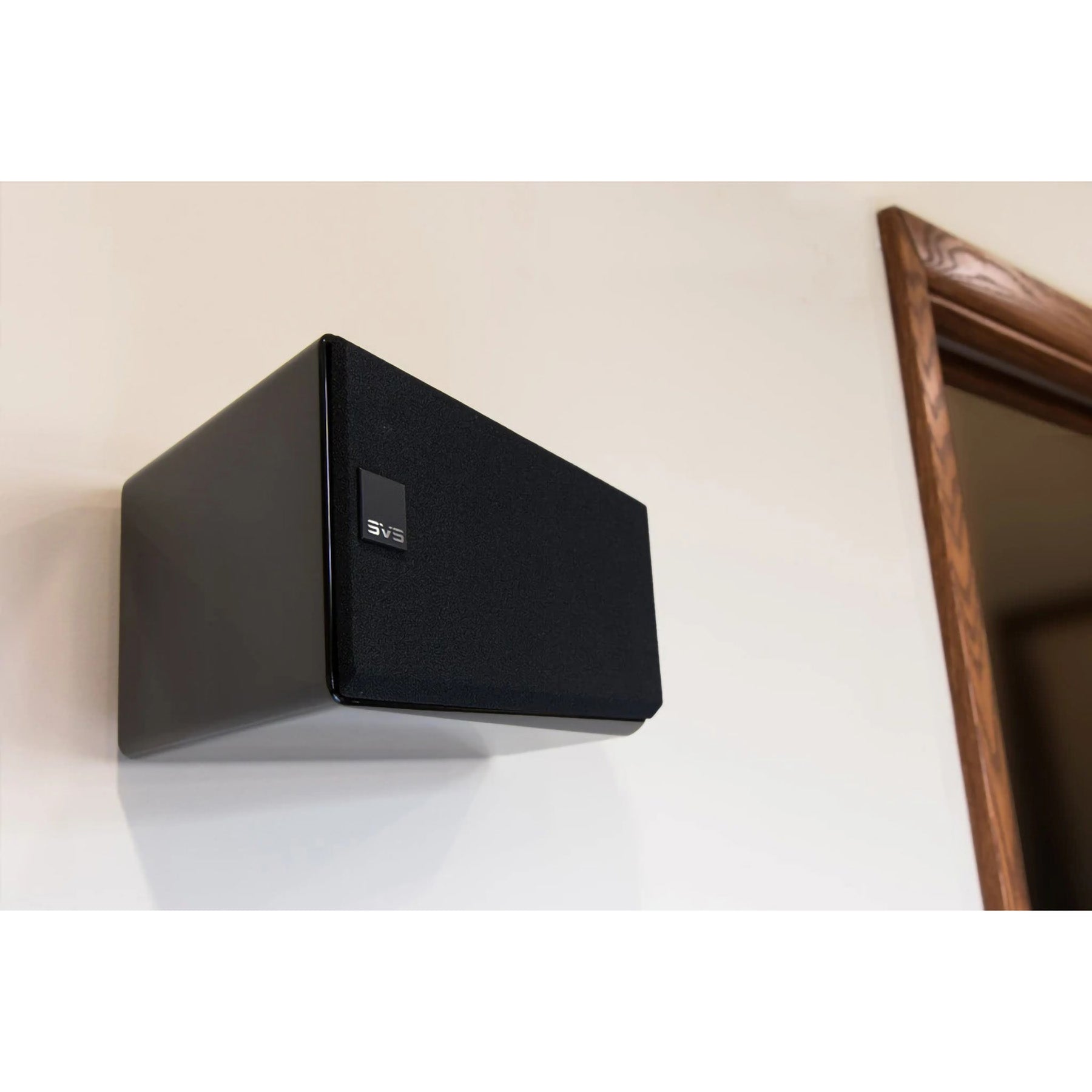

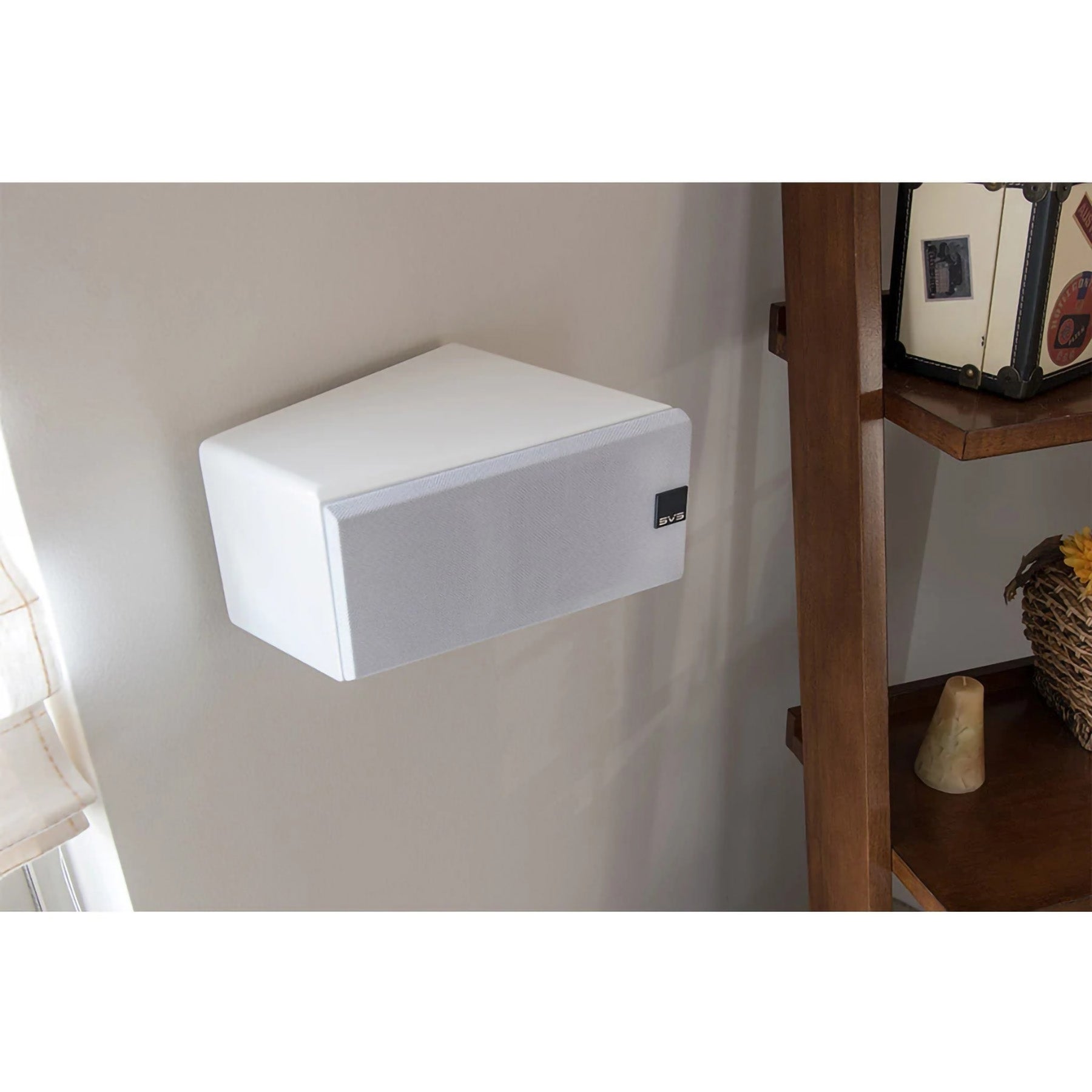

Side or Rear-Firing Surround Speaker - Placed on side wall for rear effects or rear wall for side effects when optimal placement is not possible.

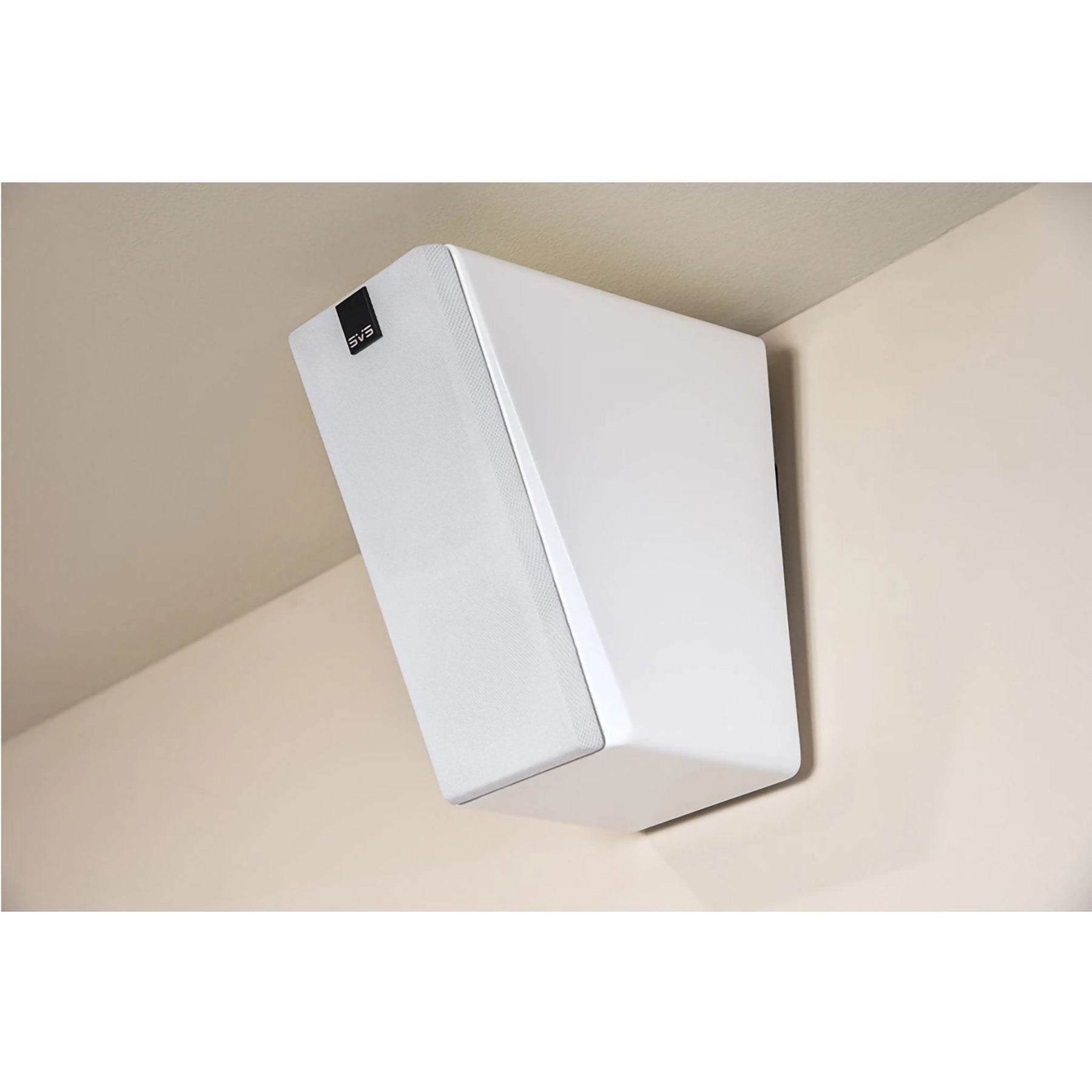

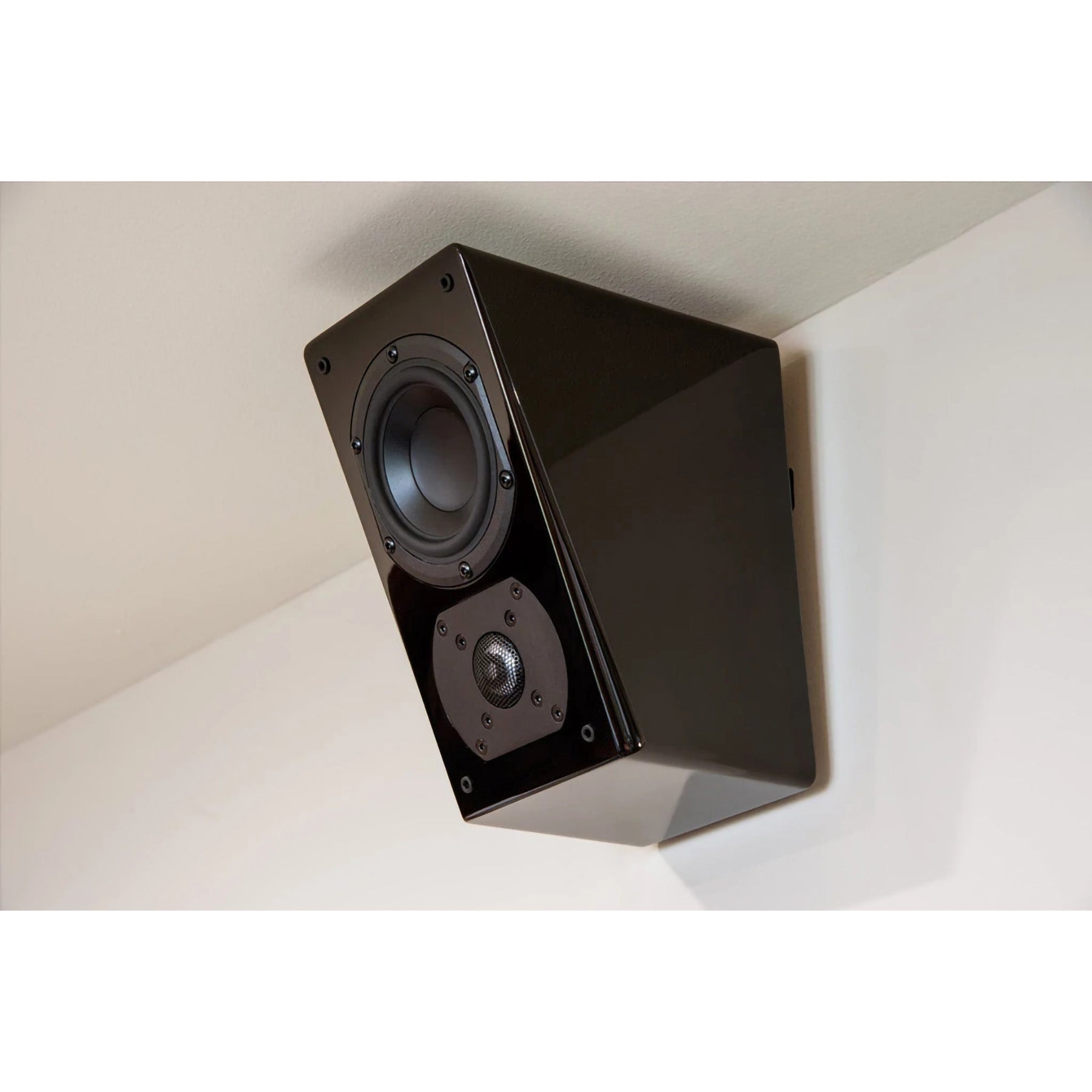

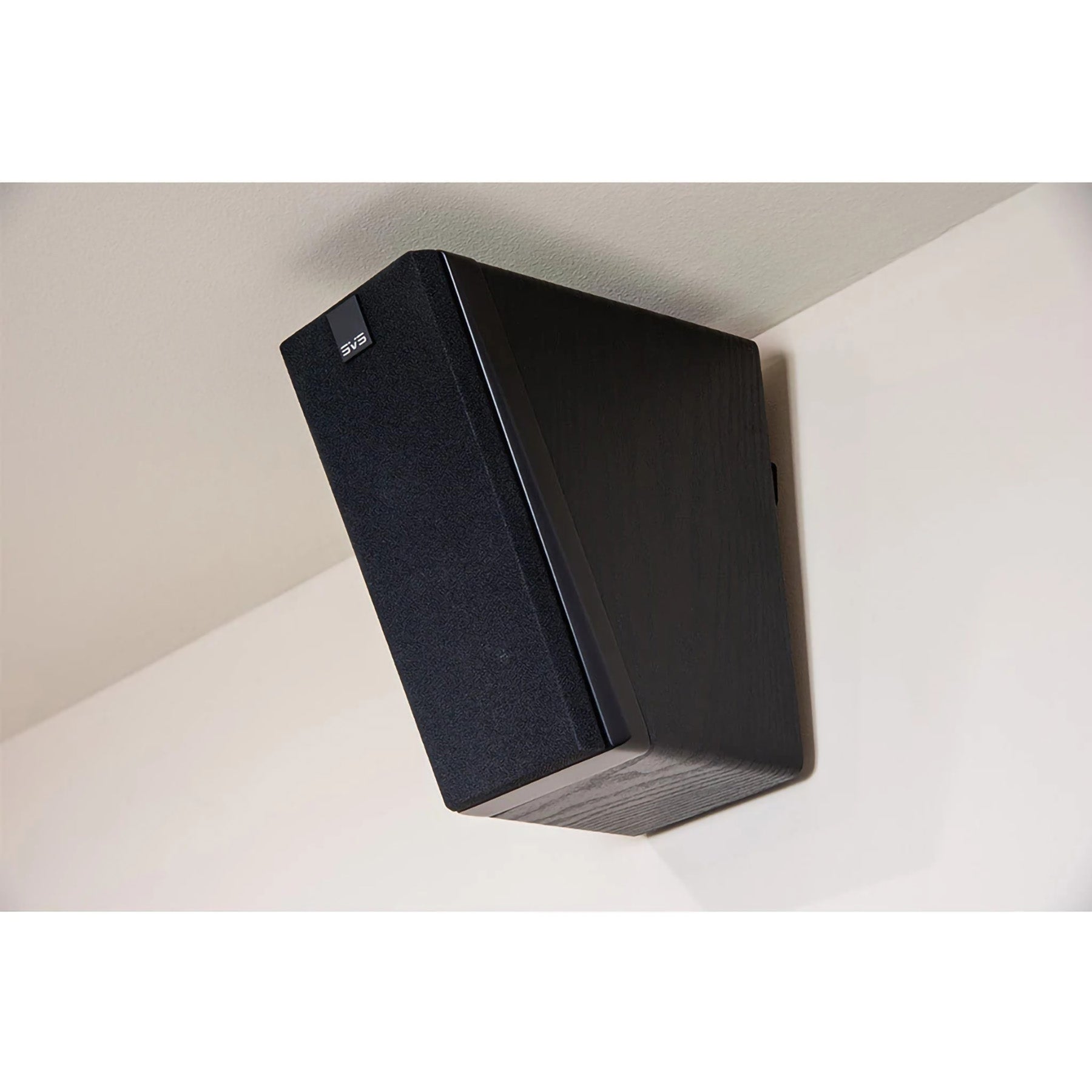

Common ceiling placement locations for the Prime Elevation speakers include:

• In front of the listening area with speakers angled down and towards rear of room
• Behind the listening area with speakers angled down and towards front of the room

• To the left and right of listening area, angled down towards the opposing side
• Directly overhead (for what’s commonly known as “Voice of God” speaker with Auro-3D)

If you have a unique room layout and are unsure of the best place to install SVS Prime Elevation speakers for height effects, 5.1 surround sound or some other application, contact us.

Frequency Response / Acoustic Data:

• Rated bandwidth: 55 Hz-25 kHz (±3 dB)
• Nominal impedance: 8 ohms.

• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
• Recommended amplifier power: 20-150 watts.

Speaker Specs:

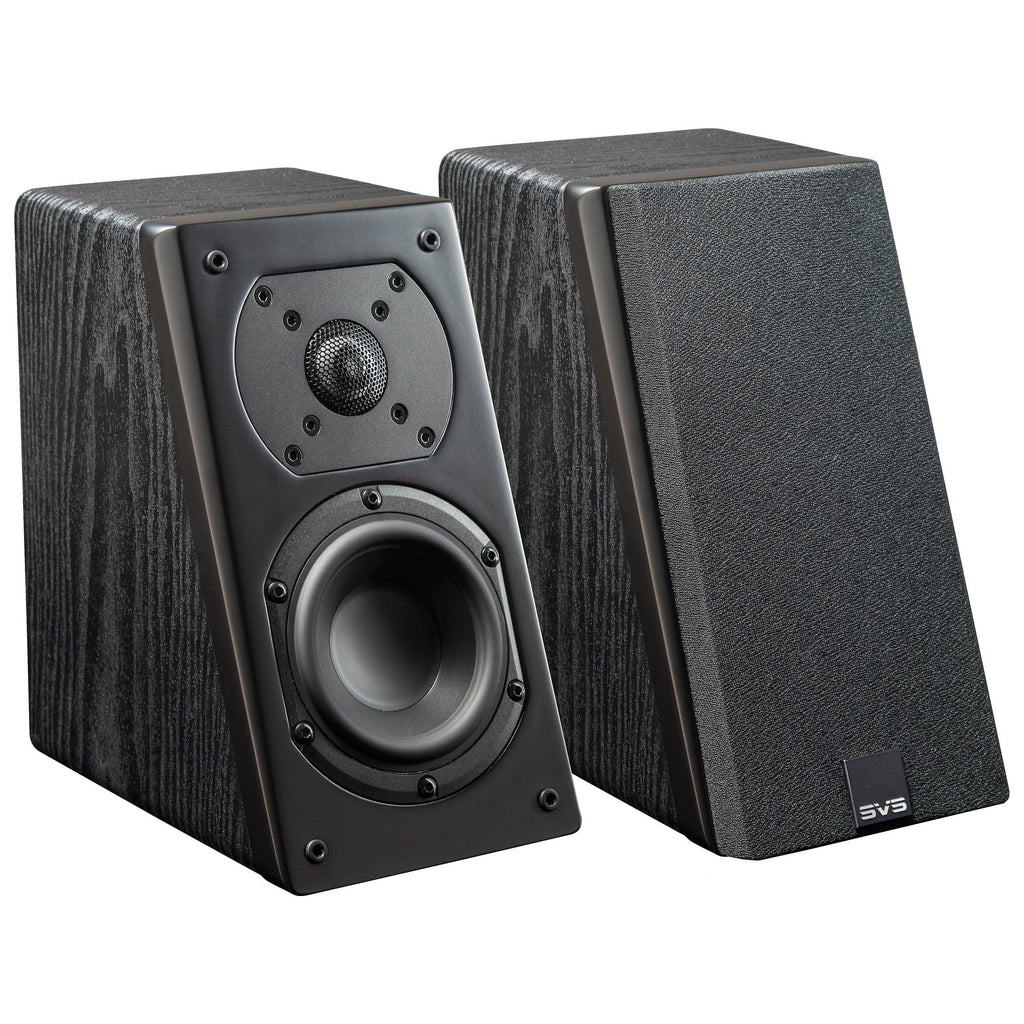

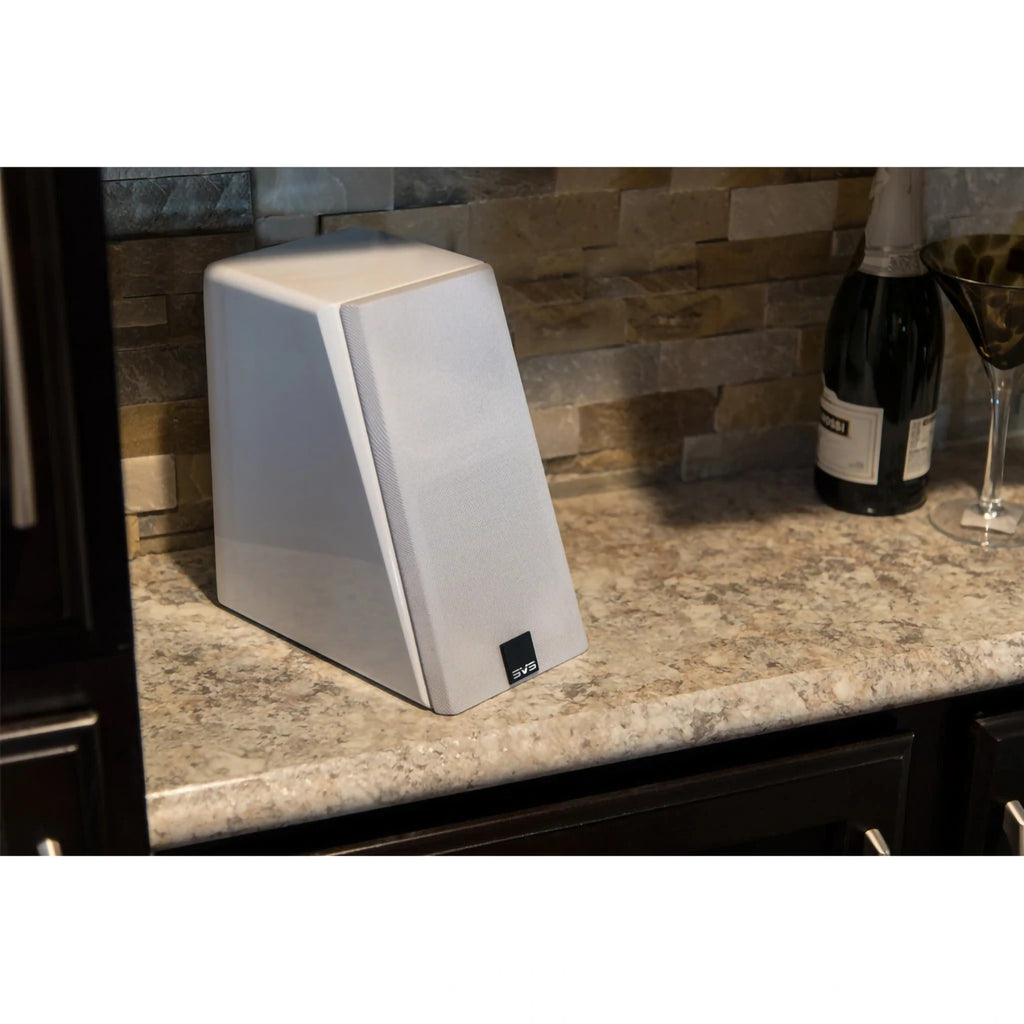

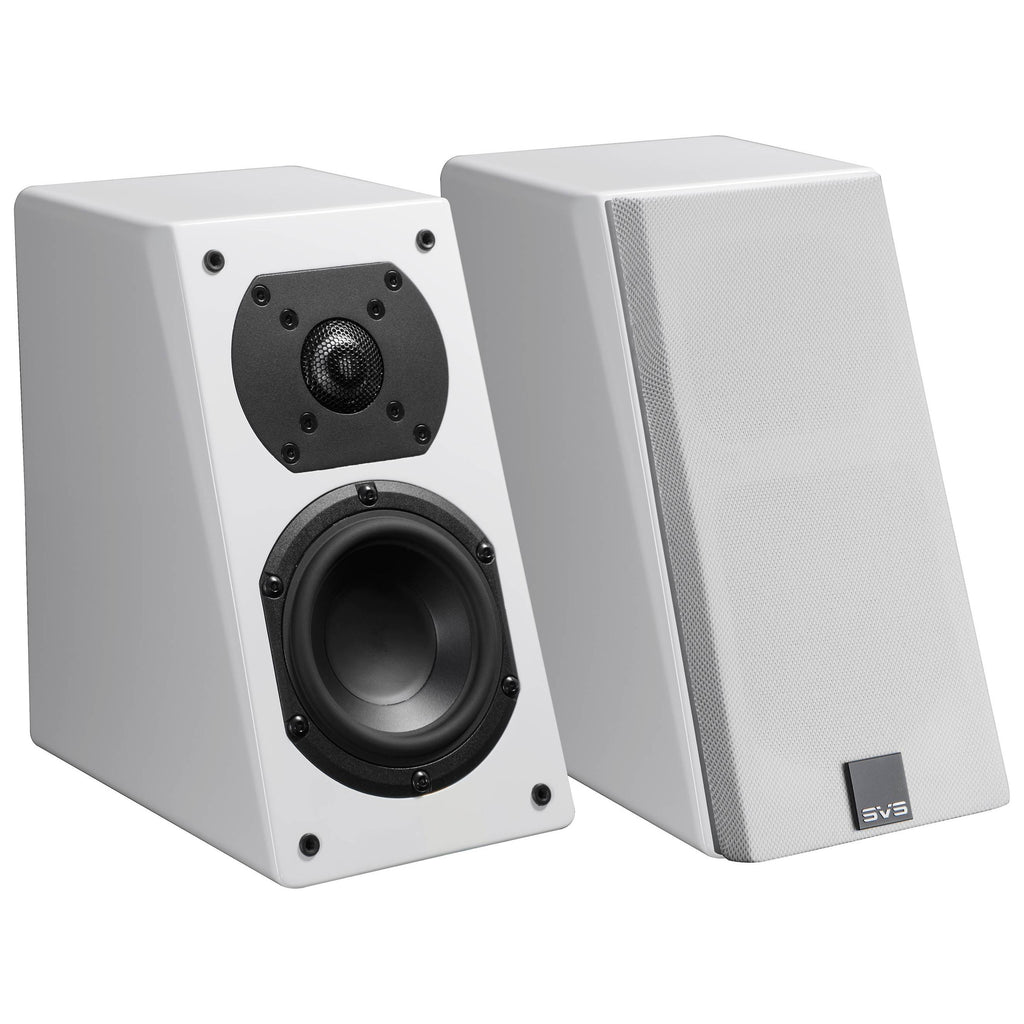

• Black Ash, Piano Gloss Black and Piano Gloss White finish options

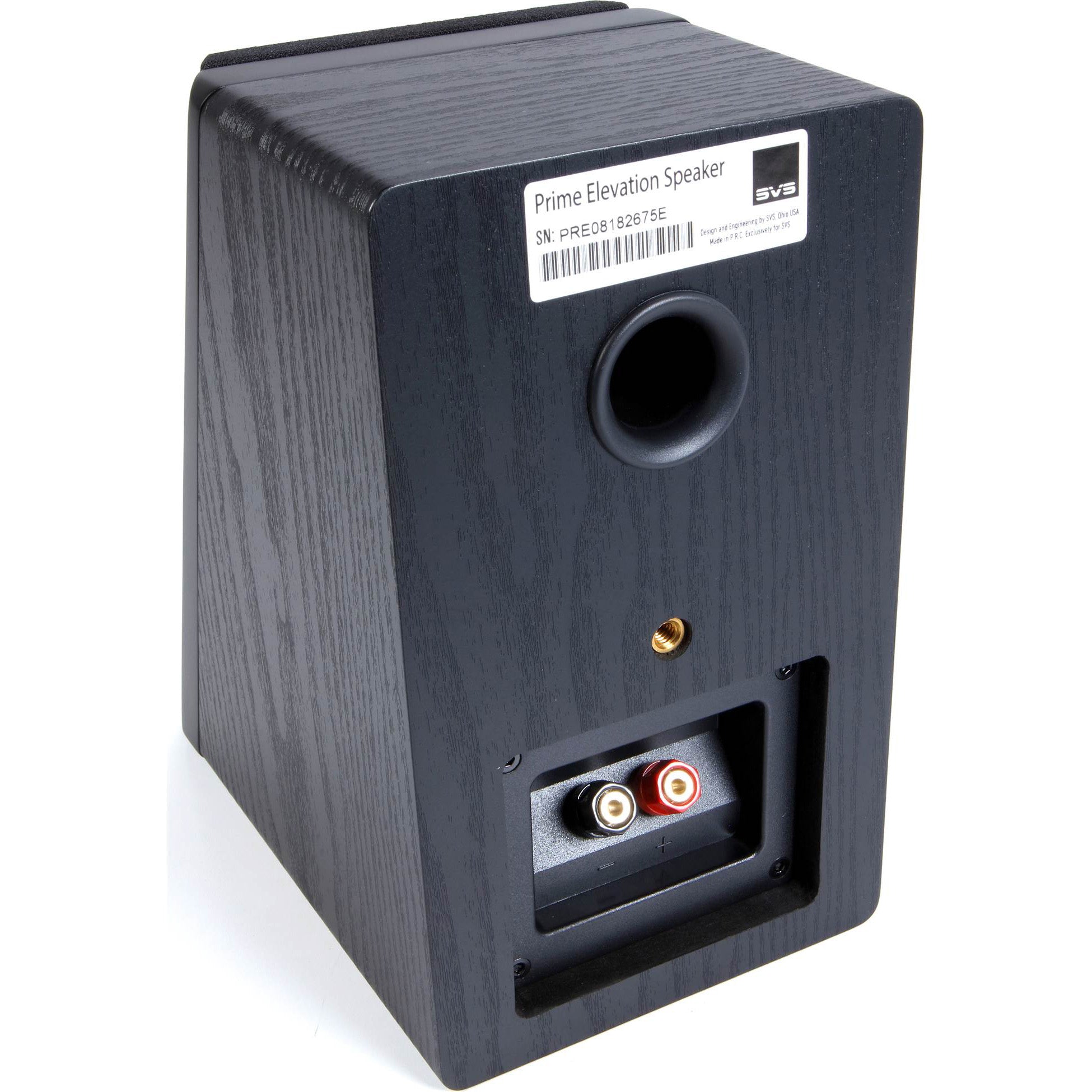

• Single set of 5-way binding posts
• 1” wide-flared rear-firing port
• Cloth grille with pin/cup retention system
• Magnetic SVS Logo which can be removed and oriented according to speaker application.
• Elastomer stick-on bumper feet (adds 3mm to height)

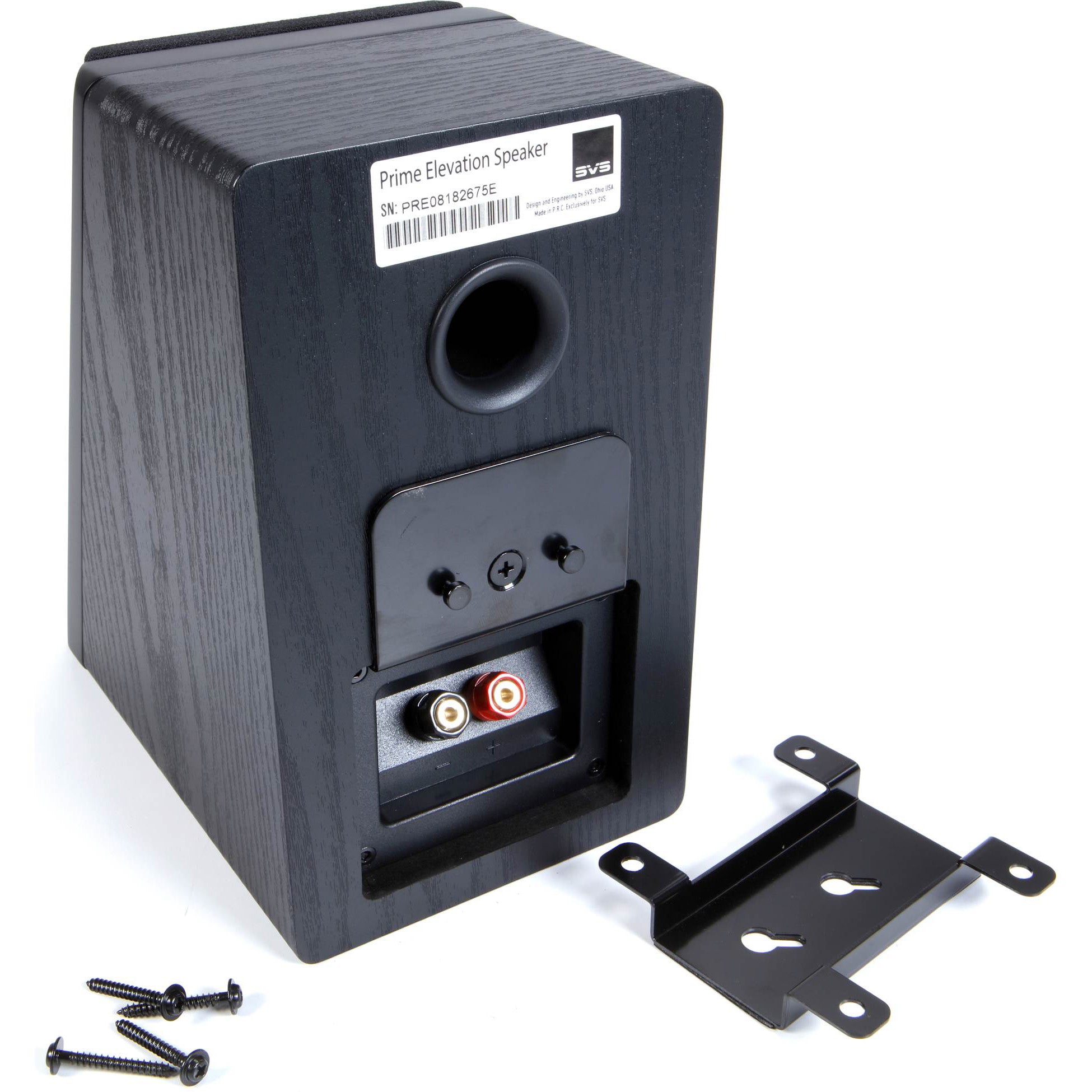

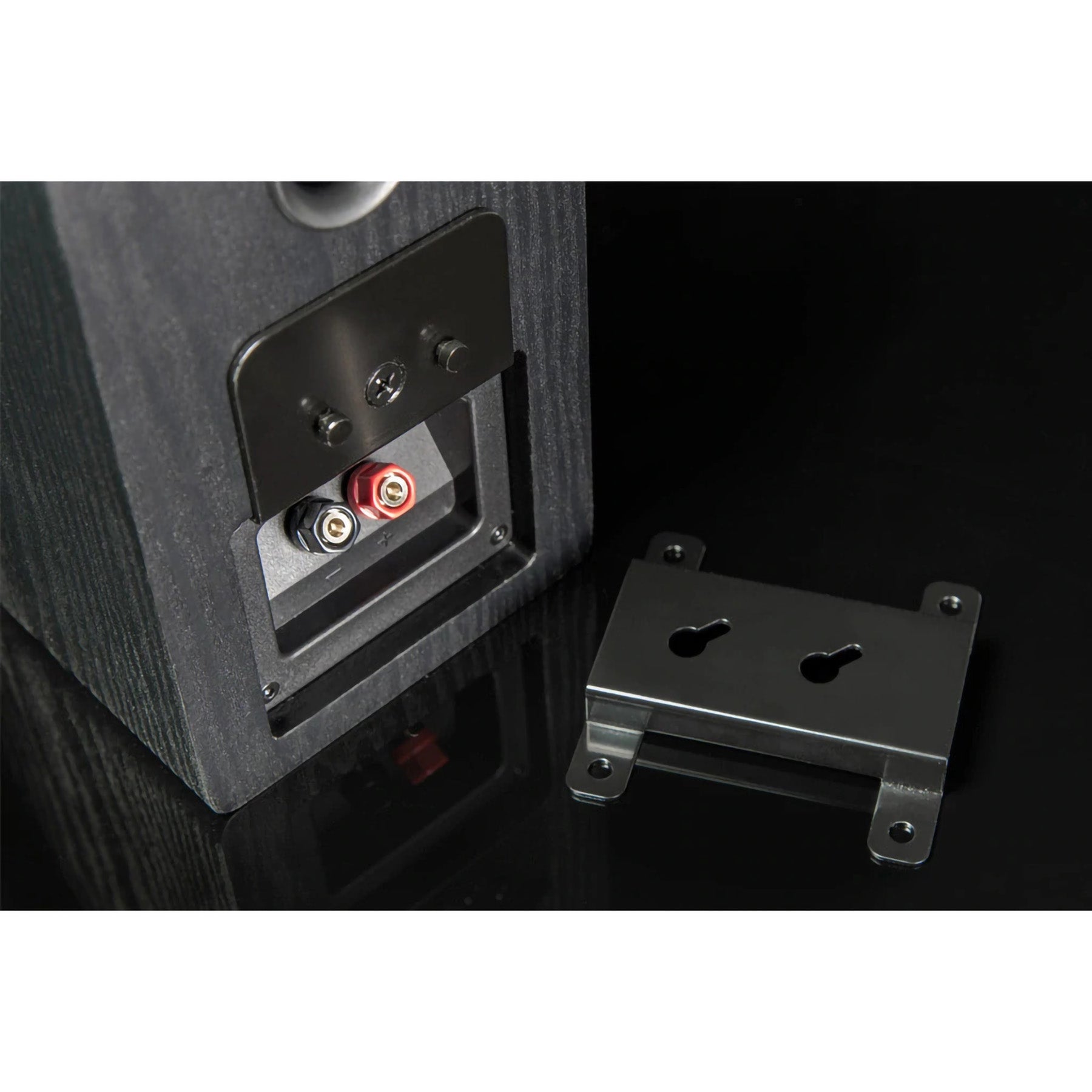

• Unique SVS Multi-Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of four positions
• 1/4" brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.
• Cabinet Dimensions: 9.25" (H) X 5.44" (W) X 7.88" (D)
• Overall Dimensions: 9.4" (H) X 5.44" (W) X 8.33" (D) (includes grille, binding posts and bumper feet)
• Overall Dimensions: 9.25" (H) X 5.44" (W) X 8.98" (D) (includes grille and SVS Multi-Angle Wall Bracket)
• Shipped Dimensions: 9.30" (H) X 12" (W) X 18" (D)
• Weight Unboxed: 7.8 pounds
• Shipped Weight: 20 pounds

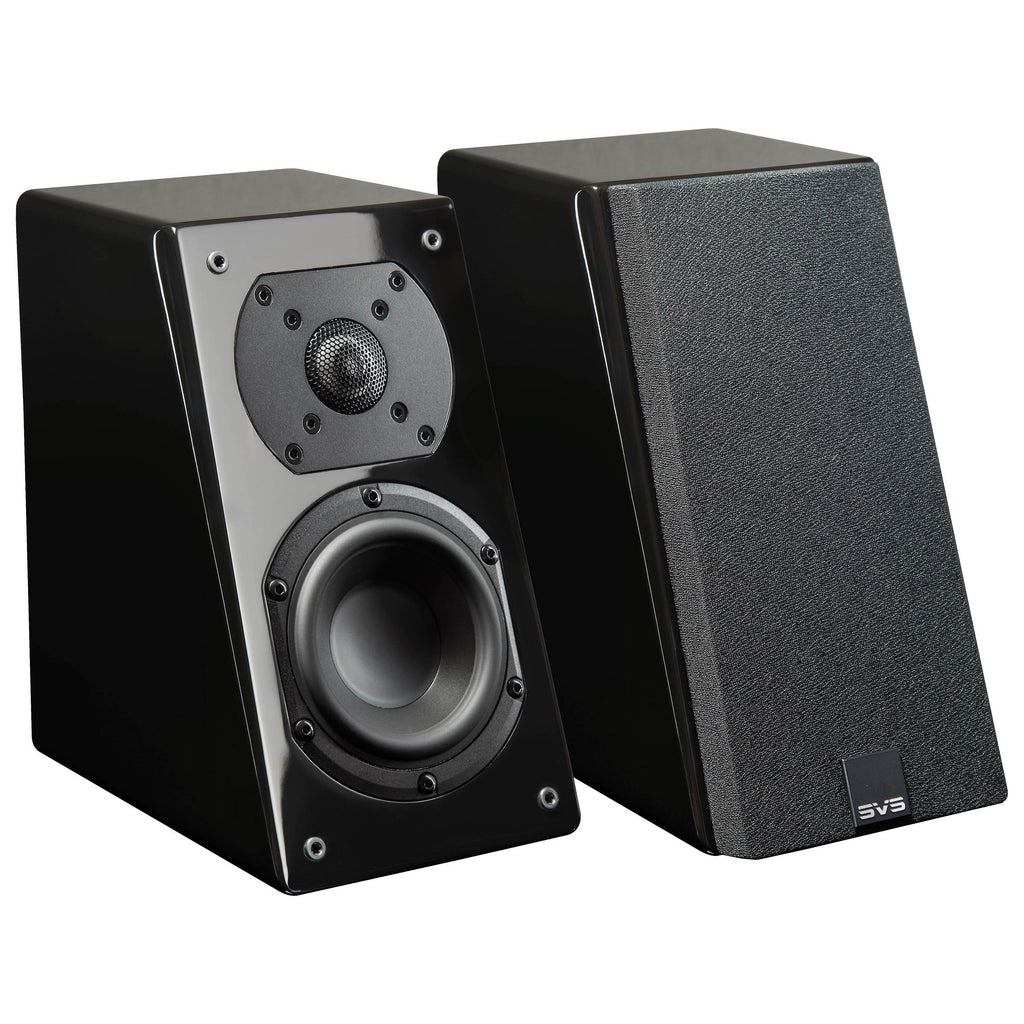

Driver Specs:

1” Aluminum Dome Tweeter:

• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome for exceptional transient response

4.5” Midrange Driver:

• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet Specs:

Crossover:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
• Crossover network delivers outstanding phase coherency and time domain behavior
• Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes)

Cabinet:

• Acoustically transparent and FEA optimized grilles minimize diffraction
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved off-axis high frequency response
• FEA-optimized cabinet and extra thick MDF bracing eliminate resonances
• Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
