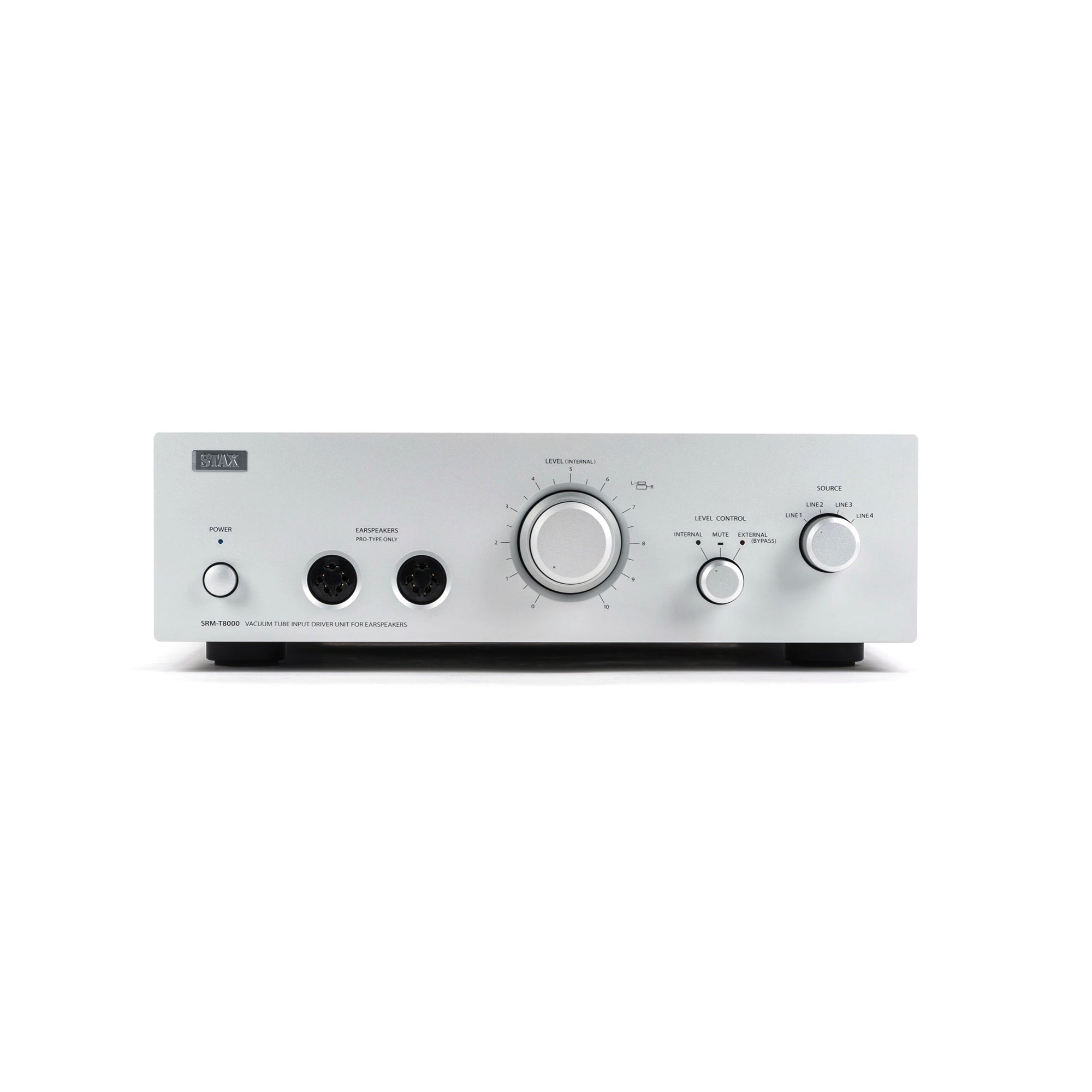

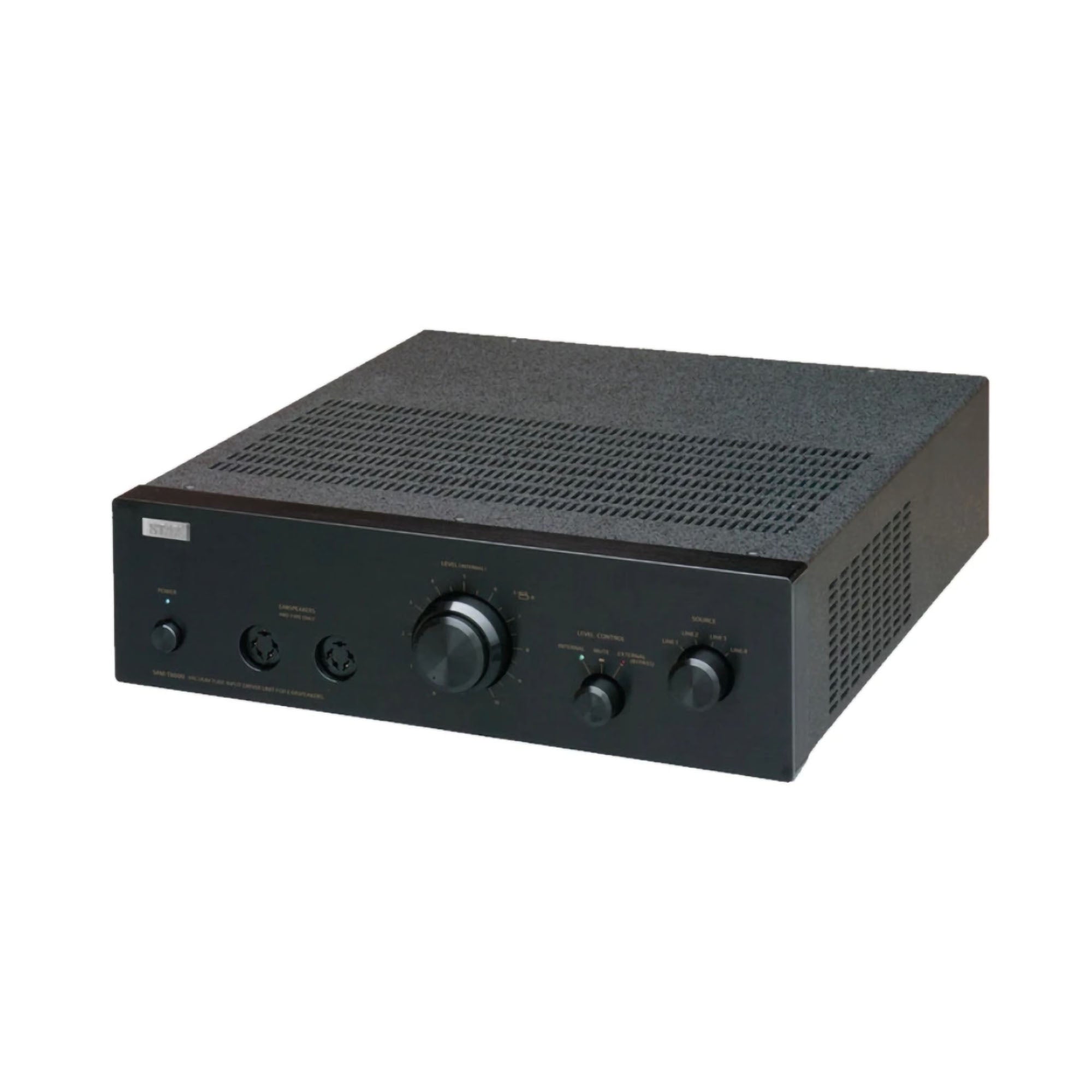

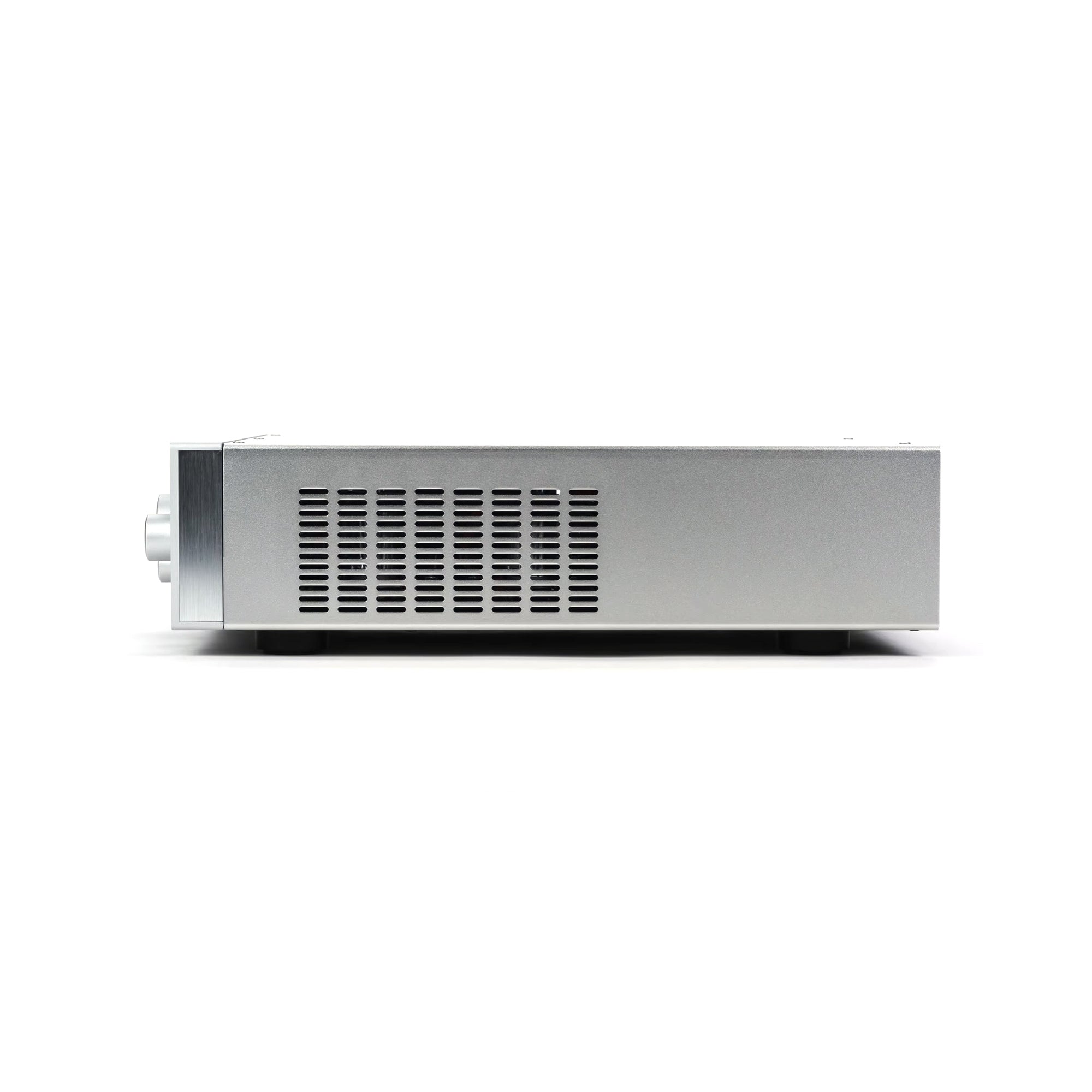

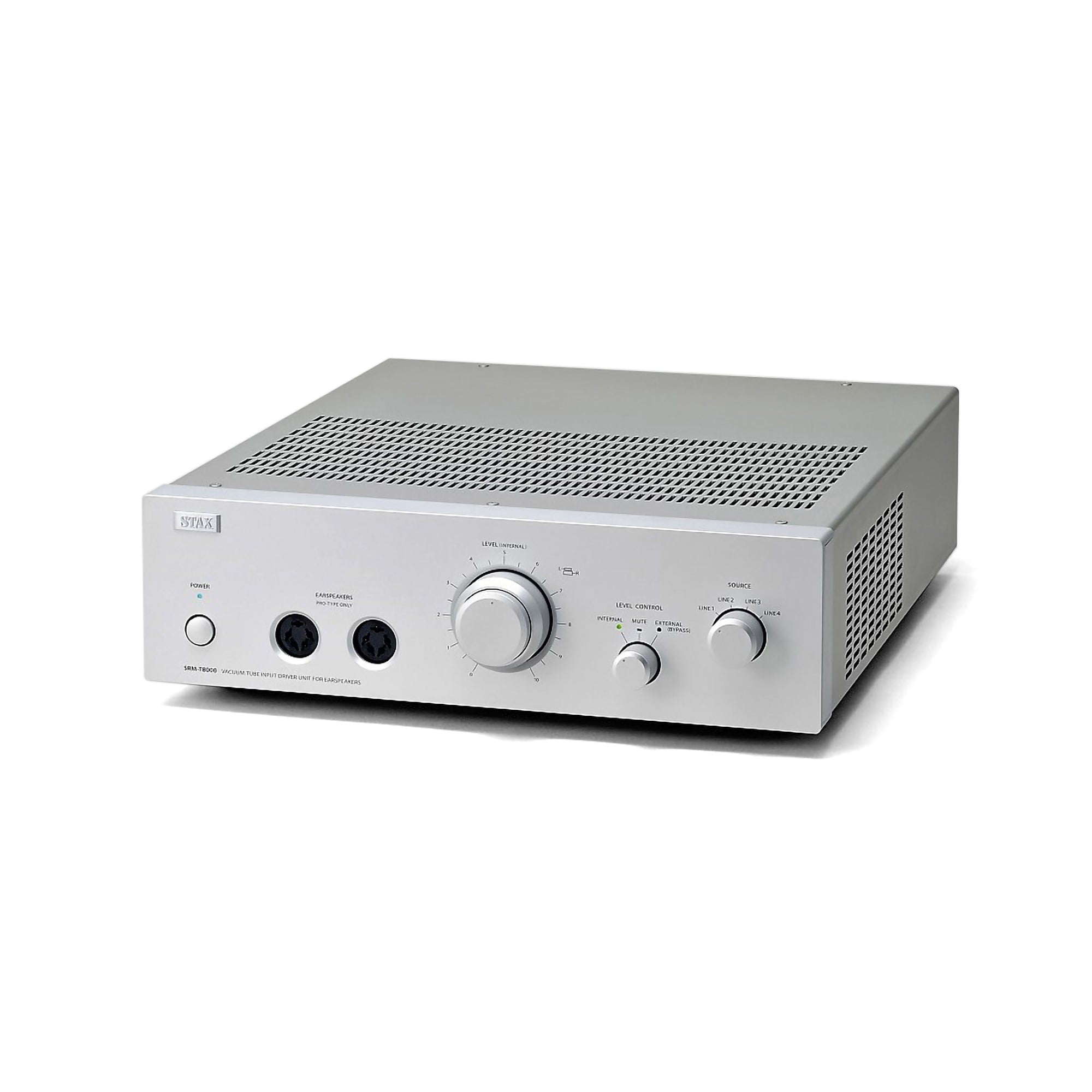

STAX SRM-T8000

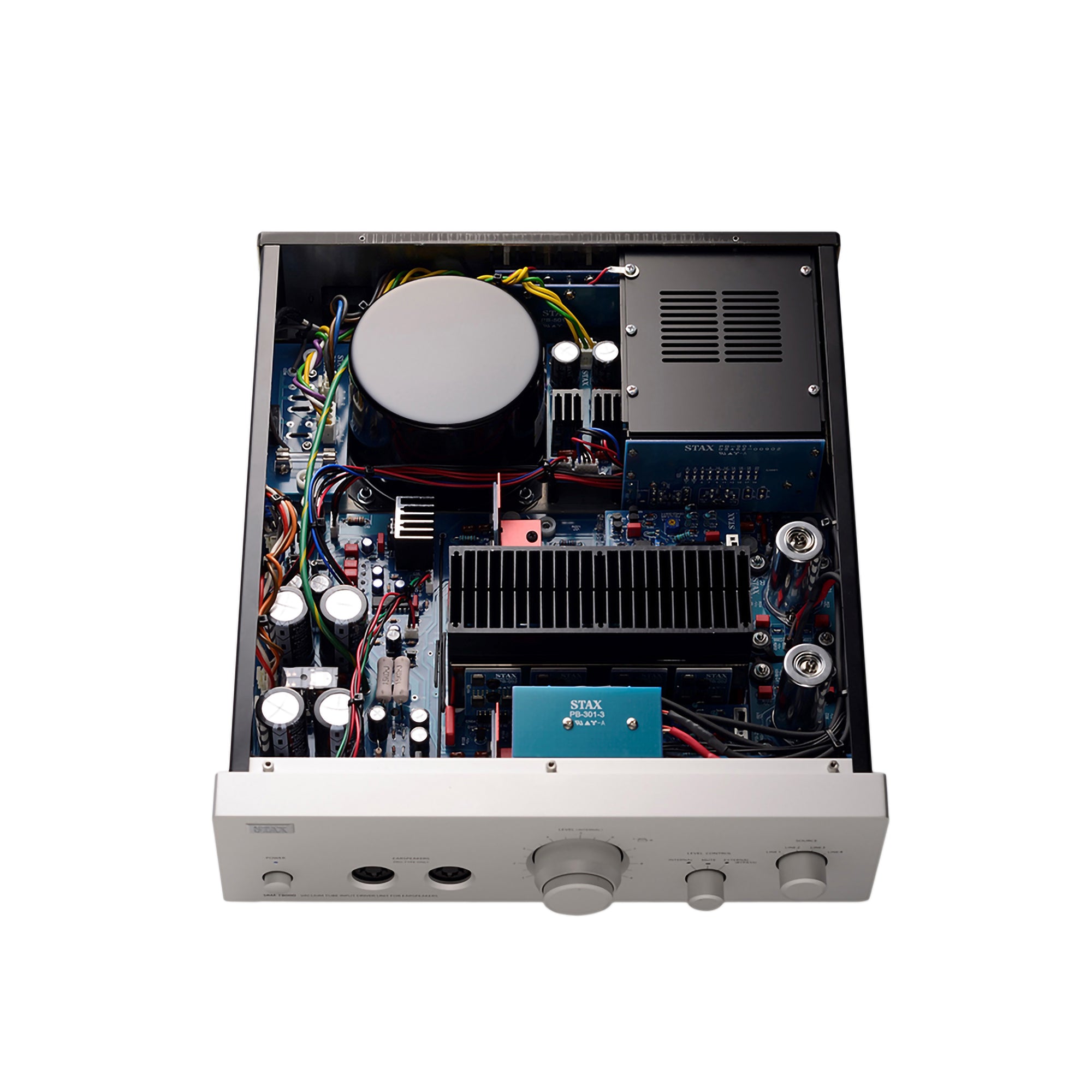

SRM-T8000 is Stax's latest flagship electrostatic headphone amplifier utilizing hybrid technology. It employs two 6922 in the input stage, driving a Class-A solid-state output stage. The vacuum tubes isolated in a separate section made of a vibration-proof damper and shield cover to eliminate vibration and noise. The high-capacity large toroidal transformers and selected high-quality parts allow the highest refinement in sound.
Specifications:
- Frequency response:1~115kHz per channel
- THD:<0.01% @1kHz per channel
- Gain:60dB
- Rated input level:100mV/100V
- Maximum output voltage :470V r.m.s./1kHz
- Input impedance:Unbalanced 50kΩ/ Balanced: 50kΩx2

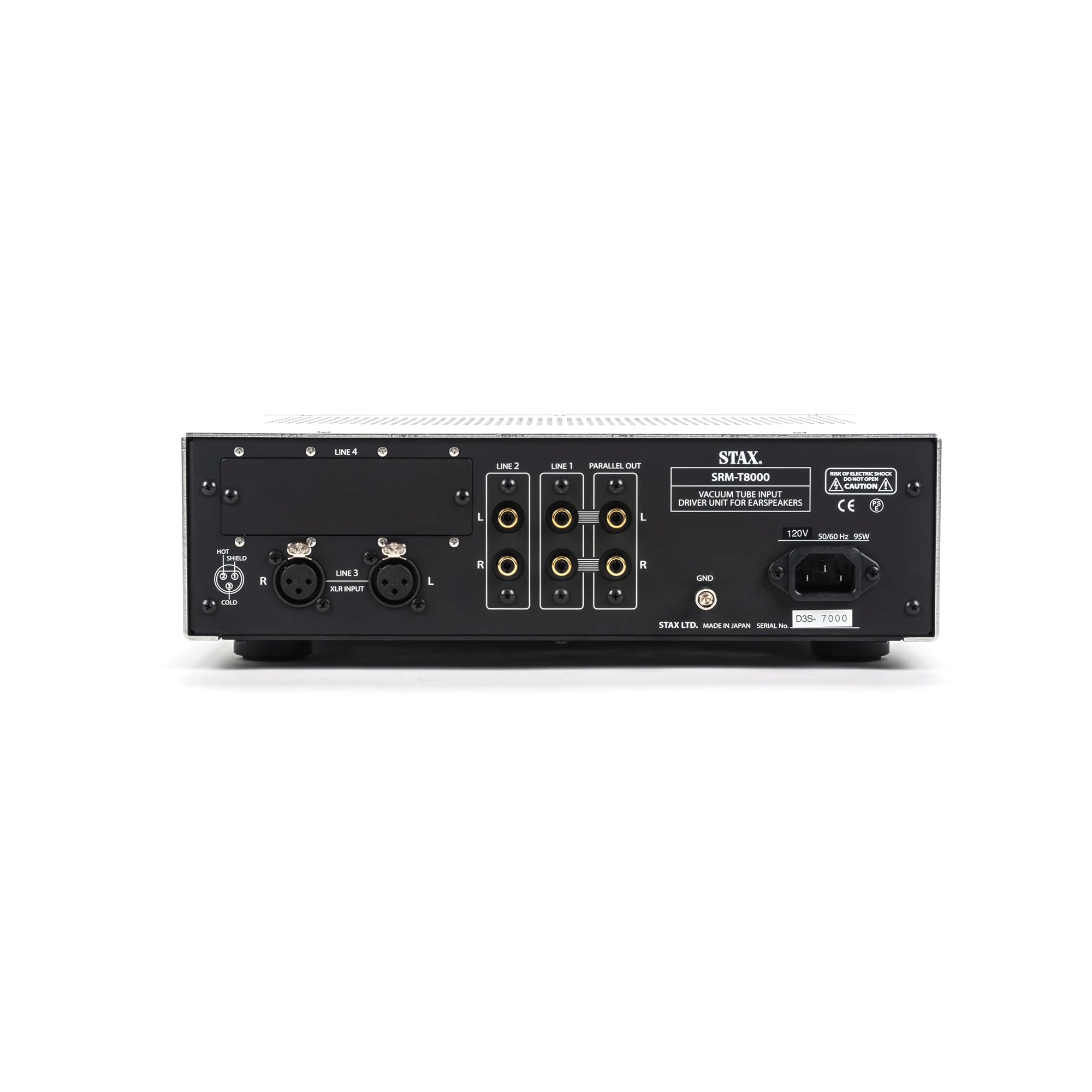

- Analog Input :RCA x2、XLR x1
- Headphone output :Stax PRO bias output x2
- Volume control bypass: Allows the use of an external preamp
- Vacuum tube: 6922 x2
- Power consumption :95W(58W when idle)
- External dimension :320(W)×103(H)×395(D)mm / 12.6" x 4" x 15.6"
- Weight:7.3kg / 16.1 lbs
- Voltage: 120V/60HZ
- Warranty: 1-year U.S. limited warranty
