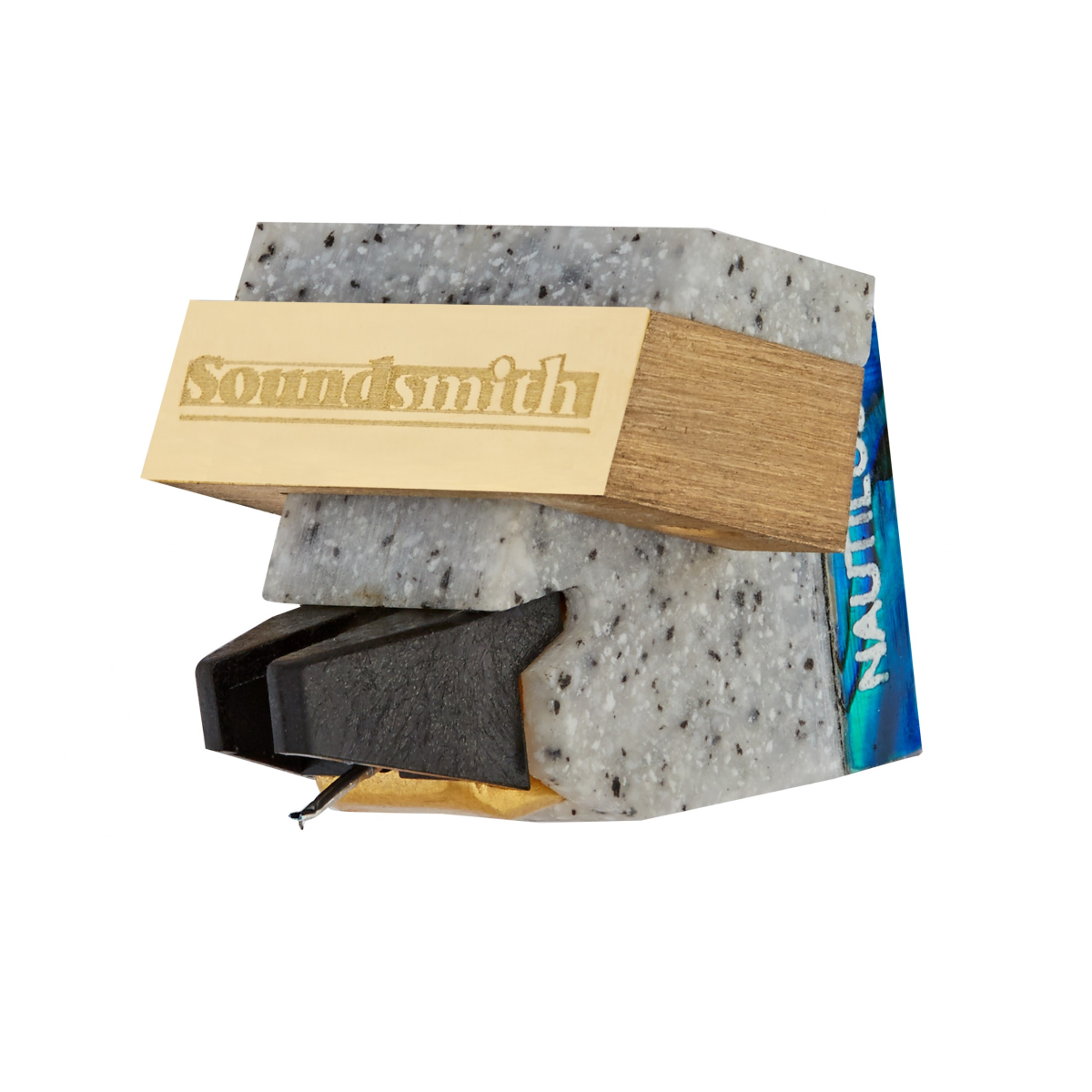

Soundsmith NAUTILUS Movng Iron Cartridge
USANAUTILUS
"The Mezzo and the Nautilus can perform this sonic magic of sounding lifelike and with the exact intentions of the musician, whether it’s played in the concert hall, in the studio, or on electronic hardware and software. Both these cartridges made each record sound like the best sounding record I've ever heard. That is, until I played the next record.” - Tom Lyle, Enjoy The Music
Medium output design, otherwise identical to the Paua. The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades & praise from users and reviewers around the word, including an “Editor’s Choice Award” in 2015 from TAS.
| Type: | • Fixed Coil / Moving Iron |
| Mount: | • Standard ½” |
| Cartridge Height: |
• WITHOUT ALUMINA inserts = .675” top to stylus tip – with two half round alumina pieces for ground isolation add .010” • WITH center slot full round Alumina (use for azimuth adjustment if your arm does NOT allow such) = .733” |
| Stylus: | • Contact Line, Nude, 0.10 mm square |
| Radius of Curvature: | • Nude Contact Line SELECTED |
| Cantilever: | • Telescoping Aluminum Alloy |
| Recommended Tracking Force: | • 1.7 - 1.9 g |
| Effective Tip Mass: | • 0.30 mg |
| Compliance: | • 10 µm/mN |
| Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
| Channel Separation @ 1000 Hz: | • > 34 dB • N/A (Mono version) |
| Channel Separation @ 50 - 15,000 Hz: | • > 25 dB • N/A (Mono version) |
| Channel Difference: | • < 0.5 dB • < 1.0 dB (Mono version) |
| Output Voltage @ 5cm/sec: | • > 1.10 mV (MEDIUM) |
| DC Resistance (DCR): | • 110Ω |
| Coil Inductance per channel: | • 30 mH |
| Suggested Preamp Gain: | • 48 - 54 dB |
| Cartridge Weight: | • 10.25 g |
| Recommended Load Resistance: | • ≥ 1.5kΩ |
| Recommended Load Capacitance: | • n/a |
