Silent Angel Forester F1 Linear Power Supply
Forester F1
The Linear Power Supply That Supports HiFi Systems
There are various details in a HiFi system that might affect the audio quality. An extremely stable power source is an essential factor to the goal of pursuing ultimate sound quality. F1 is designed for music lovers who want to discover their system’s true potential and pursue the finest audio quality possible.

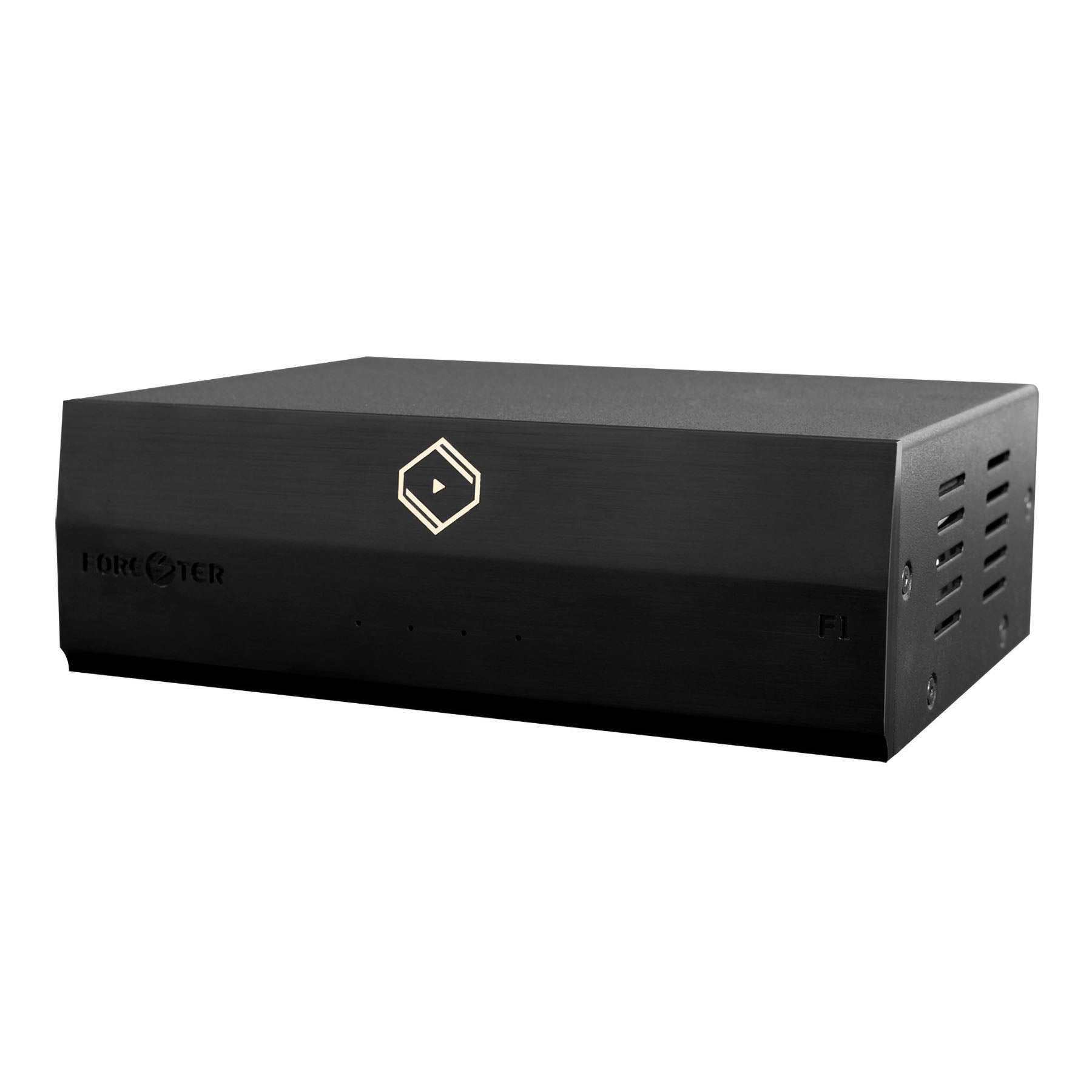

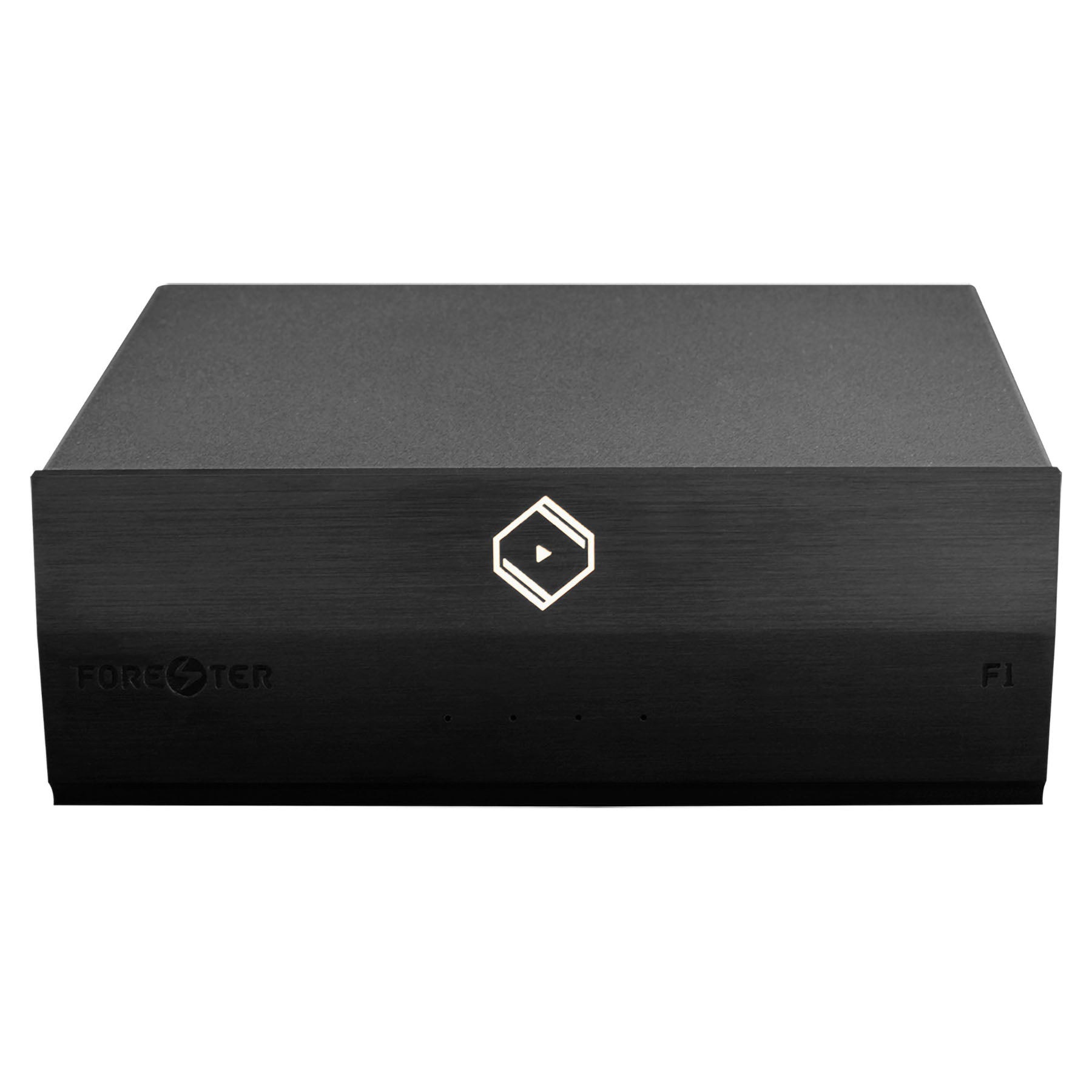

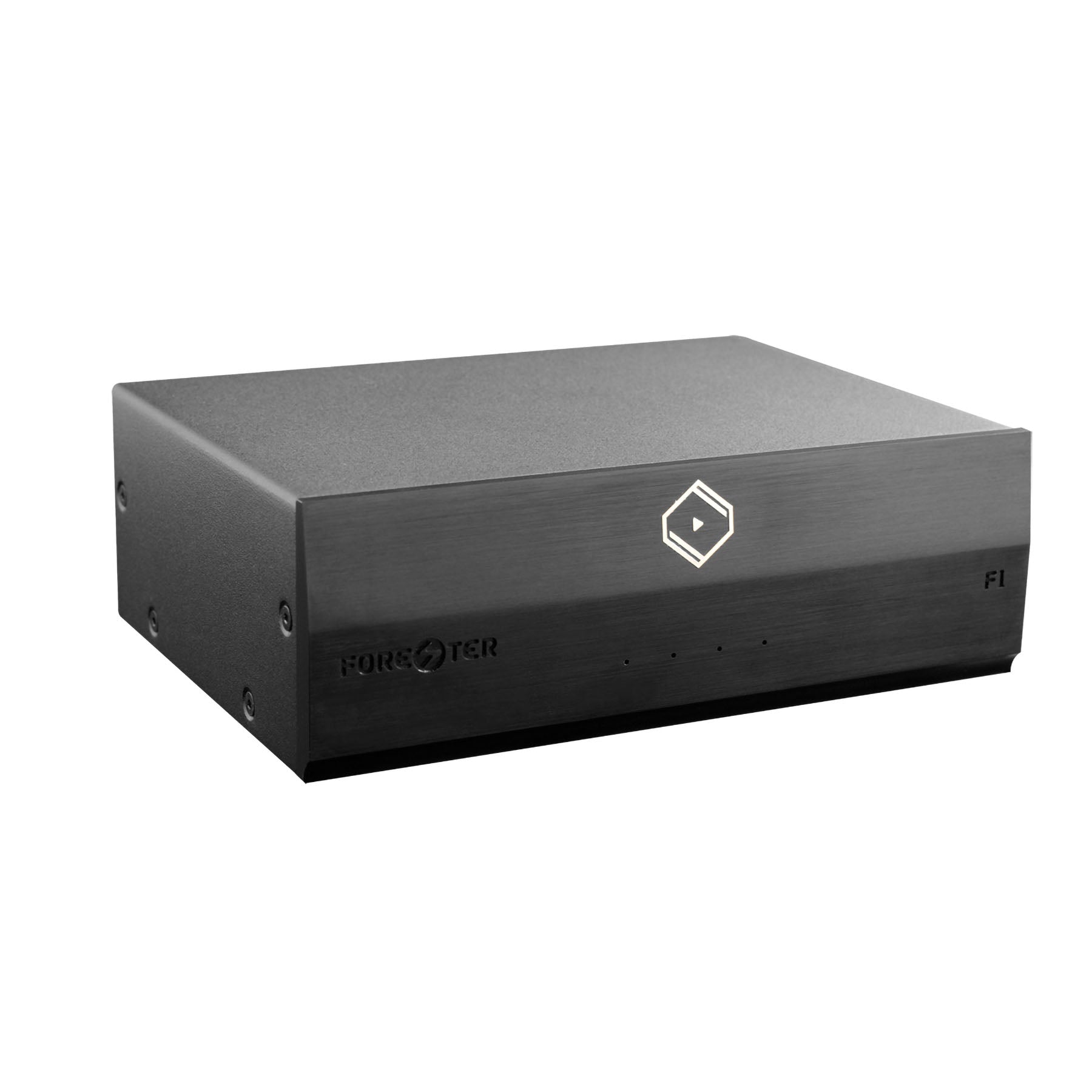

The Forester F1 model adopts Silent Angel’s power stabilization technology. Housed in an elegant metal enclosure with a solid aluminum alloy front panel. The AC power flows through the toroidal transformer along with high-quality power management, MOSFET components with fast response time. It will supply extremely stable DC power with ultra-low voltage fluctuation to the connected devices.
F1 employs two DC 5V-2A outputs, which is ideal solution to upgrade the power source for these models:
- Network Switch Bonn N8
- Network Streamer Munich M1, Bremen B1
- Network Transporter Munich M1T
An enhanced stable power supply will contribute a device’s clock module to perform extremely accurate operations, allowing network data packets to be transmitted at precise timing, reducing possible jitter and latency. It will improve the overall sound quality.
Available Color | Black |
Power Input | IEC (AC) 100-120V or 220-240V, 0.5A at max |

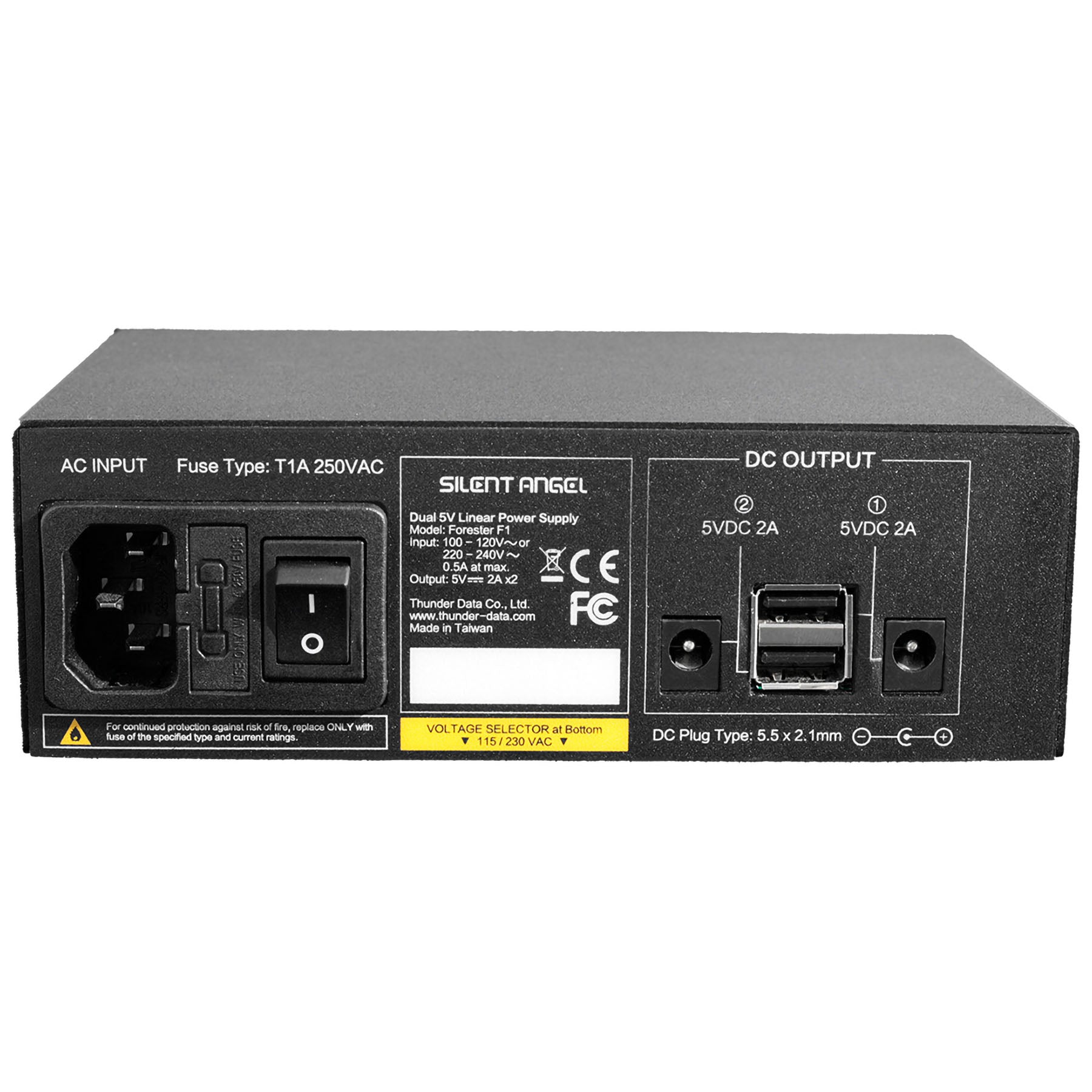

Power Output | (DC) 5V/2A plug x 2 (DC) 5V/2A USB2.0 Type-A x 2 |
Power Consumption | 60W at max |
LED Indicator | Output1 Status (Green) x 1 Output2 Status (Green) x 1 Output1 Over Temperature (Red) x 1 Output2 Over Temperature (Red) x 1 |
Temperature | Operating: 32 ~ 86 °F Storage: -4 ~ 158 °F |
Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
Dimensions | 6.11(W) inch x 2.28(H) inch x 4.82(D) inch |
Weight | 3.53 lbs |
Document Download | F1 Quick Start Guide |
