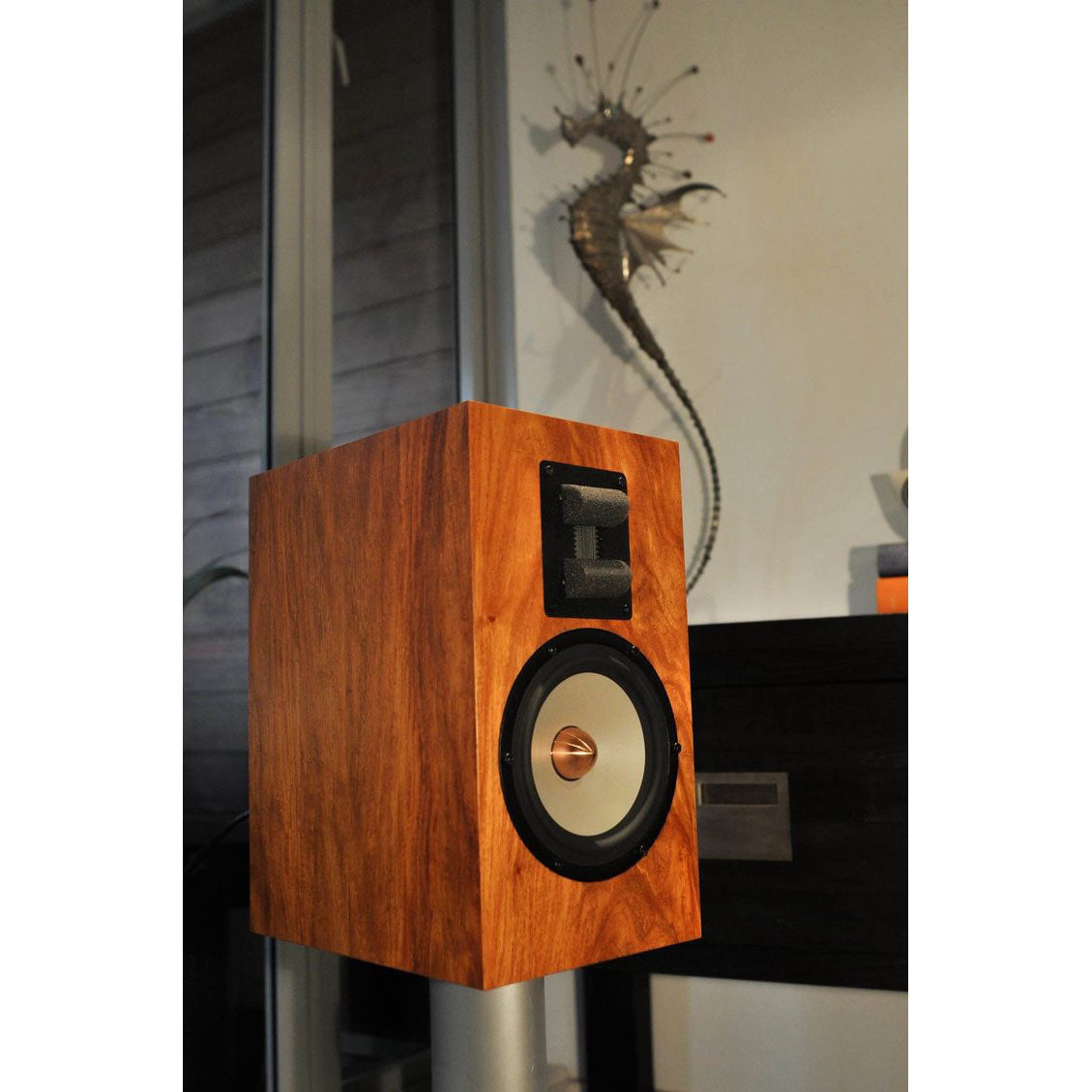

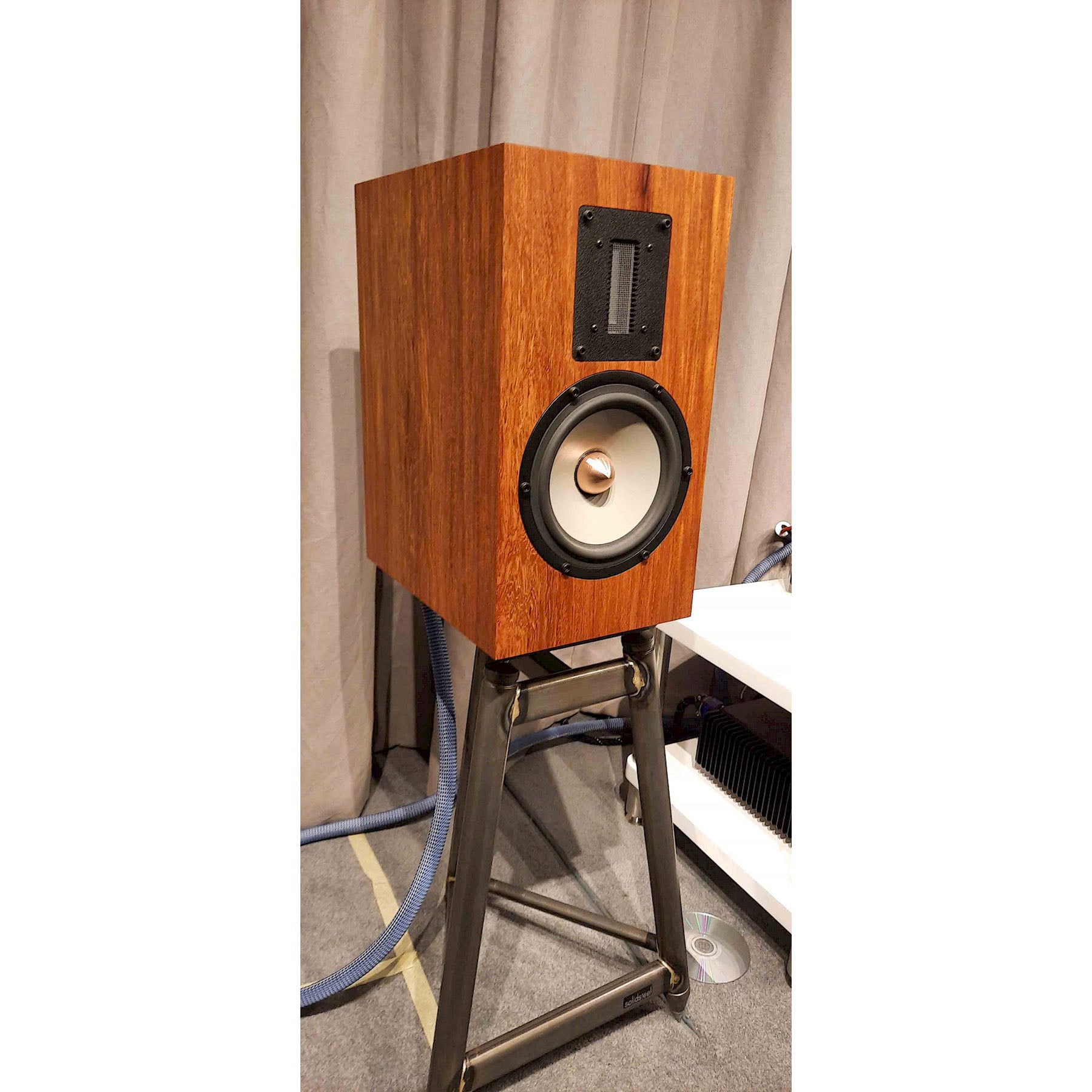

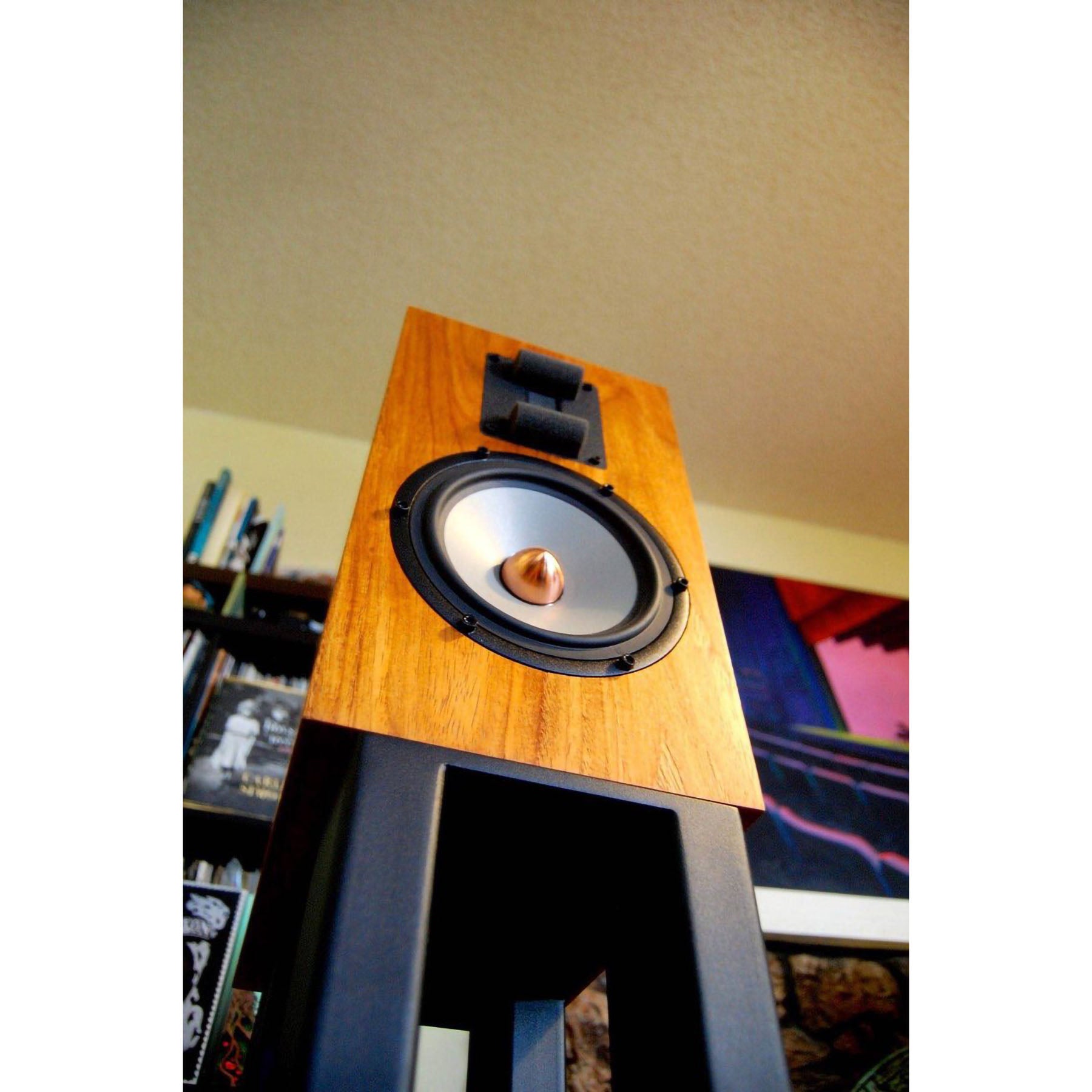

BA-2

The BA-2 loudspeaker is the very pinnacle and expression of our years of technical and subjective know-how.

It begins with our innovative ‘box within box’ constrained layer dampened, birch-ply enclosures, the selection of the finest drivers, the critical crossover design process for driver integration, baffle diffraction and phase coherence.

And of course, the final arbiter, the sound…

Features

• Seas Excel magnet system
• Real Ribbon tweeter technology
• Cardas Rhodium ‘high purity’ copper binding posts
• Crossover components utilising Solen high quality air cored inductors
• Premium Solen/Auricap polypropylene capacitors and non inductive resistors
• Box within box, birchply/constrained layer damped enclosure

Type

• 2 way stand mount
• reflex loaded

Drive Units

• Raal ribbon tweeter
  • Super fast transient response and settling time
  • Low nonlinear distortion and exceptional rendering of micro detail
• Seas Excel 6”/165mm Bass/Midrange Driver
  • High stiffness and critically damped magnesium cone
  • Copper rings around the T shaped pole piece reducing nonlinear and modular distortion

Cabinets

• Extremely low noise floor cabinet
• Constrained layer damping construction technique utilising:
  • Birch Plywood (25mm), MDF (9mm), Rosewood Timber (3mm)
  • Asymmetric bracing
  • ‘Box within box’ design
  • Constrained layered ‘at source’ damping technology

Technical

• Frequency Response (typical in room response): 35Hz – 30kHz
• Sensitivity: 86dB/1m/2.83 volts
• Power Handling (typical music programme): 100 watts
• Nominal Impedance: ~ 6 ohms
• Dimensions: Height 38.1cm, Width 21.3cm, Depth 30.3cm
• Weight: 17 kg each
• Finish: New Guinea Rosewood
