Schroder

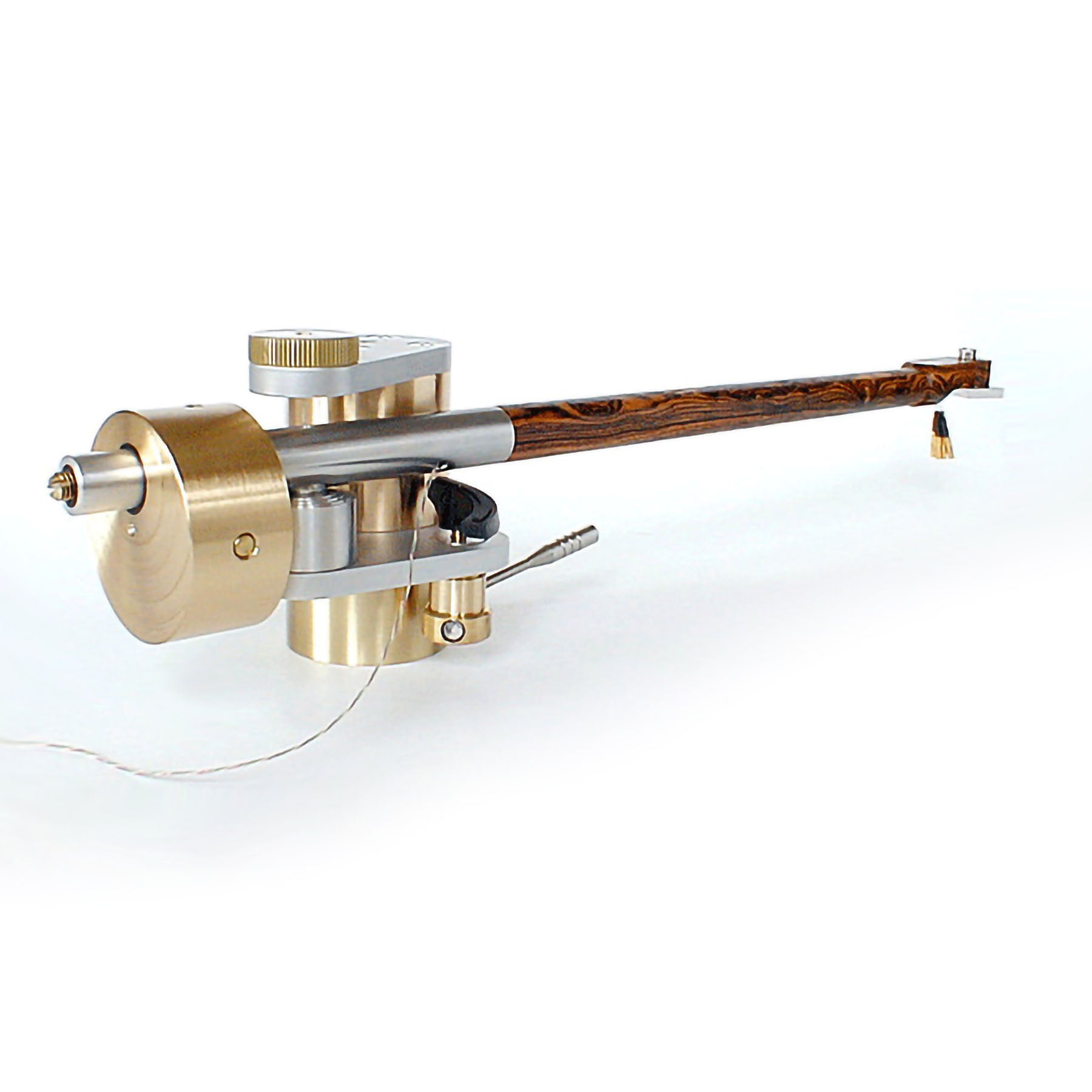

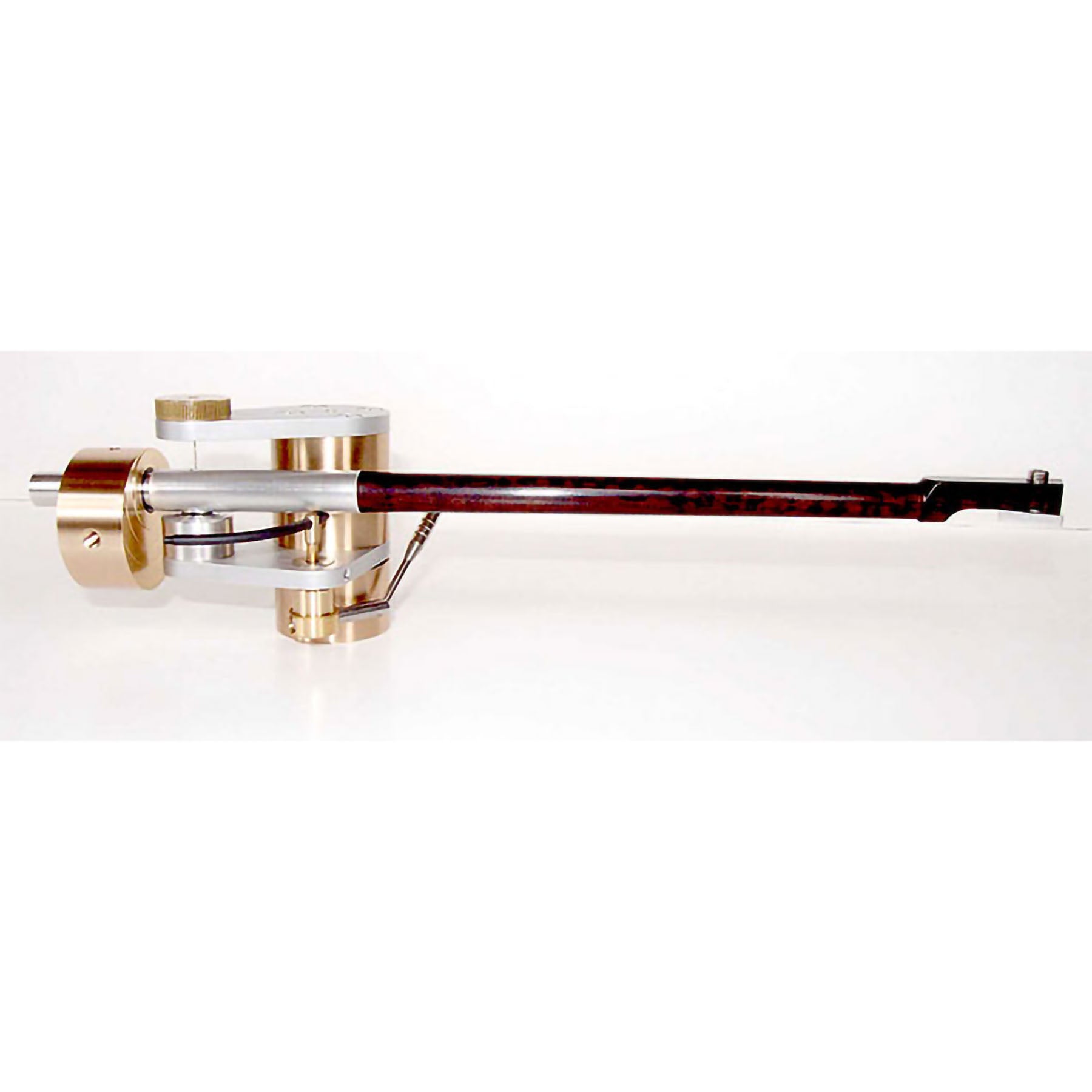

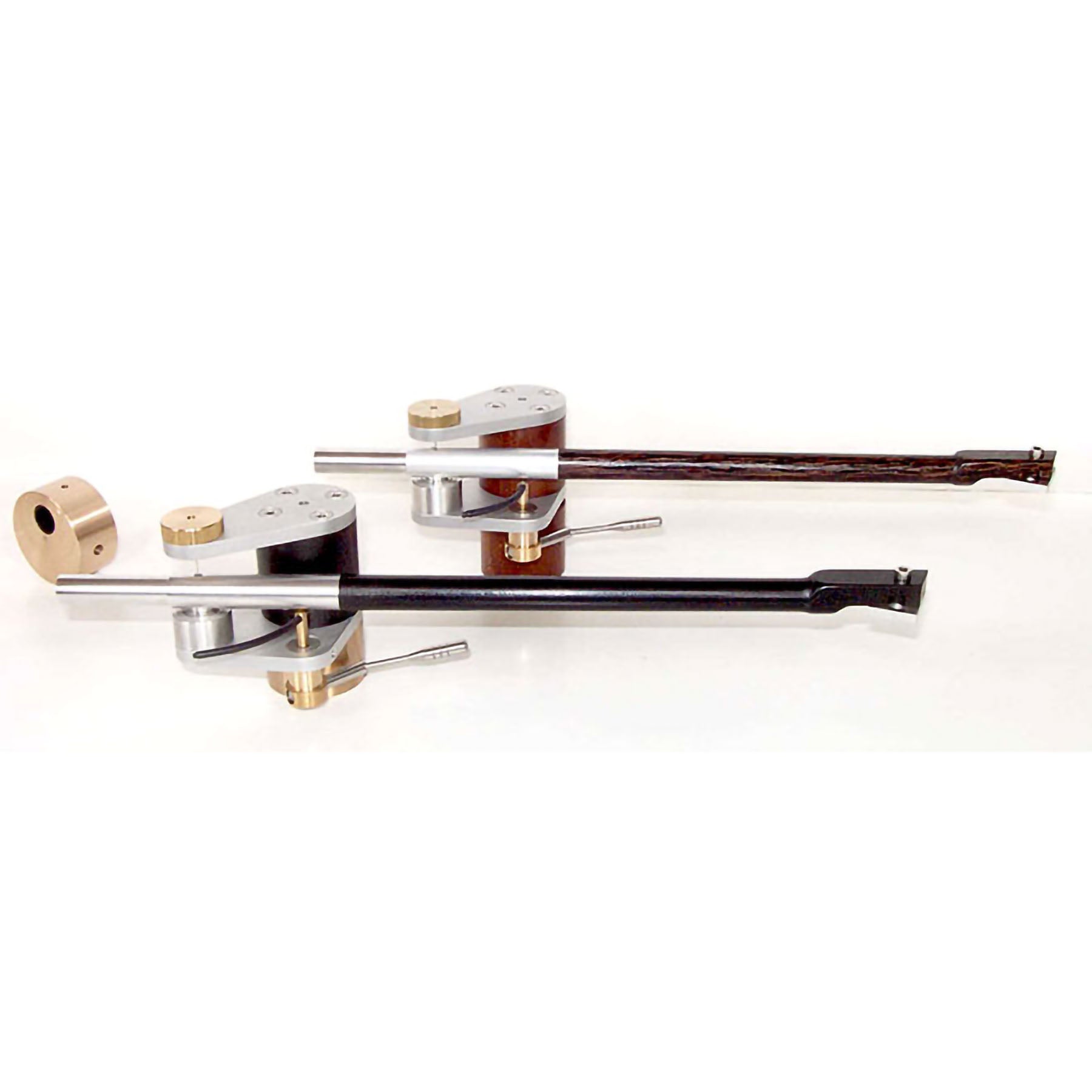

Schroder Reference SQ Tonearm
Schroeder Reference SQ

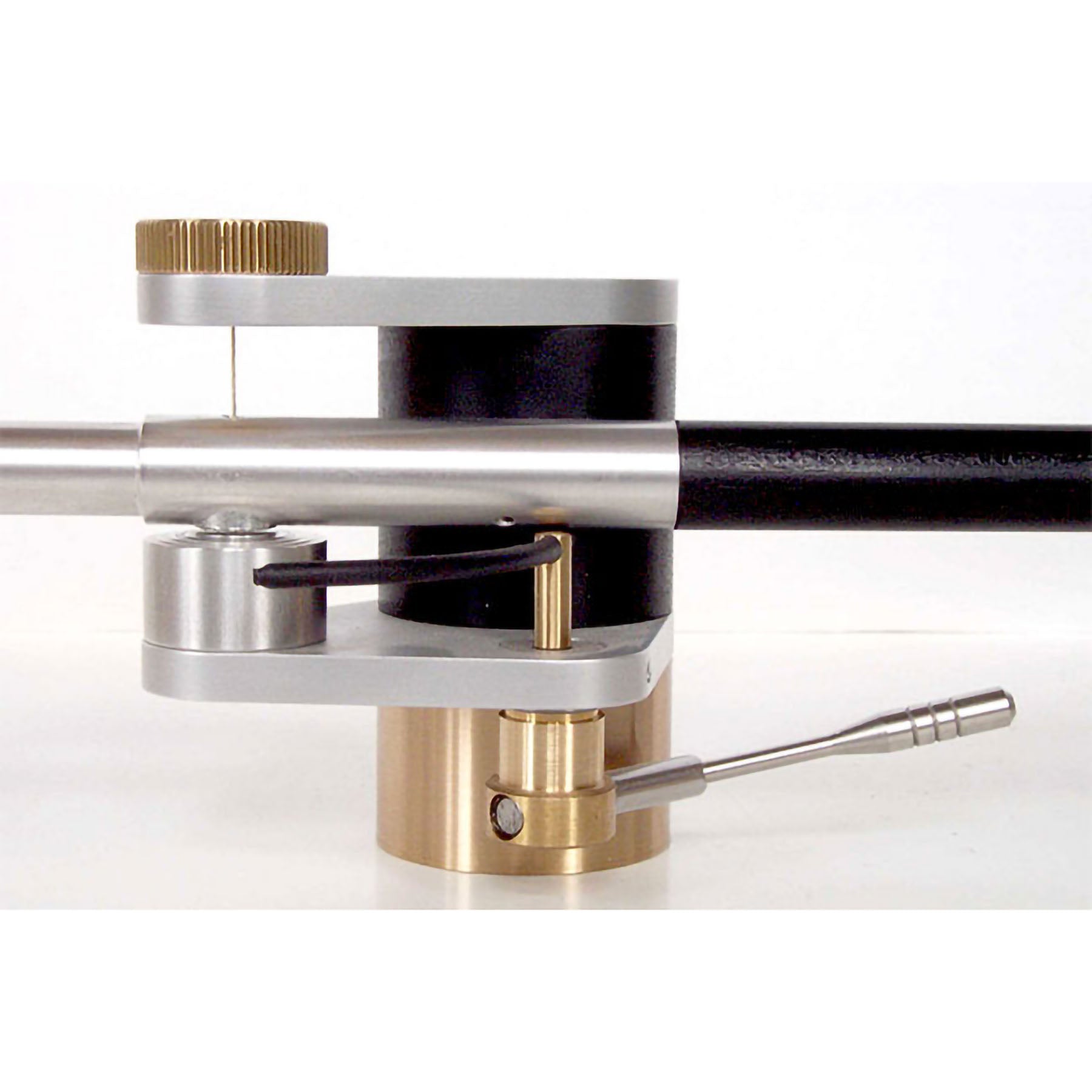

A yarn - torsion bearing , magnetically stabilized and steamed
No bearing friction , breakaway torque equal to zero , no " camp chatter"
Attenuation of the tone arm - Tonearm resonance by induction of eddy currents, adjustable.
VTF remains in changing the VTA largely constant ( " neutral balance" )
Overhang , VTA , VTF and Azimuth sensitively adjustable
Variable armtube parameters , thus effective mass ( 5g - 35gr ) and effective length will correspond directly,
Additional length options (ie. 8.5” - 12” ) usually at no extra charge to customer / custom request feasible.
Cryo treated Nordost Valhalla tonearm wiring, continuous, alternative cabling to arrangement
Tonearm / rods with high internal damping of Bocote , Rosewood , Blackwood.

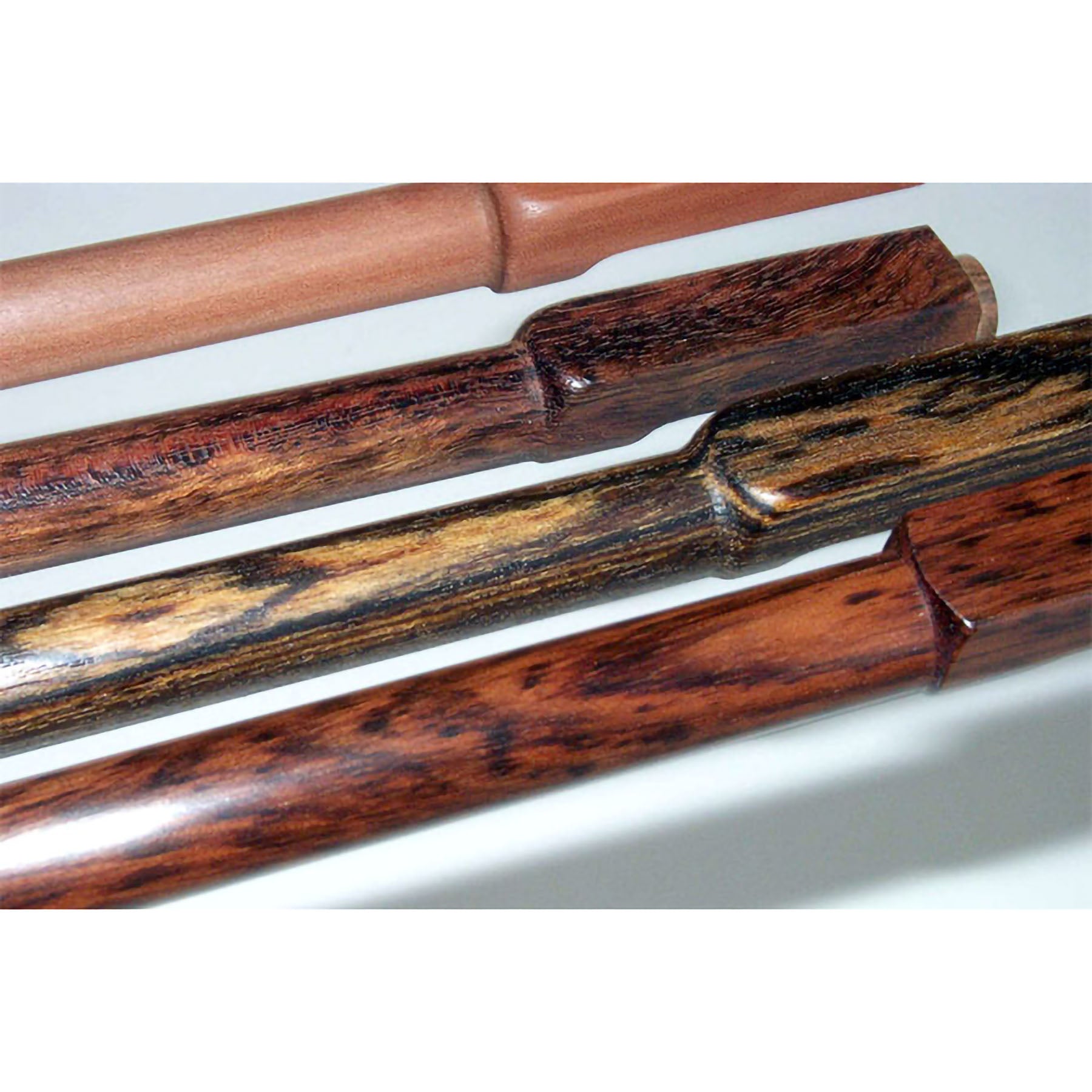

Armwand options: Ebony , Acacia , Bocote, Jacaranda, Cocobolo, Bamboo, Carbon fiber u.m.
Effective mass - 9.4" length ~ 12g - 15g, depending upon headshell plate material.
Effective mass - 11.1" length ~ 16g - 20g, depending upon headshell plate material.
Note: Certal, Aluminum or brass headshell plates will affect the effective mass by ~ 2g - 5g.
Further notes: standard “Reference” model features a solid brass bearing tower and includes standard internal wiring only.
Patented design.
