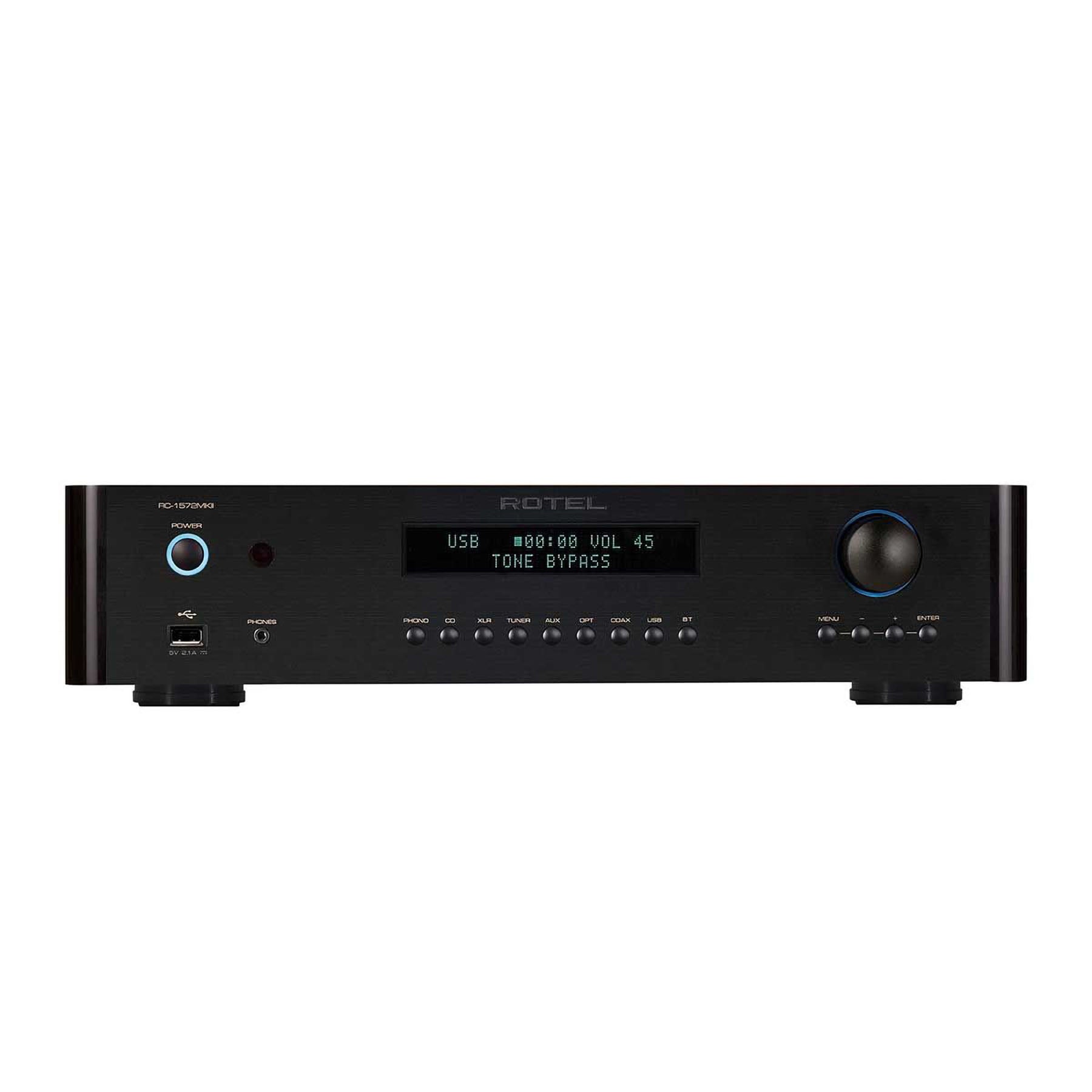

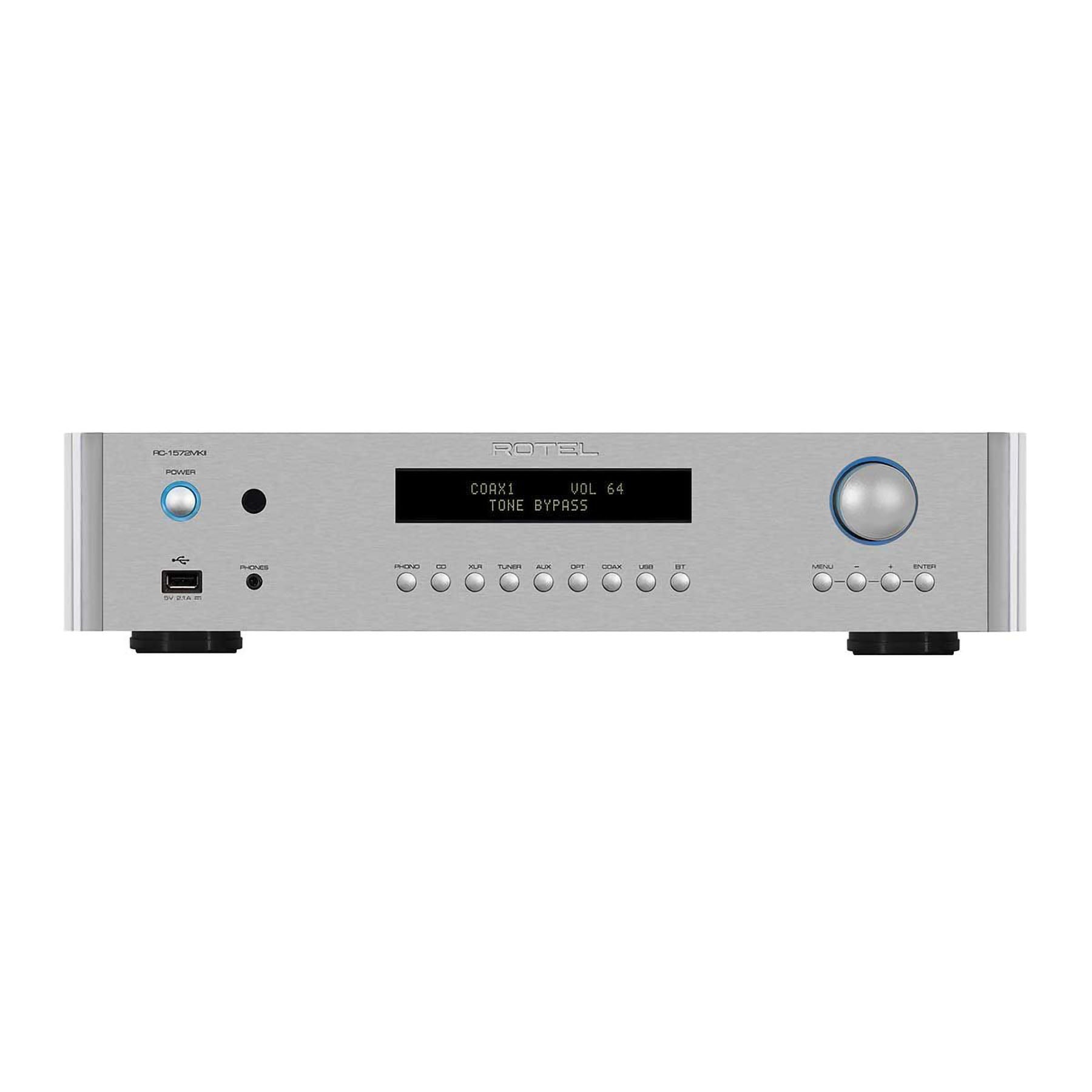

RC-1572MKII

Affordable high-end begins with Rotel’s RC-1572MKII Preamplifier processing your favorite analog and digital sources in stunning clarity with a natural and enveloping sound stage.

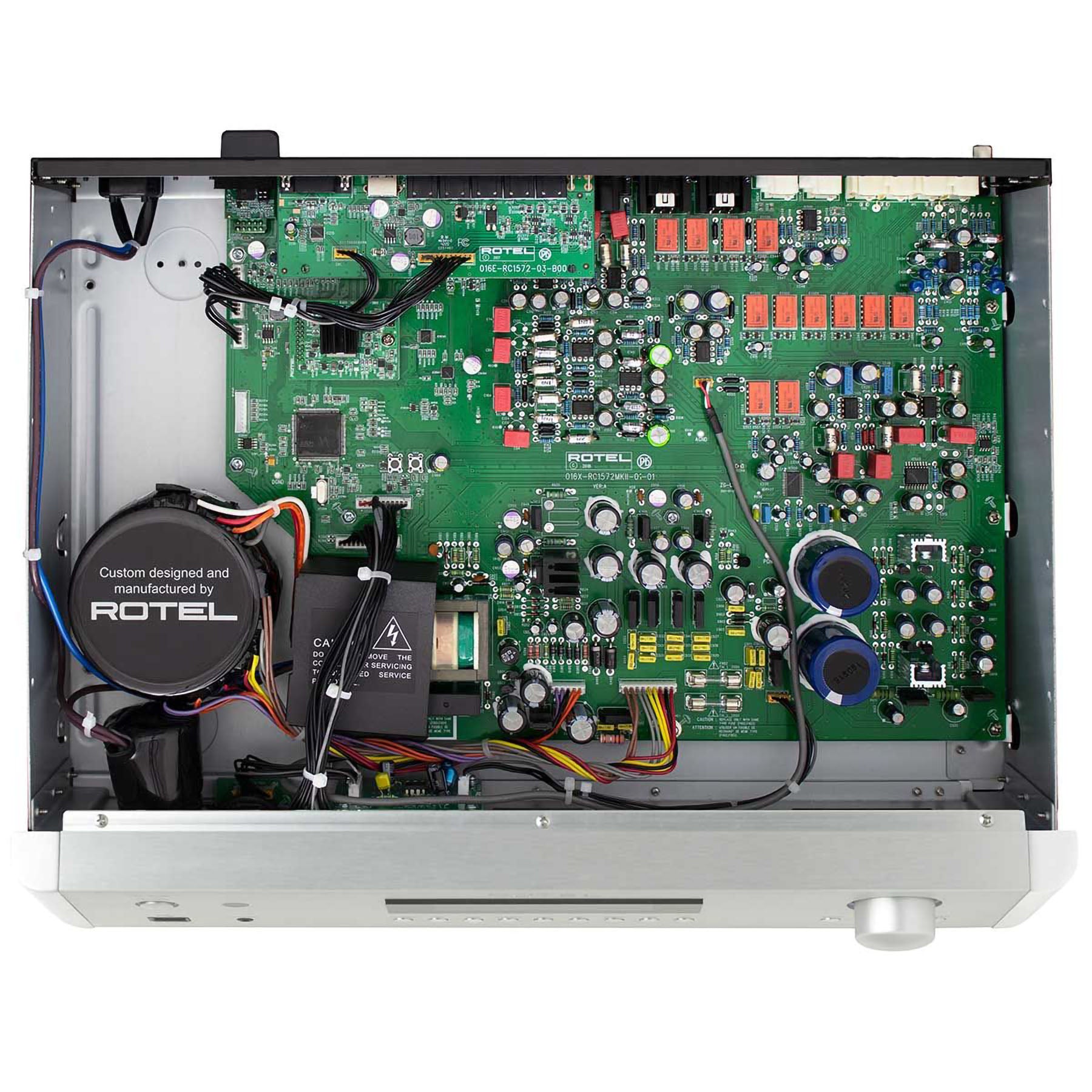

As an essential component in a Hi-Fi audio stack, the RC-1572MKII's precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.

A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom-tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.

Analog, Digital, XLR, aptXTM, and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favorite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

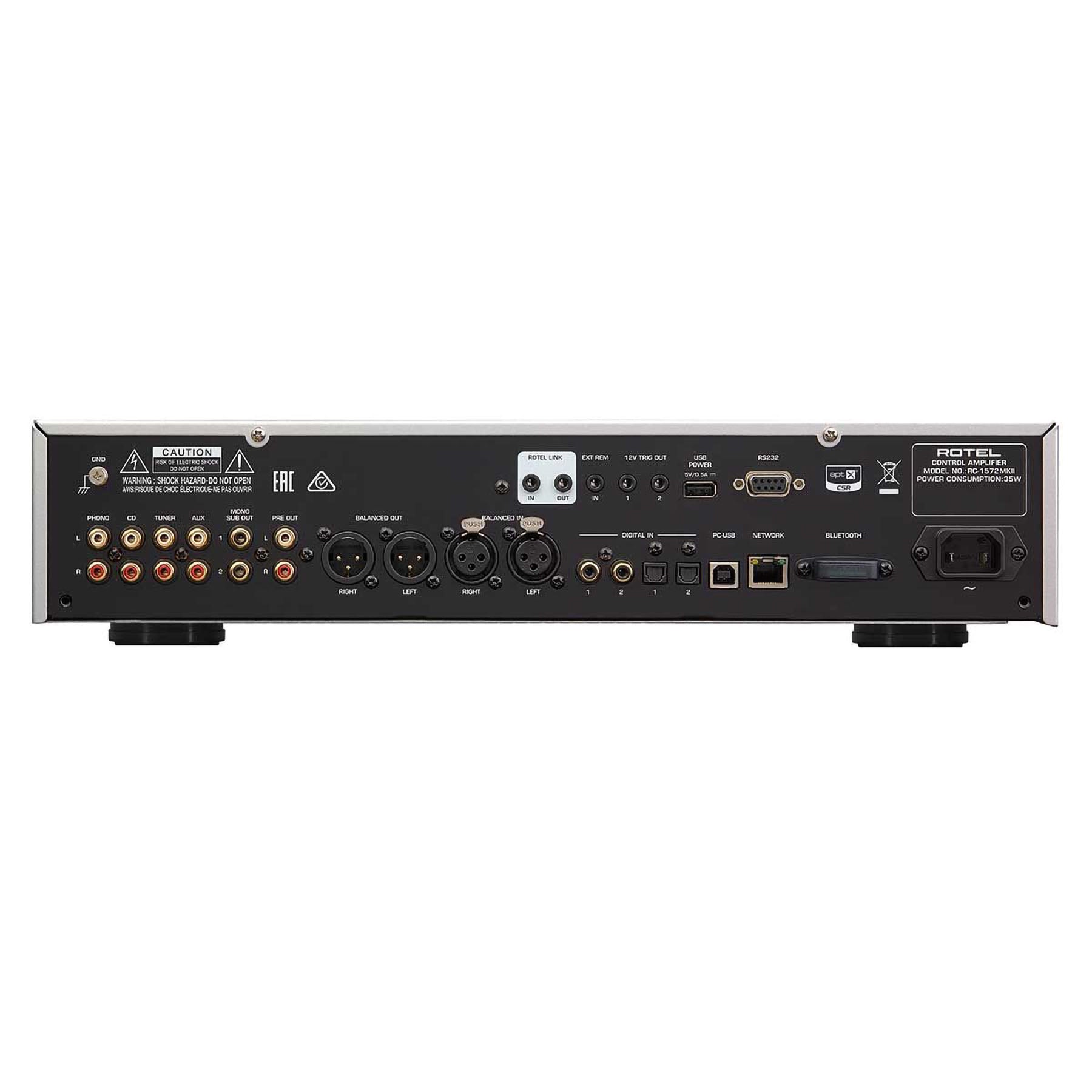

The RC-1572MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings, and tone adjustments optimize customization settings.RCA, XLR, and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.

Bring your CDs, Digital Files, and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.

Manuals & Downloads

Rotel RC-1572 MKII Owner's Manual

DIMENSIONS (W × H × D)

431 × 99 × 338mm
17" × 3.9" × 13.5"

FRONT PANEL HEIGHT

2U / 88.1mm (3.5")

POWER REQUIREMENTS

120V, 60Hz

POWER CONSUMPTION

35W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

8.4kg (18.5lbs.)

BTU RATING

65 BTU/h

TOTAL HARMONIC DISTORTION (THD)

(20Hz–20kHz) <0.004%

FREQUENCY RESPONSE

Line Level Inputs :

10Hz - 100kHz (+0dB, -0.2dB)

Digital Inputs:

20Hz - 20kHz (0±0.5dB, Max)

Phono Input:

20Hz - 20kHz (+0.3dB, -0.2dB)

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 118dB

Digital Inputs: 100dB

Phono Input: 80dB

<0.004%

INPUT SENSITIVITY

Line Level Inputs (RCA): 200mV

Line Level Inputs (XLR): 300mV

Digital Inputs: 0dBFs

Phono Input (MM): 3mV

INPUT IMPEDANCE

Line Level Inputs (RCA): 100kΩ

Line Level Inputs (XLR): 100kΩ

Digital Inputs: 75Ω

Phono Input (MM): 47kΩ

INPUT OVERLOAD

Line Level Inputs (RCA): 4V

Line Level Inputs (XLR): 5V

Phono Input: 63mV

OUTPUT LEVEL

Unbalanced (RCA): 1V

Balanced (XLR): 2V

CHANNEL SEPARATION

Line Level Inputs (RCA): >85dB

Line Level Inputs (XLR): >75dB

Phono Input: >85dB

TONE CONTROLS

±10dB at 100Hz / 10kHz

1.44 V (at - 20 dB)

COAX/OPTICAL DIGITAL INPUT SIGNALS

LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*

*Driver Installation Required

MQA and MQA Studio (up to 24-bit/384kHz)

Roon Tested
