Rotel RB-1552 MK II Stereo Power Amplifier
RB-1552 MK II Stereo Power Amplifier
The RB-1552 MKII stereo amplifier has been engineered to provide high-resolution audio performance, yet it is very affordable, as has been the tradition with Rotel electronics for over 50 years.

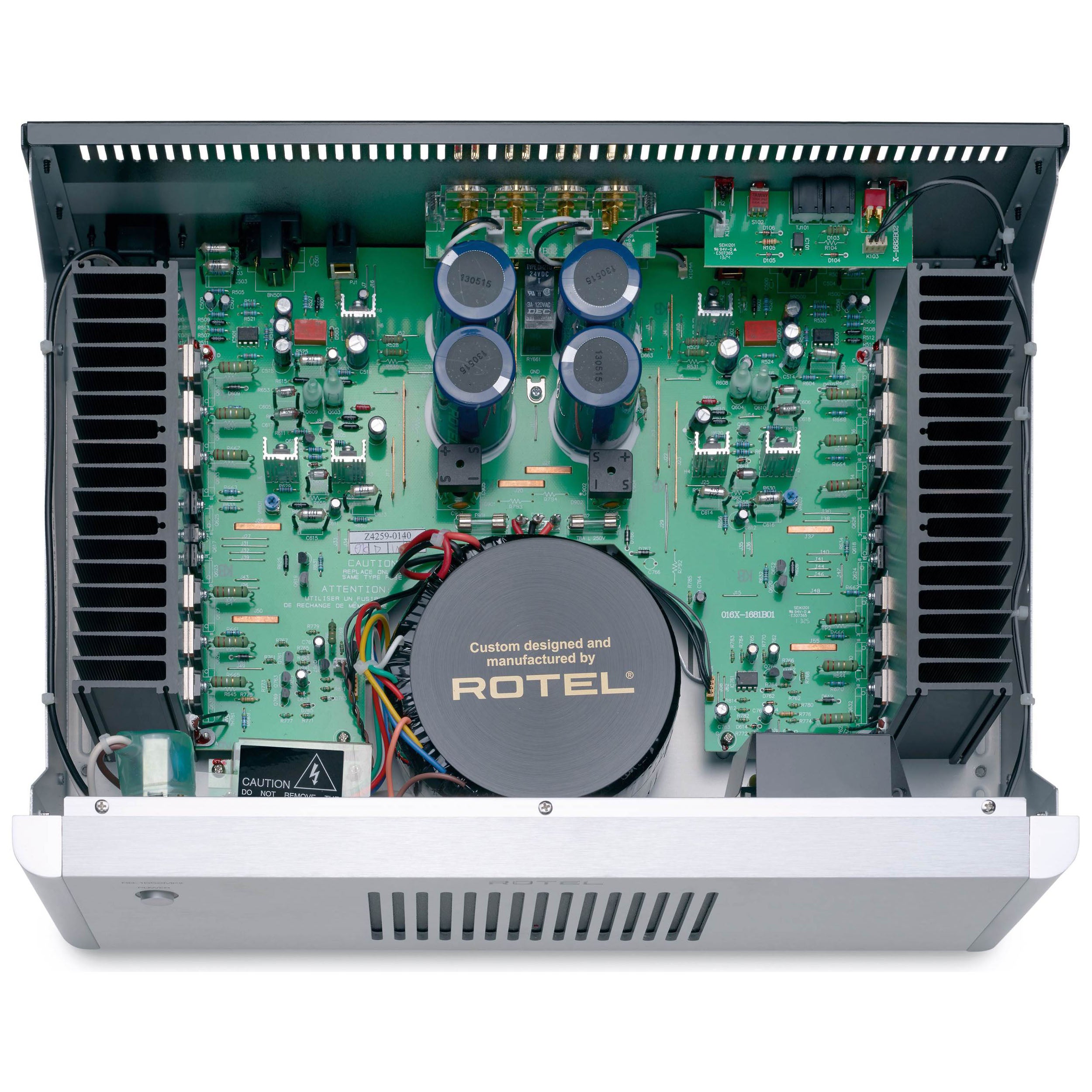

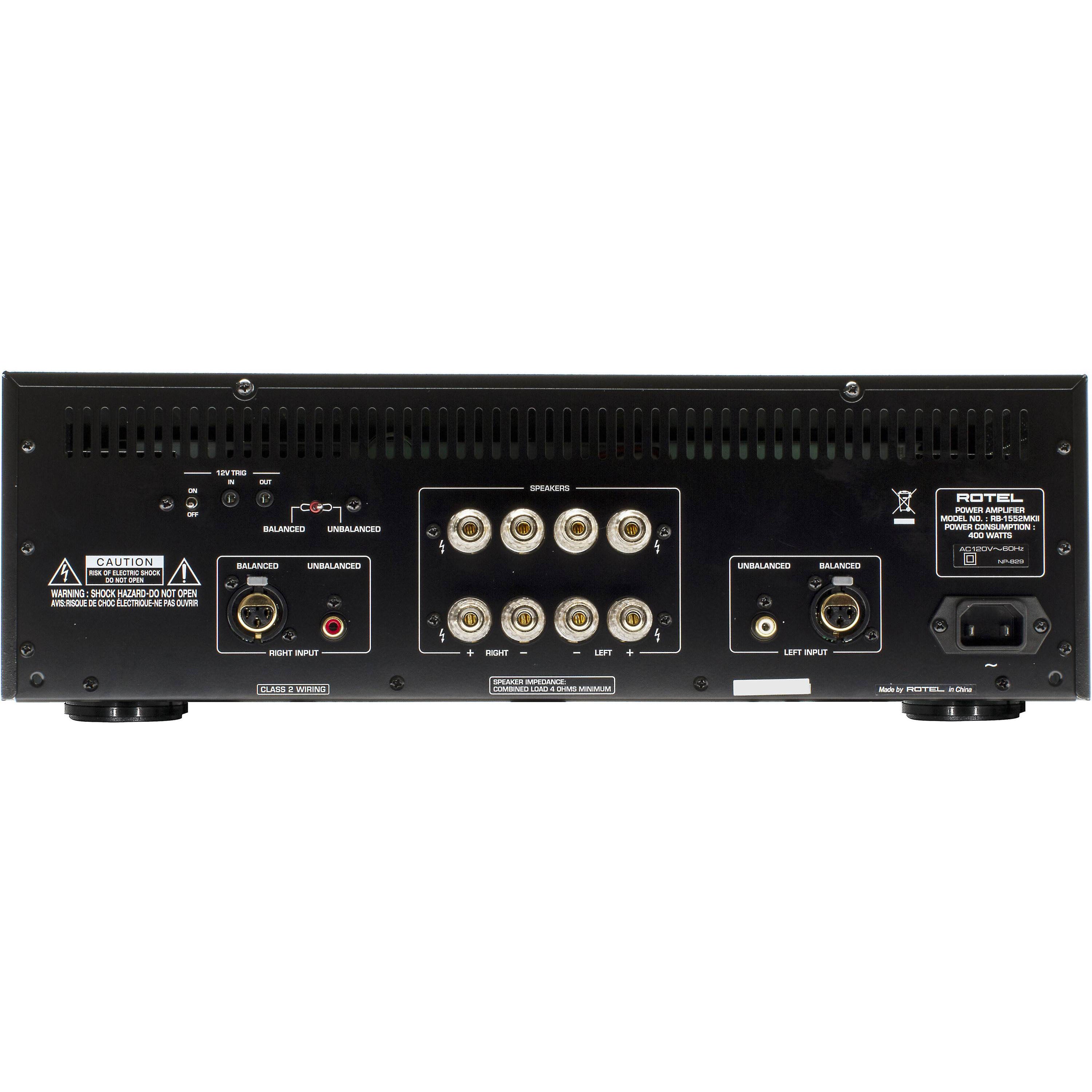

Rotel engineering’s fanatical attention to detail means the sum is greater than the parts; this is what we call our Balanced Design Concept. Each aspect of design is carefully considered holistically to result in maximum audio performance, from the selection of an over-sized power supply featuring a highly efficient, low magnetic field toroidal transformer to multiple, high-current bipolar output transistors. Circuit topology is planned, implemented, evaluated, and adjusted to achieve optimum results. The RB-1552 MKII 120 watt Class A/B amplifier features independent left and right power rectification stages and decoupling, and is essentially a mono block design. Further evidence of design over-spec is in the selection of premium “slit-foil” capacitors, which provide plenty of reserve energy for extremely dynamic audio passages and are able to quickly replenish themselves due to the nature of their unique design. Input options are balanced XLR or unbalanced RCA connectors.
For more detailed information on the Rotel RB-1552 Mk II Stereo Power Amplifier, click here.
Reviews
The Absolute Sound: "The amp boasts the sort of holistic design and careful parts selection that have distinguished Rotel’s best amps through the ages." April, 2014.
Electronic House: October, 2013.
Power Configurations
2 x 120 watts (20Hz-20kHz, <0.03%, 8 Ohms)
Watts/Channel
130 watts, all channels driven, 8 ohm load, 20-20kHz
THD (20-20,000Hz) 8 Ohms, all channels driven
< 0.03%
IM Distortion
< 0.03%
Damping Factor (8 Ohms)
500
Input Impedance / Sensitivity
Unbalanced
12k Ohms/1.5 volt
Balanced
50k Ohms/2.5 volt
Frequency Response (+/-1dB)
4 - 100kHz (+0.5dB, -3dB)
S/N Ratio (IHF A)
120dB
Power Consumption
400 watts
Dimensions (W x H x D)
431 x 144 x 340 mm
Front Panel Height
3 U (5.25”)
Shipping Weight
14.3 Kg
