Rotel

DT-6000 STEREO DAC
The Rotel DT-6000 DAC Transport celebrates 60-Years of performance synonymous with the brands Japanese heritage.
PC-USB, Optical, Coaxial, and included tray loading CD Player provide the ultimate flexibility for your favorite sources rendering the audio with unprecedented detail and immersive sound stage.
Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.
An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

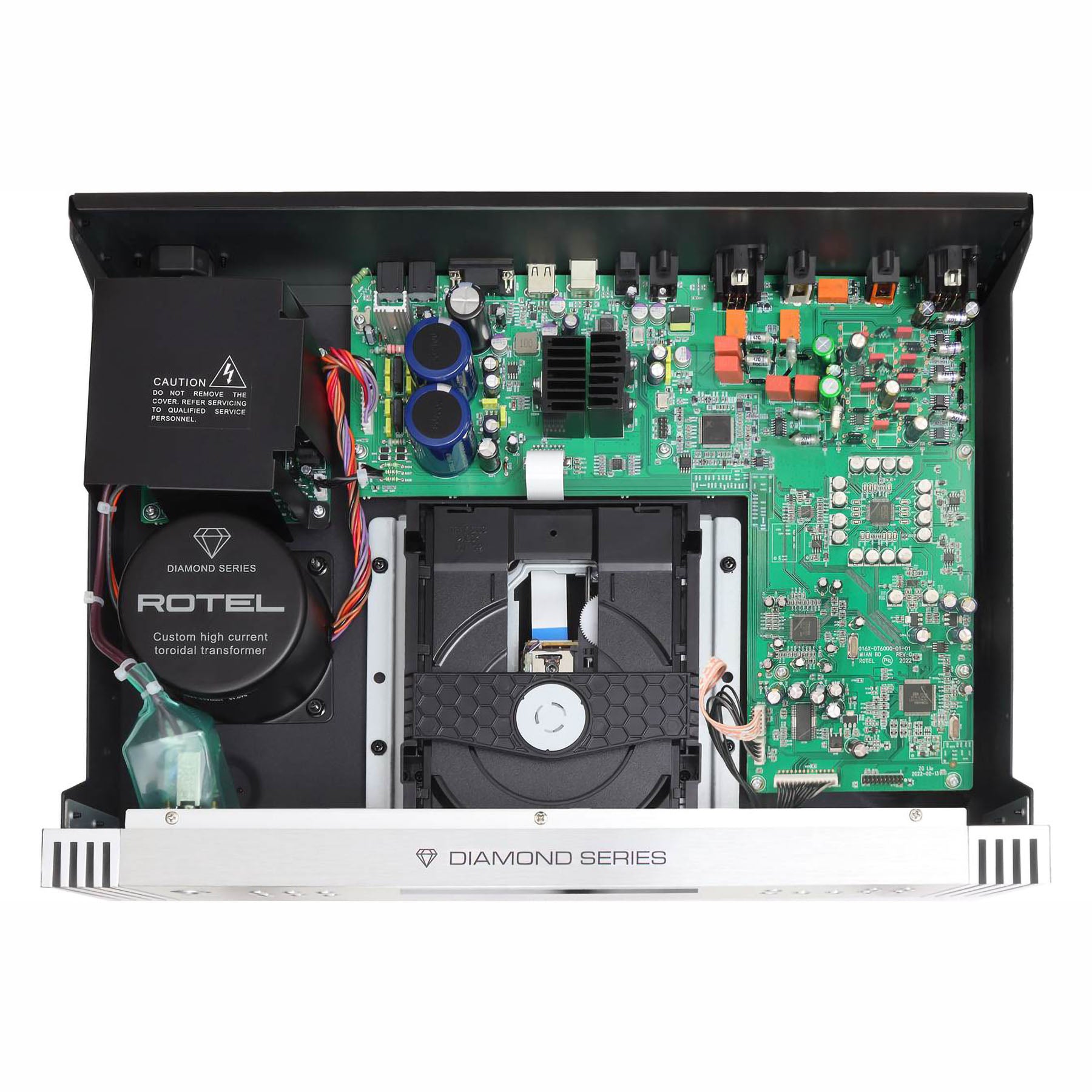

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.
The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X). Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.
The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

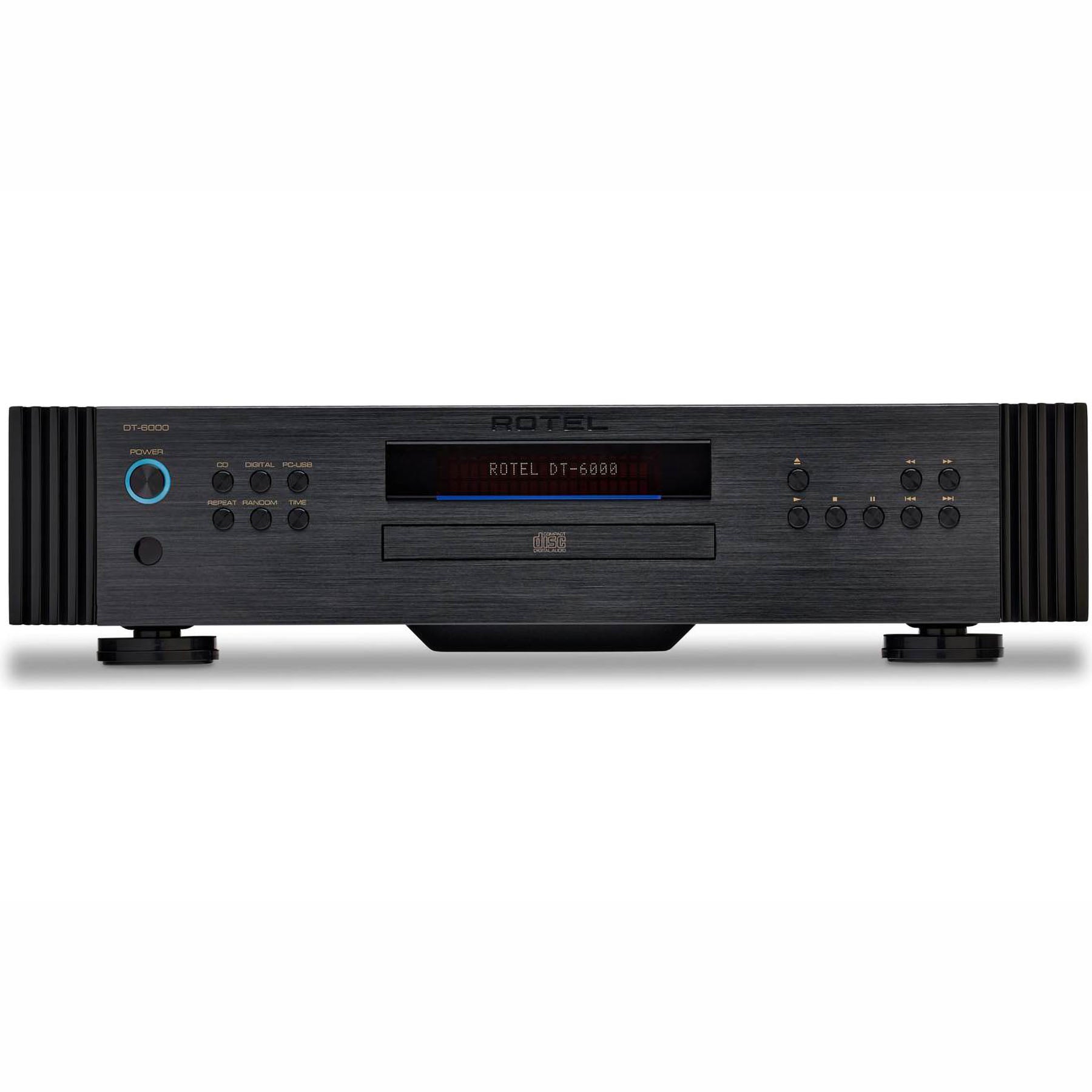

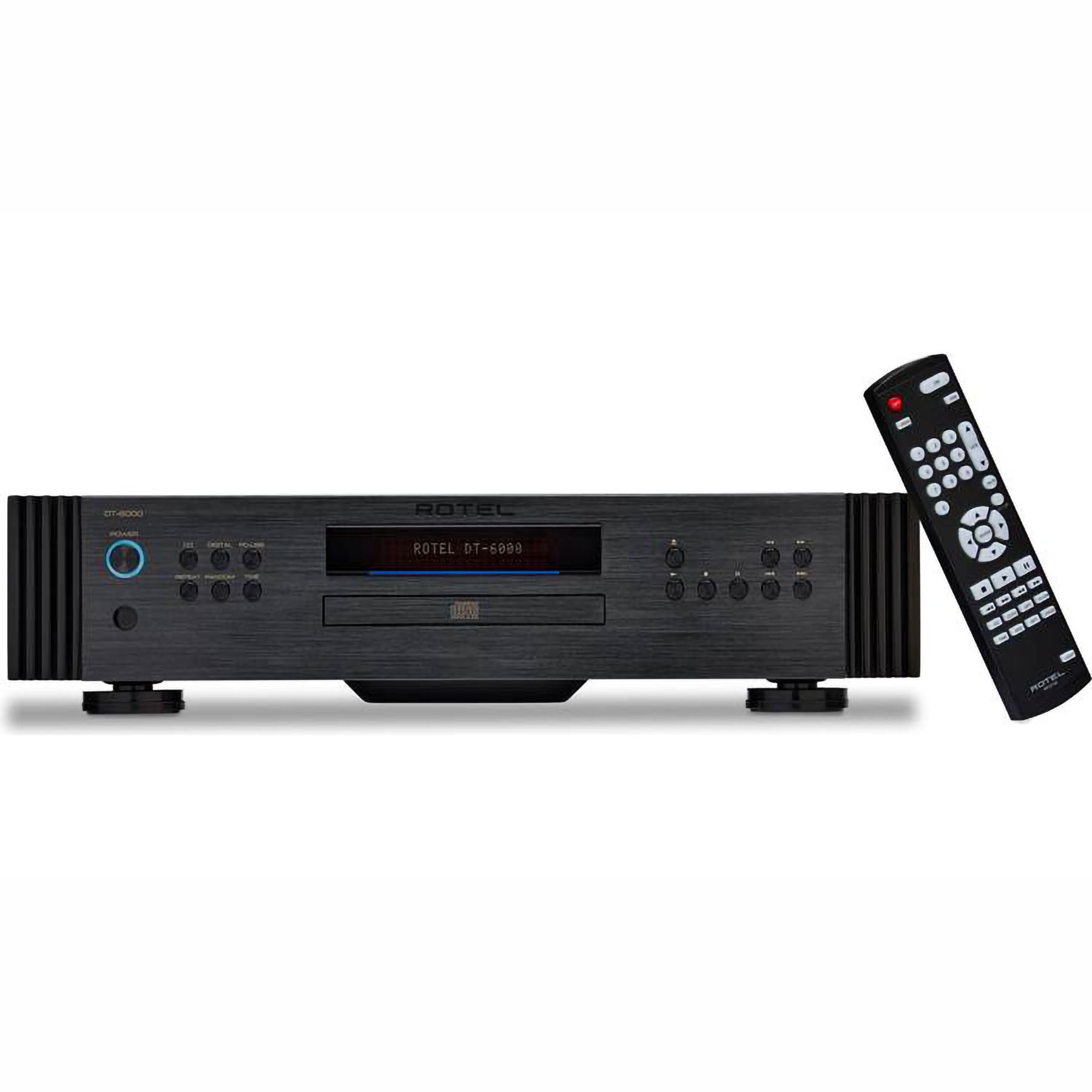

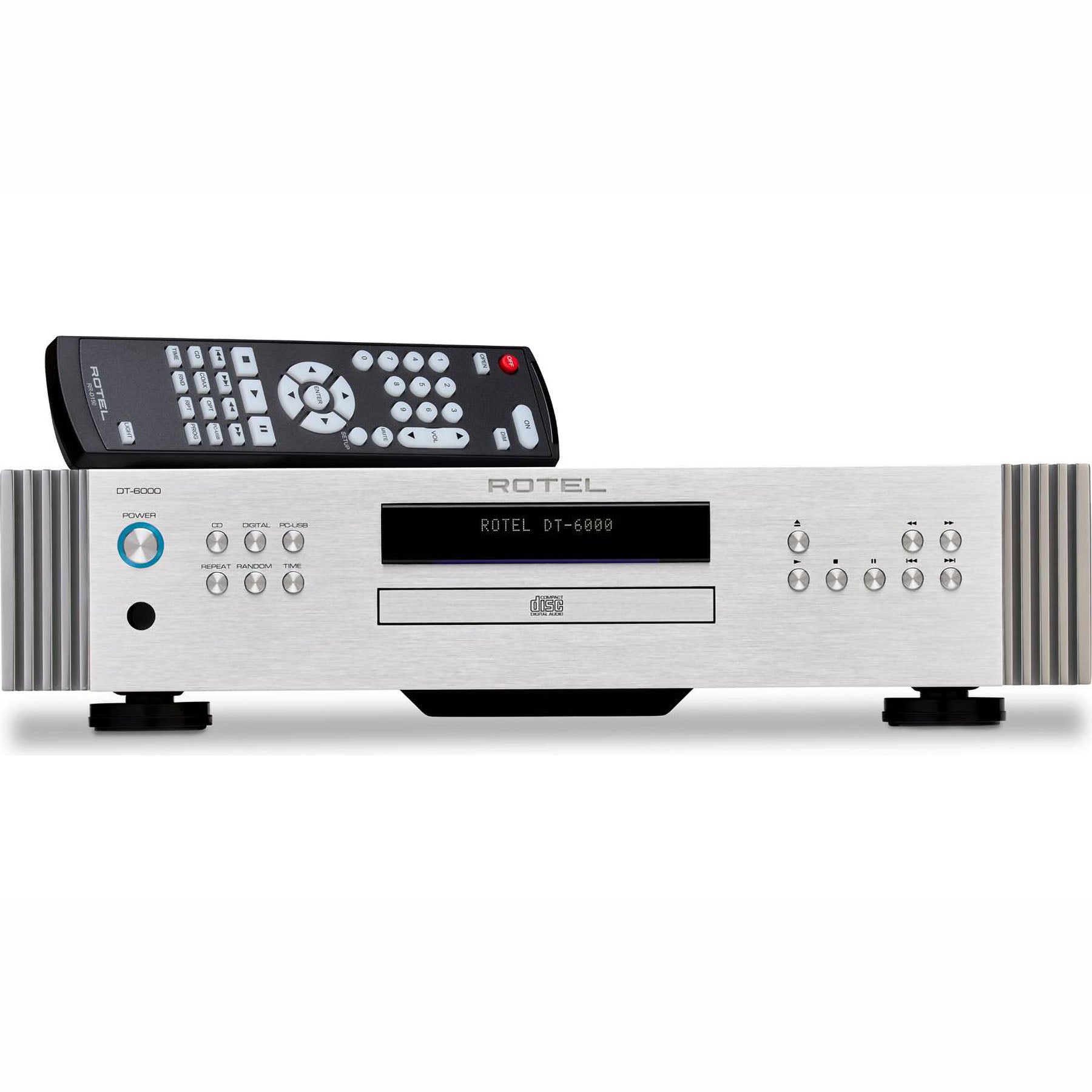

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

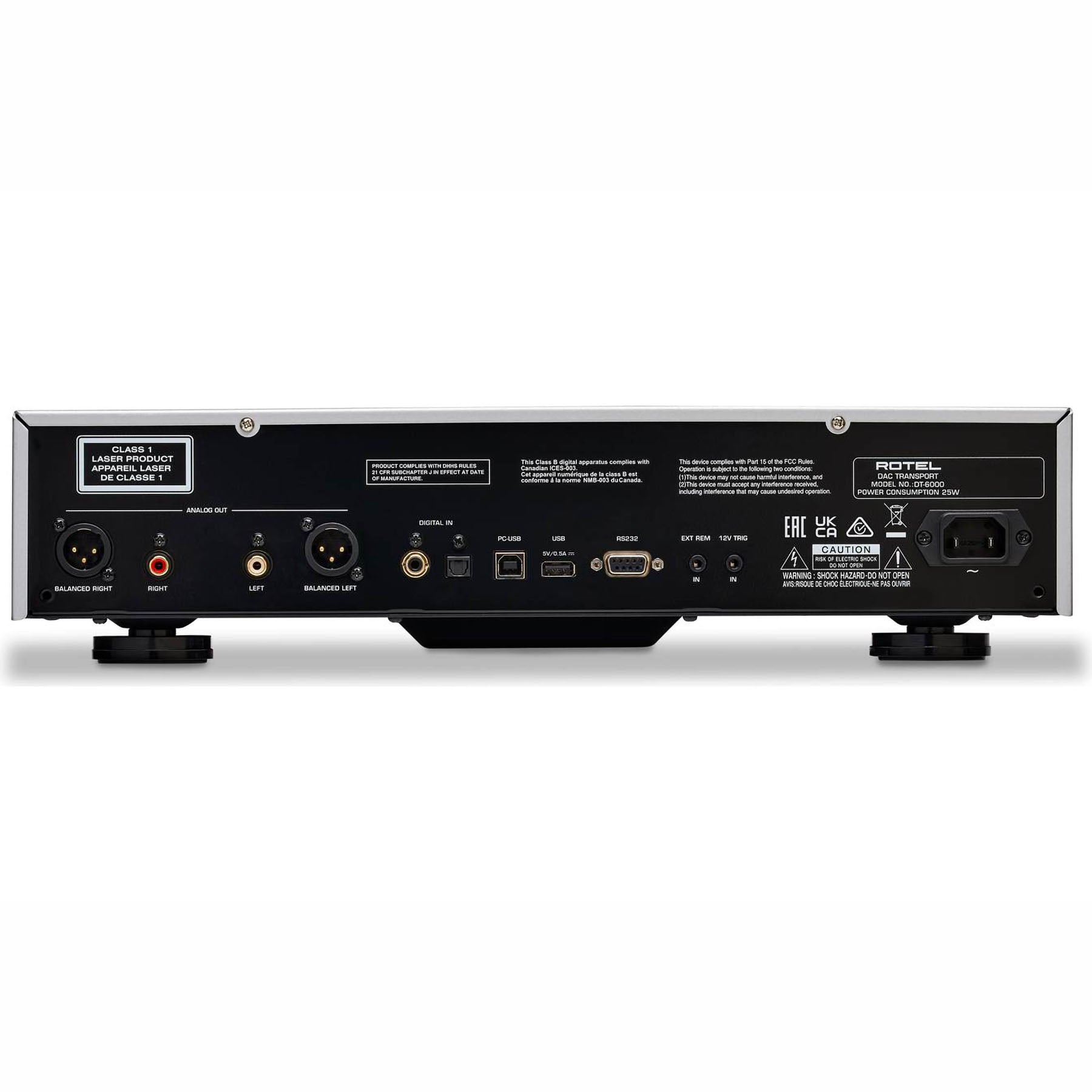

RS232, 12V trigger and external remote input ensure integration with control systems.

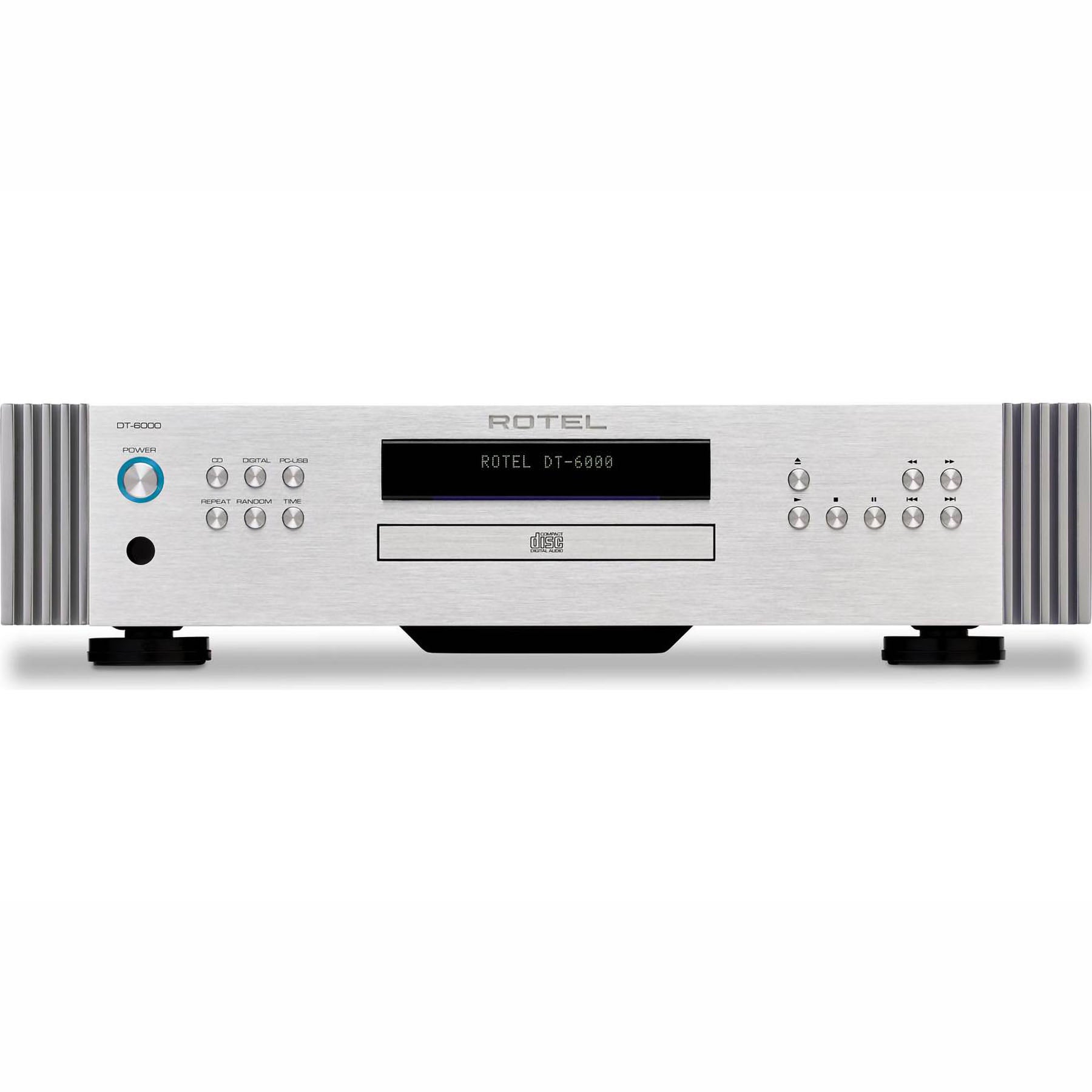

The DT-6000 is available in silver and black colors.
Product Reviews
DIMENSIONS (W × H × D)
431 × 104 × 320mm
17" × 4" × 12.6"
FRONT PANEL HEIGHT
2U / 88.1mm (3.5")
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
25W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8.11kg (17.88lbs.)
TOTAL HARMONIC DISTORTION (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012%
FREQUENCY RESPONSE
20Hz - 20kHz, +0, -0.15dB
10 Hz - 70kHz, +0, -3dB
S/N RATIO ("A" Weighted)
>115dB
DYNAMIC RANGE
>99dB
DIGITAL TO ANALOG CONVERTERS
ESS 32-Bit/768kHz DAC
CHANNEL BALANCE
± 0.5dB
CHANNEL SEPARATION
>115dB @ 10kHz
INTERMODULATION DISTORTION
<0.0012%
ANALOG OUTPUT LEVEL
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V
ANALOG OUTPUT IMPEDANCE
Unbalanced (RCA): 10Ω
Balanced (XLR): 20Ω
INPUT SENSITIVITY
0dBfs / 75 Ohms
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Supoort MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
