CD14MKII

The CD14MKII delivers accurate reproduction of CDs with stunning clarity resolving even the finest details. The Texas Instruments 32-bit DAC is supported by independent power supplies isolating motor controls from sensitive audio circuits reducing noise and distortion. Bring your CD collection and let the CD14MKII deliver performance at its best.

The CD14MKII follows Rotel’s tradition of award-winning CD players with innovations to the power supply, and newly tuned acoustic component resulting in a more accurate reproduction of the audio with rich, genuine detail.

Critical Digital to Analog conversion is managed by a premium Texas Instruments 32-bit DAC with independent power supplies eliminating unwanted distortion and isolating motor controls from sensitive audio circuits reducing noise and distortion.

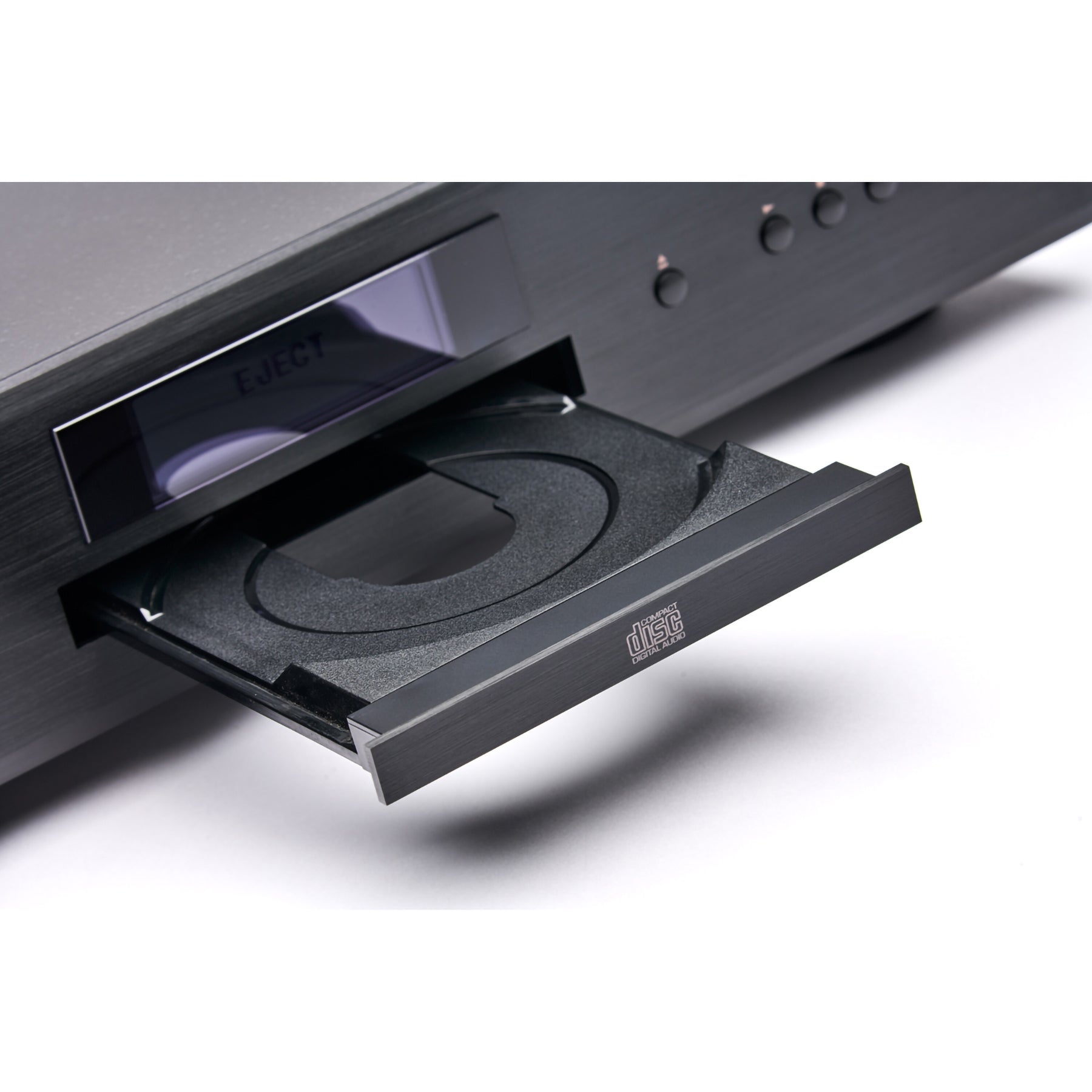

The tray loading CD mechanism, IR remote, front panel controls and graphic display ensure seamless operation.

Bring your CD’s and allow the CD14MKII to showcase your music with stunning detail, clarity, and accuracy.

Dimensions (W × H × D)

430 × 98 × 314mm
17" × 3.8" × 12.3"

Front Panel Height

80mm (3.15")

Power Requirements

120V, 60Hz

Power Consumption

15W

Standby Power Consumption

<0.5W

Net Weight

6.51kg (14.35lbs.)

Total Harmonic Distortion (THD)

0.0035% @ 1kHz

Frequency Response

20Hz - 20kHz ±0.5dB

S/N Ratio (IHF "A" Weighted)

>118dB

Dynamic Range

>99dB

Digital to Analog Converters

Texas Instruments

Channel Balance

±0.5dB

Channel Separation

>118dB @ 10kHz

Intermodulation Distortion

0.0035% @ 1kHz

Phase Linearity

±0.5 degree

Digital Output

0.5V, Peak to Peak

Analog Output Impedance

100Ω

Load Impedance

75Ω
