Rotel C8+ Custom Installation Amplifier
ChinaC8+
Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology.

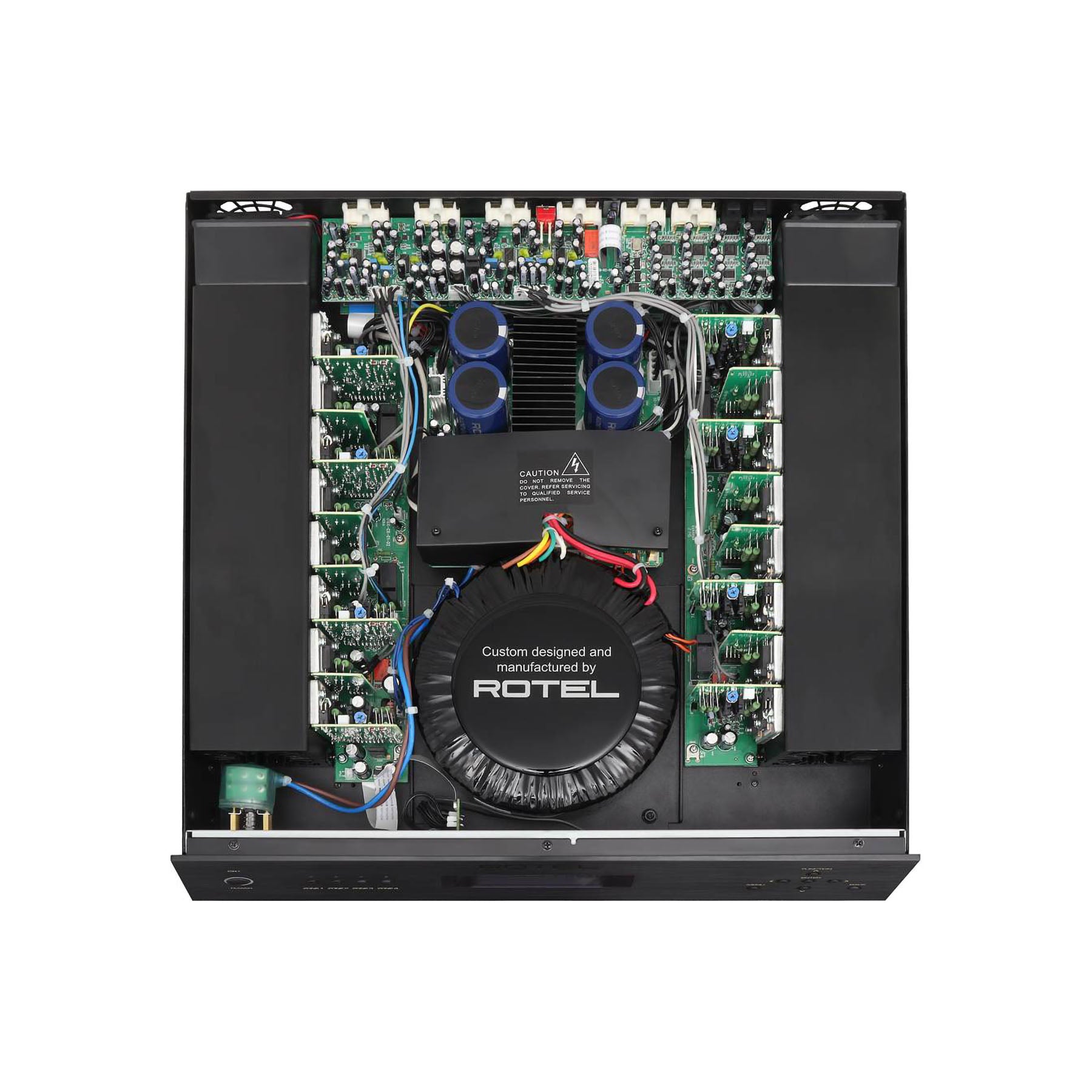

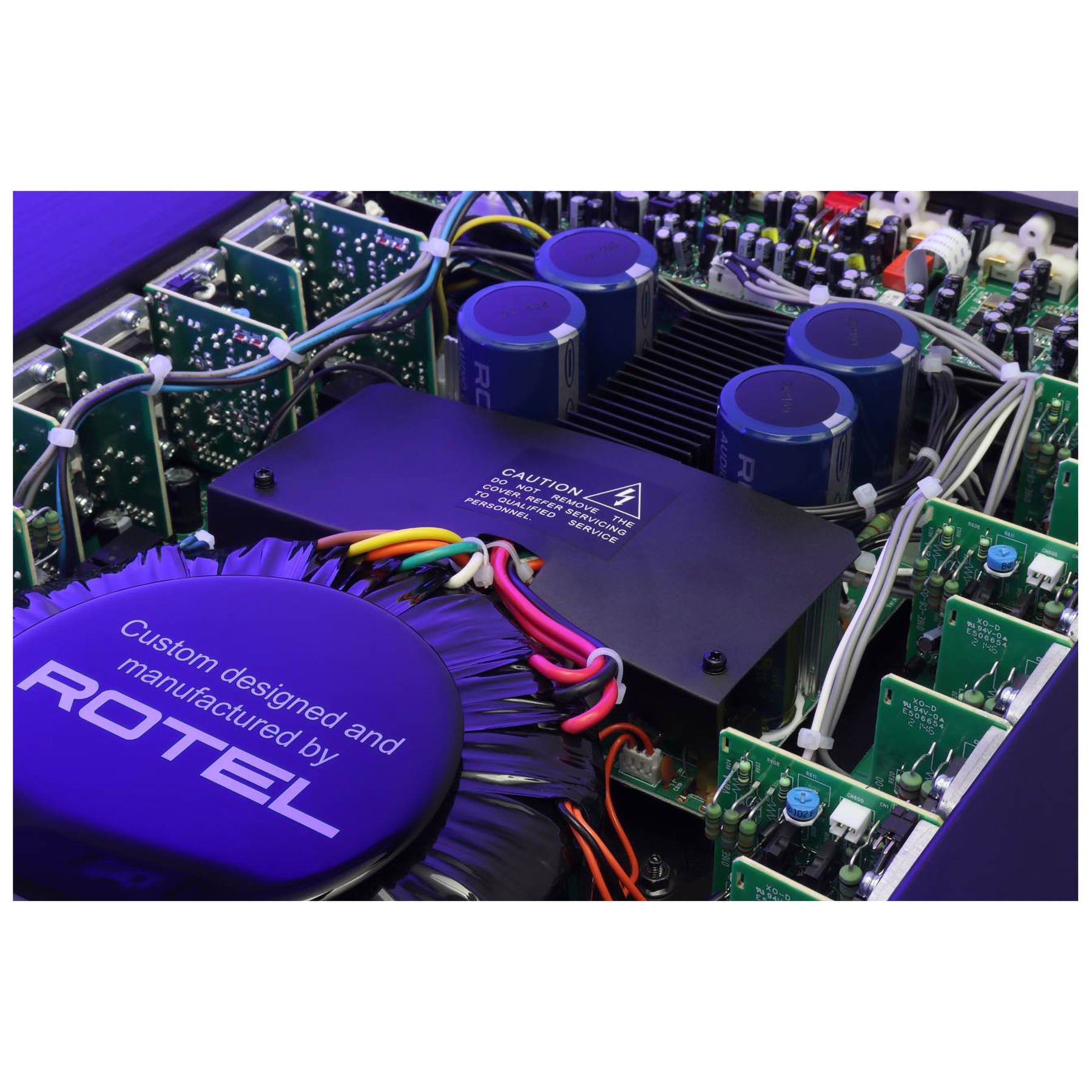

The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy.

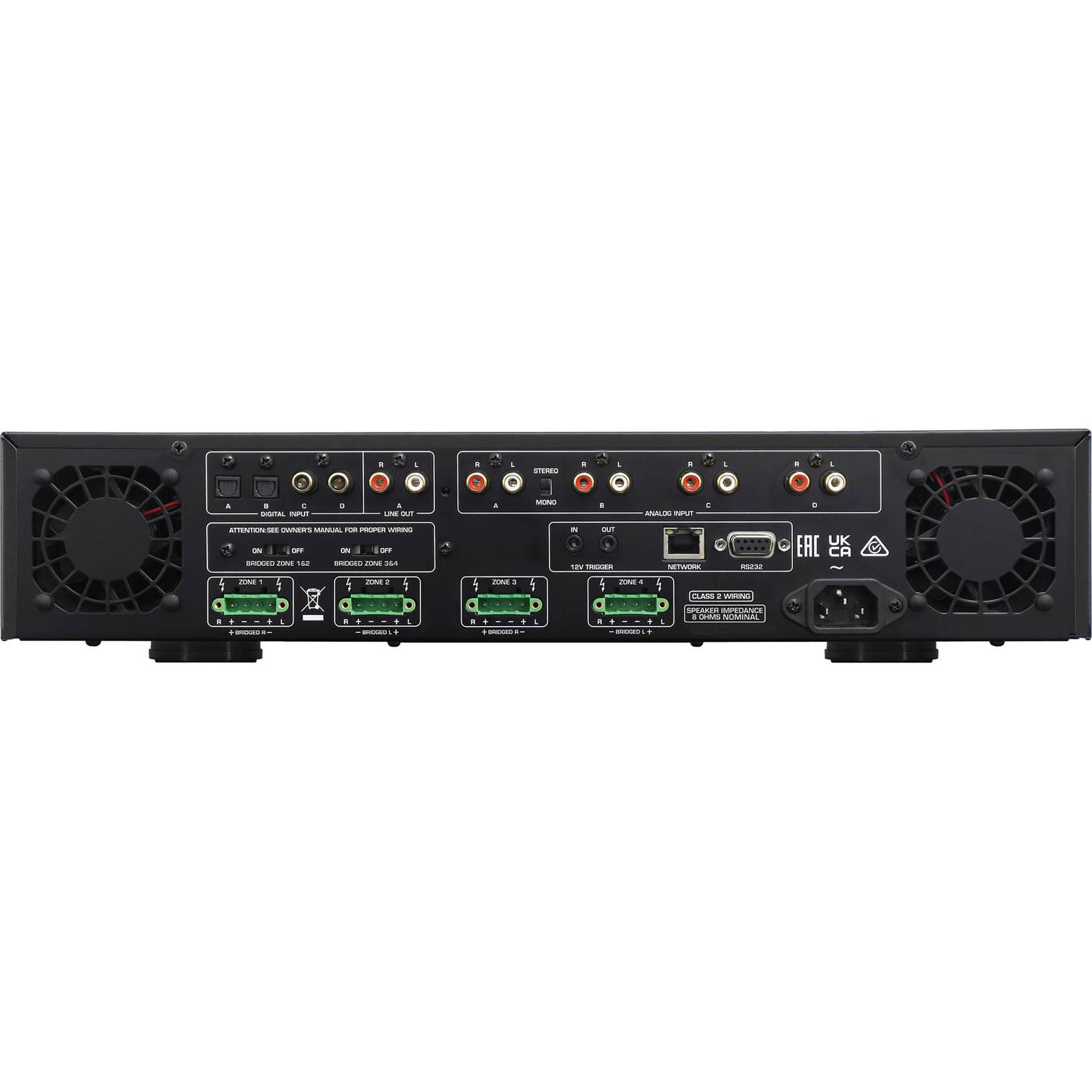

For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings.
Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.

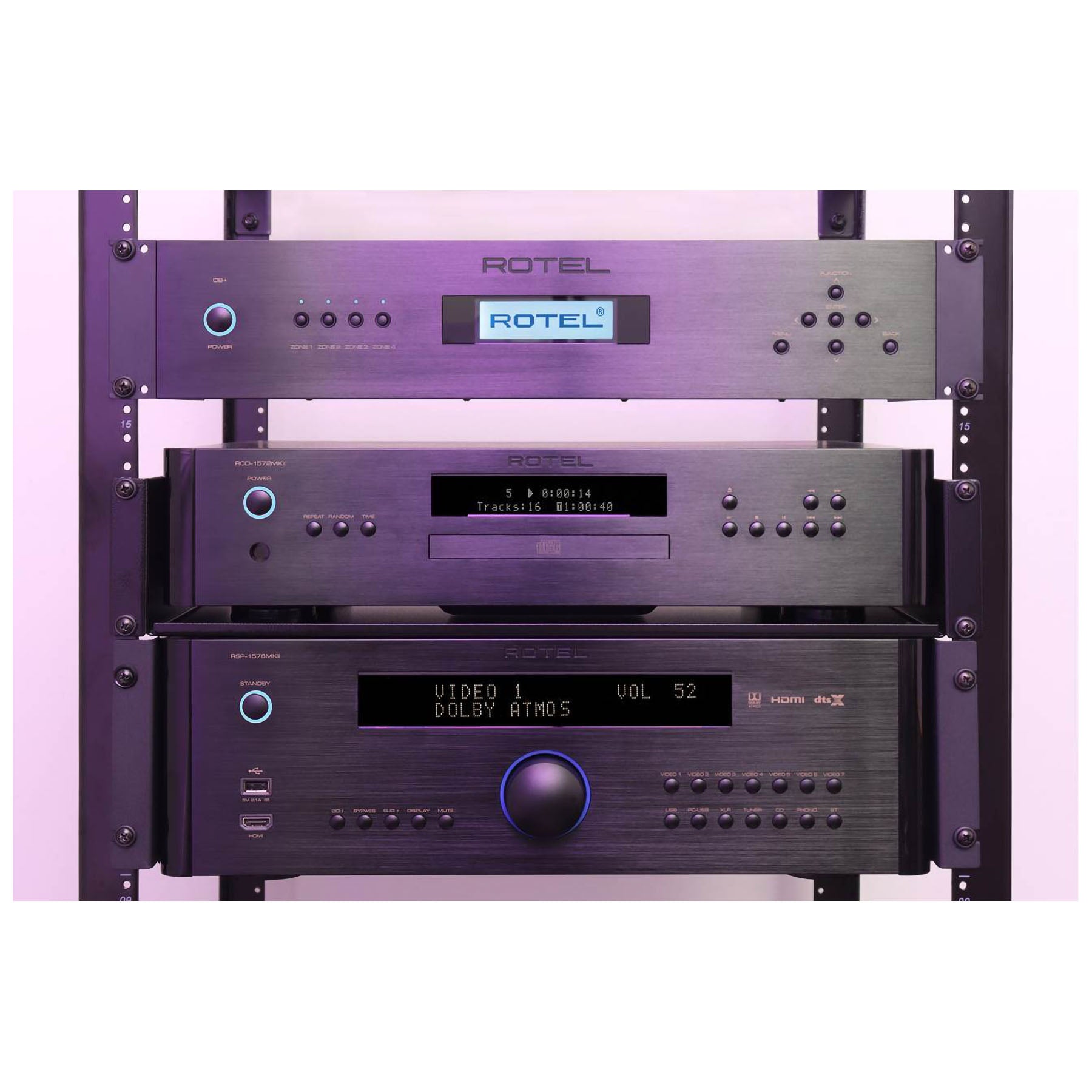

The custom 2U height requires no top or bottom clearance when rack mounting.
The C8+ is available in black only.
Dimensions (W × H × D)
430 × 97 × 414mm
17" × 3.9" × 16.3"
Front Panel Height
2U / 88.1mm (3.5")
Power Requirements
120V, 60Hz
Power Consumption
570W
Standby Power Consumption
Normal: <0.5W
Network Standby: <2W
Net Weight
16.7kg (36.81lbs.)
BTU Rating (4Ω, 1/8th power)
1537 BTU/h
Maximum Power Output
70W/Ch (8 channels driven, 4Ω)
Continuous Power Output
50W/Ch (8 channels driven, 8Ω)
Total Harmonic Distortion (THD)
<0.1%
Frequency Response
Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 100dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.1%
Damping Factor (20Hz - 20kHz, 8Ω)
80
Tone Controls
± 10dB at 100Hz / 10kHz
Crosstalk / Separation
>50dB
Input Sensitivity
Line Level Inputs: 0.3V
Input Impedance
Line Level Inputs: 31kΩ
Input Overload
Line Level Inputs (RCA): 2.8V
