Rotel A11 Tribute Integrated Amplifier
ChinaA11 Tribute
The A11 Tribute is a Class AB 50W Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy. Upgraded components and meticulous tuning of all critical circuits deliver a richer, expressive, and true-to-life experience from the Bluetooth, RCA and Moving Magnet Phono Stage inputs.

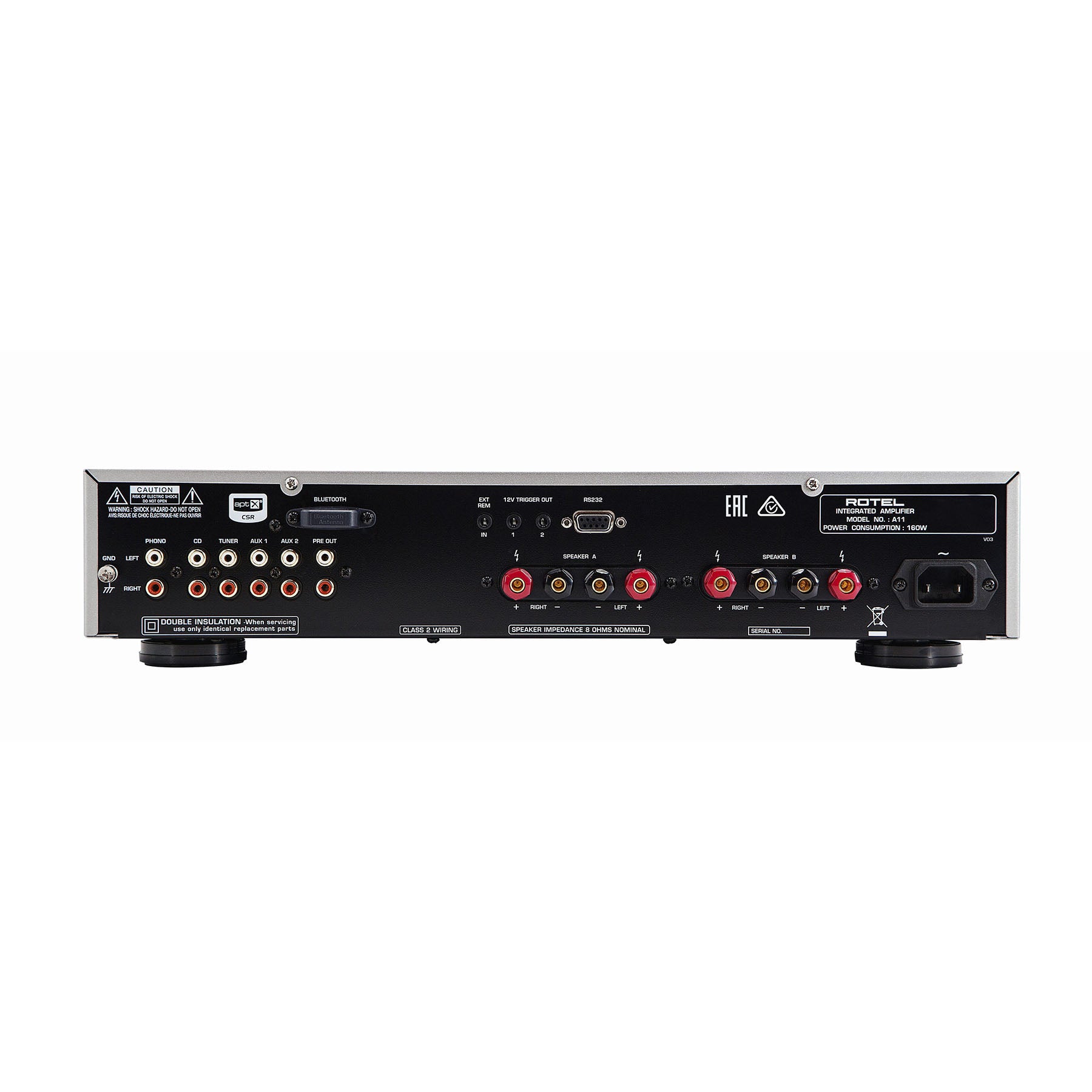

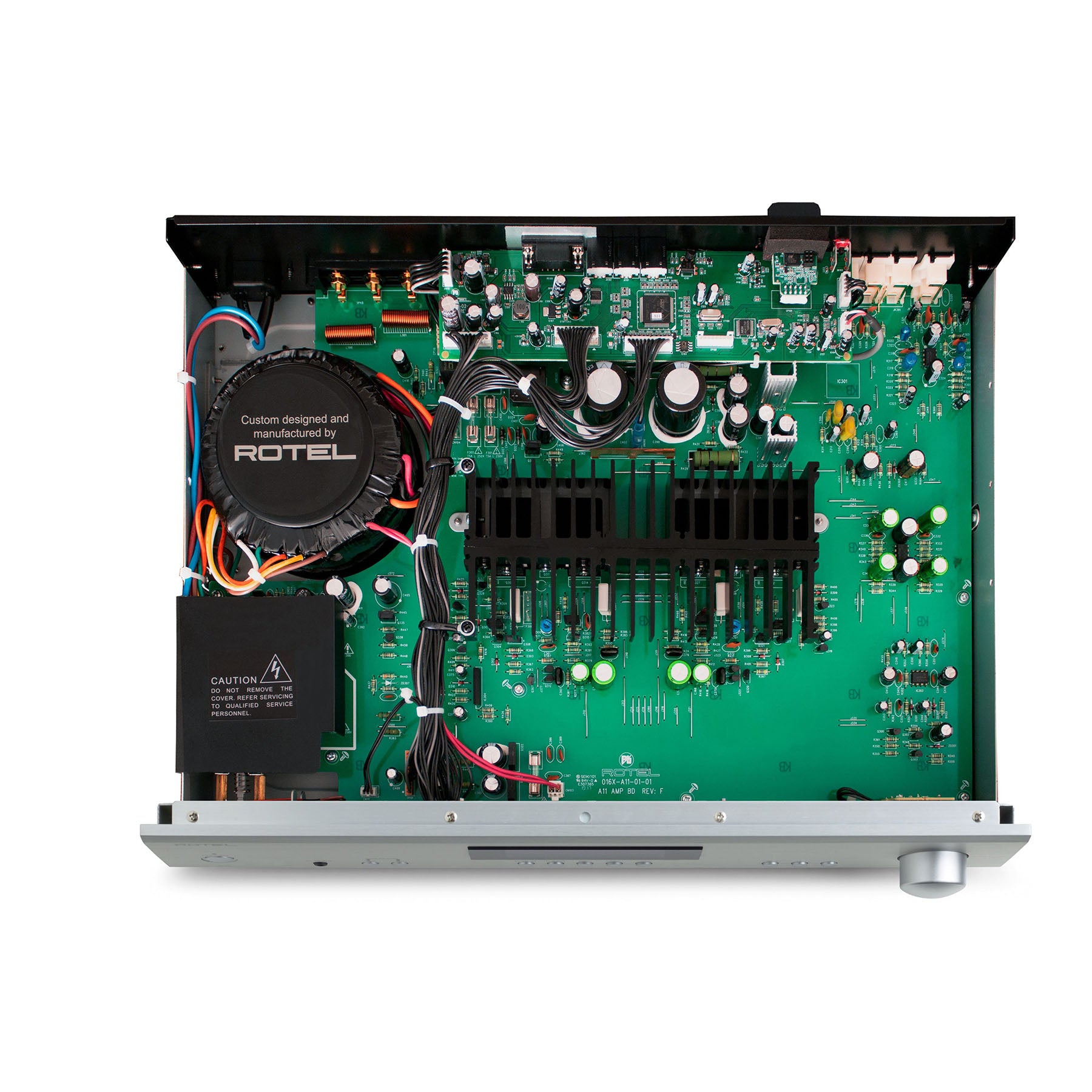

The collaboration between Ken and Rotel’s own engineering design teams delivered on the promise of an even higher level of performance of the extremely successful and popular award-winning A11. Upgraded components and meticulous tuning of all critical circuits deliver a richer, more expressive, and true-to-life experience from all of the support source inputs including apt-X and AAC wireless Bluetooth, array of 4 RCA analog inputs and a Moving Magnet Phono Stage for vinyl fans.The front panel graphic display and IR remote ensure effortless control of the audio driven by a Rotel in-house manufactured oversized toroidal transformer. The resulting acoustic performance speaks for itself under all loading conditions with even the most difficult speaker loads.
Engineered with care.
Specifications
Dimensions (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"
Front Panel Height
80mm (3.15")
Power Requirements
120V, 60Hz
Power Consumption
160W
Standby Power Consumption
<0.5W
Net Weight
6.85kg (15lbs.)
BTU Rating (4Ω, 1/8th power)
479 BTU/h
Continuous Power Output
50W/Ch (All channels driven, 8Ω)
Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.03%
Frequency Response
Line Level Inputs: 10Hz - 100kHz, ±0.5dB
Phono Input: 20Hz - 20kHz, ±0.5dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 100dB
Phono Input: 85dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%
Damping Factor
140
Input Sensitivity
Line Level Inputs: 180mV
Phono Input (MM): 2.3mV
Input Impedance
Line Level Inputs: 47kΩ
Phono Input (MM): 47kΩ
Input Overload
Line Level Inputs: 4V
Phono Input: 50mV
Preout Level
1V
Output Impedance
470Ω
Tone Controls
±10dB at 100Hz / 10kHz
