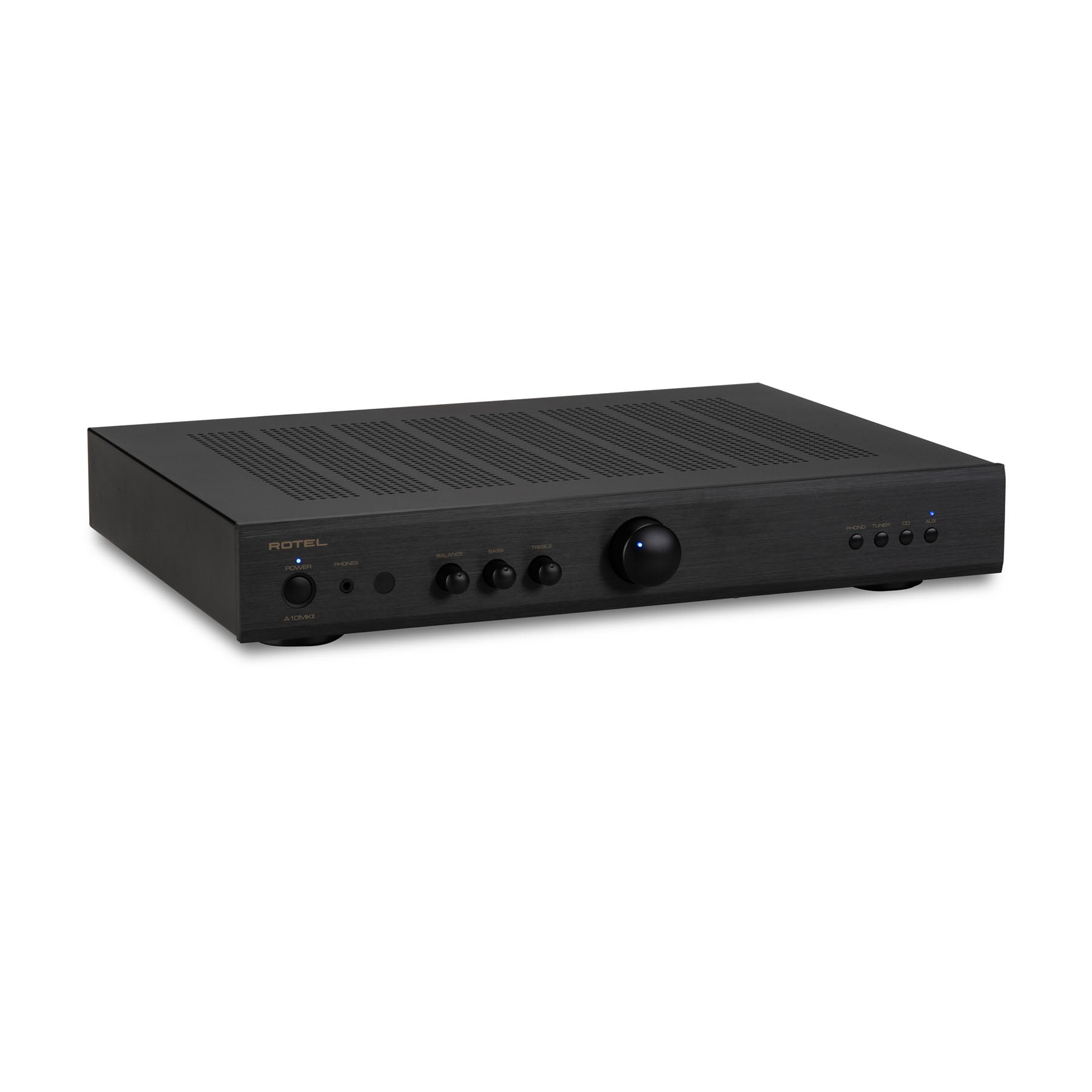

Rotel A10MKII Integrated Amplifier
A10 MKII Integrated Amplifier
The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.

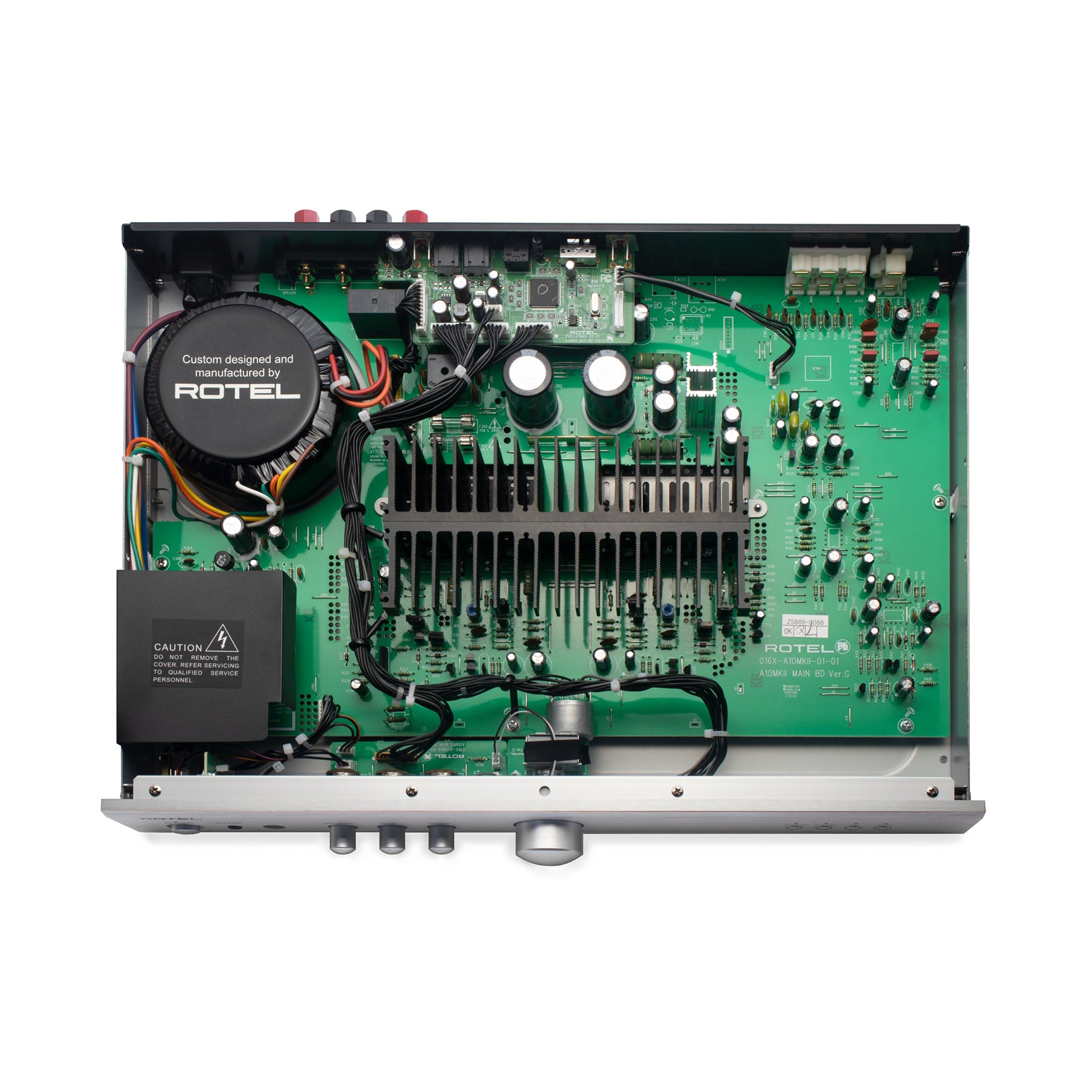

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher into more challenging loudspeakers.

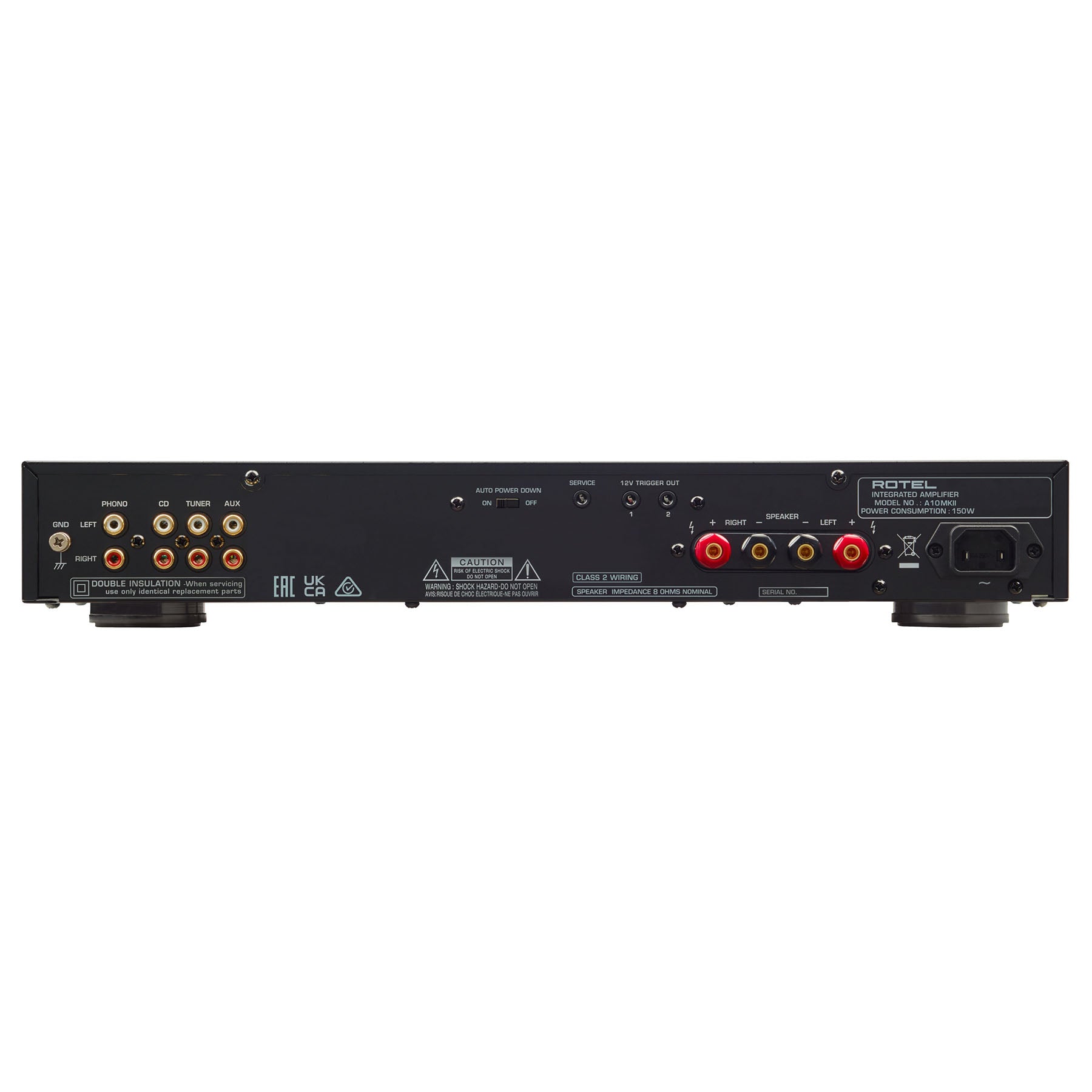

All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.
An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

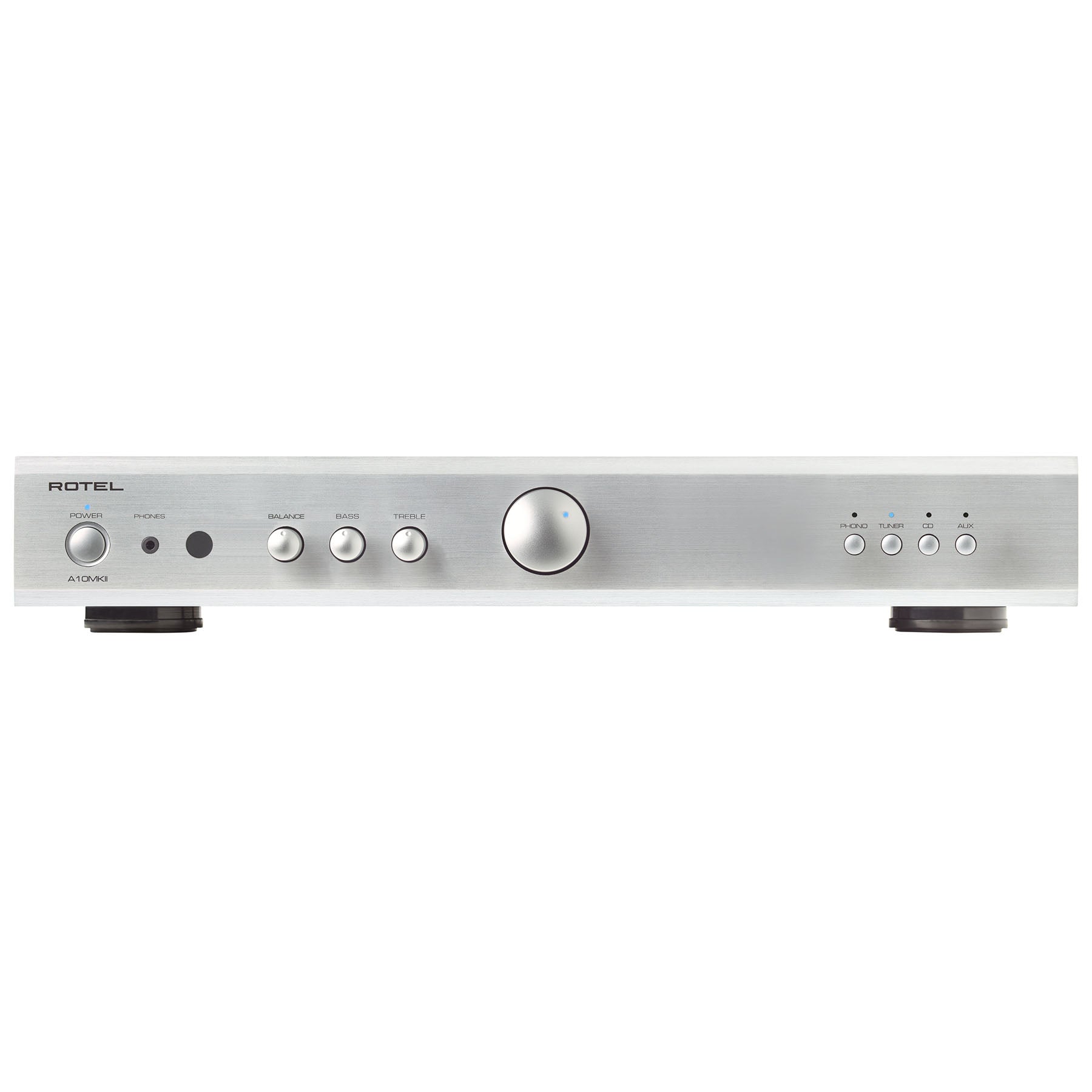

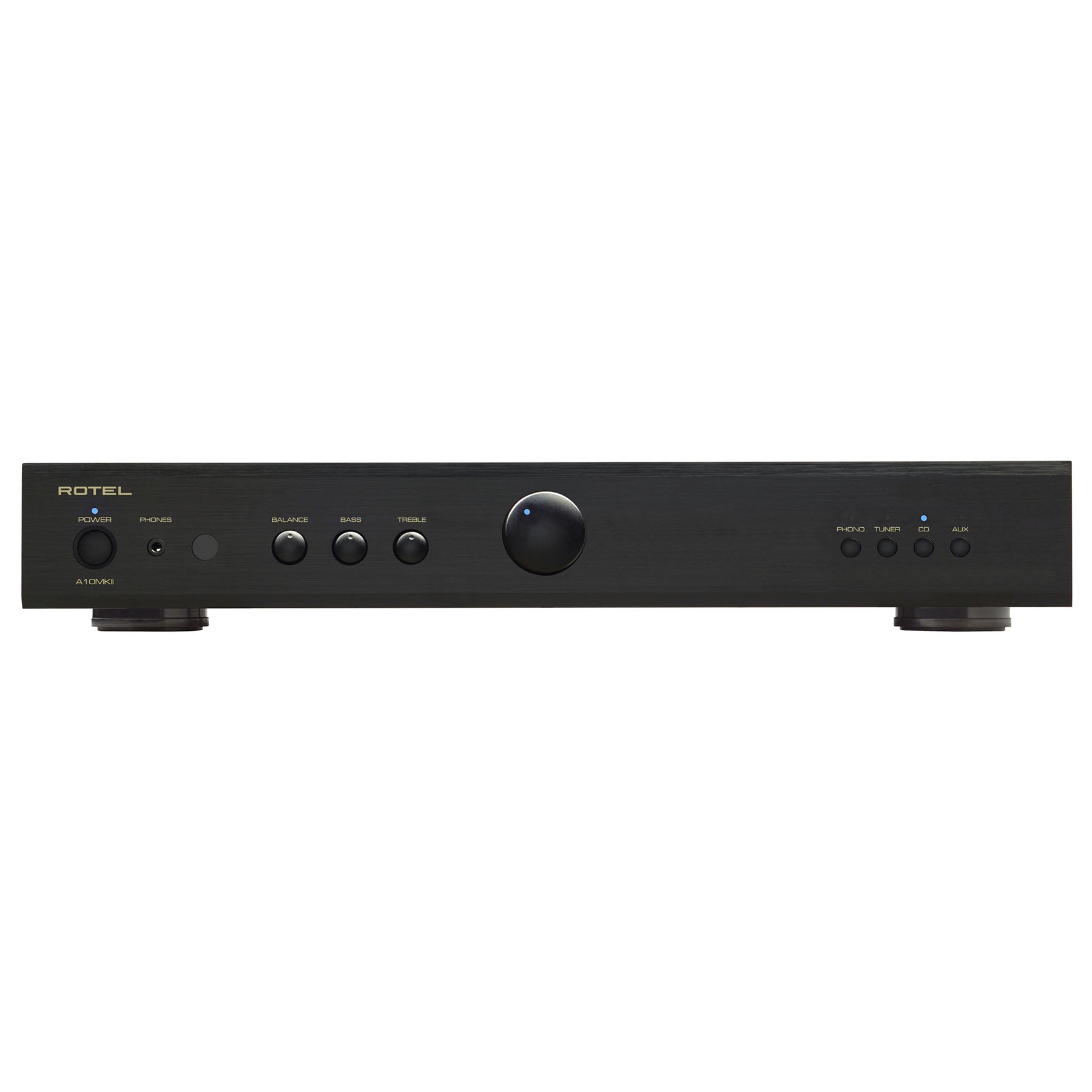

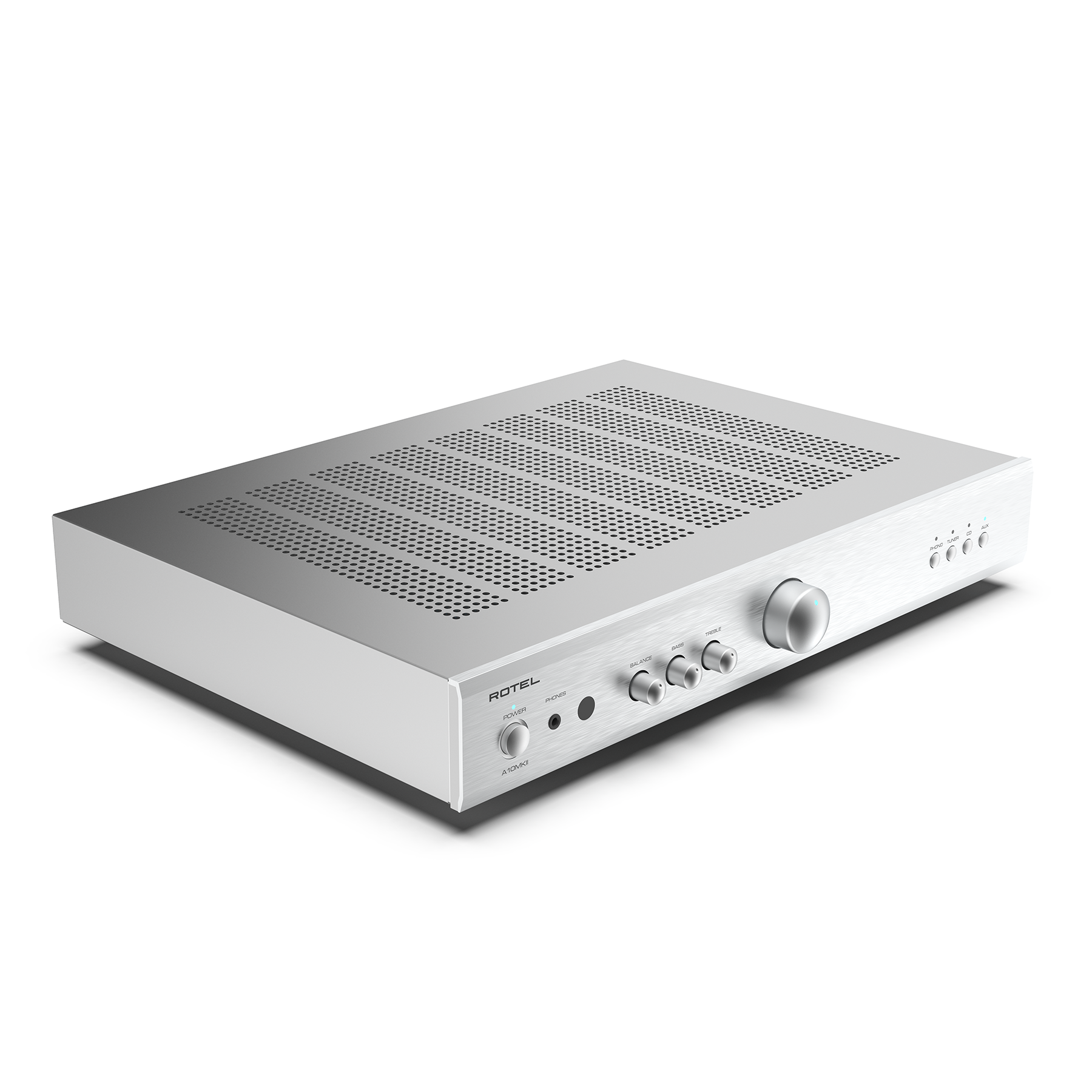

The A10MKII is available in both black and silver colors.
DIMENSIONS (W × H × D)
430 × 73 × 347mm
17” x 2 7/8” x 13 5/8”
FRONT PANEL HEIGHT
60 mm (2 3/8”)
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
150W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
6.6 kg, 14.5 lbs
BTU RATING (4Ω, 1/8th power)
450 BTU/h
POWER OUTPUT
50W/Ch (All channels driven, 8Ω)
TOTAL HARMONIC DISTORTION (THD)
<0.03%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz, -0.5dB, +0.05dB
Phono Input: 20Hz – 20kHz, -0.5dB, +0.3dB
S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 90dB
Phono Input: 85dB
