Revel


W990
9" In-Wall Loudspeaker
The W990 features Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers. Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types. For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting. With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.
W990 Highlights
-
Long-throw woofers with cast aluminum frames, MCC (Micro Ceramic Composite) cones and rubber surrounds provide high output with low distortion.
-
1-inch (25mm) aluminum-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
-

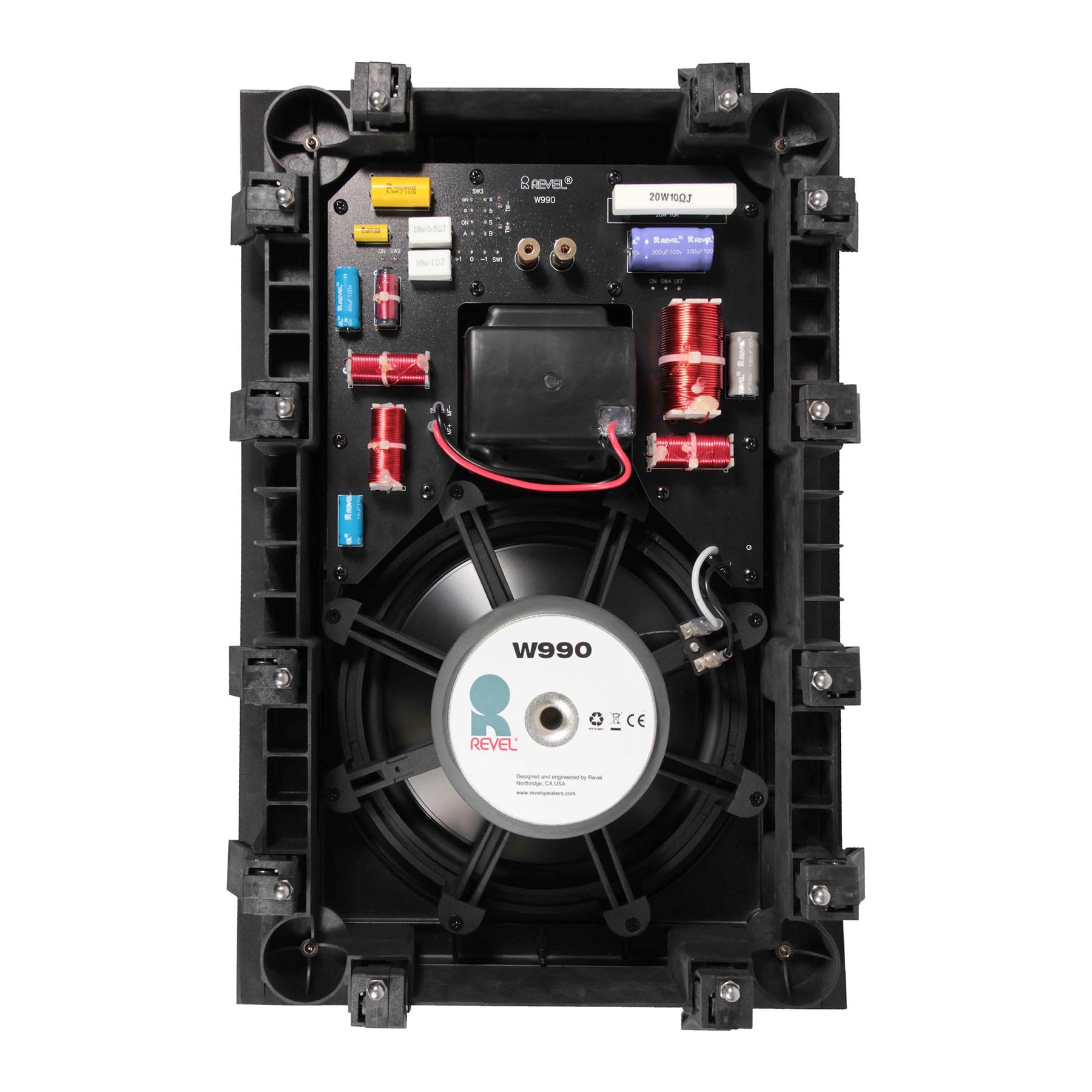

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
-
Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
-
Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
-
High-frequency tilt and listener axis controls help compensate for less-than-ideal speaker placement.
Depth:Mounting depth | 3.7" (9.4 cm) |
---|---|
Weight | 17.0 lb (7.7 kg) / Shipping weight 19.4 lb (8.8 kg) |
Crossover Frequencies | Advanced high-order crossover network |

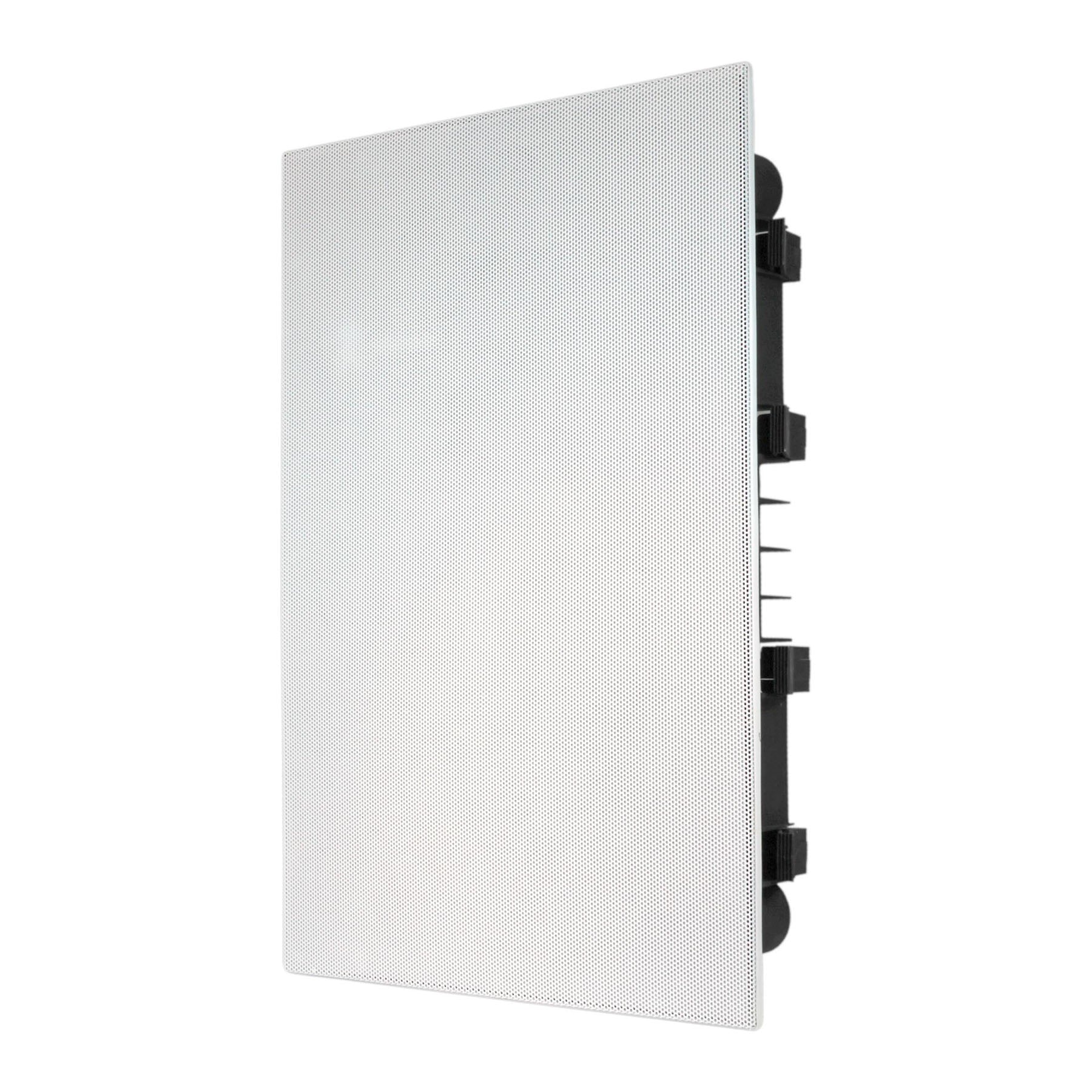

Features | Cutout dimensions (H x W) 19.1" x 12.5" (48.6 cm x 31.8 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 20.6" x 13.9" (52.3 cm x 35.3 cm) |
High-frequency Driver Components | 1" aluminum dome high-output tweeter with waveguide |
Low Frequency Extension | High frequency Extension HF level & tilt controls / Low Frequency Extension LF boundary compensation, & listener axis controls |
Low-frequency Driver Components | 9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |

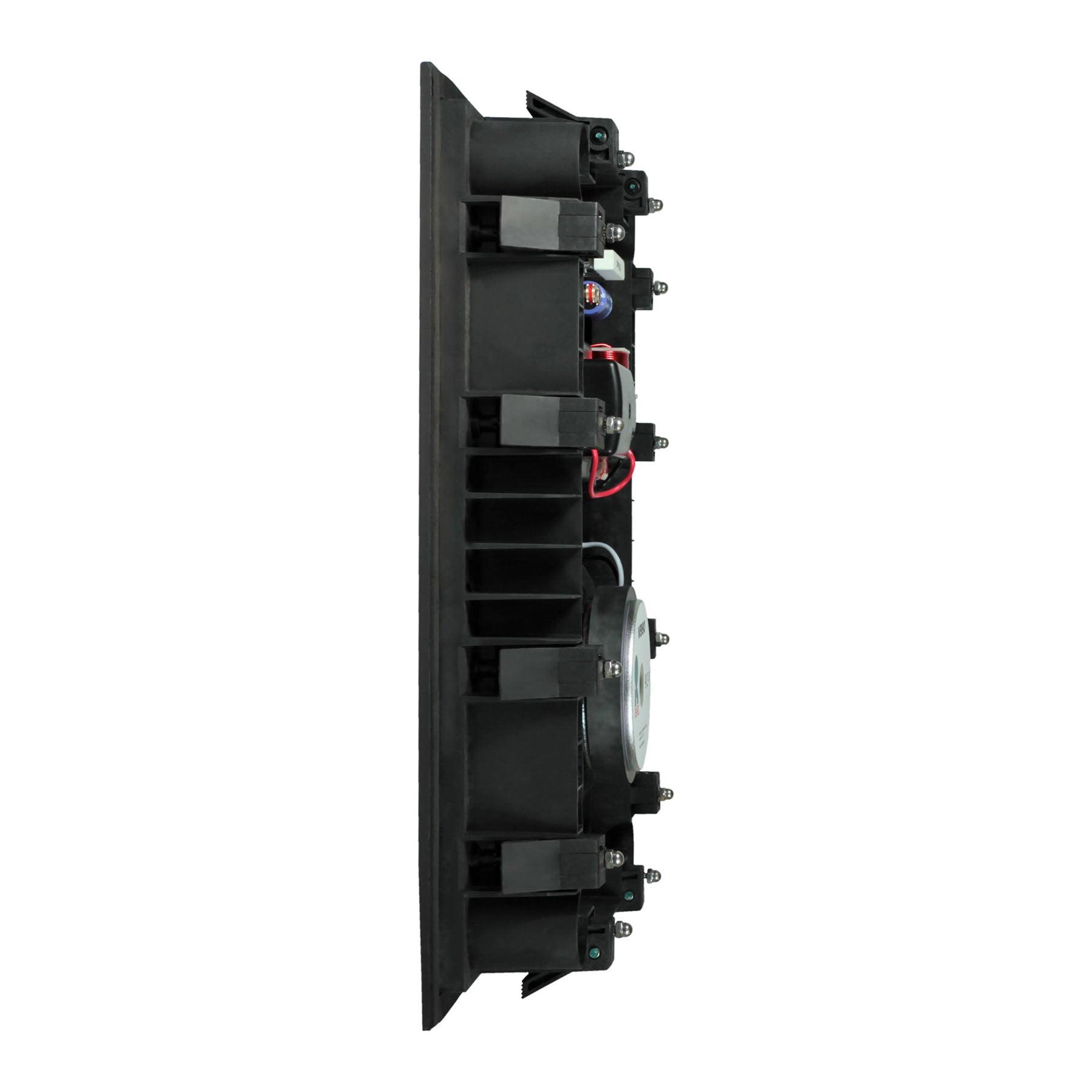

Mounting | Cast aluminum baffle with multi-point spring loaded clamping mechanism |
Recommended Amplifier Power | 10 - 200 Watts RMS |
