Revel W583 8" In-Wall Loudspeaker
Grill Colour
Speaker Colour
Revel W583 8" In-Wall Loudspeaker
White / Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: USA
W583
8" In-Wall Loudspeaker
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
W583 Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
-

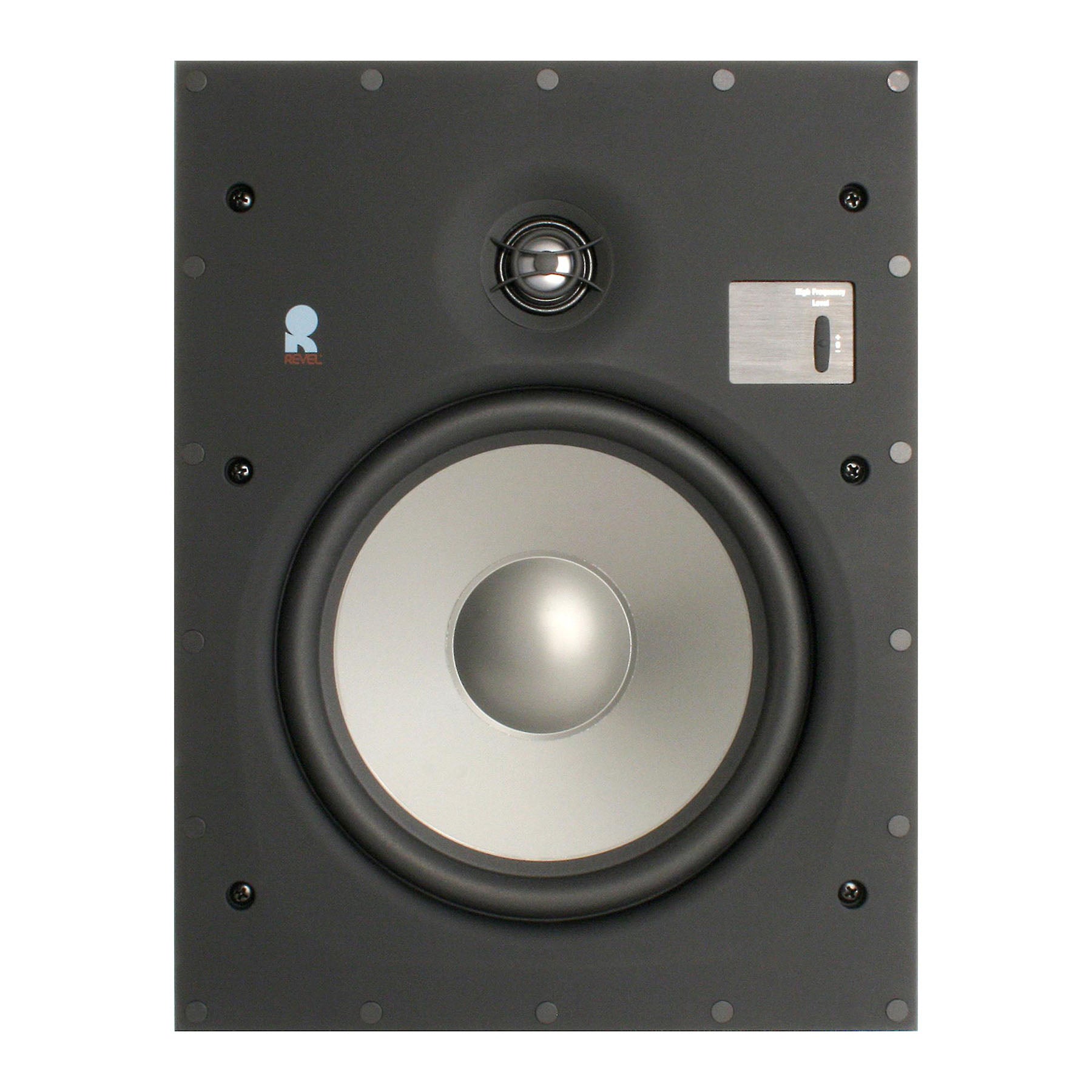

1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
-

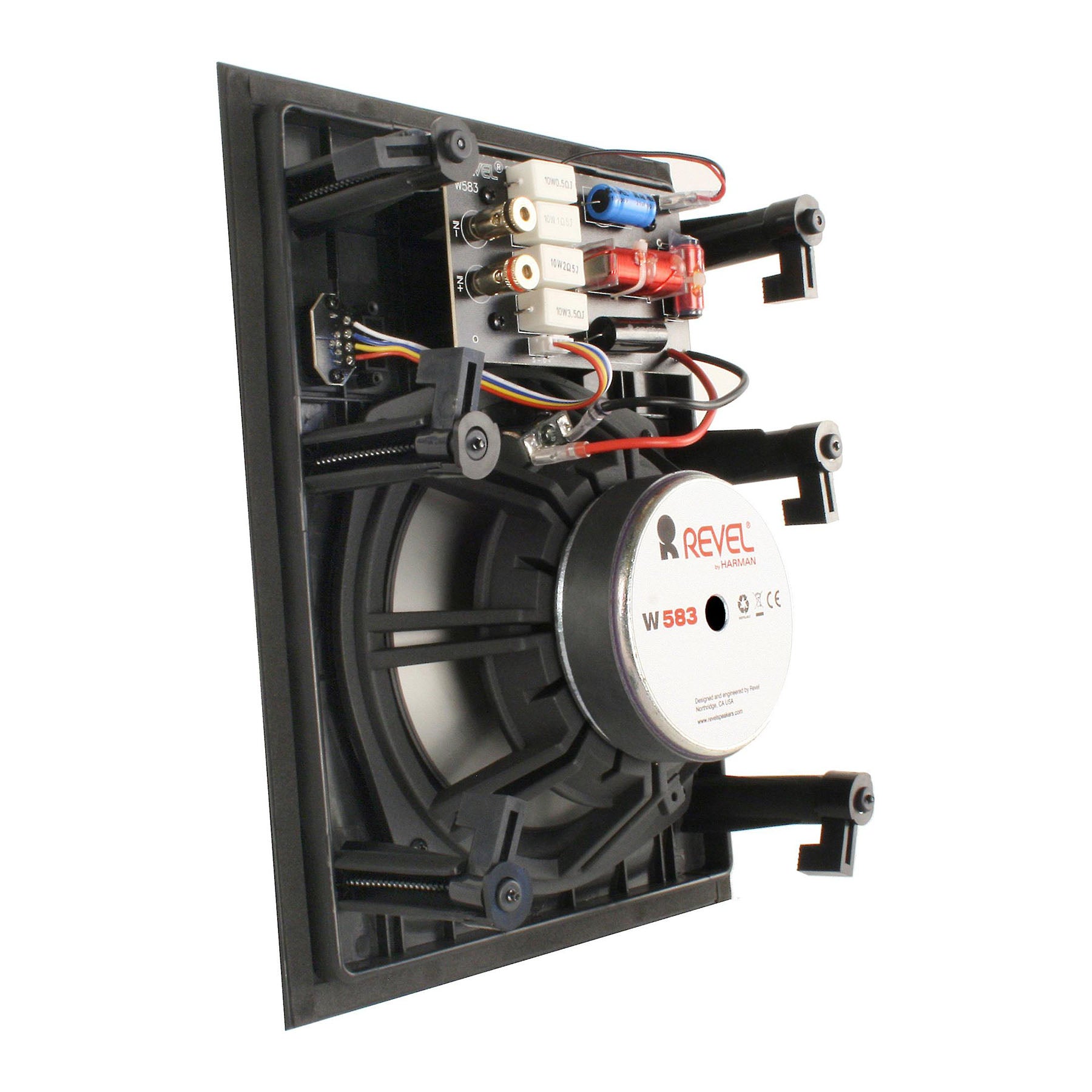

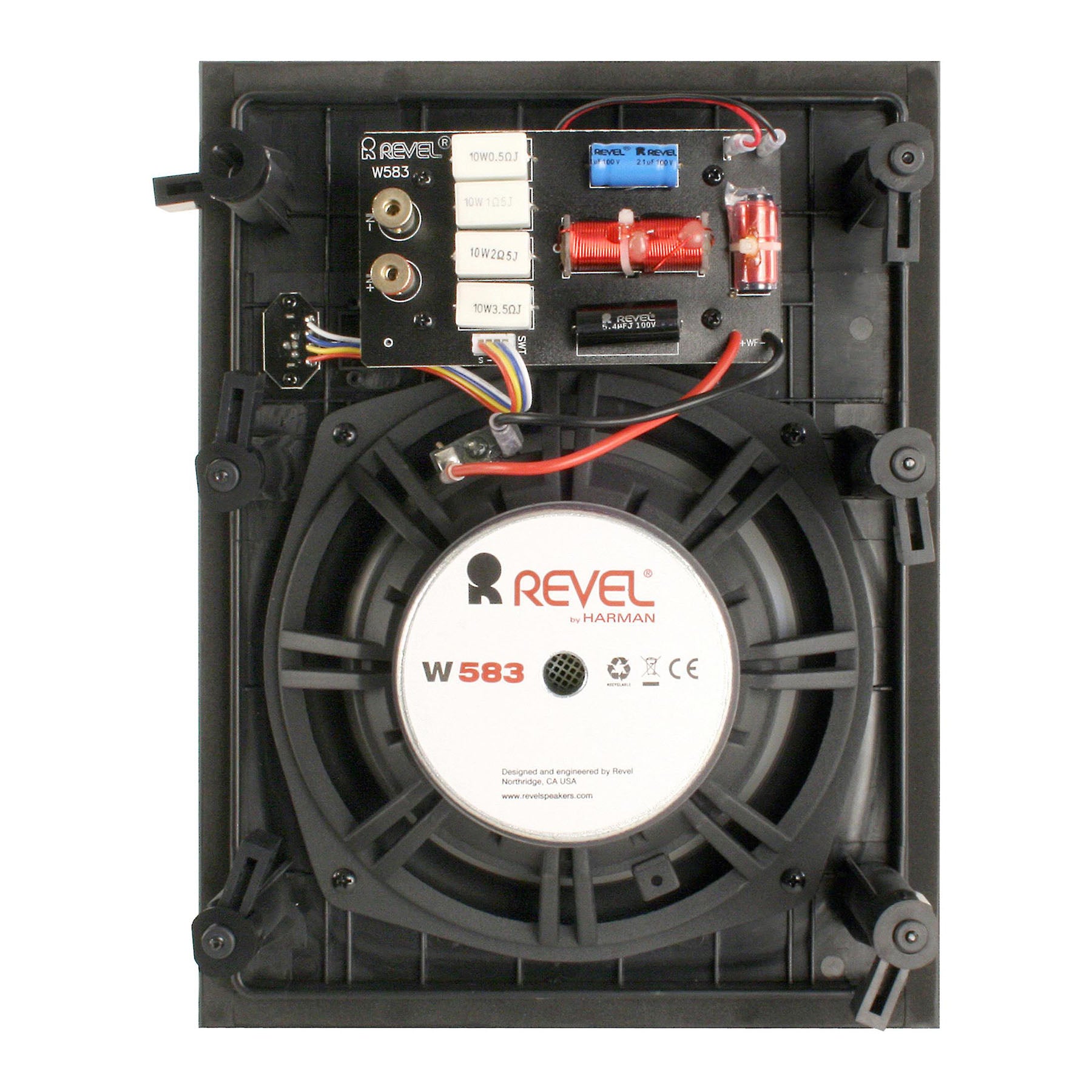

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
-
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
-
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Depth | Mounting depth 3.8" (9.6 cm) |
---|---|
Weight | 6.4 lb (2.9 kg) / Shipping weight 7.7 lb (3.5 kg) |

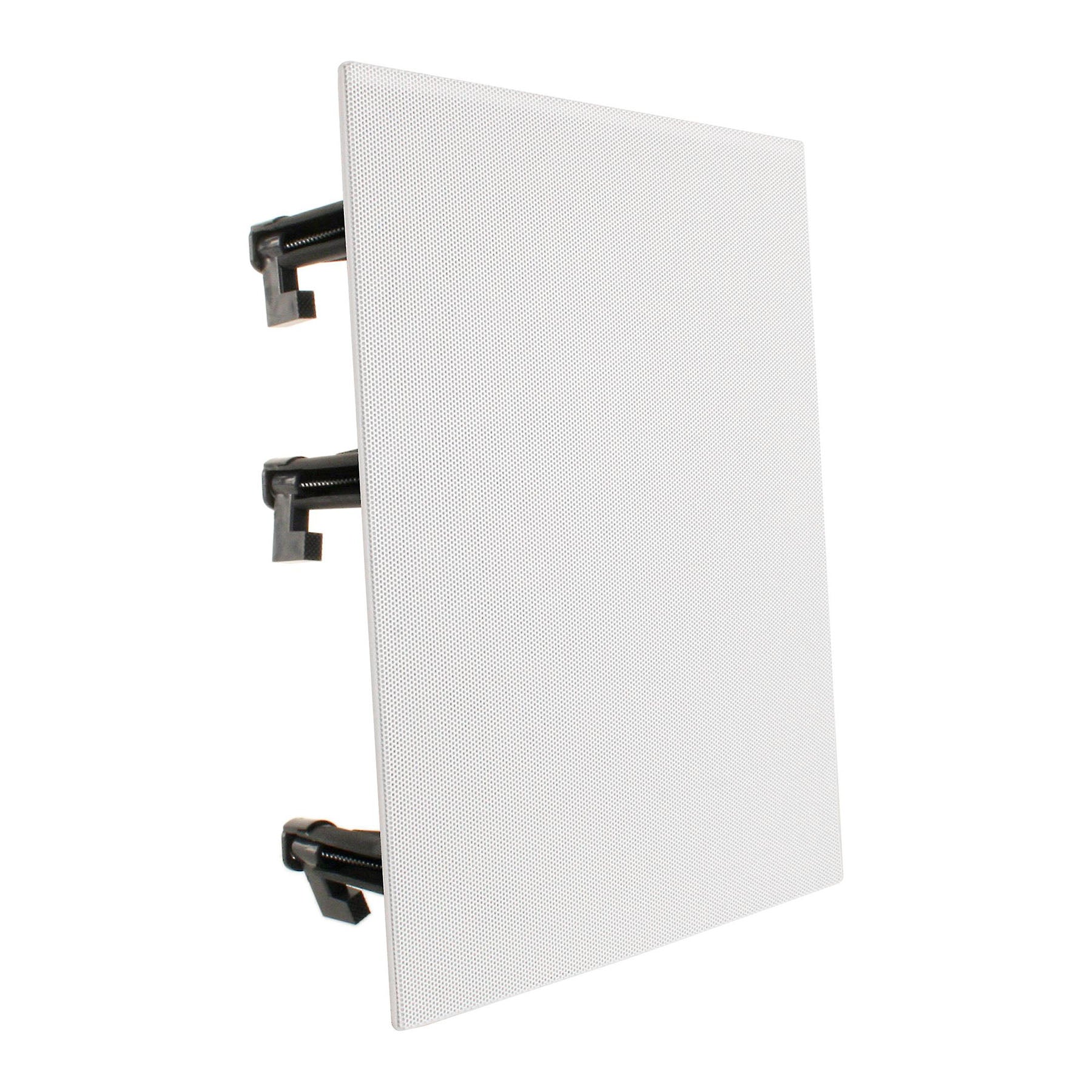

Features | Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling tweeter with waveguide |
Low Frequency Extension | High Frequency Extension (-10dB) 3-position HF level control |
Low Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer |
Mounting | C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
Recommended Amplifier Power | 10 - 135 Watts RMS |
