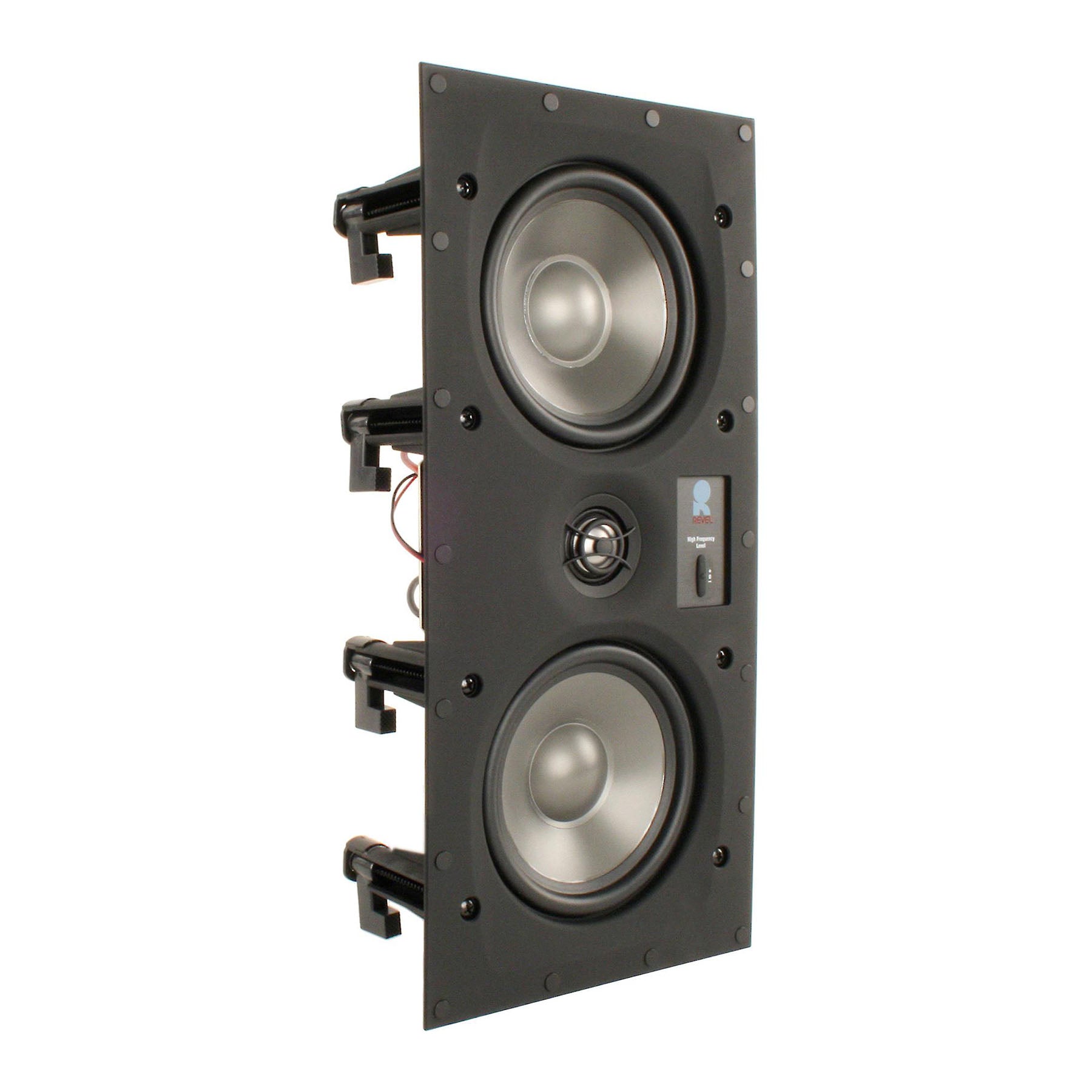

Revel W553L Specialty In-Wall Loudspeaker
Grill Colour
Speaker Colour
Revel W553L Specialty In-Wall Loudspeaker
White / Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

Revel


W553L
Specialty In-Wall Loudspeaker
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
W553L Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
-
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Depth | Mounting depth 2.9" (7.4 cm) |
---|---|
Weight | Weight 6.6 lb / Shipping weight 7.7 lb (3.5 kg) |
Features | Cutout dimensions (H x W) 14.1" x 6.4" (35.9 cm x 16.3 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 15.1" x 7.4" (38.4 cm x 18.8 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling tweeter with waveguide |
Low Frequency Extension | High Frequency Extension 3-position HF level control |
Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm) |
Recommended Amplifier Power | 10 - 150 Watts RMS |
