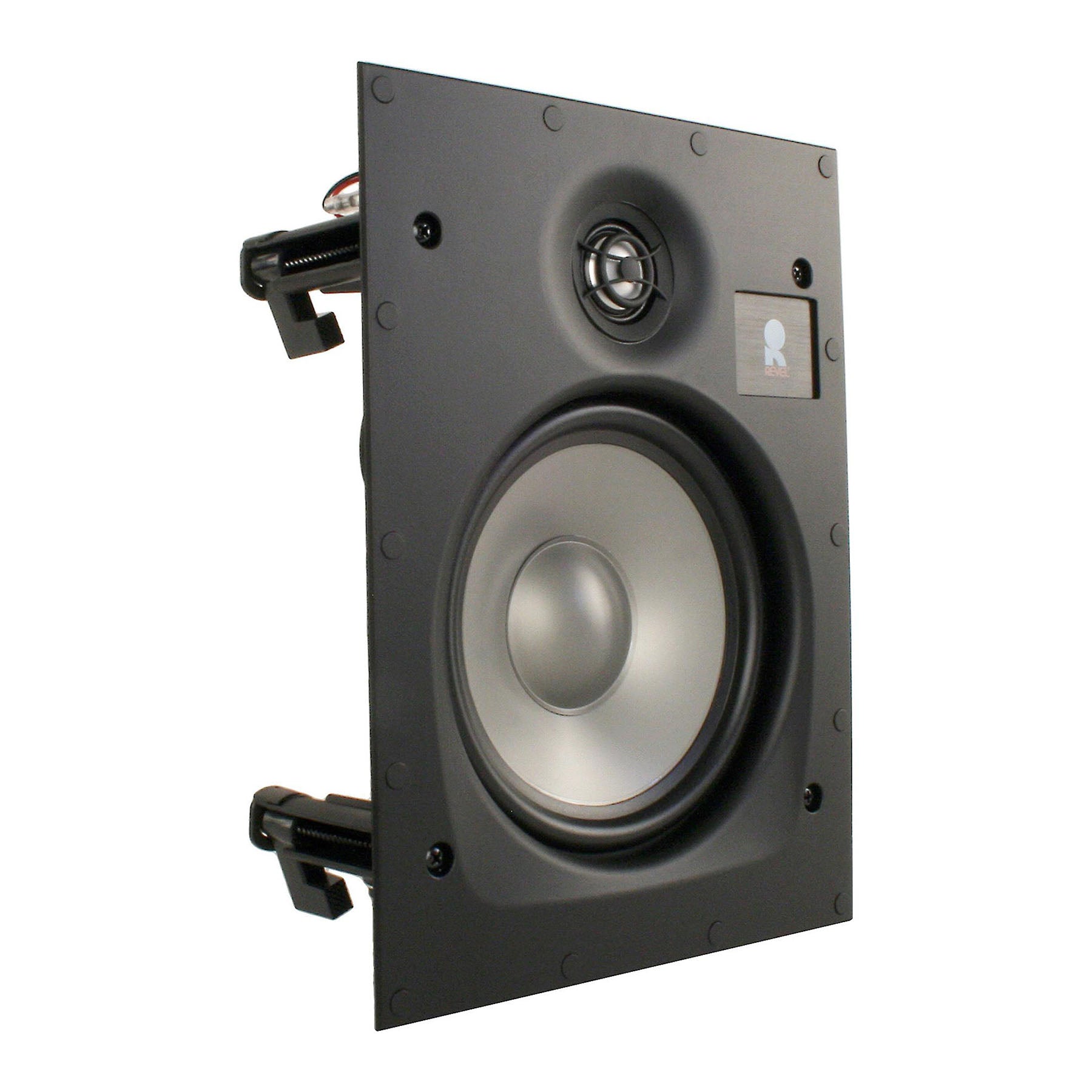

Revel W363 6 ½" In-Wall Loudspeaker
Grill Colour
Speaker Colour
Revel W363 6 ½" In-Wall Loudspeaker
White / Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

Revel


W363
6 ½" In-Wall Loudspeaker
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.
Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
W363 Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on an off axis.
-

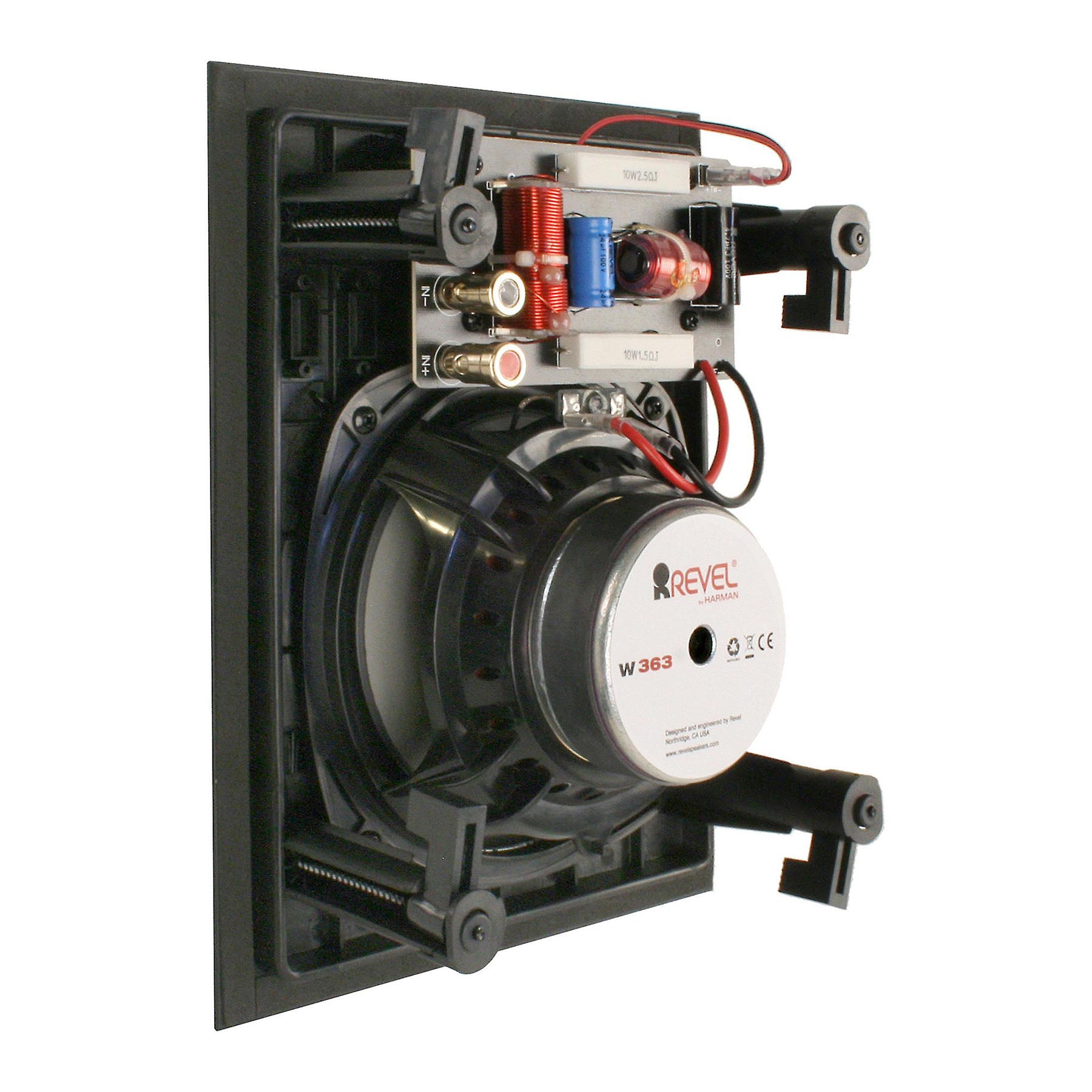

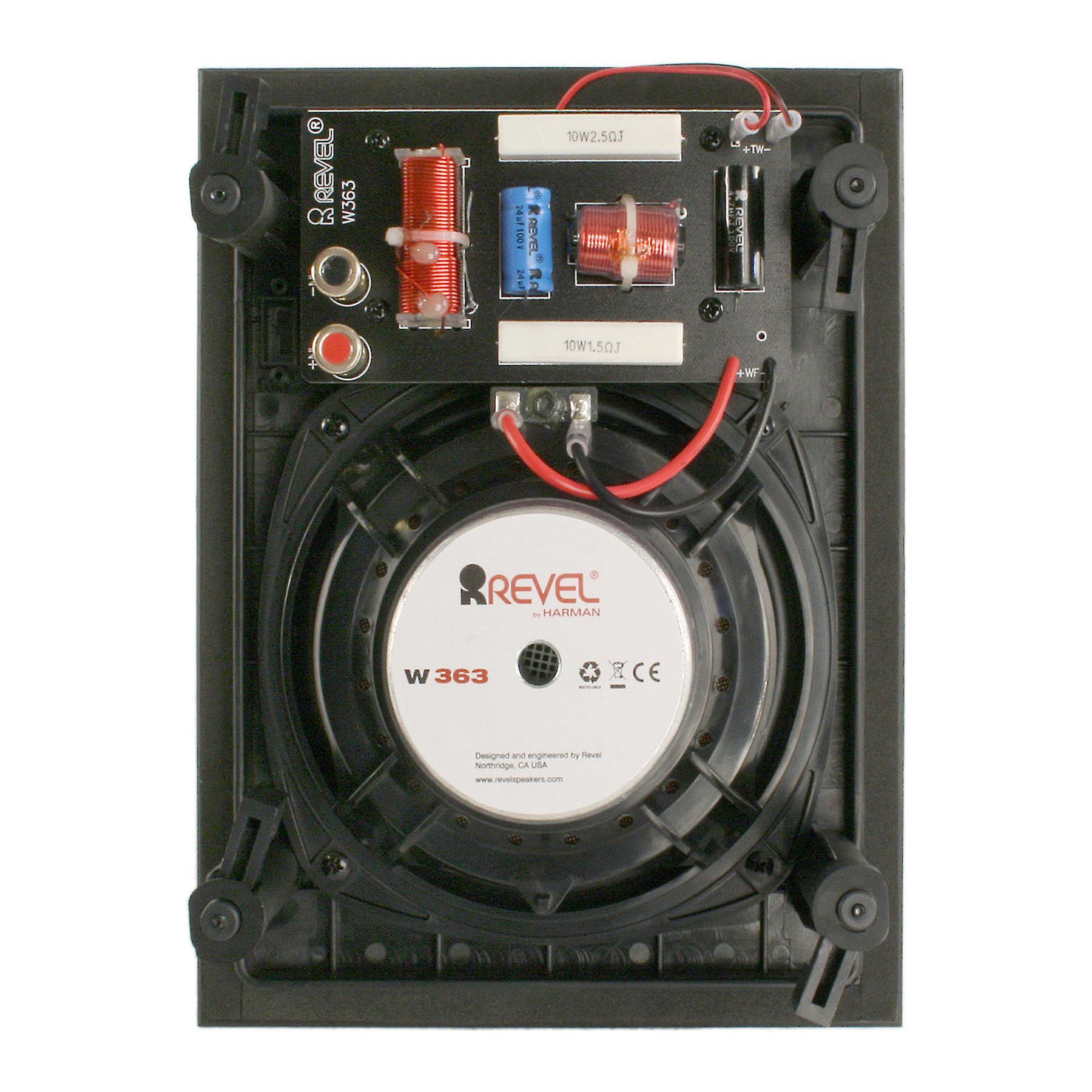

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
-
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
-
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Depth | Mounting depth |
---|---|
Weight | 3.8 lb (1.7 kg) |
Cutout dimensions (H x W) | 9.8" x 7.3" (24.9 cm x 18.5 cm) |
High-frequency Driver Components | 1" aluminum dome swiveling tweeter with waveguide |
Low-frequency Driver Components | 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer |
Mounting | C-2 mounting mechanism |
Recommended Amplifier Power | 10 - 120 Watts RMS |

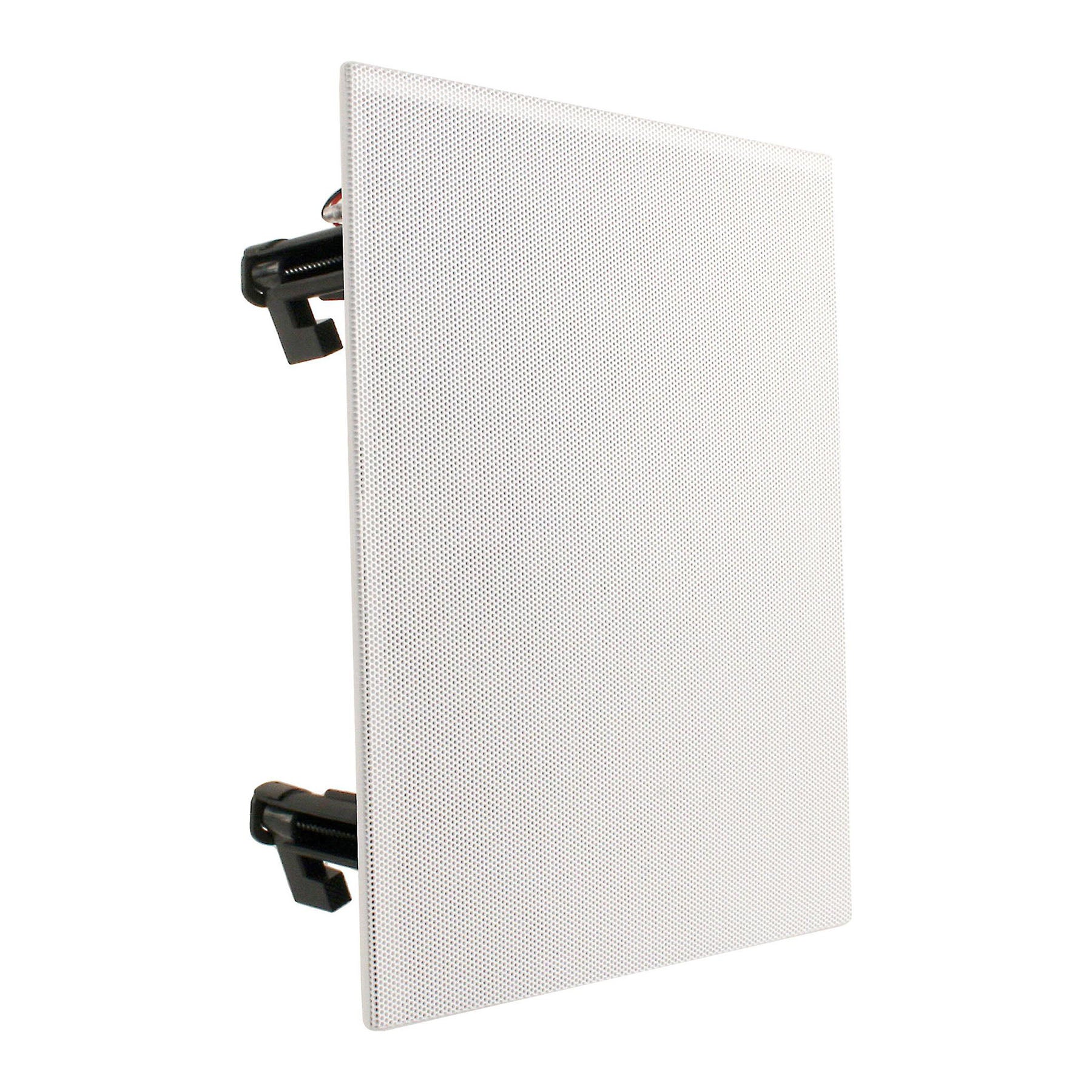

Includes zero-bezel magnetic grille | |
Grille finished dimension (H x W) | 10.8" x 8.3" (27.3 cm x 21.1 cm) |
Compatible with wall material thickness range | 0.5" – 1.0" (1.3 cm – 2.5 cm) |
Shipping weight | 4.9 lb (2.2 kg) |
