Revel


Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

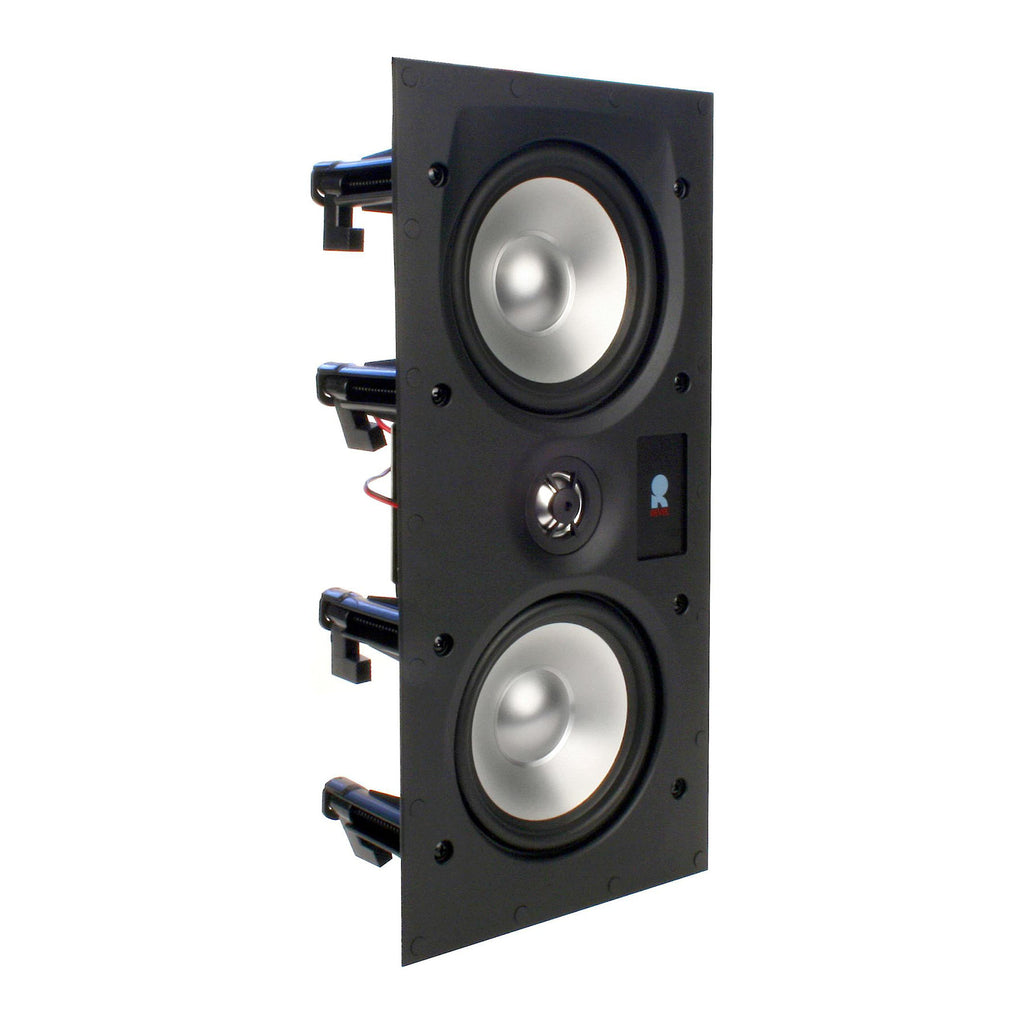

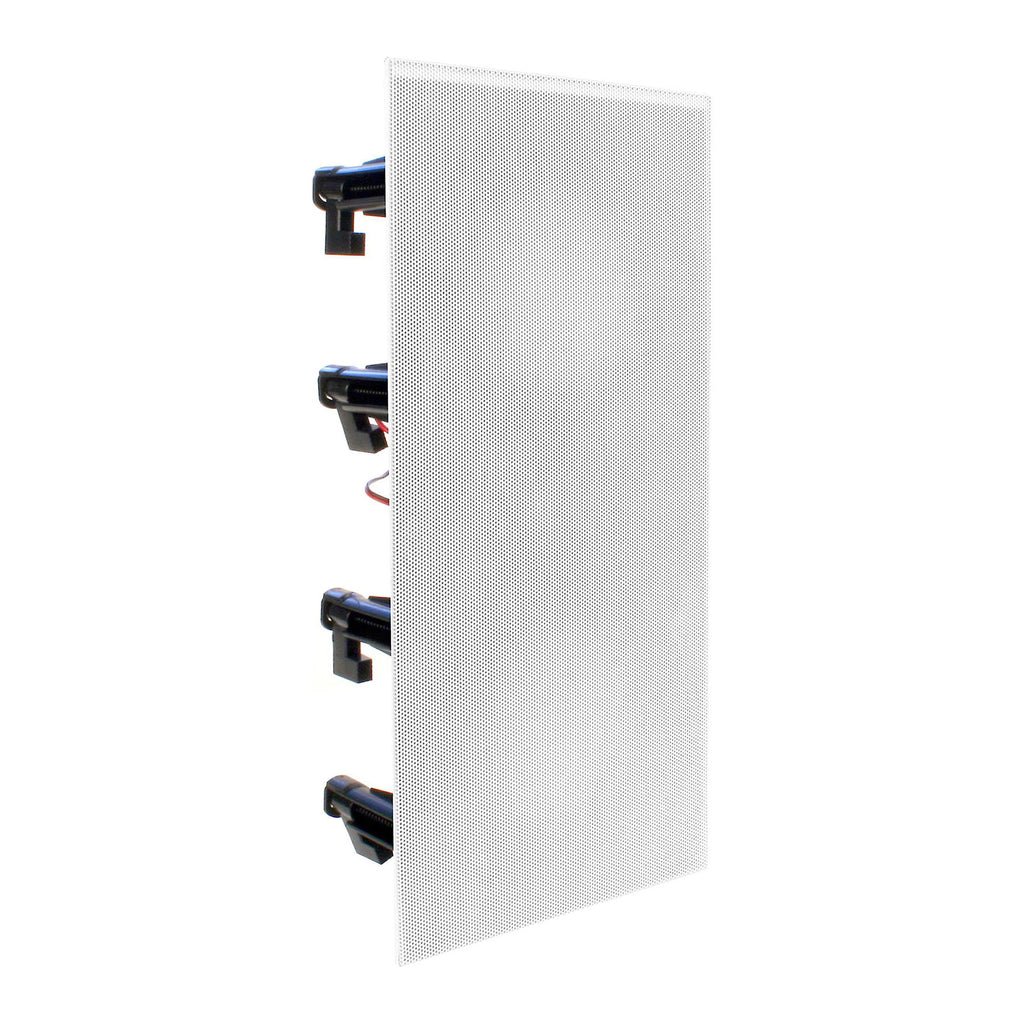

W253L
LCR Suitable for Vertical or Horizontal Orientation
Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
W253L Highlights
-
Long-throw woofers with rubber surrounds provide high output with low distortion
-
1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-
High-order crossover network delivers accurate timbre reproduction
-
Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV
Height | Grille Finished Dimensions (H x W) 15.1" x 7.4" (18.8cm x 7.8cm); Cutout Dimensions (H x W) 14.1" x 6.4" (35.9cm x 16.3cm) |
---|---|
Weight | 5.6 lb (2.5kg) / Shipping Weight 7.3 lb (3.3kg) |
Features | C-2 Installation Mechanism; Compatible with Wall Material Thickness Range 0.5" – 2.0" (1.3cm – 2.5cm) |
High-frequency Driver Components | 1" Aluminum-Dome Tweeter with Waveguide |
Low-frequency Driver Components | 2 x 5-1/4" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofers |
Mounting | Mounting Depth 3.5" (88mm) |
Recommended Amplifier Power | 10 - 100 Watts RMS |
Sensitivity | 91dB |
Optional Accessories | Preconstruction Bracket and Fire-Rated Back-Box Accessories Available |
