Revel M126Be 2-way 6.5" Bookshelf Loudspeaker (pair)
Unit
Revel M126Be 2-way 6.5" Bookshelf Loudspeaker (pair)
Black / New
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: USA
M126Be
2-way Bookshelf Loudspeaker
At the heart of the Revel Performa M126Be's immaculate sound lies a 1-inch beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the 6.5-inch Deep Ceramic Composite (DCC) aluminum cone woofer, yielding greater efficiency, less compression, improved dynamic range, reduced distortion, and increased power handling. PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost.
Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless. THE BEAUTY OF BERYLLIUM Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. ELEGANT DESIGN M126Be top panels are painted in stylish metallic black with raised electroform badging. The speakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver.
M126Be Highlights
-
1-inch Beryllium Dome Tweeter
-
High-order Crossovers with Film Capacitors and Air Core Inductors
-
5th-generation Acoustic Lens Waveguide
-
Magnetically Attached Grilles
-
DCC Cone Midrange and Woofers
-
4 Premium High-gloss Finishes Available
High Frequency Driver Components | 1" Beryllium dome with acoustic lens waveguide |
---|---|
Low-Frequency Driver Components | 6.5" Deep Ceramic Composite (DCC) Aluminum Cone with cast frame |
Frequency Response (-6DB) | 54Hz - 44kHz |
Recommended Amplifier Power | 50 - 150 Watts |
Crossover Frequencies | 1.7kHz |
Nominal Impedance | 8 Ohms |
Sensitivity | 86dB (2.83V @1M) |

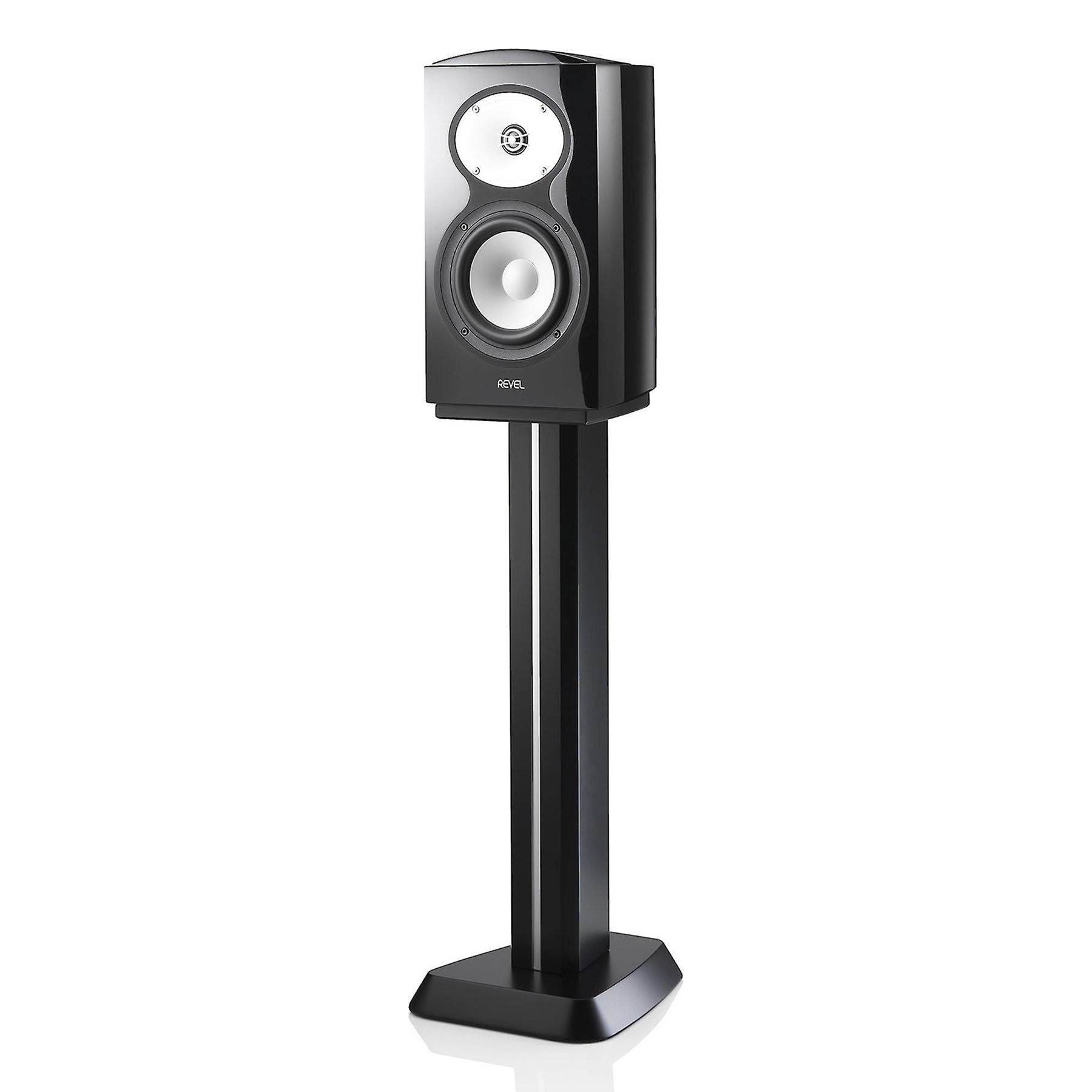

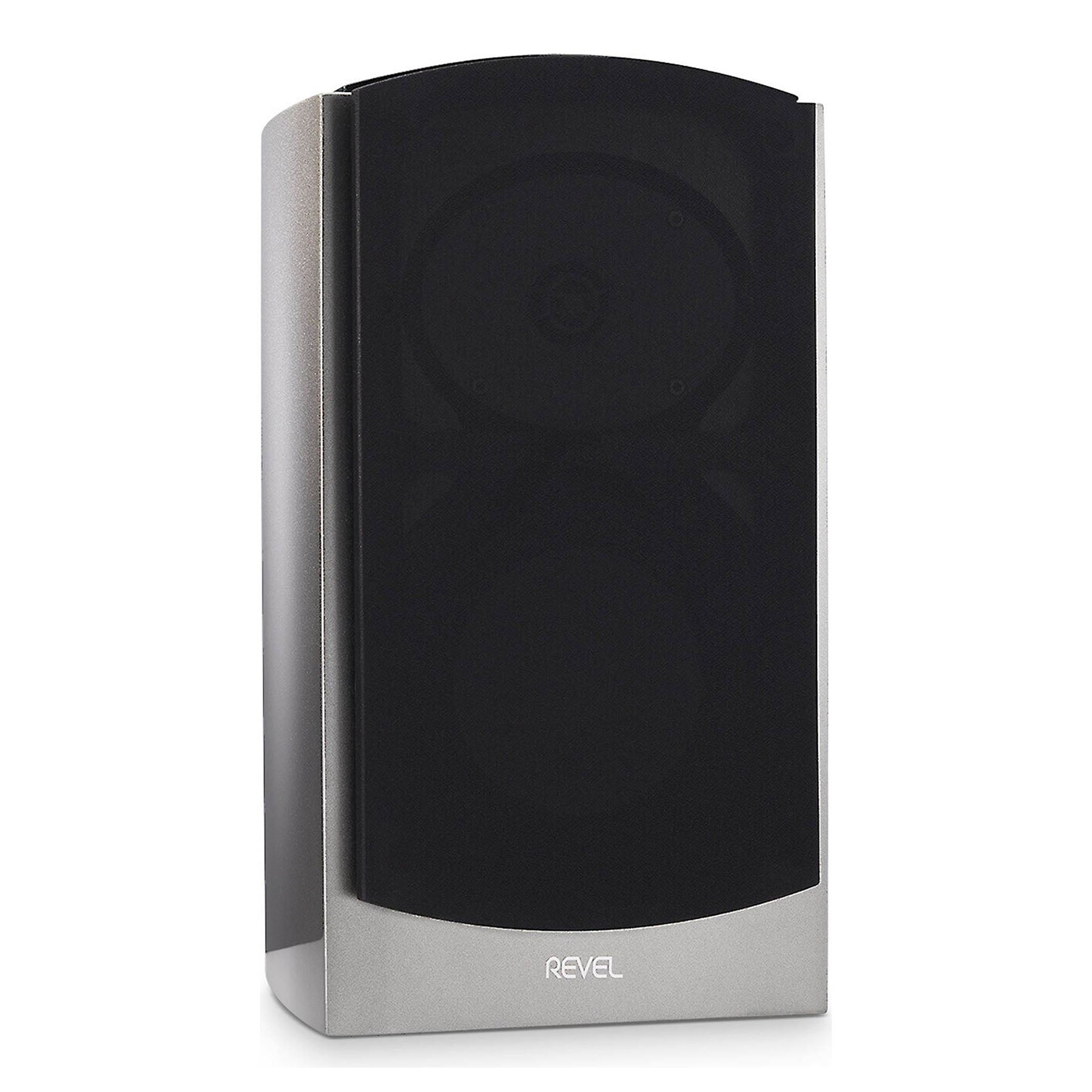

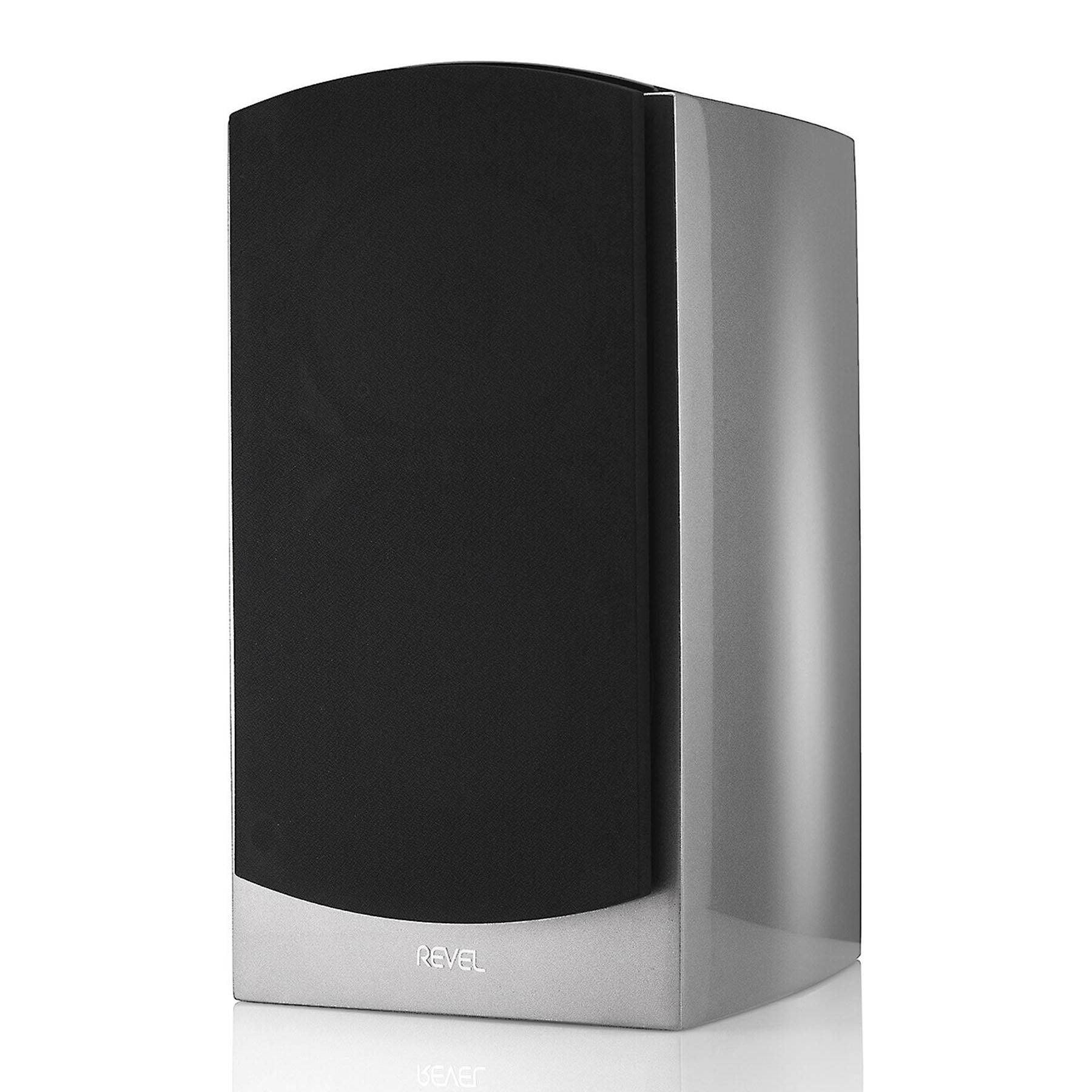

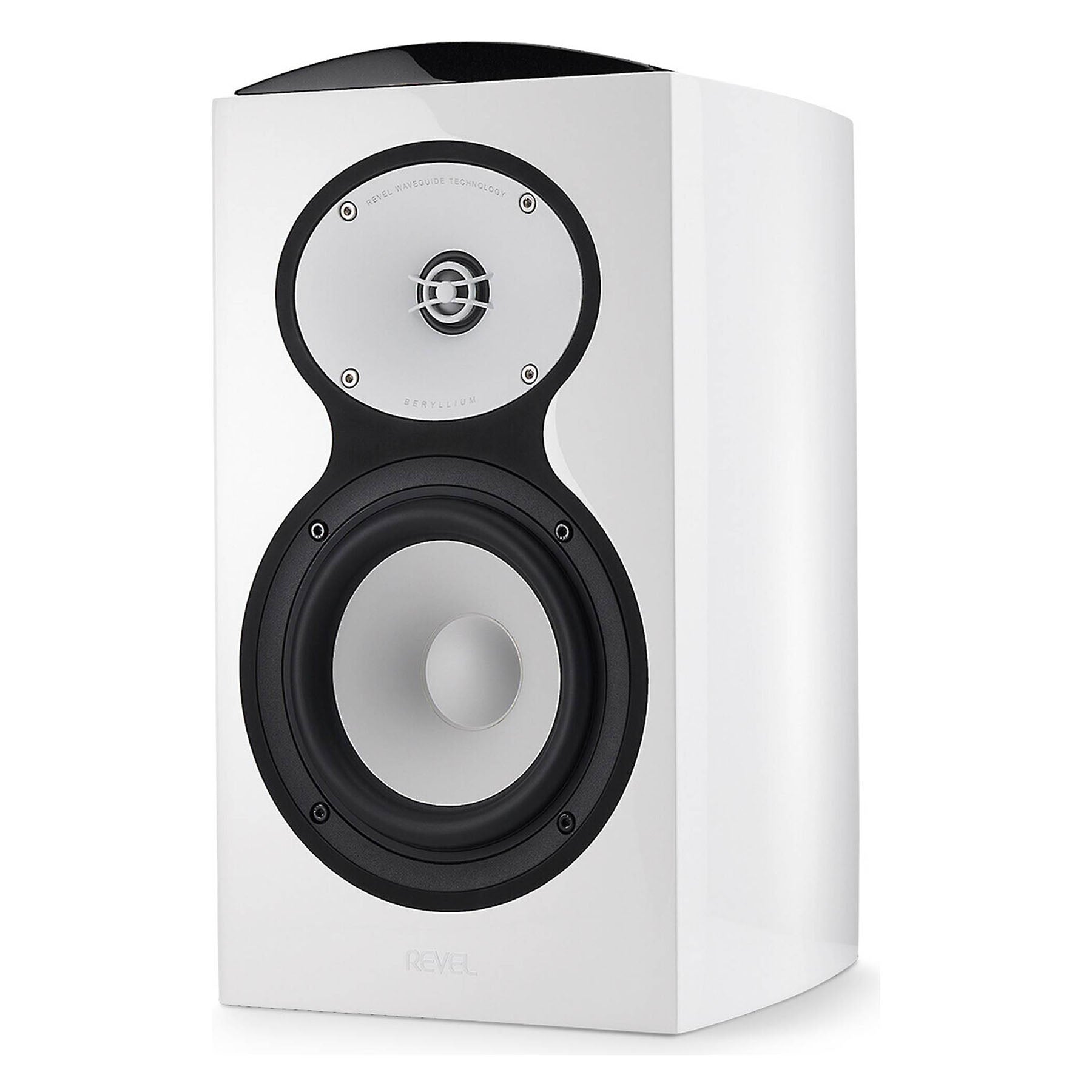

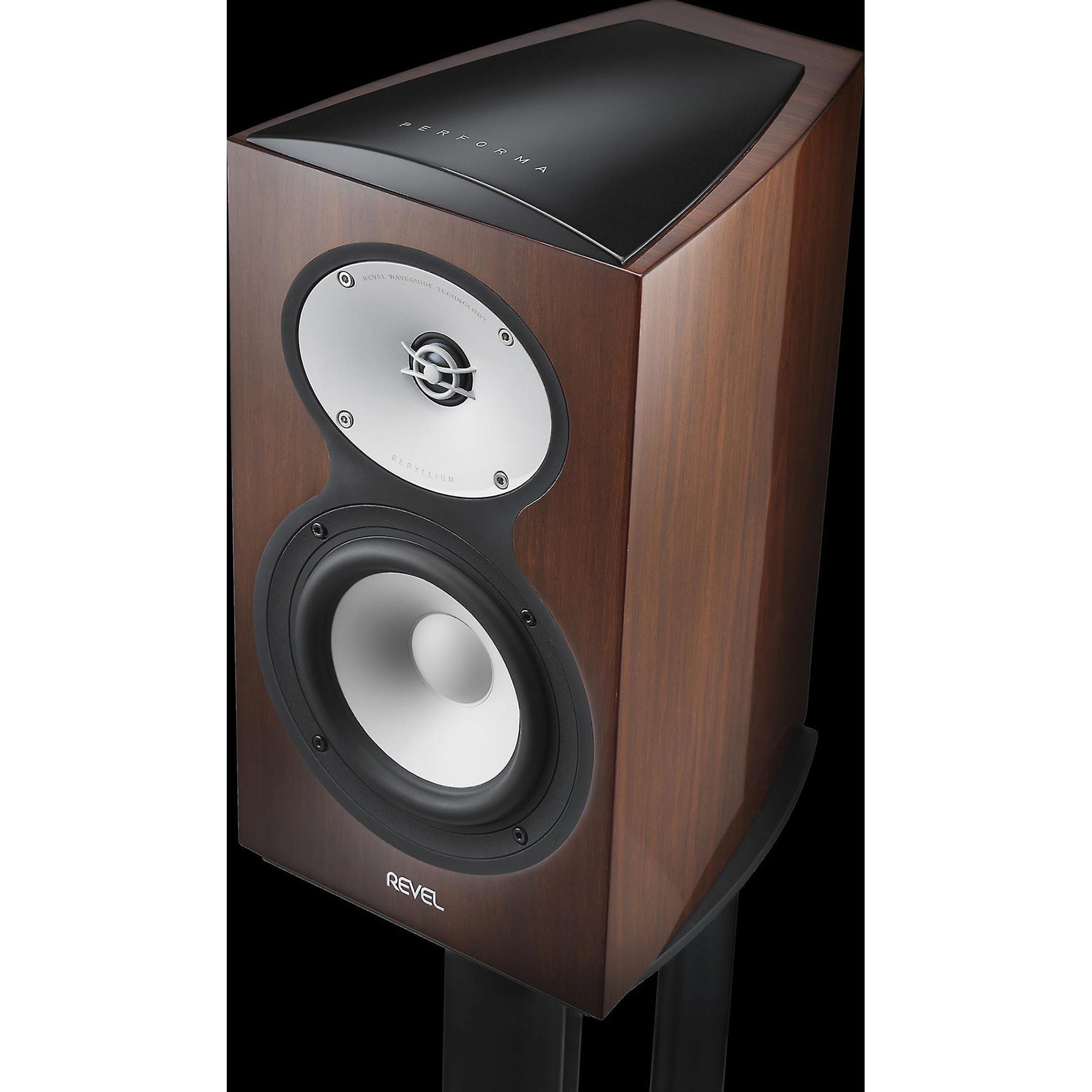

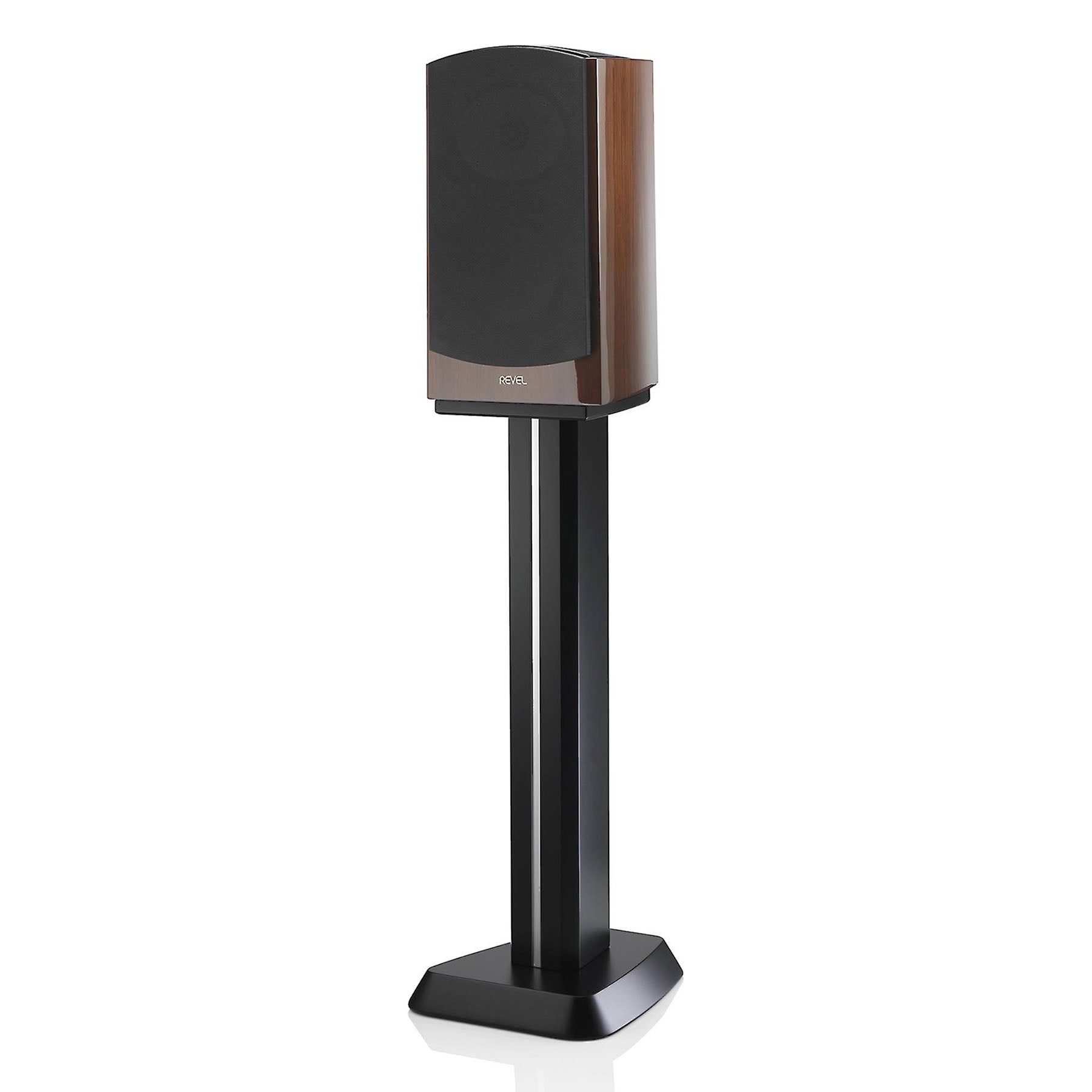

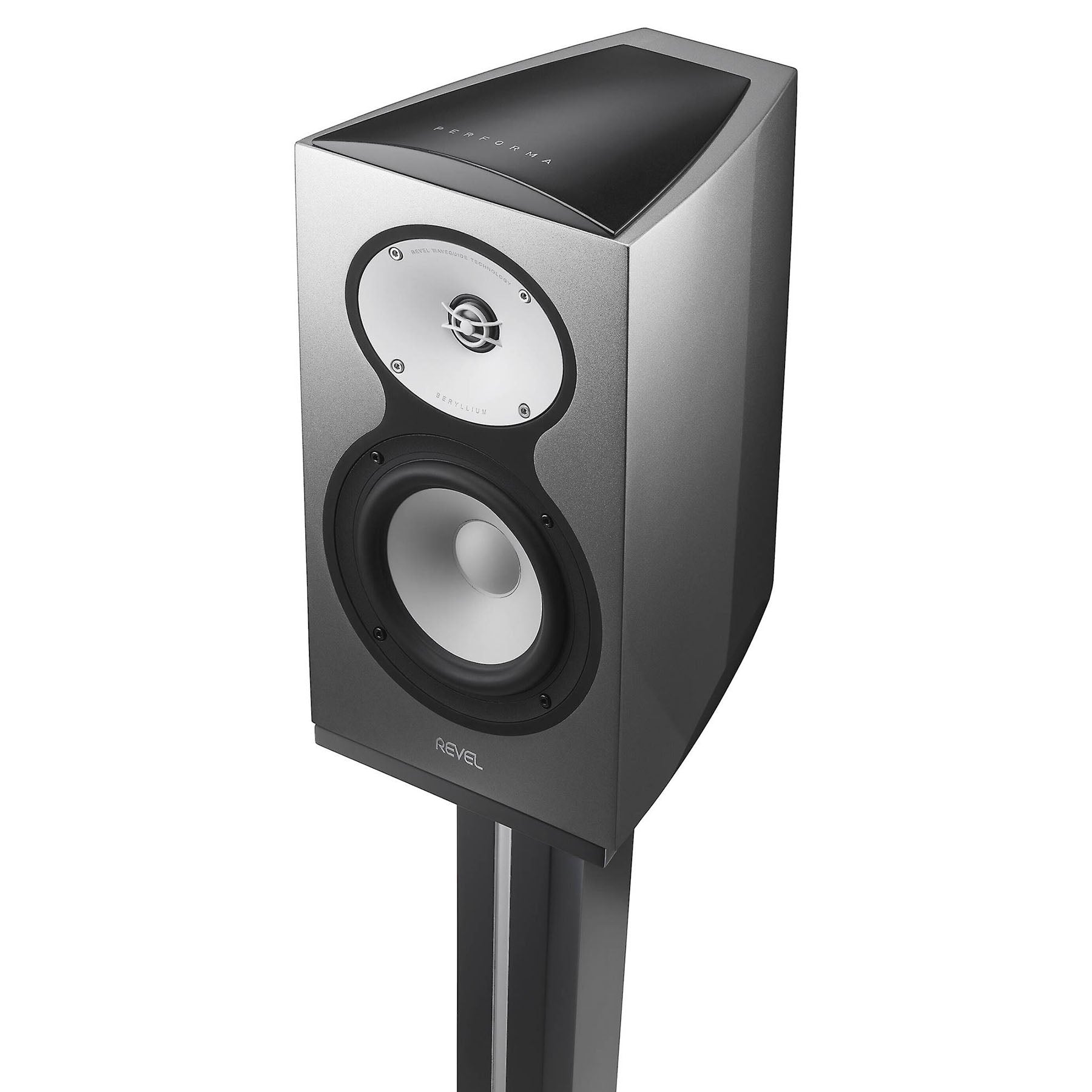

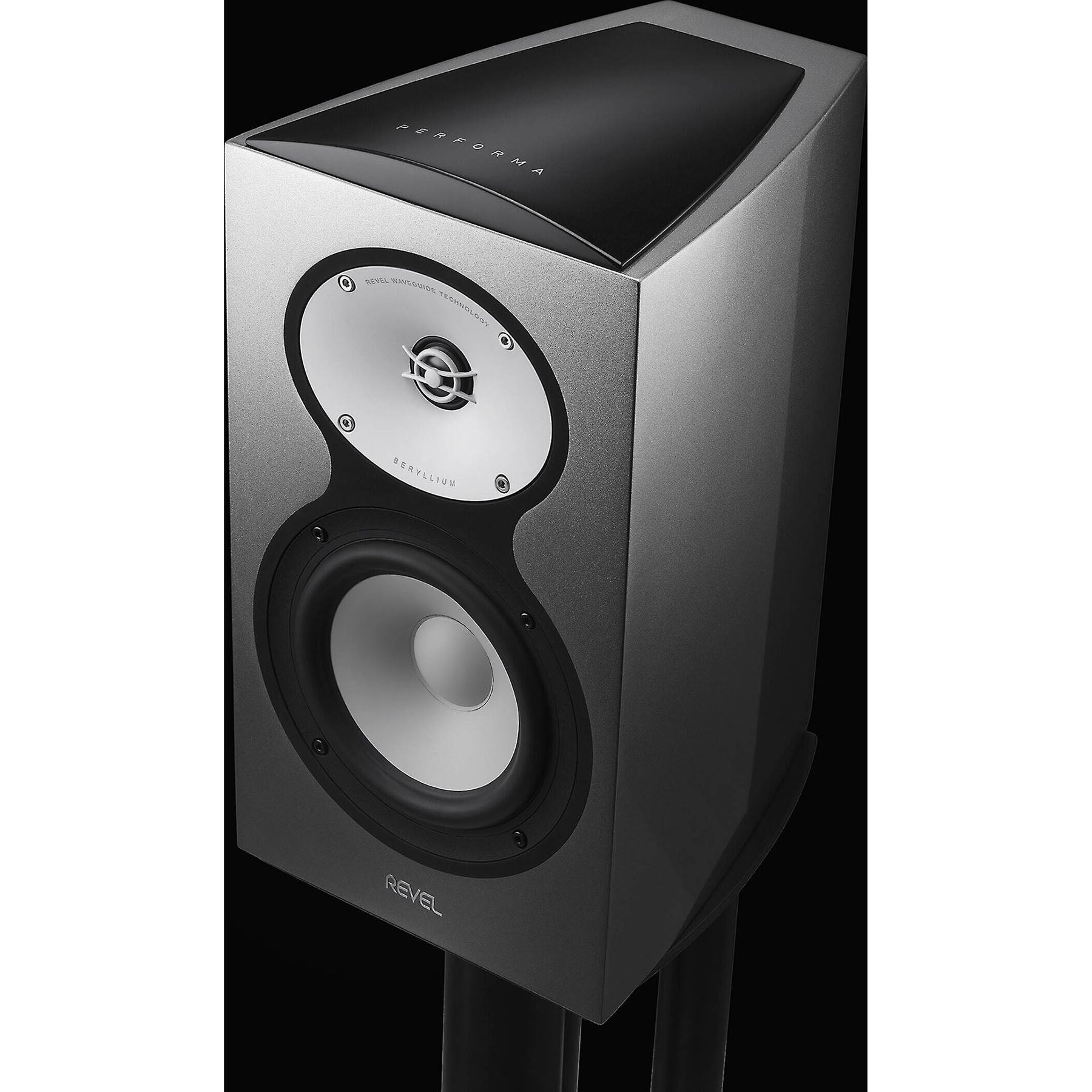

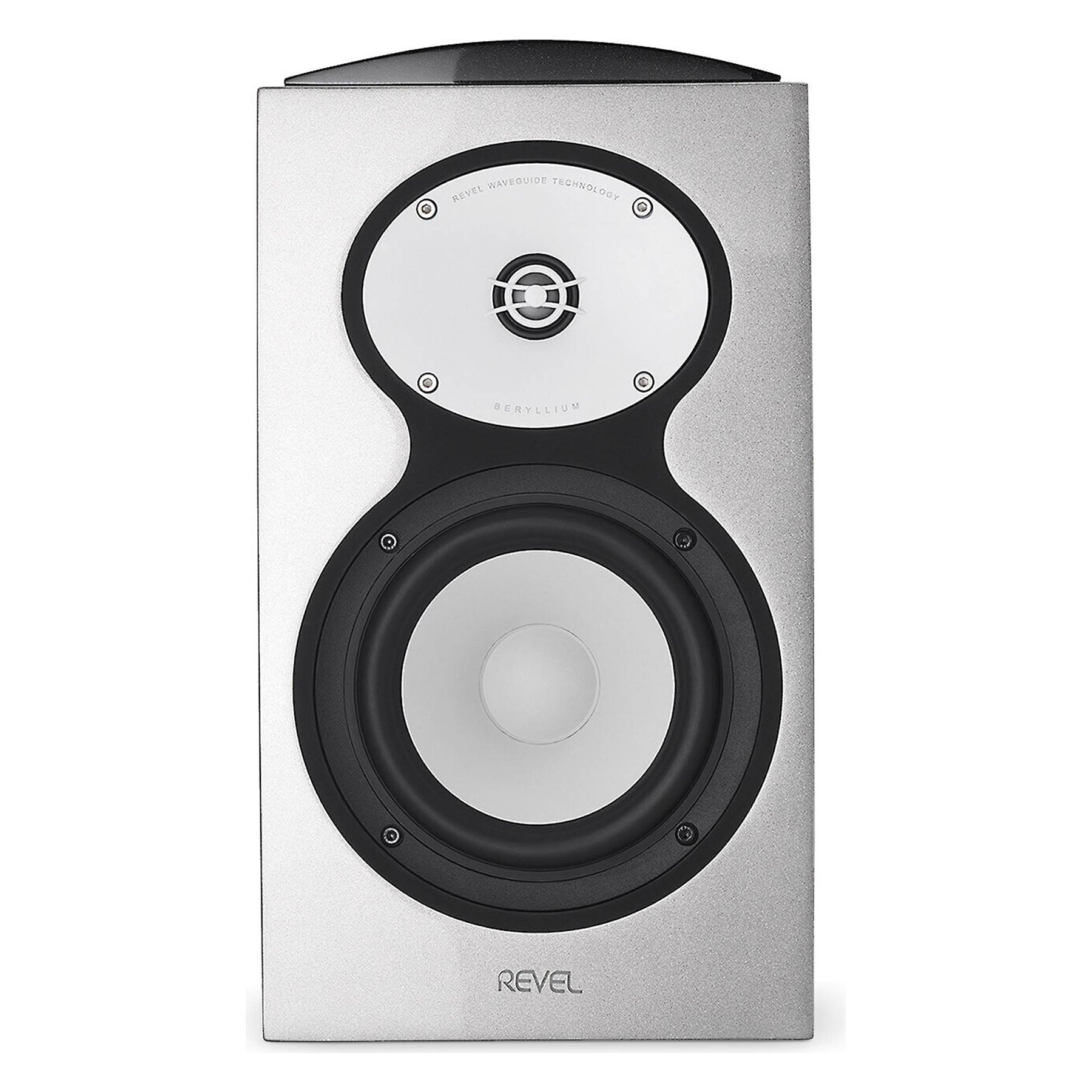

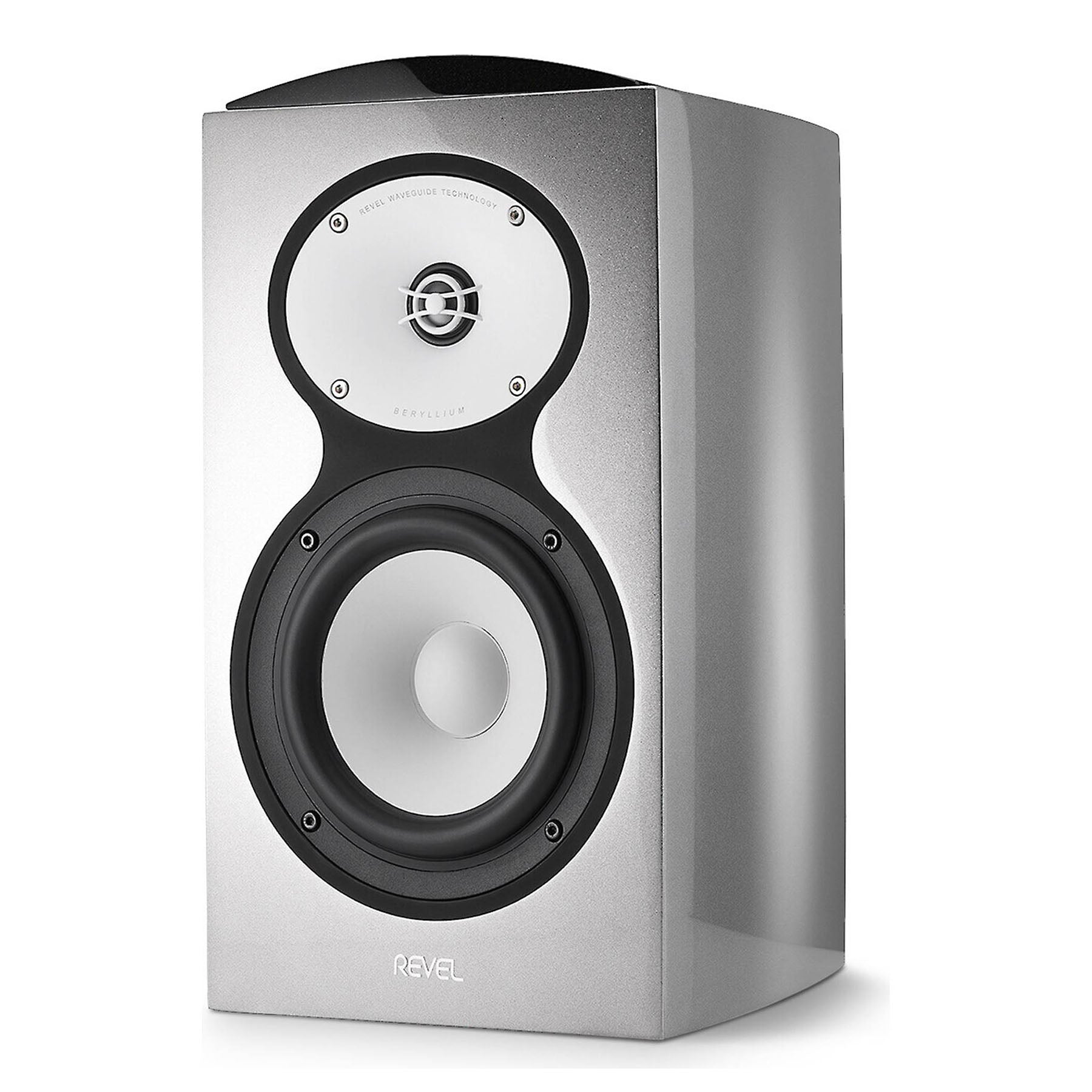

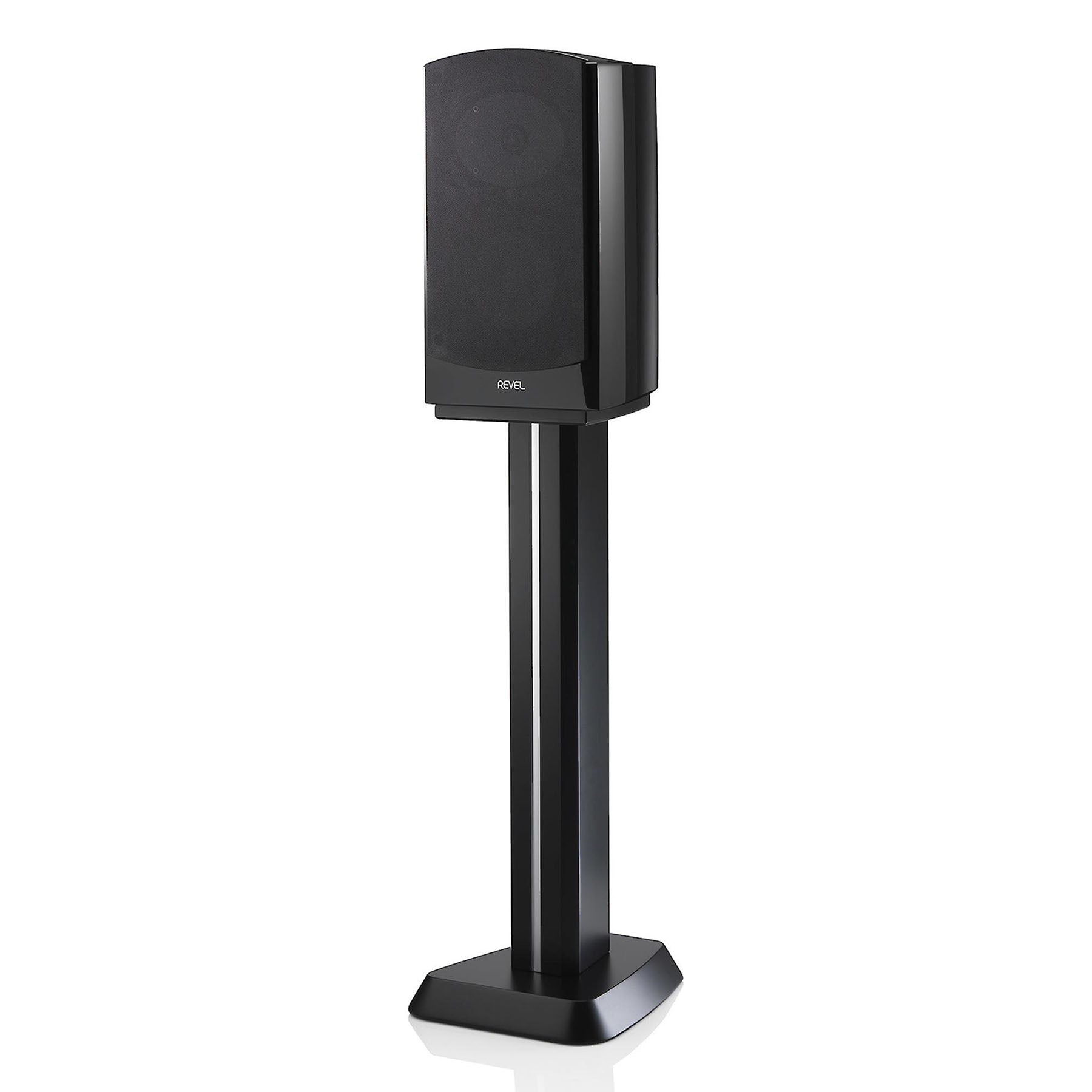

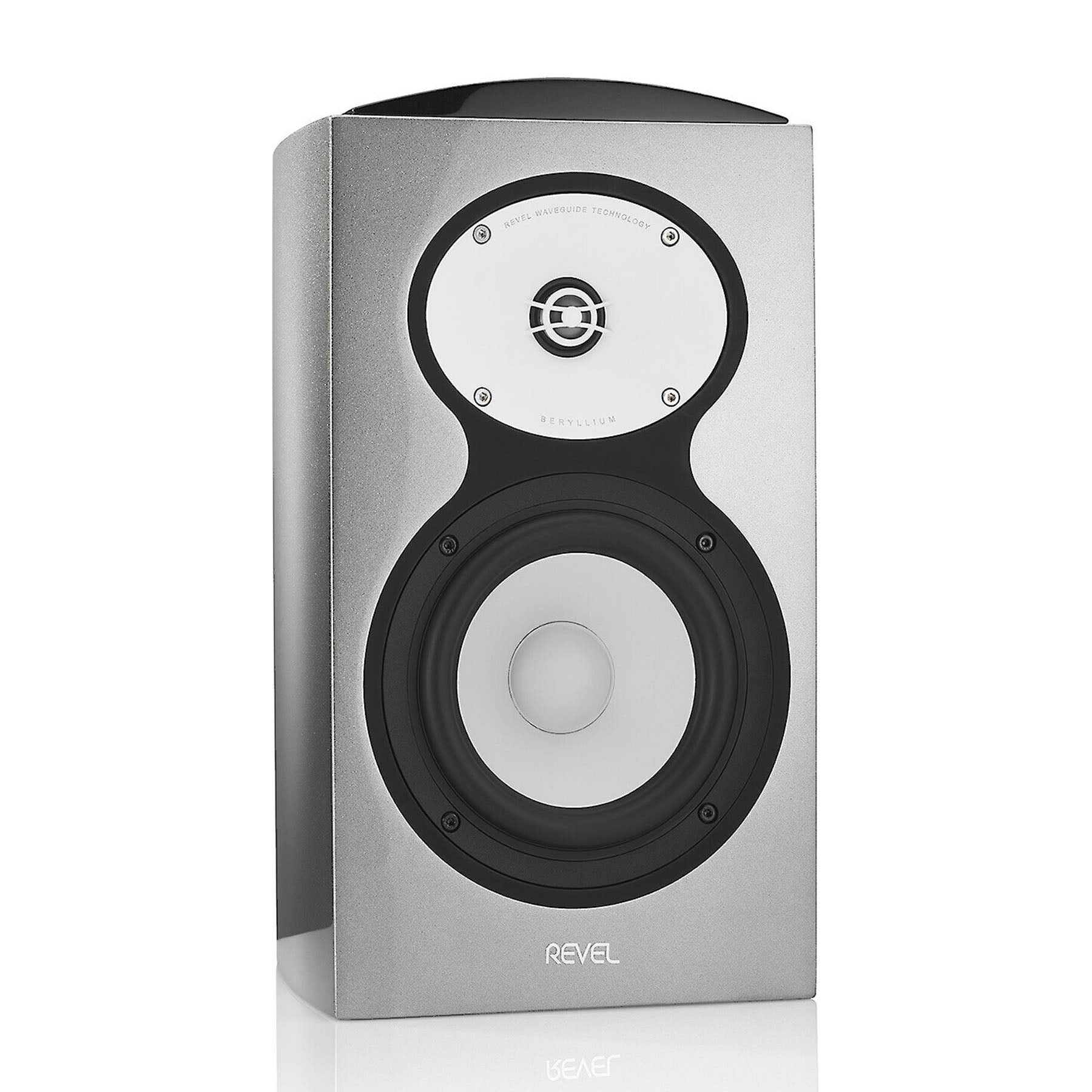

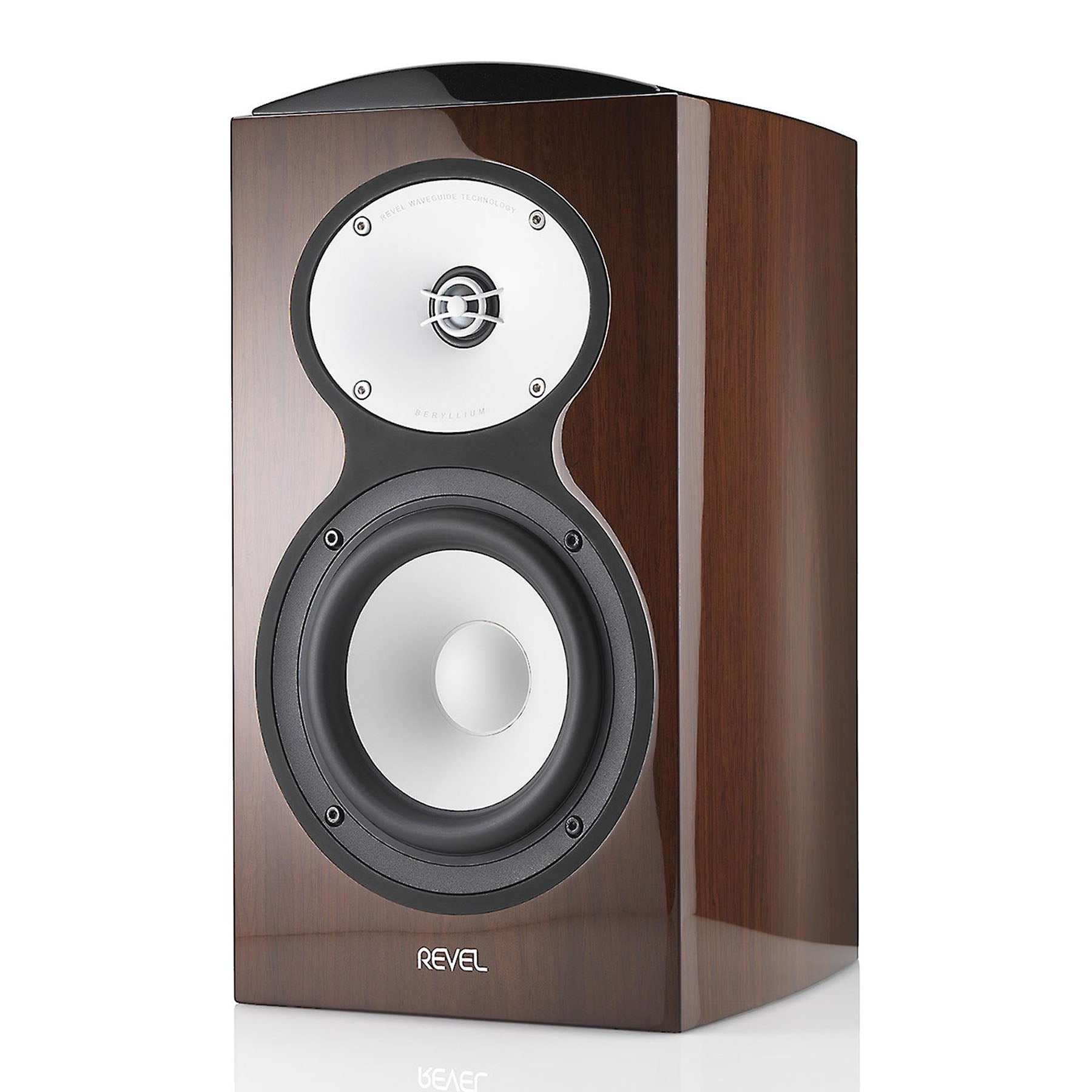

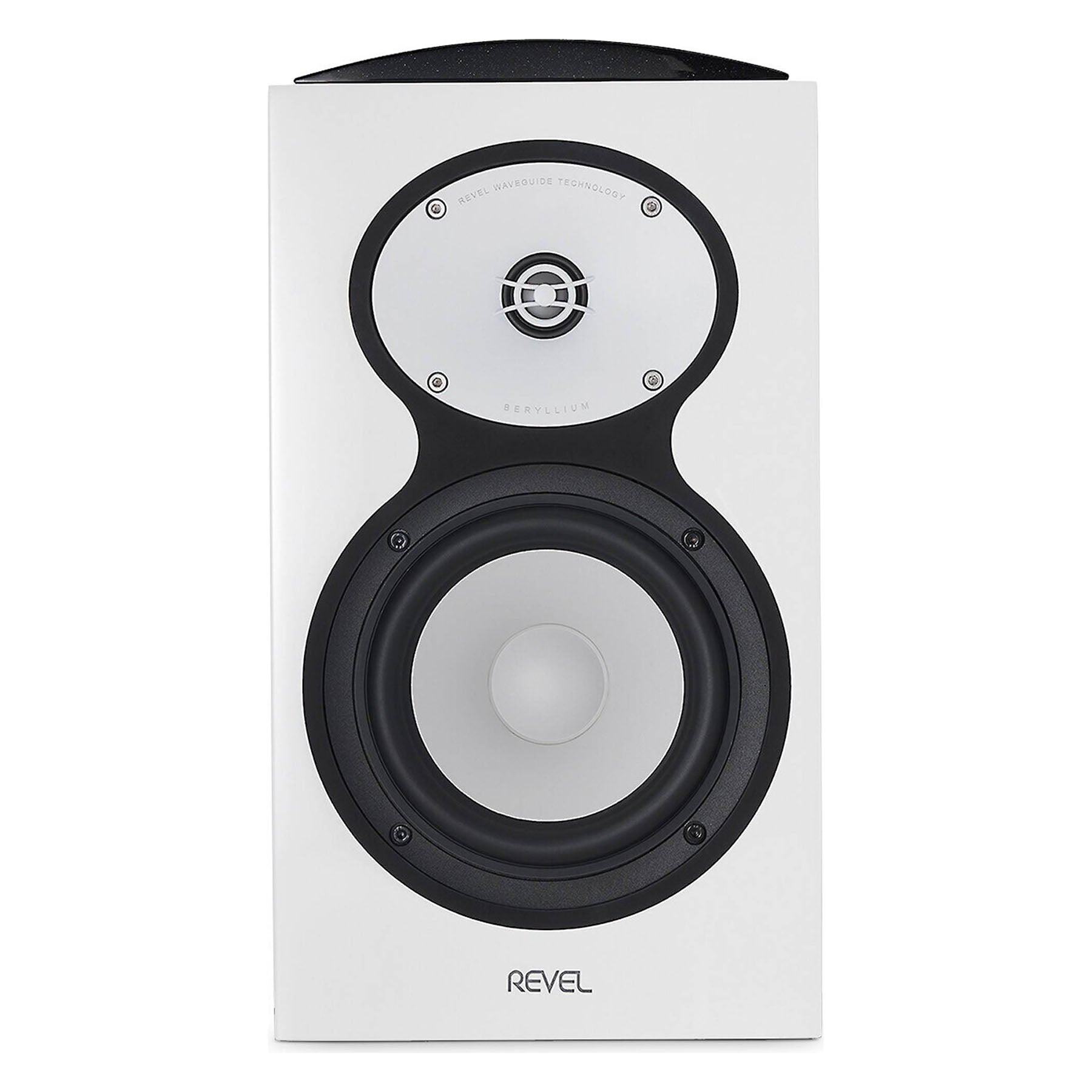

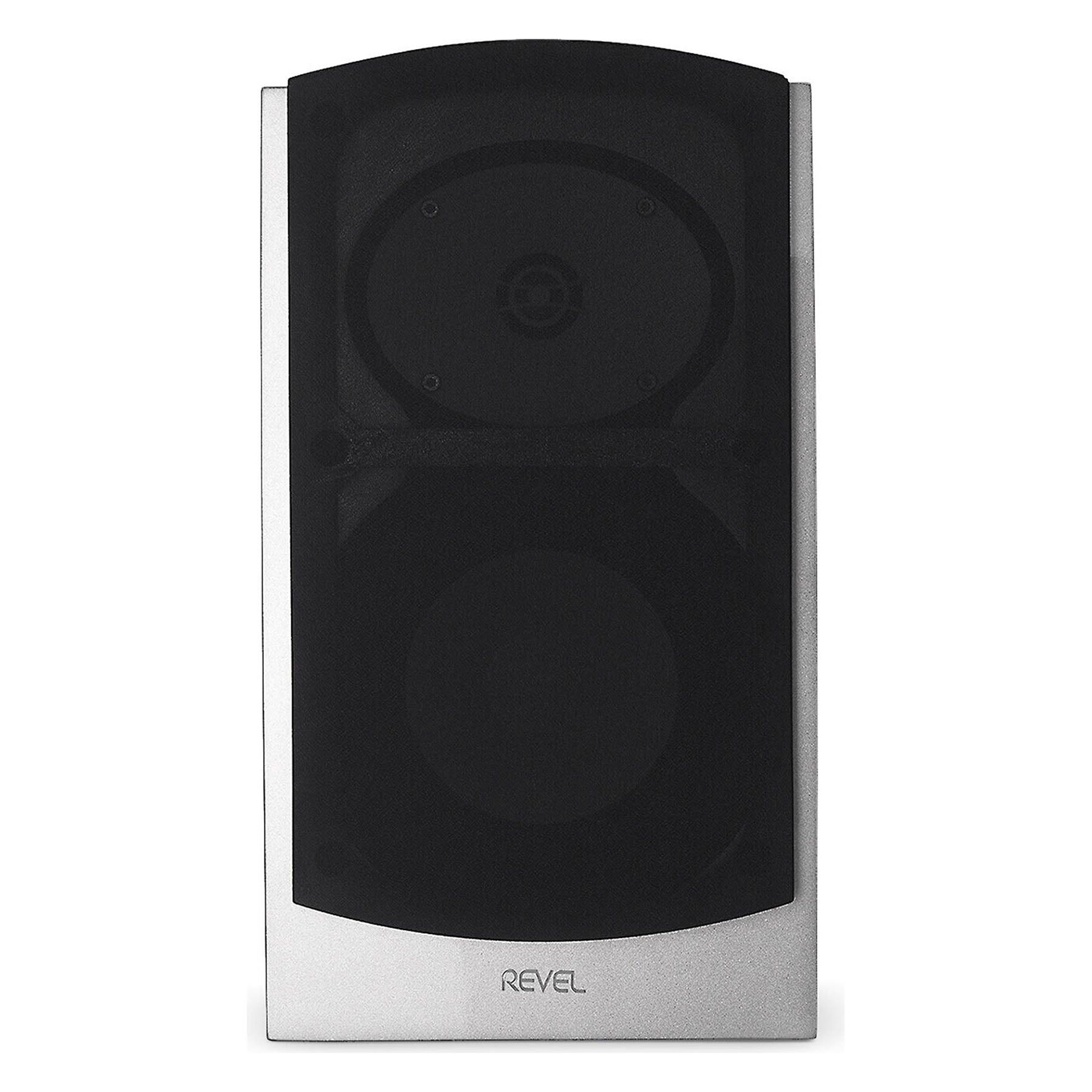

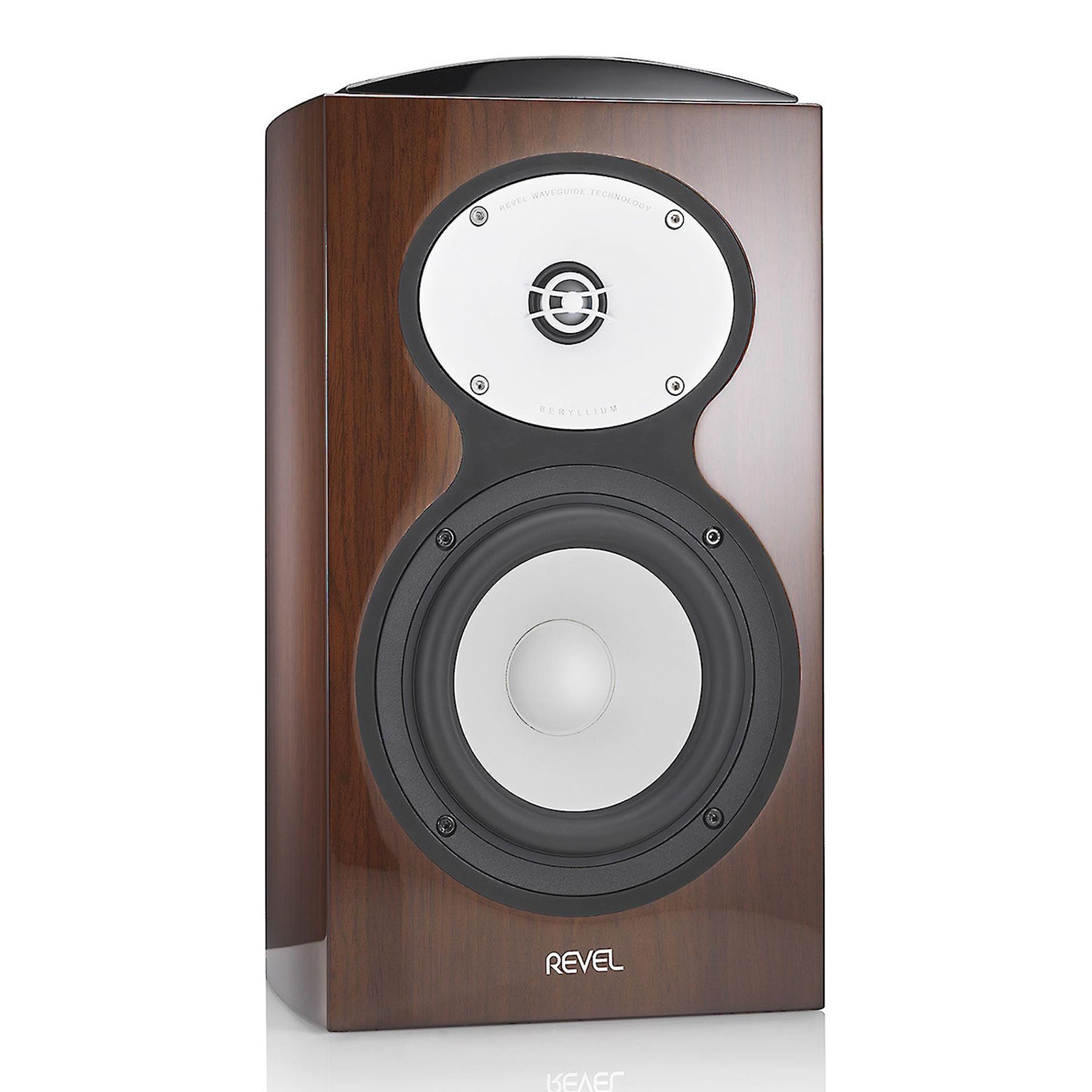

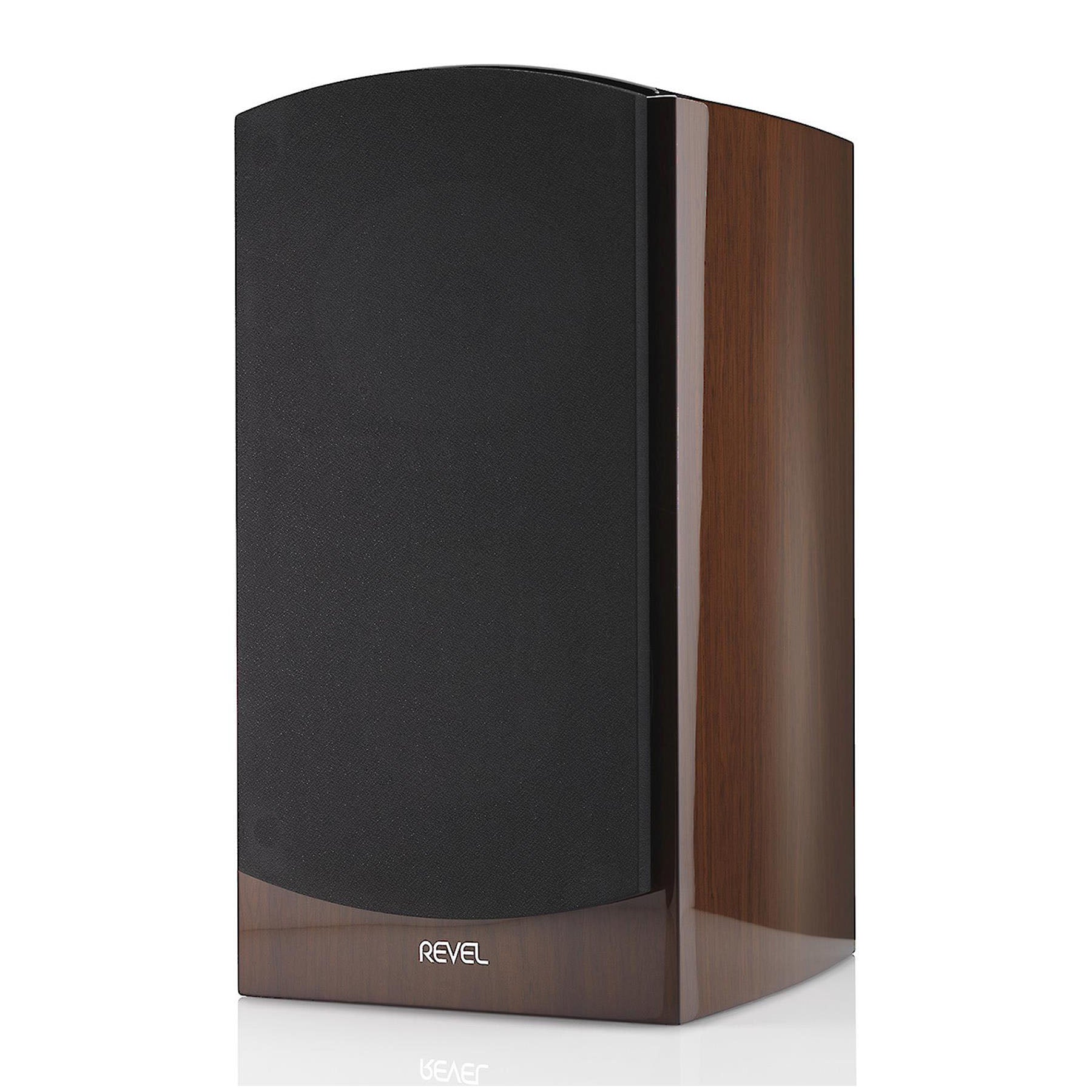

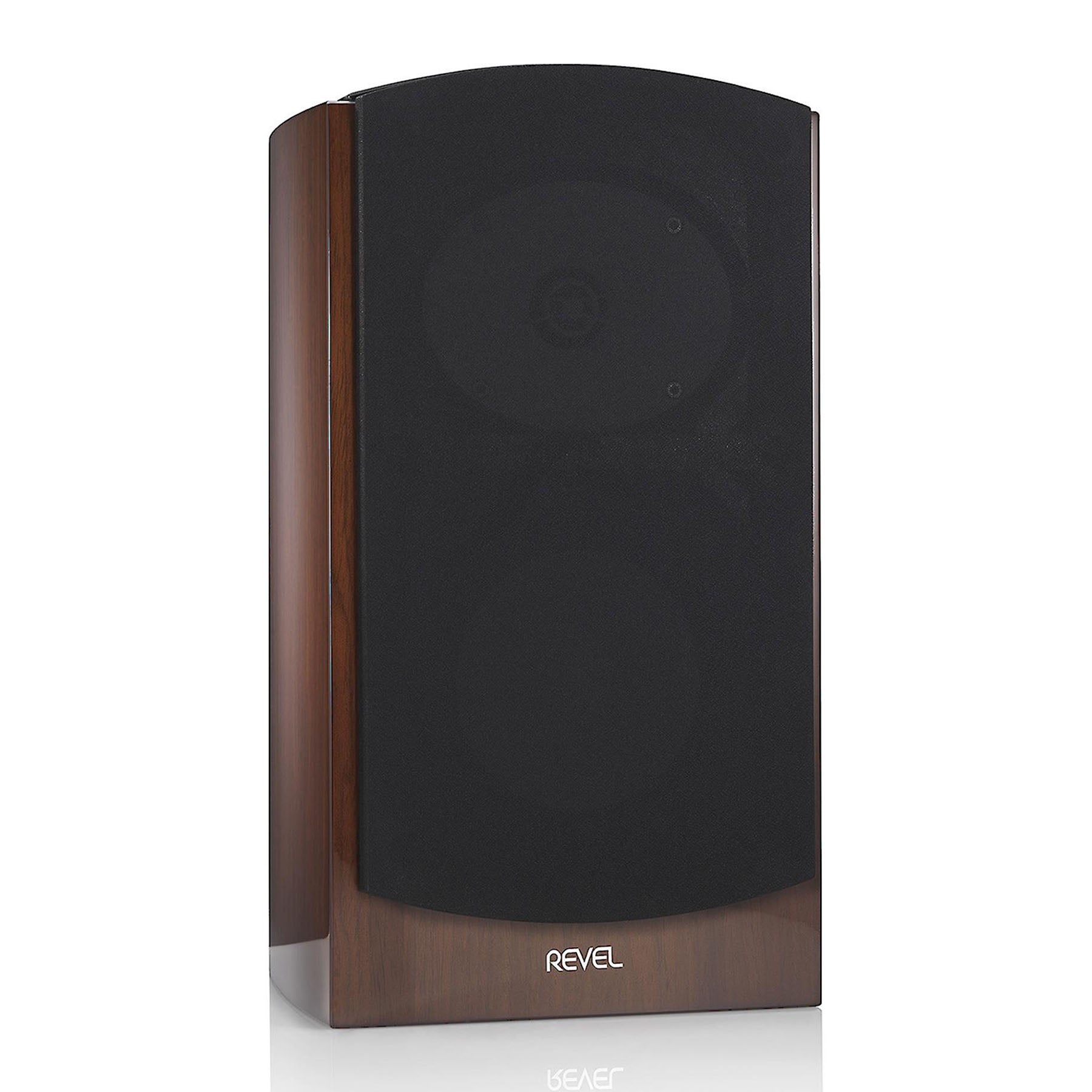

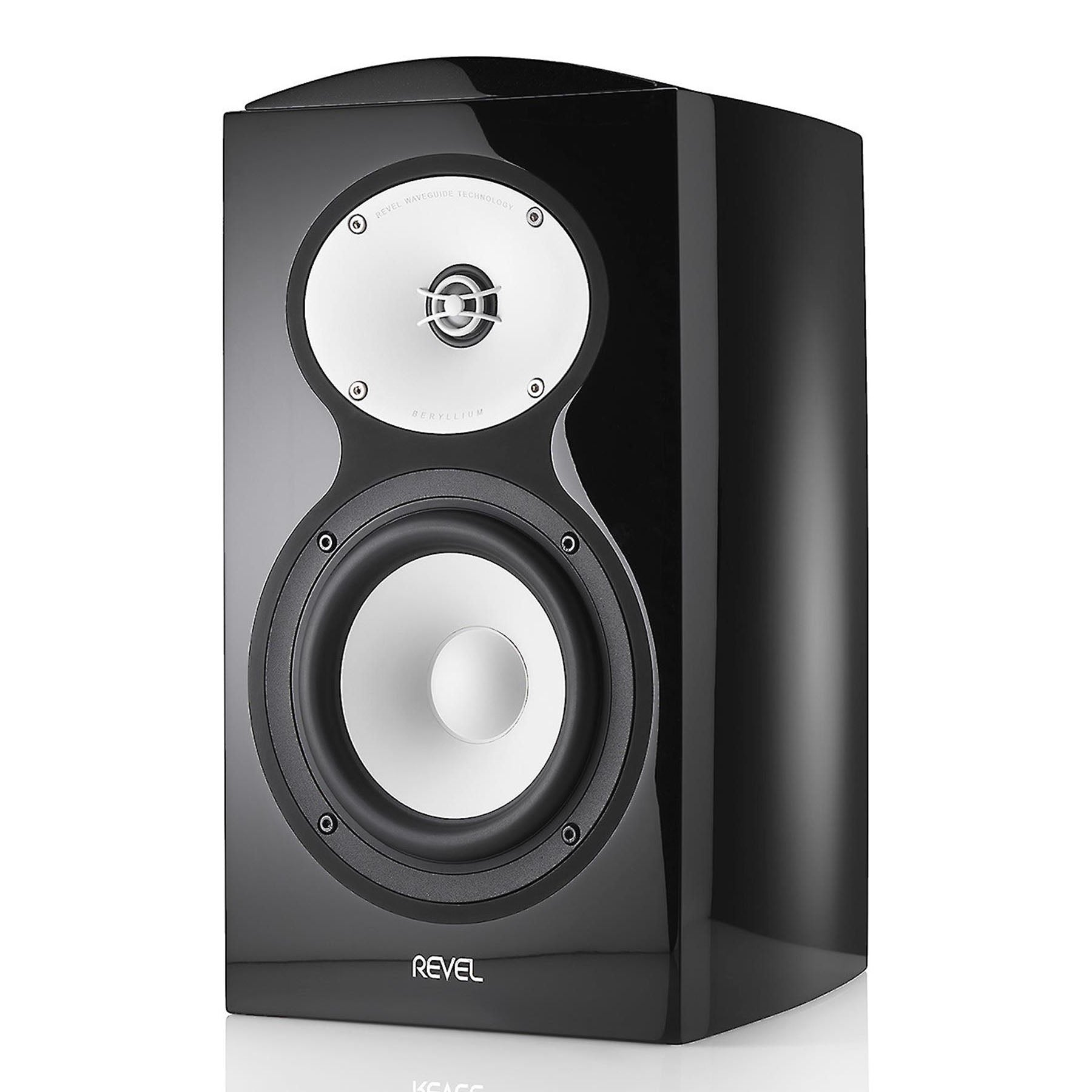

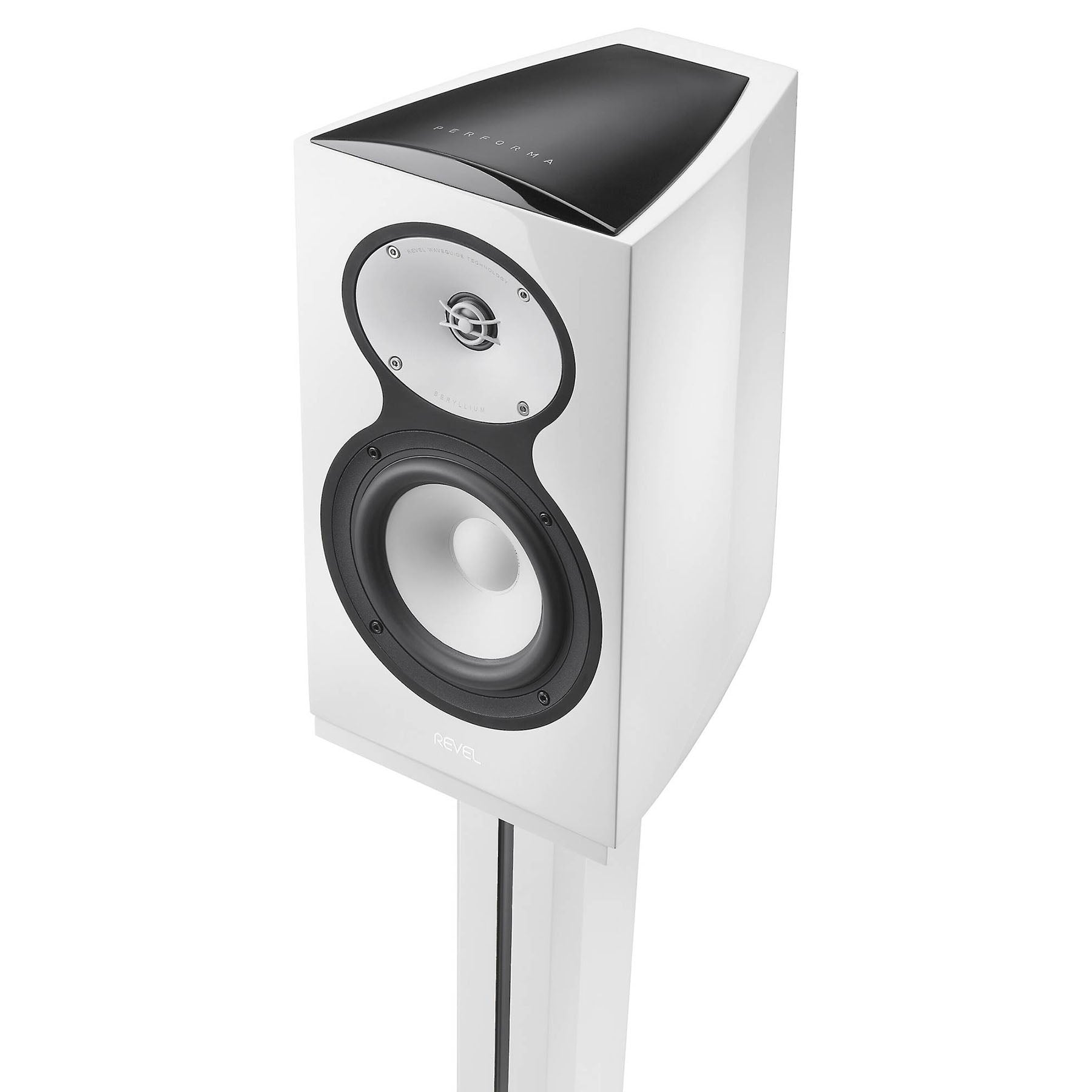

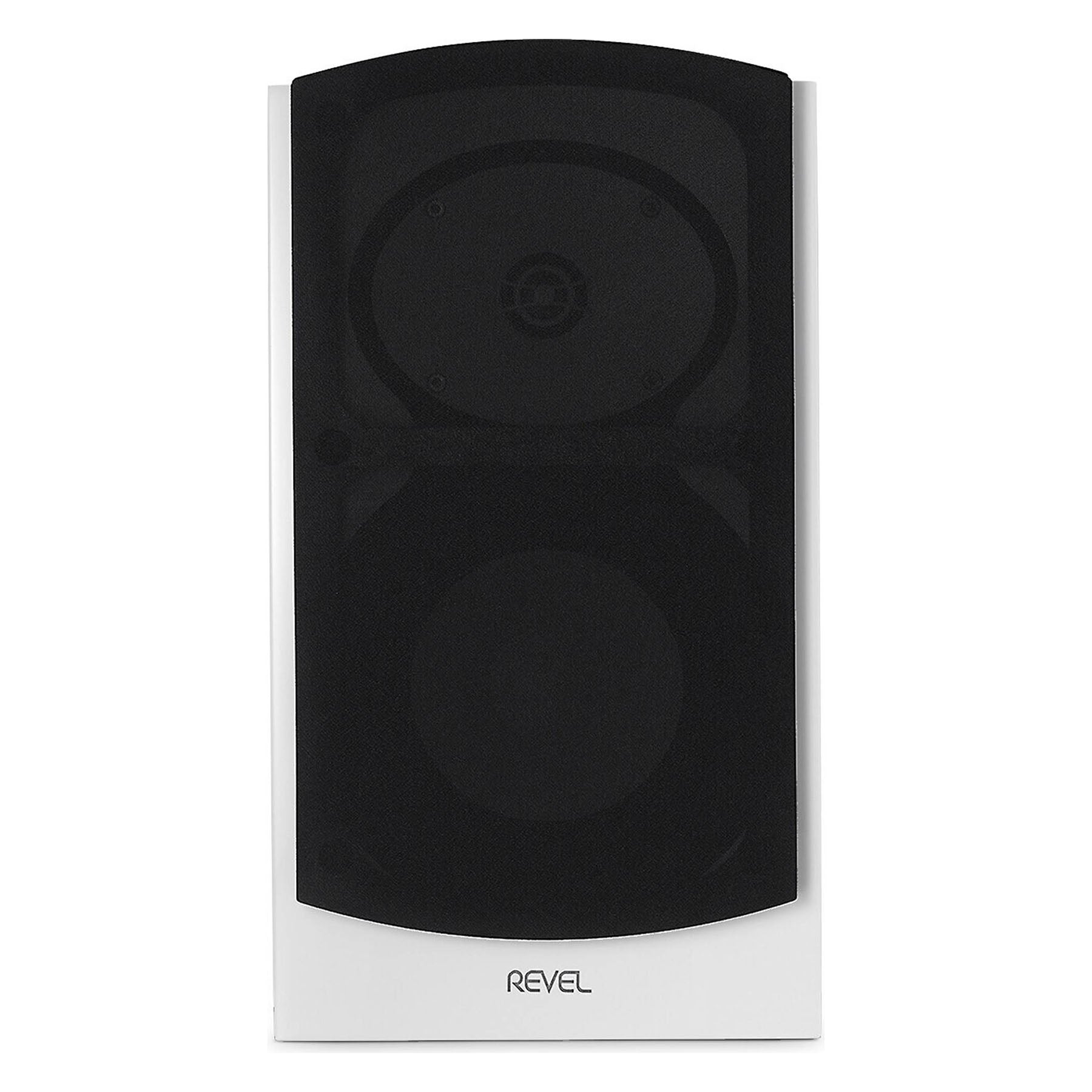

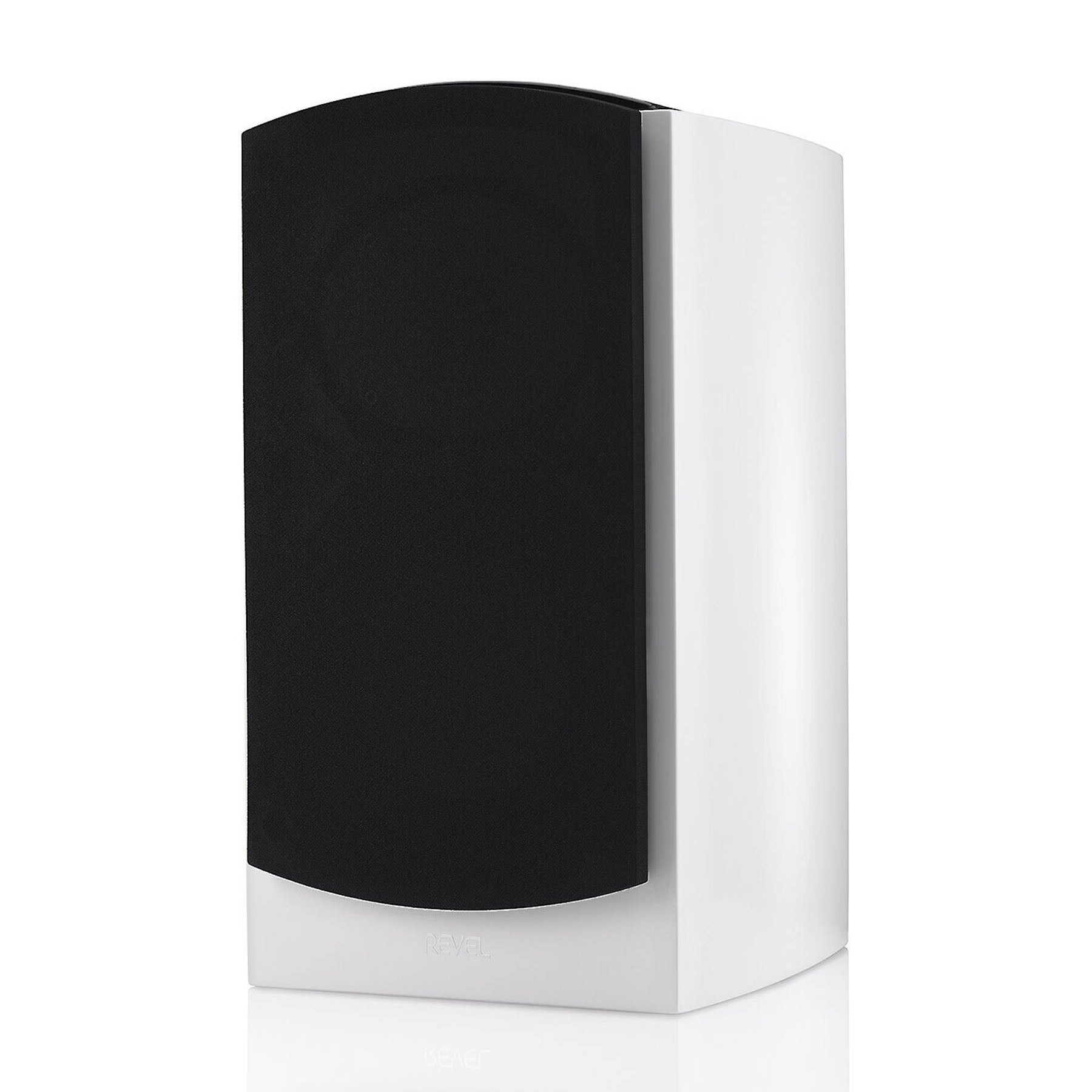

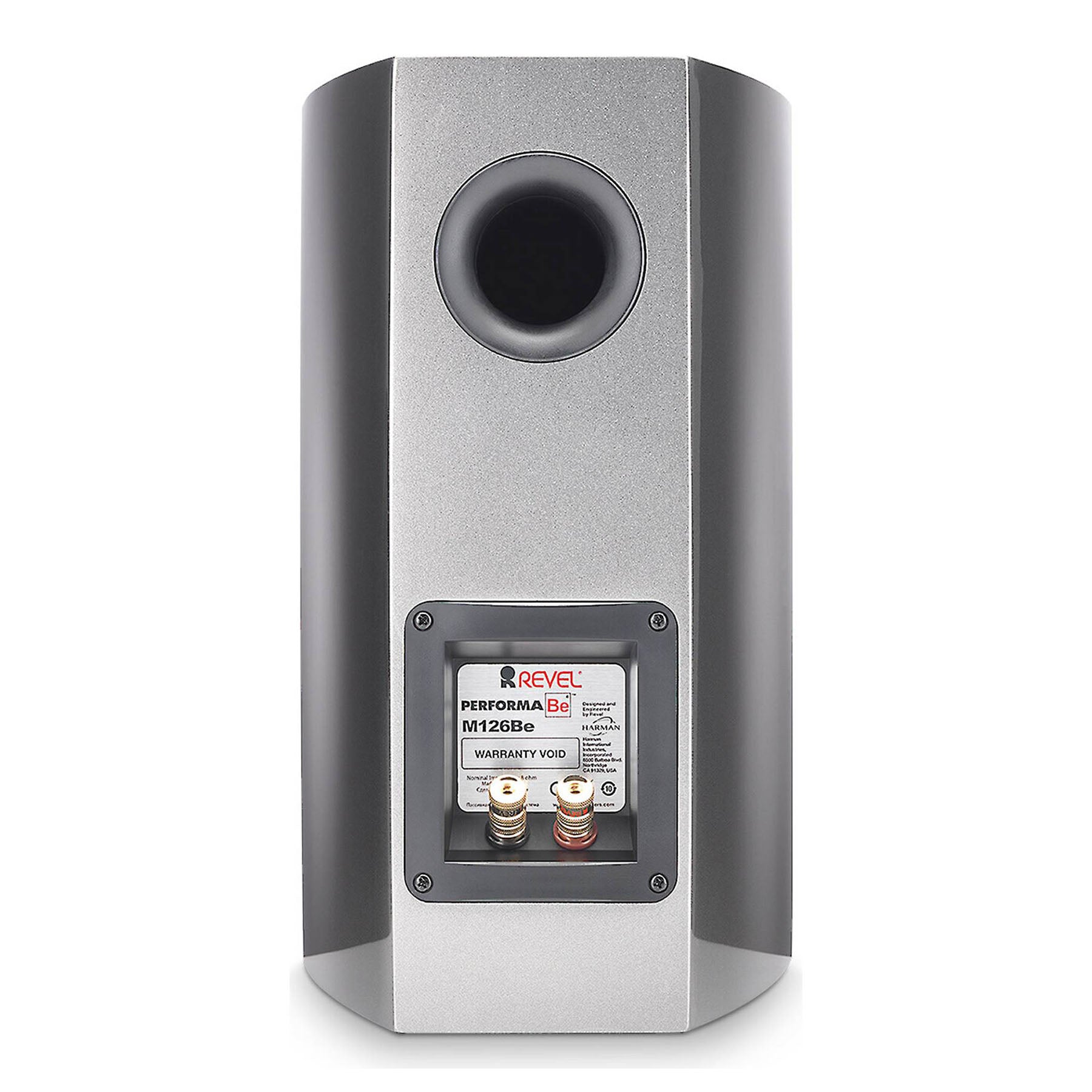

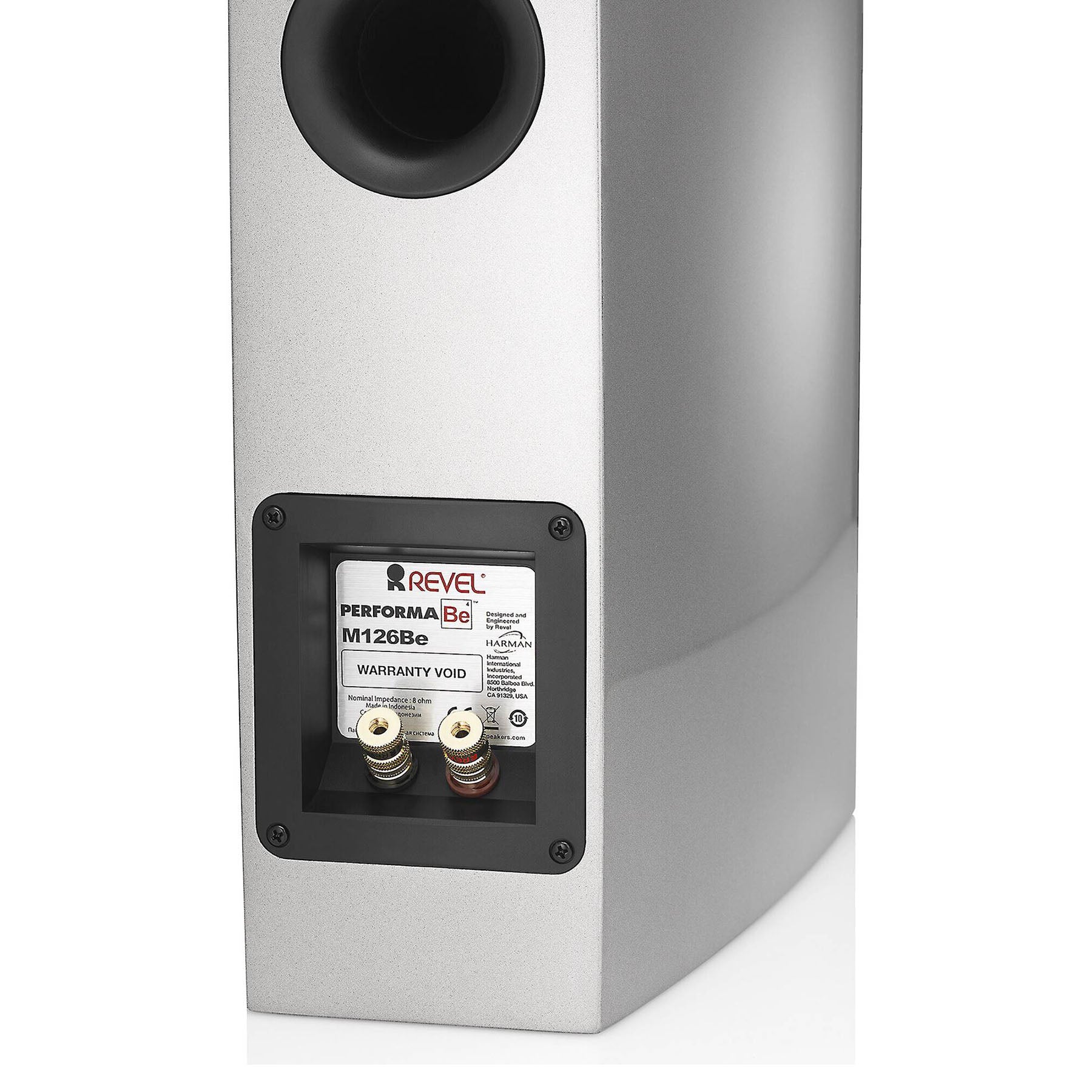

Finishes | High-gloss Black, White, Walnut and Metallic Silver |
Dimensions (H X W X D) | 15.2"x 8.3" x 10.3" (386 x 211 x 262mm) |
Net Weight | 22 lbs / 9.97kg |
