Revel


L12XC
Direct Burial Subwoofer

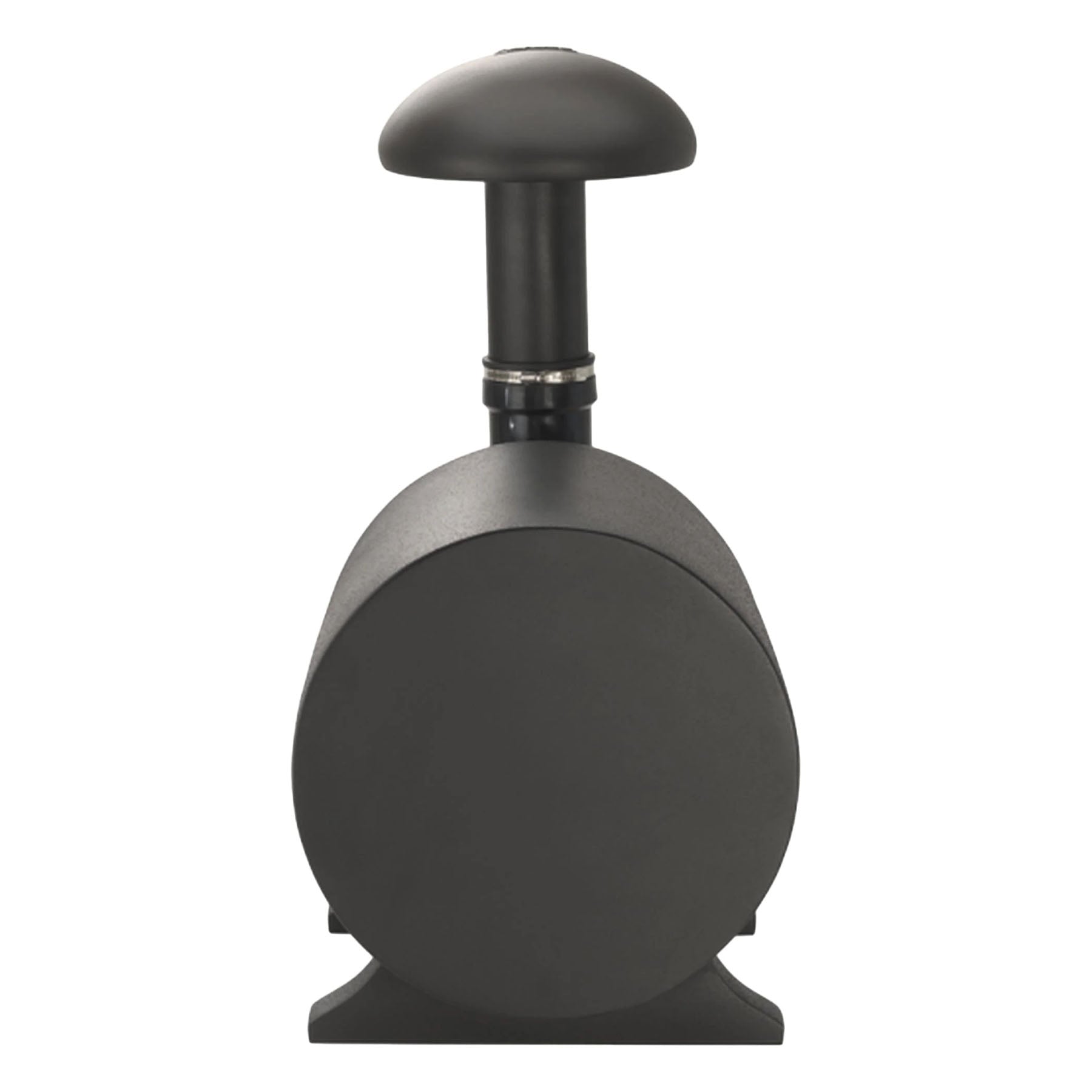

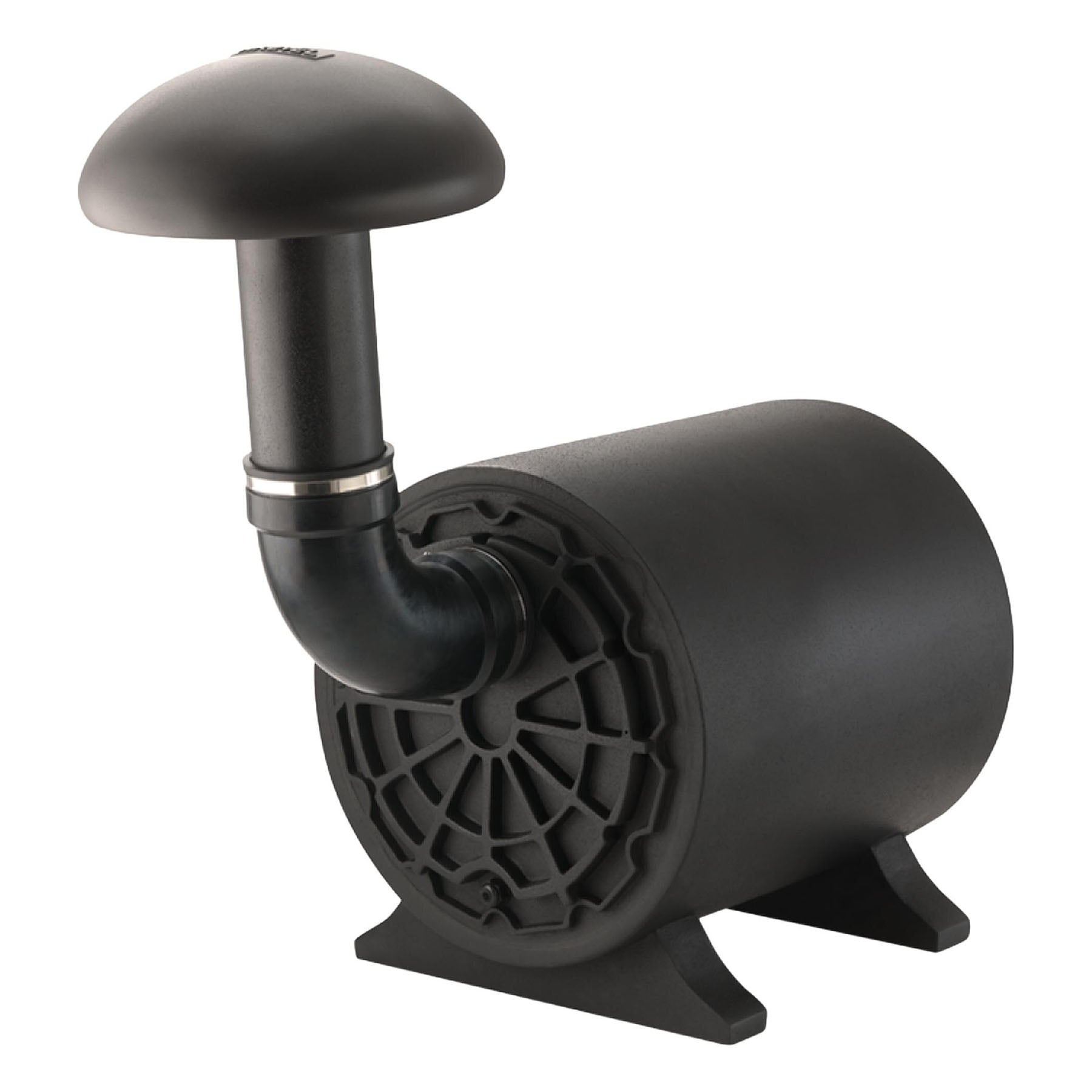

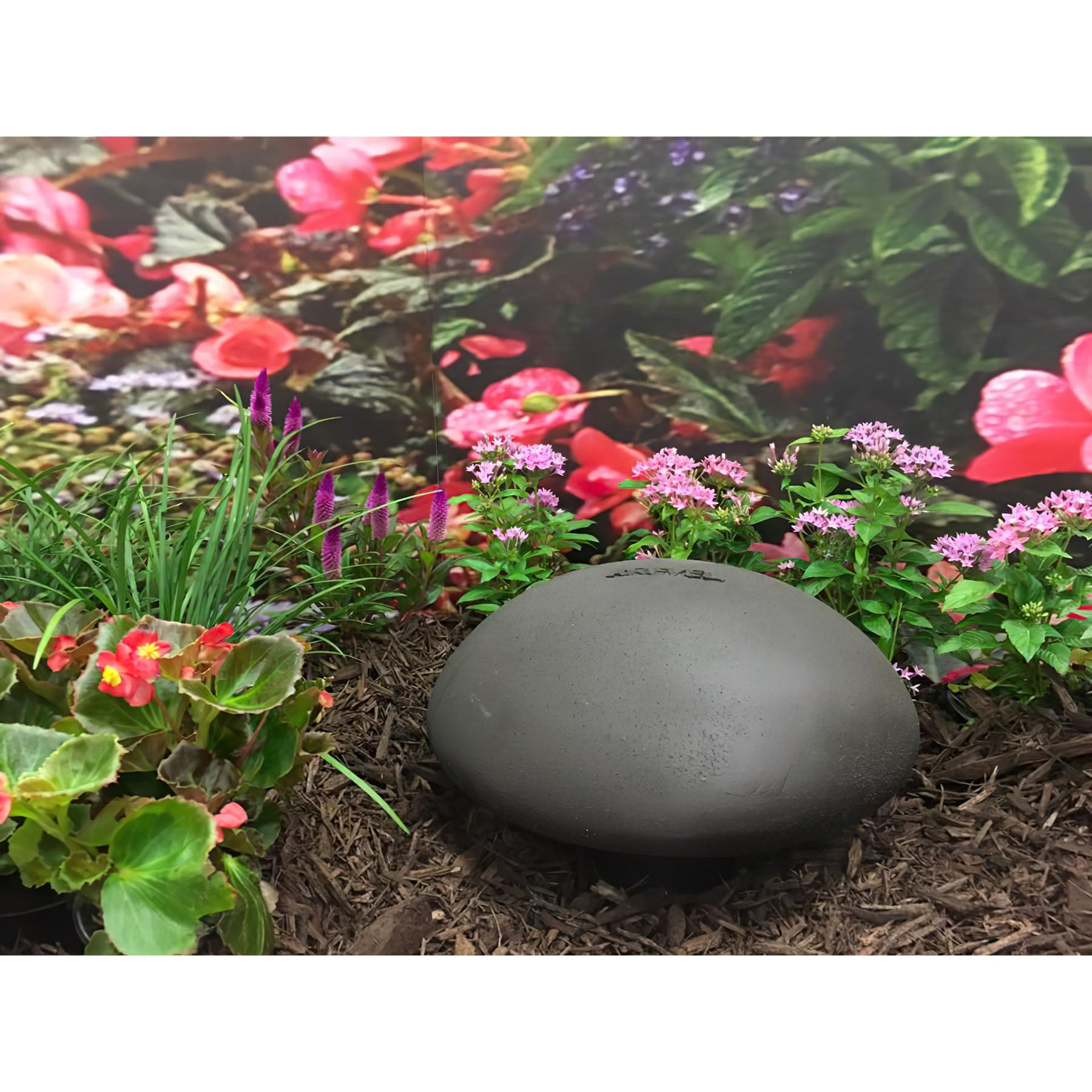

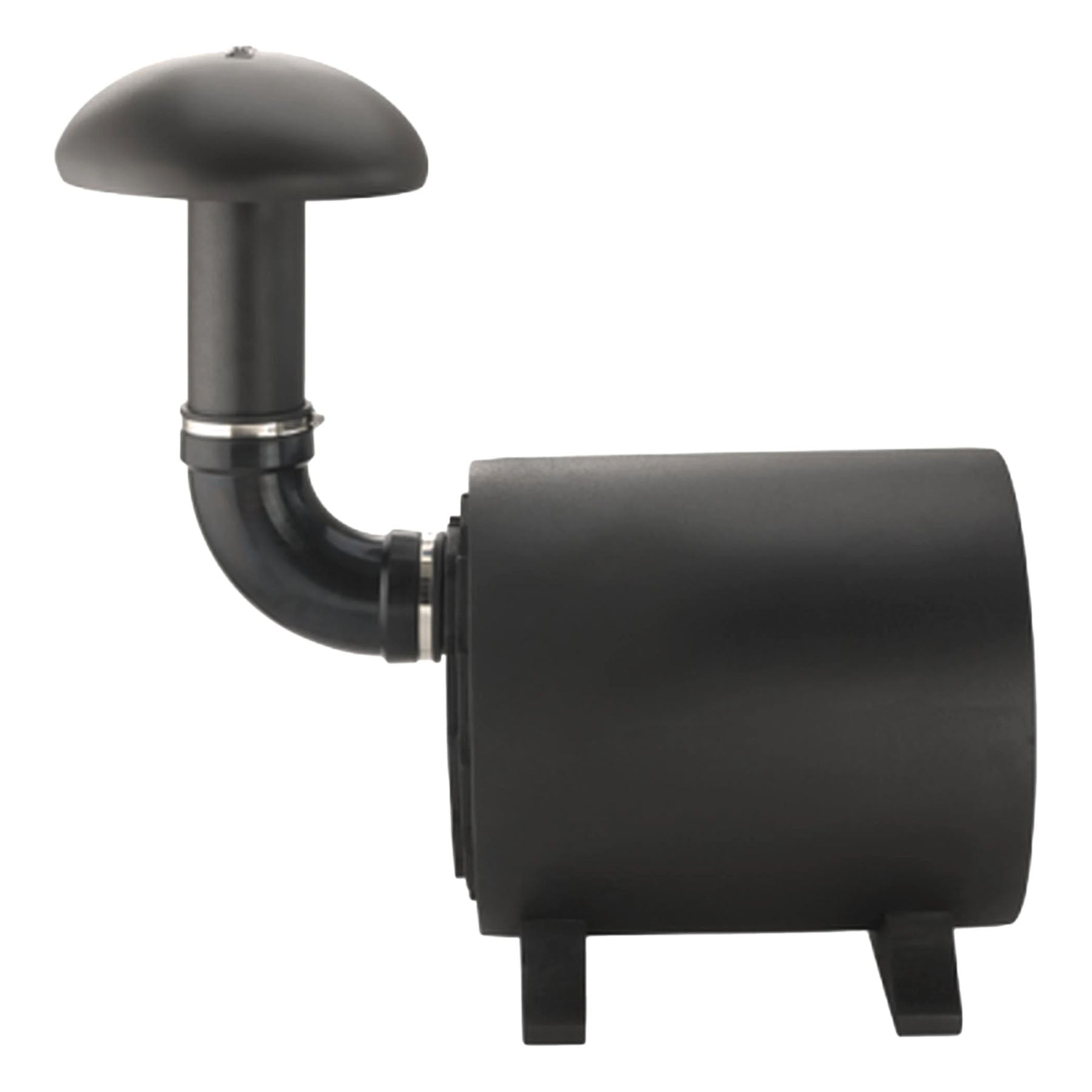

The L12XC is a powerful direct burial subwoofer with a 12-inch enclosure that can be operated in 6-ohm or constant line voltage systems with the separate 70V multi-tap transformer. The transformer is disguised as a garden rock, allowing it to seamlessly integrate into any landscape environment. Top-of-the line materials and construction provide powerful bass response that stands the test of time, as well as the elements. The L12XC is designed with extreme stealth in mind – only the bass vent canopy is visible.
L12XC Highlights
-
12-inch / 305mm durable aluminum cone woofer
-

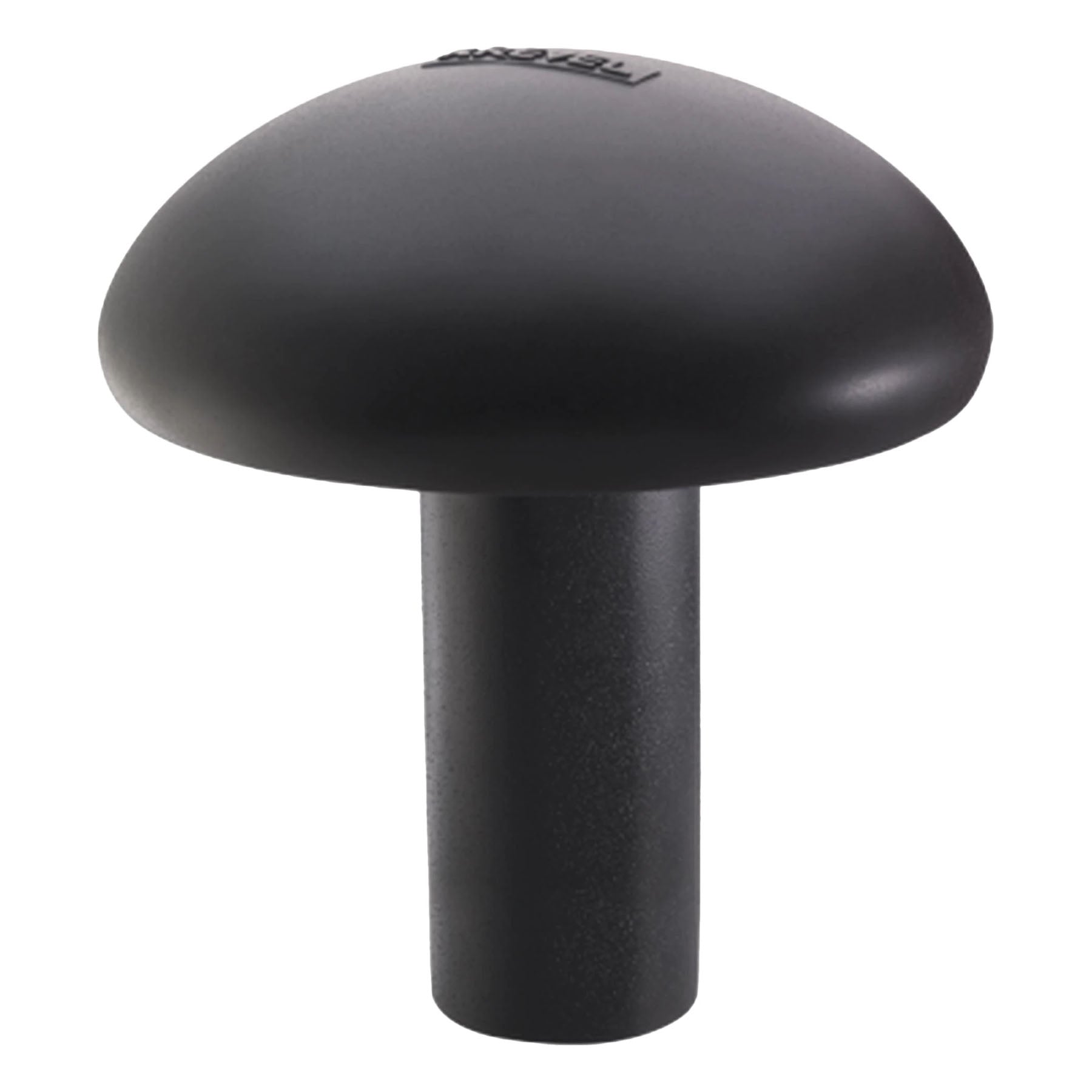

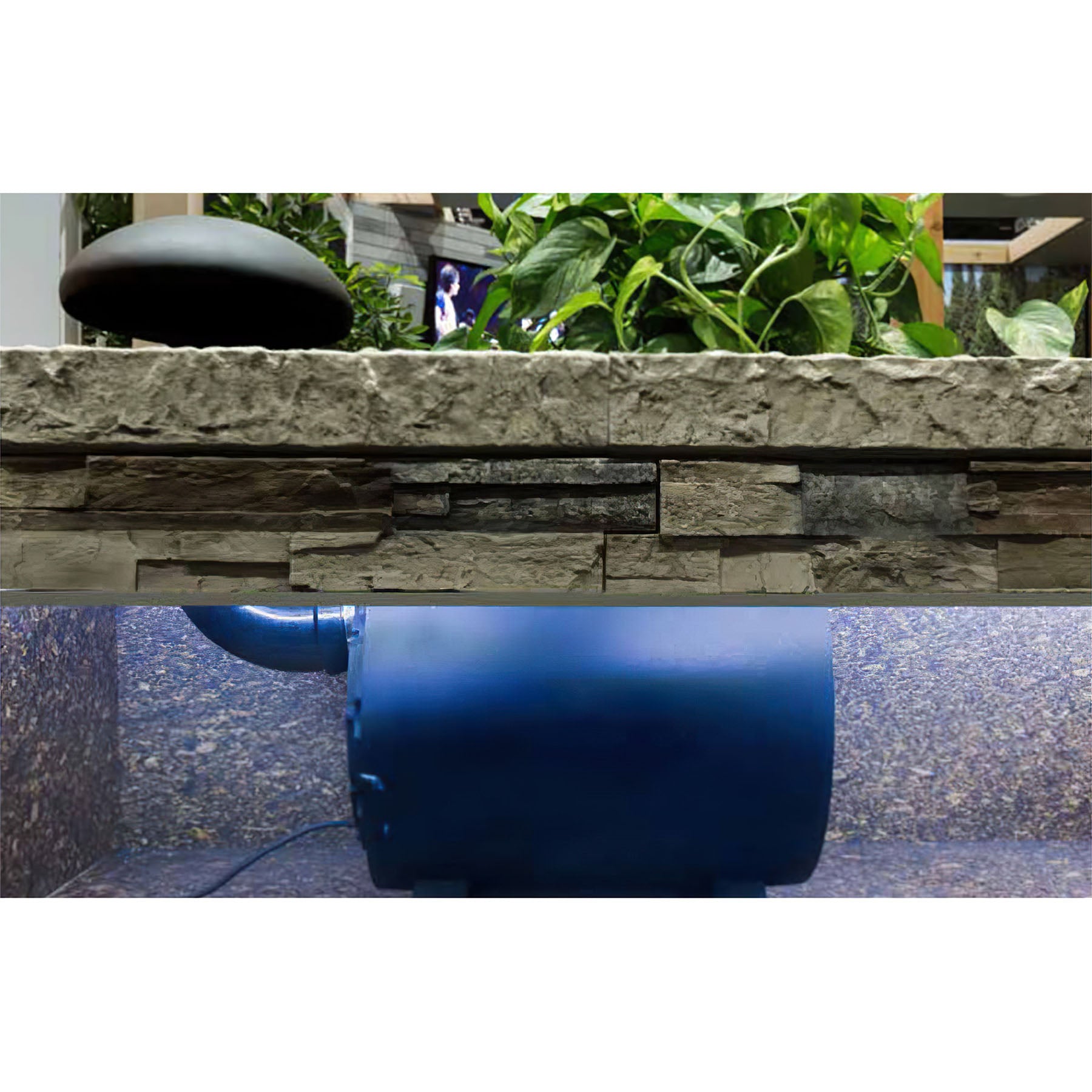

Stealth design - only the bass vent canopy is visible
-
IP67 rating on the underground enclosure; IP43 rating on the above-ground canopy.
-
6-Ohm or 70V operation via external transformer with selectable power taps up to 250W
-
Composite housing with aluminum canopy and polymer port tube stack
Low-frequency Driver Components | 12" Anodized Aluminum Cone Subwoofer |
---|---|
Recommended Amplifier Power | 250W RMS |
Sensitivity | 86dB (2.83V @1M) Without Transformer |
Voltage Gain | 70V |
Weight | 66.4 lbs / 30.1kg |
Dimensions (H x W x D) | 34.6”/18”/35” (87.8cm/45.5cm/88.7cm) |
Frequency Response (+/-3dB) | 25Hz – 100kHz @-3dB |
Transformer Taps | 31.75W, 62.5W, 125W, 250W |
Impedance | 6 Ohm Without Transformer |
Audio Specifications
Low-frequency Driver Components | 12" Anodized Aluminum Cone Subwoofer |
---|---|
Recommended Amplifier Power | 250W RMS |
Sensitivity | 86dB (2.83V @1M) Without Transformer |
Voltage Gain | 70V |
Weight | 66.4 lbs / 30.1kg |
Dimensions (H x W x D) | 34.6”/18”/35” (87.8cm/45.5cm/88.7cm) |
Frequency Response (+/-3dB) | 25Hz – 100kHz @-3dB |
Transformer Taps | 31.75W, 62.5W, 125W, 250W |
Impedance | 6 Ohm Without Transformer |
