F35
2 1/2-way Triple 5.25" Floorstanding Loudspeaker
The F35 is a true full range 2 1/2-way 5.25” floorstanding loudspeaker that was designed to provide true high-end sound quality. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.
High frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 5.25” Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.

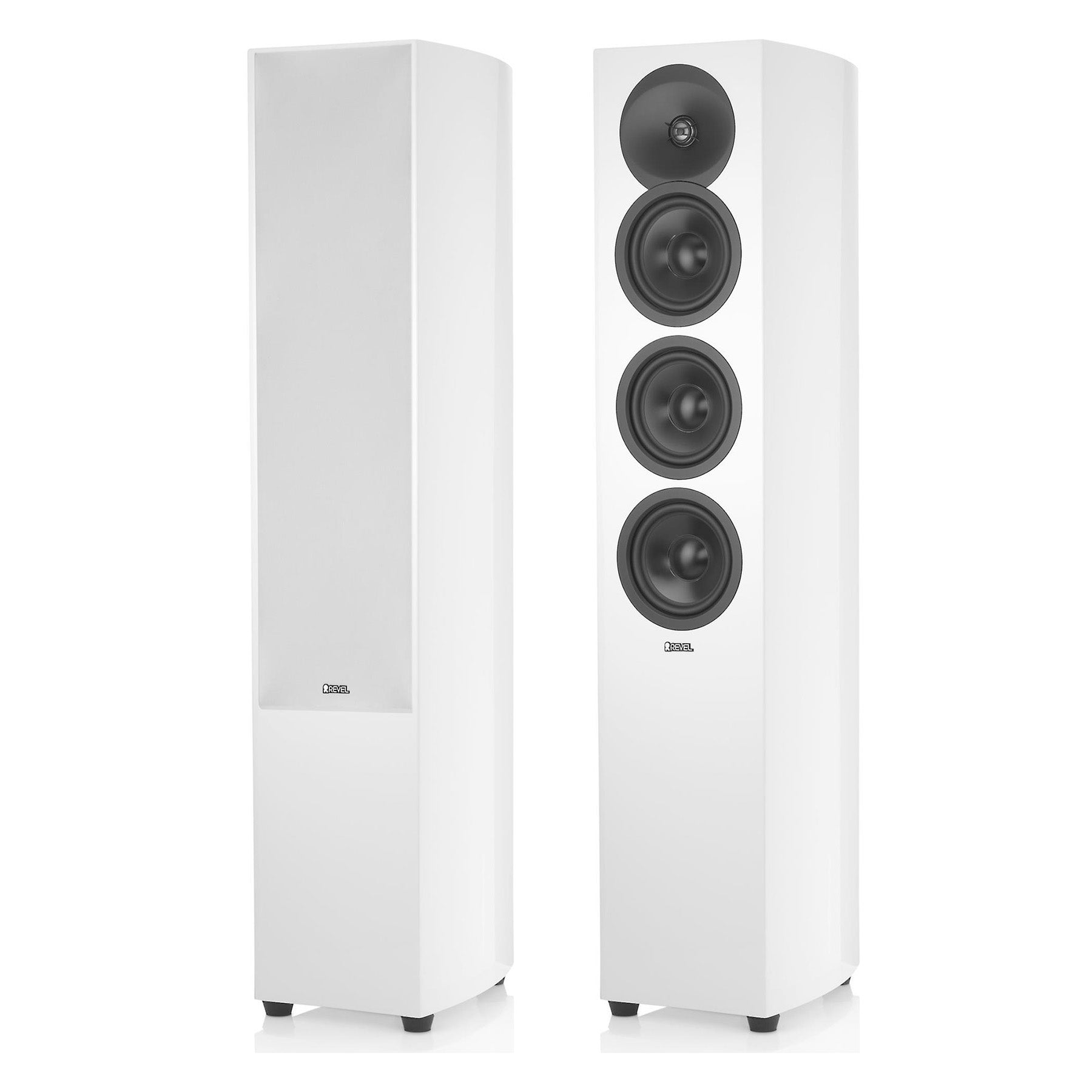

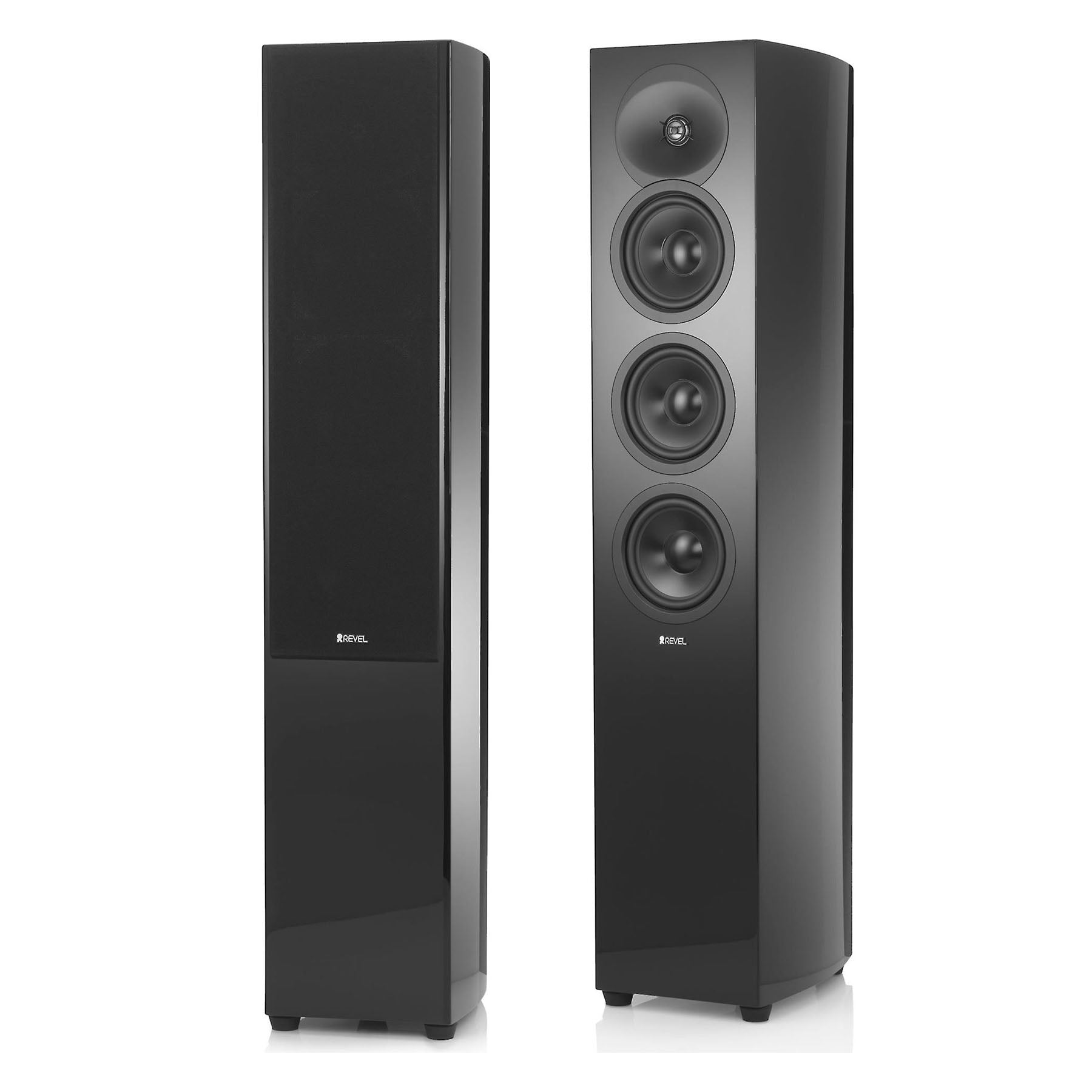

The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful speaker.
F35 Highlights
-
Derived from Revel’s award-winning Performa3 Series Loudspeakers
-
5.25"deep anodized aluminum cone woofers
-
1" Aluminum Tweeter
-
Fourth generation Acoustic Lens waveguides
-
Computer optimized driver positioning and network integration
-
Constant Pressure Gradient Port Design
-
No visible fasteners on the front, top or side panels
-

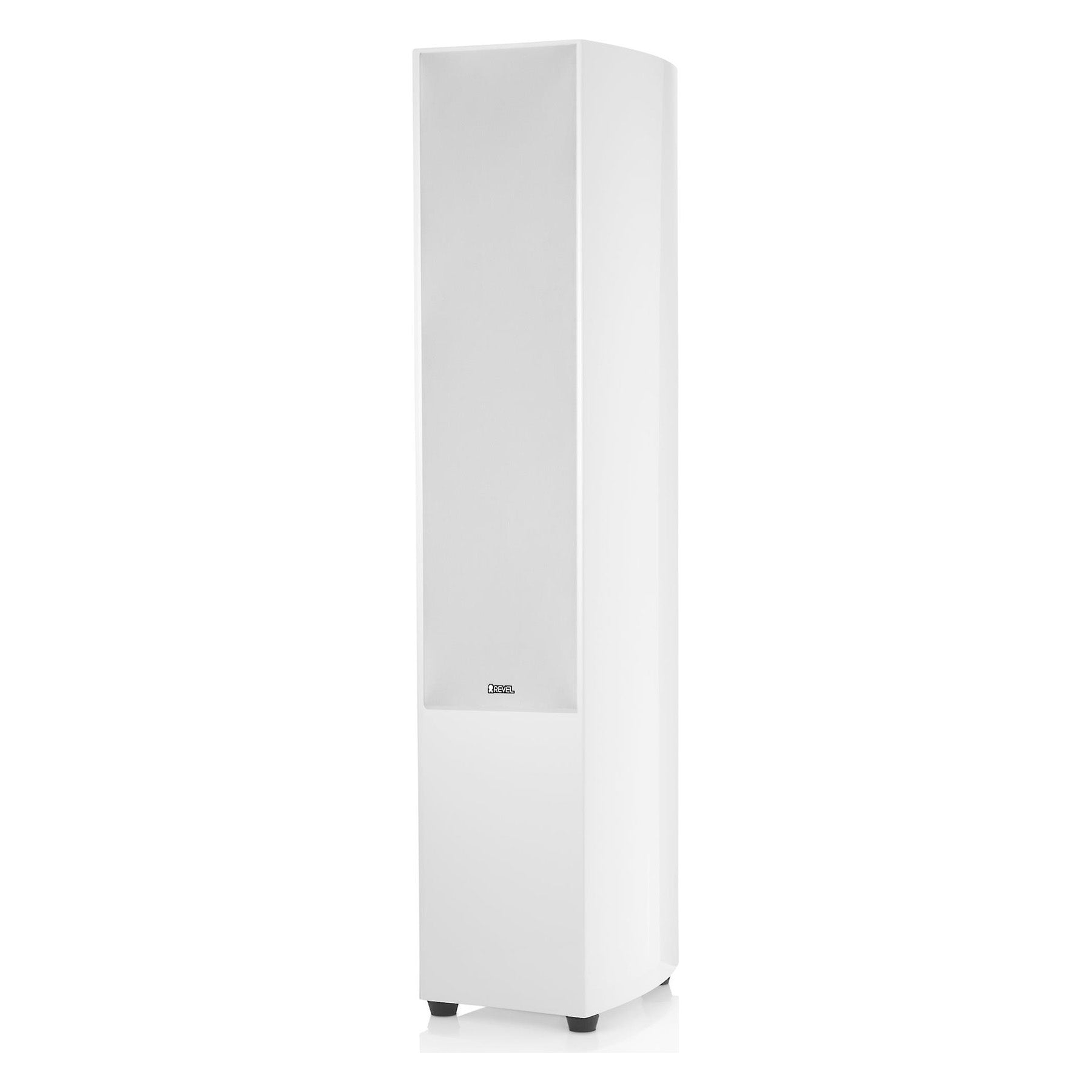

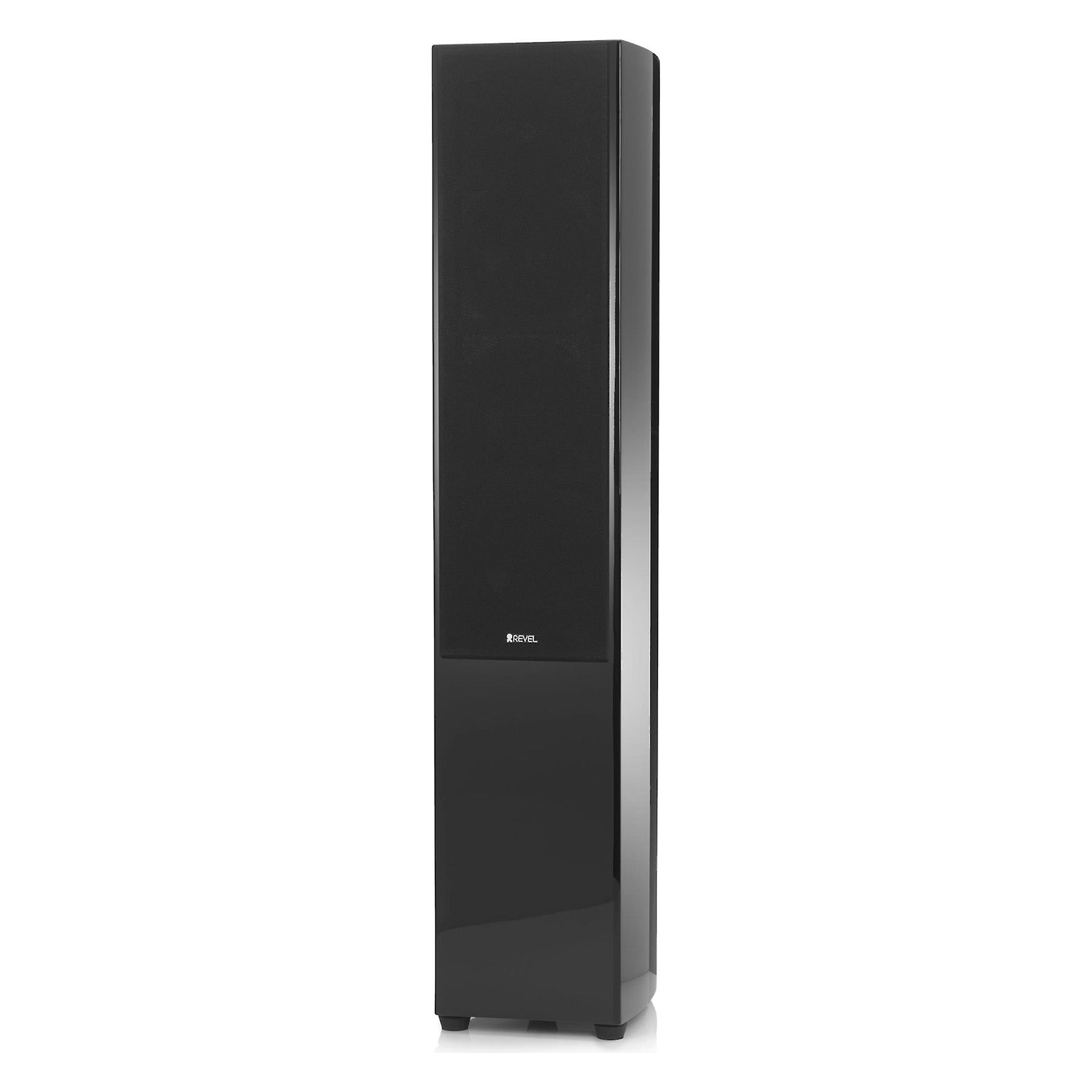

Magnetic grilles with brushed metallic logos
Crossover Frequencies | 575Hz, 1.8kHz |
---|---|

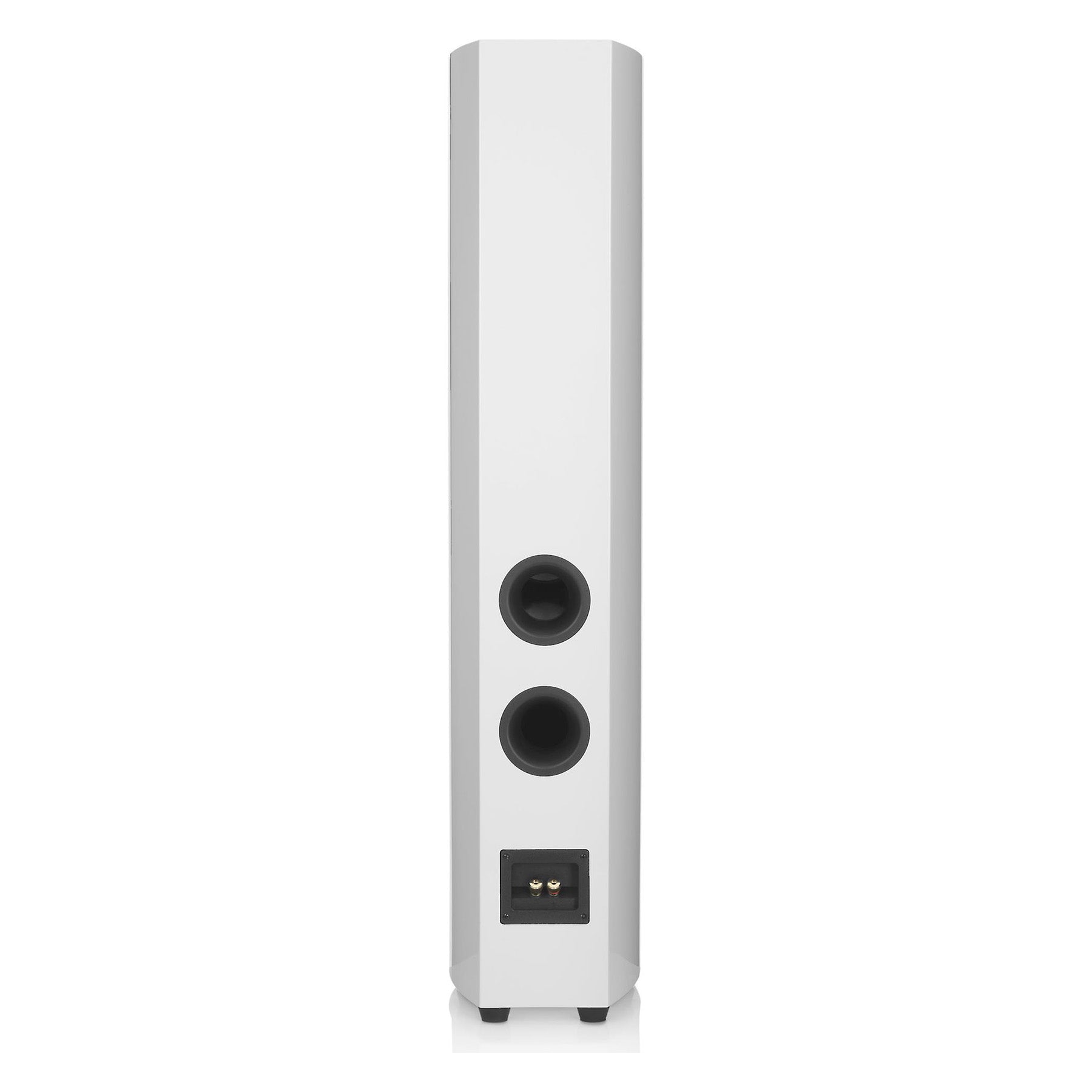

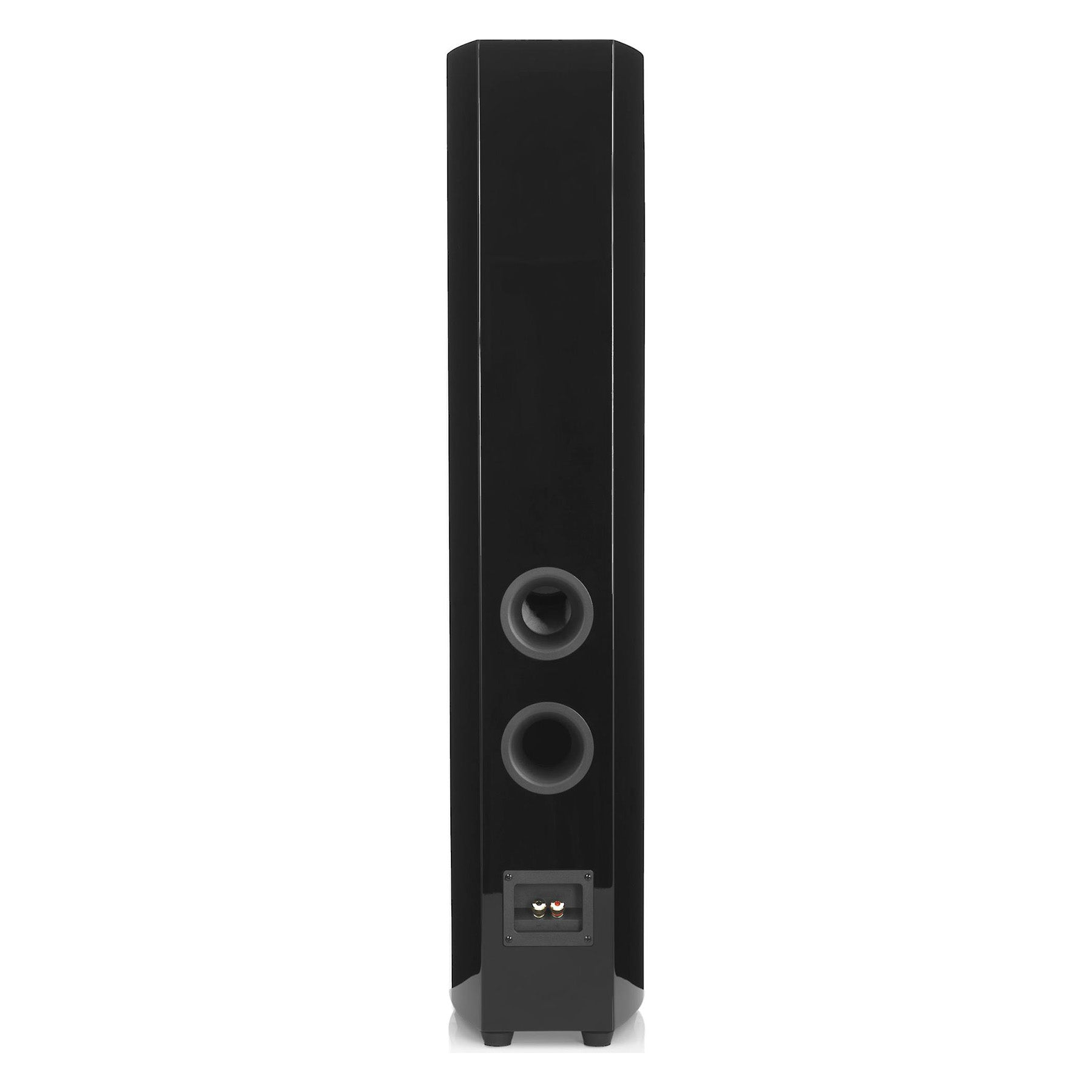

Enclosure Type | Bass-Reflex via Rear-Firing Port |
High-frequency Driver Components | 1" Aluminum Tweeter with Acoustic Lens Waveguide |
Nominal Impedance | 6 Ohms |
Input Connections | Five-way binding posts |
Low Frequency Extension | 55Hz, 46Hz, 35Hz (-3 dB, -6 dB, -10 dB) |
Low-frequency Driver Components | 3 x 5.25" Aluminum Cone Woofer |
Recommended Amplifier Power | 30-180W |
Sensitivity | 90dB (2.83V @ 1M) |
Dimensions | 40.25" x 8.42"x 12.2" (102cm x 21cm x 31cm)—Including Feet |
Weight | 41 lbs / 18.6kg |
