C783
8" In-Ceiling Loudspeaker
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
C783 Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-

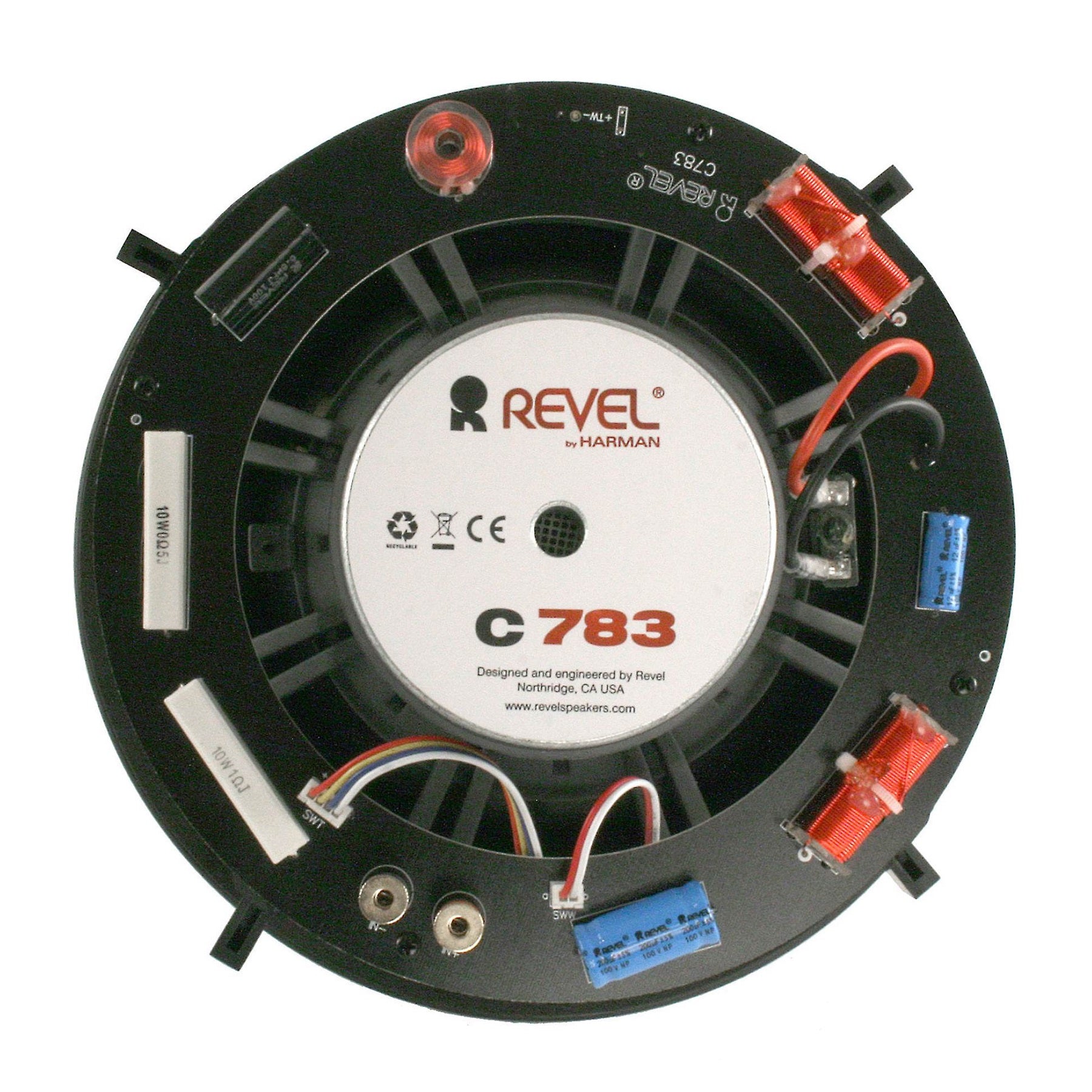

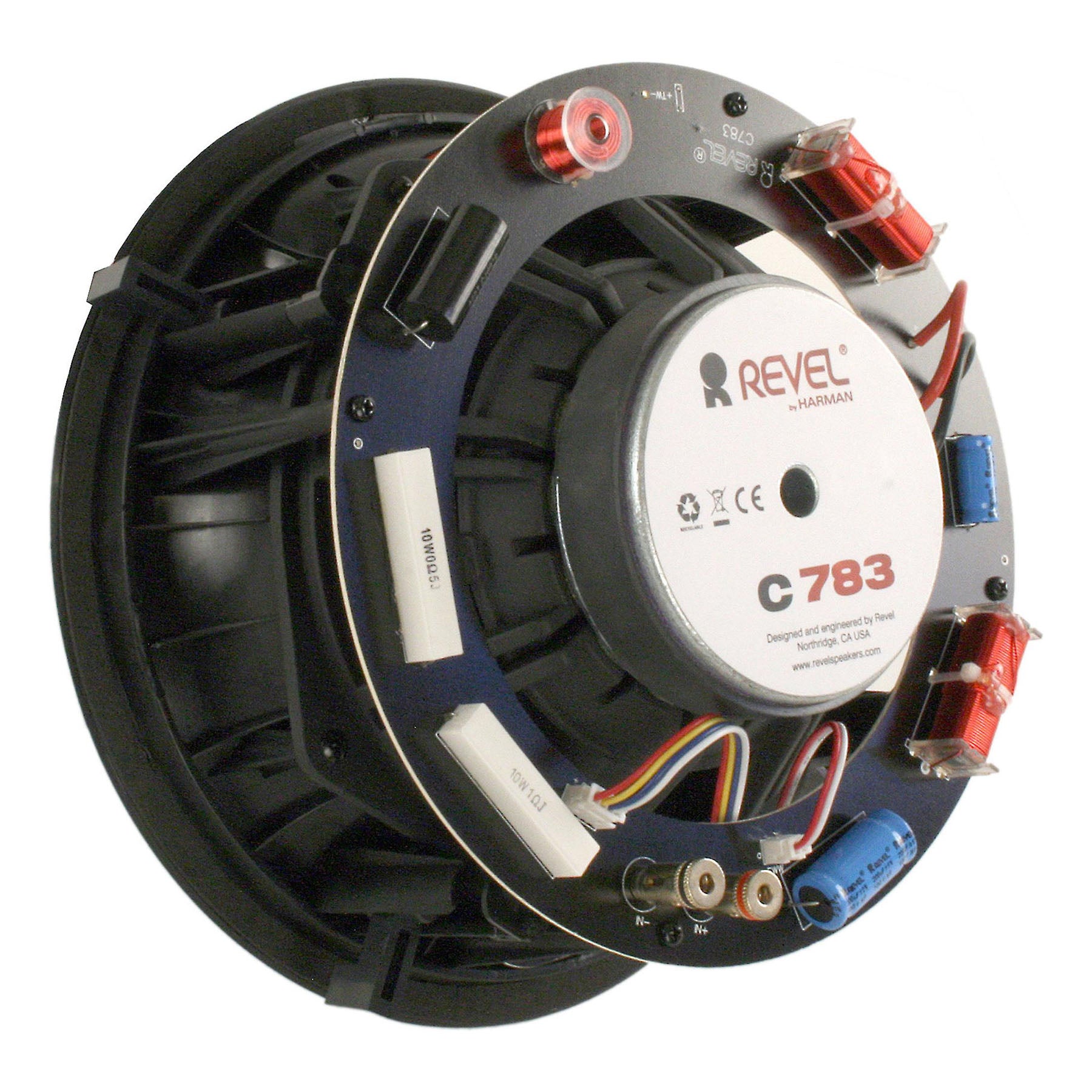

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Height | Cutout dimensions (dia.) 9.6" (24.4 cm) Square grille finished Height 10.7" (27.2 cm) |
---|---|
Width | Square grille finished Width 10.7" (27.2 cm) |
Depth | Mounting depth 5.2" (13.2 cm) |
Weight | Weight 3.1 lb (1.4 kg) / Shipping weight 4.1 lb (1.9 kg) |
Features | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling high-output tweeter with waveguide |
Low Frequency Extension | High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |
Low Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm) |
Recommended Amplifier Power | 10 - 150 Watts RMS |
