Reed Source 12V Power Supply
Reed Source 12V Power Supply
Reed Source 12V Power Supply

Reed

Reed Source 12V Power Supply

$6,900.00

Includes GST. 🚚 Free shipping on orders over $100 Australia wide at checkout.

Colour:Black
Quantity:
Pickup available at 22 Saint Kilda Road Usually ready in 2-4 days

Reed Source 12V Power Supply

Black

22 Saint Kilda Road

Pickup available, usually ready in 2-4 days

22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

0395250022
We accept:
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa Zip

Country of origin: Lithuania

Ask Geoff

If the product is not able to be added to your cart for one or more of these reasons:

  1. The supplier has a policy that prevents us from doing so.
  2. There are delays in supply, and I would prefer to make you aware of lead times;
  3. This is a bespoke item and I don't want you to pay in full and wait a long time for it to be made and shipped,
  4. I would like to discuss the synergy of the product matching with your system
  5. Due to fluctuating shipping and currency effects, the product may have come down in price. I can offer you a market price.

Please use this resource and contact me using the following form or call me.

Your Javascript is disabled

Source 12V Power Supply

Reed Source 12V power supply is dedicated for powering hi-end audio equipment. Usually equipment is powered from the mains – 240VAC – 110VAC alternating current electric power supply, and then current is converted to direct (DC) using linear or switching converters. Quite often mains supply voltage is noisy and cluttered with interference from a surrounding electrical power users. This interference may pass through converters and can have quite strong negative impact to hi-end audio equipment performance. A solution for this problem could be Reed Source 12V – battery power supply, which accumulates energy in two nickel-metal hydride (NiMh) battery modules.

When one Source’s battery is charging, other one is used for supplying power to a connected equipment. This active battery is always galvanically isolated from charging circuit. It means that energy recipients are totally decoupled from noisy AC power grid.

Reed Source 12V automatically switches “charge-discharge” mode between battery modules, has charge and discharge level measurement and automatic safety features.

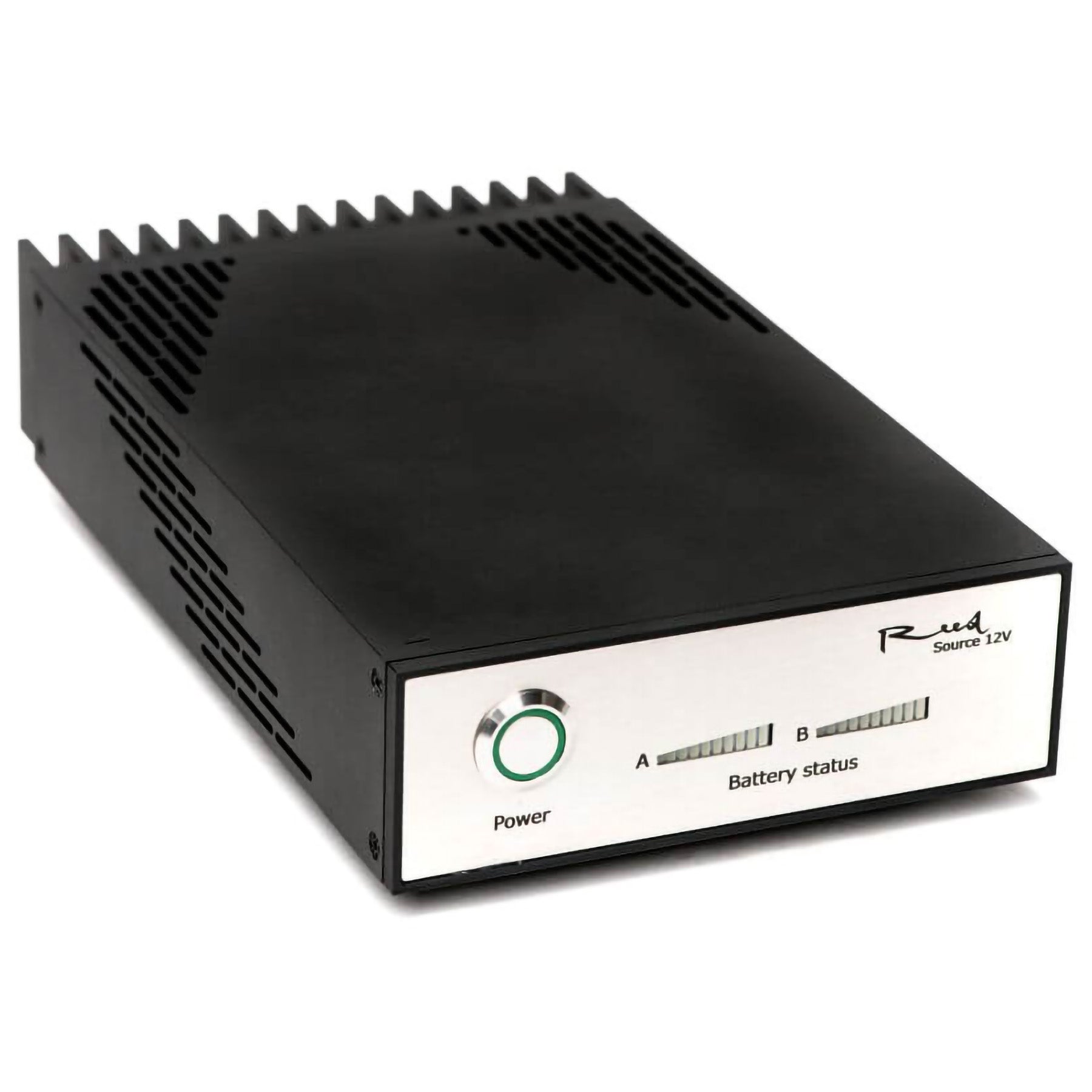

Reed Source 12V also can be used as a stand-alone device and operate with no battery charger connected. It will operate and power your equipment until both battery modules will be discharged to a certain level. To avoid complete battery discharge, which may have a negative impact to their service time, supply output will be disconnected. Each battery module’s status is indicated by two LED indicators. Green LEDs indicate that battery is charged and number of bars shows remaining charge percentage. Orange LED color shows that battery is charging and bar number indicates the battery charge level. Single red LED bar shows that battery is completely discharged and it could be used only after it is properly charged.



SPECIFICATIONS
Input voltage 18VDC (via 240VAC – 110VAC adapter)
Max input current 3A
Battery type Nickel-metal hydride (NiMh)
Battery capacity 2.2 Ah (total capacity – 4.4 Ah)
Output voltage 12V DC (-17.5%, +20%)
Max output current 1.5A
