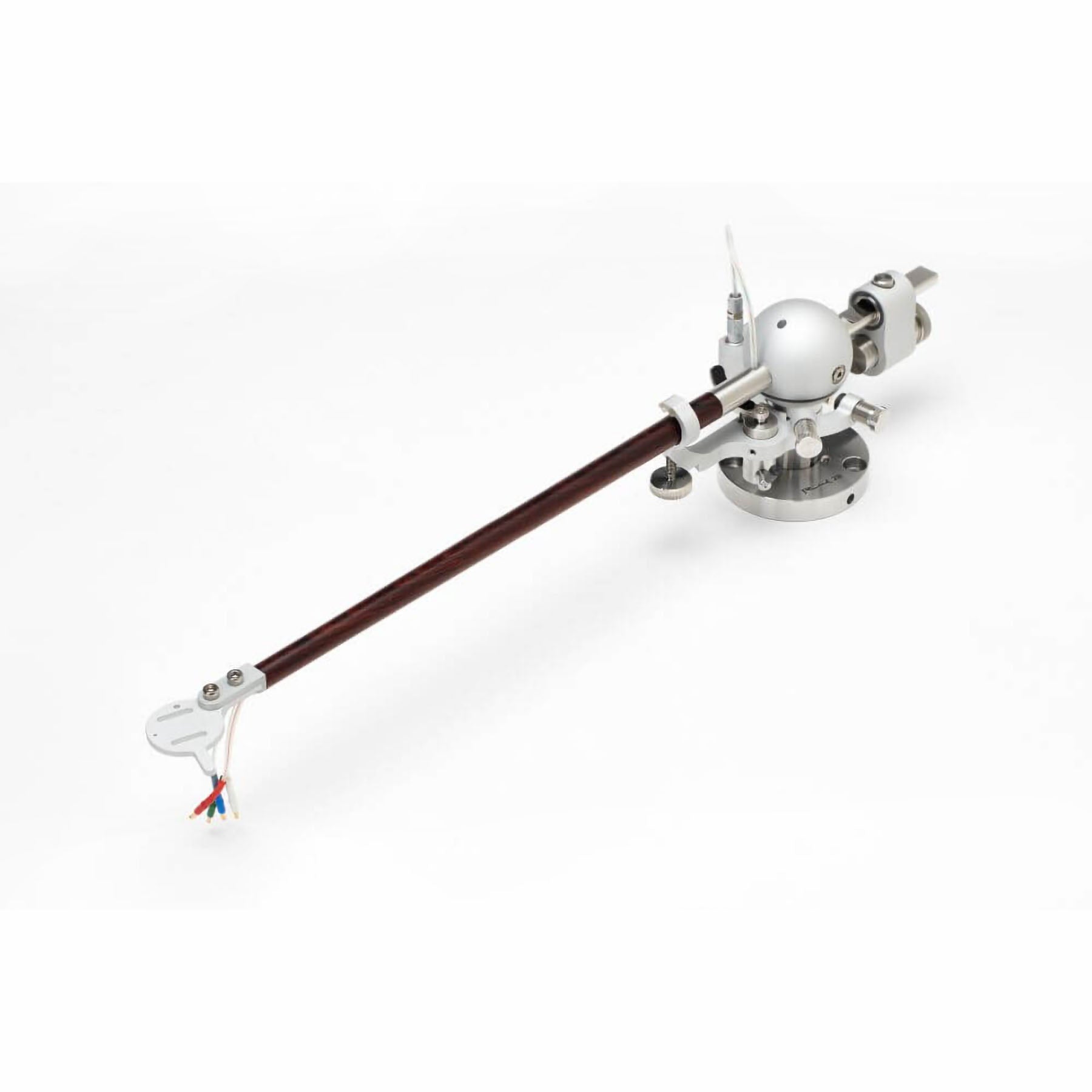

Reed 2B Cardanic Bearing System Tonearm (Seashell white)

Reed 2B

Our newest tonearm Reed 2B offers our users three new operating possibilities:

1) A possibility to use heavier cartridges, up to 35 grams. The low-friction, ceramic bearings are used in this tonearm;

2) Tonearm “2B” comes fully assembled; it is only needed to mount the tonearm and adjust settings like VTA, VTF, azimuth and anti-skating;

3) The anti-skating force can be easily changed independently at the beginning and end of the record. This feature is practical for all newer cartridges’ users, exceptionally because of a variety of the new cartridge’s stylus’ shapes causing different friction forces between the stylus and record groove.

Short theory.

As we already know, when a stylus rides in a groove, the friction force provides a forward force which is tangential to the record groove. (Fig.1. Anti-skating)

F = μN μ – coefficient of friction, N – stylus force (VTF).

Whereas the direction of this force F is displaced 90°+ α from the line between the pivot and the stylus O2-A, this force provides a clockwise moment M around the pivots O2 (Fig.1. Anti-skating), which tends to drag the stylus towards the spindle O1.

In case to avoid the force imbalance while the stylus bears against the inner groove wall, moment M should be eliminated completely at any position on the record. This moment can be expressed by the following equation:

While the F, L and D are constant factors, and R varies accordingly to the stylus’ position, moment M can be expressed as a function of R (Fig.2 Theoretical). Practically an experiment was executed to determine skating force at different points of a record. Instruments used for this test were: fully matte and smooth test vinyl and tonearm Reed 3P with a “Phasemation PP-2000MC” cartridge that was subjected to 1.9 grams vertical tracking force during testing (Fig 3. Practical). Differences in skating force are clearly noticeable at the beginning, middle and end of the record.

Theoretically, it is known that moment M can be eliminated by providing equal compensation in the opposite direction (-M). (Fig.1.). In most cases, M is applied as a constant force, therefore the side thrust is completely eliminated only at a few positions on the record. To conclude, a tonearm with adjustable anti-skating force depending on the position on the record (diameter) is highly demanded.

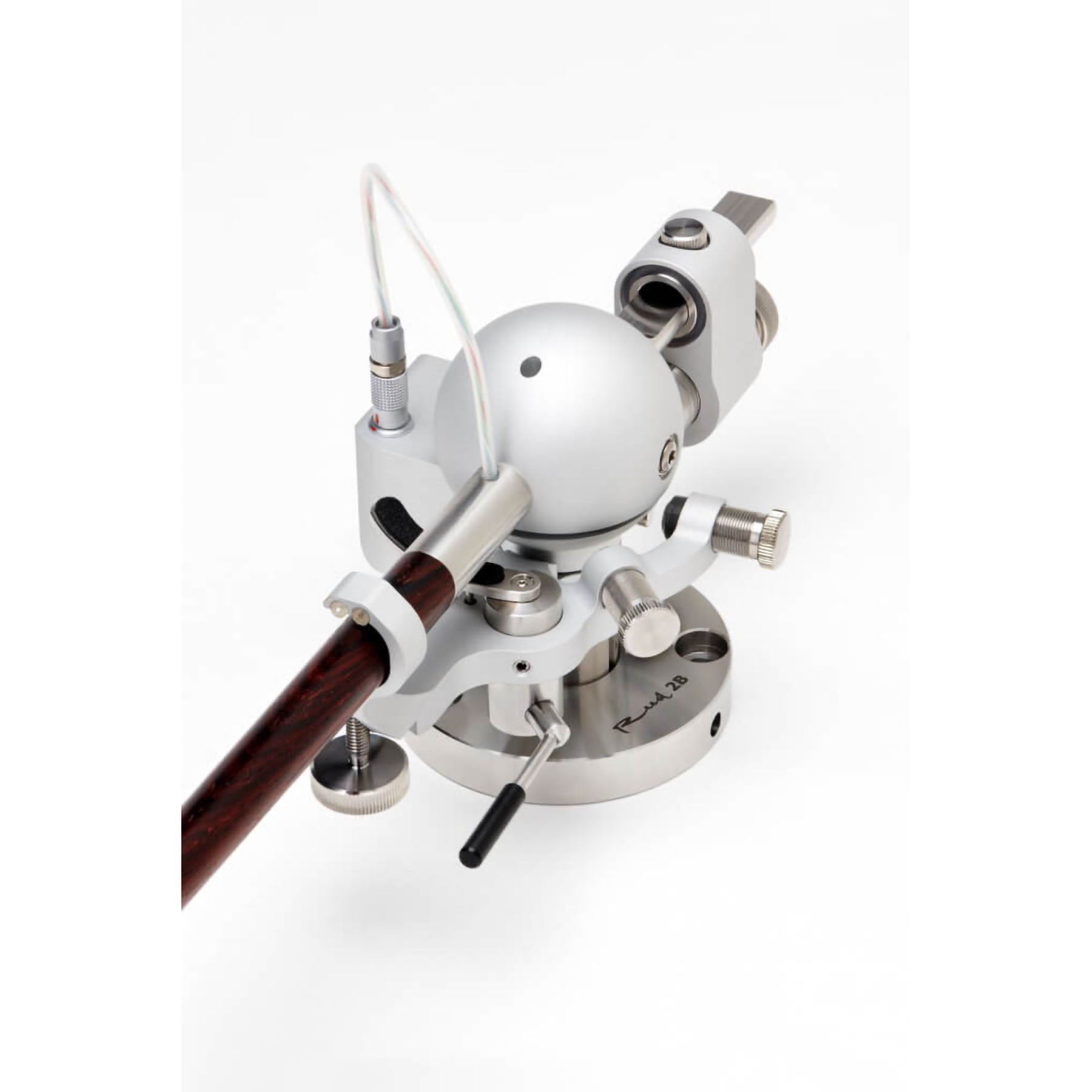

Tonearm “Reed 2B” has the possibility to control anti-skating force by adjusting two anti-skating regulation handles at any time while playing a record.

SAMPLES OF FINISH

Pictures below are for illustration of finishing only; tonearm model may be different from described above.

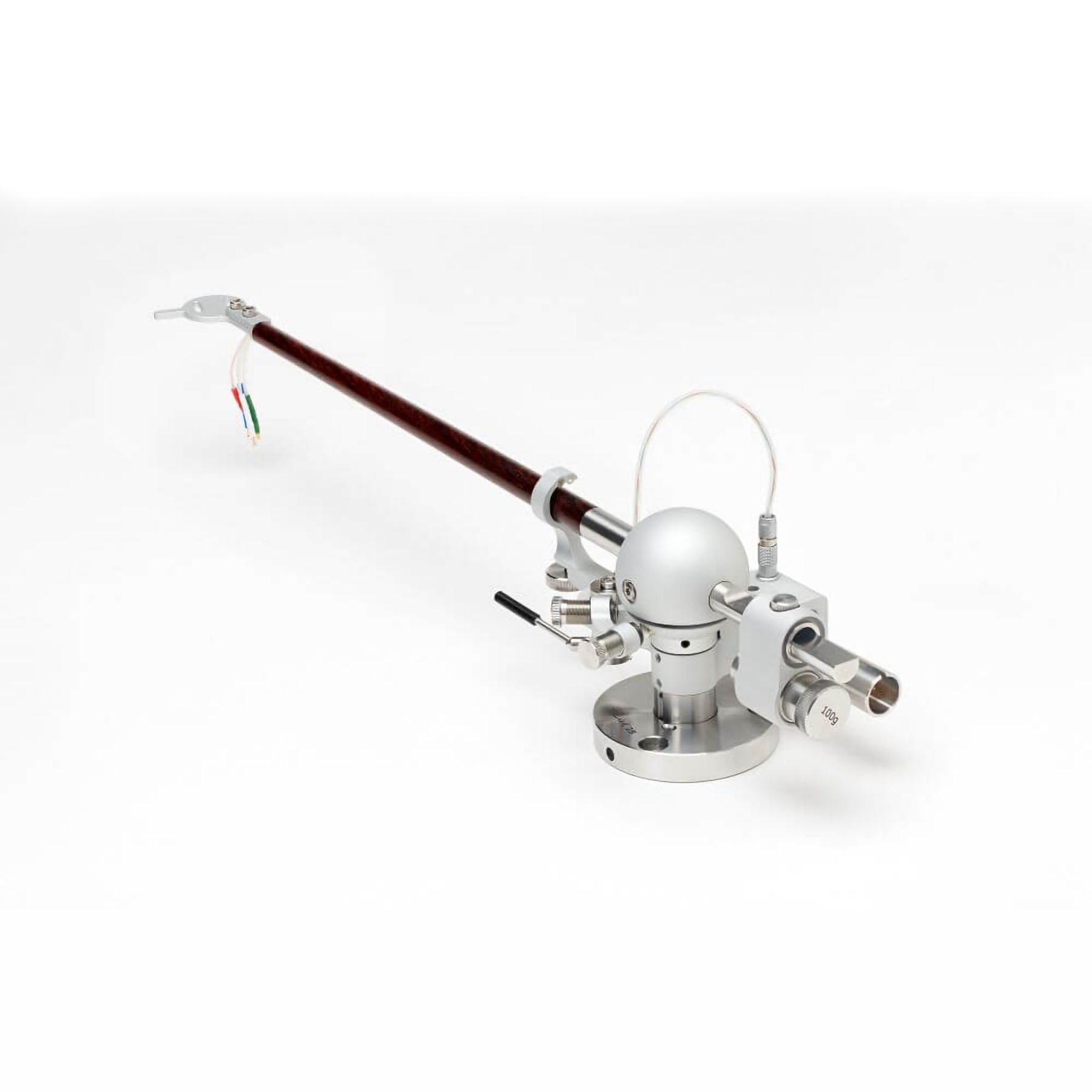

Seashell white

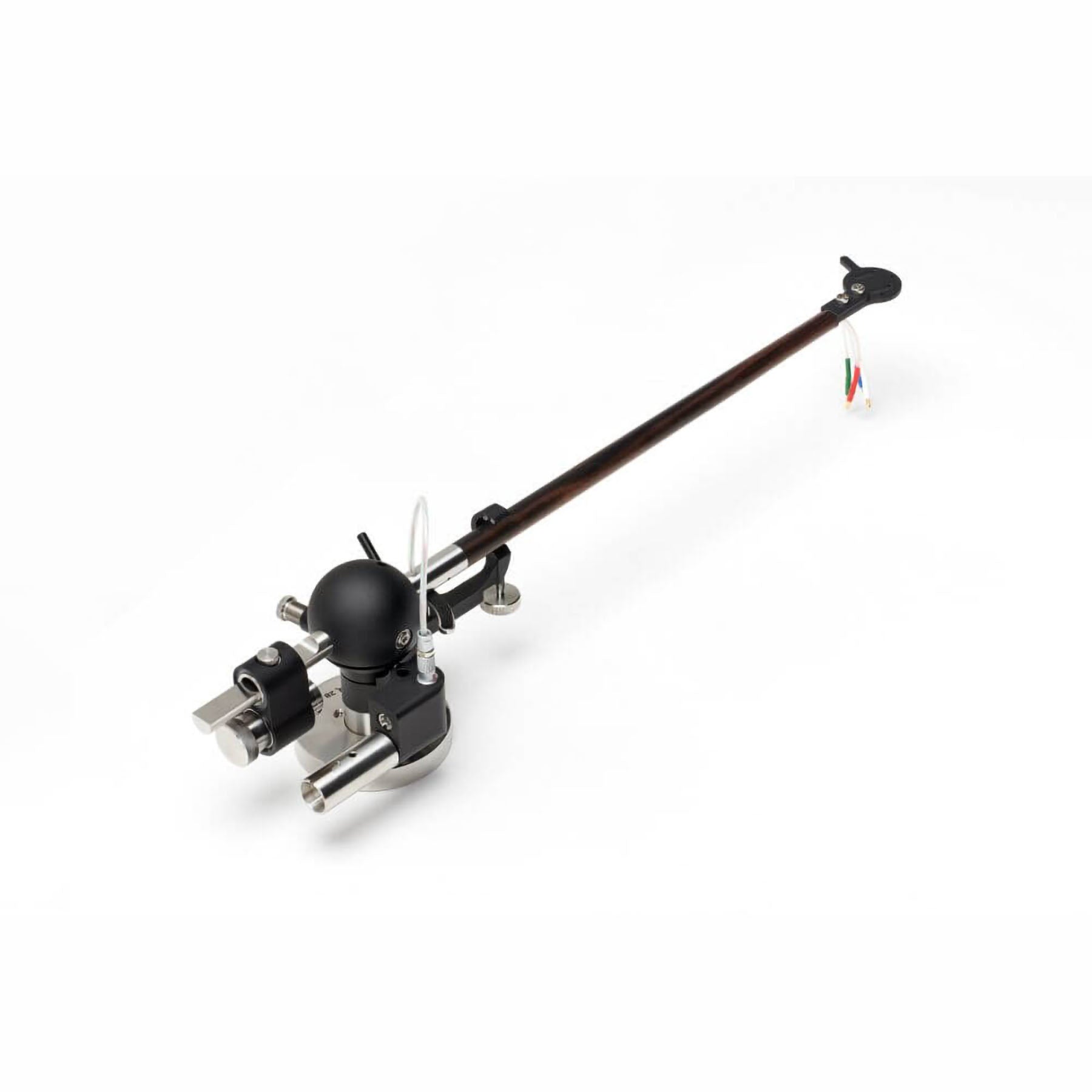

Black

ARMWAND SAMPLE

Wenge

Macassar Ebony

Cocobolo

Teak light

Teak dark

Approximate effective mass of Reed tonearm in grams
