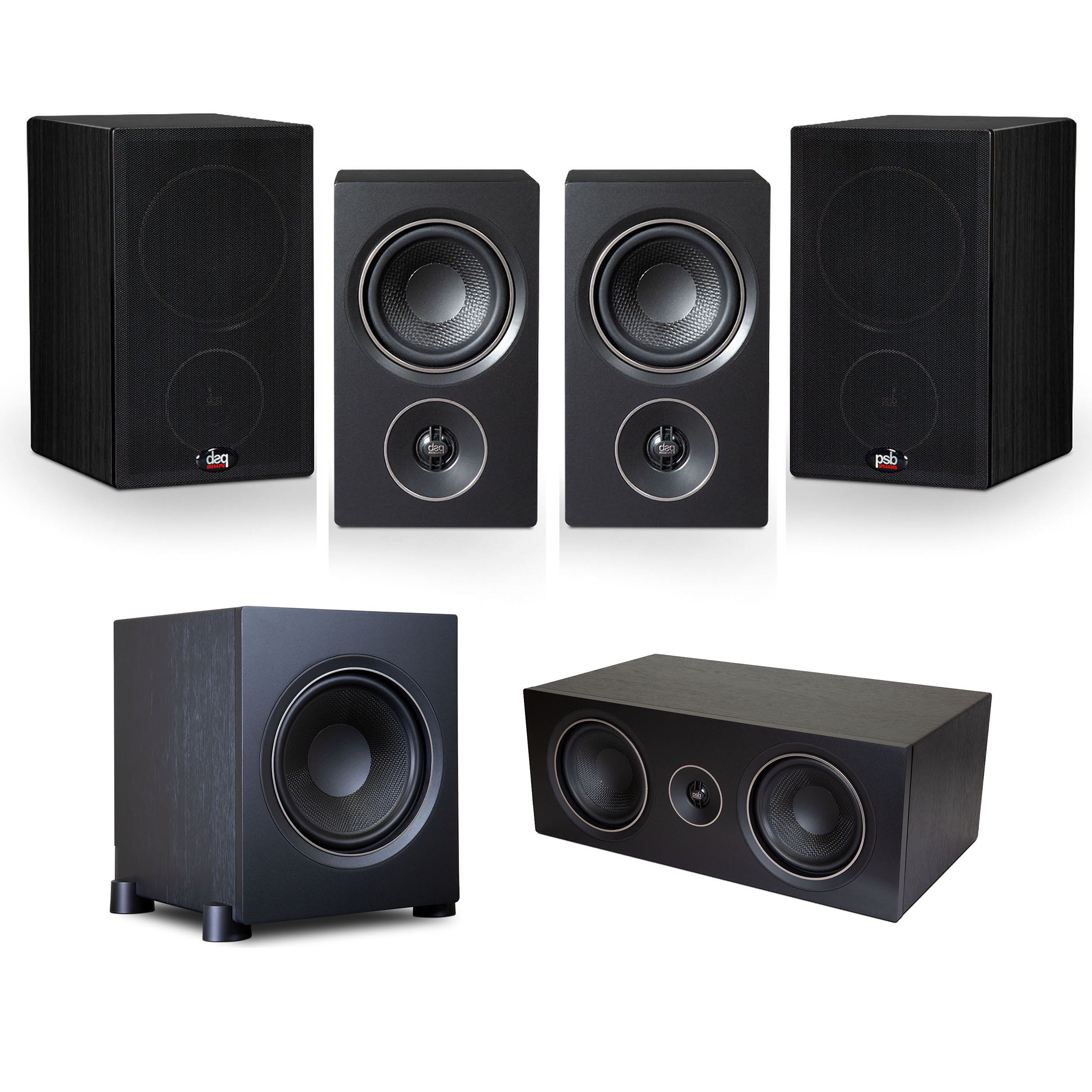

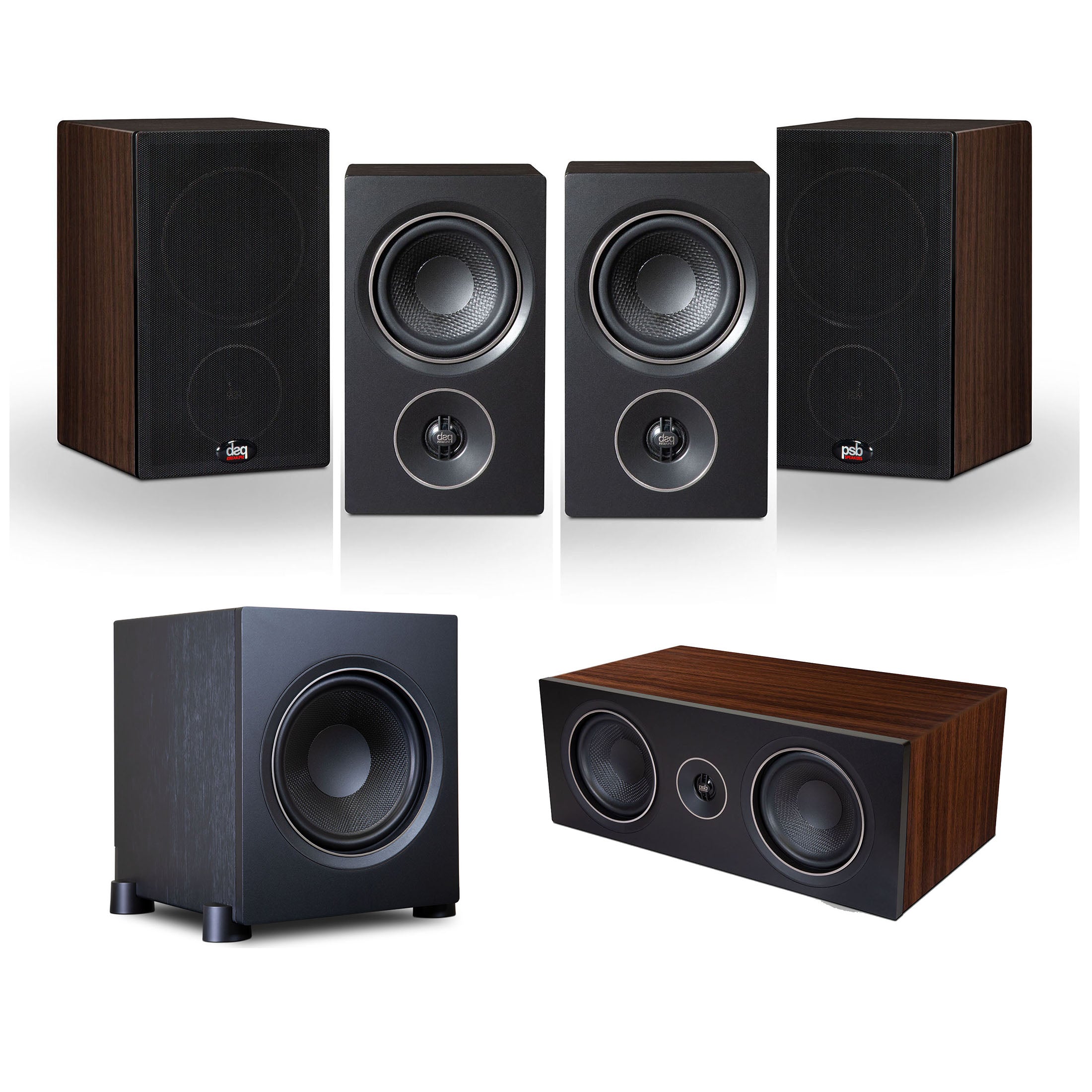

PSB Alpha Series 5.1Ch Cinema Package
Pack Includes
- Alpha P3 Bookshelf Speakers (2x Pair)
- Alpha C10 Centre Speaker (1x)
- Alpha S8 Subwoofer (1x)
Note: Speaker cables not included.
Alpha P3 – Compact Bookshelf
Compact and versatile without sacrificing performance.
The Alpha P3 is a small two-way bookshelf speaker that brings hifi pedigree to your stereo or home theatre system to fill the room with crystal-clear sound. Featuring a custom 4” (102mm) woofer and aluminium dome tweeter that uses a waveguide to perfectly match the low and high frequencies for a smooth transition, the P3 delivers natural sound, at an affordable price. It also leverages specially textured woofer cones and a unique port tube design to add back energy and extend the bass frequencies even lower without any distortion.
- ¾” (19mm) Black anodized aluminium dome tweeter with front waveguide
- 4” (102mm) Textured polypropylene woofer with rubber surround
- Bass reflex cabinet design with a rear-firing port
Hear beautiful texture and detail
All new Alpha Series models employ a ¾” (19mm) black anodized aluminium dome tweeter that extends the high-frequency response beyond the Alpha’s original measurements and minimizes distortion for a rich, balanced listening experience. A waveguide on the front of the tweeter works to perfect on and off-axis performance while smoothing the response for improved resolution and detail. The ferrofluid cooled tweeter on the P3 has also been precision engineered to sit below the woofer to provide precise stereo imaging at any height.
Powerful woofer with dual layer voice coils
At the heart of every good speaker is a great woofer that produces low distortion and high output levels. With the new Alpha Series, the 4” (102mm) woofer employs dual layer voice coils with a very powerful magnet structure and a cone that is made from a special textured polypropylene compound that prevents breakup. With bass reflex loaded through Paul’s original port tube design from the ’70s, the woofer adds back wave energy to extend the bass response and improve efficiency down to 43Hz.
Custom-built and perfected
The Alpha Series’ new crossover wasn’t custom designed to simply just direct low and high frequencies to the woofer and tweeter. It was re-engineered to control the directivity and flatten the frequency response while utilizing an unusually complex Acoustic Linkwitz-Riley filter design that is designed to get a perfect blend between the drivers and keep distortion at its lowest even at high volumes.
Unique modular cabinet design
The P3 has a unique combination of wall thickness and bracing to control resonances and provide a perfect platform for the driver components. The P3 cabinet’s internal damping material was first used in PSB’s most high-end models, and has now been adopted by the Alphas and positioned precisely for optimum effectiveness. A premium woodgrain vinyl finish and chrome front baffle highlights combine with magnetically attached grilles to provide a rich and timeless design.
- ¾” (19mm) Black anodized aluminium dome tweeter with front waveguide
- 4” (102mm) Textured polypropylene woofer with rubber surround
- Bass reflex cabinet design with a rear-firing port
- Acoustically-transparent detachable magnetic grilles
- Five-way gold-plated binding post speaker terminals
- High-quality woodgrain vinyl finish
- Available in Black Ash or American Walnut
----------------------------------------
Alpha C10 – Centre
Make your home theatre come alive.
Leveraging the Alpha’s classic award-winning design, yet reimagined for the modern home theatre, the C10 is a must for a more immersive experience whether you’re streaming a movie, watching the big game, or enjoying your favourite show. With a black anodized aluminium dome tweeter, two 5¼” (133mm) custom woofers, and a rear-firing port, the affordable C10 delivers crystal-clear dialogue and cinematic sound that will bring movies to life. The high-quality MDF cabinet is finished in a beautiful woodgrain vinyl and can easily be set up under a TV for seamless integration with your home sound system no matter how you listen.
- ¾” (19mm) Black anodized aluminium dome tweeter with front waveguide
- Two 5¼” (133mm) Textured polypropylene woofers with rubber surround
Hear everything in full detail
The C10 uses a ¾” (19mm) black anodized aluminium dome tweeter to extend the high-frequency response further than any Alpha ever before, while lowering distortion to deliver a layered soundstage full of detail and clarity. Unlike lesser designs at this price, all the new Alpha Series tweeters employ ferrofluid cooling to prevent dynamic compression and a neodymium magnet for high sensitivity. The tweeter’s front waveguide and its unique placement below the woofer work together to smooth the response at the crossover and perfect on and off-axis performance.
Bring the cinema home
When paired with the Alpha Series’ newly designed tweeter, the C10’s custom 5¼” (133mm) woofer provides remarkable low-frequency response and the highest speaker efficiency in its class. The woofer is constructed from a special textured polypropylene compound that minimizes cone breakup and lowers distortion at full excursion. It’s also supported with dual layer voice coils and a bass reflex design that uses the rear-firing port tube to control the bass response down to room-shaking levels.
Matched to perfection
The Alpha Series’ new crossover exceeds speaker standards with a special custom design that does more than direct low and high frequencies to the individual drivers–it delivers the tightest control and the flattest frequency response. An unusually complex Acoustic Linkwitz-Riley filter design has also been incorporated into the crossover design to lower distortion and create a seamless soundscape in any type of two-channel setup or surround sound system.
Seamless home theatre integration
A unique combination of wall thickness and bracing controls resonances and provides a perfect platform for the C10’s driver components, while its internal damping material is from PSB’s flagship lines and has been positioned precisely for optimal effectiveness. Finished with a high-quality wood grain vinyl and magnetically attached grilles that are acoustically transparent, the C10 is perfectly designed to sit alongside your furniture and provide rich, detailed sound.
- ¾” (19mm) Black anodized aluminium dome tweeter with front waveguide
- Two 5¼” (133mm) Textured polypropylene woofers with rubber surround
- Bass reflex cabinet design with a rear-firing port
- Acoustically-transparent detachable magnetic grilles
- Dual five-way gold-plated binding post speaker terminals
- High-quality woodgrain vinyl finish
- Available in Black Ash or American Walnut
----------------------------------
Alpha S8 – 8″ Subwoofer
Huge Bass. Compact Price
PSB redefined high performance and high value with their legendary Alpha Series speakers and the new Alpha S8 powered subwoofer continues that tradition in the all-important bass region. The new Alpha S8 offers a more compact footprint at an affordable price, while delivering big time for music and home theatre systems where bass is a must. The Alpha S8 meets this challenge by featuring a long throw 8” woofer with polypropylene cone (for fast response) in a specially-tuned, bass reflex enclosure.
Affordable Excellence With Audiophile Pedigree
PSB has been making critically-acclaimed speakers for more than 45 years and are especially famous for speakers that deliver high bang for the buck. The Alpha S8 will astound with adding lifelike realism for both music and movies to PSB speakers or any high performance speaker.
Advanced Tech in Drivers and Amplification
The Alpha S8 boasts a specialized long-throw 8” driver and efficient bass reflex enclosure for remarkable bass.The built-in high efficiency digital amplifier delivers 210W of dynamic power for unconstrained deep-bass peaks and musical accuracy. Then to go one step further, the S8 utilizes digital signal processing (DSP) to allow PSB’s engineering team to maximize all aspects of performance to deliver the flattest frequency response and powerful bass extension.
Compact Cabinet Will Fit Most Anywhere
The rear-ported cabinet has an ultra-small footprint that can be sited most anywhere in the room. On the rear panel are Volume and Crossover Controls, Phase Switch, Low Level Input, AutoOn/Standby Switch, Gold-plated RCAs, USB Power Jack for RT100 wireless accessory, Supplied rubber bumpers and spikes allow for installation on hardwood or carpeted floors.
- Specially tuned bass reflex design with rear port
- Digital amplifier 150 Watts of Continuous Power
- Compact cabinet volumes with high output
- Woofers feature polypropylene cones and rubber surrounds
- Design and final voicing engineered by Paul Barton
ALPHA S8 SPECIFICATIONS
Frequency Range Response
On Axis @ 0° ±3dB | 35-150Hz |
LF Cutoff -10dB | 32Hz |
Impedance Nominal Input
Minimum | 22k Ohms |
Input Power
Recommended | 15-120 Watts |
Program | 60 Watts |
Amplifier Power
Continuous | 150 Watts |
Dynamic | 210 Watts |
Acoustic Design
Woofer (Nominal) | 8” (203mm)
Textured Polypropylene Cone, Rubber Surround Variable 50-150Hz with LFE setting, B2 |
Crossover | Low Pass Filter |
Internal Volume Design Type | 0.86 cu ft (24.4 liter)
Bass Reflex |
Dimensions / Weights / Finish
Size (W x H x D) | 11 1/2” x 12 1/2” x 15 1/4” *
(292 x 318 x 387mm) |
Weight | Net - TBD
Shipping - TBD |
Finish | Woodgrained |
Features | Rear Mounted Volume
Crossover Controls Phase Switch LFE Settings Low Level Input AutoOn/Standby Switch Gold-plated RCAs USB Power Jack for RT100 wireless Rubber bumpers and spikes |
Notes | * Non-metric measurements are approximate.
All specifications are subject to change without notice. |
ALPHA C10 SPECIFICATIONS
Frequency Response
On Axis @ 0° ±3dB | 55-21,000Hz |
On Axis @ 0° ±1 1/2dB | 65-20,000Hz |
Off Axis @ 30° ±1 1/2dB | 65-10,000Hz |
LF Cutoff -10dB | 37Hz |
Sensitivity
Anechoic Chamber | 88dB |
Listening Room | 90dB |
Impedance
Nominal | 8 Ohms |
Minimum | 6 Ohms |
Input Power
Recommended | 15 - 120 Watts |
Program | 60 Watts |
Acoustic Design
Tweeter (Nominal) | 3/4” (19mm)
Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet |
Woofer (Nominal) | 2 x 5 1/4” (133mm)
Textured Polypropylene Cone with Rubber Surround |
Crossover | 2,500Hz, LR4 |
Internal Volume | 0.44 cu ft (12.5L) |
Design Type | Tuned Port Bass Reflex
2” (49mm) Rear Port |
Dimensions / Weights / Finish
Size (W x H x D) | 17 3/4” x 6 3/4” x 9 3/8”*
(450 x 170 x 243mm) |
Weight | 17lb (7.7kg)
19.9lb (9.0kg) |
Finish** | Black Ash
Walnut |
Notes | * Non-metric measurements are approximate.
** Some finishes may not be available in all models and/or all countries. All specifications are subject to change without notice. |
ALPHA P3 SPECIFICATIONS
Frequency Response
On Axis @ 0° ±3dB | 57-21,000Hz |
On Axis @ 0° ±1 1/2dB | 67-20,000Hz |
Off Axis @ 30° ±1 1/2dB | 67-10,000Hz |
LF Cutoff -10dB | 43Hz |
Sensitivity
Anechoic Chamber | 85dB |
Listening Room | 87dB |
Impedance
Nominal | 8 Ohms |
Minimum | 4 Ohms |
Input Power
Recommended | 10 - 80 Watts |
Program | 60 Watts |
Acoustic Design
Tweeter (Nominal) | 3/4” (19mm)
Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet |
Woofer (Nominal) | 4” (102mm)
Textured Polypropylene Cone with Rubber Surround |
Crossover | 3,000Hz, L4 |
Internal Volume | 0.11 cu ft (3.1L) |
Design Type | Tuned Port Bass Reflex,
1 3/8” (35mm) Rear Port |
Dimensions / Weights / Finish
Size (W x H x D) | 5 1/8” x 8 5/8” x 6 7/8”*
(130 x 220 x 174mm) |
Weight | 4.9lb (2.2kg)/each
11.45lb (5.2kg)/pr |
Finish** | Black Ash
Walnut |
Notes | * Non-metric measurements are approximate.
** Some finishes may not be available in all models and/or all countries. All specifications are subject to change without notice. |
