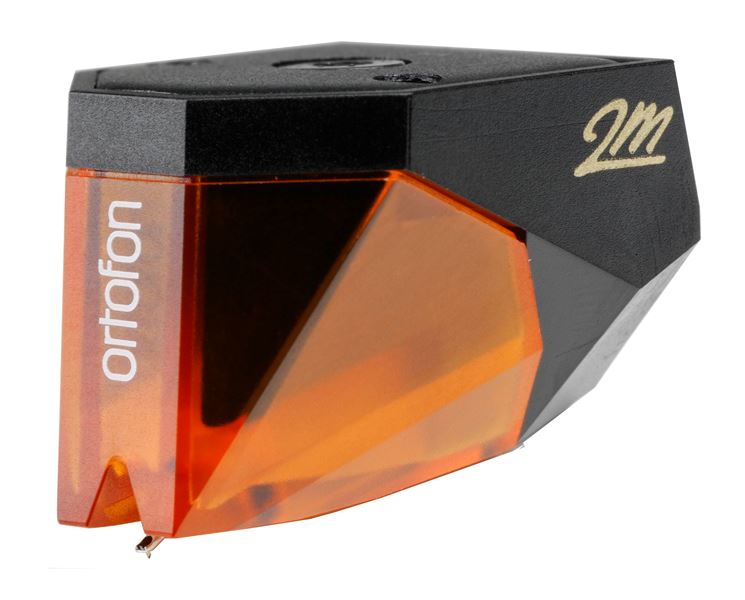

Ortofon Hi-Fi 2M Bronze Moving Magnet Cartridge
Mount Type
Ortofon Hi-Fi 2M Bronze Moving Magnet Cartridge
Standard Mount / Orange
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: Denmark
Features
- The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.
- The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
- The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.
We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

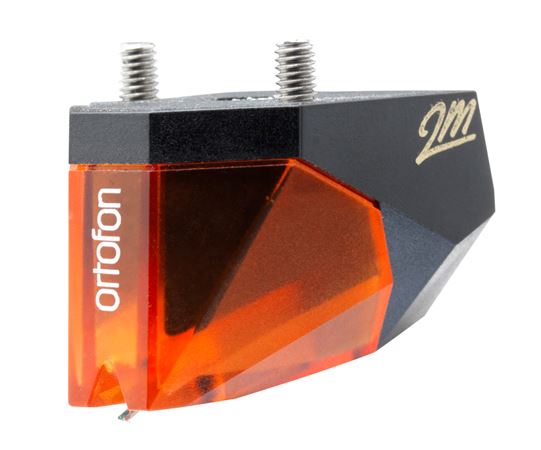

The 2M Bronze Verso model is an alternative product for bottom mount headshells
Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for 2M cartridge.
2M Bronze accessories included the package:
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5
- 2 x Screw M2,5 x 7
- 1 x Stylus pressure gauge
2M Bronze Verso accessories included the package:
- 1 x Stylus brush
- 1 x Allen key Torx 6
- 1 x Allen key Torx 8
- 2 x Screw M2,0 x 6
- 1 x Stylus pressure gauge
Output voltage at 1000 Hz, 5cm/sec.
5 mV
Channel balance at 1 kHz
1 dB
Channel separation at 1 kHz
26 dB
Channel separation at 15 kHz
15 dB
Frequency range at - 3dB
20-29.000 Hz
Frequency response
20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force
80 µm
Compliance, dynamic, lateral
22 µm/mN
Stylus type
Nude Fine Line
Stylus tip radius
r/R 8/40 µm
Tracking force range
1.4-1.7 g (14-17 mN)
Tracking force, recommended
1.5 g (15 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.2 kOhm
Internal inductance
630 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
150-300 pF
Cartridge colour, body/stylus
Black/Bronze
Cartridge weight
7.2 g
2M PnP MkII cartridge with integrated headshell weight
20 g
2M PnP MkII cartridge with integrated headshell length
52 mm
Replacement stylus unit
2M Bronze (interchangeable with 2M Black)
Stylus lifetime:
with proper care we find that up to 1000 hours is possible without degradation of performance.
2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78
