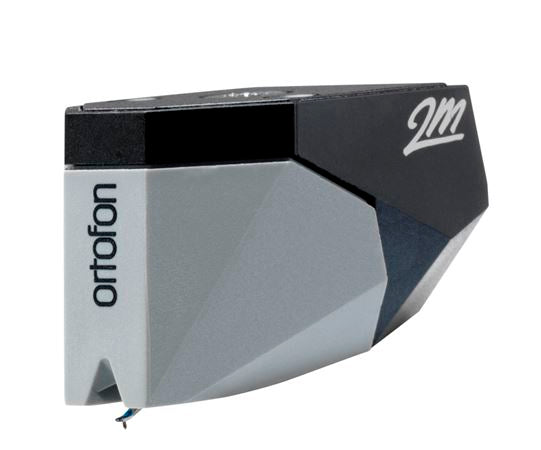

Ortofon Hi-Fi 2M 78 Moving Magnet Cartridge
Ortofon Hi-Fi 2M 78 Moving Magnet Cartridge
Ortofon Hi-Fi 2M 78 Moving Magnet Cartridge

Ortofon

Ortofon Hi-Fi 2M 78 Moving Magnet Cartridge

$269.00

Includes GST. 🚚 Free shipping on orders over $100 Australia wide at checkout.

Mount Type:

Mount Type
Colour:Grey
Quantity:
Pickup available at 22 Saint Kilda Road Usually ready in 2-4 days

Ortofon Hi-Fi 2M 78 Moving Magnet Cartridge

Standard Mount / Grey

22 Saint Kilda Road

Pickup available, usually ready in 2-4 days

22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

0395250022
We accept:
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa Zip

Country of origin: Denmark

Ask Geoff

If the product is not able to be added to your cart for one or more of these reasons:

  1. The supplier has a policy that prevents us from doing so.
  2. There are delays in supply, and I would prefer to make you aware of lead times;
  3. This is a bespoke item and I don't want you to pay in full and wait a long time for it to be made and shipped,
  4. I would like to discuss the synergy of the product matching with your system
  5. Due to fluctuating shipping and currency effects, the product may have come down in price. I can offer you a market price.

Please use this resource and contact me using the following form or call me.

Your Javascript is disabled

Features:

- An improved engine, which provides a high level of sonic accuracy.
- Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile.
- the cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
- 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M 78 Technical data

  • Output voltage at 1000 Hz, 5cm/sec. - 4 mV
  • Frequency range at - 3dB  -  20-20.000 Hz
  • Frequency response  -  20-20.000 Hz + 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force - 70 µm
  • Compliance, dynamic, lateral -  18 µm/mN
  • Stylus type  - Spherical
  • Stylus tip radius  -  R 65 µm
  • Tracking force range  -  1.6-2.0g (16-20 mN)
  • Tracking force, recommended  - 1.8 g (18 mN)
  • Internal impedance, DC resistance -  700 Ohm
  • Internal inductance  -  350 mH
  • Recommended load resistance  -  47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Tracking angle  -  20°
  • Cartridge colour, body/stylus  -  Black/Grey
  • Cartridge weight without screws  -  7.2 g
  • 2M PnP MkII cartridge with integrated headshell weight  -  20 g
    2M PnP MkII cartridge with integrated headshell length - 52 mm

Replacement stylus unit  -  2M 78 (interchangeable with 2M Mono)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. .

2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78

Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. .
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for 2M cartridge.

Review quote 2M 78

Hi-Fi World April 2013
Reviewed by Tony Bolton

Sensational schellac!

"...Well thought out MONO, standard groove version of respected 2M Series of cartridges...

- Detailed sound
- Low surface noise
- Fast and punchy rhythmus
- Excellent tracking at the recommended 1.8 g"

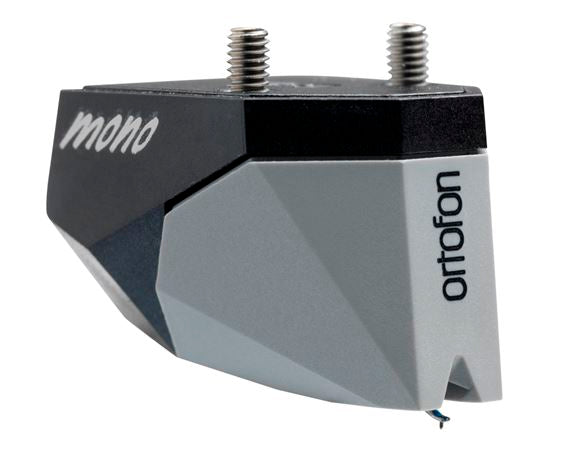

The 2M 78 Verso model is an alternative product for bottom mount headshells

2M 78 accessories included the package

2M 78 accessories included the package:

  • 1 x Stylus brush
  • 1 x Screwdriver
  • 2 x Screw M2,5 x 5
  • 2 x Screw M2,5 x 7

2M 78 Verso accessories included the package:

  • 1 x Stylus brush
  • 1 x Allen key Torx 6
  • 1 x Allen key Torx 8
  • 2 x Screw M2,0 x 6
