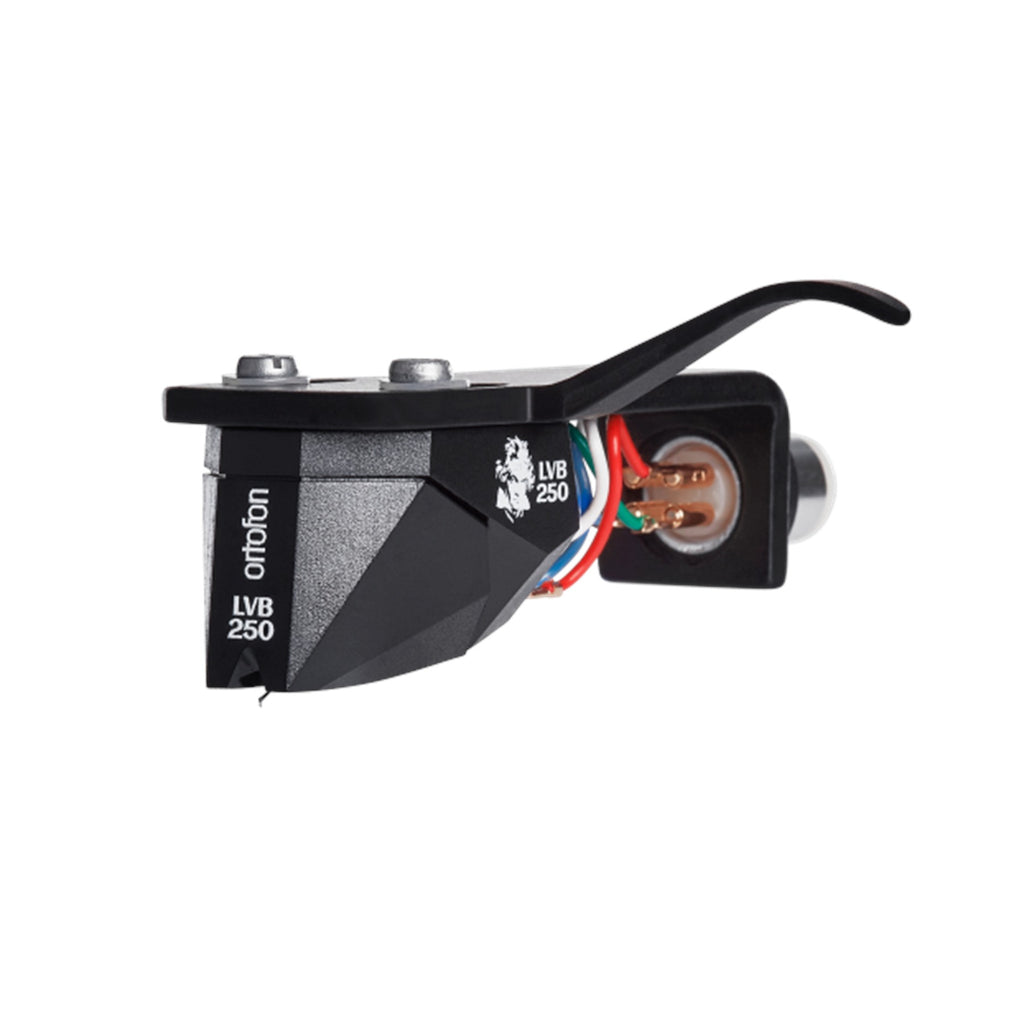

Ortofon 2M Black LVB 250 Pre-Mounted on SH-4 Headshell Cartridge
Ortofon 2M Black LVB 250 Pre-Mounted on SH-4 Headshell Cartridge
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin:
Denmark
2M Black LVB 250 - Beyond amazing
The 2M Black is an amazing cartridge and by many considered the ultimate in moving magnet. So, why would we attempt to create something even better? Because perfection runs in our blood. The 2M Black LVB 250 upgrades the great build of the 2M Black with a boron cantilever and our very own Nano Tube suspension system. The result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.
Features:
The 2M Black LVB 250 uses a Nude Shibata diamond on a Boron cantilever, the combination known from the acclaimed MC Cadenza Black cartridge. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed and responsiveness. The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.
The 2M Black LVB was released to commemorate the 250th anniversary of the birth of Ludwig van Beethoven in December 2020.
2M Black LVB 250 Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5 mV
Channel balance at 1 kHz - < 1 dB
Channel separation at 1 kHz - > 27 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-20.000 + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 22 µm/mN
Stylus type - Nude Shibata
Stylus tip radius - r/R 6/50 µm
Cantilever material - Boron
Tracking force range - 1.5-1.7 g (15-17 mN)
Tracking force, recommended - 1.6 g (16 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1.2 kOhm
Internal inductance - 630 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight - 7.2 g
Premounted cartridge weight - 16.7 g
Replacement stylus unit - 2M Black LVB 250
Interchangeable styli units - 2M Black and 2M Bronze
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.
2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze, 2M Black and 2M Black LVB 250
- 2M Mono and 2M 78
With the 2M Premounted, it’s never been easier to experience
The 2M Premounted is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasizes a slim and delicate form factor. The strong, lightweight headshell has an ergonomic design with a long finger lift that is easy to pick up.
Features:
- Mounted on our popular SH-4 Black headshell.
- Easy and direct mount on S-shaped tonearms with universal mount.
- Correct Baerwald alignment with tonearms with universal mount.
2M Black LVB 250 accessories included the package:
2M Black LVB 250 accessories included the package:
Stylus brush, carbon fibre
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge
2M Black LVB 250 Premounted accessorie included the package:
1 x Stylus brush, carbon fibre
1 x Stylus Gauge
