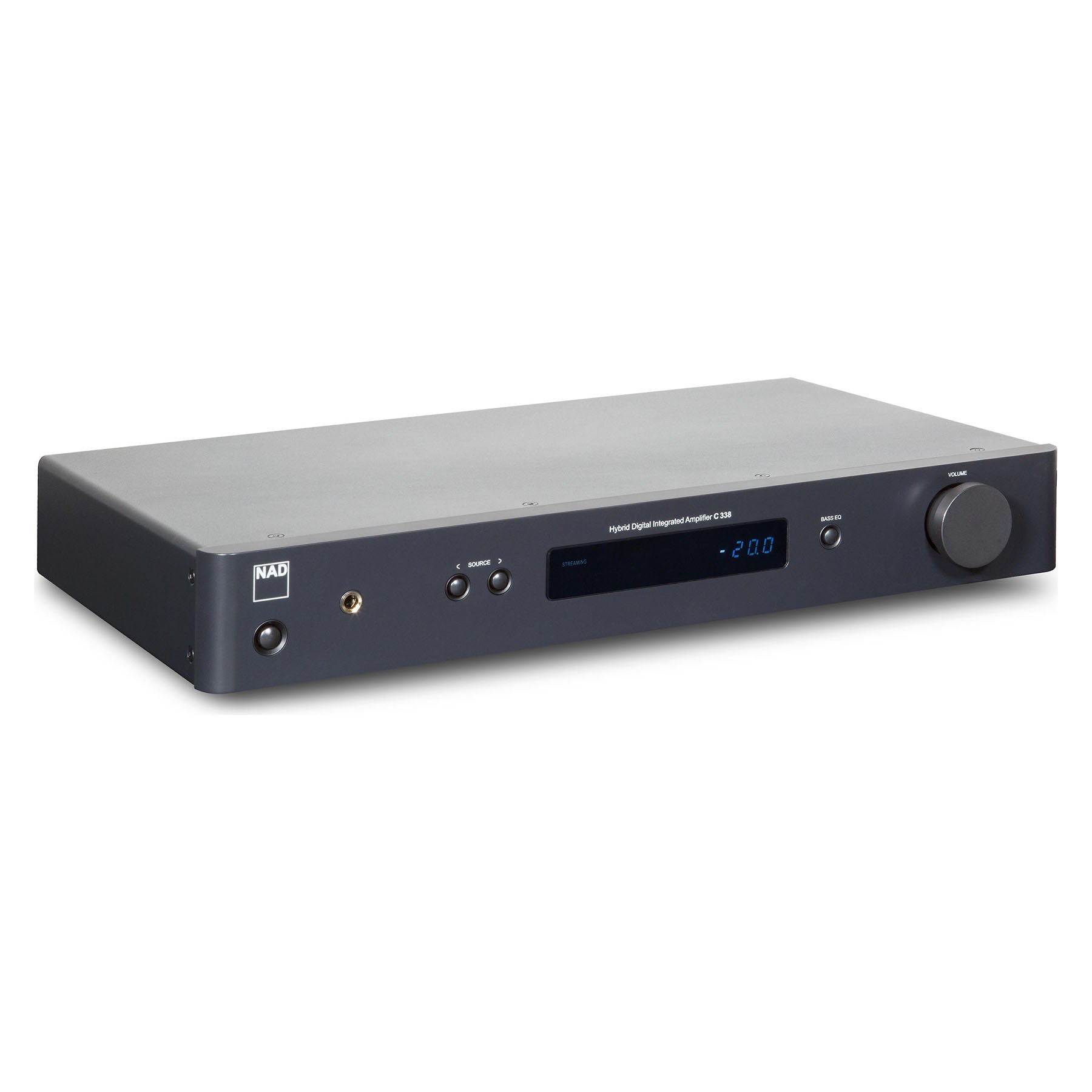

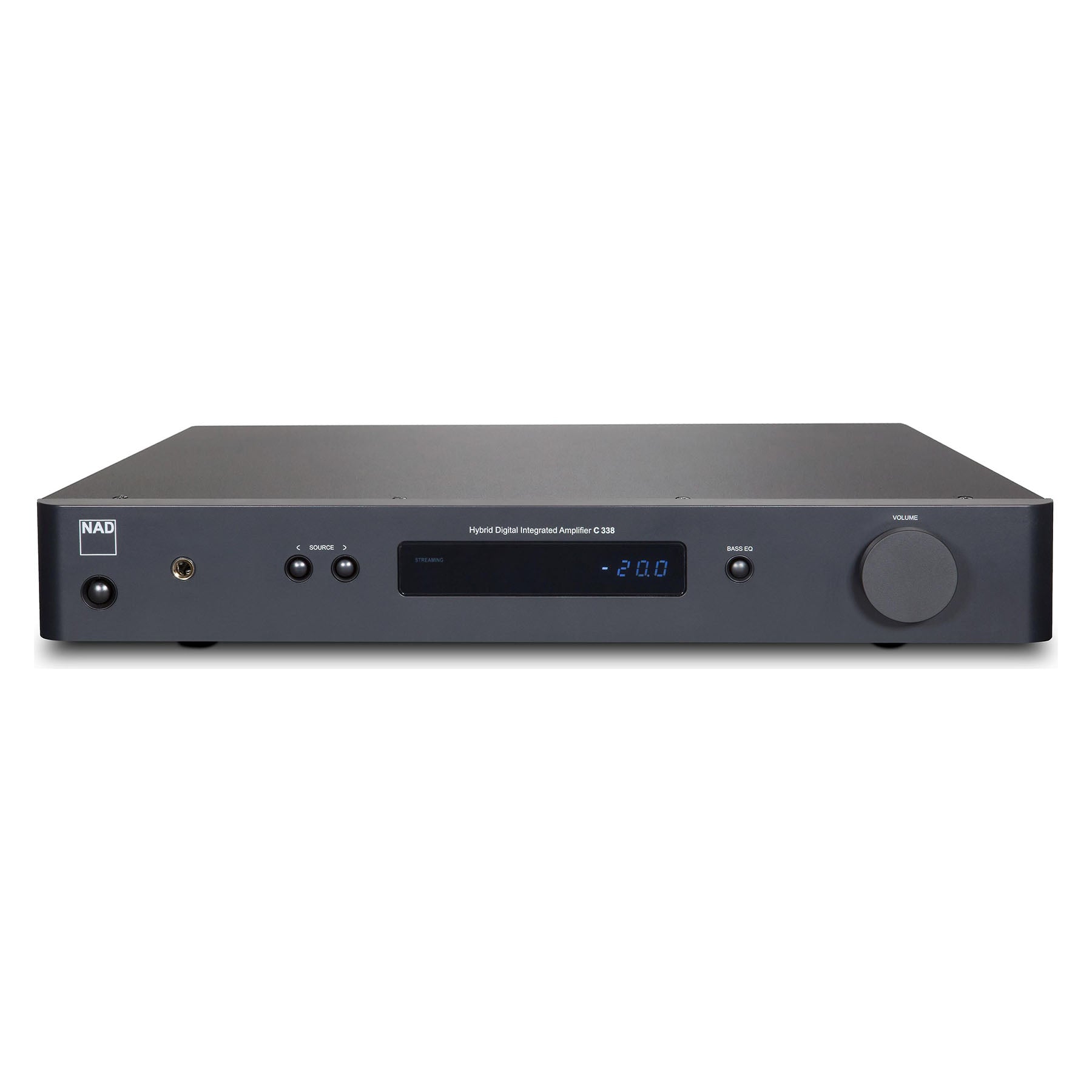

NAD C 338 Integrated Amplifier
NAD C 338 Integrated Amplifier
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: England
What's in the box:
-
NAD C 338 owner's manual
-
Hybrid Digital DAC Amplifier
-
6' AC power cord
-

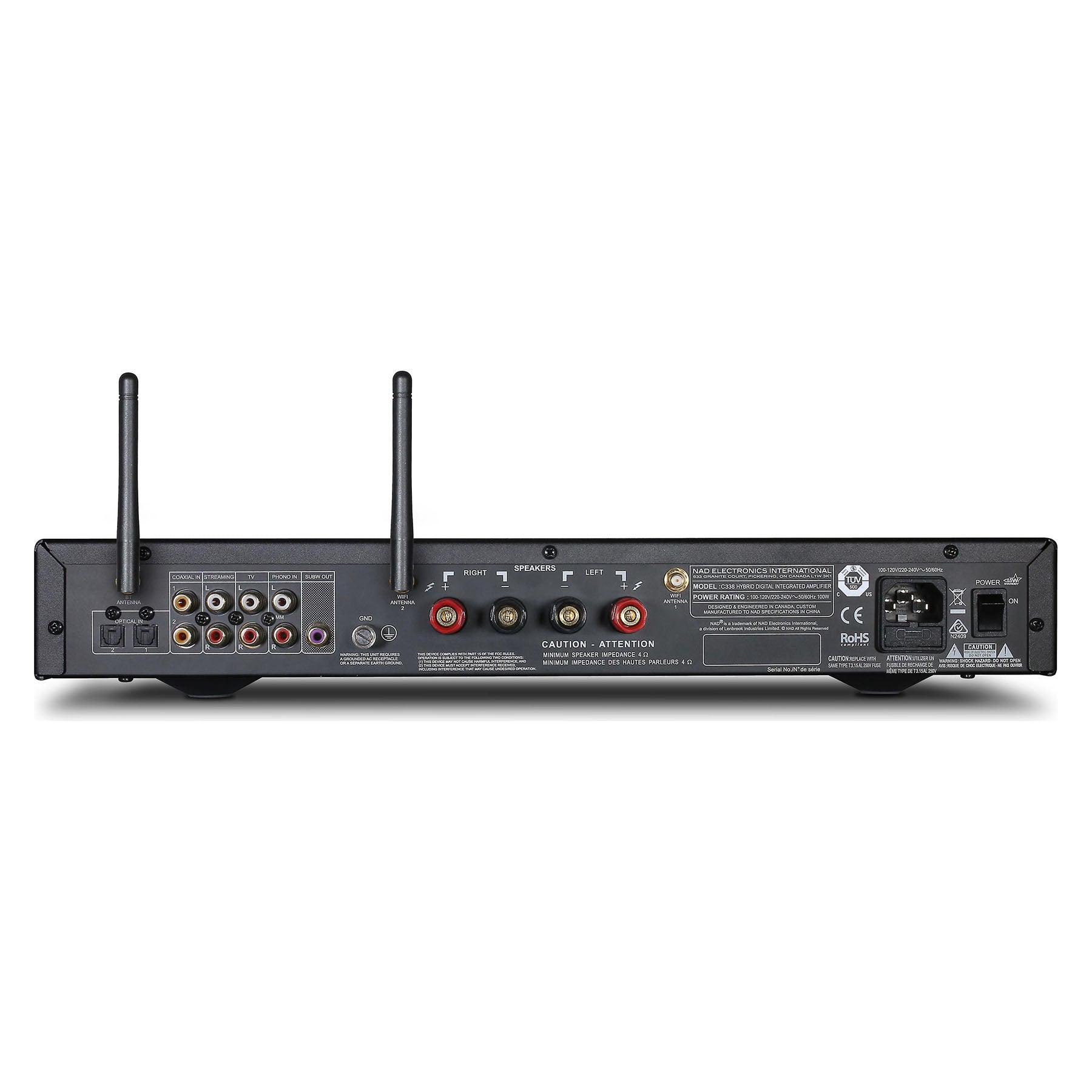

2 WiFi antennas
-
Bluetooth antenna
-
Remote control (Amp 3)
-
CR2025 3V battery
-
Quick Setup Guide
-
Chromecast Built-in installation instructions
-
Warranty Information
C 338
Hybrid Digital DAC Amplifier
NAD's Most Versatile Amplifier Ever with Chromecast built-in and Hybrid Digital Technology.
Features:
-
50W x 2 Continuous Power into 8 or 4 Ohms
-
90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms
-
First hi-fi amplifier to feature Chromecast built-in
-
Integrated Bluetooth® for added music streaming flexibility
-
Built-in Phono Preamp for Turntables
-
Stereo Line, Optical Digital and Coax Digital inputs
-
NAD Remote App support for tablet and smartphone
-
Dedicated Headphone Amplifier
-
Subwoofer Output
Getting the Basics Right
Built with NAD’s renowned music-first approach to audio architecture and amp design, the C 338 is equipped with the most advanced components commonly found in NAD’s class-leading line of amplifiers. Always starting with the details you can hear and advancing from there, NAD develops low-noise circuitry with the precision and stability to deliver incredible, near-zero distortion sound for the most difficult speakers.
HybridDigital™ Amp Technology
The search for a high-performance Class D solution led NAD to HybridDigital™, an innovative amplifier technology that uses a variable modulation frequency to bring out the life-like qualities of music, while reducing distortion under every operating condition. This highly optimized design gives phenomenal performance to the C 338 amplifier, both measured and subjective.
Efficient Class D Power
NAD has worked tirelessly to create the best performing Class D amplifiers that are energy efficient and produce beautiful sound—not heat—regardless of basic design principles. Using advanced measurements and data, NAD developed the C 338’s highly efficient power supply with a customised Hypex® UCD output stage to pump out 160 watts continuously and over 300 watts instantaneously to meet the demands of the most dynamic music. This new design is very linear over a wide bandwidth and provides consistent, noise-free performance for the amplifying stages with near perfect regulation of voltage.
Always Ready for Streaming
The C 338 has Chromecast built-in so you can cast music, tunes, podcasts, and playlists from your favourite apps on your phone, tablet or laptop to your stereo system. Spotify Connect® lets you discover millions of songs and stream them directly to your C 338 using the Spotify® app for a rich, wireless music experience. With the added flexibility of Bluetooth®, your music streaming possibilities are truly limitless with the C 338.
Built-in Phono Stage for Vinyl Listening
Using a MM phono stage and an innovative low-noise circuit path, the C 338 can reproduce the warmth of LPs with accurate RIAA equalization and control the infrasonic noise that is in all recordings, without ever affecting the bass response.

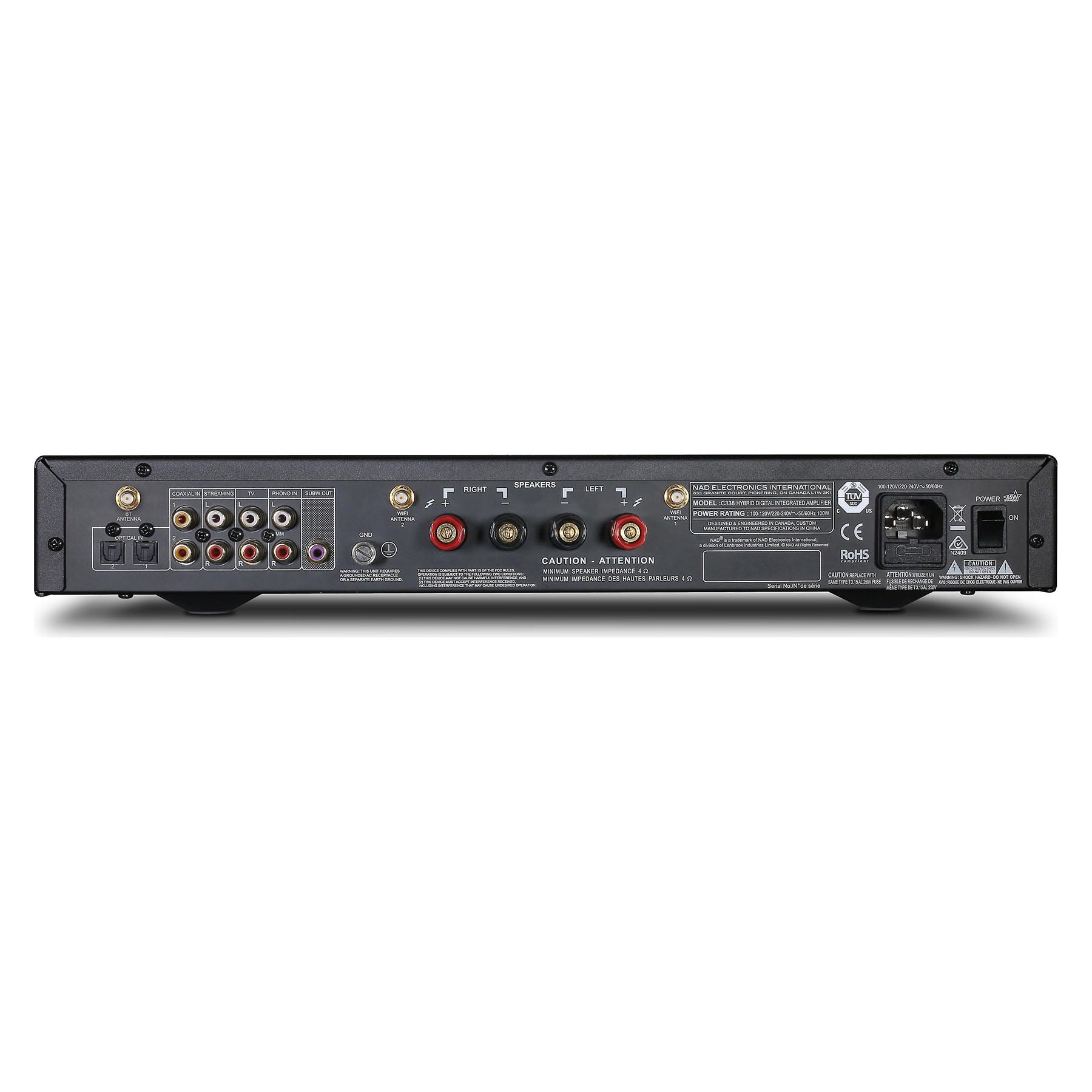

Flexible Connectivity
With a wide array of connections, including a separate headphone amplifier that can drive high-impedance studio monitor headphones, the C 338 is ready for any type of listening. Line inputs can accommodate all kinds of analogue source components, offering ideal input impedance with linear ultra-low noise buffer amplifiers to preserve the musicality of recordings. Also connect a subwoofer with low impedance line outputs and extend the versatility of this budget-friendly, do-it-all amplifier.
KEY FEATURES
- 50W x 2 Continuous Power into 8 or 4 Ohms
- 90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms
- First hi-fi amplifier to feature Chromecast built-in
- Integrated Bluetooth® for added music streaming flexibility
- Built-in Phono Preamp for Turntables
- Stereo Line, Optical Digital and Coax Digital inputs
- NAD Remote App support for tablet and smartphone
- Dedicated Headphone Amplifier
- Subwoofer Output
ACCESSORIES
TECHNOLOGY
PREAMPLIFIER
Line In, Subwoofer Out
THD (20Hz-20kHz)
<0.005% at 2V out
Signal/Noise Ratio
>106dB (IHF; A-weighted, 500mV out, unity gain)
Input Impedance (R and C)
56 kilohm + 100pF
Maximum Input Signal
>4.5Vrms (ref. 0.1% THD)
Output Impedance
Source Z + 200 Ohm
Input Sensitivity
50mV (100Hz ref. 500mV out, Volume maximum
Maximum voltage output – IHF load
>4.5V (ref. 0.1% THD)
Line In, Headphone Out
THD (20Hz-20kHz)
<0.005% at 1V out
Signal/Noise Ratio
>105dB (IHF; A-weighted, 32 Ohm loads, ref. 2V out, unity gain)
Frequency Response
±0.3dB (20Hz-20kHz)
Channel Separation
>56dB at 1kHz
Output Impedance
0.5 Ohm
GENERAL SPECIFICATIONS
Line In, Speaker Out
Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)
>50W (at rated THD, 20-20kHz, both channels driven)
IHF Dynamic Power
8 Ohm 80W
4 Ohm 150W
2 Ohm 210W
THD (20Hz-20kHz)
<0.03% (250mW to 50W, 8 Ohm and 4 Ohm
Signal/Noise Ratio
>98dB (A-weighted, 500mV input ref. 1W out in 8 Ohm)
Clipping power
>60W (at 1kHz 0.1% THD)
Peak output current
>18A (in 1 Ohm, 1 ms)
Damping Factor
>300 (ref. 8 Ohm, 20Hz to 6.5kHz)
Frequency Response
±0.3 dB (20Hz-20kHz)
Channel Separation
1kHz >75dB
10kHz >65dB
Input Sensitivity (For 50W in 8 Ohm)
Line In: 380mV, Digital In: 18% FS
Sample Rate
Up to 24 bit/192kHz
Phono In, Speaker Out
THD (20Hz-20kHz) (Stereo)
<0.3% at 50W out
Signal/Noise Ratio
>82dB (200 Ohm source, A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF A-weighted, ref. 500mV out)
Input Sensitivity
4.1mV (ref. 50W 1kHz 4 Ohm out, Volume maximum)
Frequency Response
±0.3dB (20Hz-20kHz)
Input Impedance
47 kilohm + 100pF
Maximum Input Signal
>80mVrms (ref. 0.1% THD)
POWER CONSUMPTION
at ECO Standby mode
0.4 Watts*
at Control Standby mode
1.8 Watts**
OFF mode (Power switched OFF)
0 Watts
* – After 20 minutes of no user interface interaction and no active source input
** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input
NOTE: Bluetooth connectivity can be enabled or disabled via press and hold of PLAY button of AMP 3 remote control
WEIGHT & DIMENSIONS
Gross Dimensions (W x H x D)*
435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”
Net Weight
4.85kg (10.7lb)
Shipping Weight
5.85kg (12.9lb)
*Gross dimensions include feet, extended buttons and rear panel terminals
