M8xTT | Turntable

The M8xTT is a high-end turntable with radical concepts and innovations originating from its legendary predecessor.

Antony Michaelson‘s idea of music was big scale, warm and mighty with details in colours. His amplifier creations are a rare expression of this sound character. In 2002 Antony asked Mr. Lichtenegger to help with a design with all these attributes. Also, the design was very important and should match the mechanically stunning amplifiers. The Musical Fidelity M1 was born and a great success. The base idea was to combine the inert mass of metal alloys with zero resonating acrylic. The motor was effectively decoupled from the tonearm and platter with the dual chassis construction. The new M8xTT is following the same design philosophies with even more expressive technical features.

The Tonearm

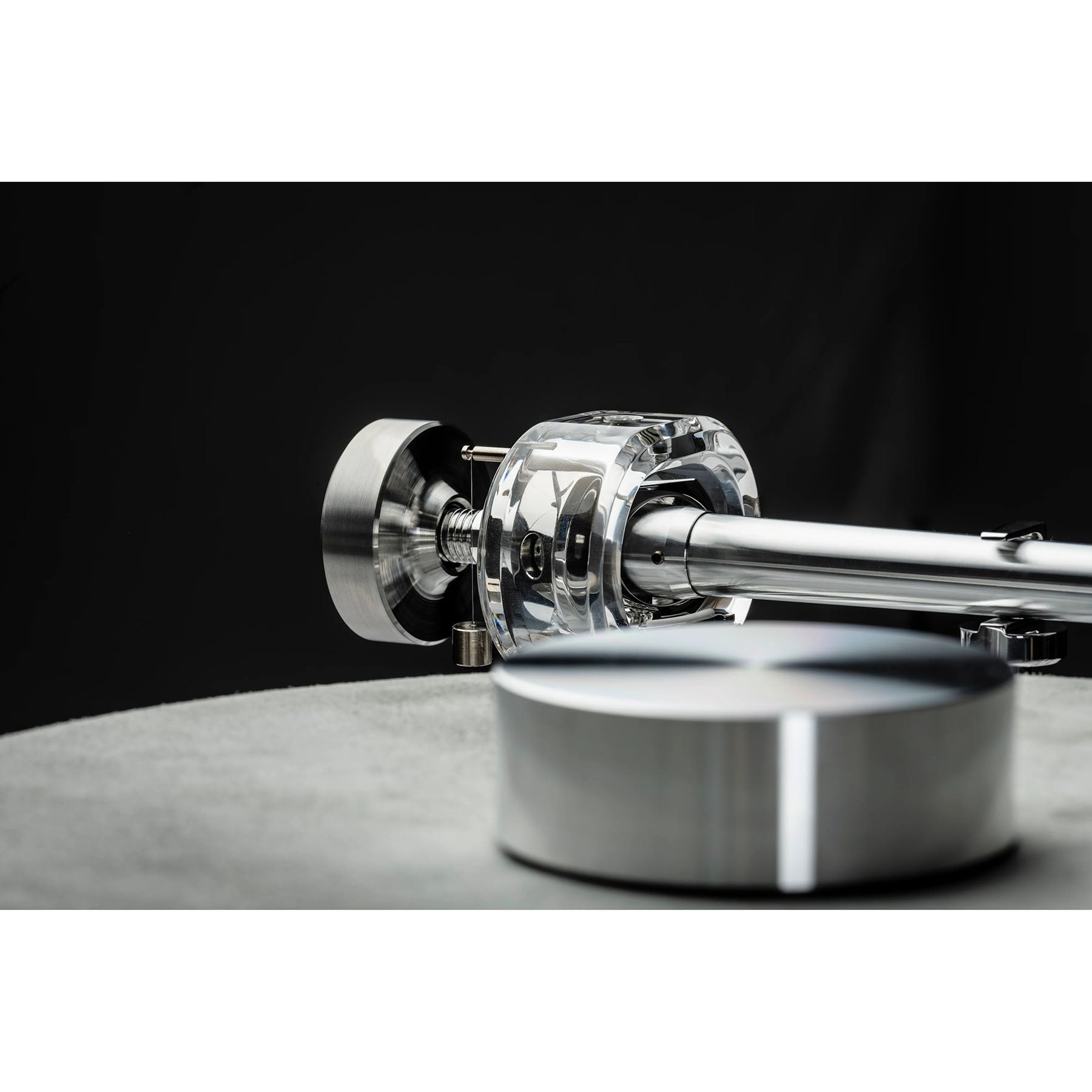

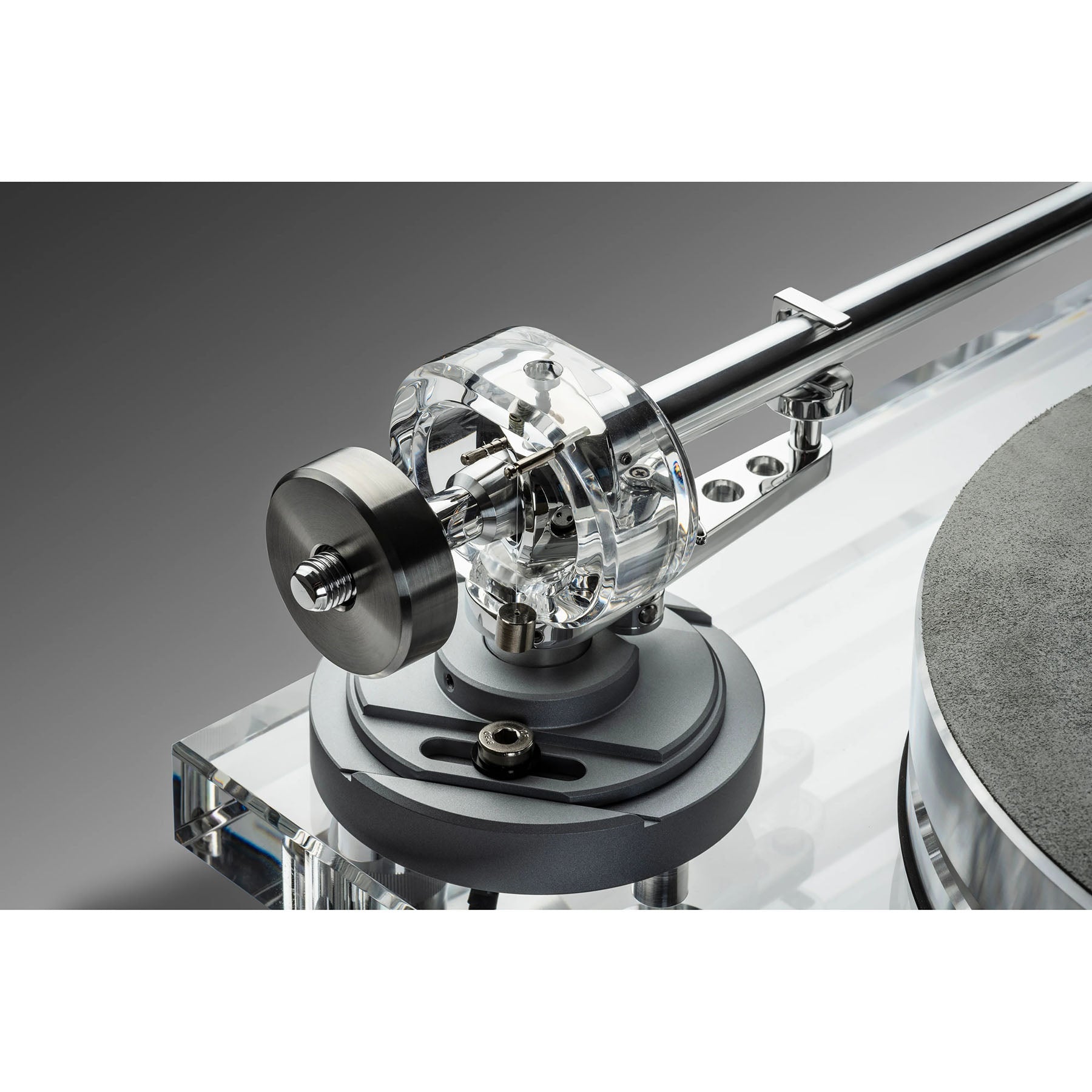

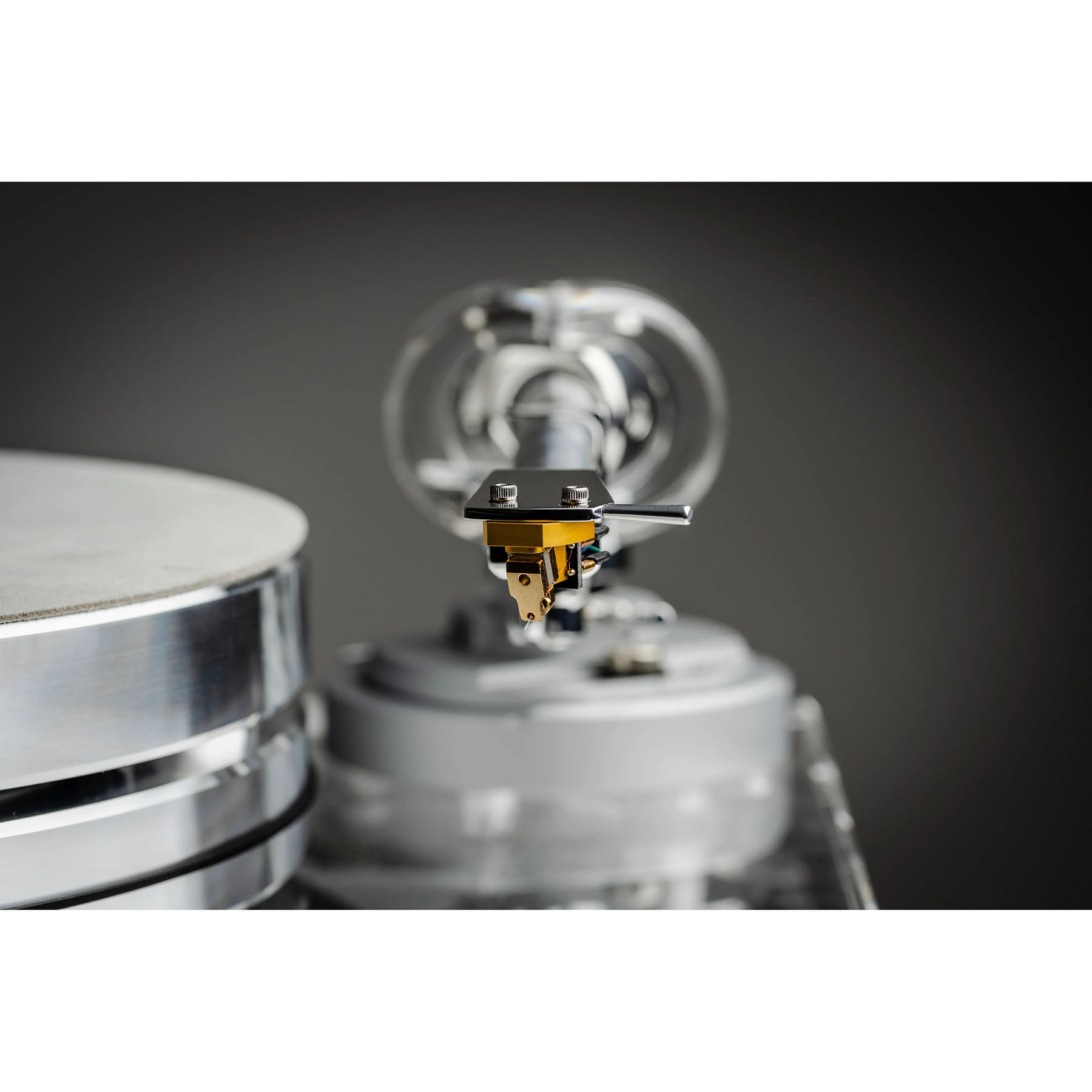

The 10-inch tonearm is a complete new ultra low resonance Musical Fidelity design with transparent acrylic bearing ring and conical aluminium tonearm tube. The tonearm is fully VTA and azimuth adjustable and comes with two counterweights to use it with cartridges from 6 to 20g. The counterweights are TPE damped to prevent resonances. On the back you can find standard phono RCA outputs, as well as balanced XLR sockets which gives you ultimate flexibility for your phono preamplifier choice.

The Motor & Platter

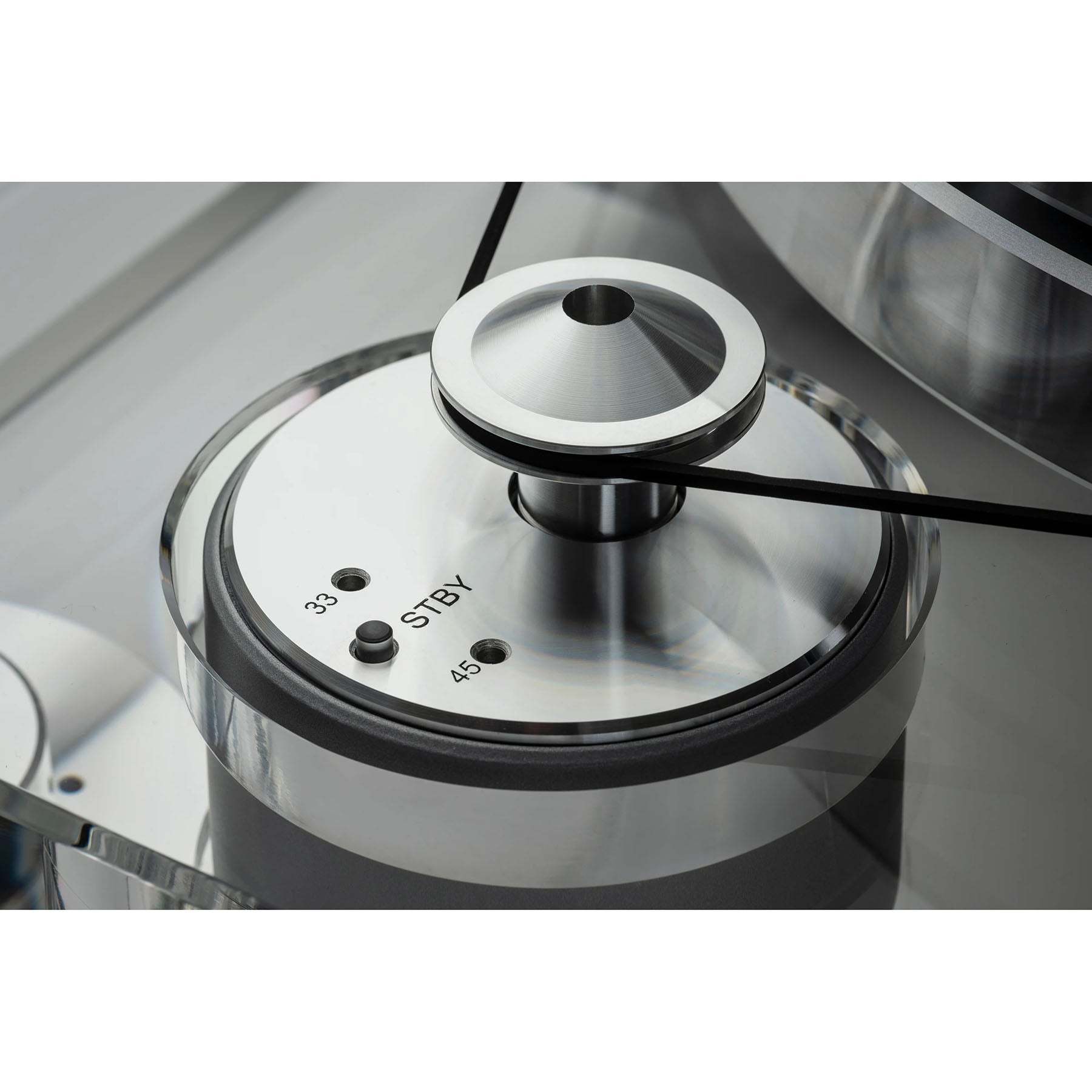

The motor is sitting in on a special foam in the lower level acrylic plinth to decouple it from the platter and the tonearm. The electronic speed control allows you to switch between 33 & 45 RPM. A silicon belt connects the motor and the two floor TPE damped platter, which is made of aluminium with additional inserts to improve the flywheel effect.

The Feet

Four heavyweight TPE damped aluminium feet with magnetic support connect the two acrylic plinths with teflon spacers in between. You can adjust them in height by turning the riffled middle part of the feet to level the turntable.

In The Box

You will find a heavyweight full aluminium puck in the box to stabilize your records while playing to achieve the best possible tracking. A leather turntable mat is also included, which is a superior base for your vinyl records. You will benefit from less noise and a special sound characteristic. To connect your M8xTT to your preamplifier, a semi-balanced phono interconnect cable with gold-plated connectors is included as well.

The M8xTT in Brief

• Mass loaded belt drive design with electronic speed change 33/45
• Heavyweight aluminium sandwich platter
• Heavy multi-alloy record puck included
• Height adjustable magnetic feet
• New 10“ Musical Fidelity tonearm
• Azimuth and VTA fully adjustable
• Non-resonant acrylic plinth with effective decoupling
• RCA and balanced XLR outputs
• Heavy aluminium record puck included
• Leather mat included
• Handmade in Europe

Reviews

A masterclass in taking a classic design and bringing it right up to date. Superbly built and very fine sounding.

Adam Smith – Hi-Fi NEWS 11/2023

"The M8xTT is a muscular-sounding turntable exhibiting a solid grip on the music. The result was perfect image definition, combined with realistic placement and substantial depth. The M8xTT was notable here for the lushness that it imparted to the top end."

Jason Thorpe - Soundstage!Ultra 04/2024

"The Musical Fidelity M8xTT with its 10-inch arm and play-free bearing is a true joy-maker. This listening pleasure is not cheap, but well worth the money." Alexander Rose

Fehling - Audio/Stereoplay 01/2024

"A structurally uncompromising perfectionism results here in truly excellent sound, which we only know from a few turntables in the industry. A dream of a record player."

Alex Röser - Audio Test 03/2024

Speed:

33, 45 (electronic speed change)

Drive principle:

belt drive with electronic speed control

Platter:

sandwich aluminium platter with aluminium inserts (10 kg), both floors with TPE damping

Platter bearing:

Inverted bearing with ceramic ball tip

Tonearm:

10‘‘ Musical Fidelity tonearm

Effective tonearm mass/length:

17g/254 mm

Overhang:

16 mm

Wow & flutter:

33rpm: +-0.05%, 45rpm +-0.04%

Speed drift:

33rpm: +-0.11%, 45rpm: +-0.10%

Signal to noise:

-78 dB

Dimensions:

533 x 245 x 413 mm

Weight:

31,5 kg
