miniDSP

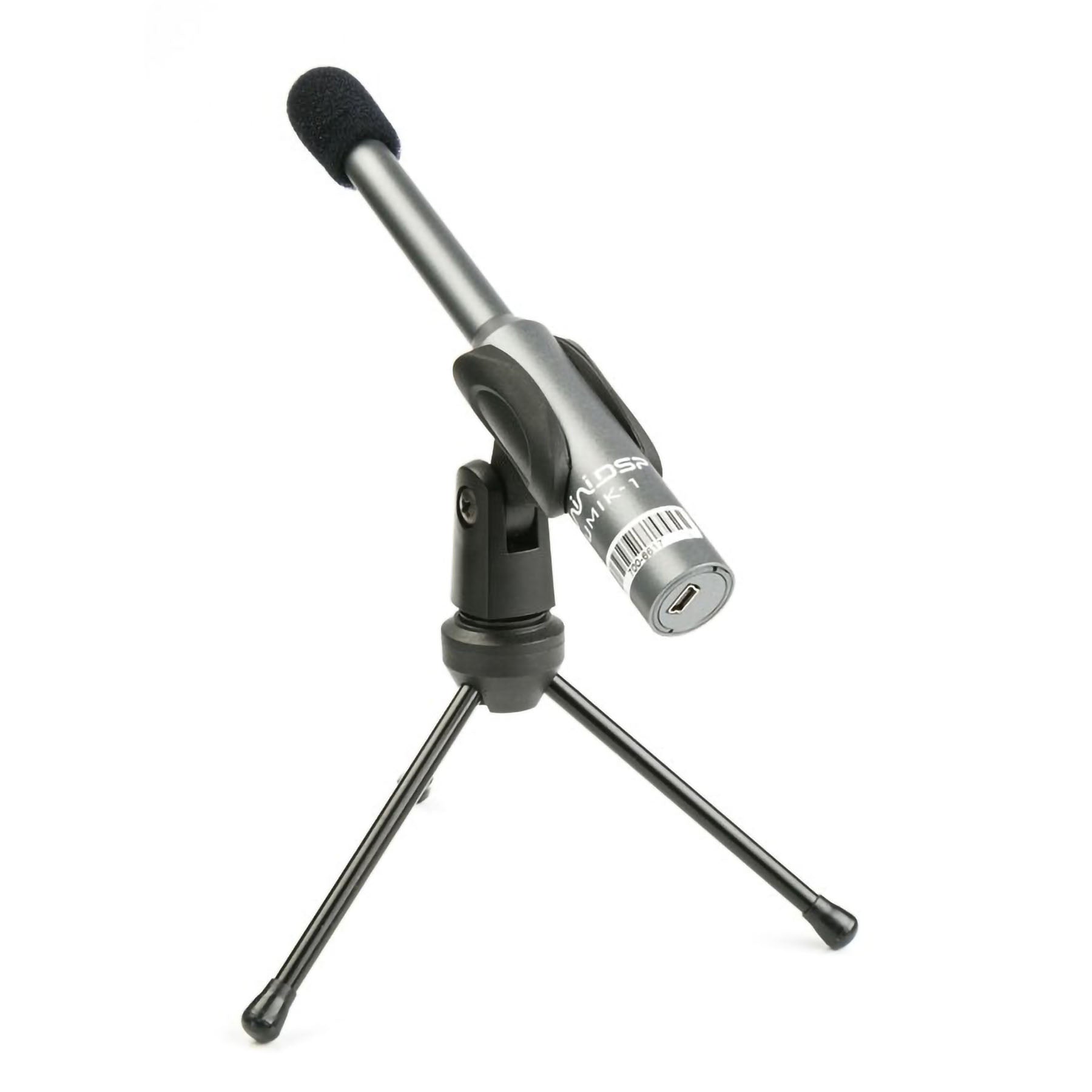

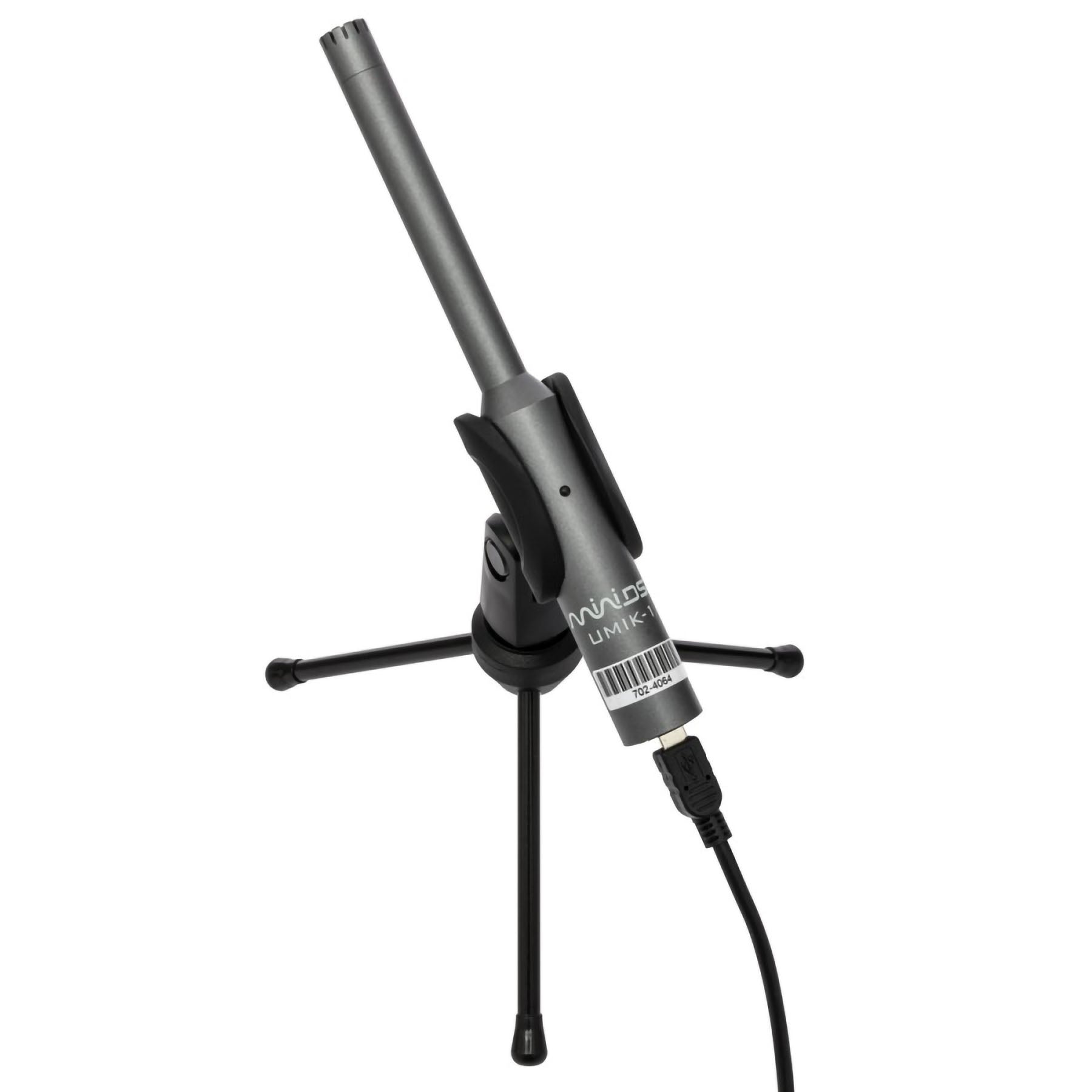

miniDSP UMIK-1 USB Measurement Calibrated Microphone
MiniDSP UMIK-1
Low Noise Omnidirectional USB Microphone
The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac) and Ipad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with our recommended acoustic measurement software, it is the perfect match for a plug&play measurement system.
Features
- Windows/Mac/Linux
- All measurement software
- Special features such as calibrated SPL measurement enabled under free Room EQ Wizard (REW) software
- Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded
- USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux

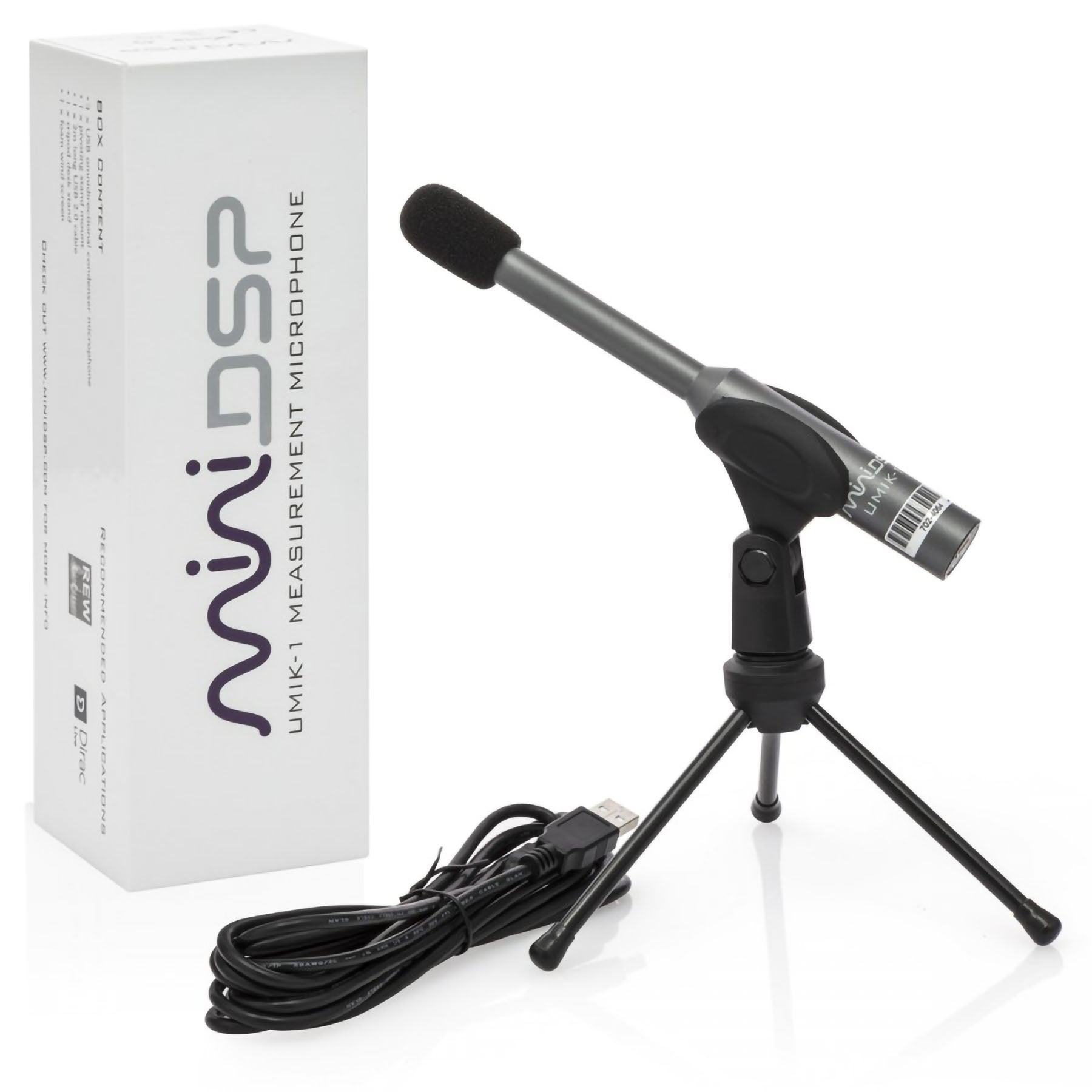

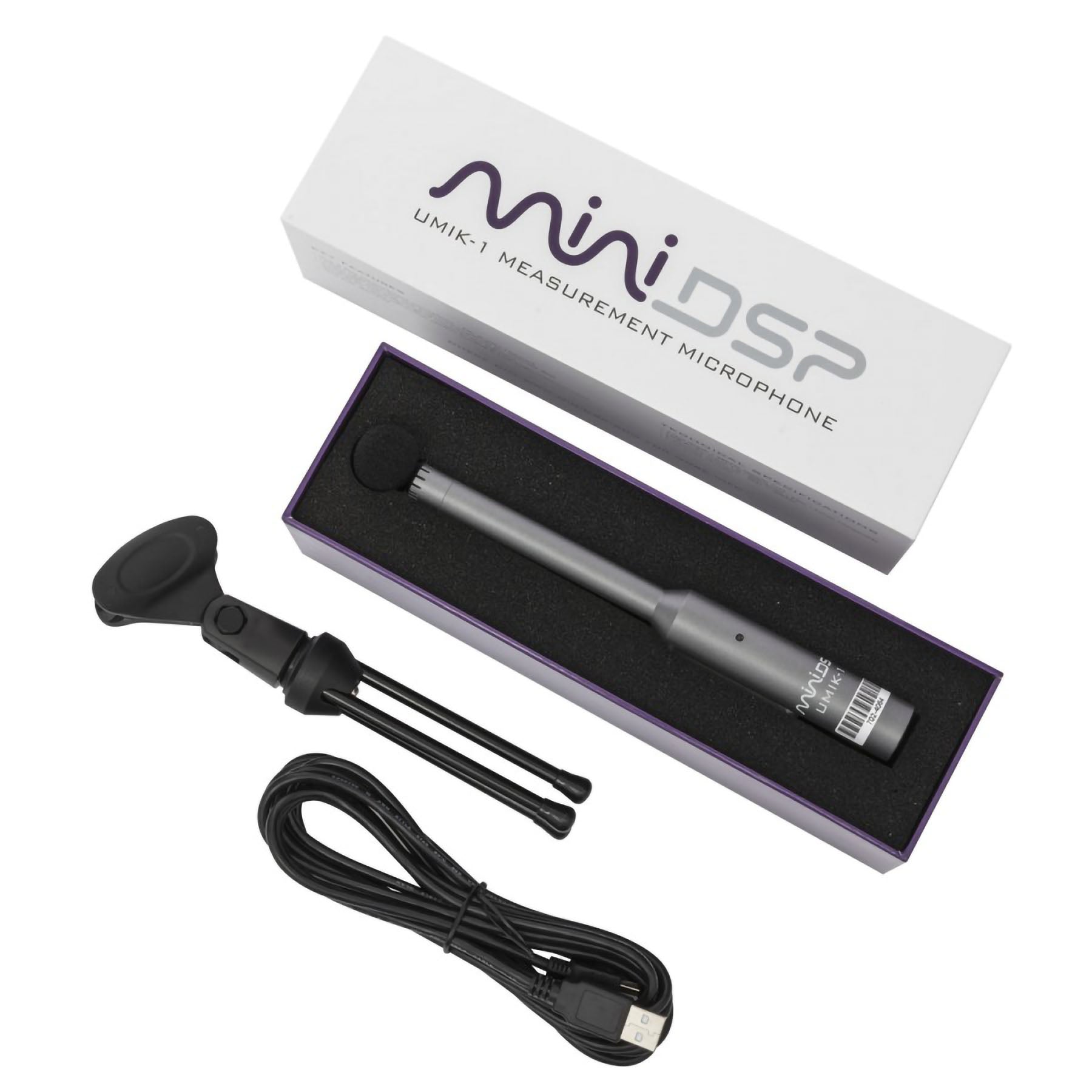

What's in the box?
- 1 x UMIK-1 microphone
- 1 x shielded USB cable (1.5m)
- 1 x mini Tripod
- 1 x foam wind screen
Product type
Measuring microphone
Microphone type
Electret 6mm
Directivity
Omnidirectional
Frequency response
20Hz - 20kHz ±1dB
Resolutions and sampling rates
24bit ADC@44.1 ou 48kHz
Sound pressure
133dB SPL @ 0dB, 1% THD, 1kHz
Noise level
74dBFS
Compatibility
Windows
Mac
Linux
Connector system
USB-C
General
Power supply
USB 5V
Weight
120g
Package
1x MiniDSP Umik-1
1x USB Cable 2m
1x Mini tripod
