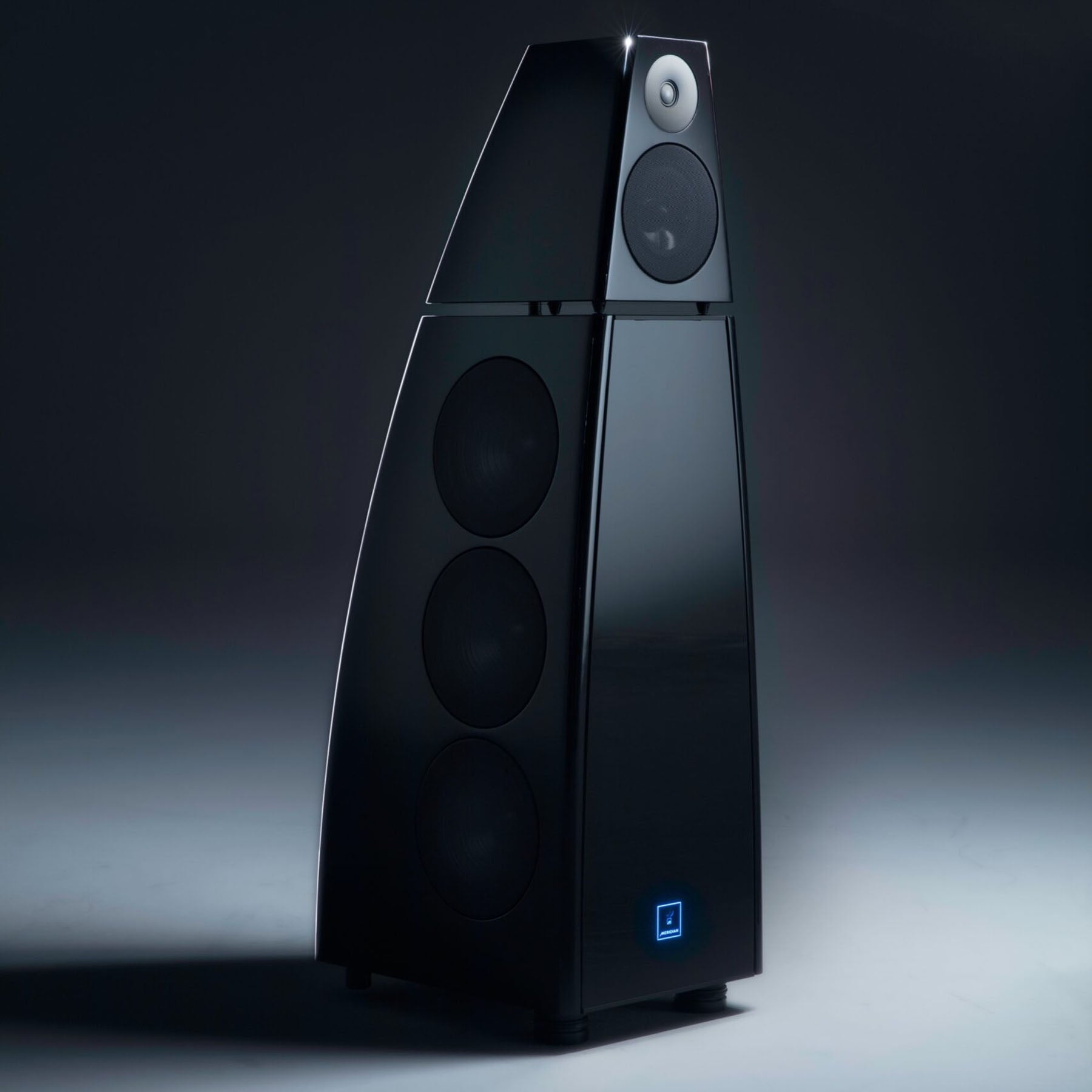

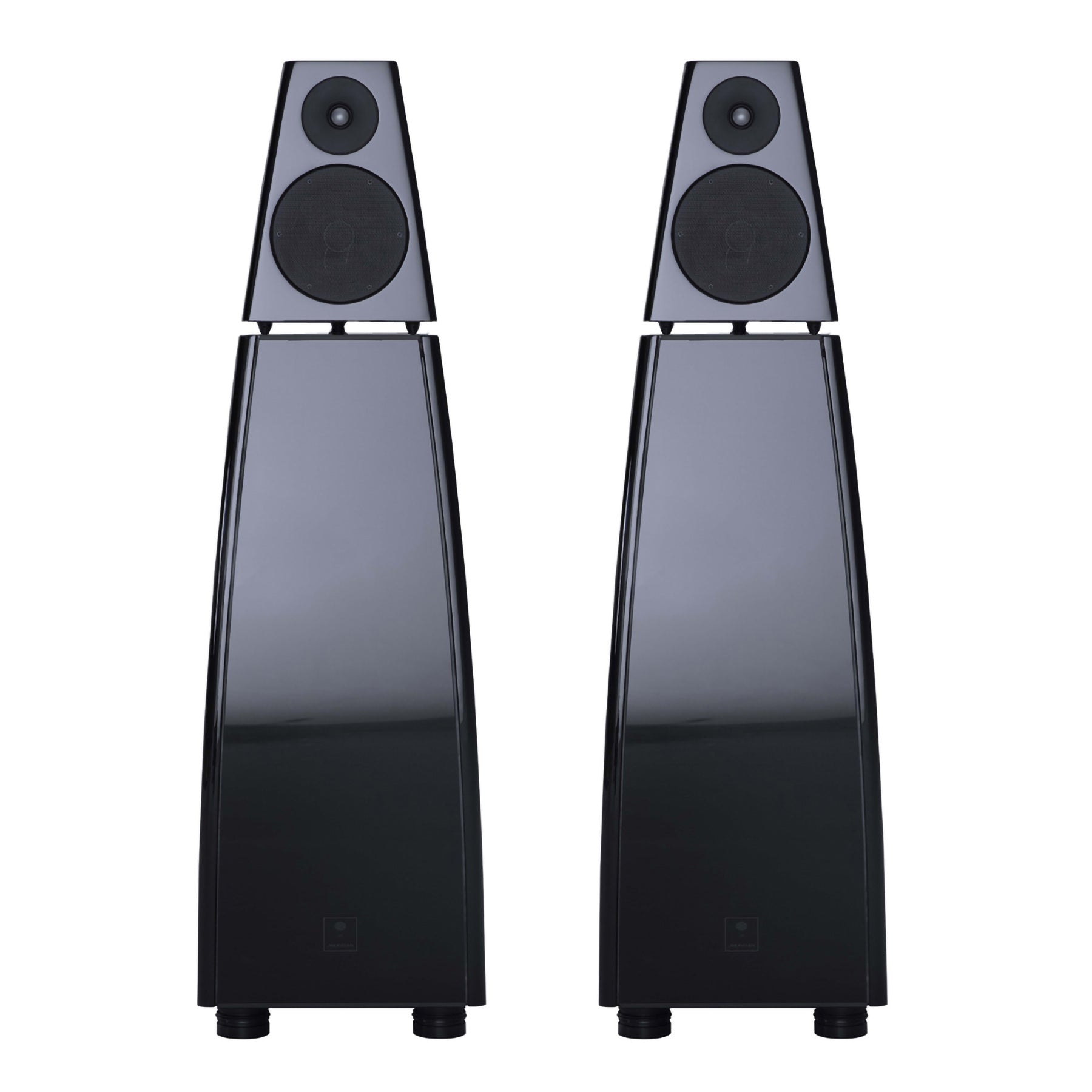

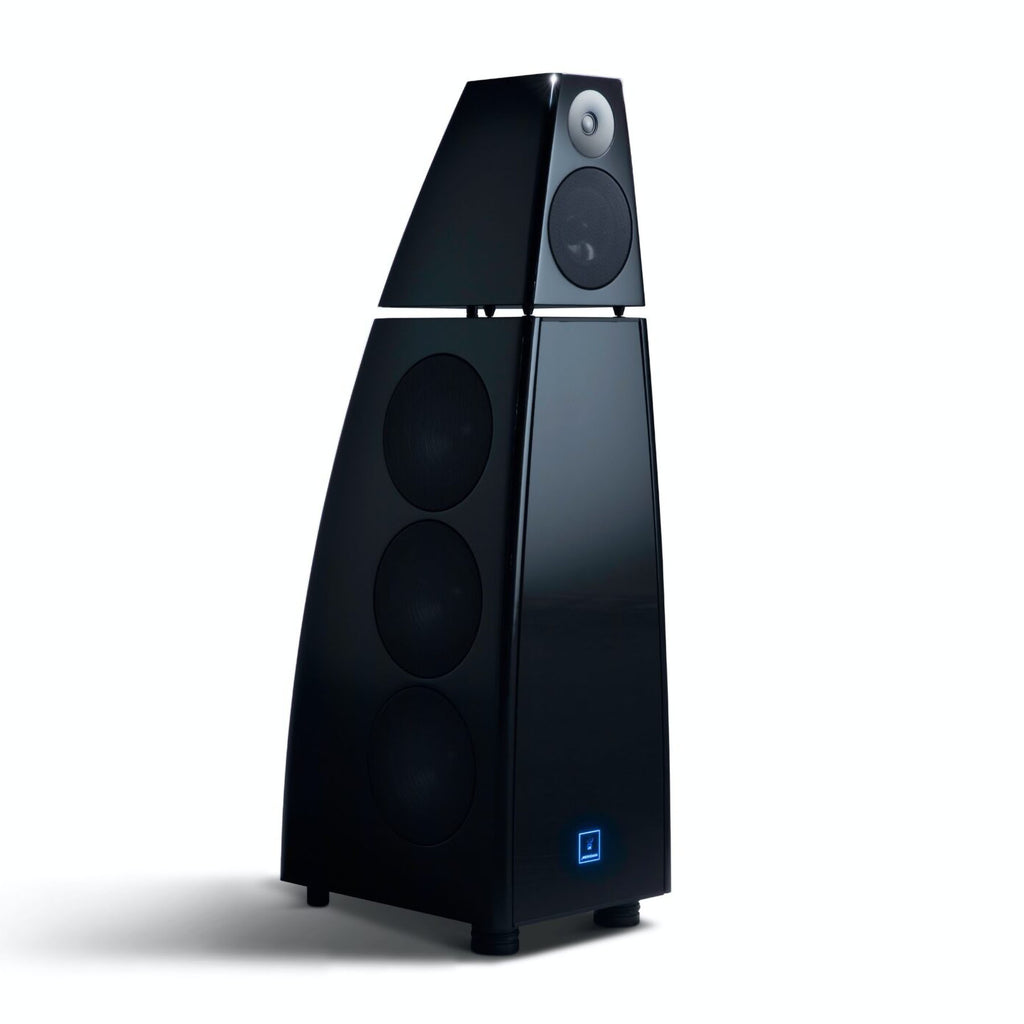

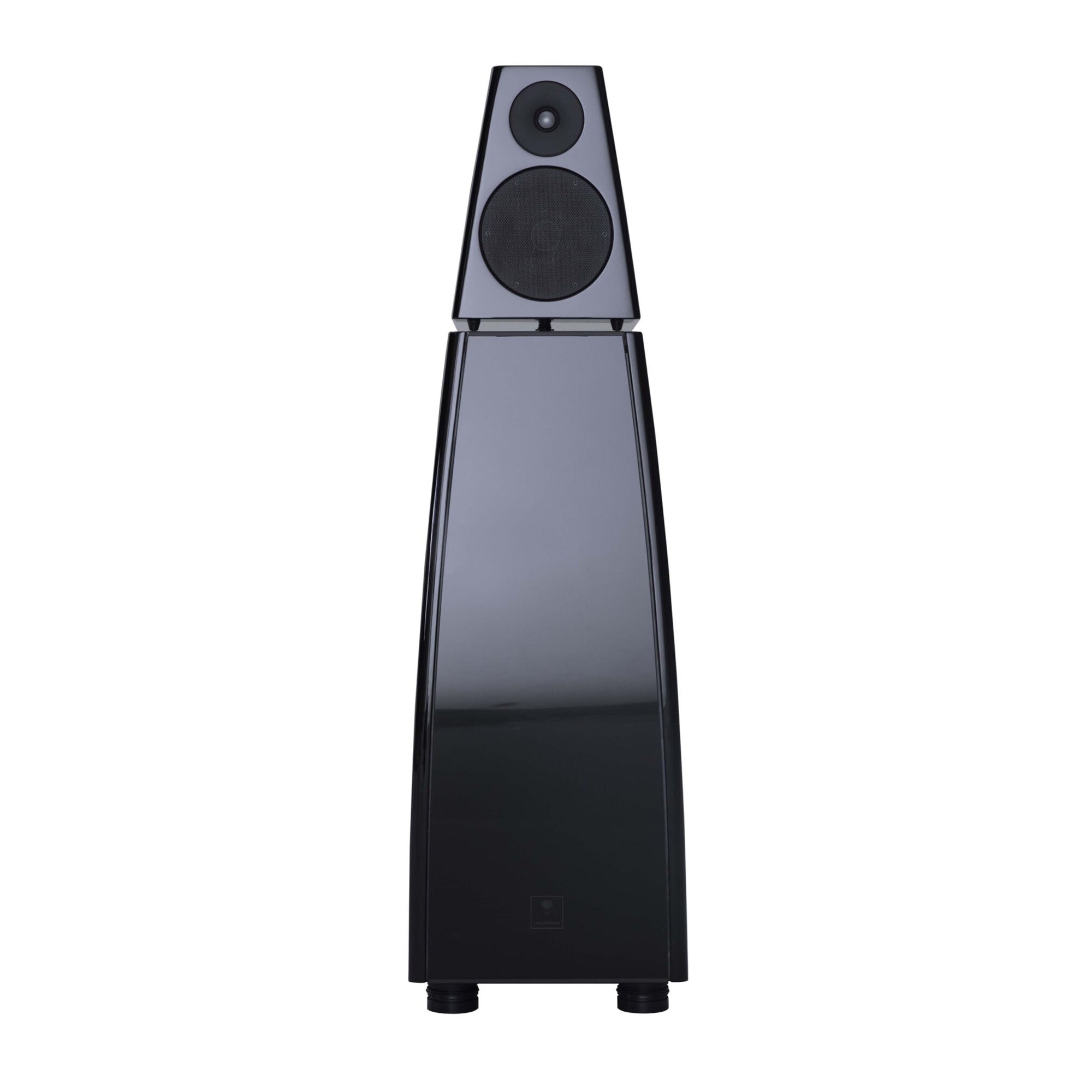

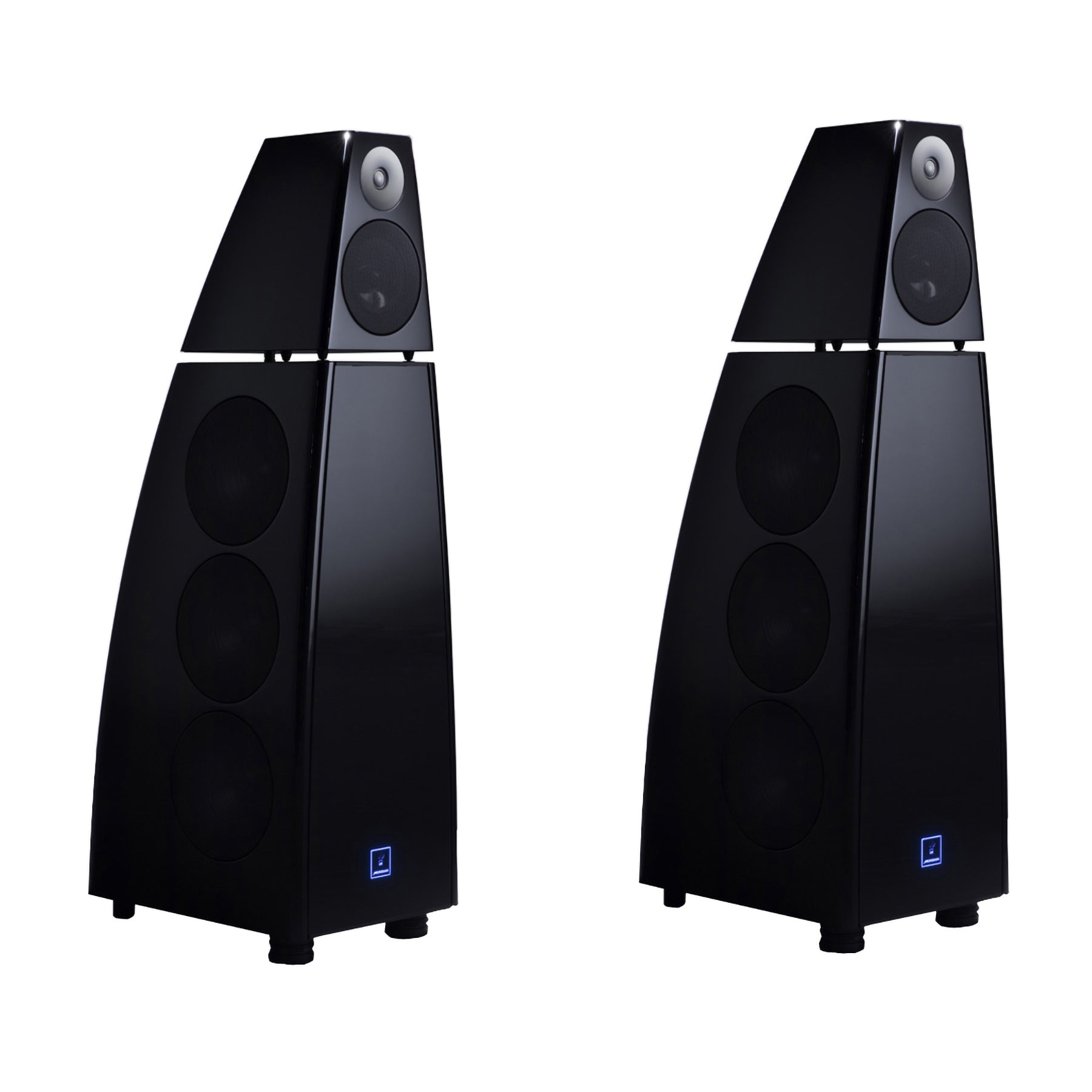

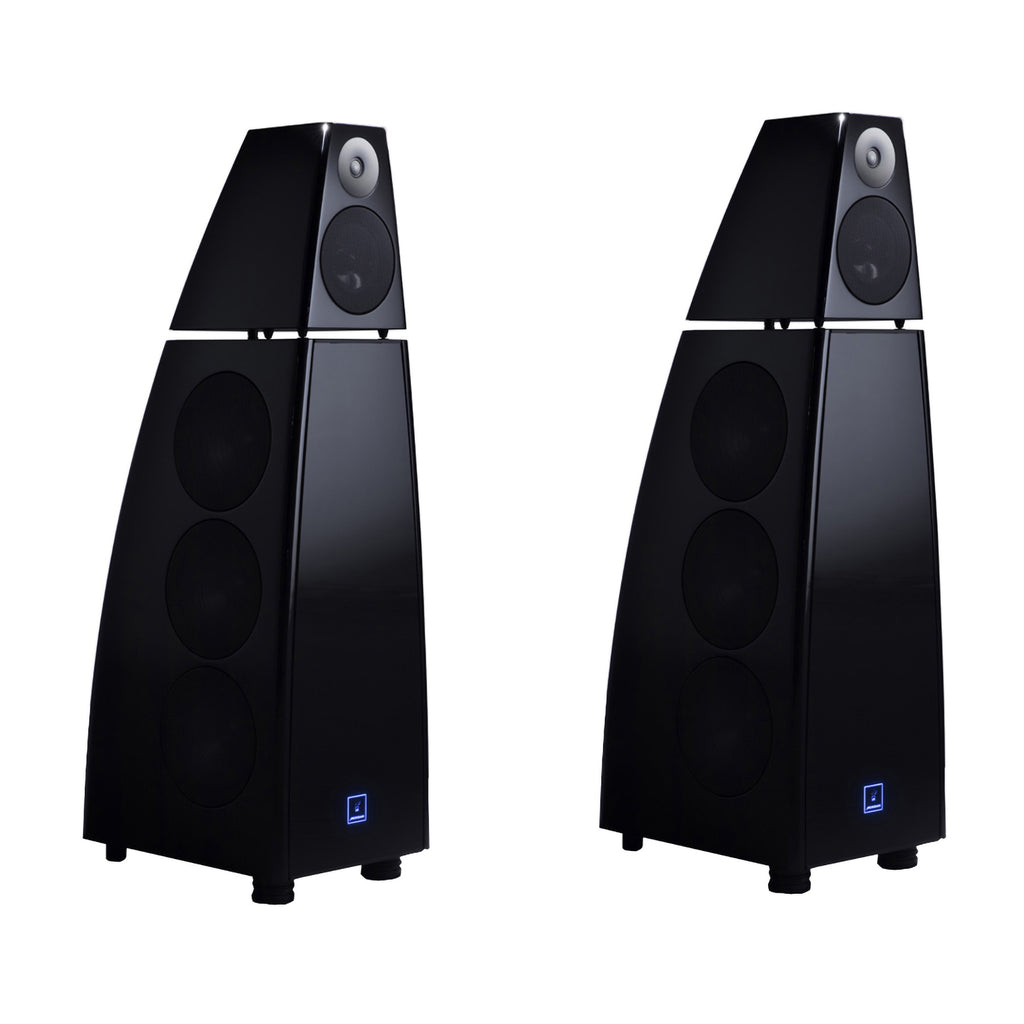

Meridian DSP8000 XE Floorstanding Loudspeaker (pair)
Meridian DSP8000 XE Floorstanding Loudspeaker (pair)
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: United Kingdom
Reference
DSP8000 XE
The Next Generation Loudspeaker
DSP8000 XE is the first product to emerge from Meridian’s groundbreaking Extreme Engineering Programme; a result of years of investment and research at the extreme edge of audio design and built upon the fundamental and unique elements of Meridian’s approach to delivering authentic, natural and lifelike sound.
A new design concept, Meridian’s Precision Sonic Transport, uses innovative techniques and processes which ensure the entire journey taken by an audio signal through a product maintains maximum sonic fidelity, so that the listener is immersed in authentic and realistic sound.
Finishes

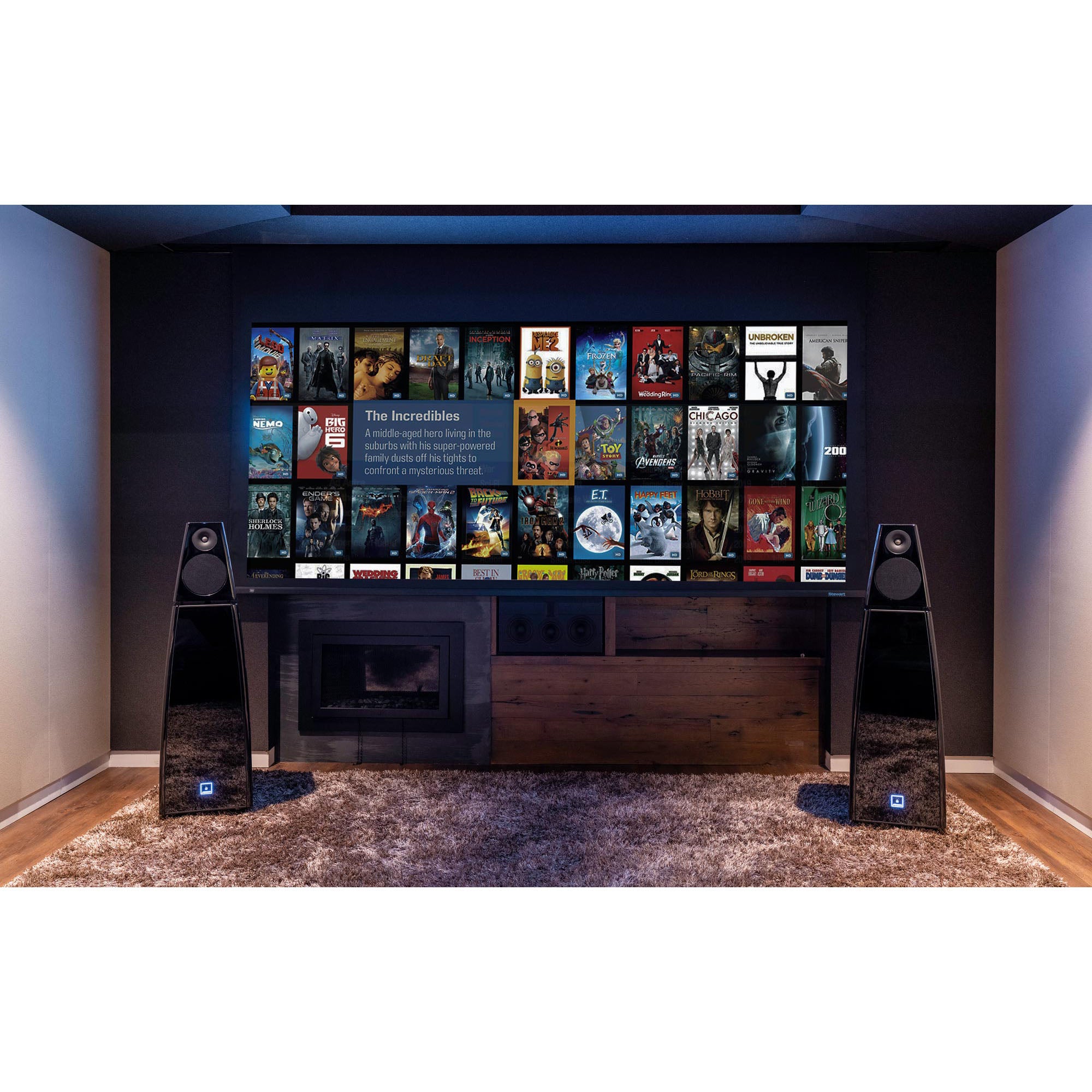

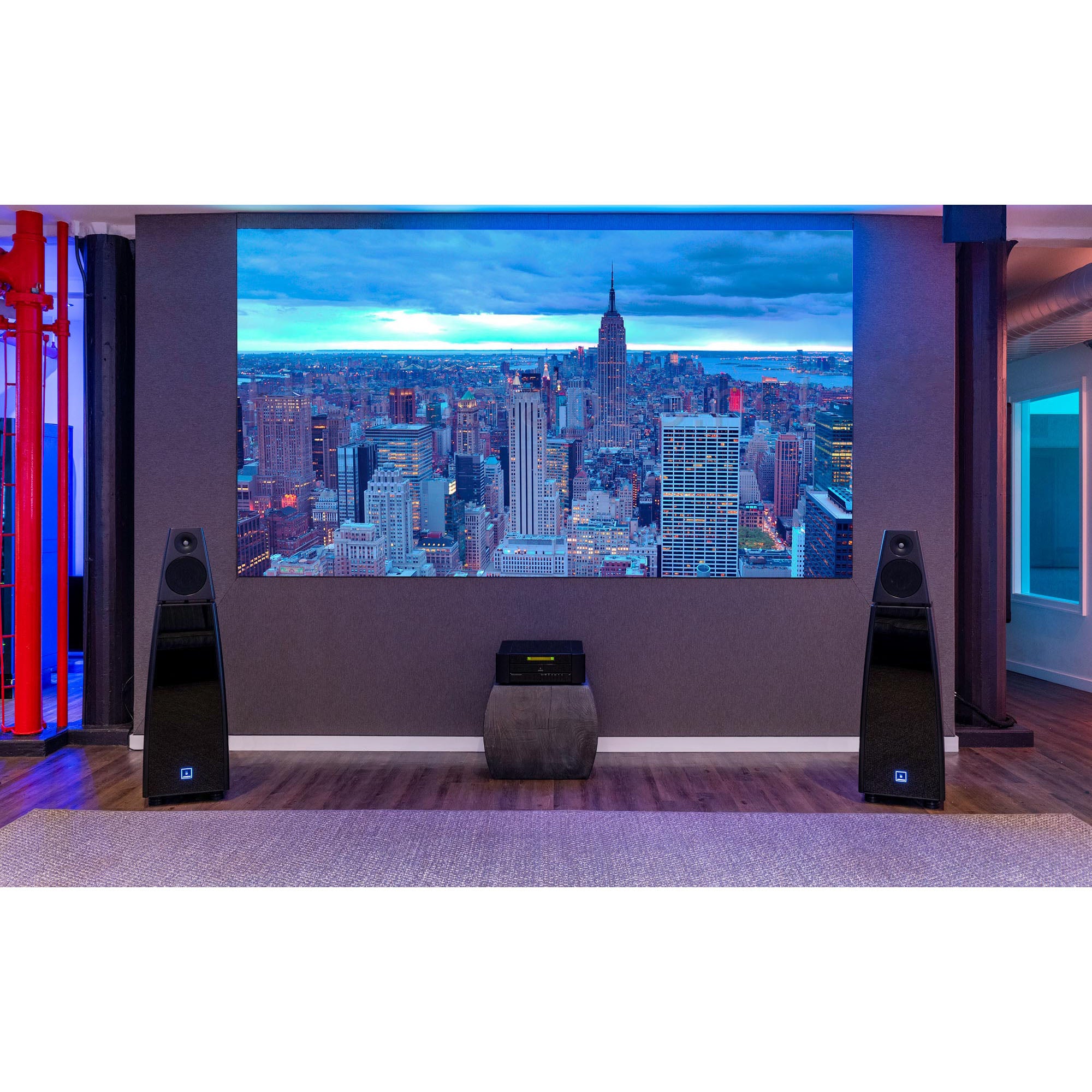

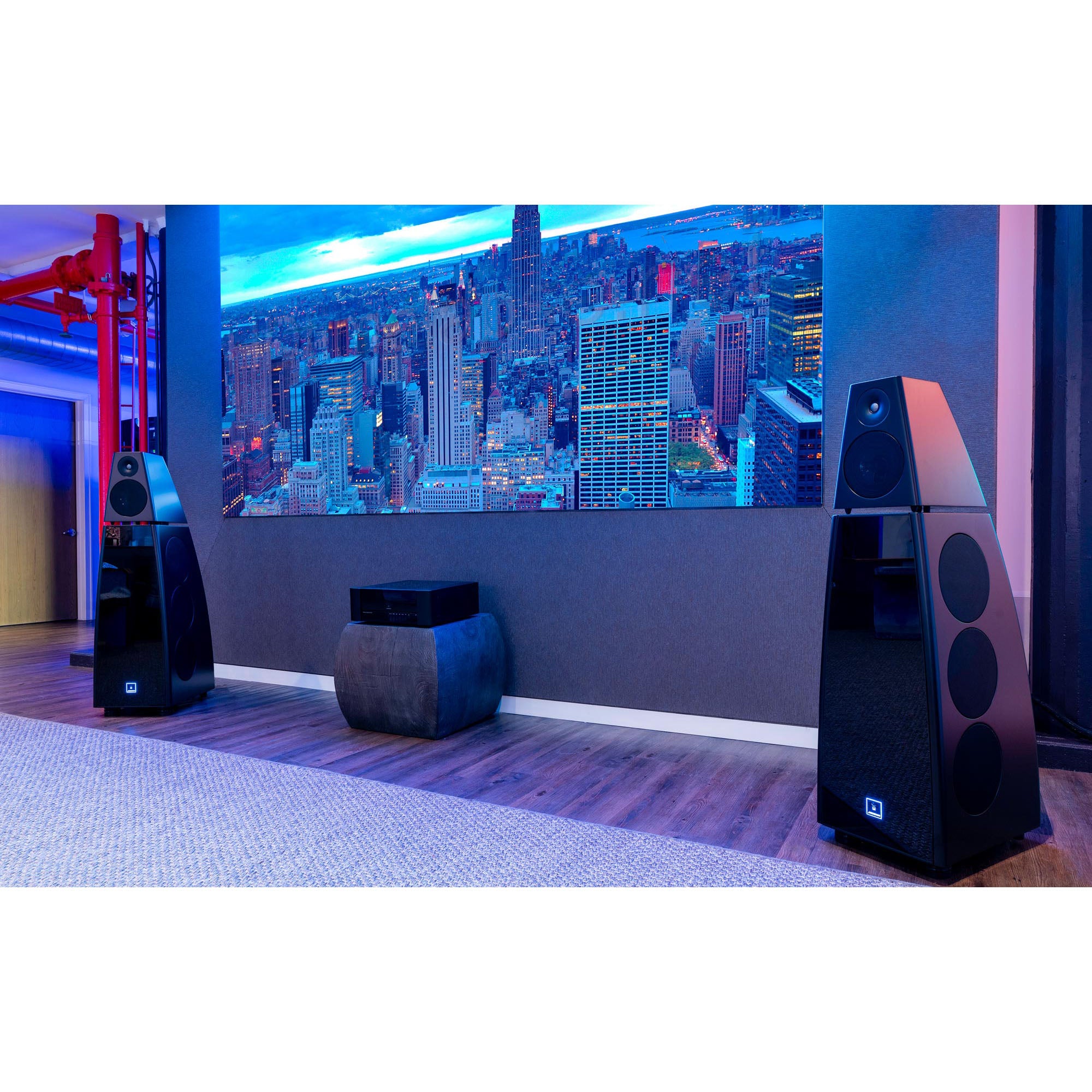

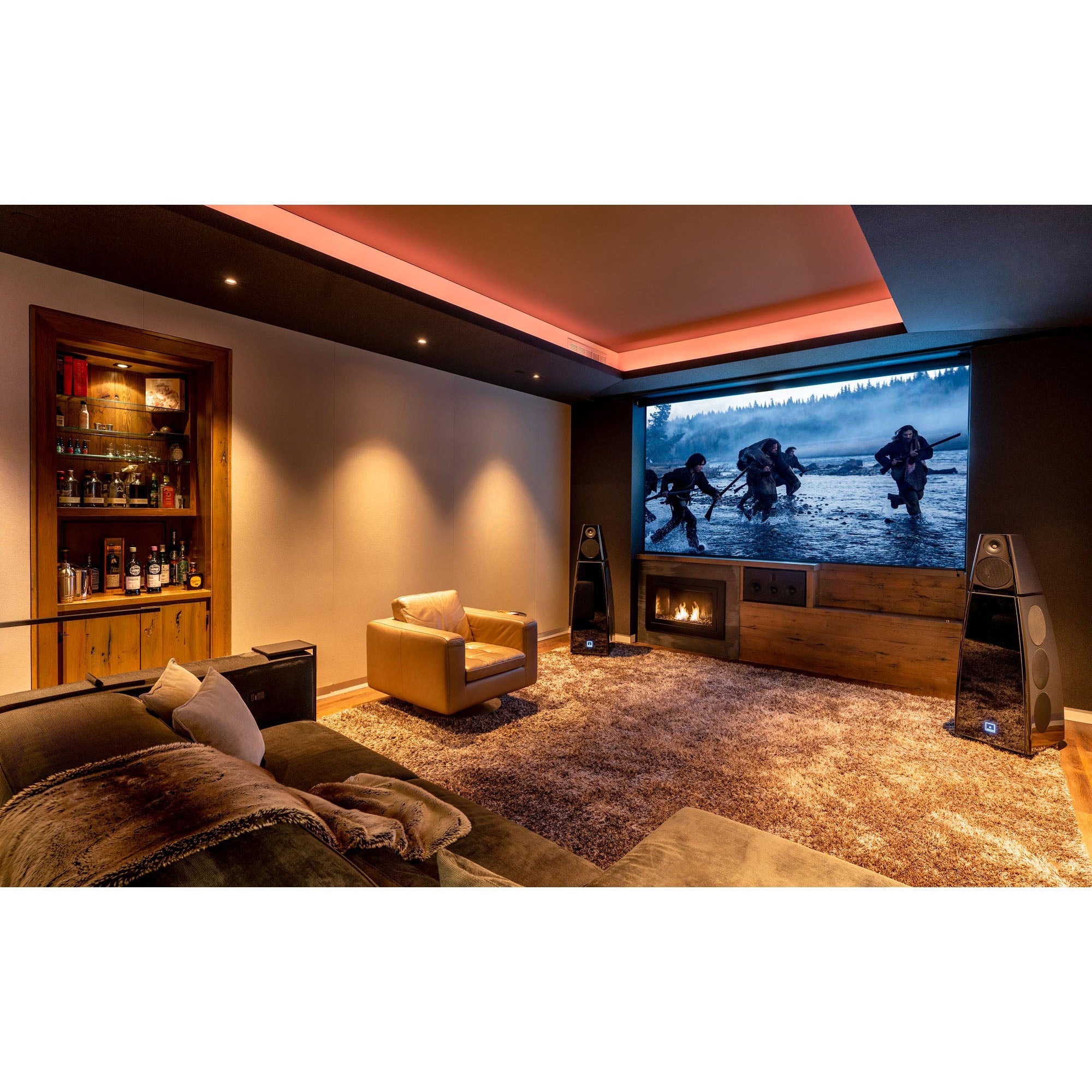

The outstanding fidelity, dynamics and sheer power of the DSP8000 XE Loudspeakers means they deliver an incredible experience in cinemas and listening rooms alike. Our Select finishing option gives you the choice of blending into the room with a complementary finish or standing out with a bold, vibrant colour, finished in matte or gloss.
Features
Bespoke Signal Mapping
Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.
E3 Bass
Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.
FFA
FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.
DSP8000 XE Uncovered - Featurette from Meridian Audio on Vimeo.
Q-Sync
Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.
Pro-Active Bass
Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.
MQA
DSP8000 XE includes MQA Renderer technology, which can connect to an MQA Core signal and complete the final unfold of an MQA file.
True Time
True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.
True Link
Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.
Free-Q
Meridian Free-Q is used to compensate for acoustic problems associated with specific loudspeaker placement conditions.
Construction

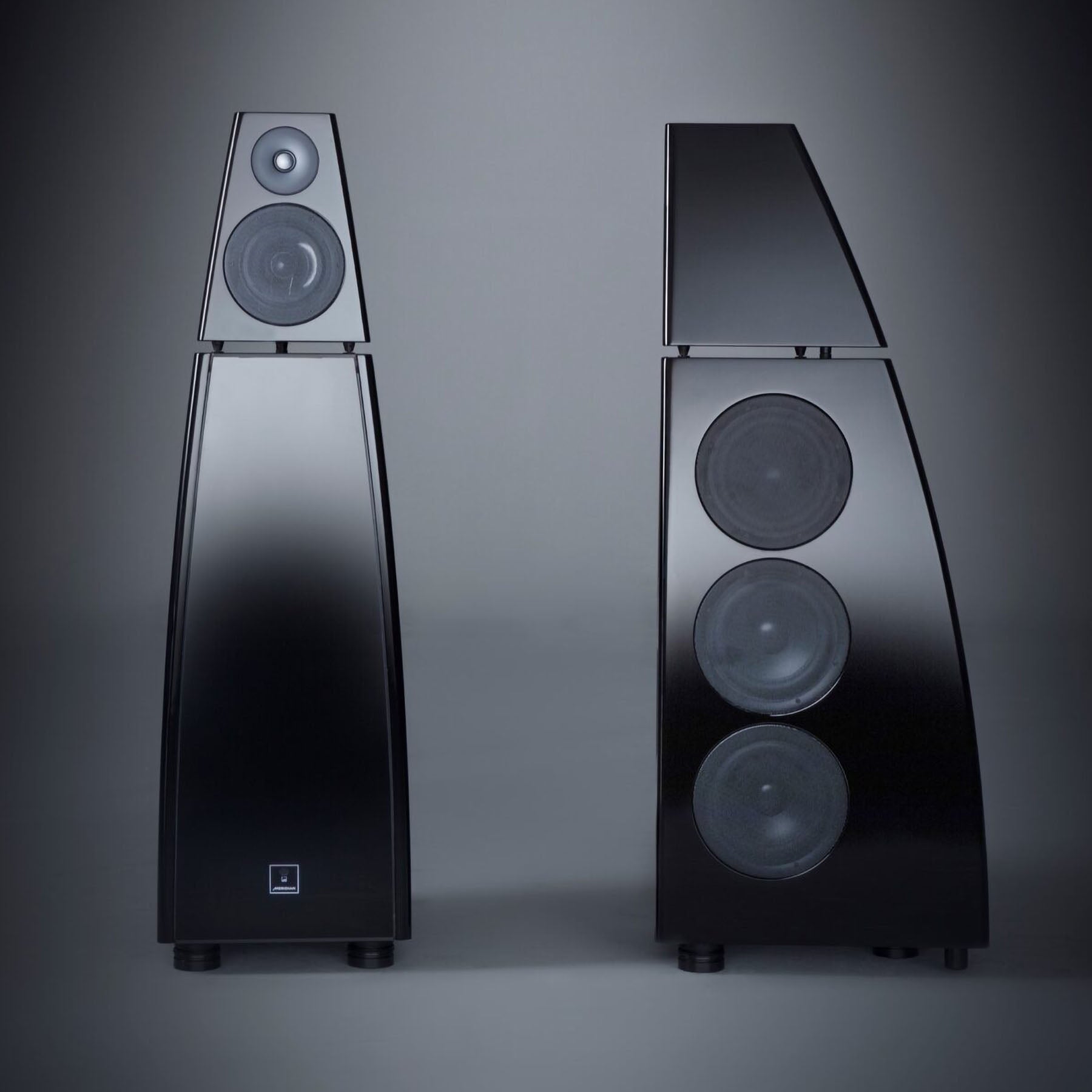

Separate head-unit isolates the all-new tweeter and mid-range driver from the main enclosure. Curved lines, based on an ellipse, contribute to rigidity and avoid parallel internal surfaces. Outer walls engineered from a layered combination of birch plywood, aluminium and resin are combined with substantial internal bracing to create an incredibly inert cabinet.
With an ability to deliver the very best from High Resolution sources, the performance of the DSP8000 XE demonstrates why Meridian is widely regarded as the British Audio Pioneers.
Input Connectivity
Meridian SpeakerLink connector (RJ45)
1 x co-axial digital audio [RCA phono] supporting up to 192kHz @ 24-bit
1 x optical digital audio [Toslink] supporting up to 96kHz @ 24-bit
1 x USB digital audio [type C] supporting up to 384kHz @ 24-bit
Bluetooth via the Meridian B-Link [supplied]
1 x balanced analogue audio [XLR] on IA21 Analogue Input Module
1 x unbalanced analogue audio [RCA phono] on IA21 Analogue Input Module
Output Connectivity
1 x Meridian SpeakerLink connector (RJ45)
Performance
Peak SPL: 120dB@1m for a single speaker
Frequency response in room within 3dB: 18Hz – 40kHz
Tweeter Amplifier
Class AB, capable of greater than 150W into 4Ω, < 1% THD
THD + noise @ 1kHz < 0.005%
Bandwidth >100kHz
Mid-Range Amplifier
Class AB, capable of greater than 150W into 4Ω, < 1% THD
THD + noise @ 1kHz < 0.005%
Bandwidth >100kHz
Bass Amplifiers
Six bridged pairs of Class-D amplifiers - each pair capable of greater than 240W into 4Ω, < 1% THD.
THD + noise @ 1kHz < 0.008%
Tweeter
25mm beryllium dome with silver voice-coil, steel custom faceplate and waveguide
Mid-Range Driver
1 x 160mm with non-conductive voice-coil former and anti-resonance clamp-ring mounting system

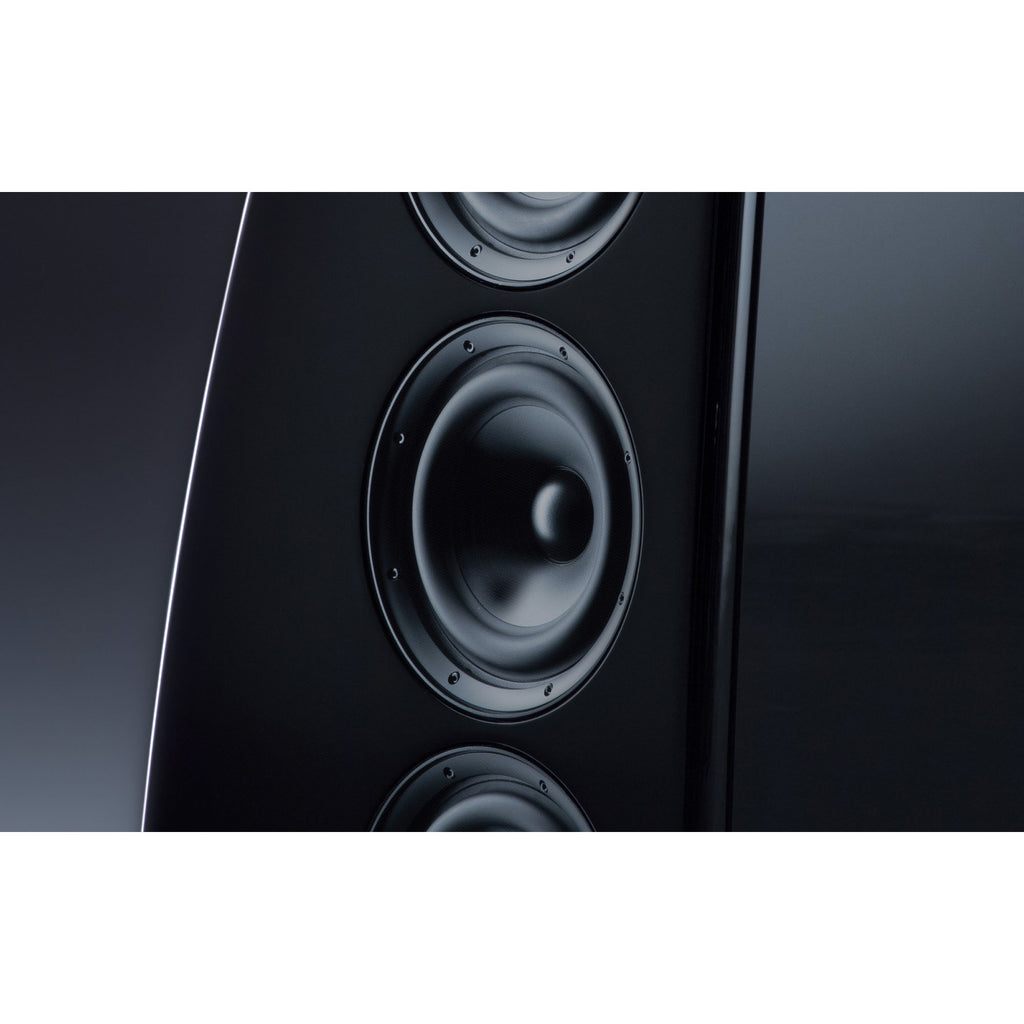

Bass Drivers
6 x 200mm polypropylene long-throw (up to 24mm excursion) with anti-resonance clamp-ring mounting system
Front-Panel Indicator
Blue in Standby, White in use (can also be unlit in use)
Rear-Panel Controls
Power On/Off, channel selector switch, input sensitivity switch [on analogue input module]
Dimensions / Weight
HEIGHT: 1350mm [53.2in] (With feet/spikes)
WIDTH: 400mm [15.7in] tapering to 158mm [6.2in]
DEPTH 528mm [20.8in] tapering to 210mm [8.3in]
WEIGHT: 110.5kg [243lbs]
Power
1250W max
