Meridian Audio DSP3300 Active Loudspeaker (single)
Meridian Audio DSP3300 Active Loudspeaker (single)
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin:
United Kingdom
Contact Geoff for Additional Colour Options
Performance
DSP3300
The DSP3200 is a compact loudspeaker that provides a powerful performance well beyond its compact size and is designed for intimate listening spaces or as part of a larger installation.
The DSP3200 employs Meridian’s award-winning DSP technologies with two integrated amplifiers, on-board digital signal processing and two drivers.

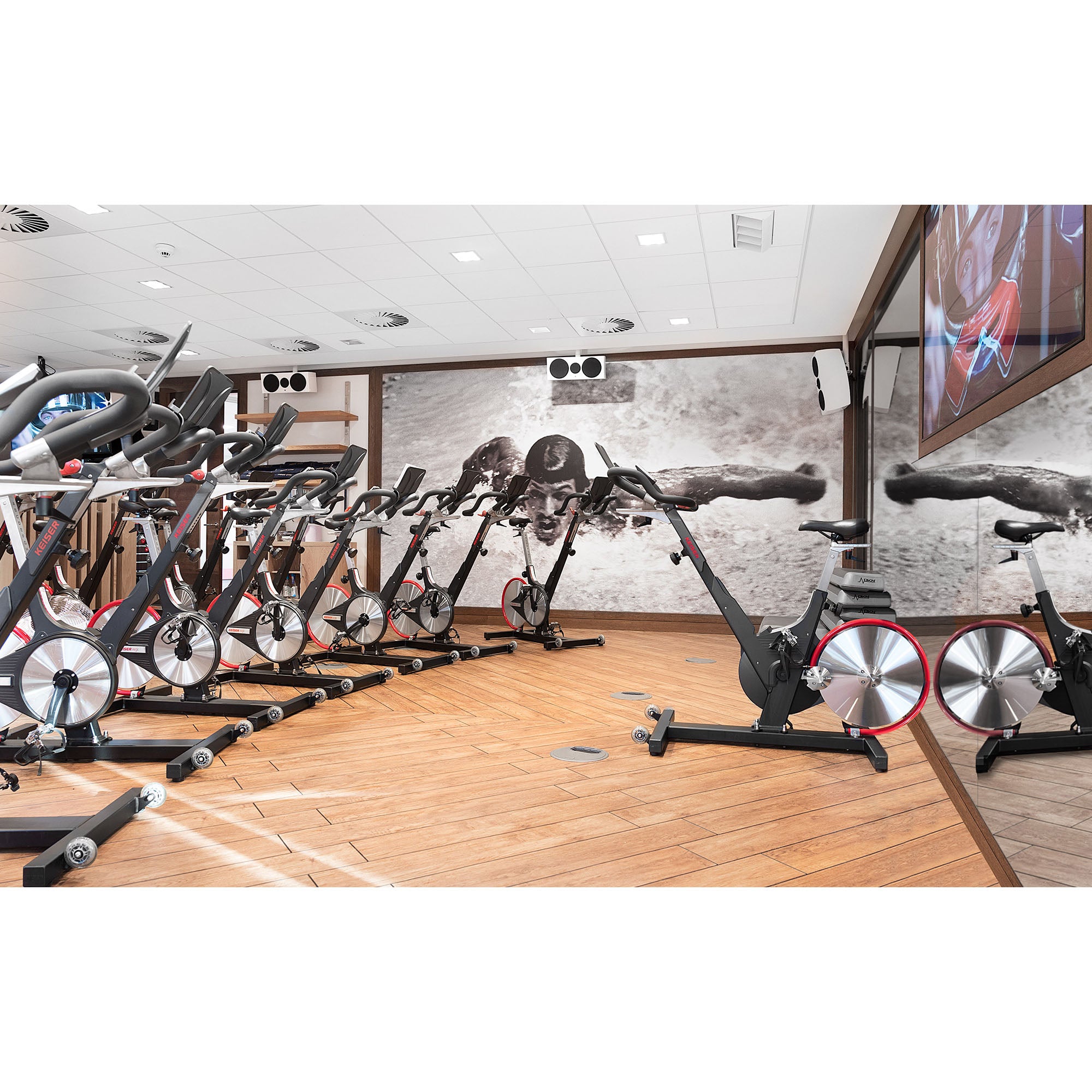

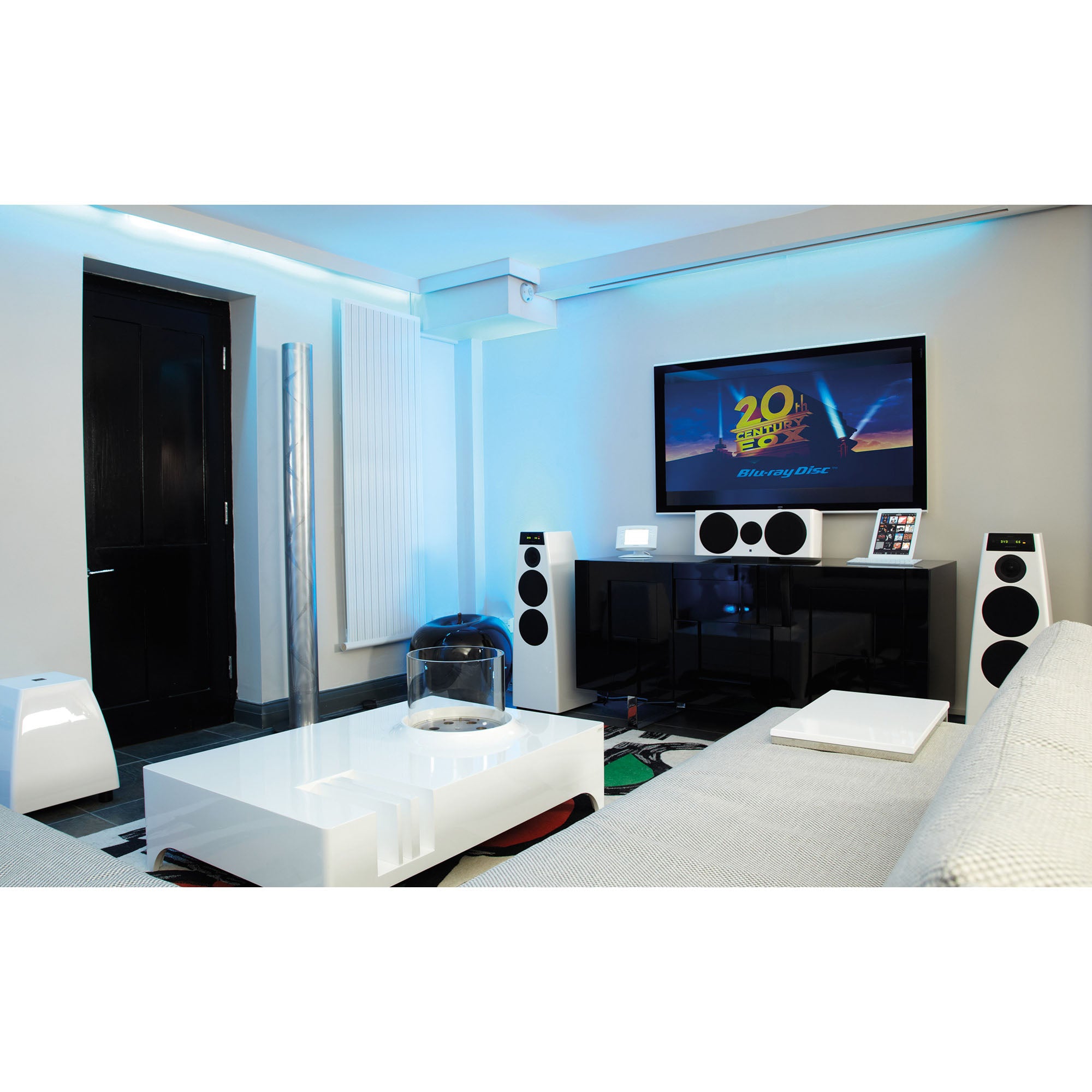

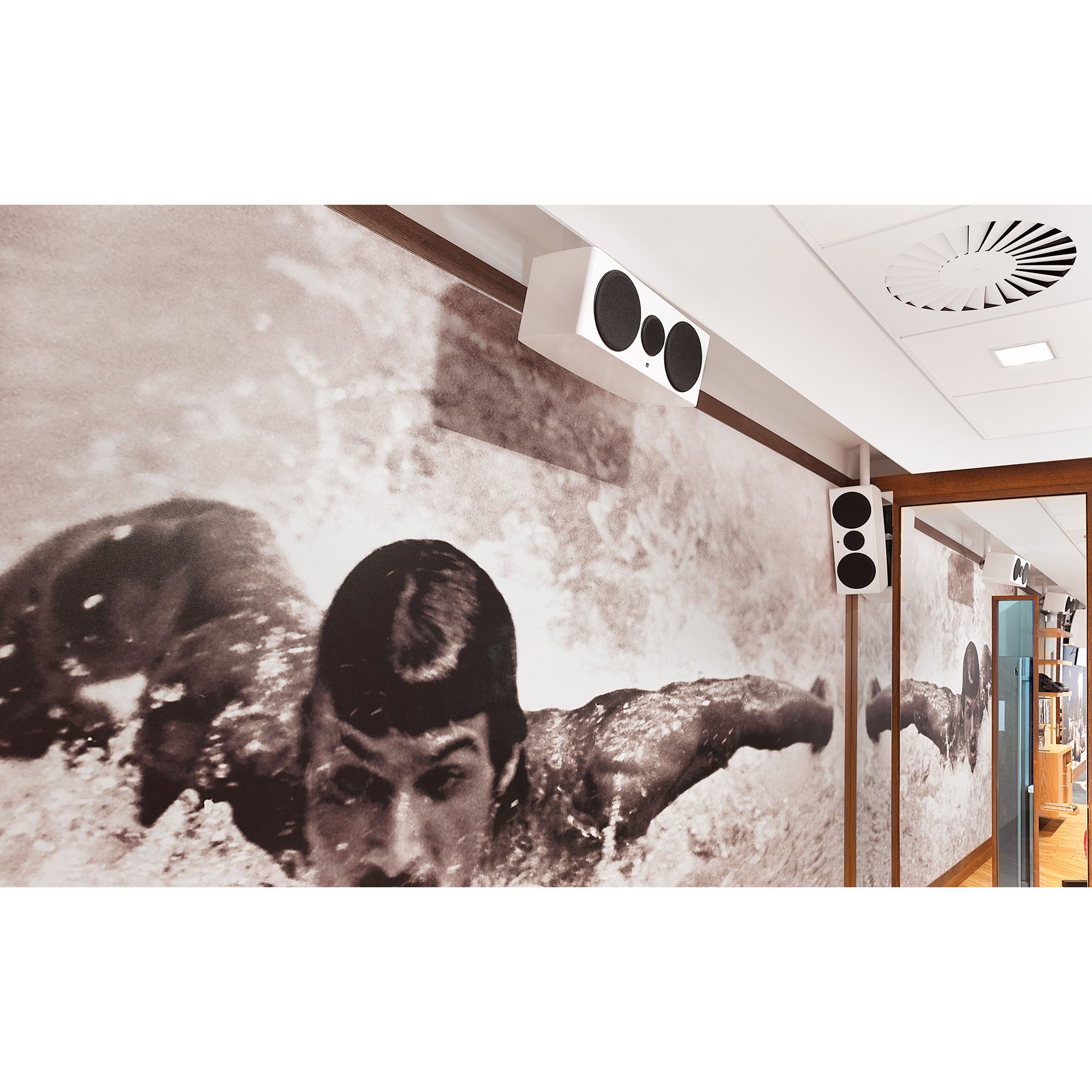

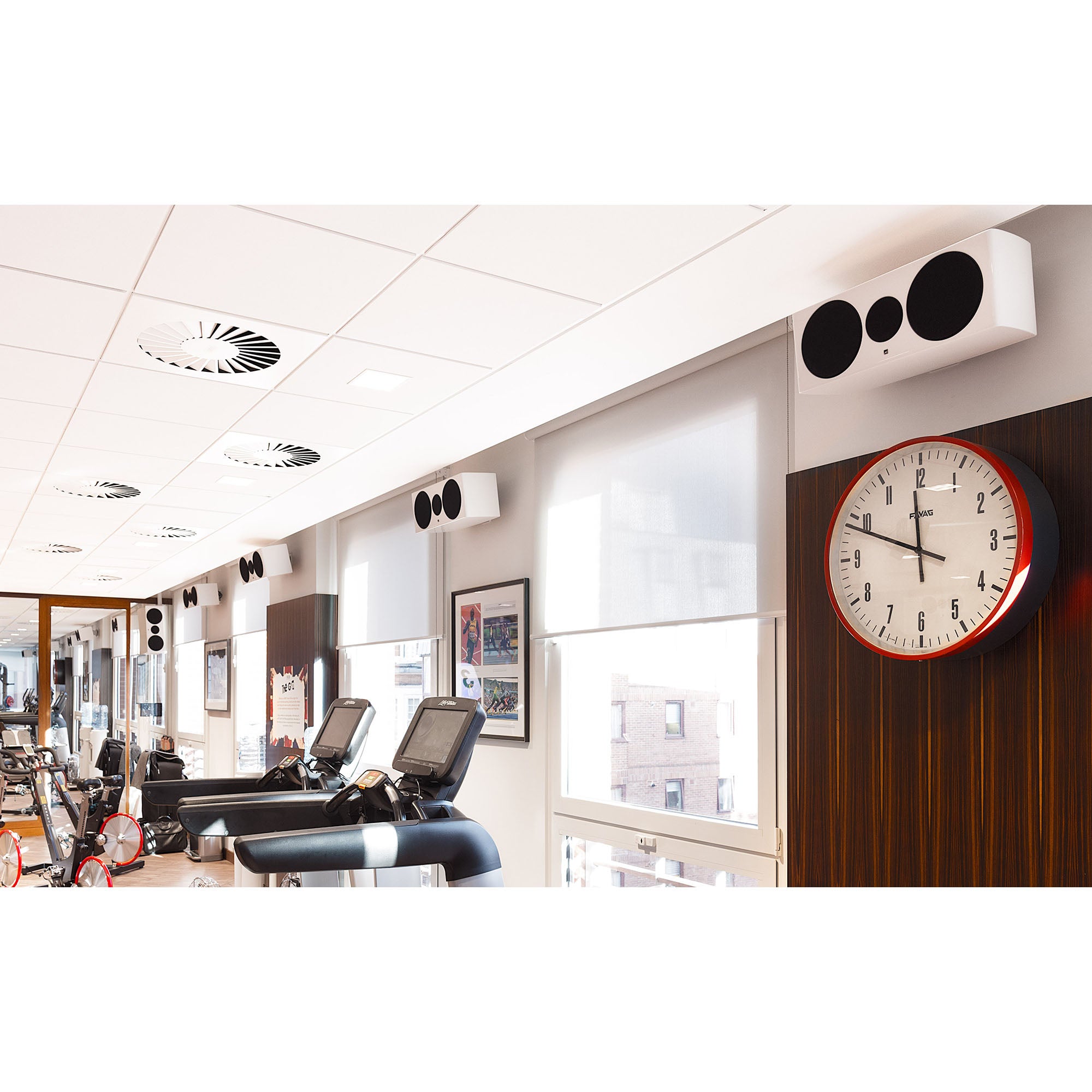

The DSP3200 is suited for use in a wide variety of locations including bookshelf, on wall and on floor stands. The speakers are also ideal for use in multi-room installations and home cinemas and are the perfect partner for the Meridian 218 Zone Controller which can be connected by SpeakerLink cables.
Finishes

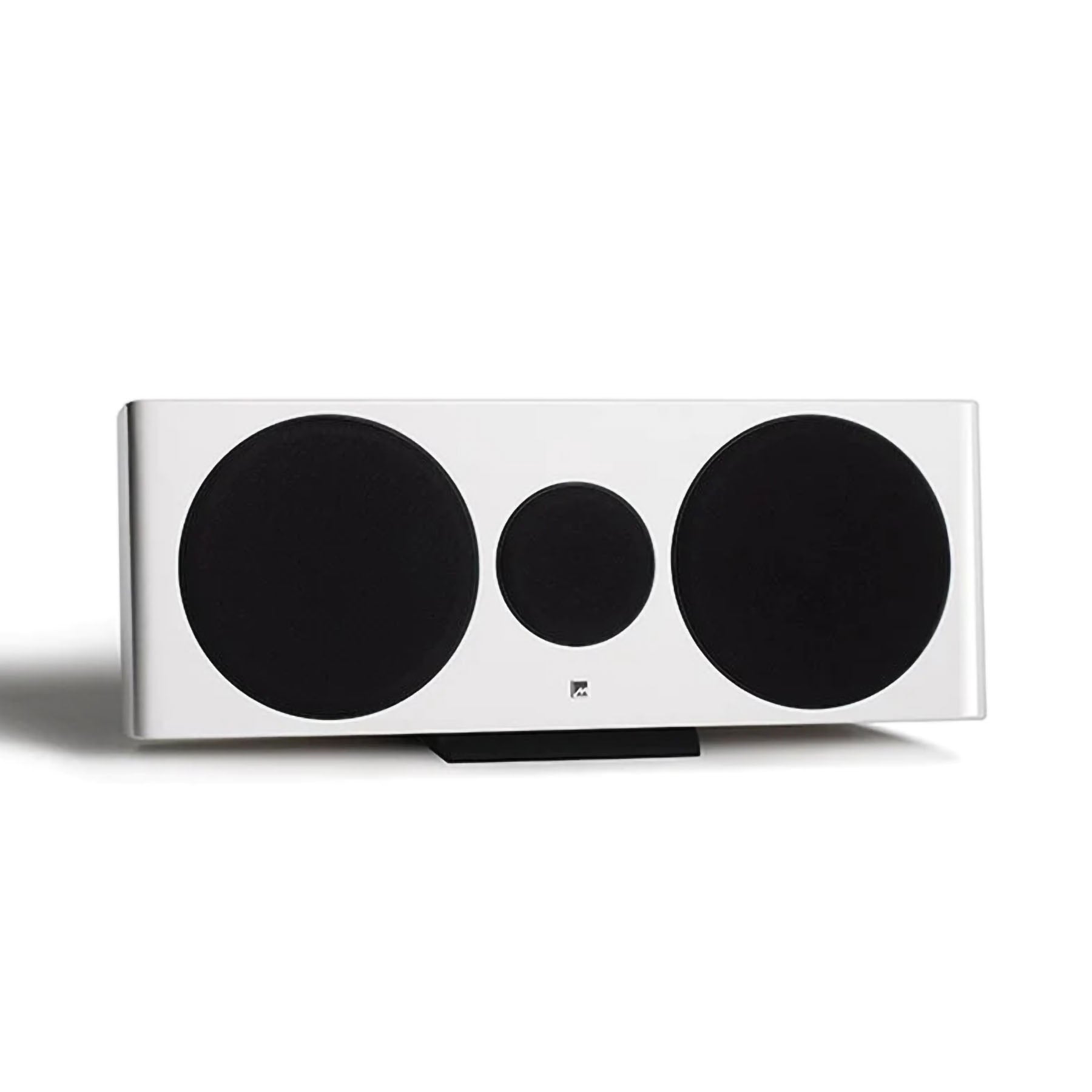

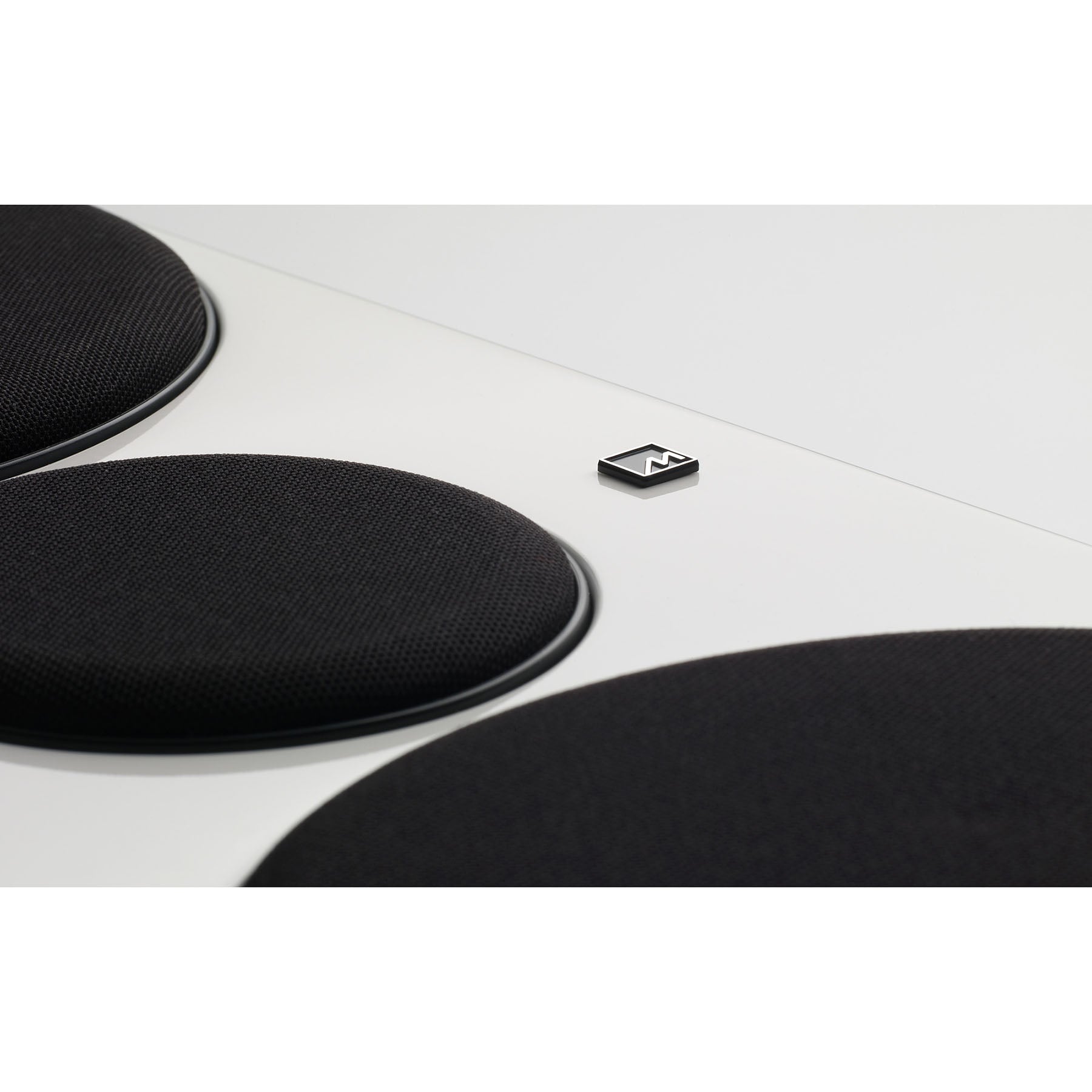

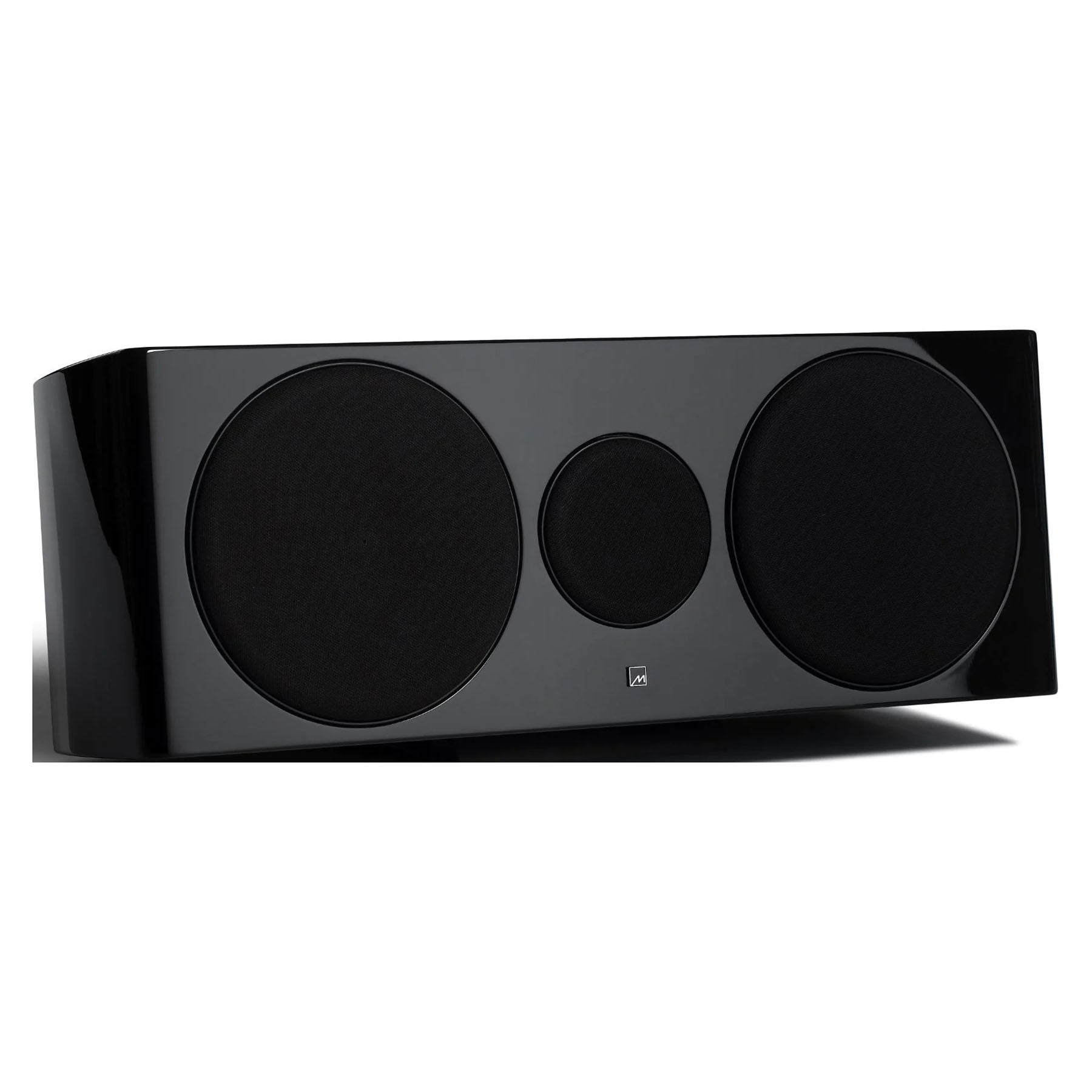

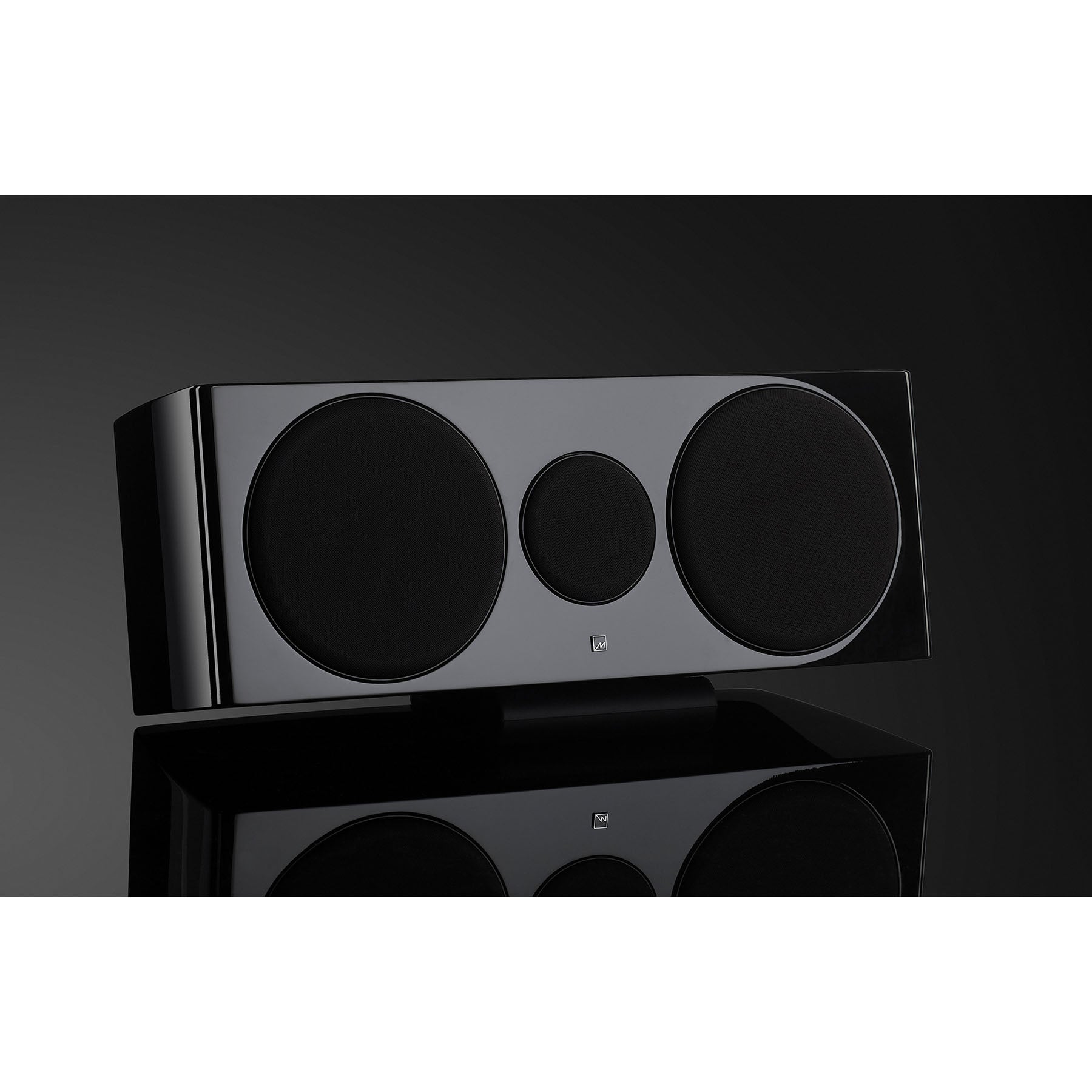

Beautifully mirroring the curves of our larger loudspeakers, this compact loudspeaker delivers as much quality sound as a conventional loudspeaker of eight times the physical volume - delivering the atmosphere and emotion of a live performance straight into the home. The precision-manufactured cabinet is finished in high-gloss black and is perfectly suited to an extensive variety of room locations including bookshelf, on wall, as well as on floor stands. Its size makes it the perfect partner to other Meridian DSP loudspeakers in a variety of installations.
Features
Bespoke Signal Mapping
Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.
E3 Bass
Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.
FFA
FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.
Q-Sync
Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.
Pro-Active Bass
Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.
Pro-Active Thermal
Meridian Pro-Active Thermal monitors the audio being sent to the wide-range driver and limits the overall volume of the loudspeaker if there is a risk of the drive unit getting too hot.
True Time
True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.
True Link
Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.
Free-Q
Meridian Free-Q is used to compensate for acoustic problems associated with specific loudspeaker placement conditions.
THE SCIENCE OF EMOTION
Meridian’s incredible innovations can transport the listener to the emotions of a live performance.
The Versatile range comprises a collection of loudspeakers that offer innovative and compact designs without compromise. Featuring individual components that are perfectly matched and sonically balanced, they deliver a level of performance that is unsurpassed by traditional speaker design.
The DSP3300 and DSW.2 Subwoofer also benefit from compact footprints. Finished as standard in piano lacquered black, the loudspeakers within the Versatile range are also available in any of the 270 Meridian Select colours (with the exception of the M6). The Versatile range combines elegant design with innovative audio technologies to deliver an authentic sound experience - whether they are used on their own or as part of a larger installation.

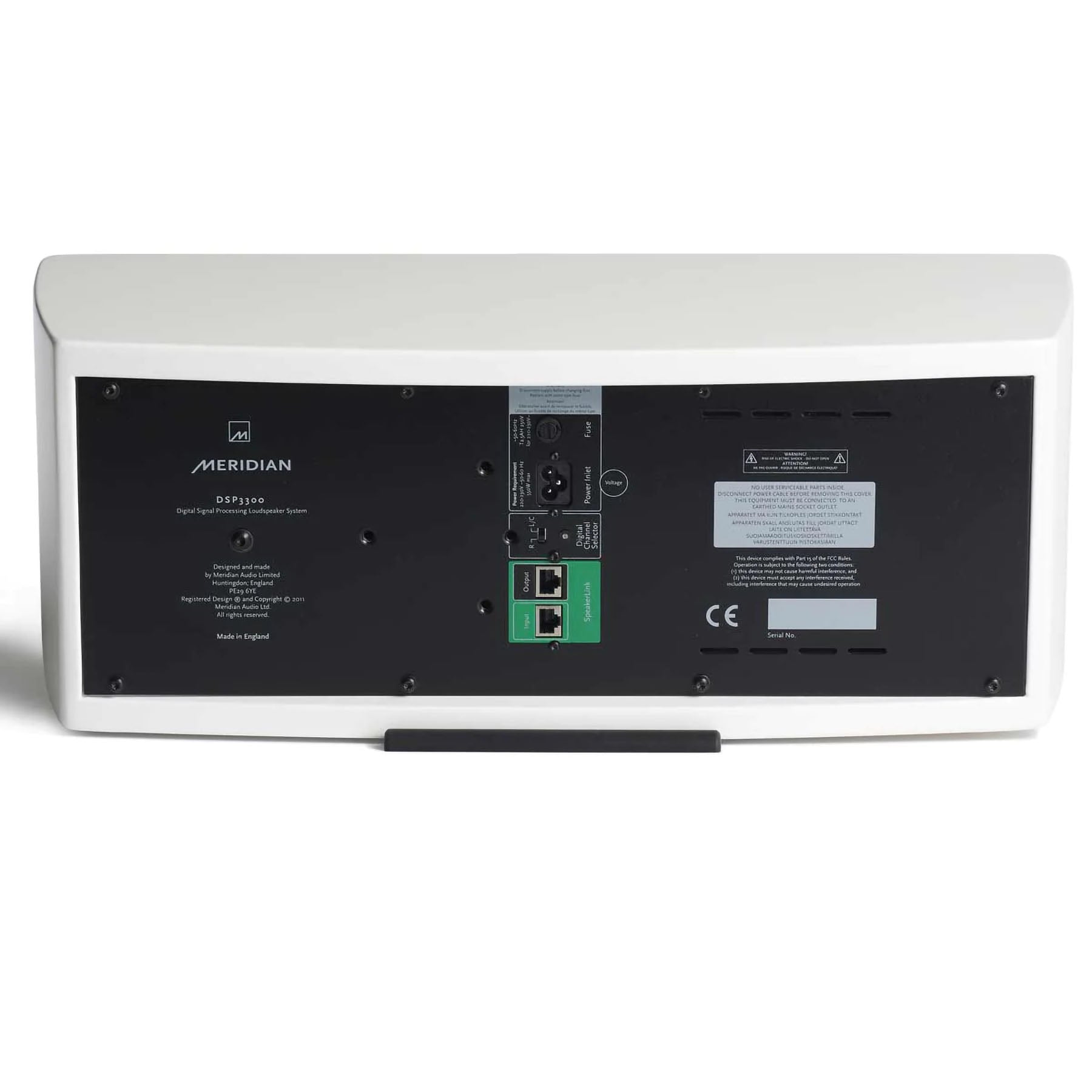

AUDIO INPUT
1 x Meridian SpeakerLink (RJ45) accepting 32kHz to 96kHz sampling rates at up to 24-bit
AUDIO OUTPUT
1 x Meridian SpeakerLink (RJ45) delivering 32kHz to 96kHz sampling rates at up to 24-bit
PERFORMANCE
Peak SPL: 114dB at 1m
Noise less than 15dB SPL
Frequency response in-room within 3dB: 45Hz to over 20kHz
AMPLIFIERS
2 x 75w (150 w)
Overall distortion typically <0.02% at any frequency or level
BASS DRIVERS
2 x 165mm polypropylene long throw bass drivers
Wide-range Driver
1 x 85mm aluminium cone wide-range driver
DIMENSIONS / WEIGHT
HEIGHT: 206mm [8.1in]
WIDTH: 555mm [21.9in]
DEPTH: 235mm [9.25in]
WEIGHT: 11.5kg [25.3lbs]
POWER
550W (maximum)
