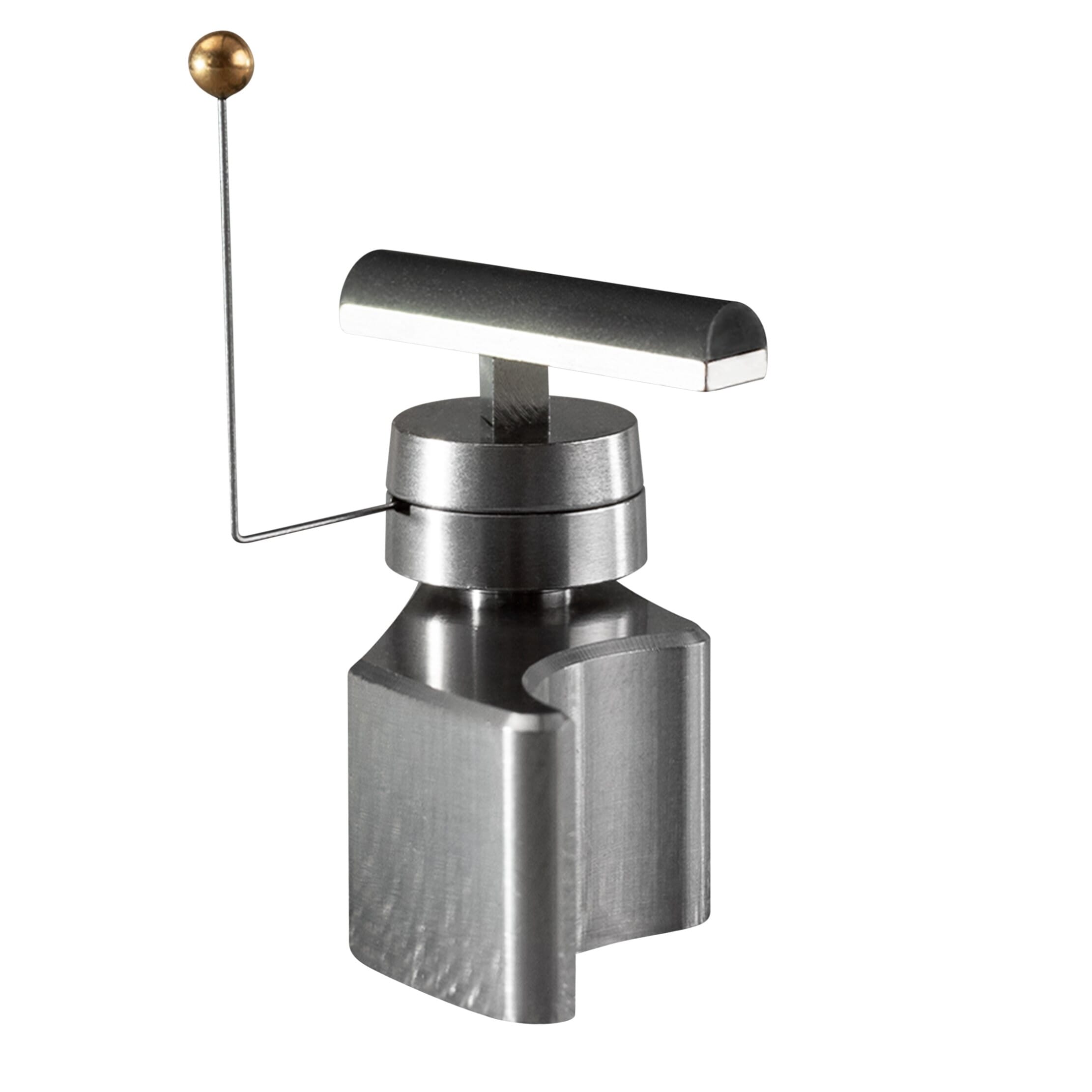

Disco Mk2

Little Fwend Automatic Tonearm Lifter

Custom machined to fit every Technics SL-1200 version from the 1979 Mk2 and up to the latest high-end models.

The new upgraded Disco is no longer made from lightweight aluminium, but machined from solid brass and then nickel plated. The functional upgrade is that it now comes with a magnet mount instead of a double-sided adhesive. You can just lift it off the mounting platform to readjust the trigger point or height level. The hex set screw dimension is also changed to the larger M3, so if (or when) you loose the Allen key in your long-haired rug, you can use a standard 1.5mm Allen key instead of the original 0.9mm very non-standard size.

The adjustable height range is based on use with the standard 5.8mm rubber mat and Technics tonearm. f you have modified your turntable or use other configurations, there is an extra double-sided adhesive in the toolkit so you can go lower by omitting the 0.5mm mounting platform.

Lifting Mechanism: Safe. Smooth. Silent. Those were the most important aspects of the design. We experimented a lot finding the right relationship between spring compression force, travel, dampening and friction. Little Fwend lifts the tonearm smoothly and controlled with minimum use of force (and a little help from Newtons fwends). Little Fwend can lift tonearms with cartridges set up to 5 grams VTF.

Release Antenna: High carbon steel Roslau piano wire. Very low lateral force is required to release the mechanism.

Rubber Beam. Neoprene rubber padding lets the tonearm rest safely and stable even with the level a few degrees off both horizontally and vertically.

Height Ranges. Little Fwend comes in two different sizes, Low and High. The Low model can be used under tonearms with clearance between the underside of the arm wand and the mounting surface as low as 32mm, up to 49mm. the High model from 49mm, up to 82mm. Height is adjusted by a set screw in the base. The appropriate hex key is enclosed. Please measure the distance from mounting/plinth surface up to the underside of tonearm wand. Take the measurement when the tonearm has correct VTA and the needle is in the groove. Subtract approx. 1mm from this distance, to make sure there will be safe clearance between the rubber beam and the moving tonearm.

New to the range is the DISCO version which has been designed to suit the Technics SL-1210/1200 Mk2/3/4/5/6/7/LTD/G/GR/GAE with the standard tonearm.

Mounting Platform. 0.3mm steel disc with a Scotch 3M restickable dot as a mounting base (so no adhesive residue is left on your plinth). Little Fwend is fastened to the platform through magnetic force. The axially magnetised N52-magnet in the base is strong enough to keep Little Fwend in place, but weak enough to easily reorient the trigger antenna for the various run-out groove areas. Little Fwend is readjusted in seconds. The diametrical magnetic field is very low and will not affect magnetic metals in the radius of the base.

How to Mount Little Fwend?
