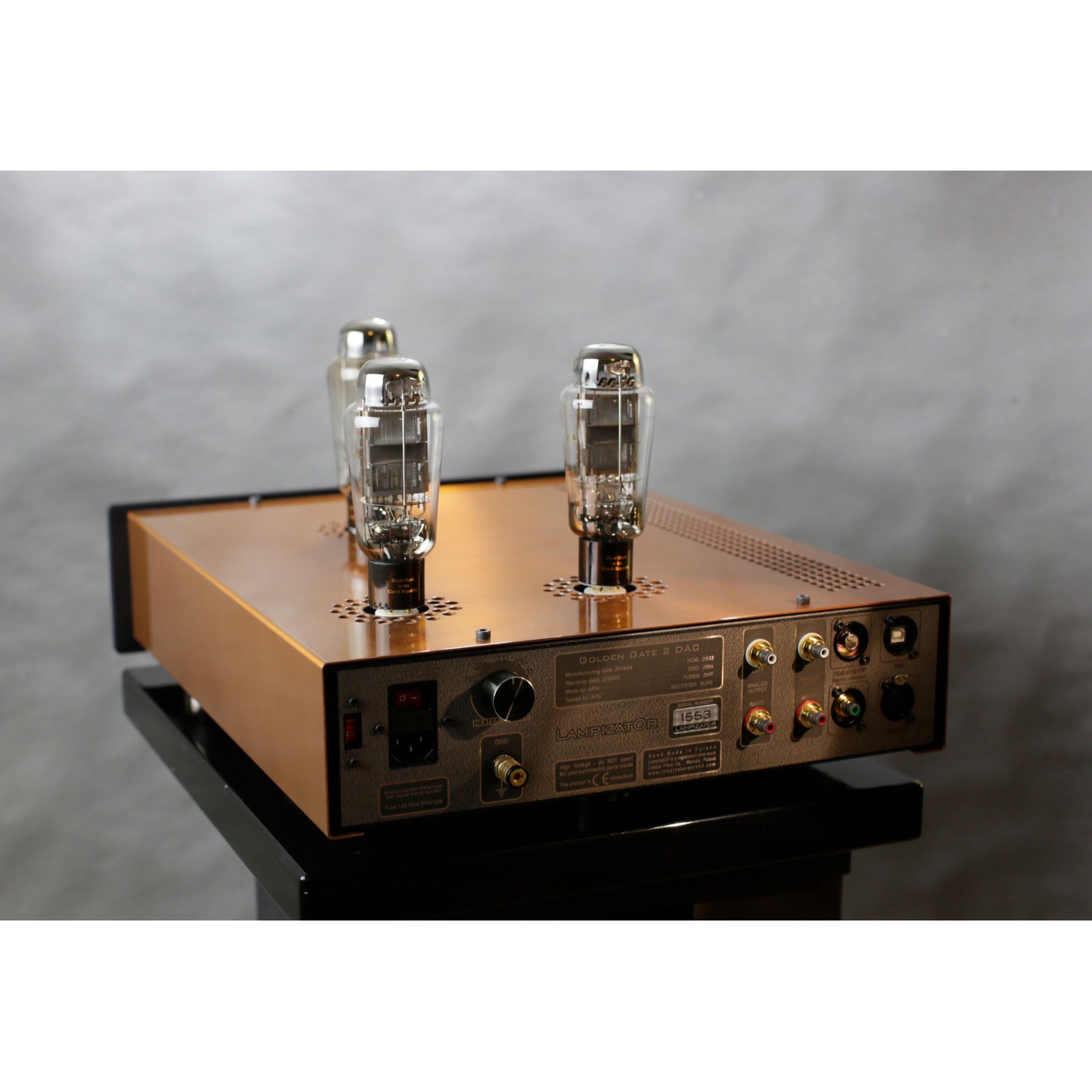

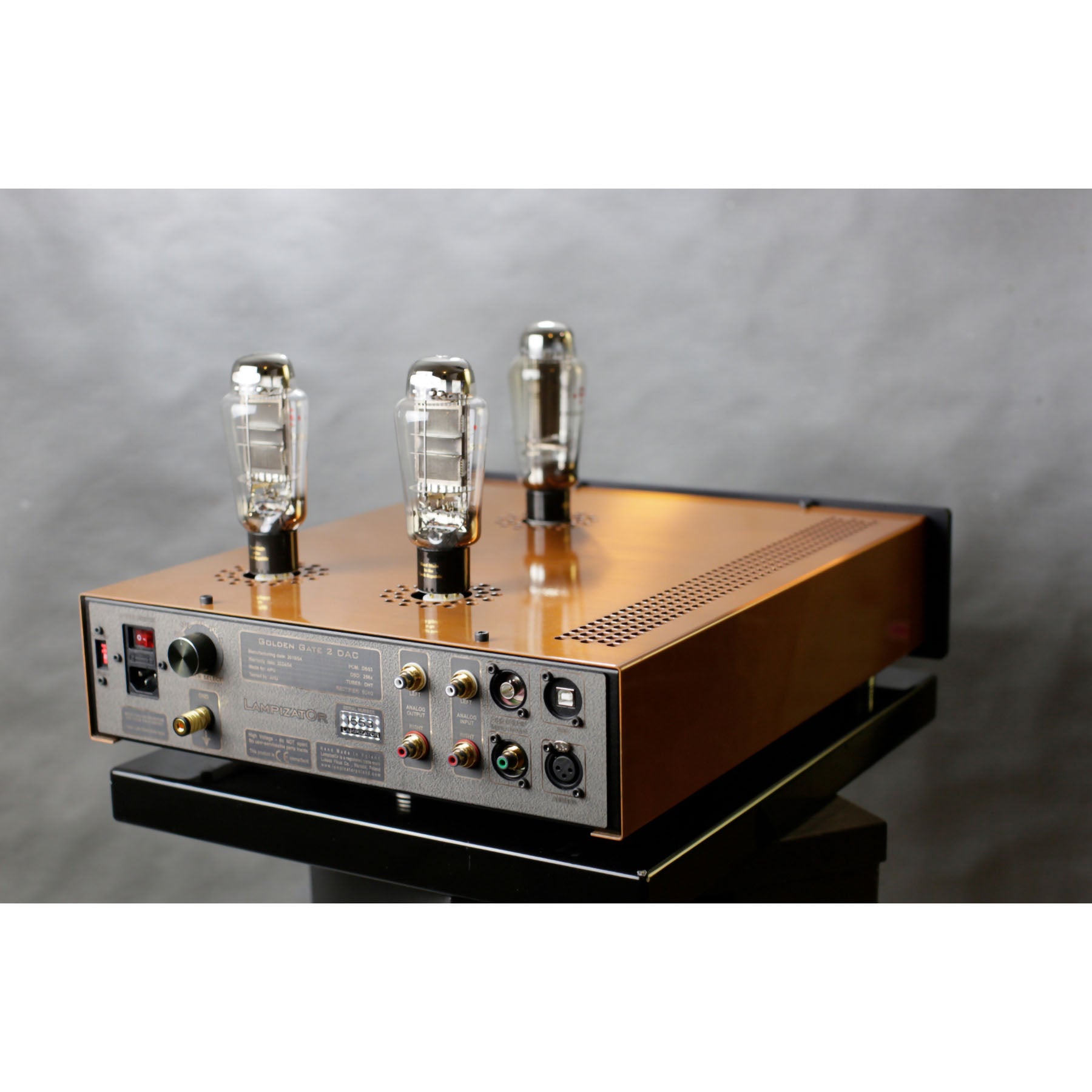

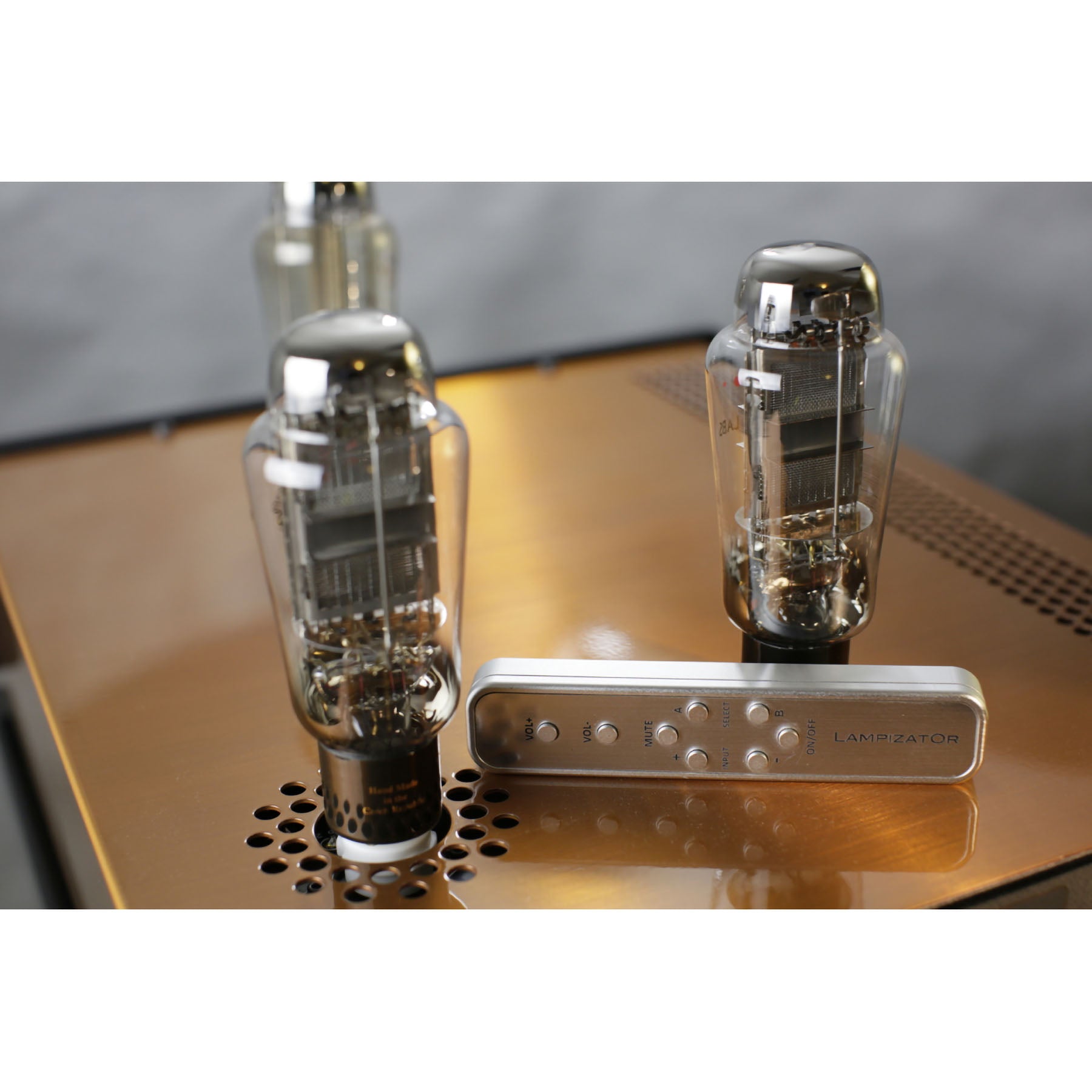

Lampizator Golden Gate 2 DAC
GOLDEN GATE 2 DAC
Golden Gate, our former flagship, was the most successful of all our products. It reigned for 3 years as the top choice of critical audiophiles around the world. Since it was superceded by the Pacific, it still has cult following. And tens of great reviews. We decided not to discontinue it, nut instead – tricle down as much technology as is feasible from the Pacific and make Golden Gate a very solid performer for less money than the Pacific. And that’s how Golden Gate 2 was born. Since late 2018 we ship GG with following improvements versus the old GG1: New, completely redesigned heater circuit, more stable, precise and colder than previously, and that allows us to add a 5 position heater switch, and that in turn allows for using circa 7 DHT tube types, like 300B, PX-4, PX-25, 101D, 45, 242 and the like. Also with mechanical adapter of the socket we can use KR-T-100 gigantic triodes. The digital section is a direct streamline of the new Pacific engine, with code name “engine53”. Triode operating scheme has been radically redesigned, making the same triodes sound more open, dynamic and detailed. We also use new USB firmware, better DSD engine, 512 DSD as standard, all new volume control resistor ladder, new remote control, new footers, and new, good looking rear panel. It looks actually better from behind than from the front.
What we kept – is the gorgeous copper chassis, new but old looking Lampi front, and a flight case to protect this babe during travel.
All in all – Golden Gate 2 has obvious Lampizator pedigree, while being much better DAC than its predecessor – in every area we can name.
The Gold Standard...
The LampizatOr Golden Gate 2 DAC represents the next generation of our universally praised Golden Gate DAC. This DAC expands upon the already over the top Golden Gate execution to add very meaningful upgrades including:
1. Redesigned PCM Engine
2. DSD 512 (8xDSD) Support
3. Auto-switching between formats
4. A revised power supply scheme
5. Revised tube heating scheme
6. Much improved volume control implementation
7. Custom boutique footers from STACORE
8. Proprietary AC filtration circuit
9. Revised grounding scheme
10. And much, much more.
The improvements over our Generation 5 Golden Gate have been described as "profound" and "hallucinogenic" in nature.
Comes in 4 variants
Single ended, Balanced, Single ended+Volume, Balanced+Volume
PCM conversion
R2R discrete ladder - up to 24 bit / 192 kHz via SPDIF, 32 bit / 384 kHz via USB
DSD conversion
64x, 128x, 256x, 512x
Analog output impedance
1600 ohm
Optional input type
BNC, second SPDIF-RCA, AES/EBU, Toslink
Music tube type
45 or 245 or 242 or PX4 or 101D or 300B(SE ver. only)
Rectifier tube
5U4G or 274B or GZ34 or 5R4WG
AC powert consumption
40W
Front panel colors
Silver or Anodized black
Size
43cm[W] x 13cm[H] (plus tubes 13cm) x 52cm[D]
Warranty
5 years (excluding tubes)
Weight
44lbs / 19.95kg for the unit itself (ships in a flight case)
