JBL


Studio 2 6IW
6.5-Inch In-Wall Loudspeaker

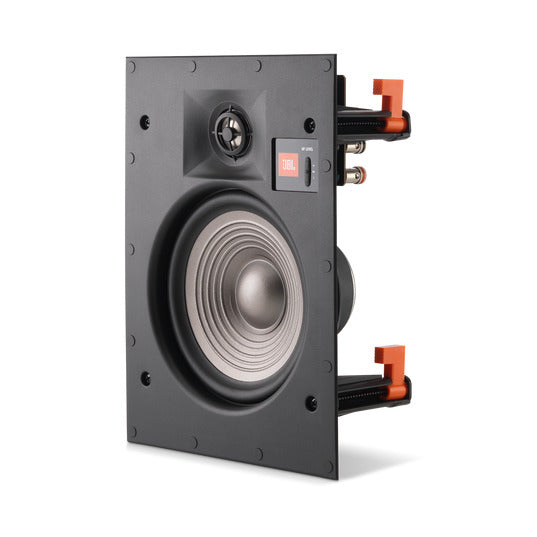

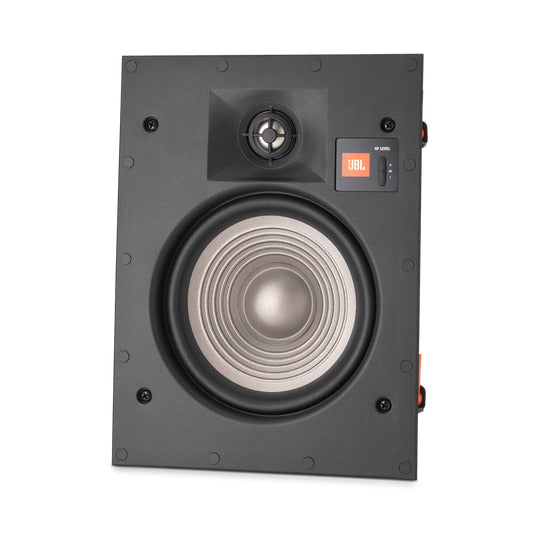

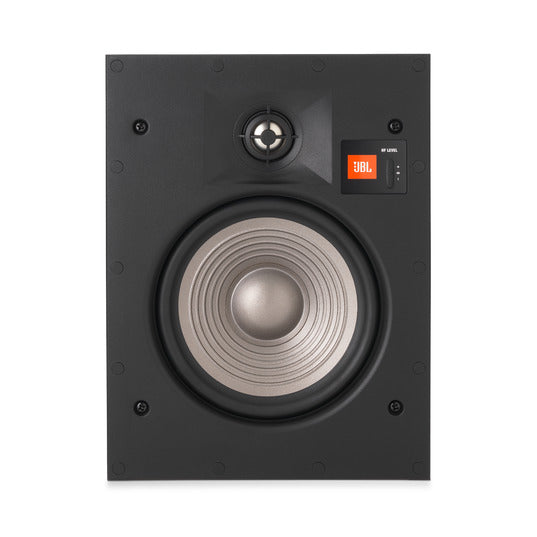

The JBL Studio 2 6IW fills your room with signature JBL sound without taking up valuable space. A 1-inch CMMD® Lite tweeter is mated with a High-Deifnition Imaging waveguide for wide coverage, low-distrotion, and accurate sound reproduction. A 6.5-inch PolyPlas cone woofer provides powerful bass response. Installtion is quick and easy with the XL-2 mounting mechanism and the zero-bezel grille allows the loudspeaker to blend into any environment.
Features

Sound Inspired by JBL's legendary M2 Master Reference Monitor

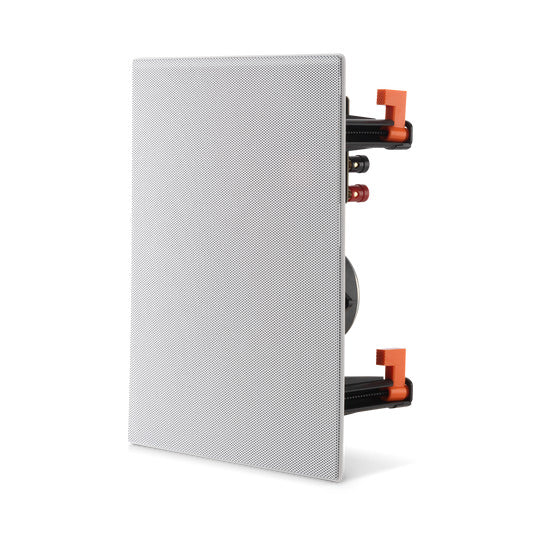

Paintable, nearly invisible zero-bezel magnetic grill

Superior XL-2 installation bracket

Pivoting Tweeters

Tweeter Audio Level Adjustment
What's in the box?
- Main Unit
- Magnetic Grill
- Owners Manual
- Warranty Card
Impedance | 8 ohms |
Recommended Amplifier Power: | 80W |
Frequency Response: | 30Hz - 20kHz |
Crossover Frequency: | 3.0kHz |
Loudspeaker Sensitivity: | 88dB 2.83V @ 1m |
Low Frequency Driver Size and Material | 8" (203mm) Polyplas® Woofer |
High Frequency Driver Size and Material | 1" (25mm) Pivoting CMMD® Lite Tweeter |
High Frequency Control | +/- 3dB |
Cutout Dimensions | (H x W) 11-15/16" x 8-15/16" (303mm x 227mm) |
Grille Finished Dimensions: | (H x W) 13" x 10" (330mm x 254mm) |
Mounting Depth: | 3-13/16" (97mm) |
Compatible Wall Material Thickness: | 0.5" – 2.0" (12mm – 51mm) |
Shipping Units of Measure: | Each |
Warranty | 5 Years |
Pre-Construction Bracket Part number | PCK8 |
Back Box Part Numbe | FBB8 |
