JBL Studio 2 6ICDT 6.5-inch Dual Tweeter In-Ceiling Loudspeaker (each)
Speaker Colour
Grille
JBL Studio 2 6ICDT 6.5-inch Dual Tweeter In-Ceiling Loudspeaker (each)
Black / White
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

JBL


Studio 2 6ICDT
6.5-Inch Dual Tweeter In-Ceiling Loudspeaker

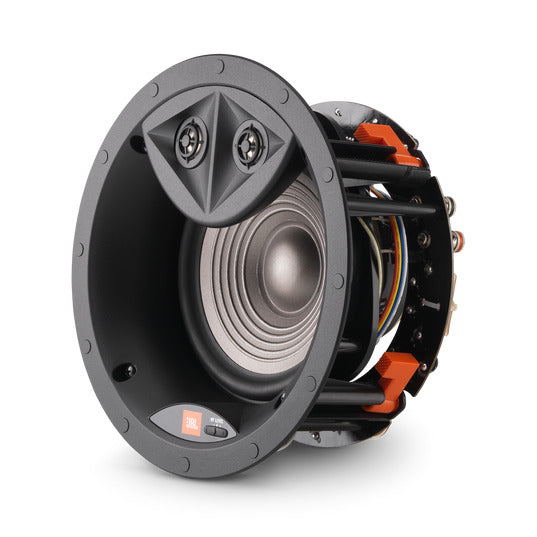

The JBL Studio 2 6ICDT fills your room with signature JBL sound without taking up valuable space. Dual 0.75-inch CMMD® Lite tweeters deliver stereo sound from a single location with wide coverage, low-distrotion, and accurate sound reproduction. A 6.5-inch PolyPlas cone woofer provides powerful bass response. Installtion is quick and easy with the XL-2 mounting mechanism and the zero-bezel grille allows the loudspeaker to blend into any environment.
Features

Sound Inspired by JBL's legendary M2 Master Reference Monitor

Paintable, nearly invisible zero-bezel magnetic grill

Superior XL-2 installation bracket

Pivoting Tweeters

Tweeter Audio Level Adjustment
What's in the box?
- Main Unit
- Magnetic Grill
- Owners Manual
- Warranty Card
Impedance | 8 ohms |
Recommended Amplifier Power: | 80W |
Frequency Response: | 38Hz - 20kHz |
Crossover Frequency: | 3.7kHz |
Loudspeaker Sensitivity: | 88dB 2.83V @ 1m |
Low Frequency Driver Size and Material | 6-1/2" (165mm) Polyplas® Woofer |
High Frequency Driver Size and Material | 2 x 3/4" (19mm) Pivoting CMMD® Lite Tweeter |
High Frequency Control | +/- 3dB |
Cutout Dimensions | (D) 8" (203mm) |
Grille Finished Dimensions: | (H x W) 21-3/16" x 10" (538mm x 254mm |
Mounting Depth: | (D) 9-3/32" (231mm |
Compatible Wall Material Thickness: | 0.5" – 2.0" (12mm – 51mm) |
Shipping Units of Measure: | Each |
Warranty | 5 Years |
Pre-Construction Bracket Part number | PCK6C |
Back Box Part Numbe | 5 Years |
