JBL

Stage 280W
2-way Dual 8" (200mm) In-Wall Loudspeaker

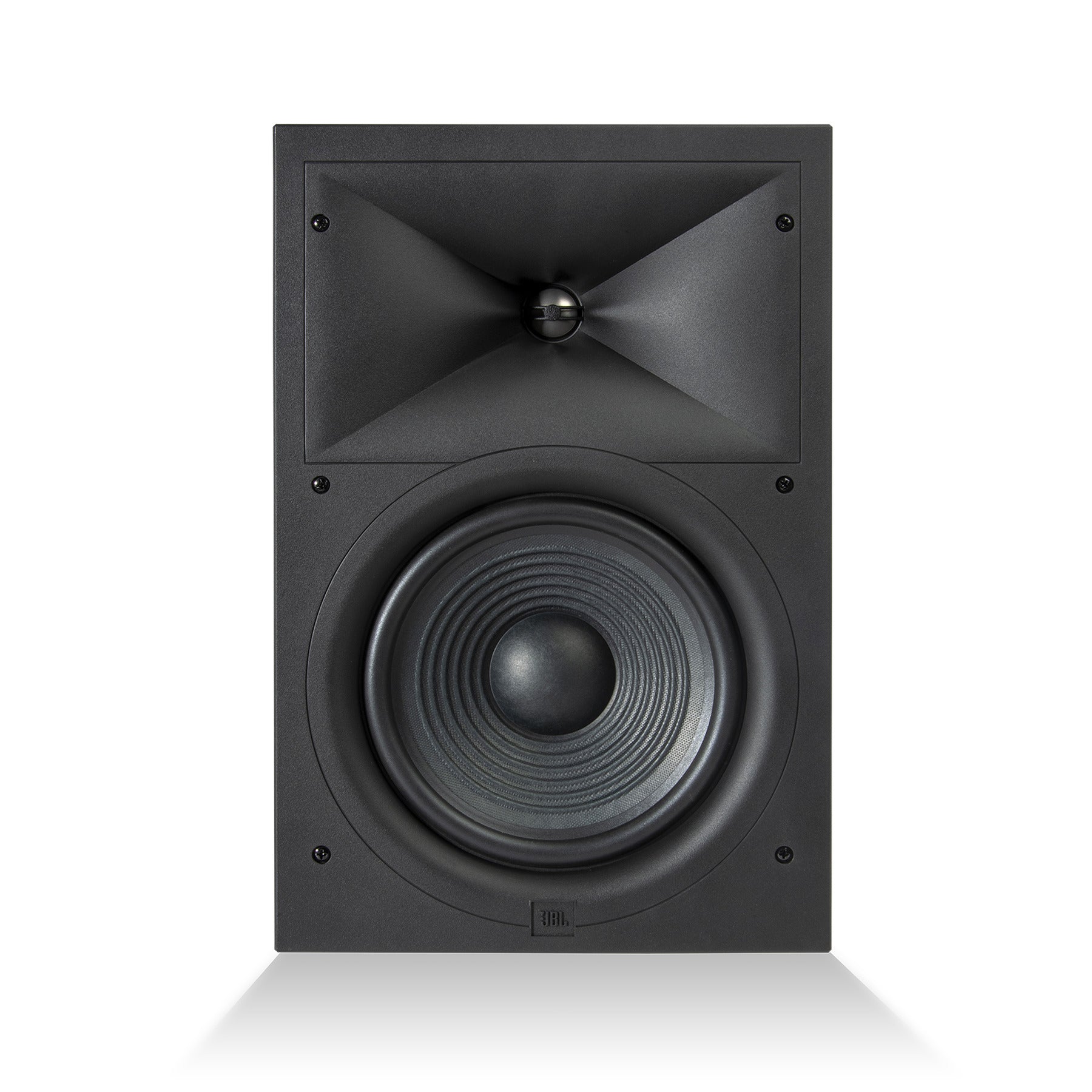

For more powerful bass, the Stage 280W features an 8" (200mm) Polycellulose cone woofer and a 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Features

1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

8" (200mm) Polycellulose cone woofer

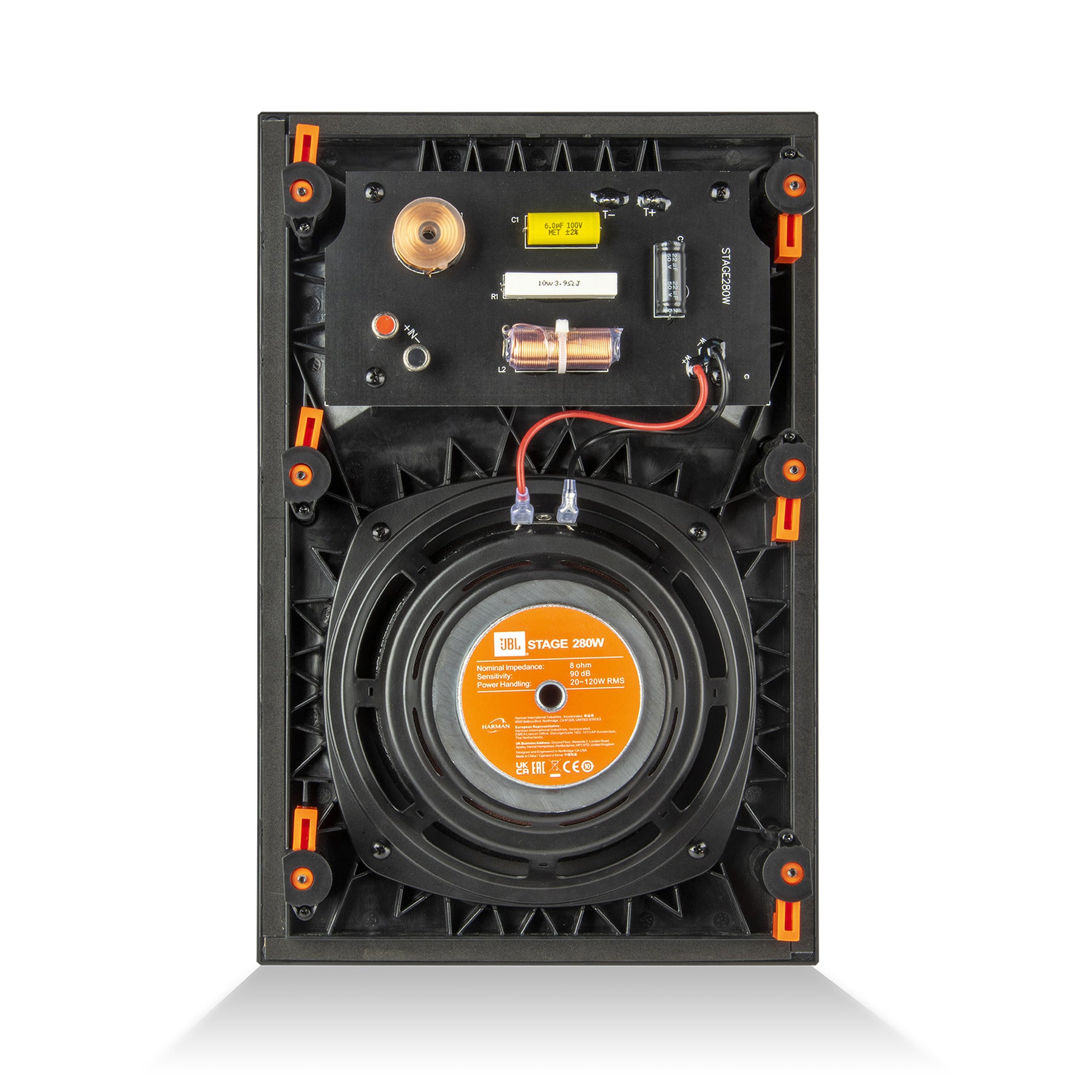

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

Rigid Baffle design with acoustic smoothing for improved transducer integration

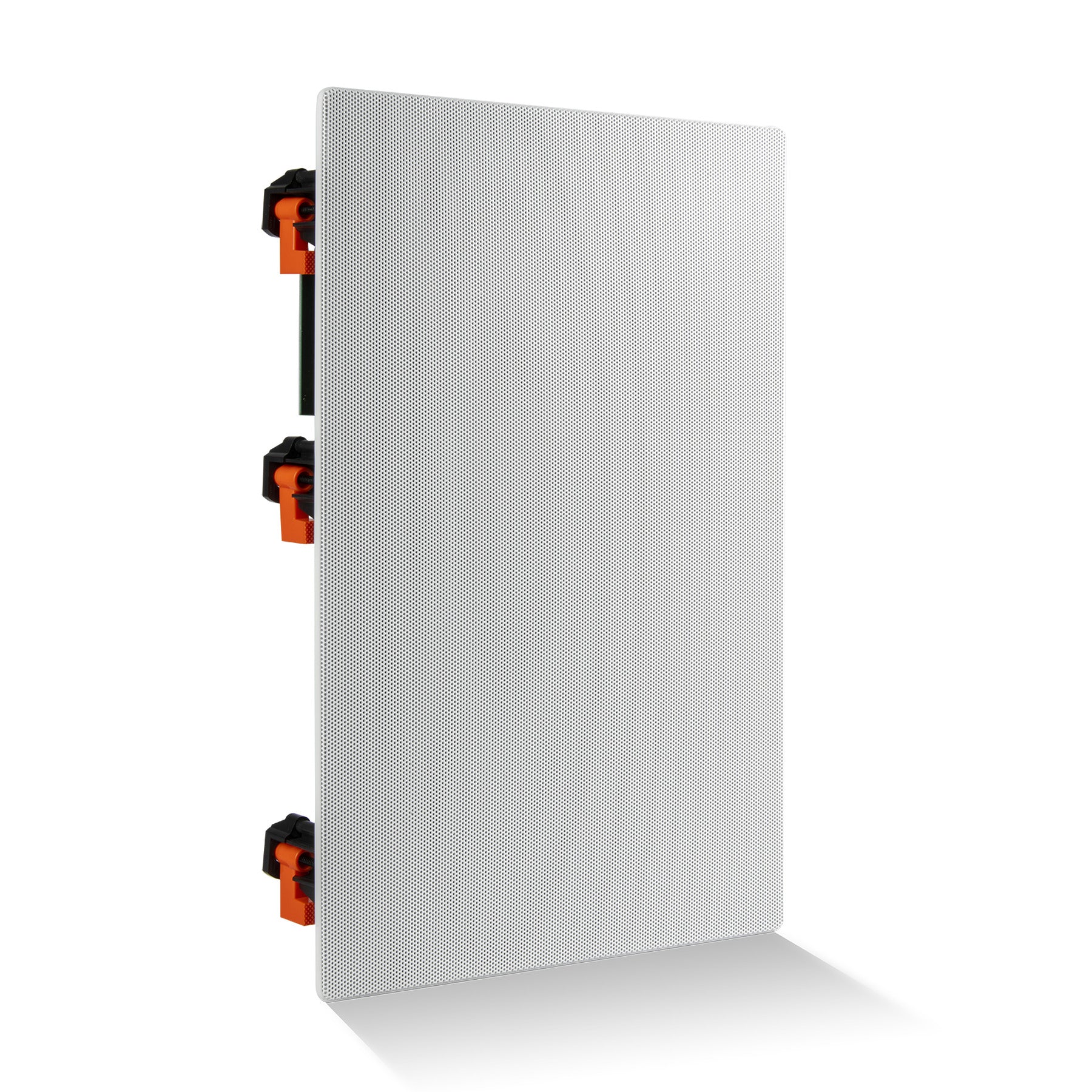

Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material
High Frequency Transducer | 1" (25mm) Aluminum dome with Acoustic Lens |
Low Frequency Transducer | 8" (200mm) Polycellulose cone woofer |
Recommended Amplifier Power (Full Range) | 20-120W RMS |
Frequency Response | 42Hz-25kHz (-6dB on-axis) |
Sensitivity (2.83V@1m) | 90dB |
Nominal Impedance | 8ohm |
Crossover Frequency | 1700Hz |
Crossover FrequencyInputs | Nickel-plated spring-loaded connectors |
Grille Dimensions | H 15.7in (400mm) x W 10.5in (266mm) |
Cutout Dimensions | H 14.6in (372mm) x W 9.4in (238mm) |
Mounting Depth | 3.9in (98mm) |
Product Weight (Kg) | 2.8Kg |
Shipping Carton Dimensions | L 17.8in (453mm) x W 12.5in (318mm) x H 5.5in (140mm) |
Shipping Carton Weight | 8.38lbs (3.8Kg) |
