JBL

Stage 280C
2-way 8in (203mm) In-Ceiling Loudspeaker
The Stage 260C has an 8" (200mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
Features
1" (25mm) Aluminum dome with acoustic lens waveguide
8" (200mm) Polycellulose cone woofer

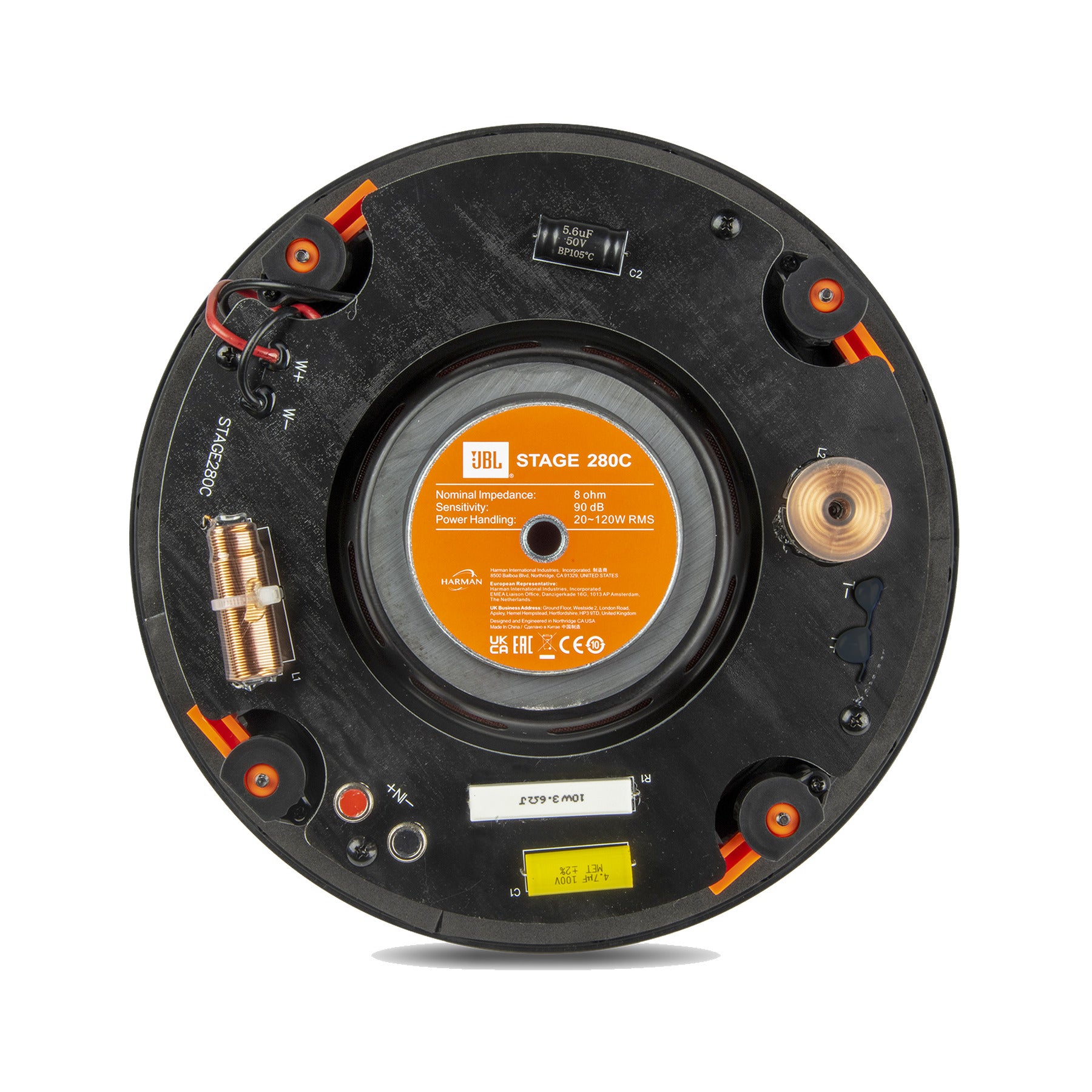

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.
Rigid Baffle design with acoustic smoothing for improved transducer integration
Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance

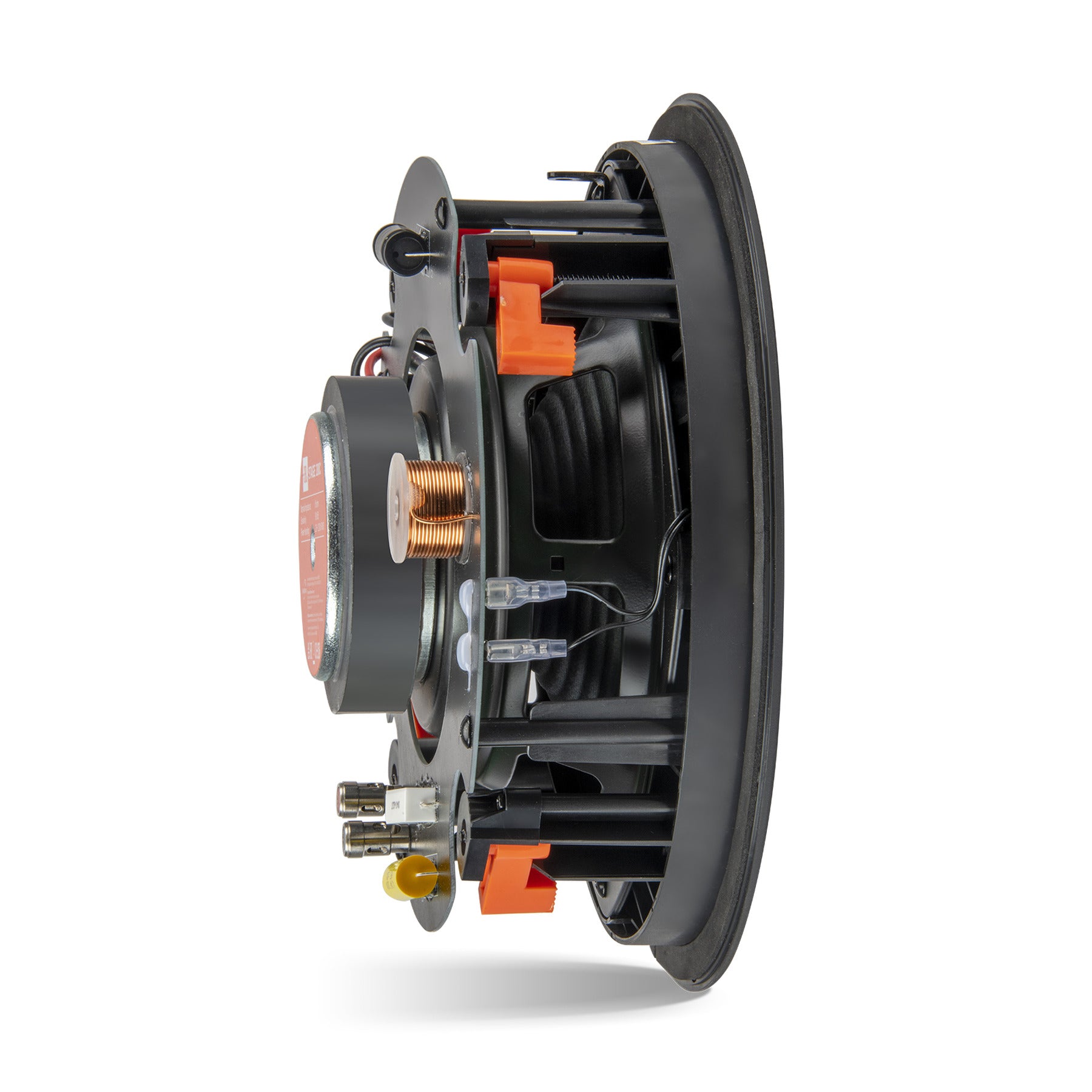

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material
High Frequency Transducer | 1" (25mm) Aluminum dome with Acoustic Lens |
Low Frequency Transducer | 8" (200mm) Polycellulose cone woofer |
Recommended Amplifier Power (Full Range) | 20-120W RMS |
Frequency Response | 42Hz-25kHz (-6dB on-axis) |
Sensitivity (2.83V@1m) | 90dB |
Nominal Impedance | 8ohm |
Crossover Frequency | 3400Hz |
Inputs | Nickel-plated spring-loaded connectors |
Grille Dimensions | Dia 10.8in (275mm) |
Cutout Dimensions | Dia 9.6in (244mm) |
Mounting Depth | 4.3in (108mm) |
Product Weight (Kg) | 2.2Kg |
Shipping Carton Dimensions | L 12.7in (322mm) x W 12.7in (322mm) x H 5.6in (142mm) |
Shipping Carton Weight | 6.97lbs (3.16Kg) |
