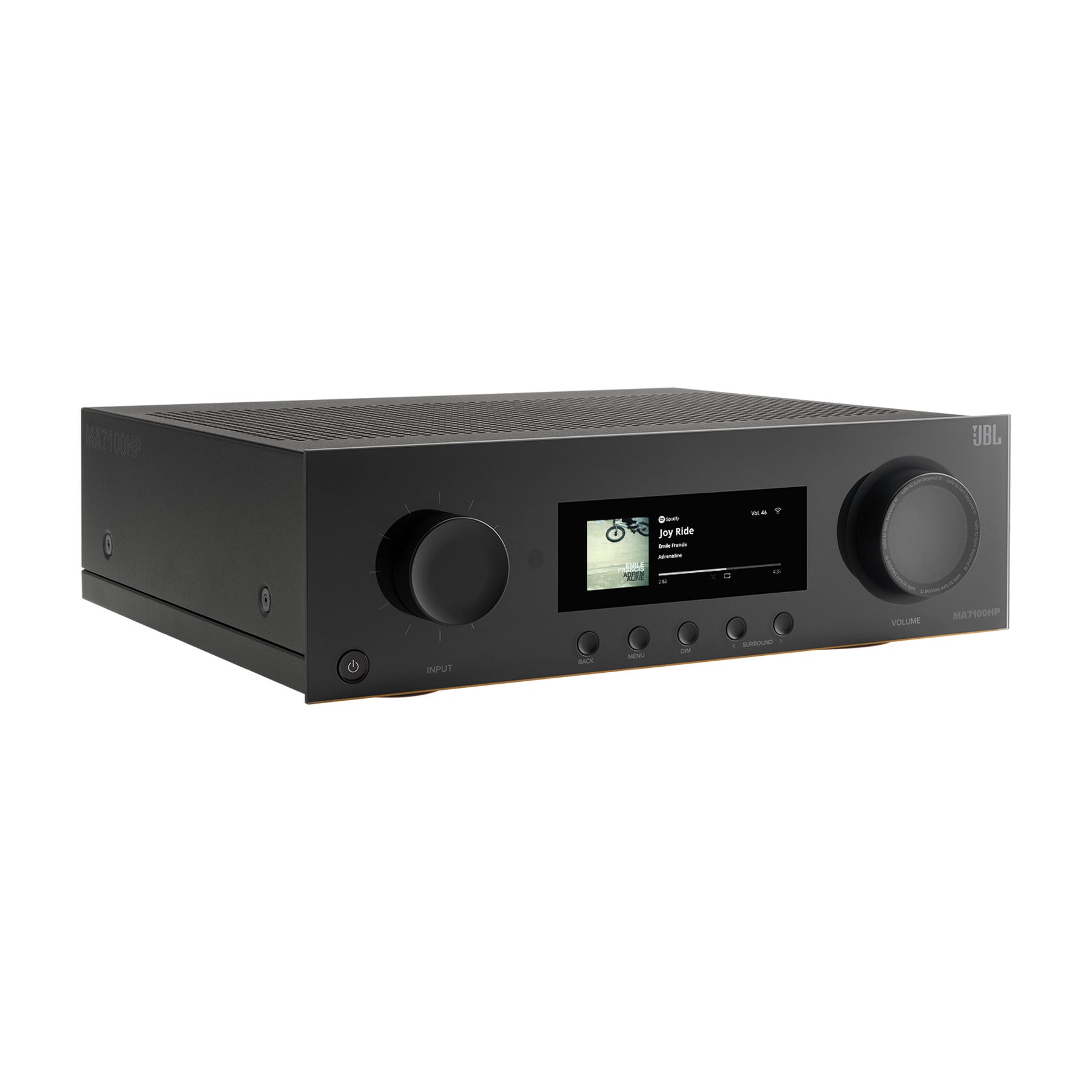

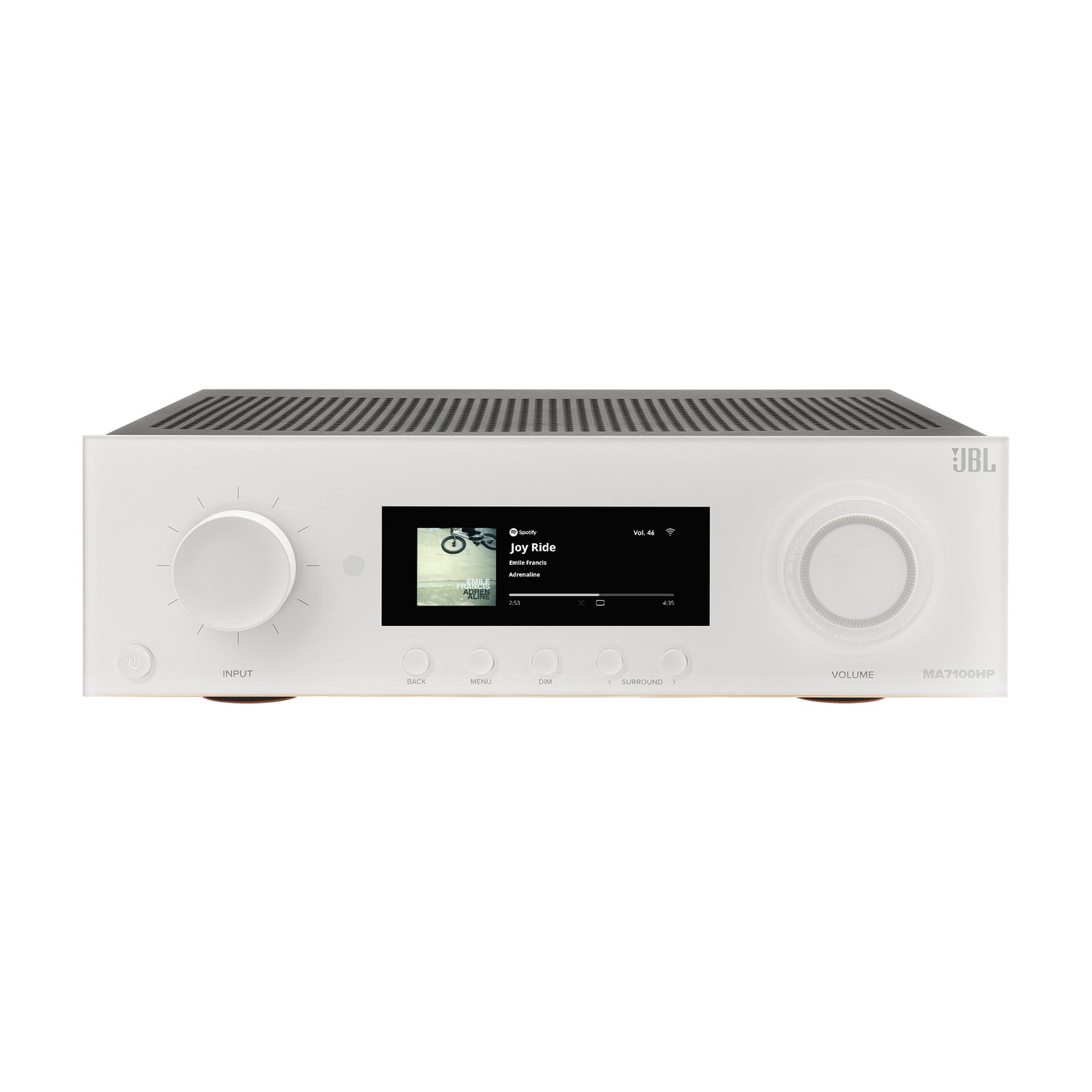

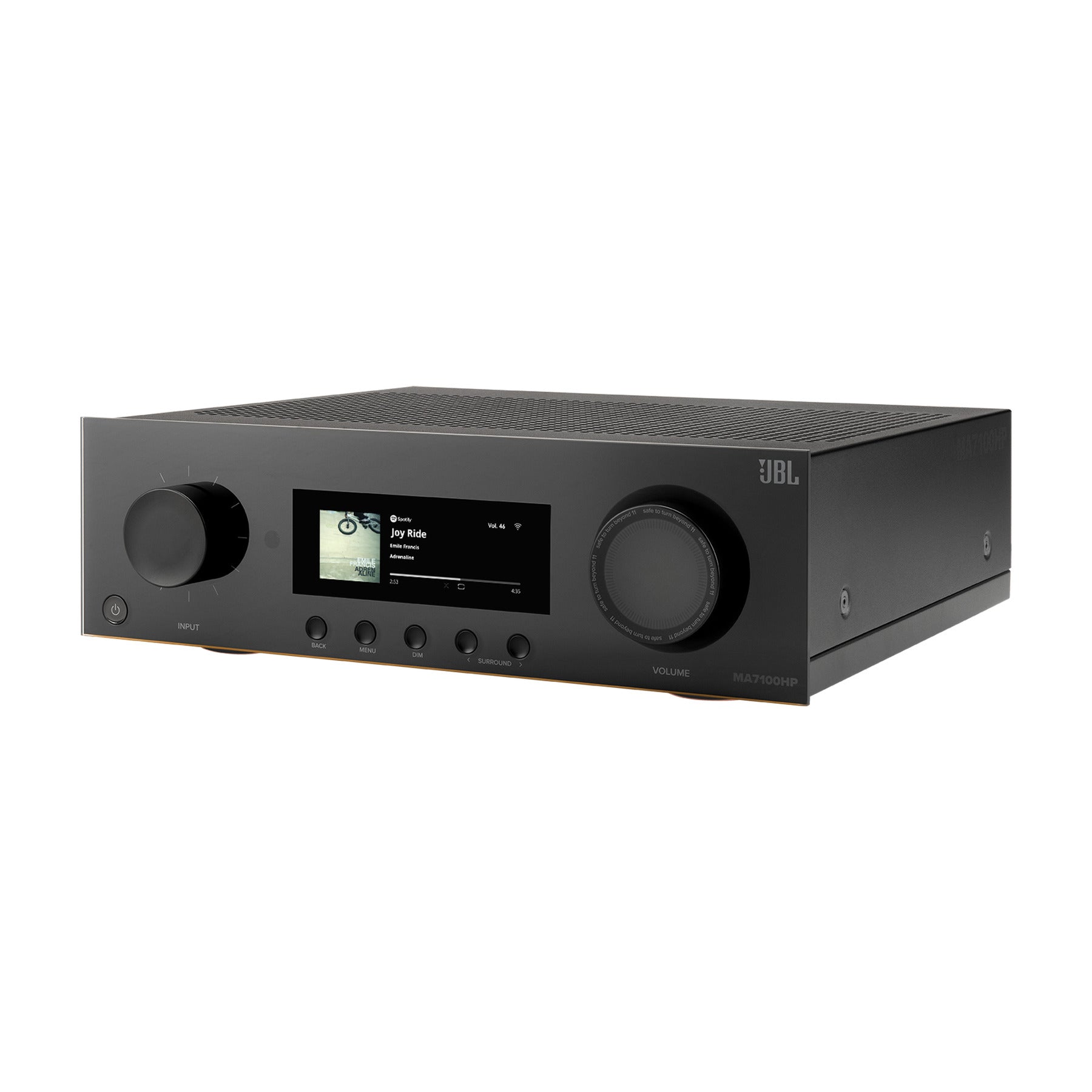

JBL MA7100 HP 7.2-Channel Net AV Receiver
JBL MA7100 HP 7.2-Channel Net AV Receiver
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

JBL

MA7100HP
7.2-channel 8K High Performance AV Receiver
Bring both music and movies to life with true high fidelity.
Features

Stunning audio and video performance
High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 or 5.1.4 channel configurations.
Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast, Roon Ready)
Powerful amplification
Nine channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Ready for Dirac Live® room correction
Comes Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software. Purchase a license to activate Dirac Live at www.dirac.com/online-store/
5 Gigabit, WiFi Onboard
What's in the box?

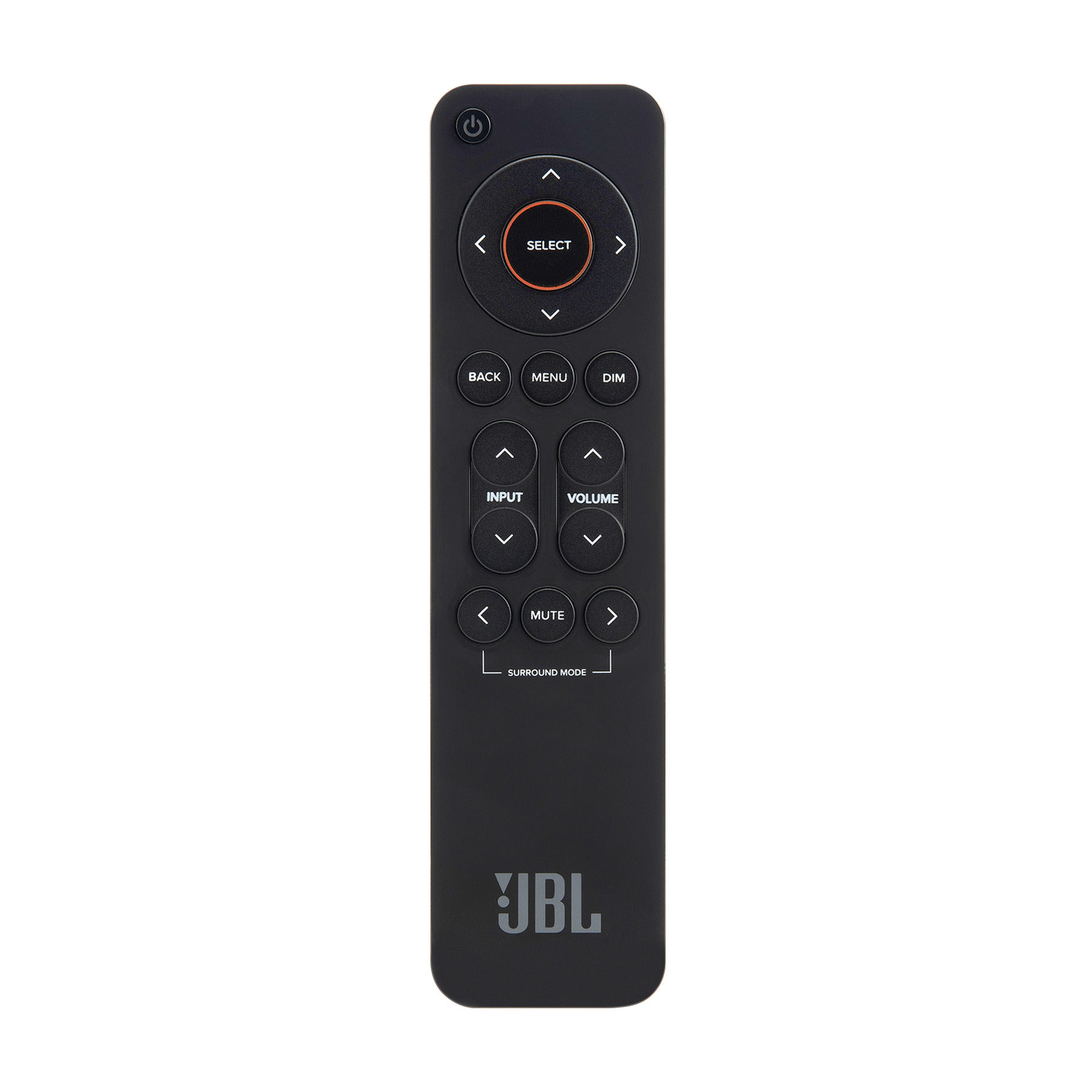

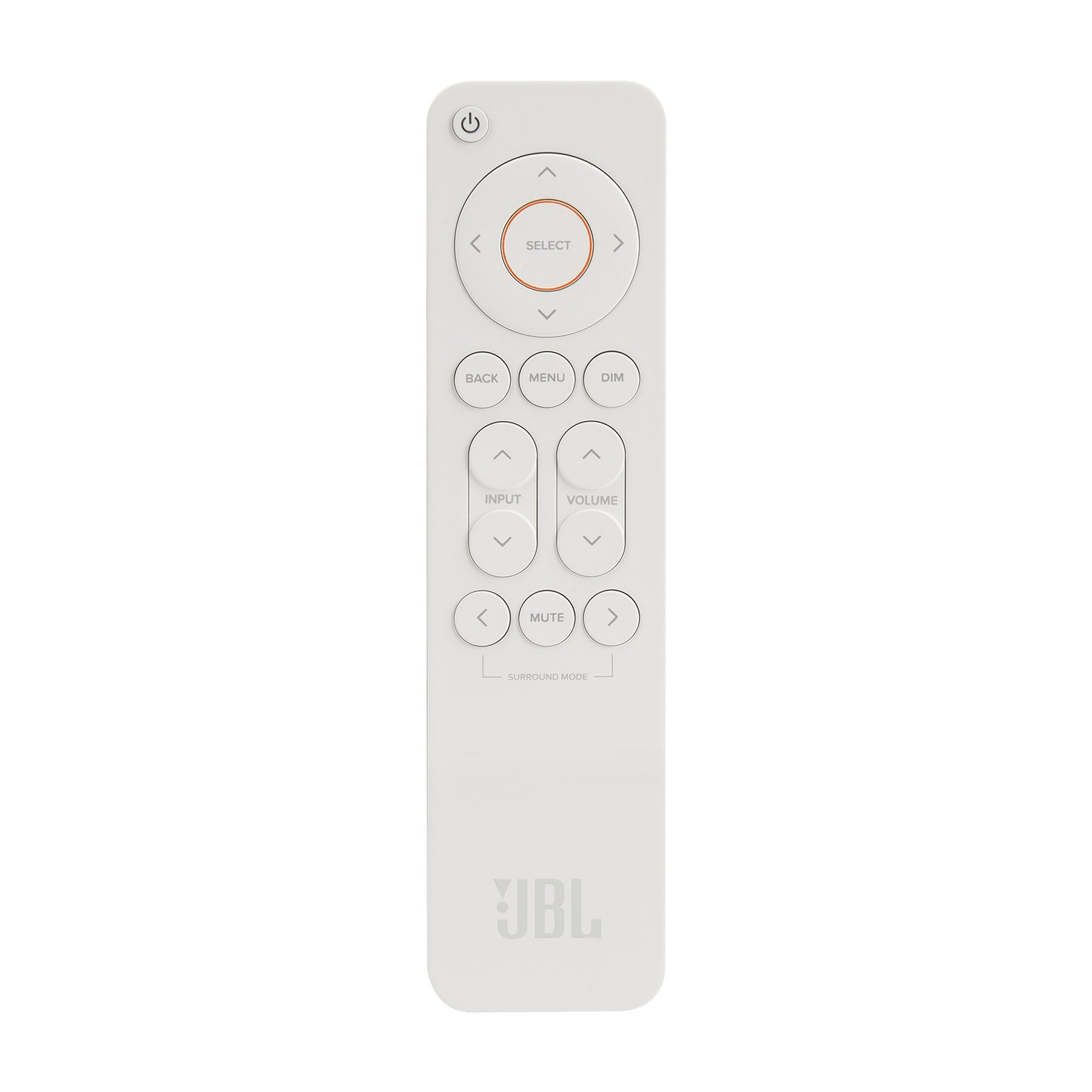

- 1x IR Remote
- 2x AAA batteries
- 1x Bluetooth antenna
- 2x Wi-Fi antenna
- 1x Power Cord
- 1x Quick-Start Guide
- 1x Safety Sheet
Videos
HDMI eARC | Yes |
HDMI Audio Return Channel | Yes |
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 3 |
HDMI 2.1 enhanced gaming features | Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
HDR 10+, Dolby Vision | Yes , Yes |
File format | MP3 / MPEG-4 AAC |
Pure Analog | Yes |
EZ Set EQ | Yes |
Front channel bi-amp | Yes |
Digital signal processing | up to 24-bit/192kHz |

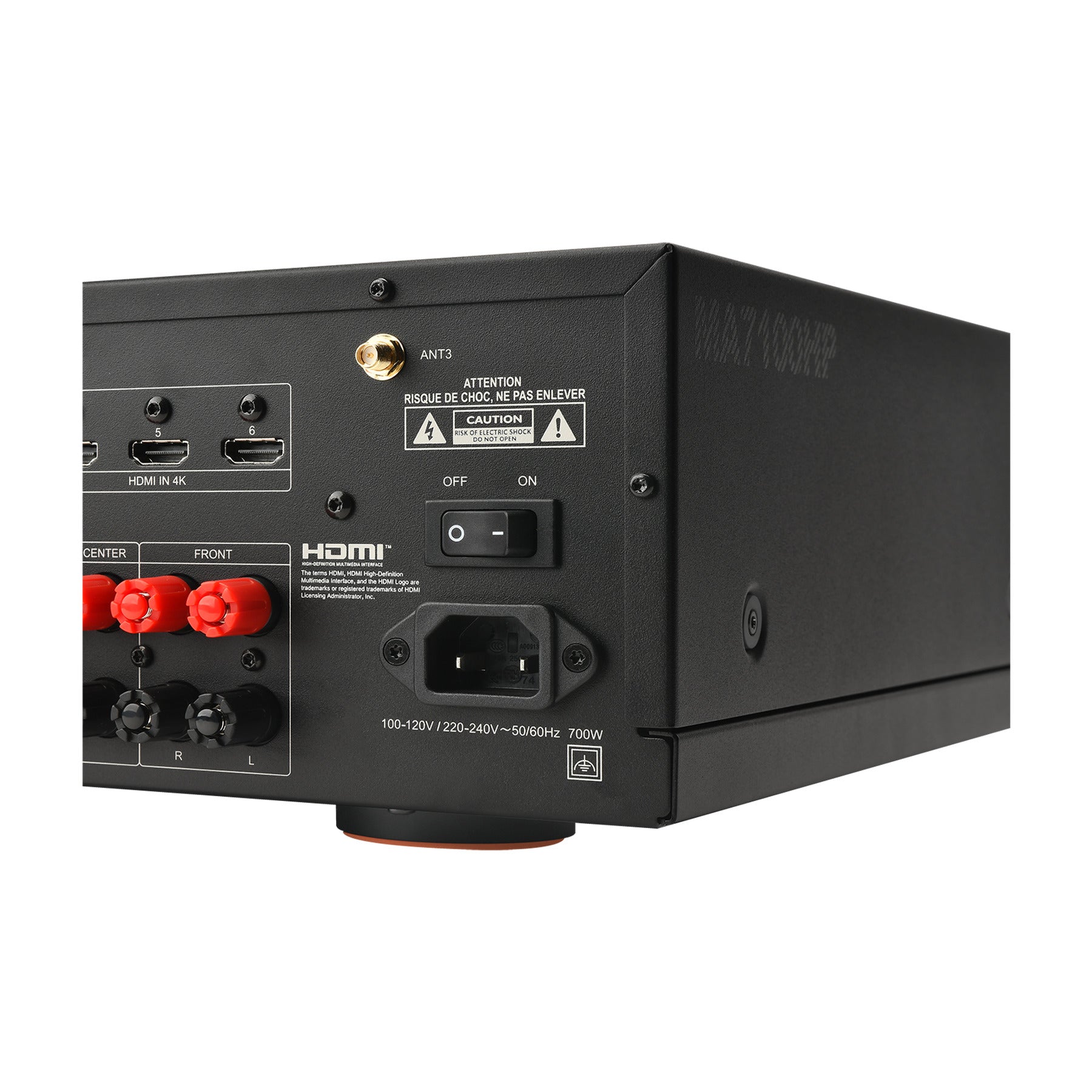

Mains voltage | 110 – 240V, 50–60Hz |
Max. power consumption | 700W |
Standby power consumption | <0.5W |
AUDIO SPECIFICATIONS |
|
Channels | 7.2 |
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) | 125W |
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 125 W RMS |
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 175 W RMS |
Dimensions incl. feet and speaker terminals (H x W x D) | 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm) |
Weight | 16.4lb (7.4kg) |

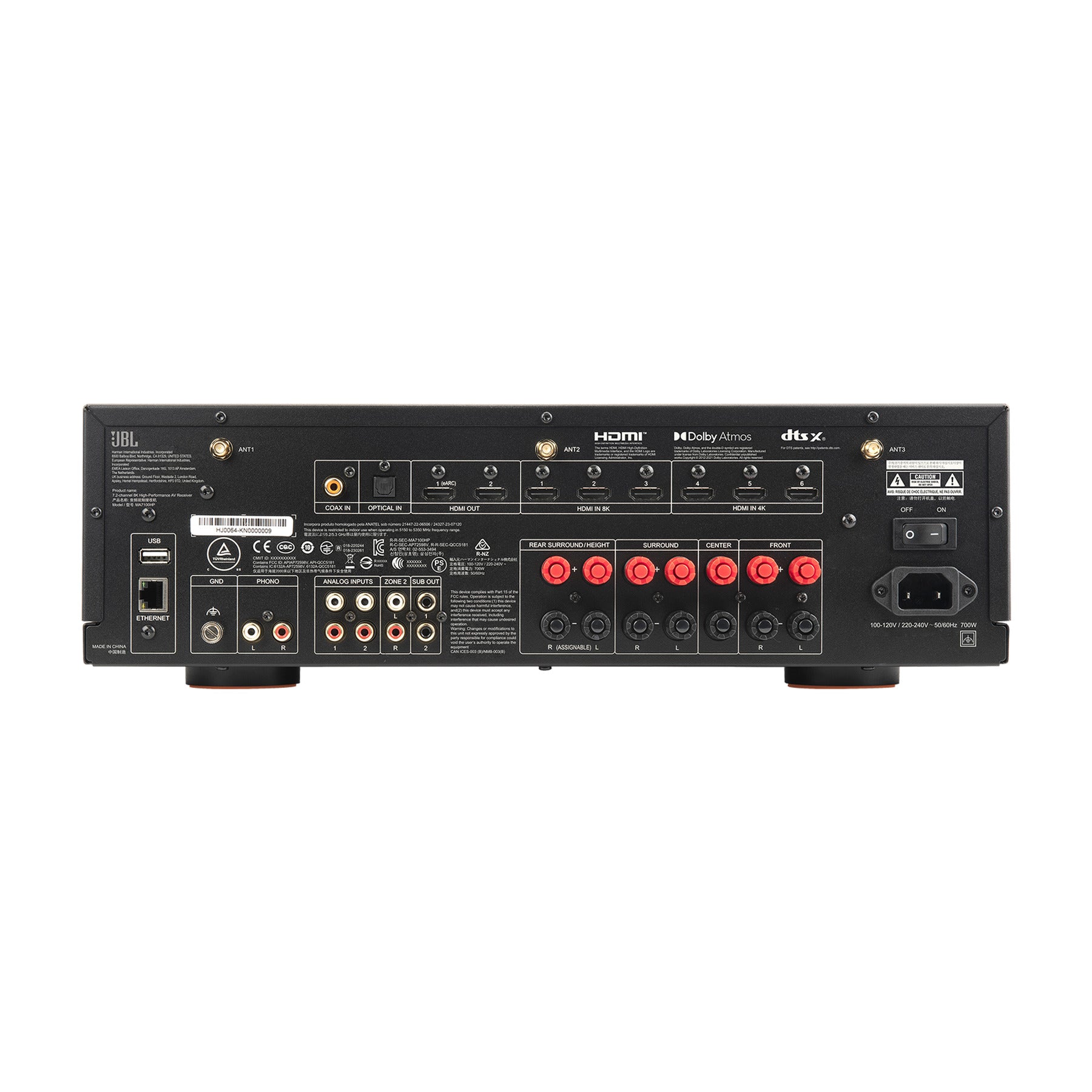

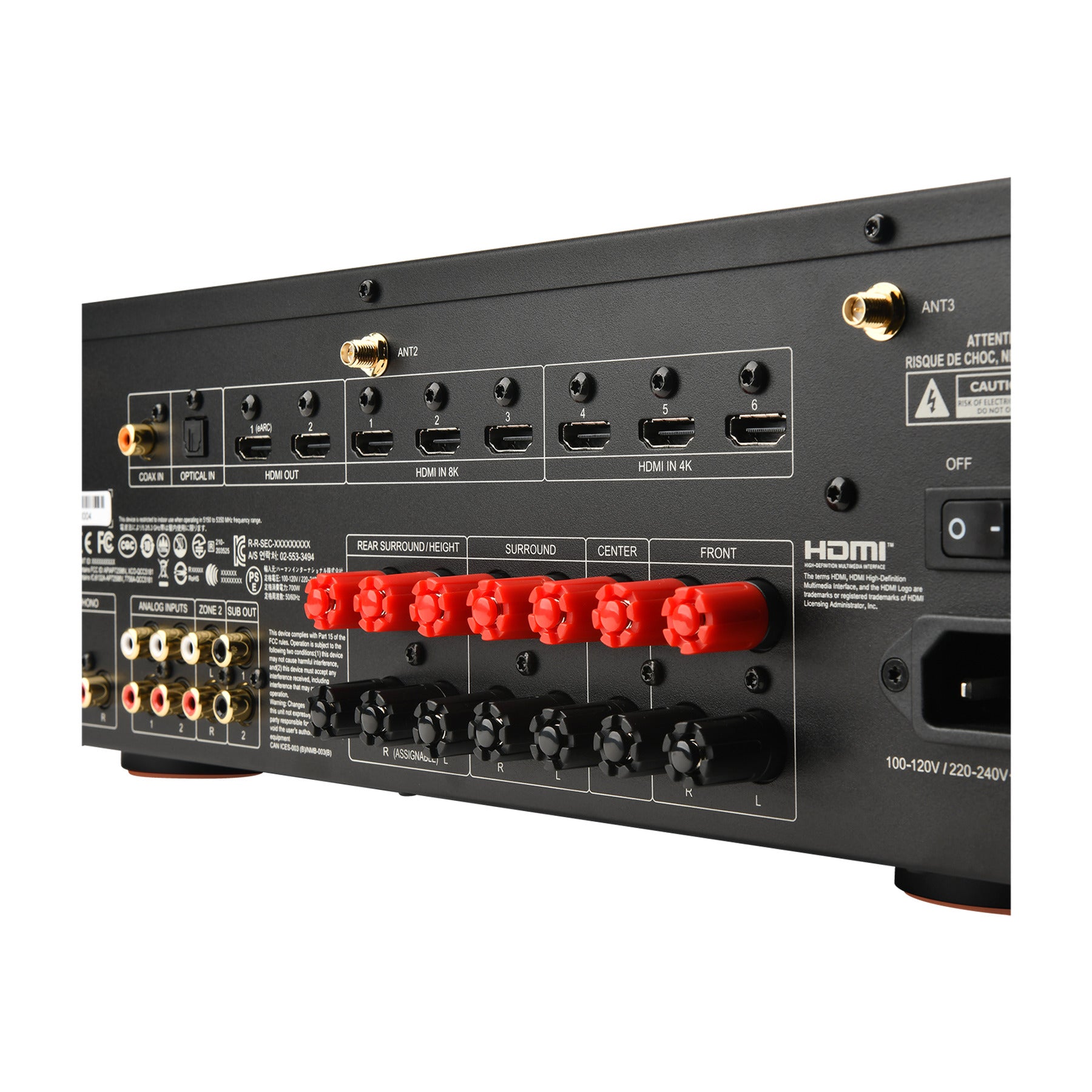

Control and Connection Specifications |
|
HDMI Input/Output | 6/ 2 |
Wi-Fi | Yes (2.4/5GHz) |
Bluetooth receiver | Yes (v5.3, Low Energy, APTX HD, APTX Adaptive) |
Bluetooth transmit | Yes |

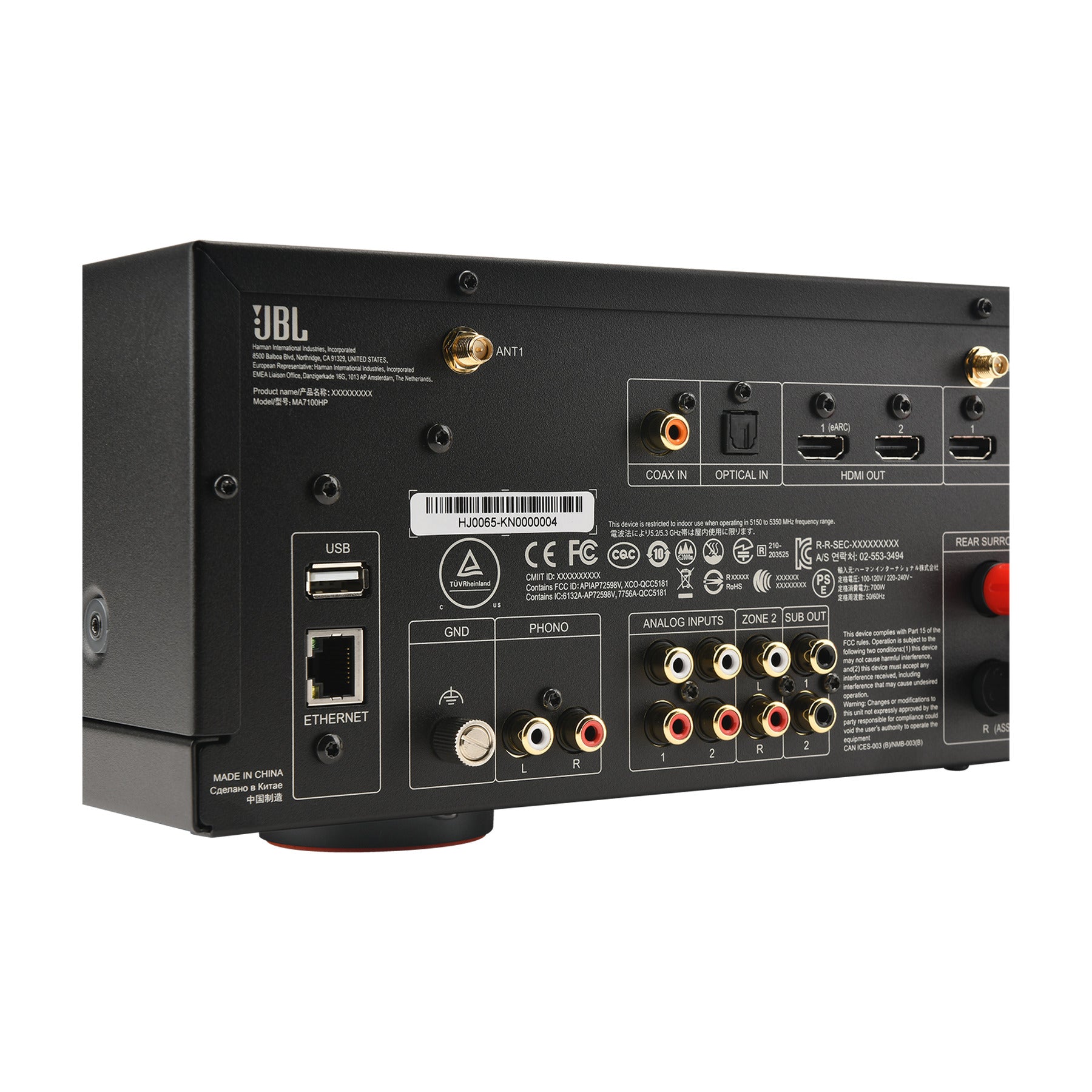

Digital Audio Input | 1 Coax, 1 Optical, 1 USB |
Stereo analog input | 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground |
Pre-Out (single ended RCA) | Stereo Zone 2, Subwoofer 1, Subwoofer 2 |
Ethernet | RJ45 Gigabit, WiFi Onboard |
