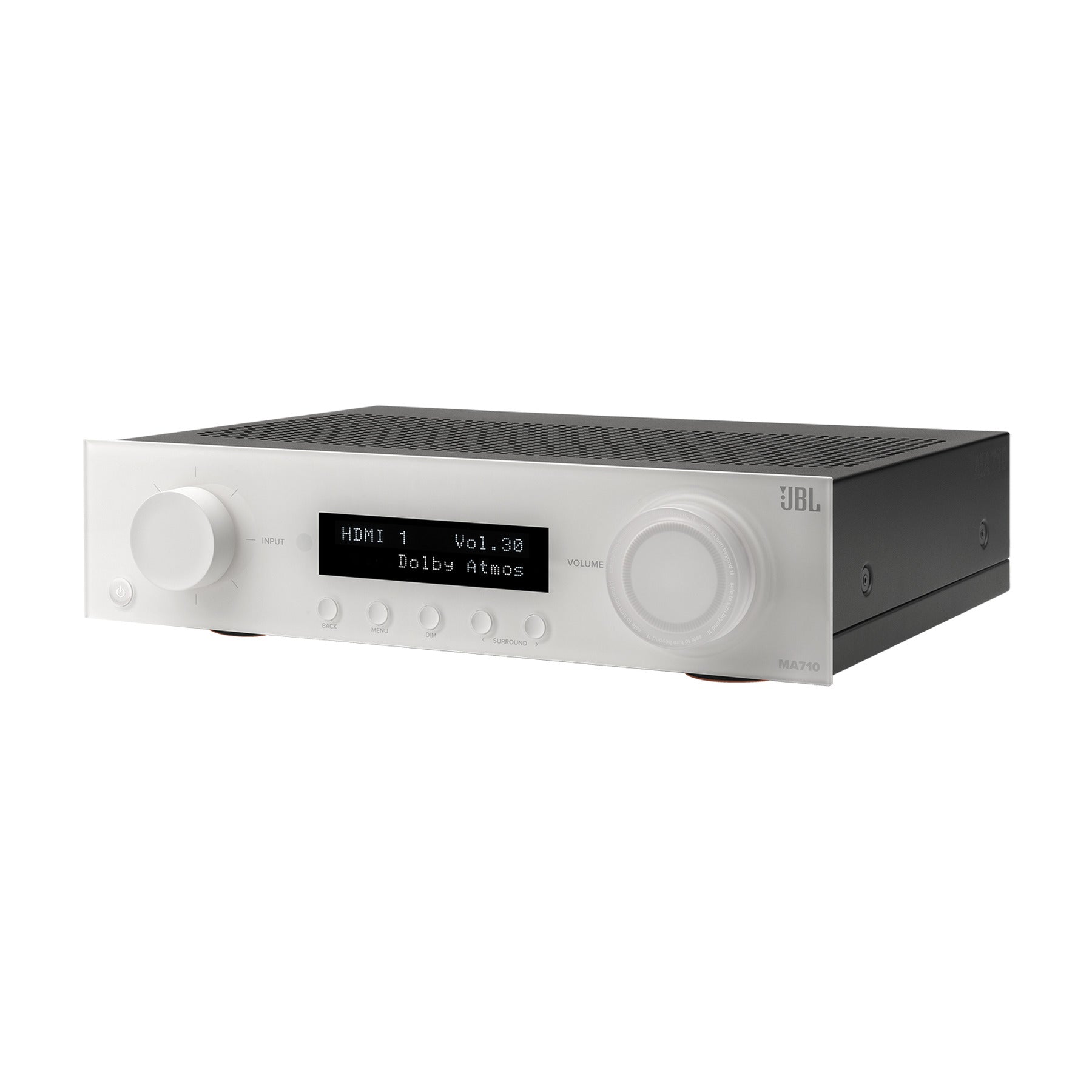

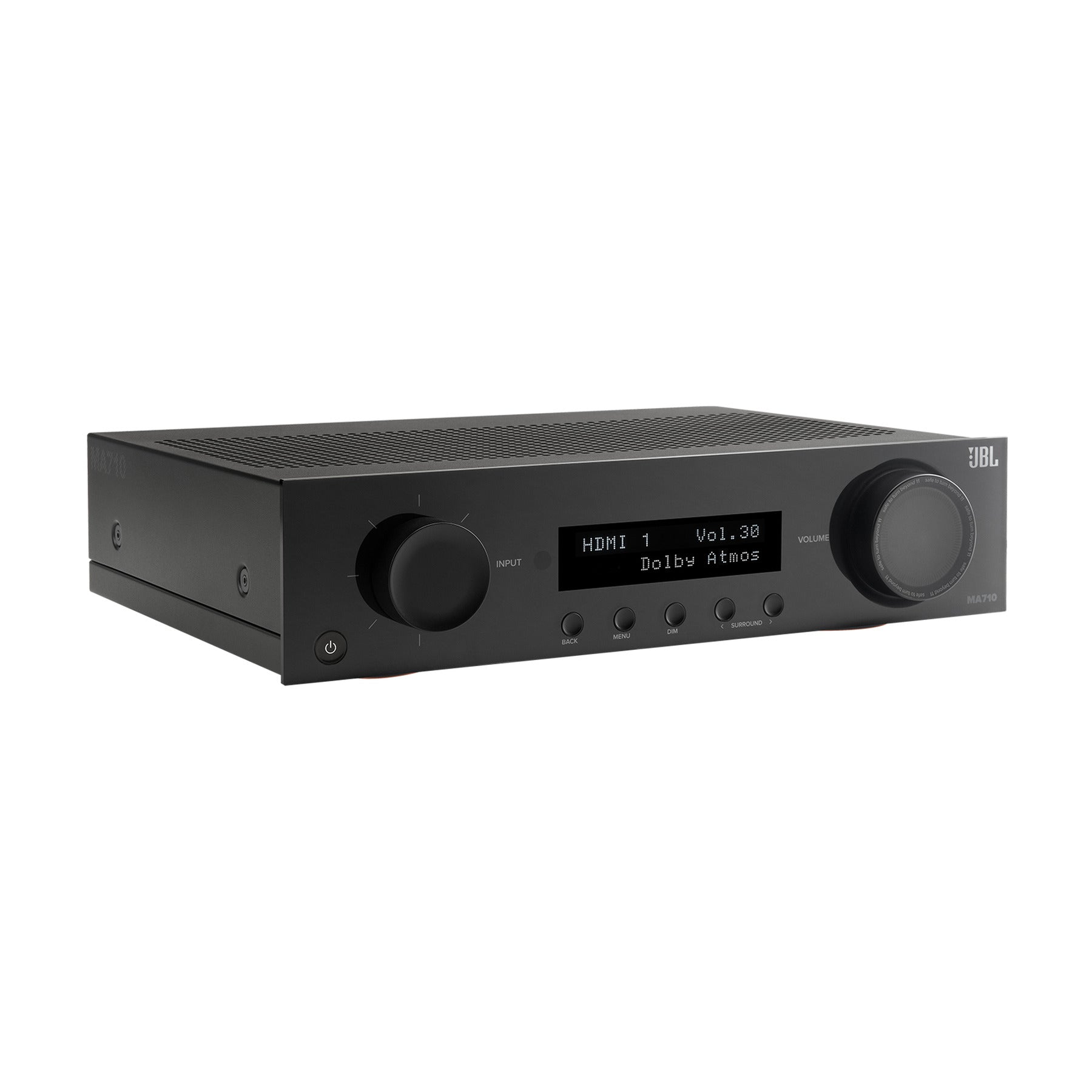

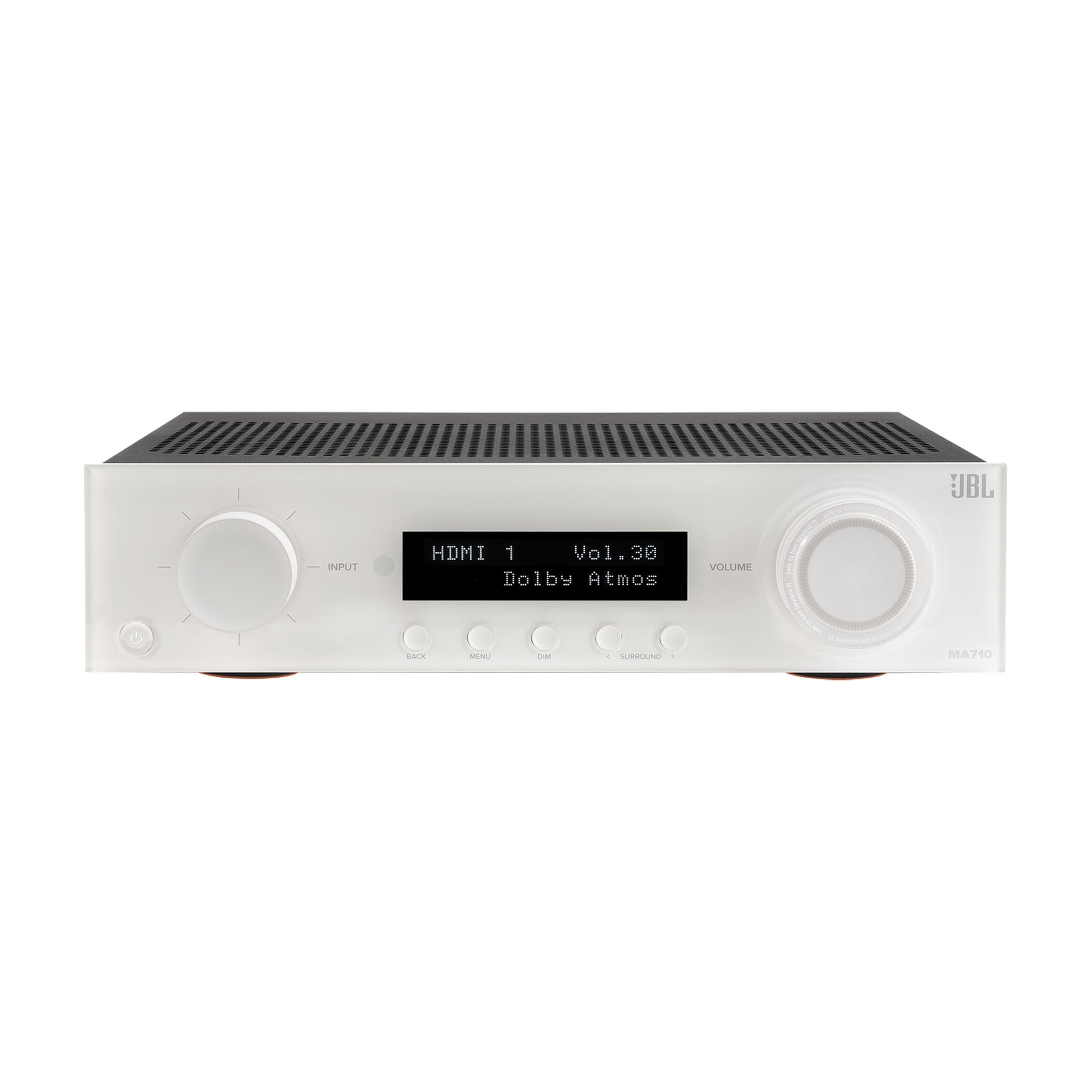

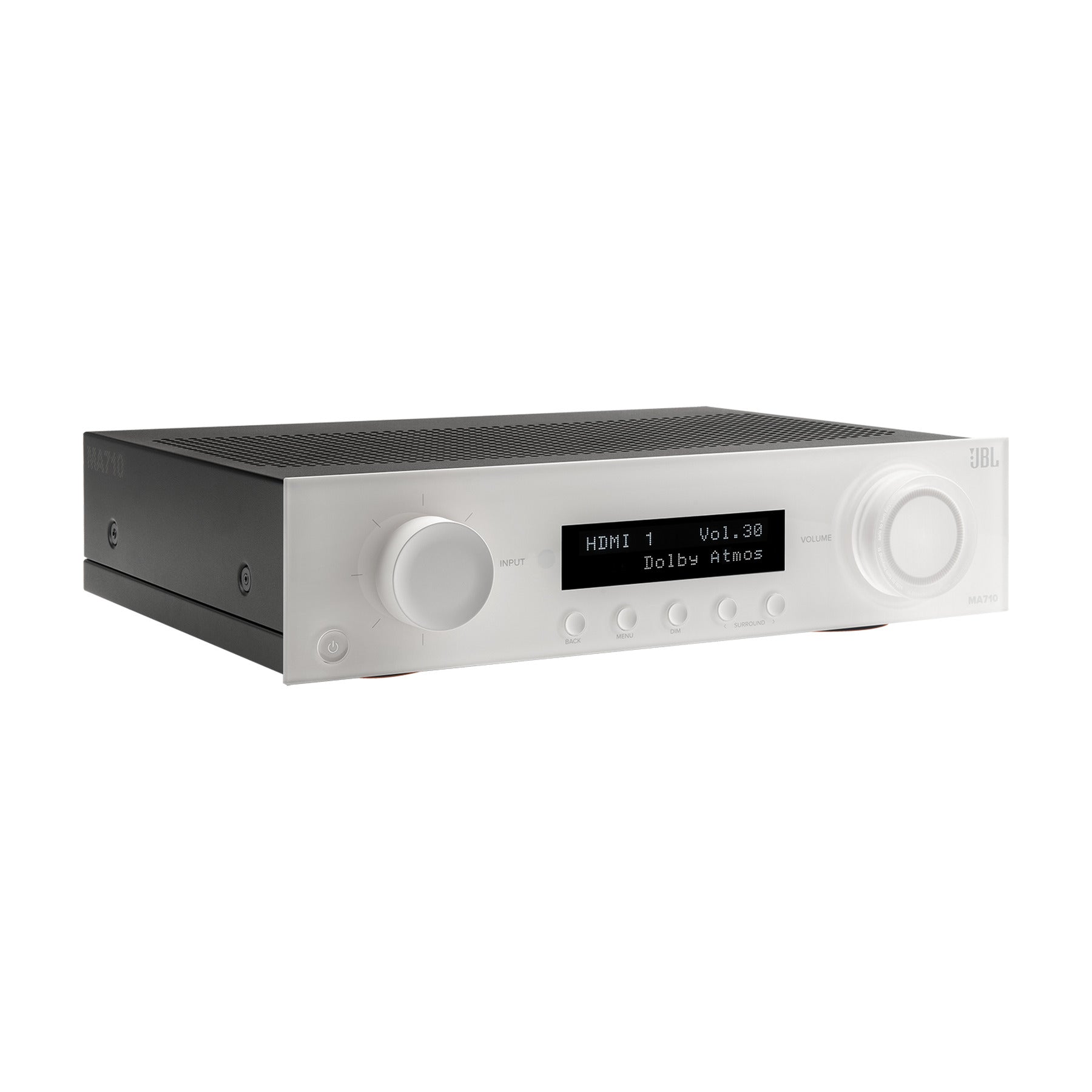

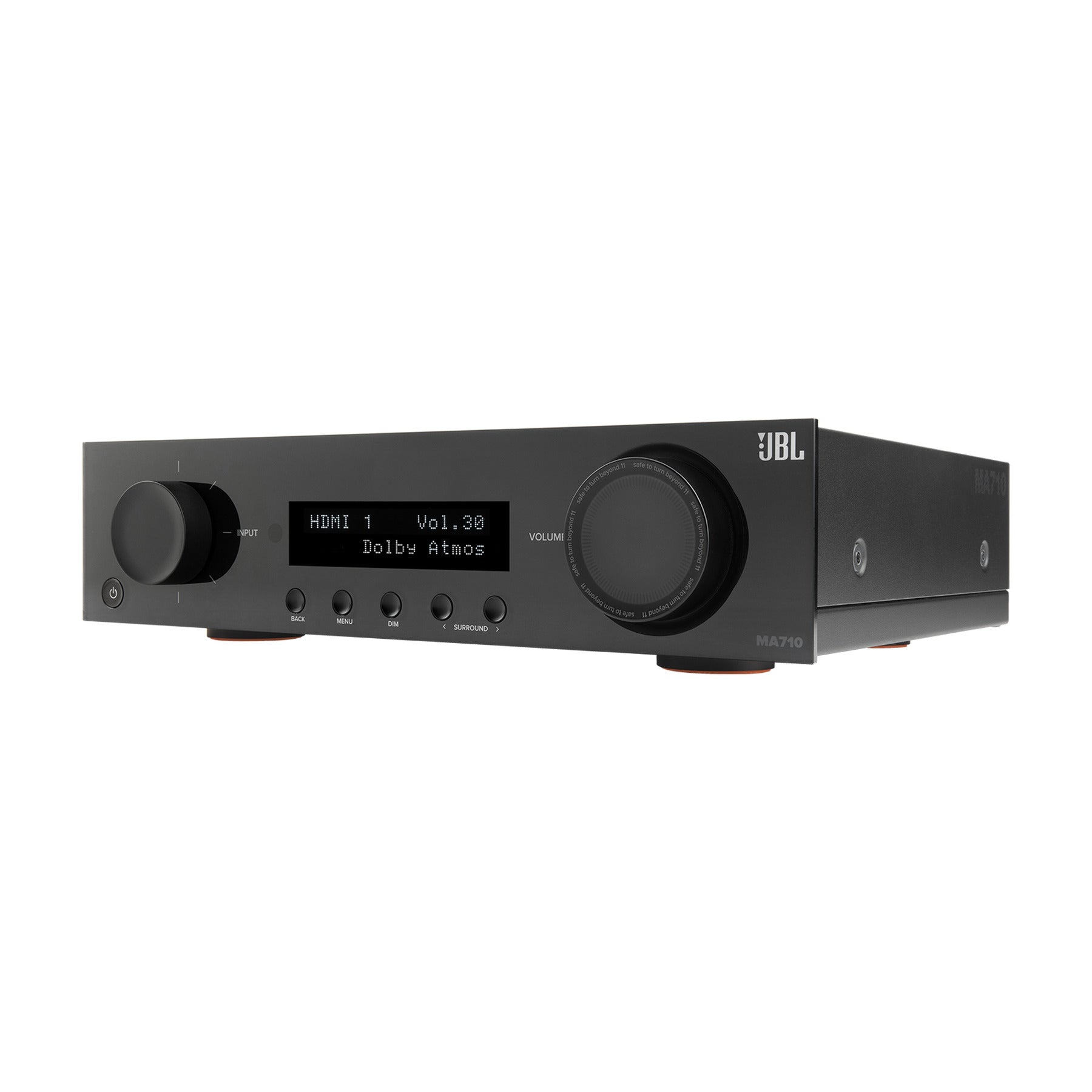

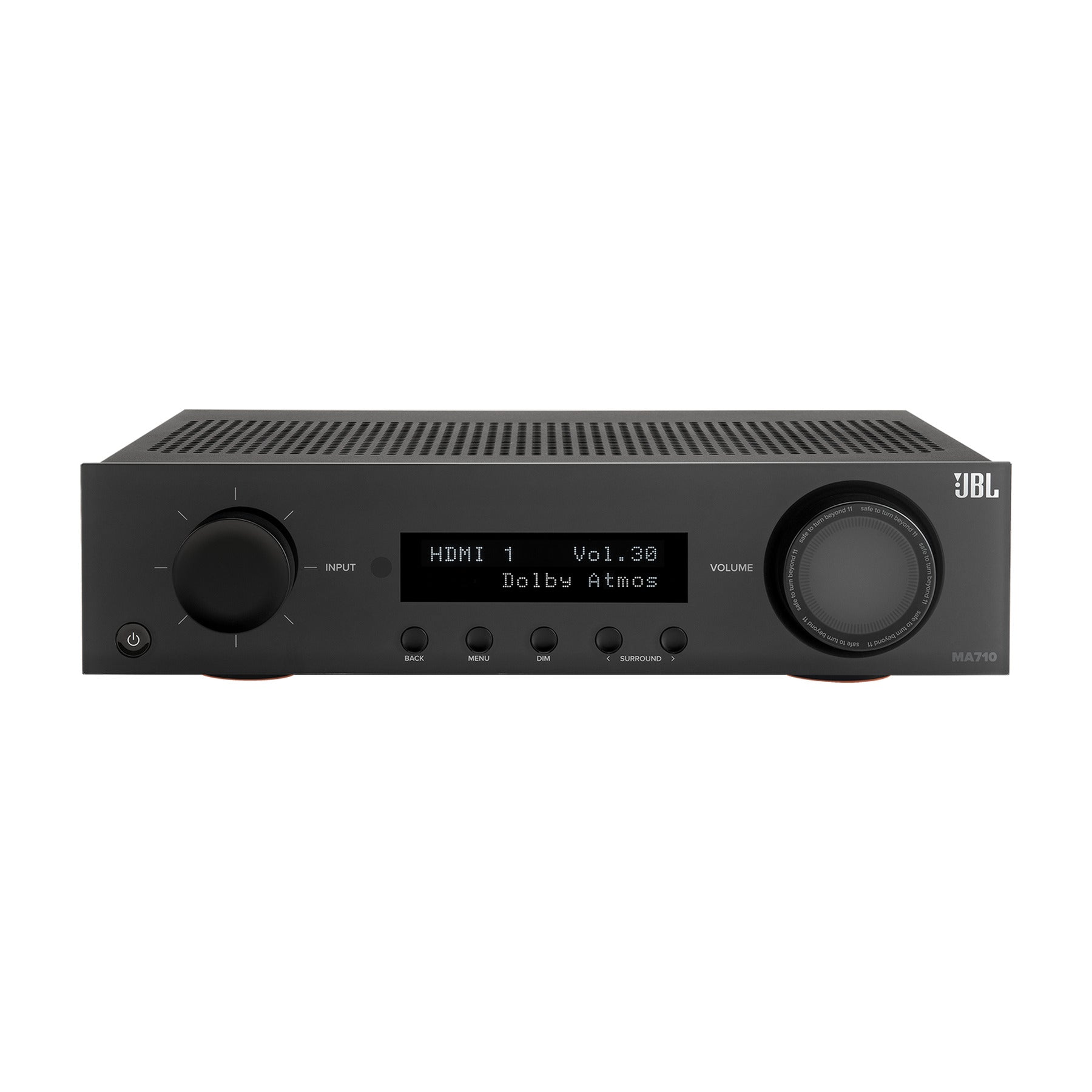

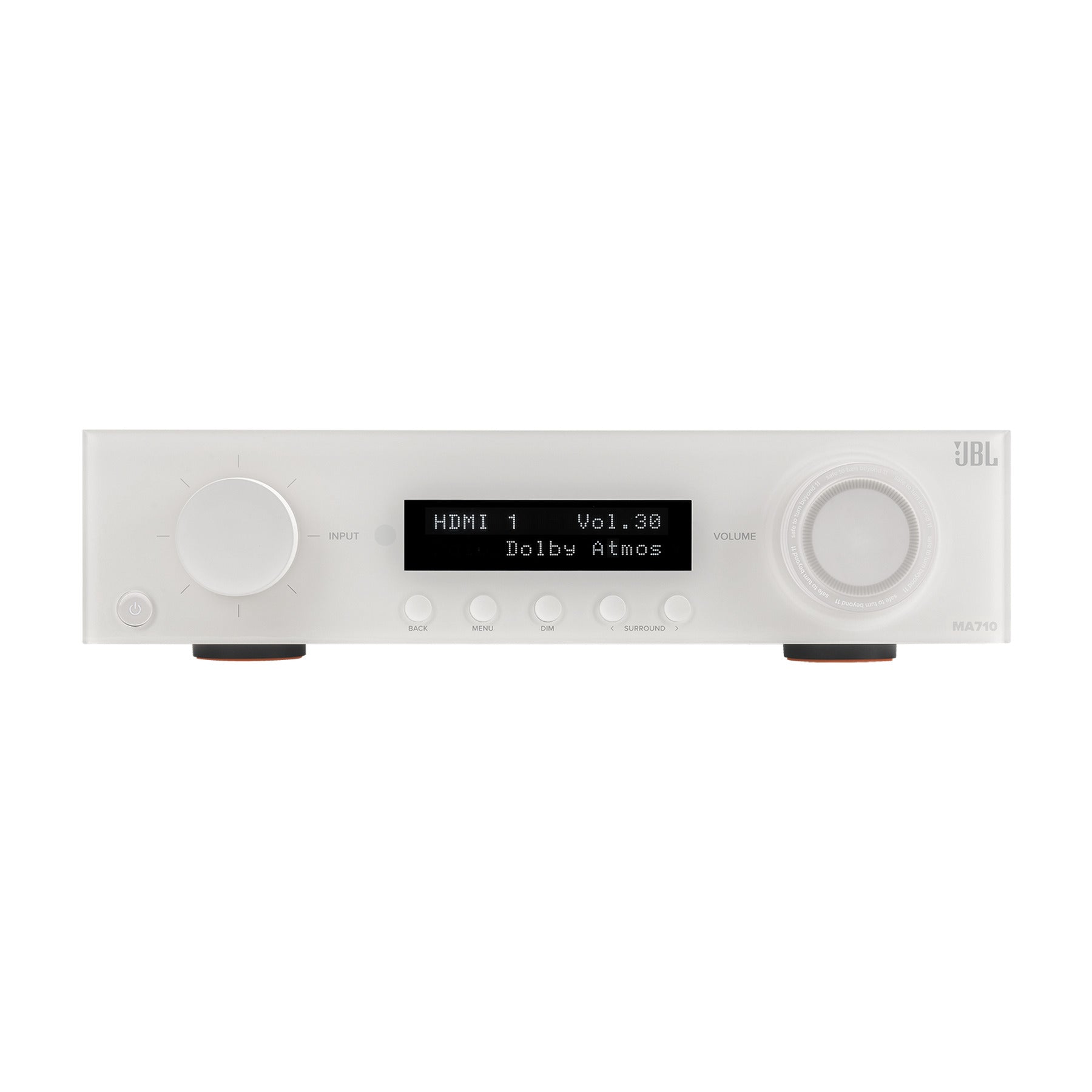

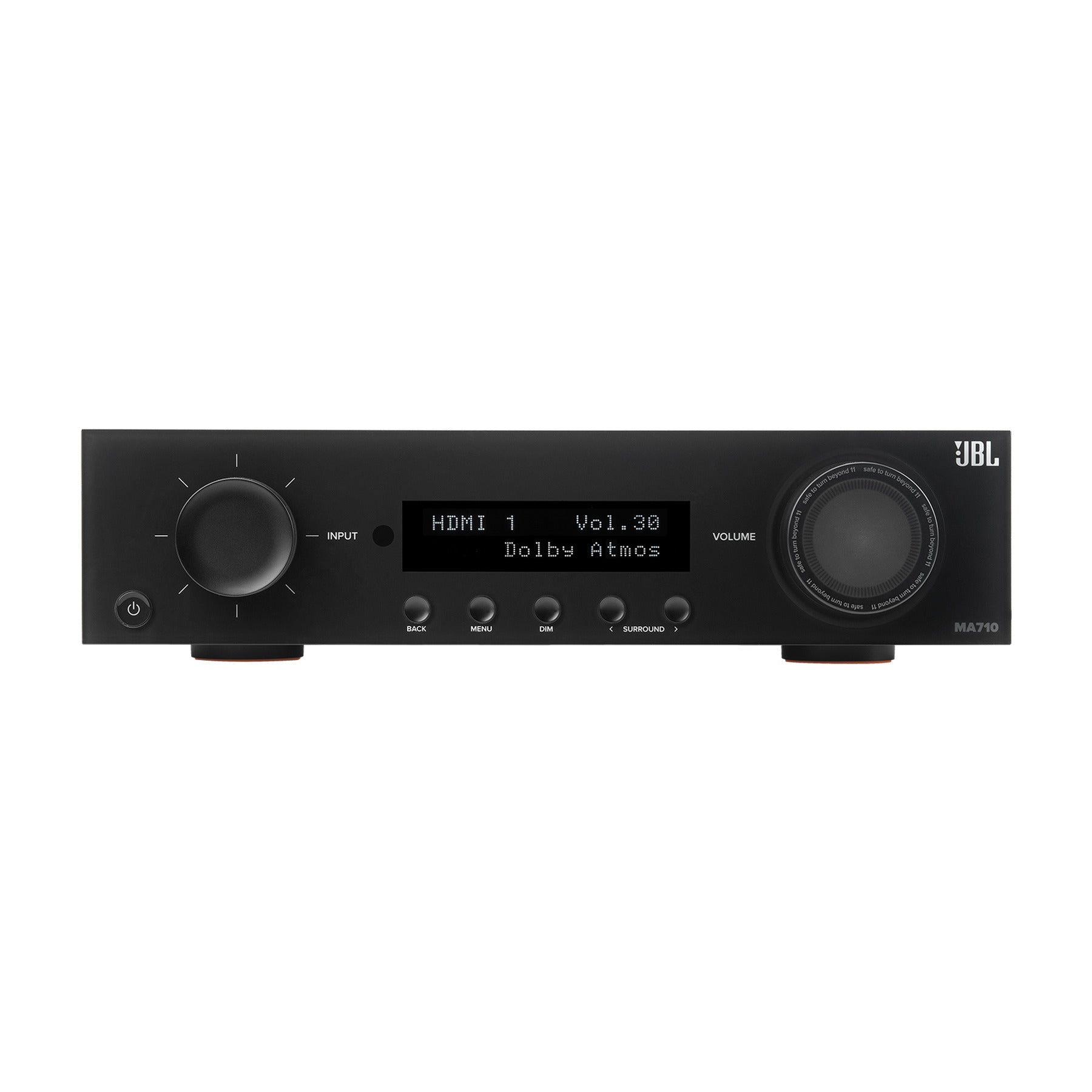

7.2-channel 8K AV Receiver
Bring both music and movies to life with true high fidelity.
The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.
Features

Stunning audio and video performance
7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC

High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 or 5.1.2 channel configurations.
Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast, Roon Ready)
Powerful amplification
Seven channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.

What's in the box?

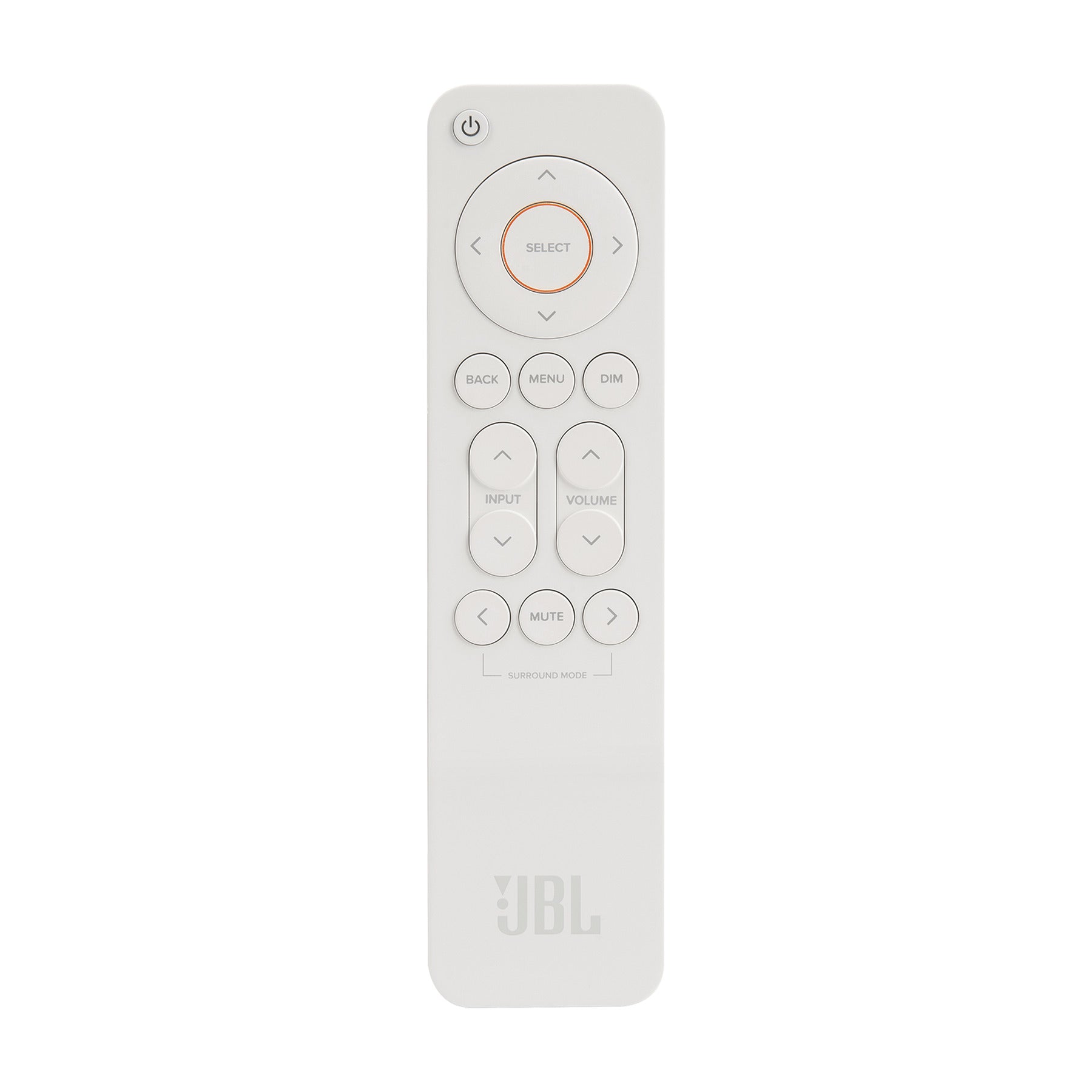

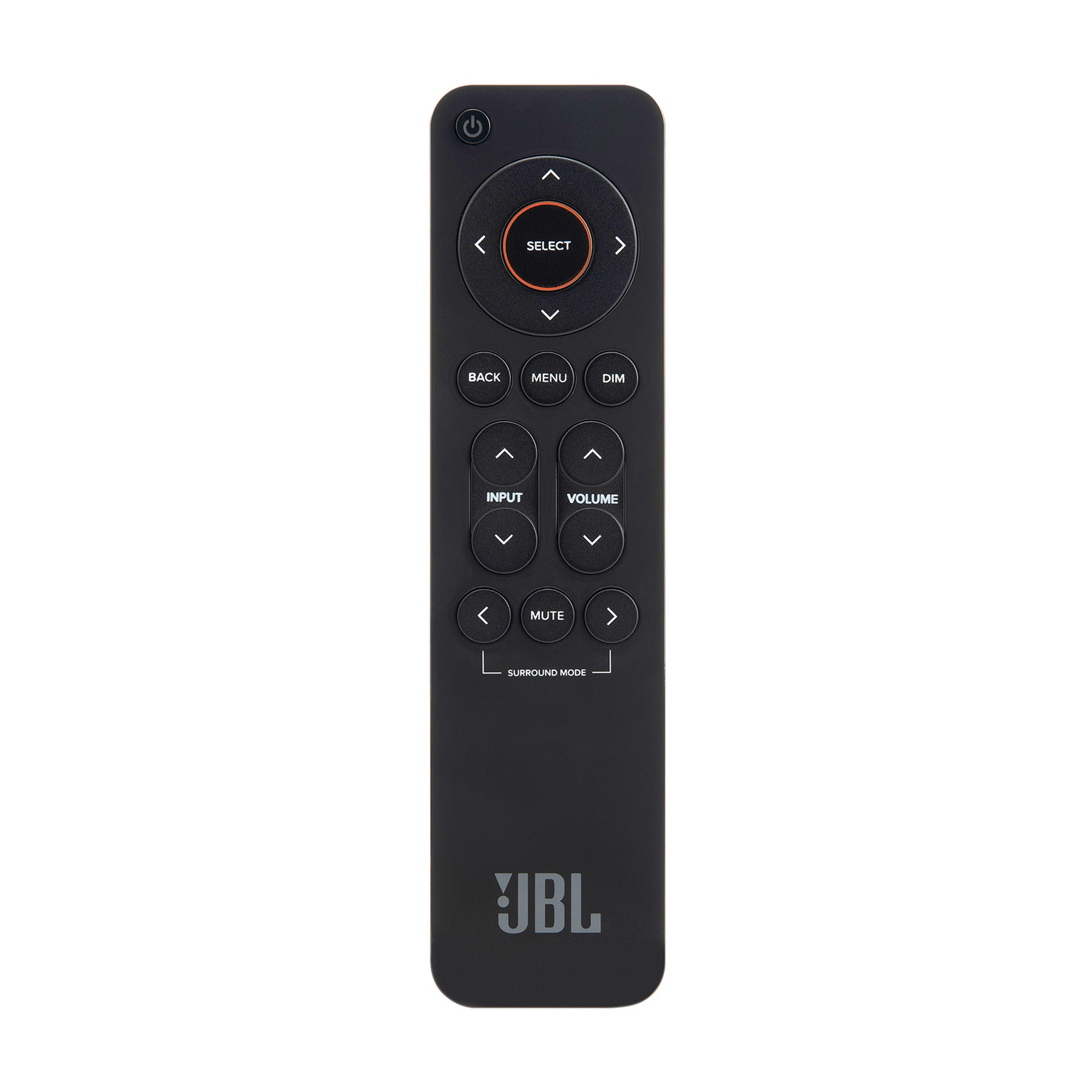

- 1x IR Remote
- 2x AAA batteries
- 1x Bluetooth antenna
- 2x Wi-Fi antenna
- 1x Power Cord
- 1x Quick-Start Guide
- 1x Safety Sheet
Videos
HDMI eARC | Yes |
HDMI Audio Return Channel | Yes |
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 3 |
HDMI 2.1 enhanced gaming features | Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
HDR 10+, Dolby Vision | Yes , Yes |
File format | MP3 / MPEG-4 AAC |
Pure Analog | Yes |
EZ Set EQ | Yes |
Front channel bi-amp | Yes |
Digital signal processing | up to 24-bit/192kHz |

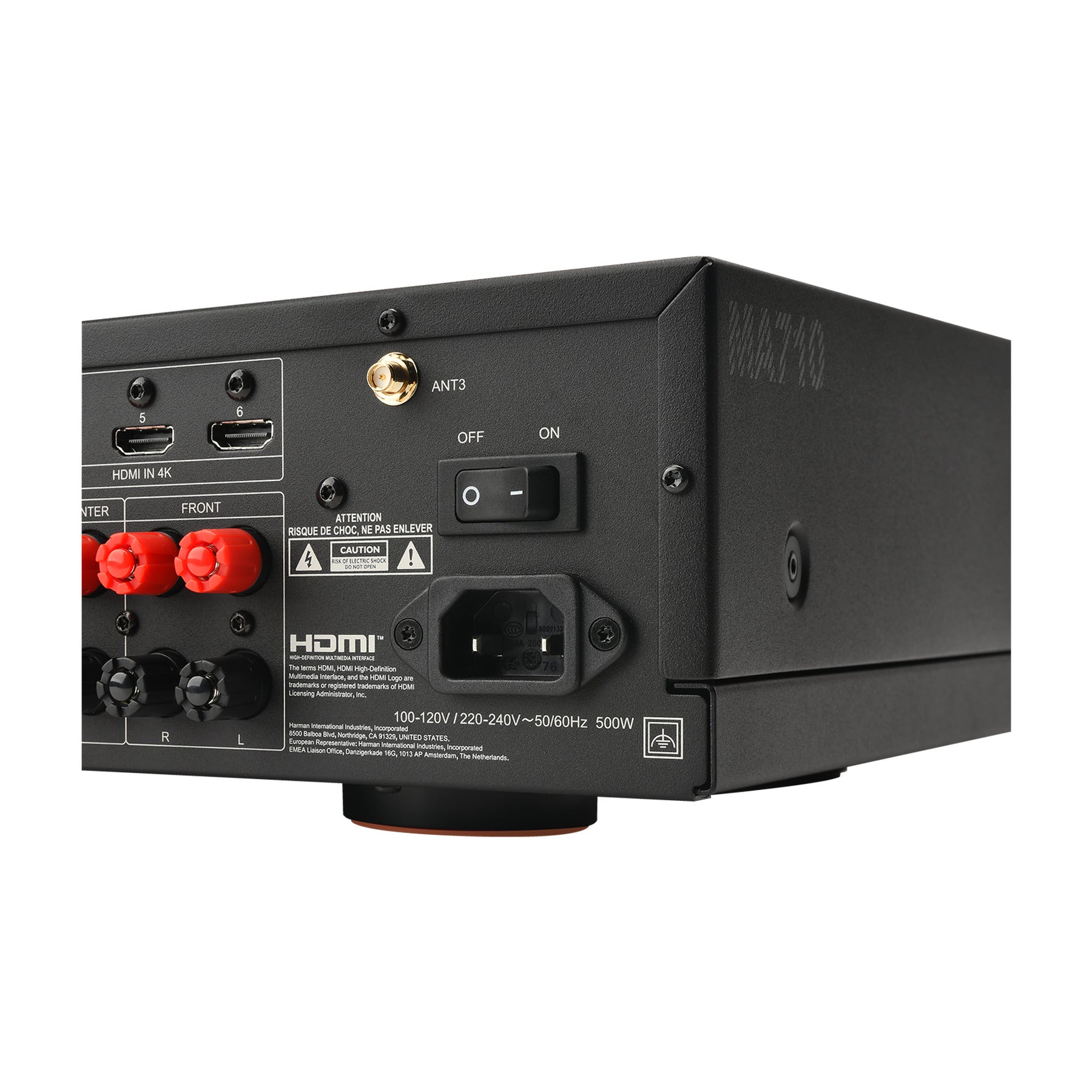

Mains voltage | 110 – 240V, 50–60Hz |
Max. power consumption | 500W |
Standby power consumption | <0.5W |
AUDIO SPECIFICATIONS |
|
Channels | 7.2 |
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) | 110W |
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 110 W RMS |
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 160 W RMS |
Dimensions incl. feet and speaker terminals (H x W x D) | 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm) |
Weight | 16.4lb (7.4kg) |

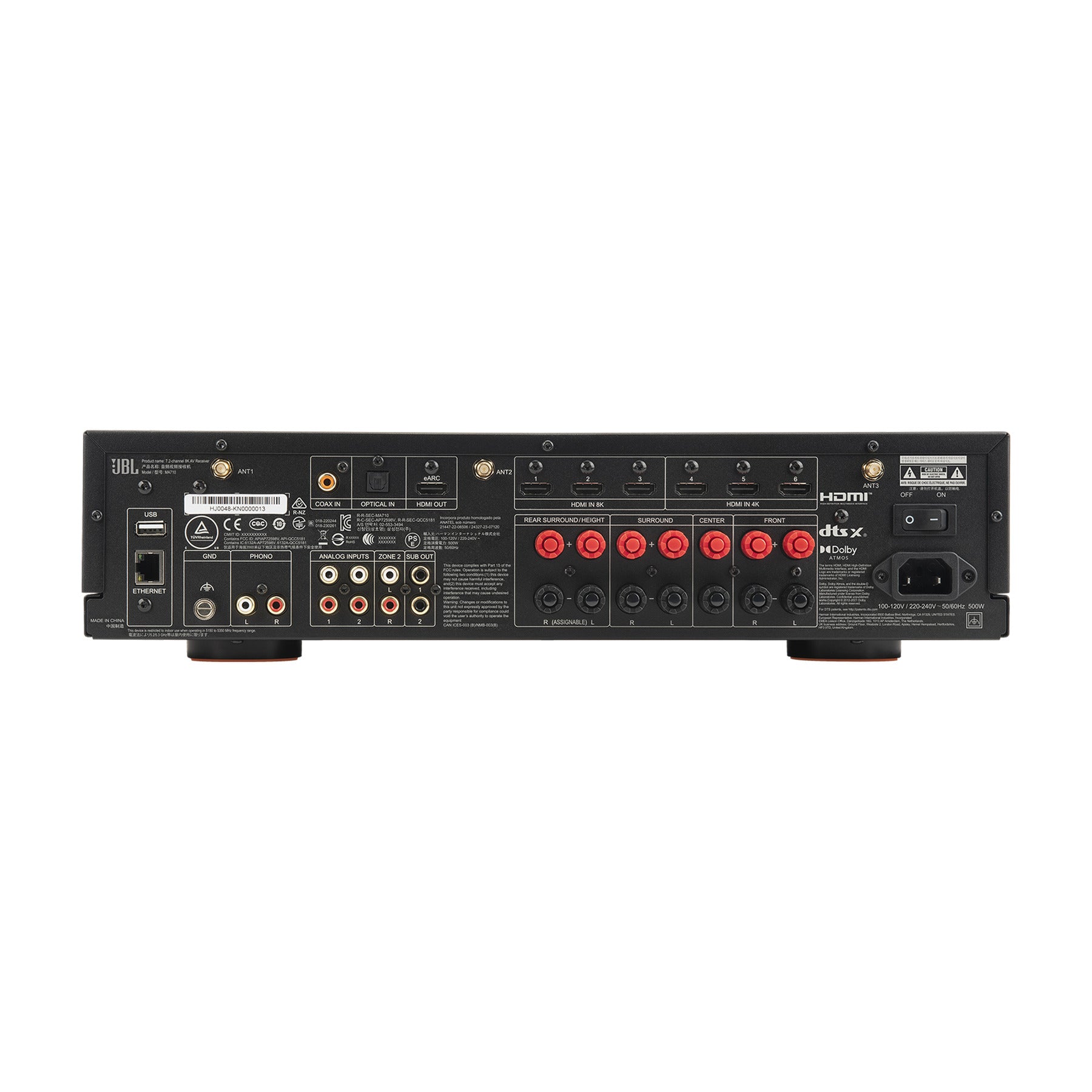

Control and Connection Specifications |
|

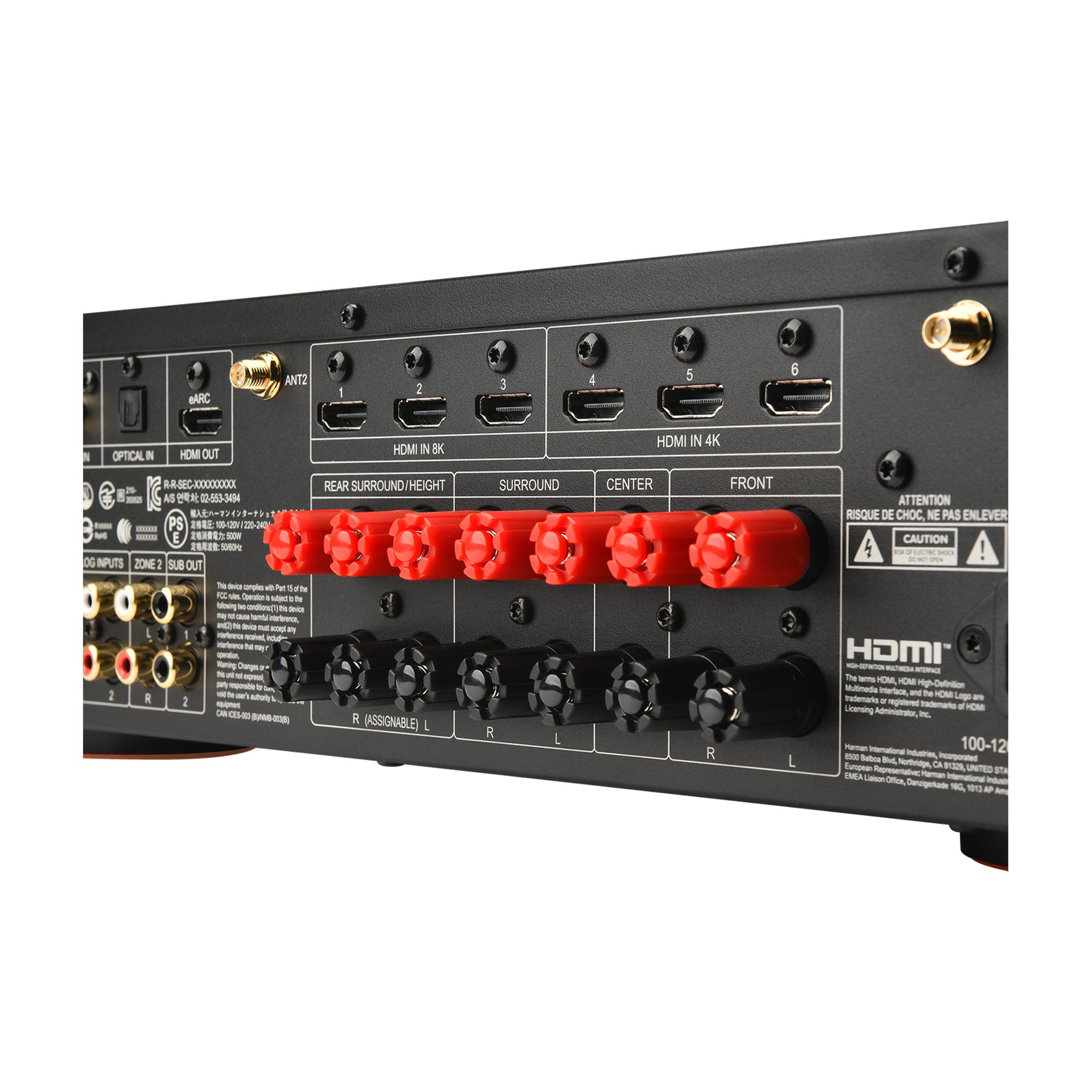

HDMI Input/Output | 6/ 1 |
Wi-Fi | Yes (2.4/5GHz) |
Bluetooth receiver | Yes (v5.3, Low Energy, APTX HD, APTX Adaptive) |
Bluetooth transmit | Yes |

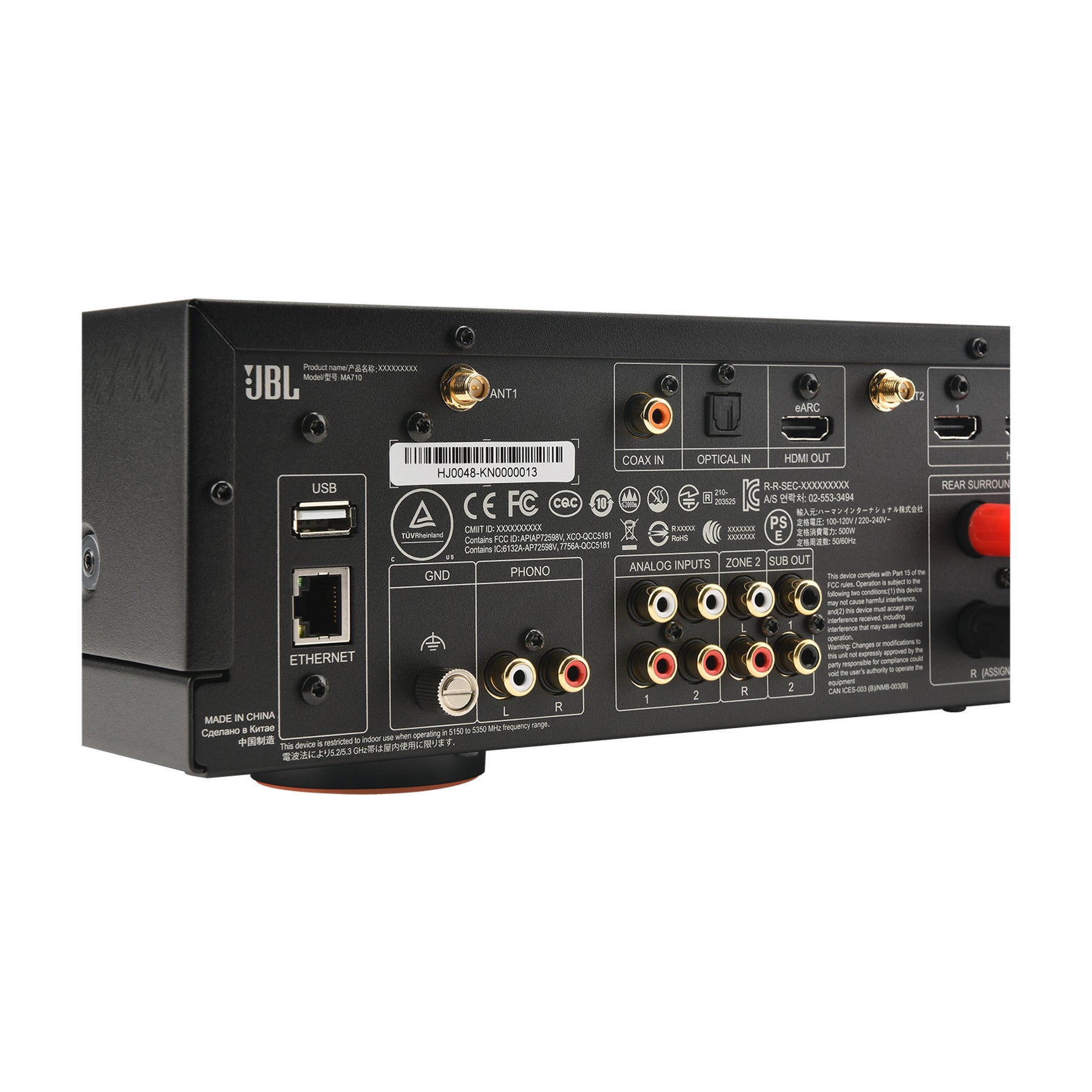

Digital Audio Input | 1 Coax, 1 Optical, 1 USB |
Stereo analog input | 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground |
Pre-Out (single ended RCA) | Stereo Zone 2, Subwoofer 1, Subwoofer 2 |
Ethernet | RJ45 Gigabit, WiFi Onboard |
