JBL


L52 Classic
5.25-inch (130mm) 2-way Bookshelf Loudspeaker

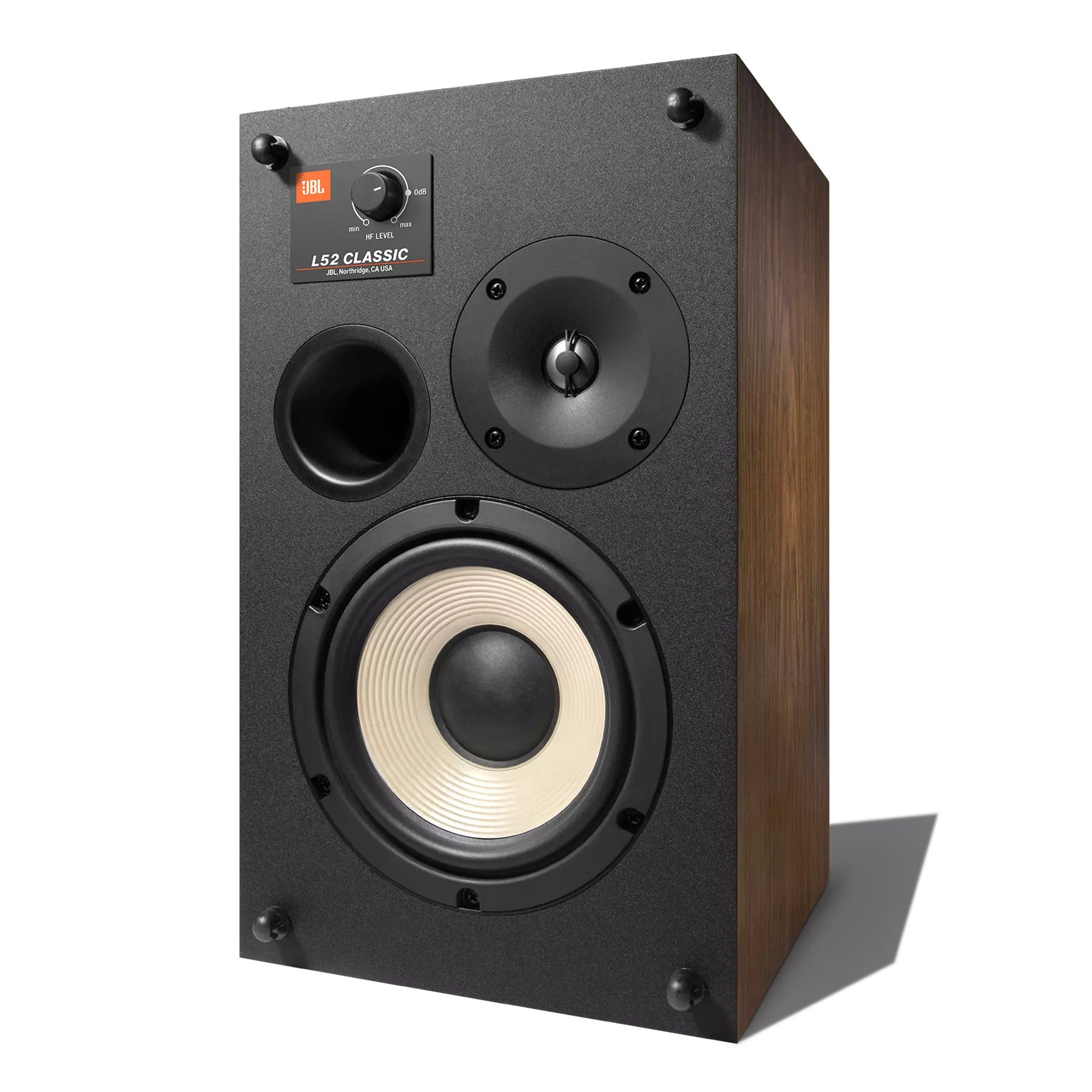

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the L52 Classic is a 5.25-inch (130mm) 2-way loudspeaker featuring JBL’s advanced acoustic technologies in combination with the award-winning retro-inspired style of its larger family members. The vintage design of the L52 Classic features a genuine walnut wood veneer cabinet and choice of Quadrex foam grilles. Beneath this iconic exterior is a loudspeaker built from modern acoustic components, delivering legendary JBL sound sure to please any music lover.
Features

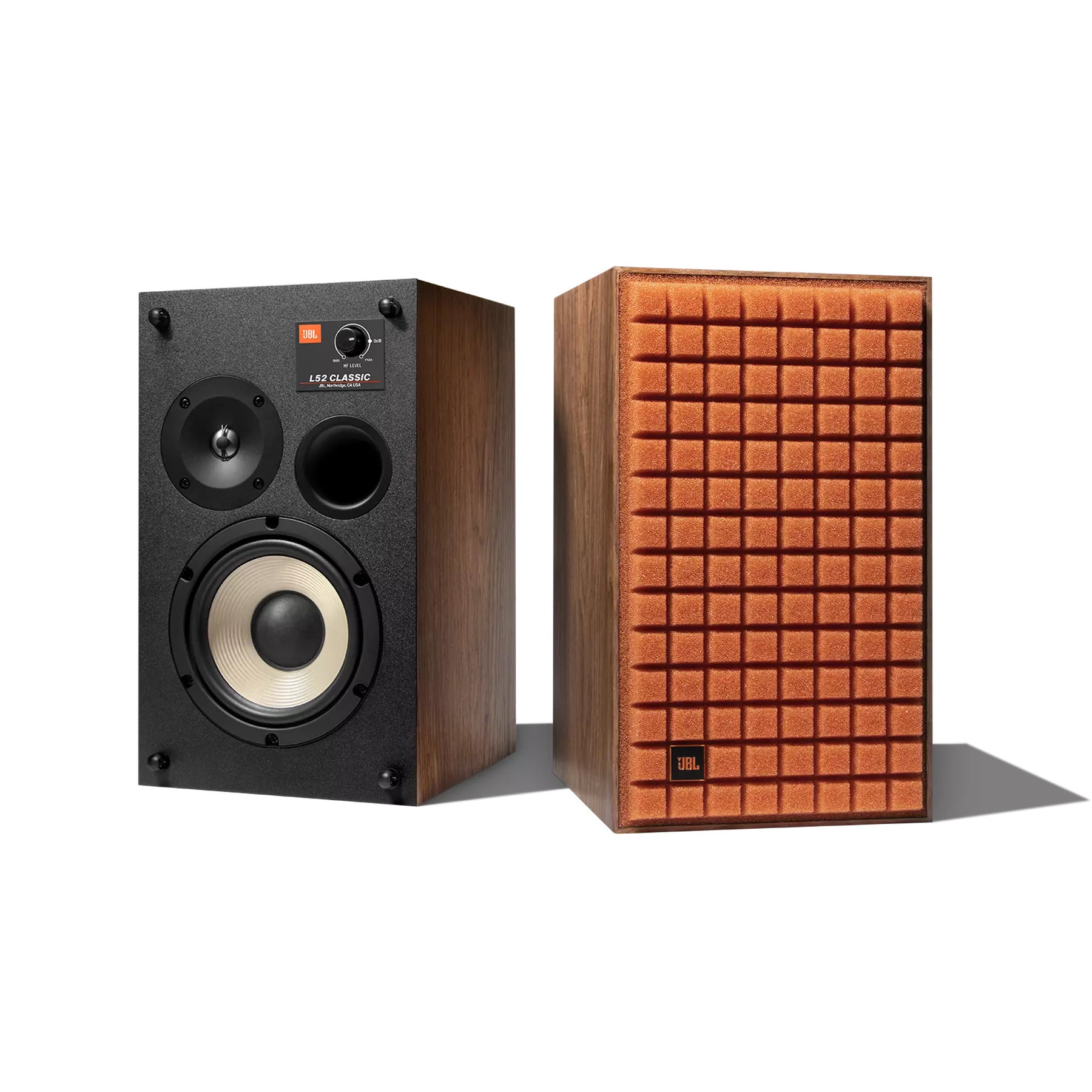

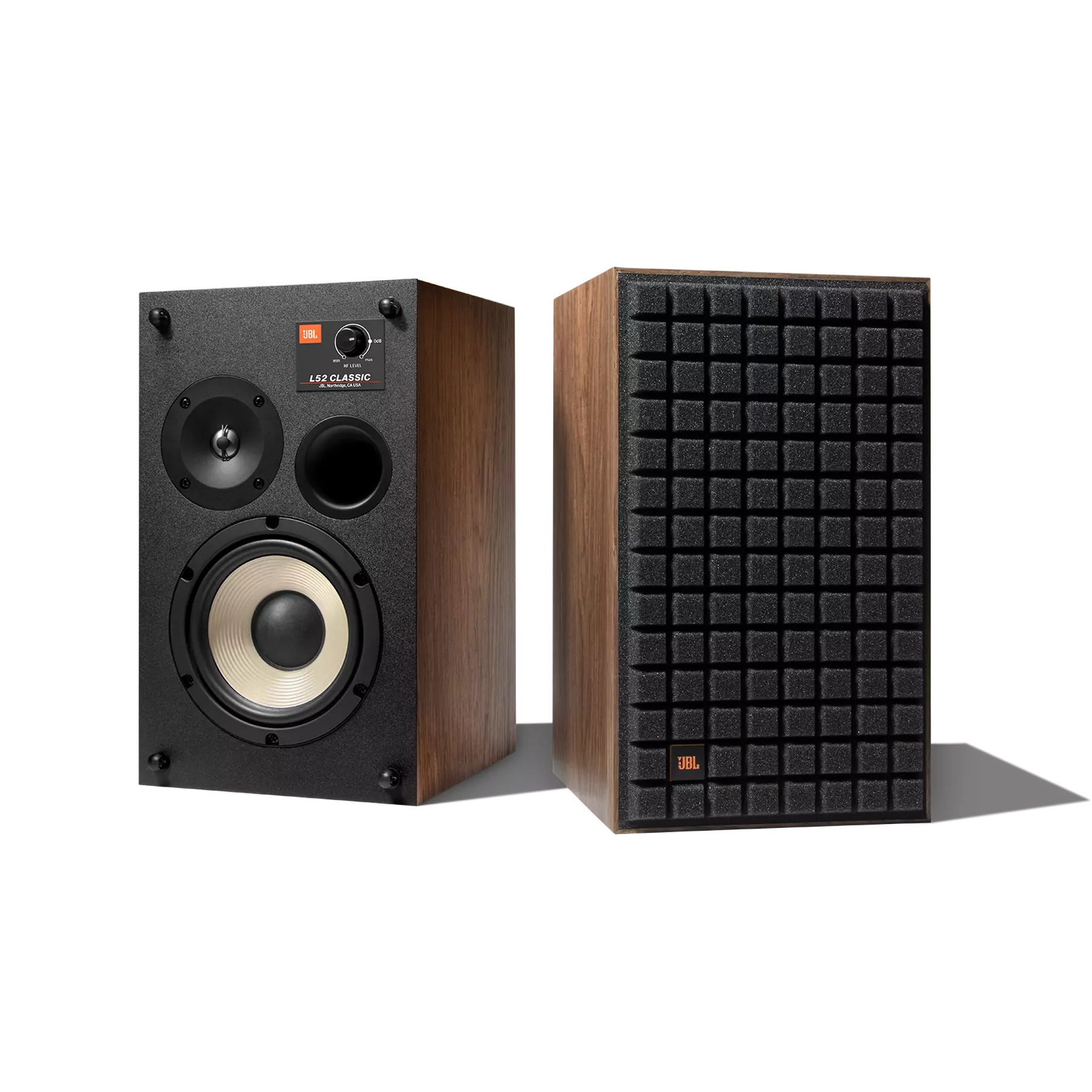

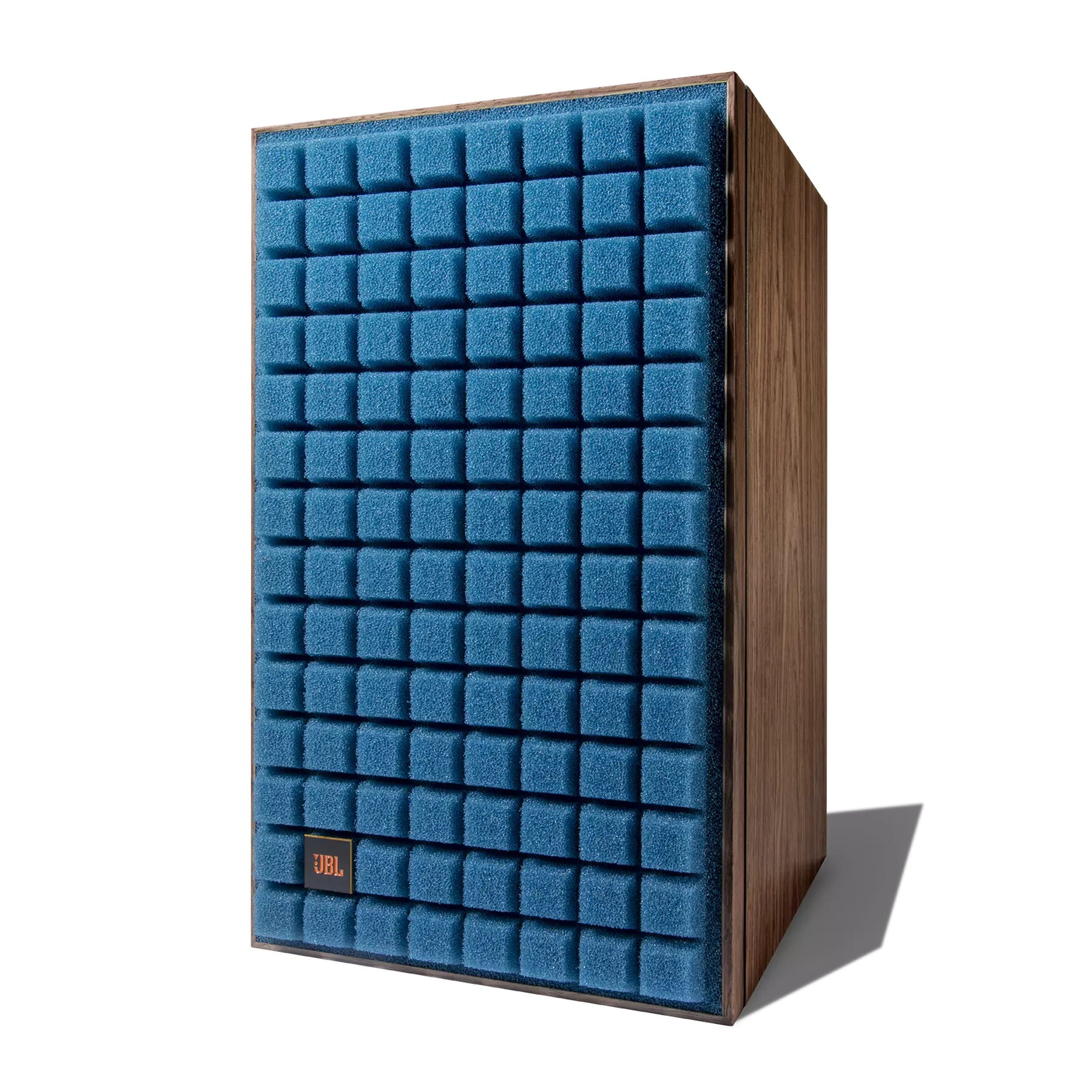

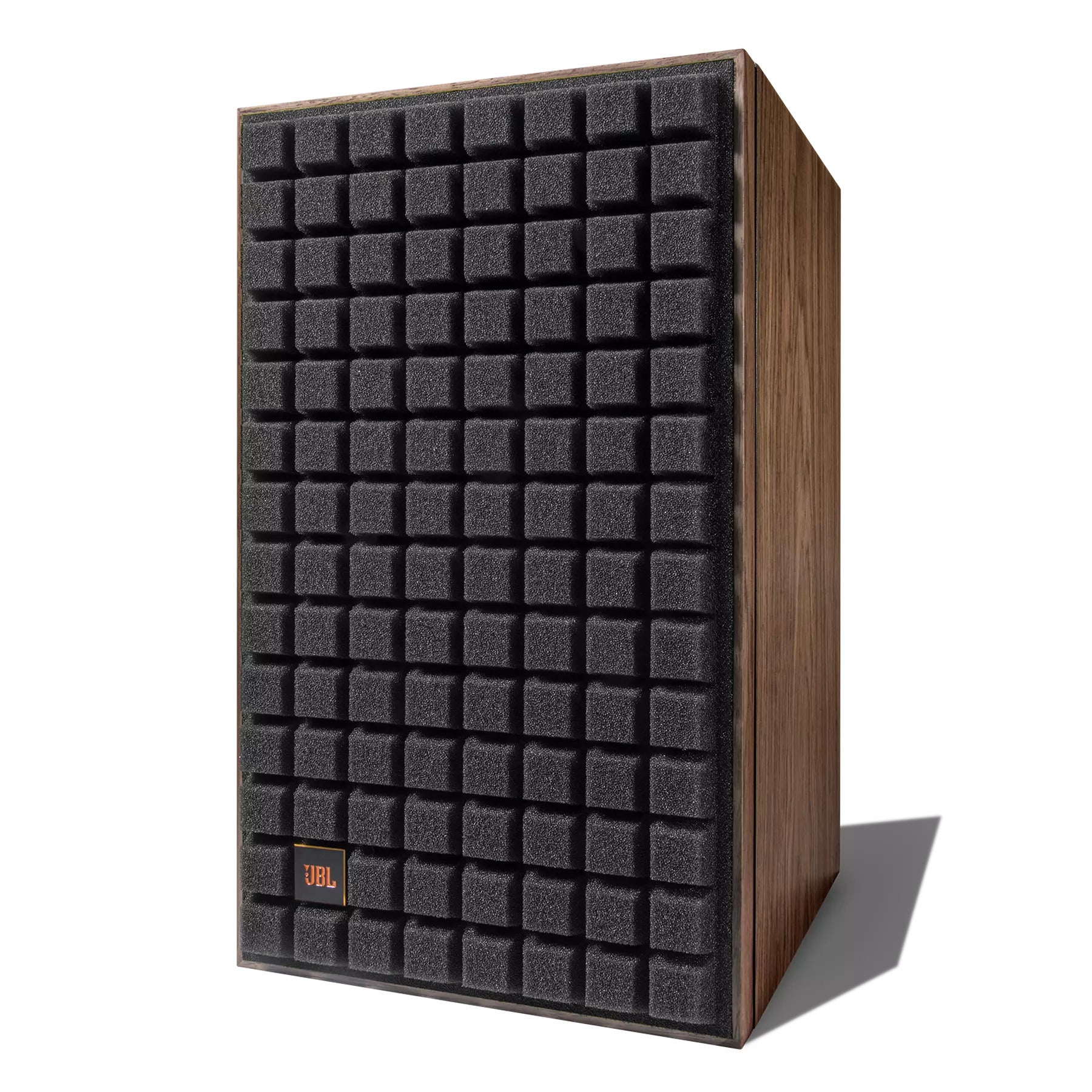

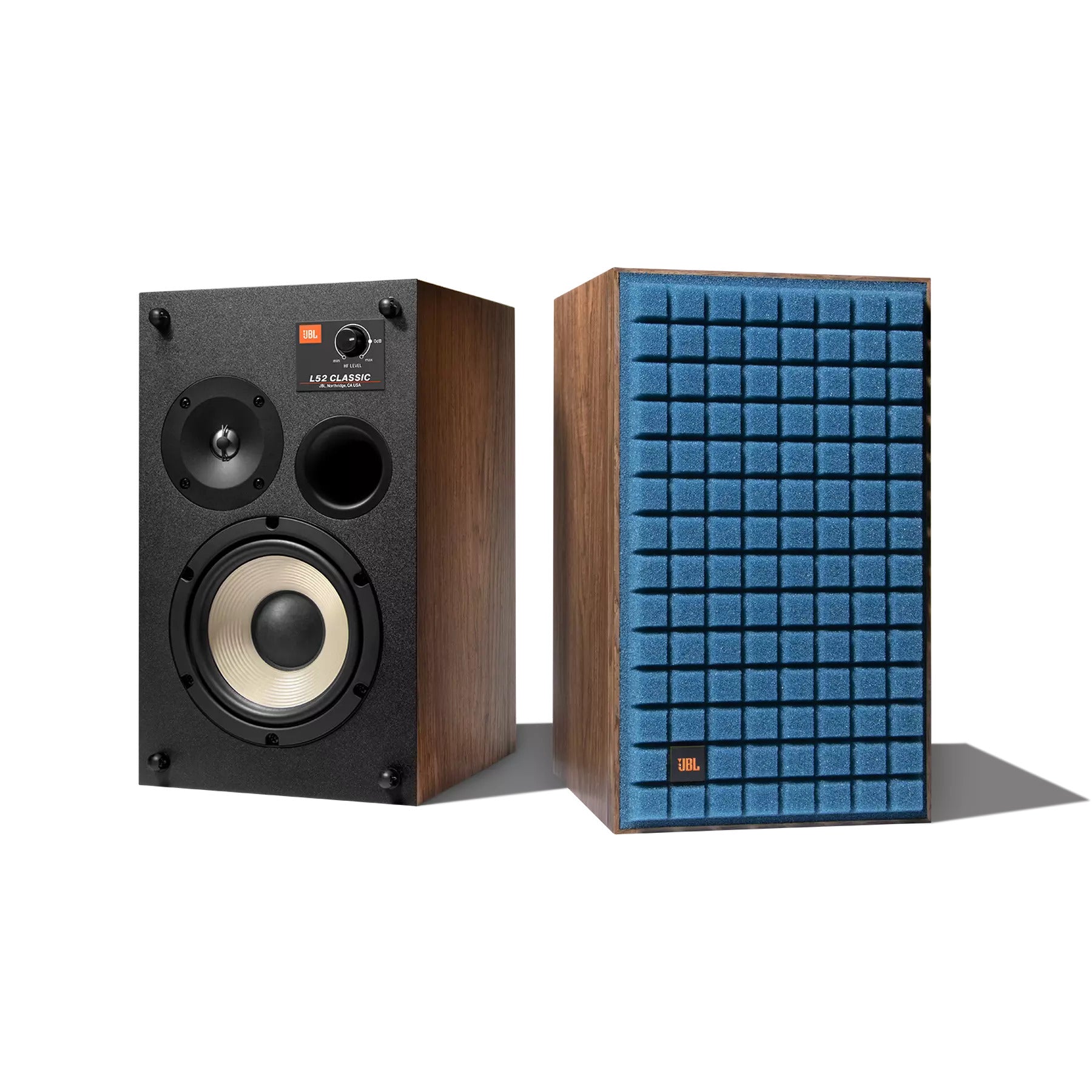

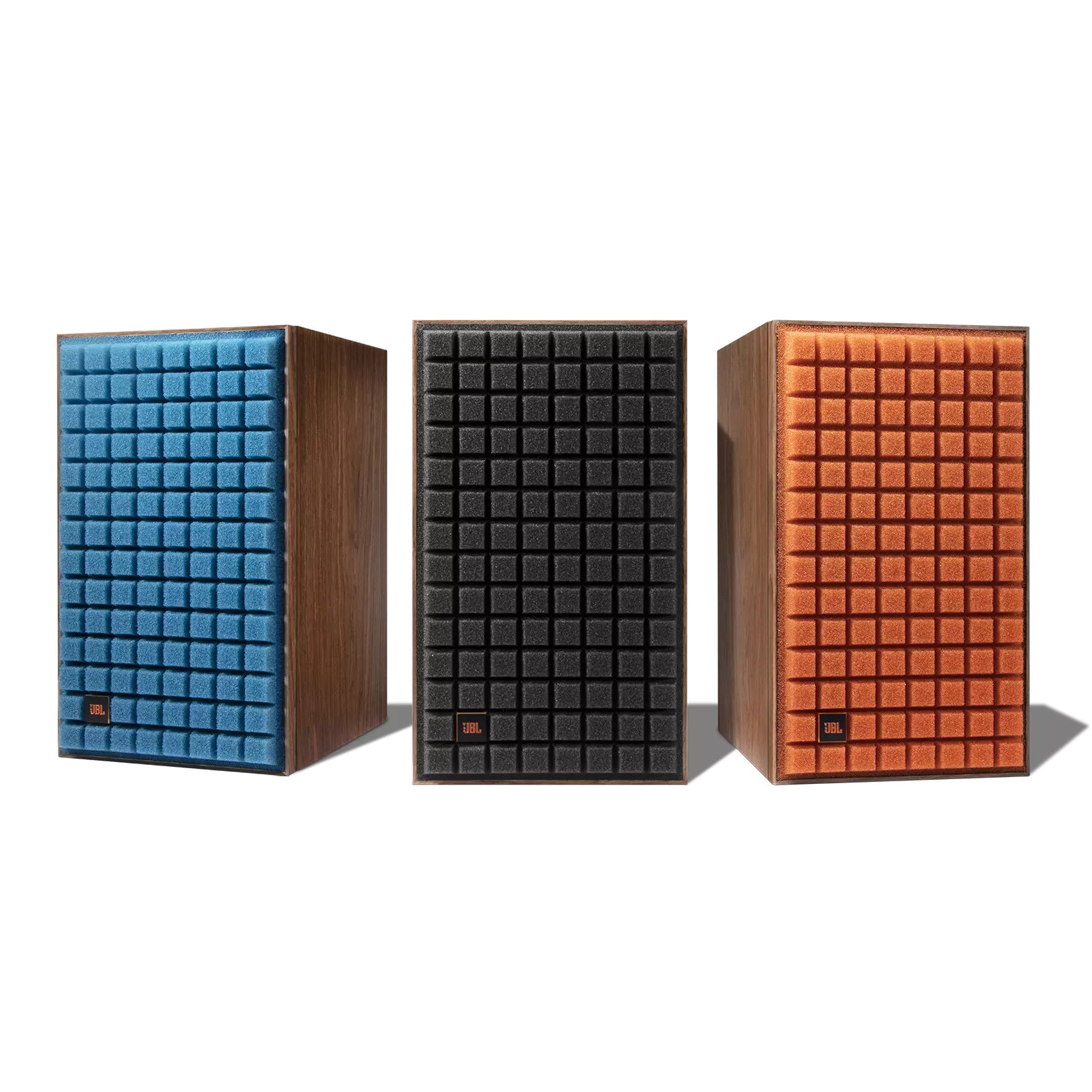

Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, burnt orange and dark blue

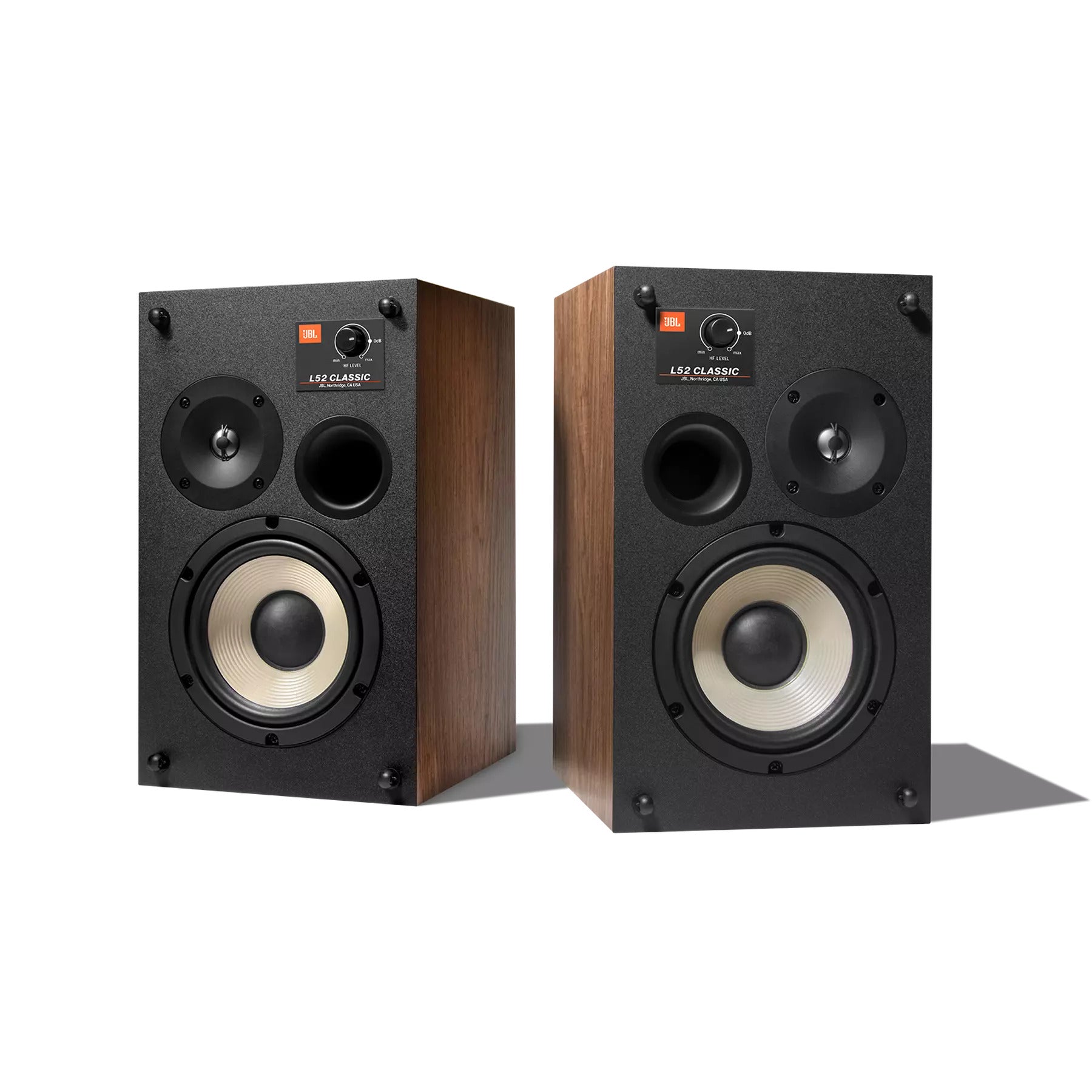

5.25-inch (130mm) cast-frame, white pure pulp cone woofer in bass-reflex design with front-firing tuned port.
Genuine satin walnut wood veneer.
0.75-inch (20mm) titanium dome tweeter with acoustic lens waveguide
High-frequency level attenuator
Mirror-imaged stereo pairs
Dual threadedd inserts for third party wall-mount brackets.
GENERAL SPECIFICATIONS
Type
2-way bookshelf loudspeaker
Low Frequency Driver
5.25" (133mm) Pure Pulp cone woofer (JW135PW-4)
High Frequency Driver
0.75” (20mm) Titanium dome tweeter (JT020TI1-4) with waveguide
Recommended Amplifier Power
10 - 75 WRMS
Impedance
4 Ohm
Loudspeaker Sensitivity
85 dB/2.83Vm
Frequency Response
47 Hz - 24 kHz (-6 dB)
Crossover Frequency
2.8 kHz
Enclosure
Front-ported bookshelf in satin walnut furniture-grade wood veneer
Grille
Foam Quadrex grille available in three colors
Dimensions with grille
13" H x 7.74" W x 8.51" D (330.2mm x 196.6mm x 216.2mm)
Controls
HF level control

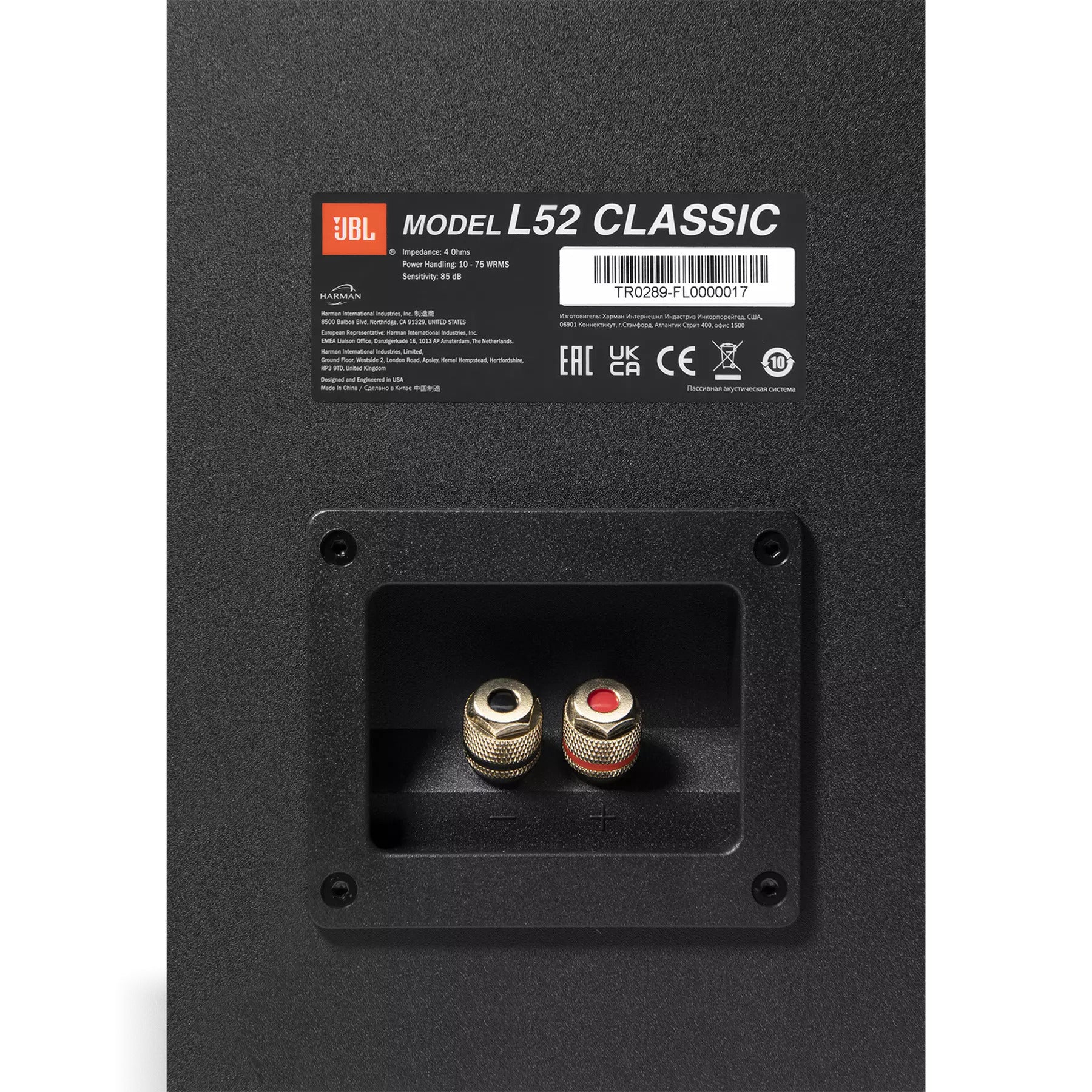

Input Type
Gold-plated binding posts
Product Weight (Each)
11 lbs. (5.0 kg)
Shipping Weight
30.4 lbs. (13.8 kg)
Shipping Units of Measure
Mirror-imaged stereo pair
Warranty
5 Years
Recommended stand height
24” (609 mm)

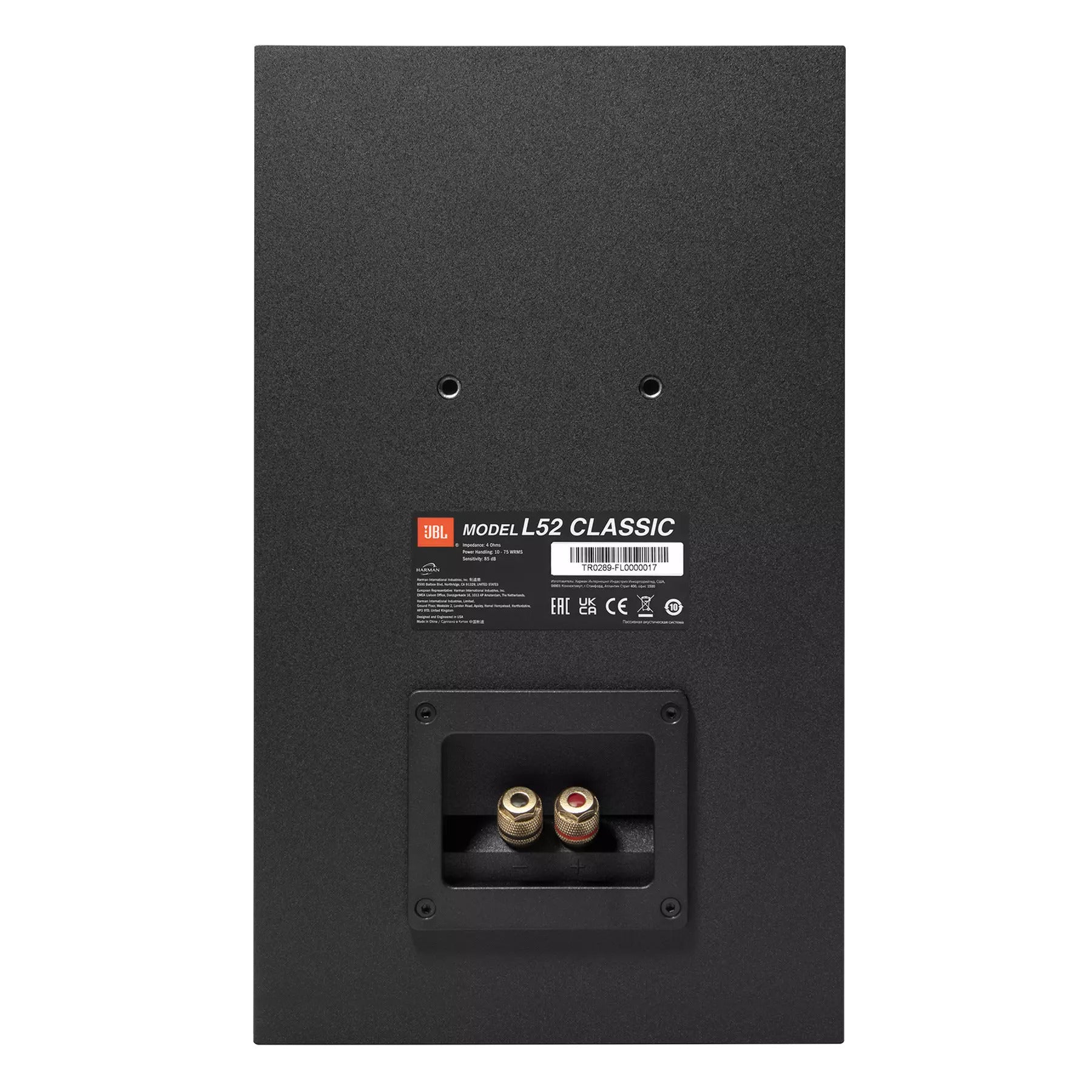

Wall bracket insert/spacing
M6 x 1.0 thread, 12mm max screw length / spaced 2.64” (67mm) center-to-center
AUDIO SPECIFICATIONS
Type
2-way bookshelf loudspeaker
Enclosure
Front-ported bookshelf in satin walnut furniture-grade wood veneer
Grille
Foam Quadrex grille available in three colors
Dimensions with grille
13" H x 7.74" W x 8.51" D (330.2mm x 196.6mm x 216.2mm)
Controls
HF level control
Input Type
Gold-plated binding posts
Product Weight (Each)
11 lbs. (5.0 kg)
Shipping Weight
30.4 lbs. (13.8 kg)
Shipping Units of Measure
Mirror-imaged stereo pair
Warranty
5 Years
Recommended stand height
24” (609 mm)
Wall bracket insert/spacing
M6 x 1.0 thread, 12mm max screw length / spaced 2.64” (67mm) center-to-center
