JBL L42ms Music System

JBL L42ms Music System

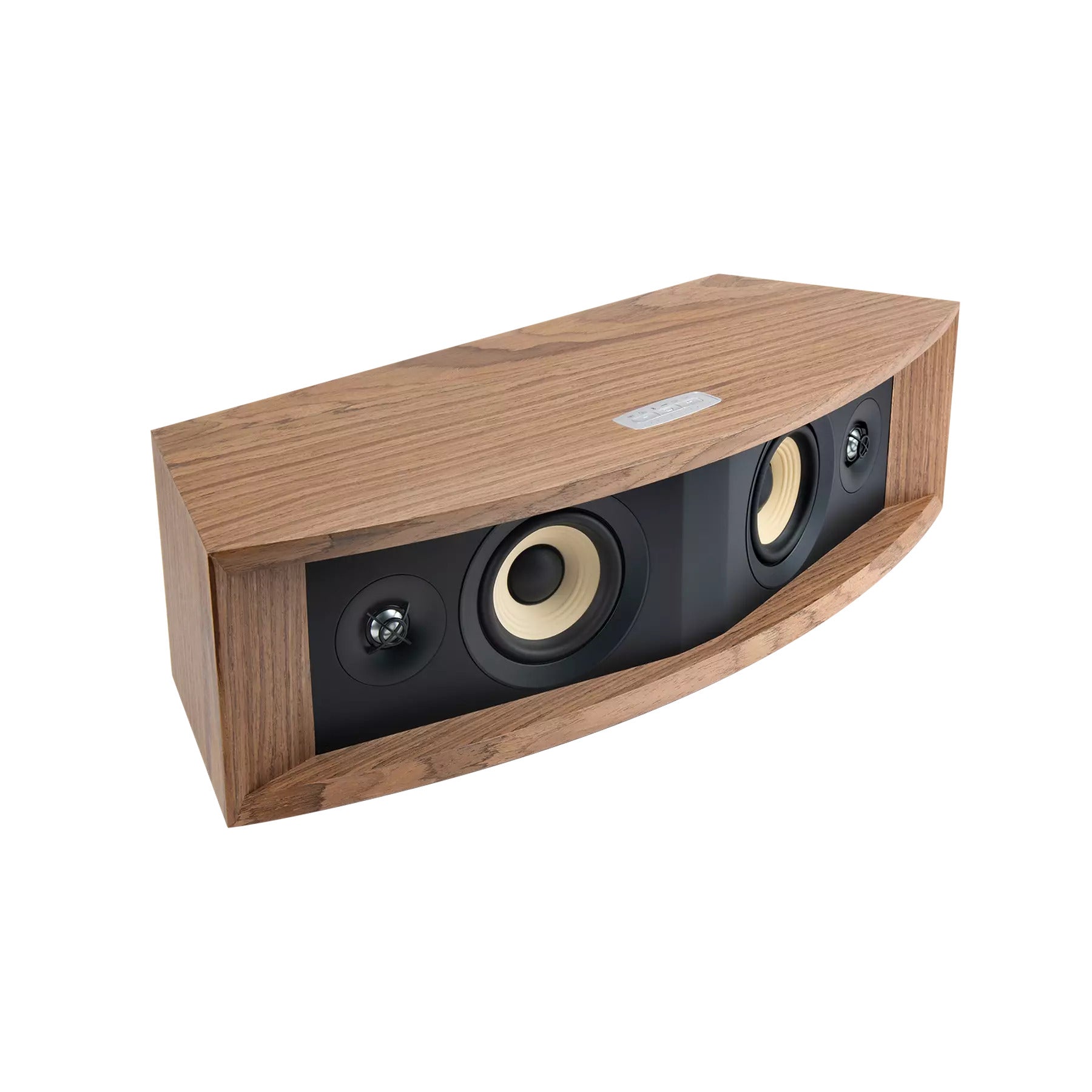

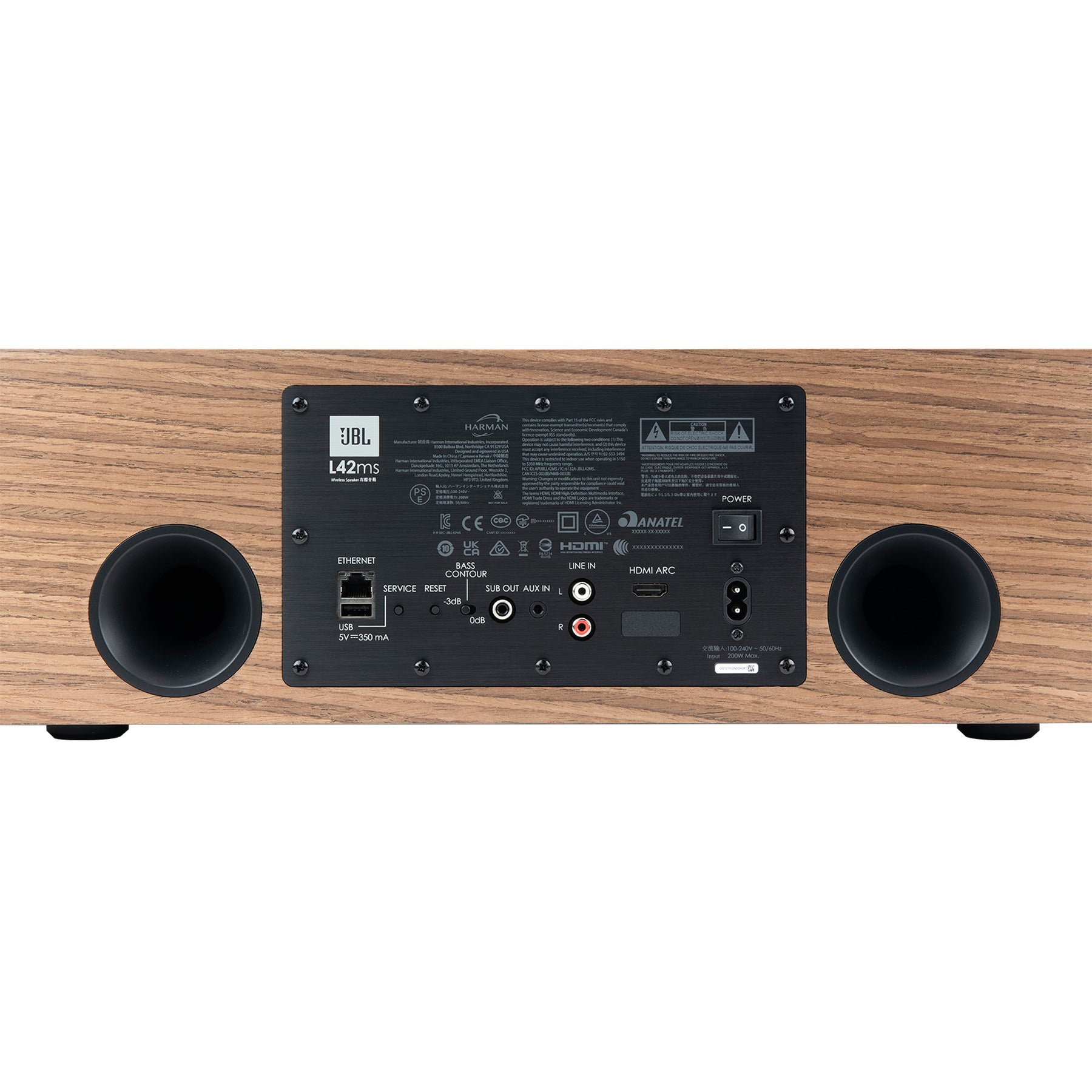

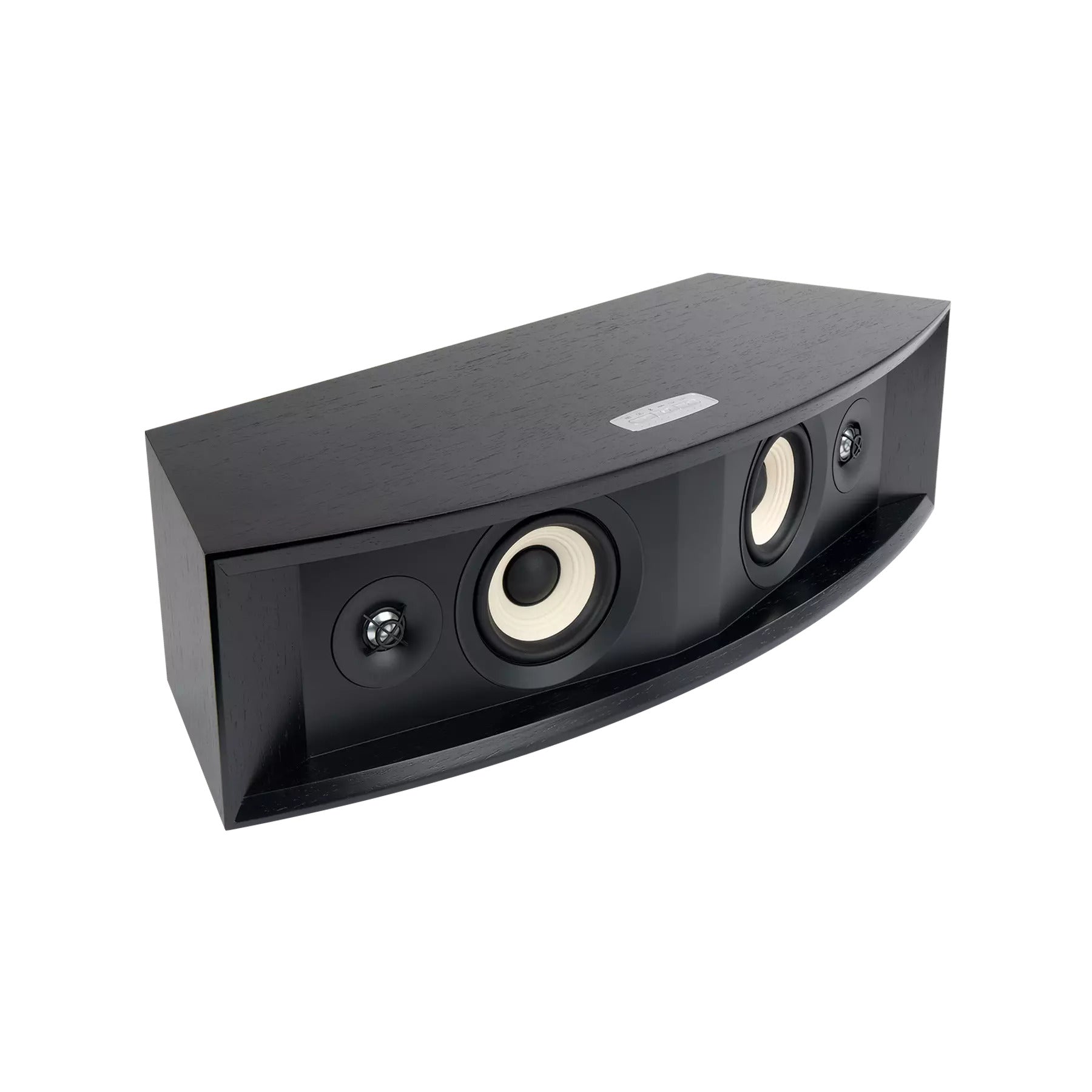

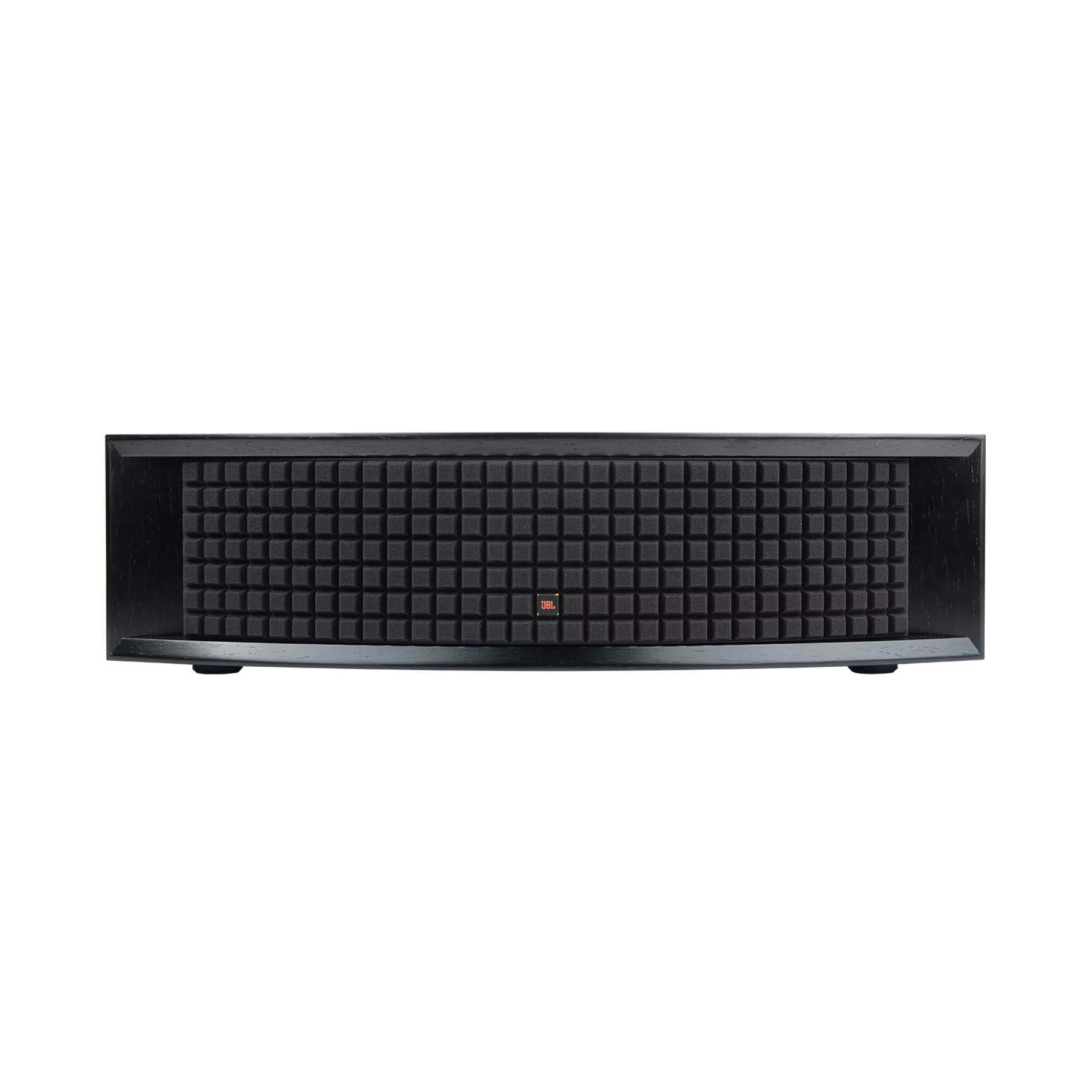

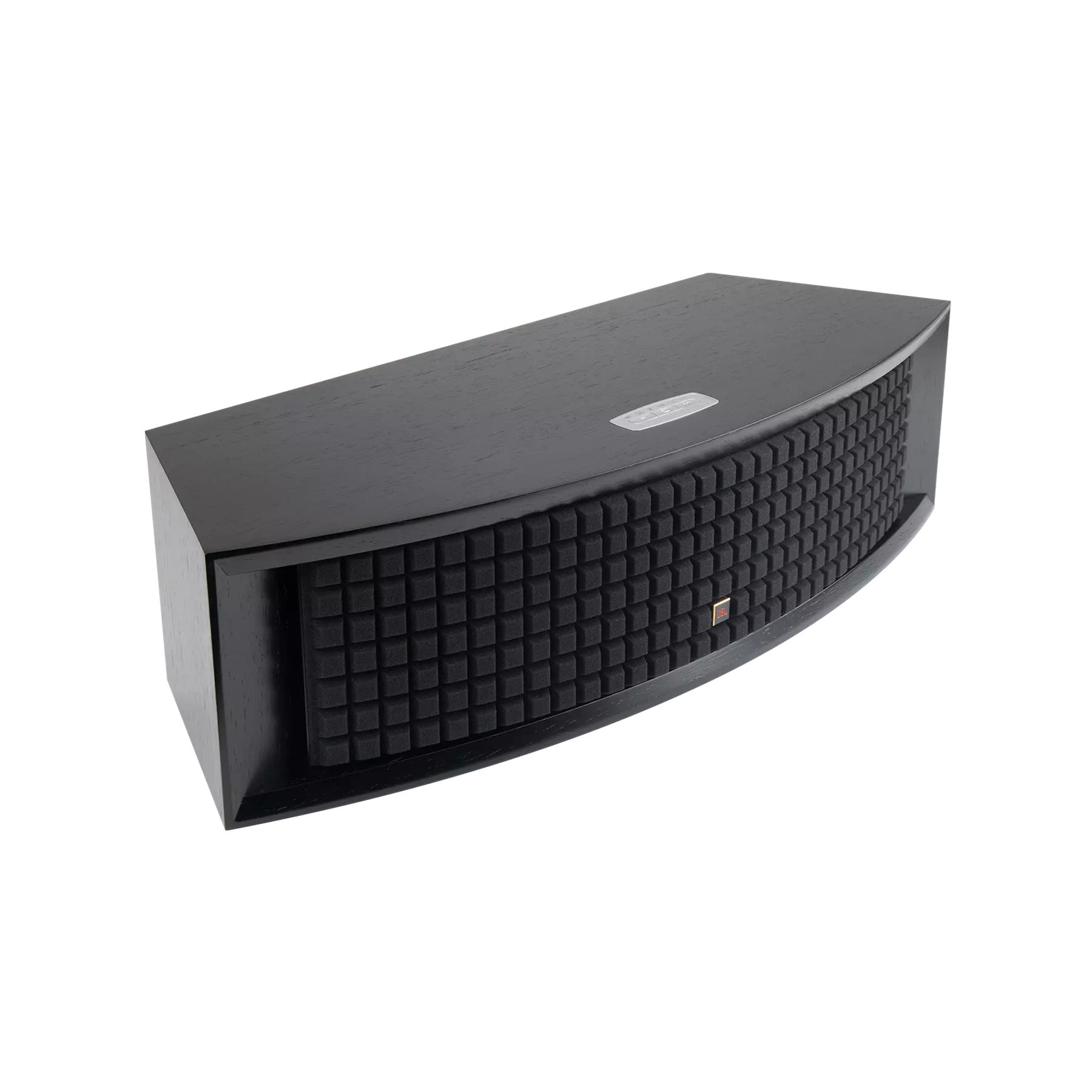

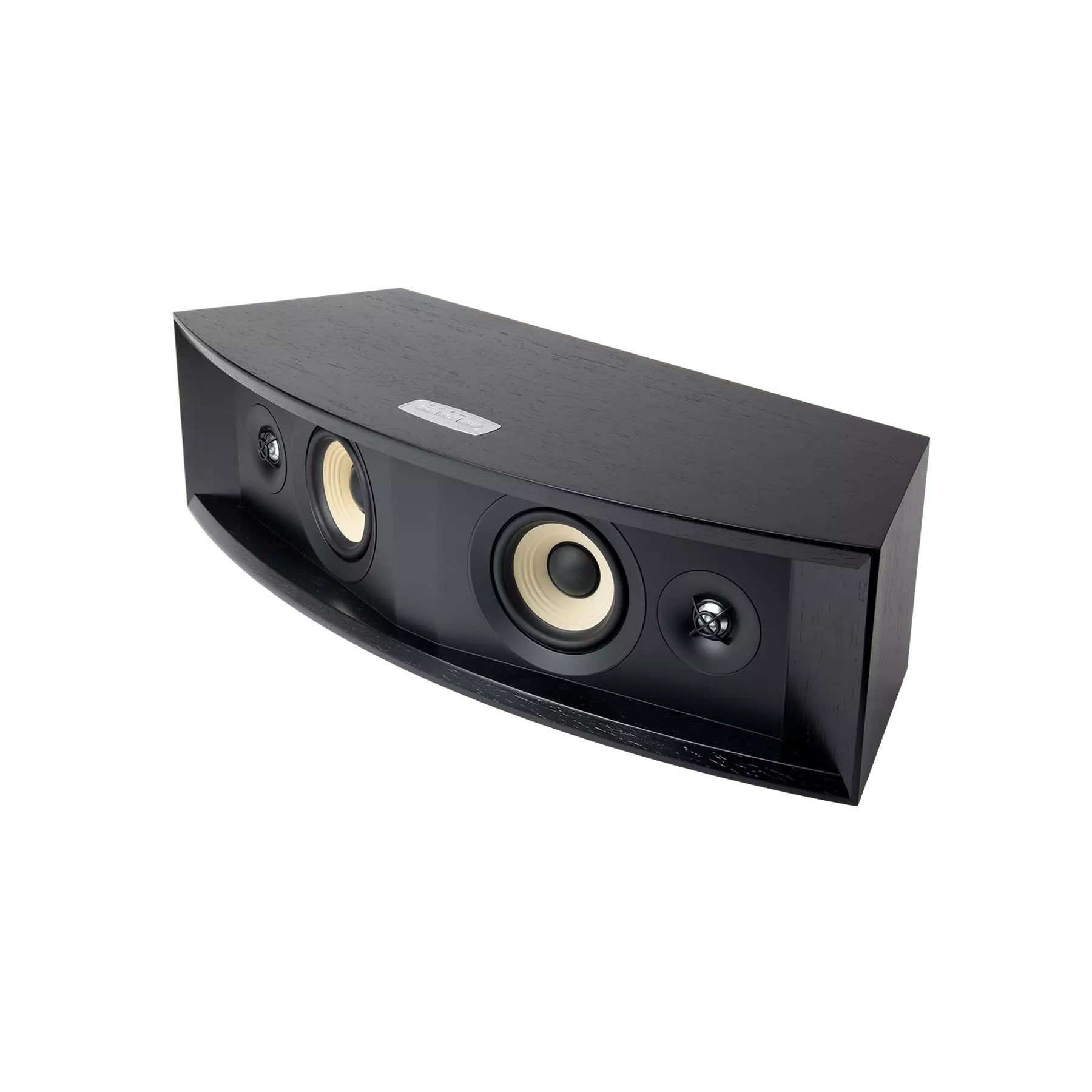

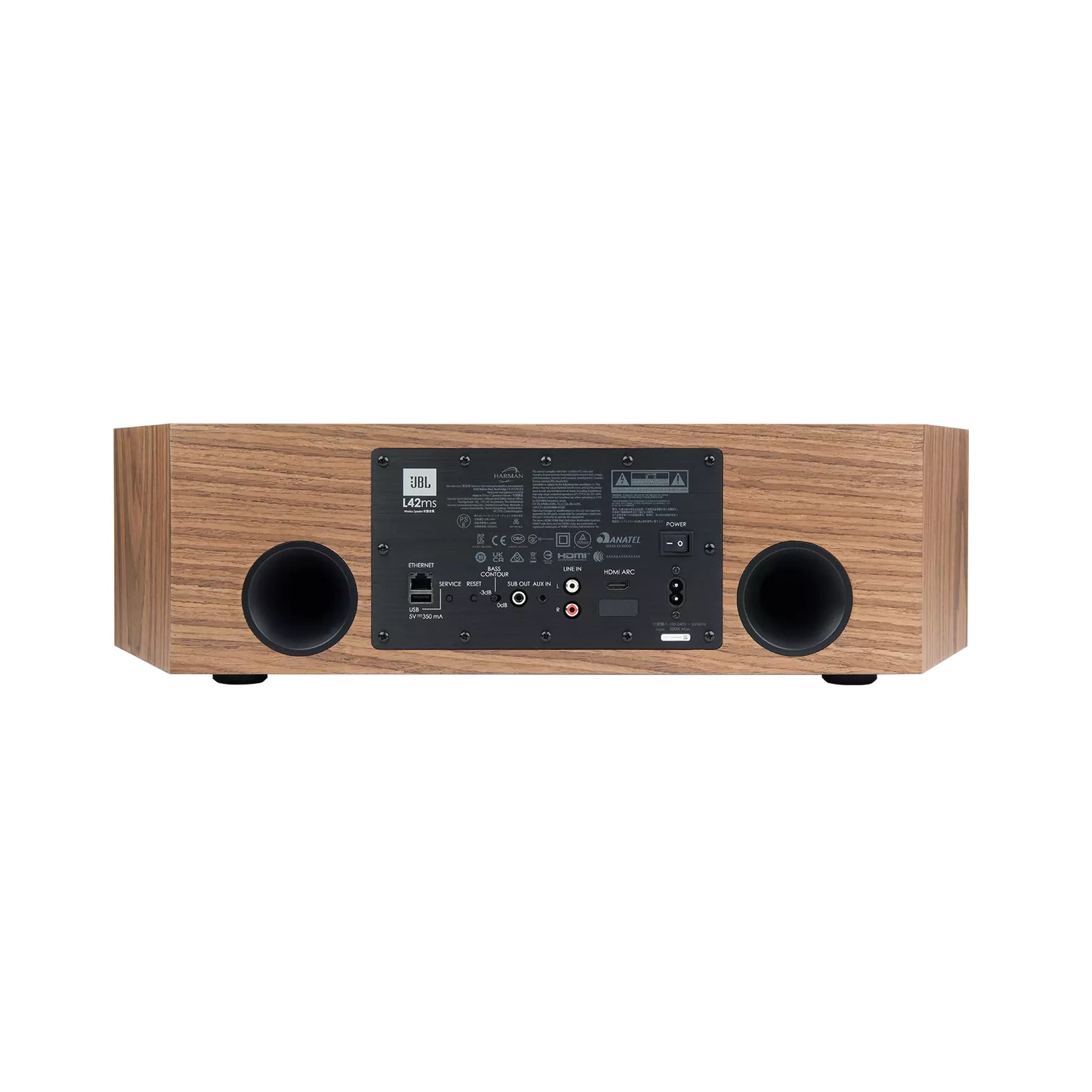

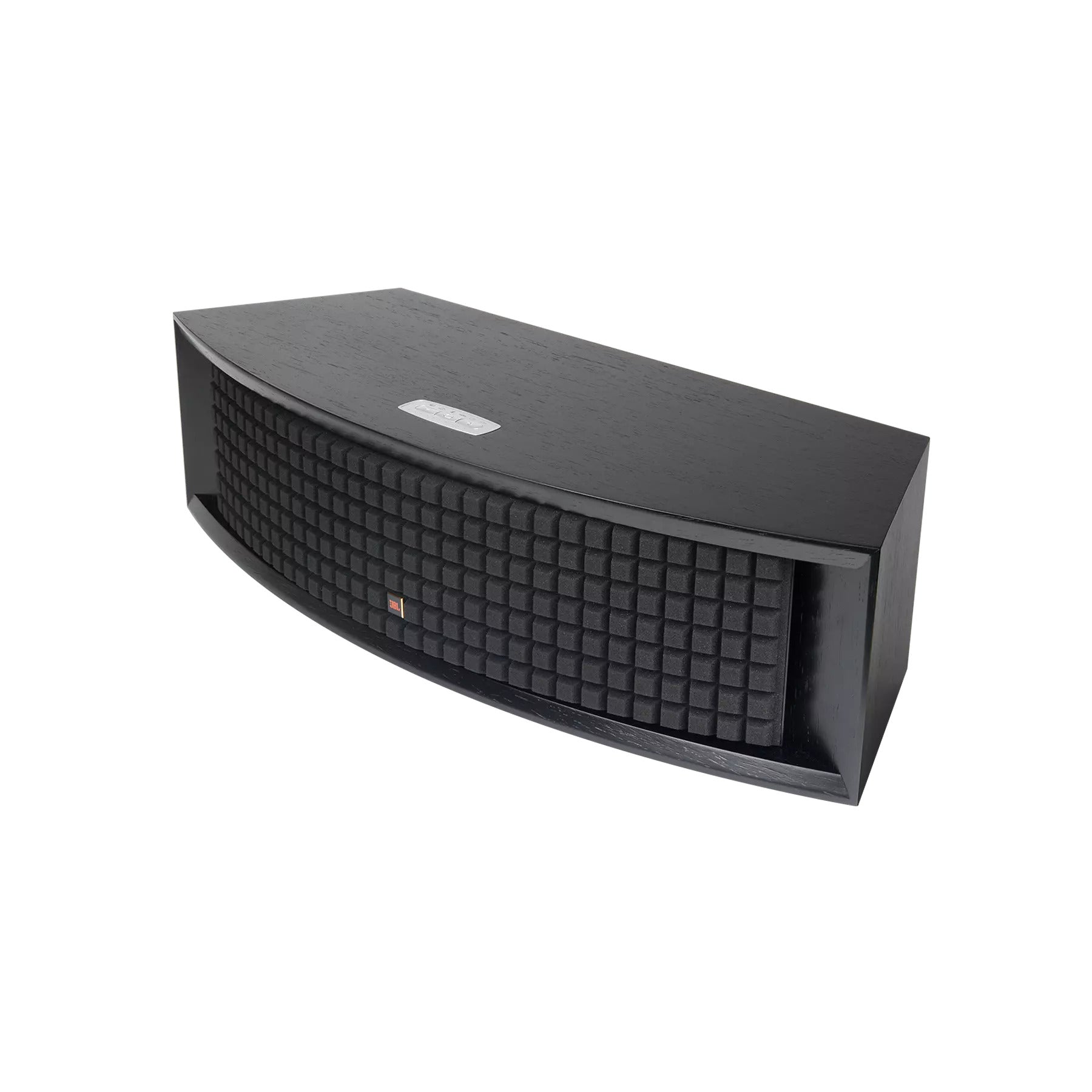

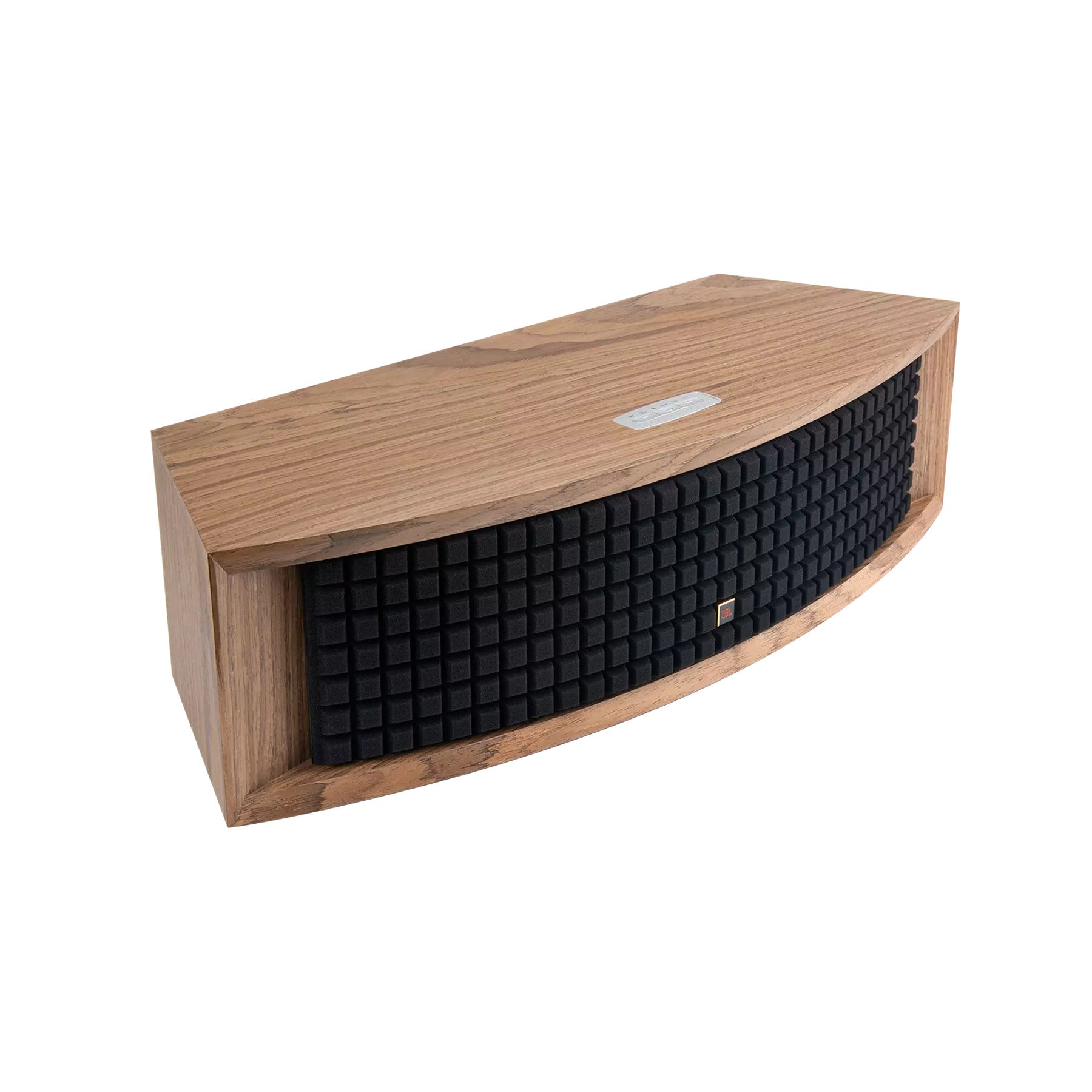

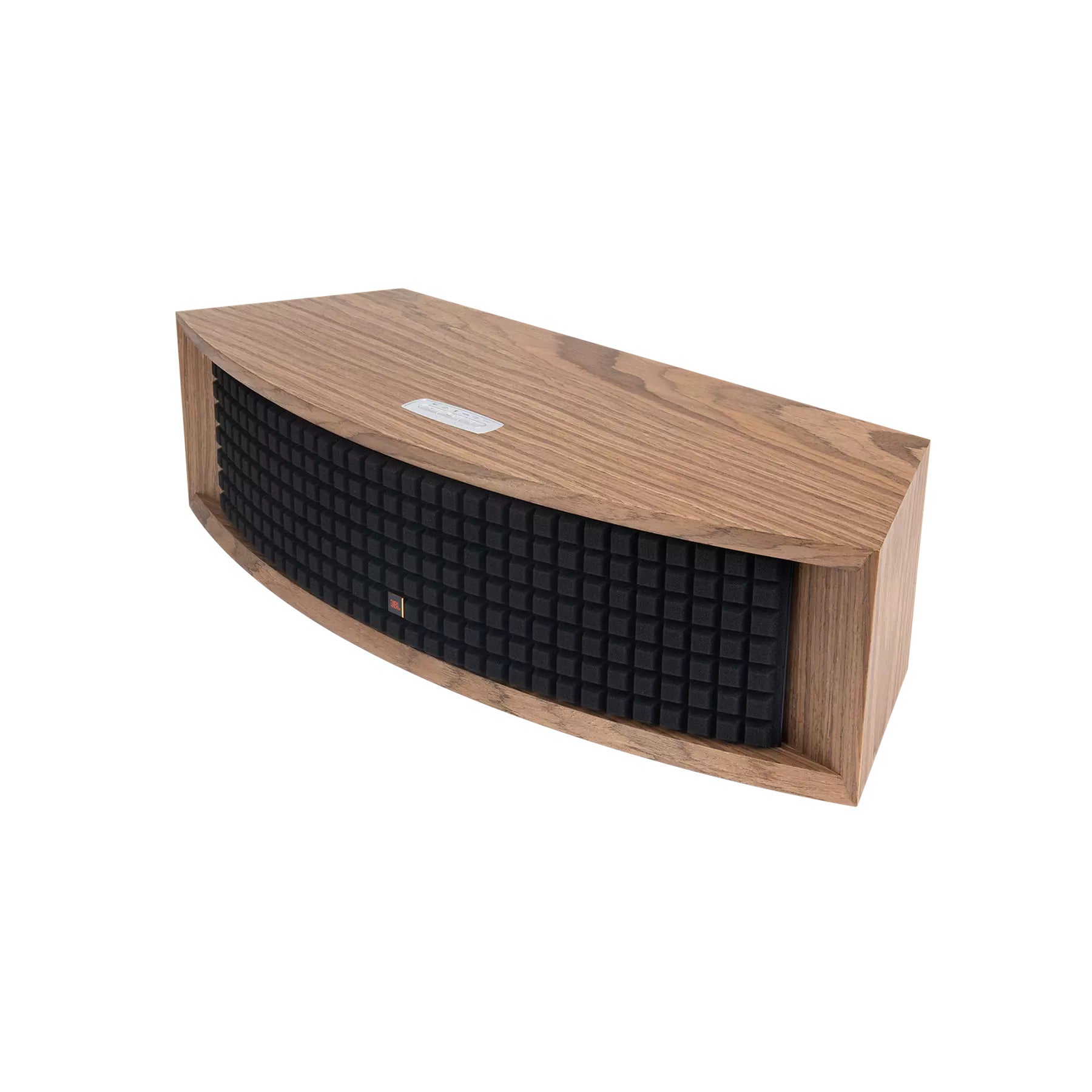

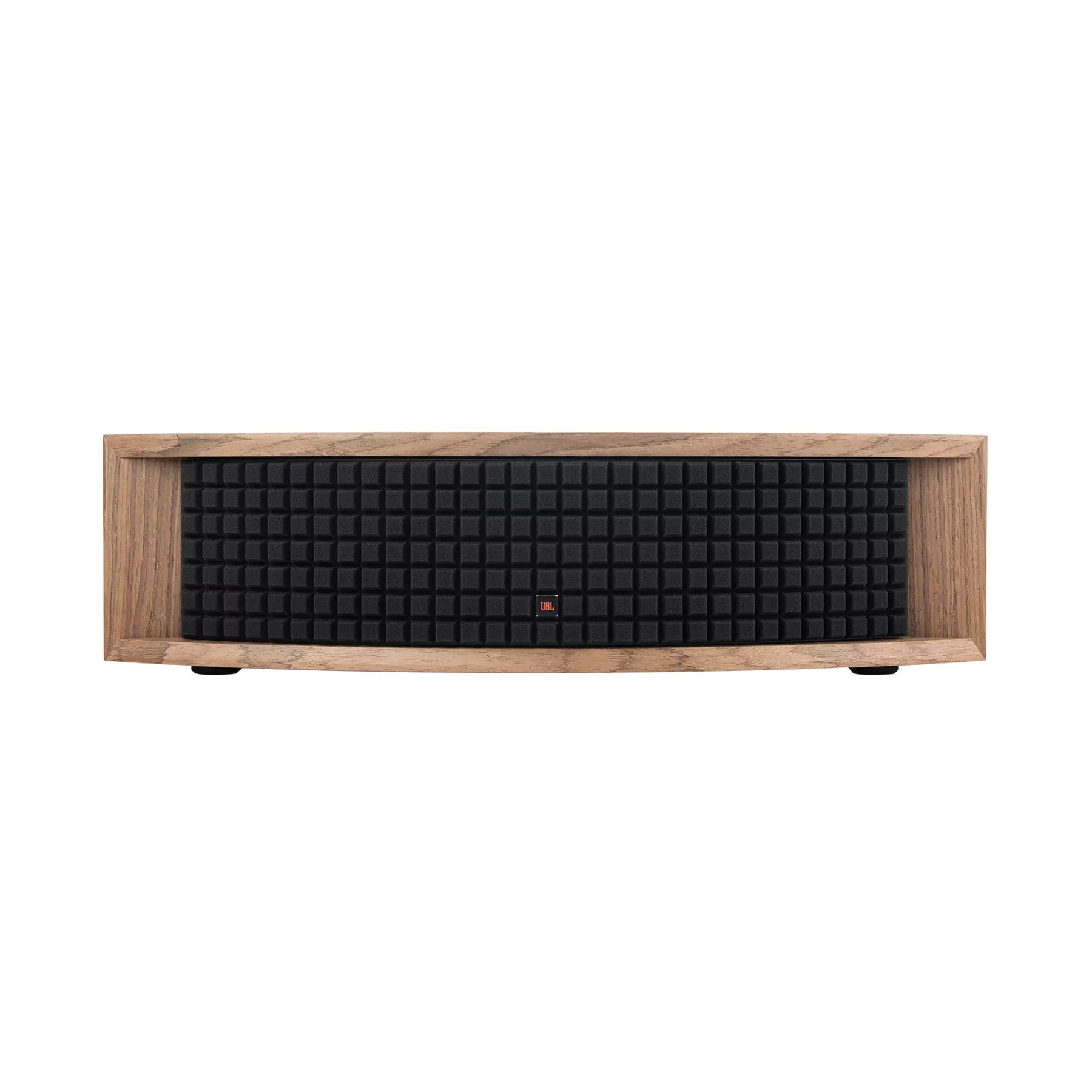

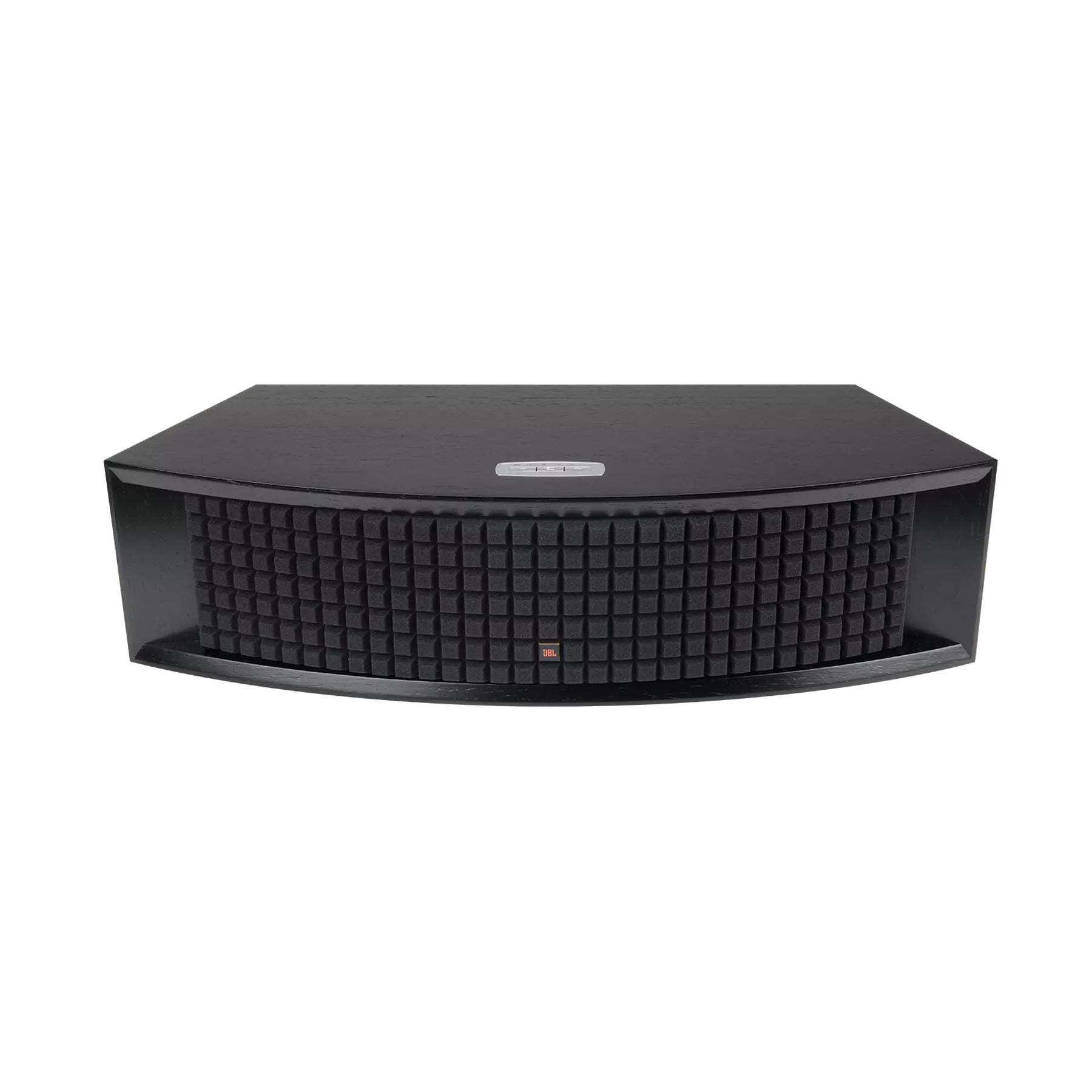

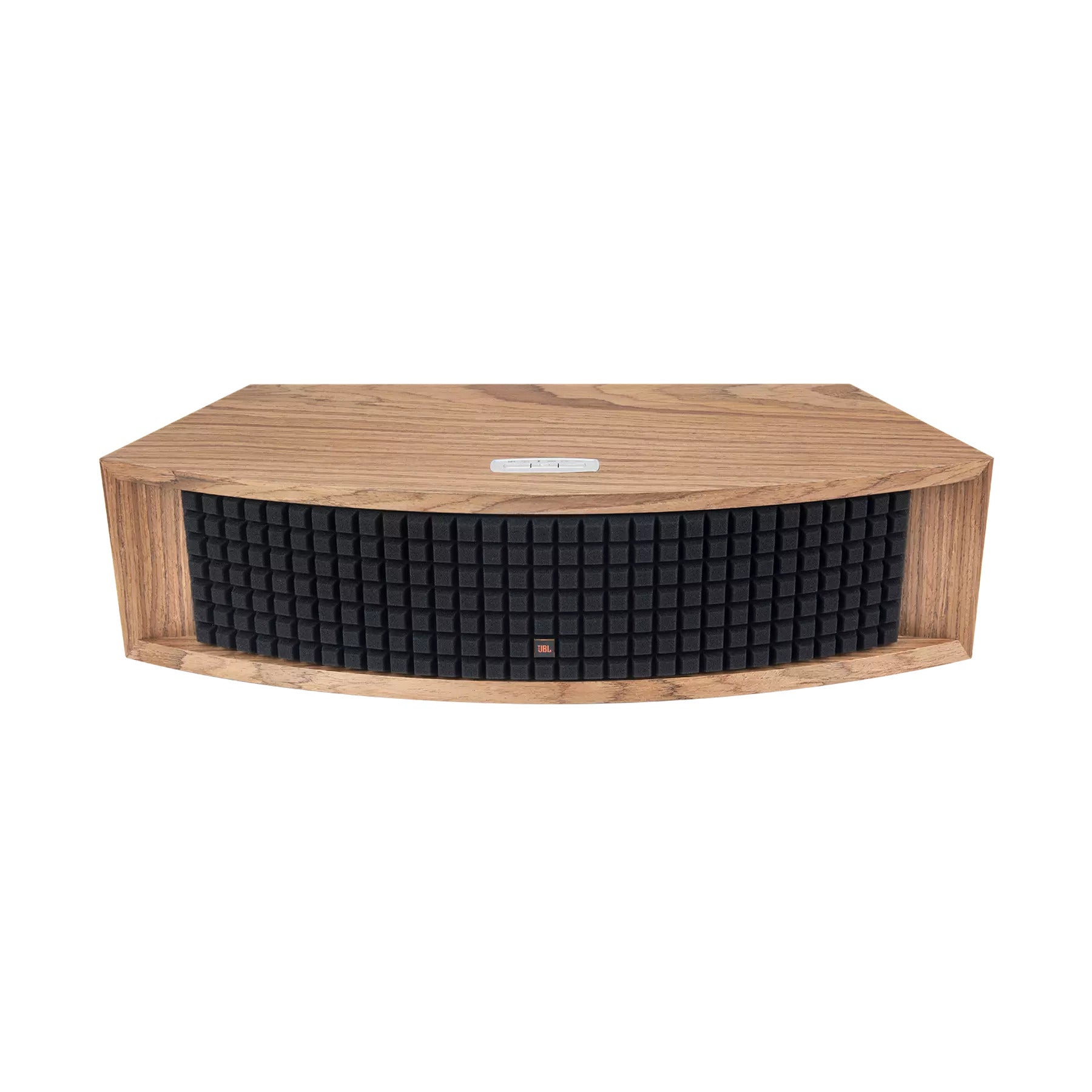

The JBL L42ms is an Integrated Music System that was designed to fit today’s entertainment lifestyle by showcasing the iconic sound of a pair of JBL loudspeakers in a single cabinet system. Behind the iconic JBL Quadrex grille are a pair of dual 4-inch (100mm) woofers and dual 0.75-inch (20mm) Aluminum dome tweeters with waveguides positioned to the left and right to create a wide and even sound-field. On the outside, the L42ms comes with a stylish curved grille, tapered side edges, and is available in the classic JBL real wood veneer finishes of Black Walnut or Natural Walnut. Audio connections include two sets of analog stereo inputs (one pair RCA style and one 3.5mm input) along with one HDMI-ARC for connection to a TV with similar connection for audio signal and control. Additionally, the L42ms can play streamed content via a wired or wireless network connection via Spotify Connect, Apple Airplay2™, and Google Chromecast or connect to a device directly via Bluetooth. All audio signals are routed through an advanced DSP engine where the content is carefully contoured and output to the speakers via a four-channel amplifier delivering 75W RMS to each woofer and 25W RMS to each tweeter. The total system’s 200W RMS amplifier power can be controlled via a touch panel located on the cabinet top panel, included Bluetooth remote, or from one of many music or automation apps. Designed and Engineered at the Harman Center of Acoustics Excellence in Northridge, California, the L42ms leverages JBL’s past 75+ years of loudspeaker and electronic designs to deliver truly outstanding sound and convenience while outperforming most traditional component hi-fi systems in the process. With its incredible combination of style, size, and performance, there is simply nothing like the L42ms Music System.

Features

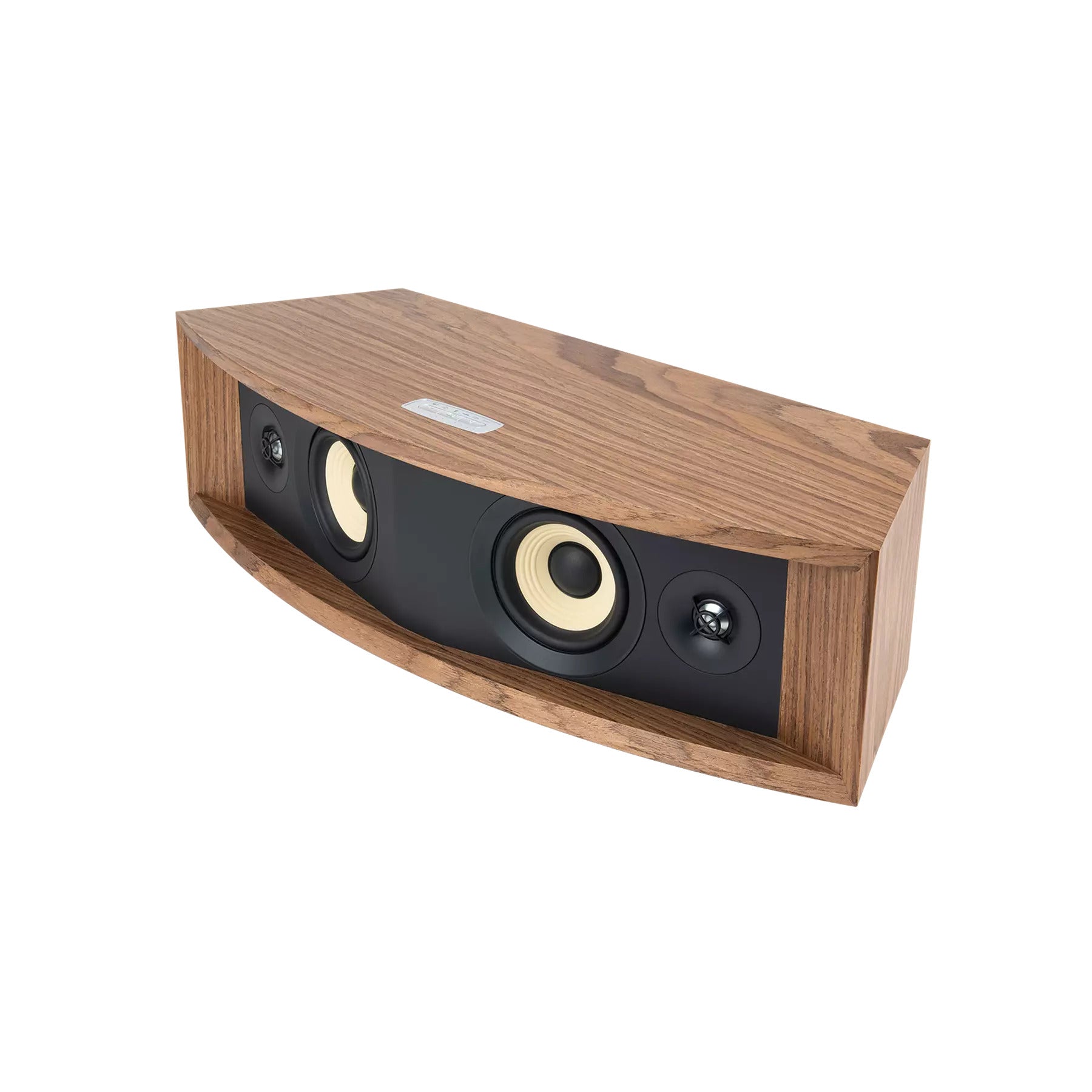

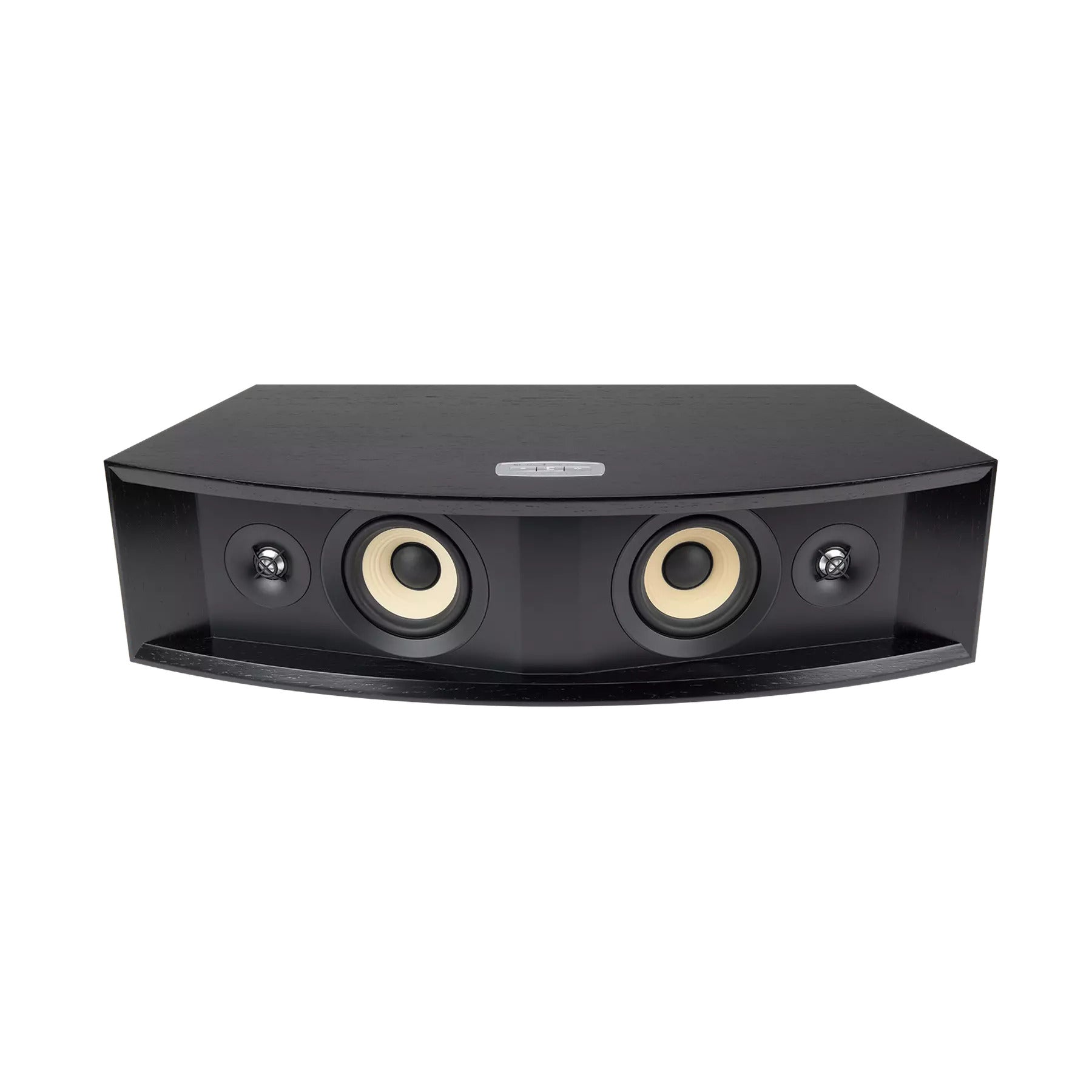

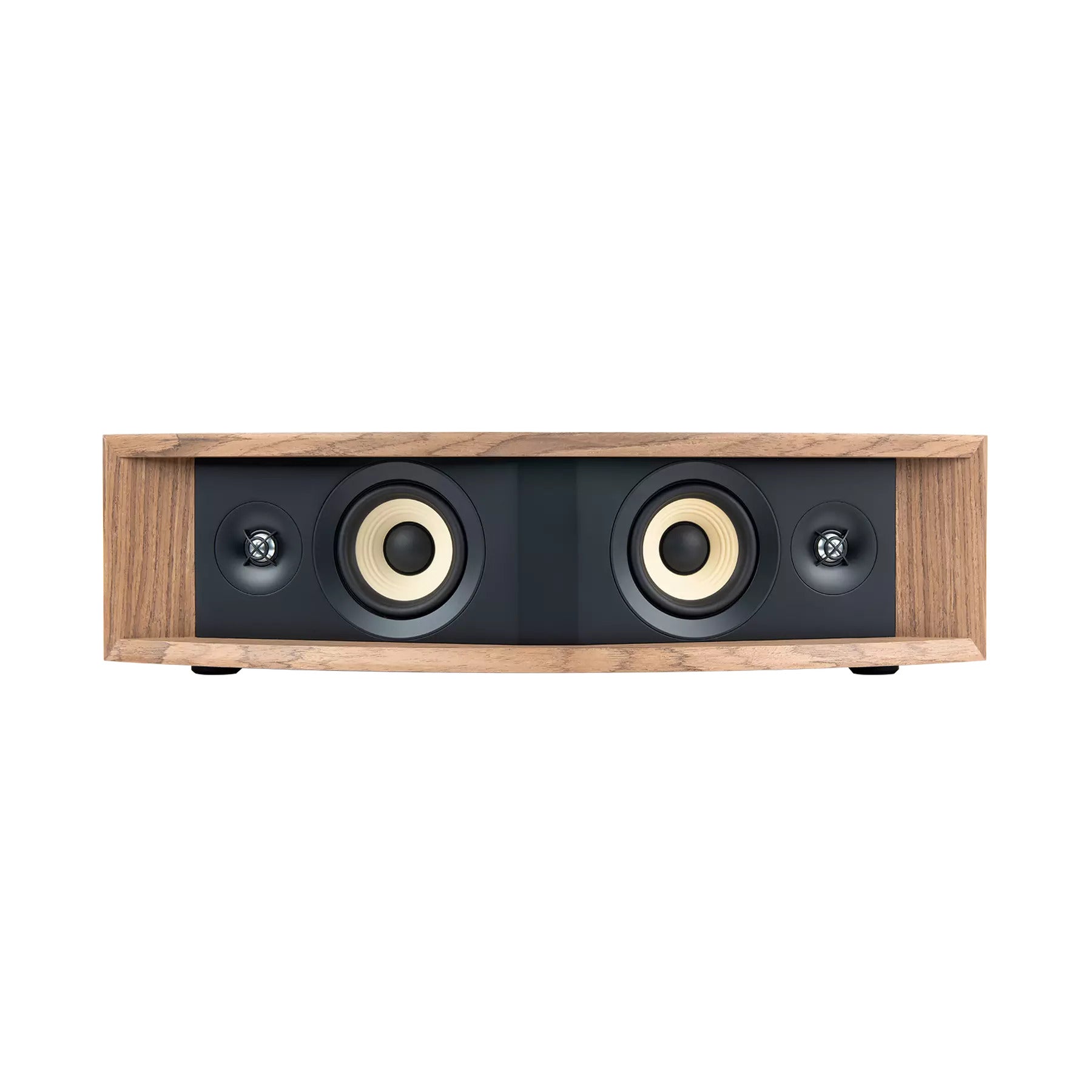

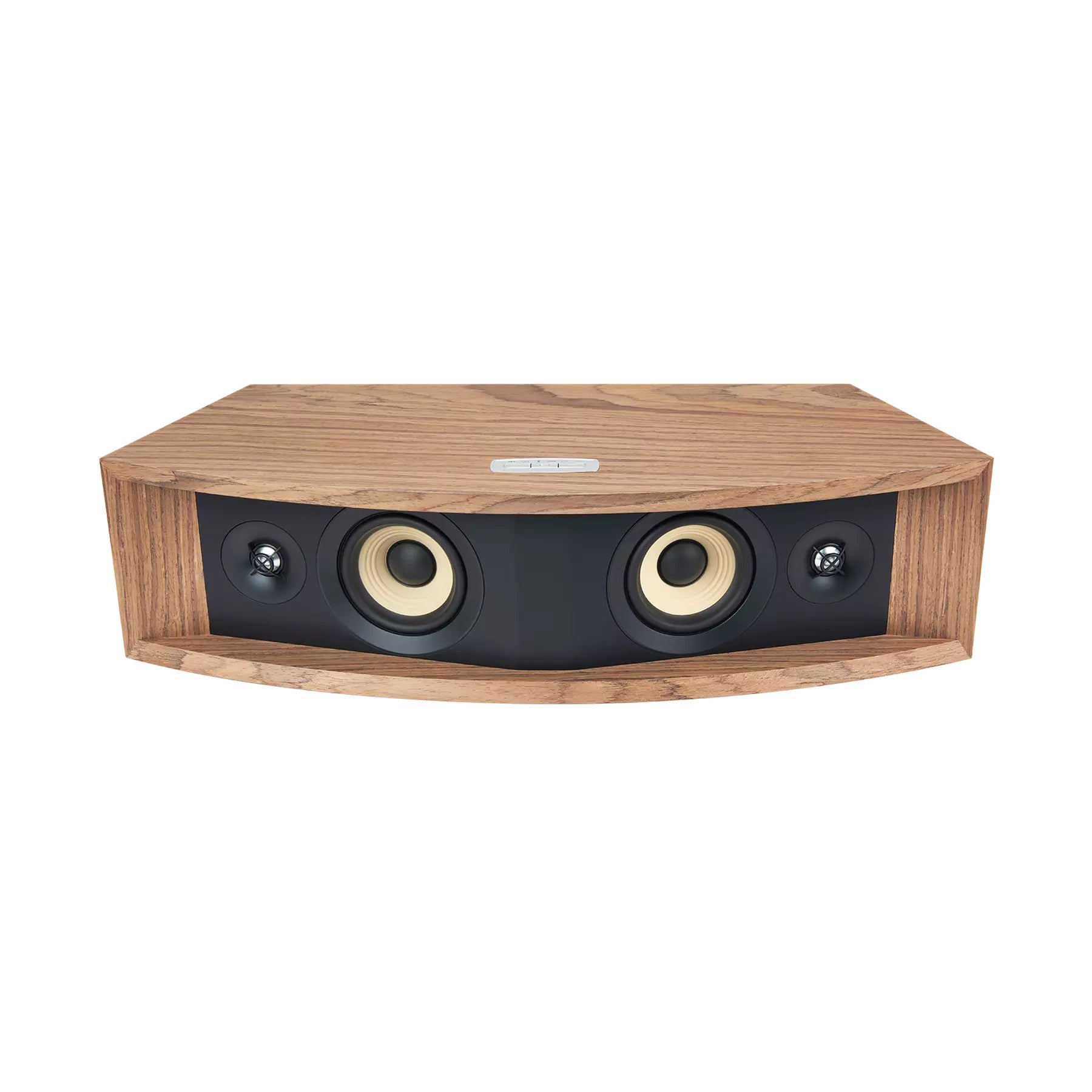

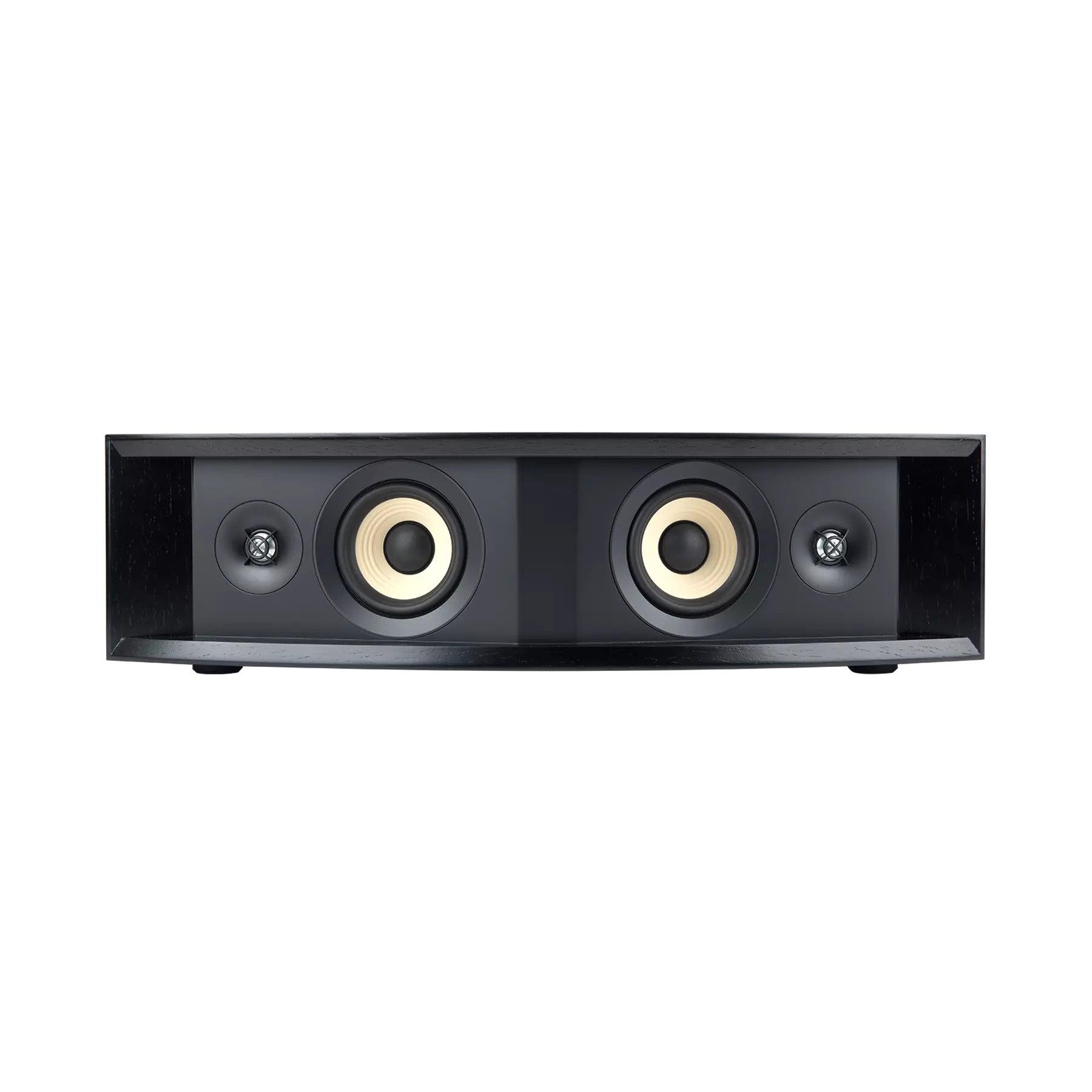

4 Driver design: Dual 4-inch (100mm) woofers and dual 0.75-inch (19mm) Aluminum dome tweeters mounted on angled baffles to create a wide and even sound-field.

Wireless Streaming Audio via Google Chromecast, Apple AirPlay 2, and Bluetooth

24bit/96kHz High-resolution DAC

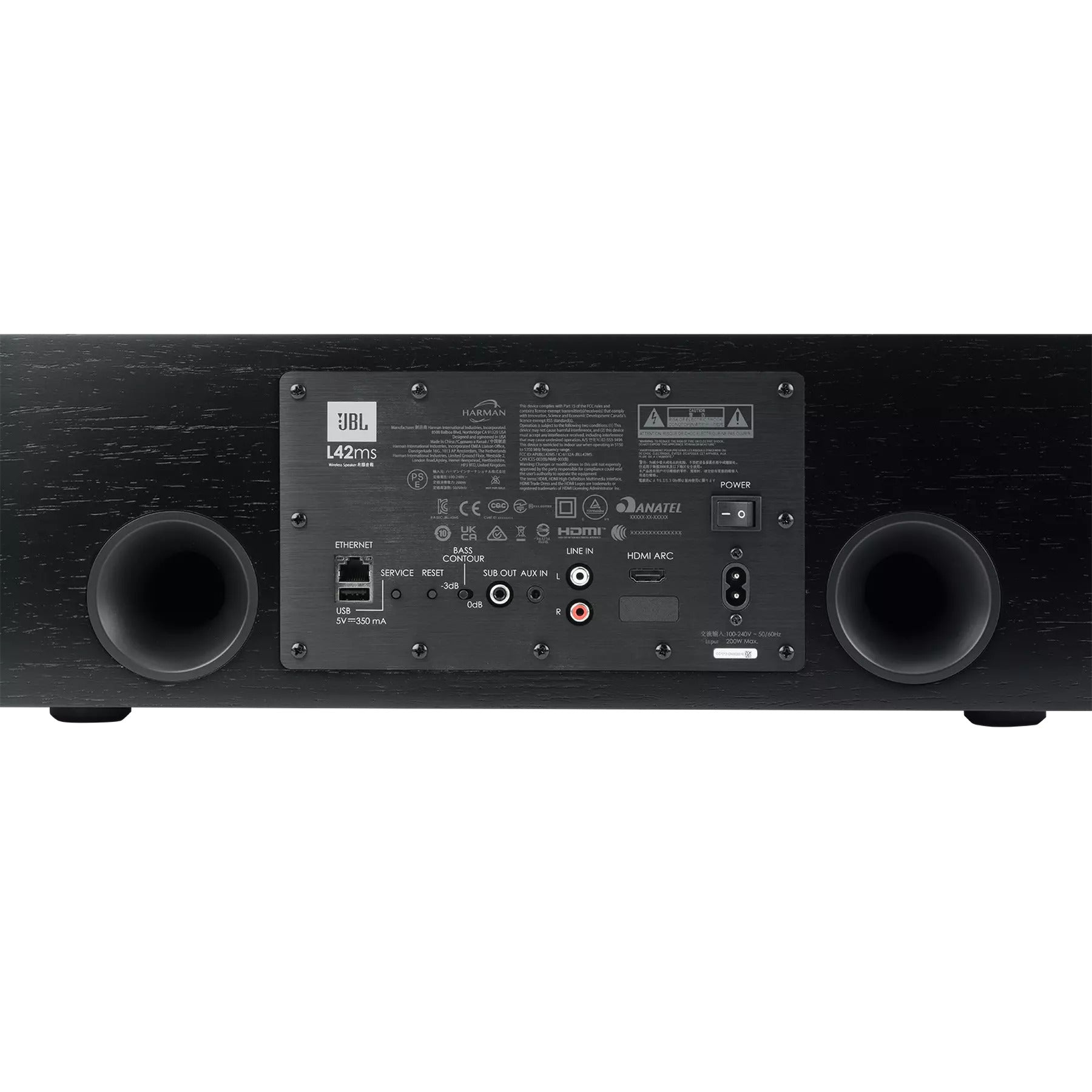

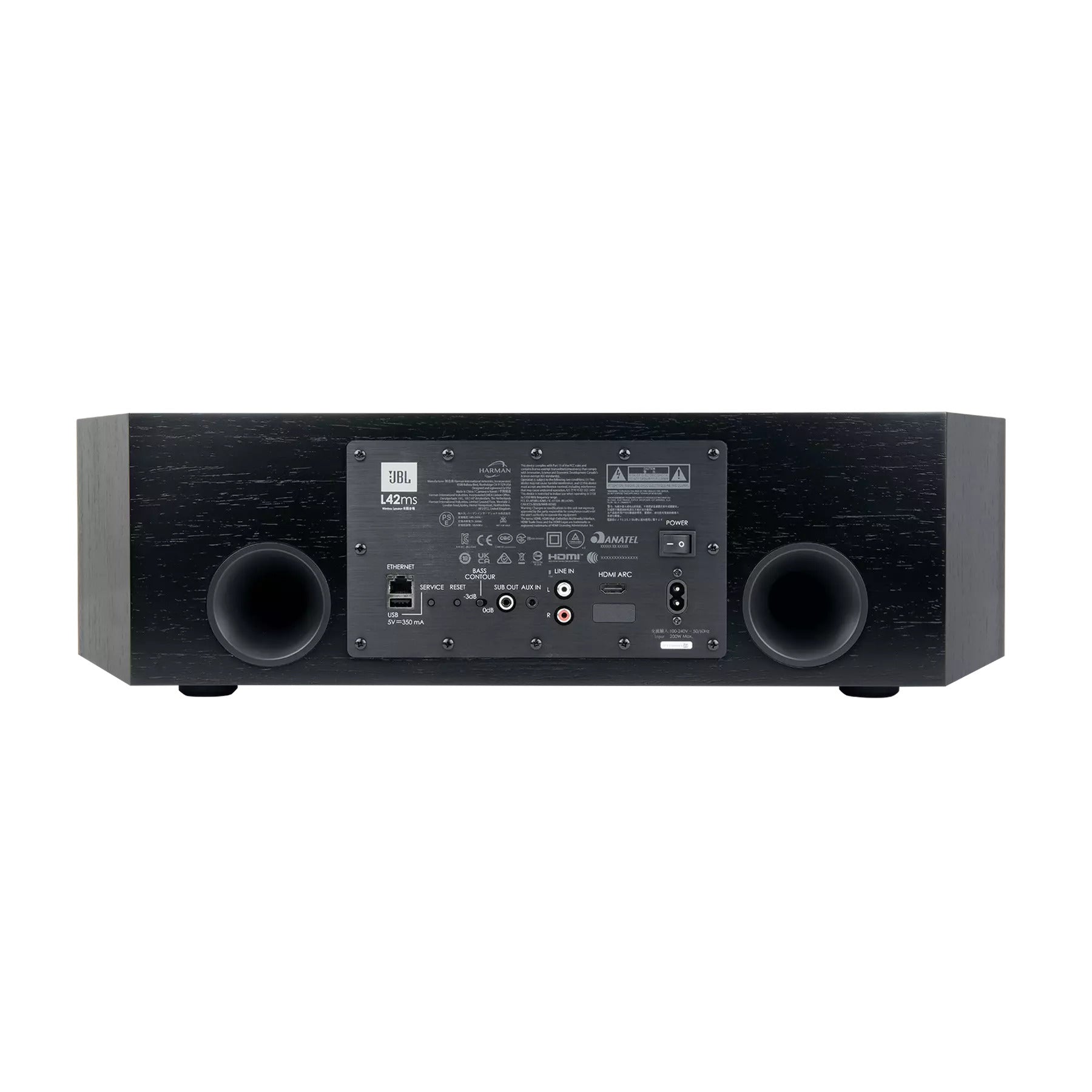

HDMI-ARC Connection, RCA Line-in and 3.5mm Analog Stereo Inputs, and USB-A Media Input

Selectable Sound-field Expander and Bass Contour Adjustment

Available in Black Walnut and Natural Walnut Furniture-grade Wood Veener Finishes with Black Quadrax Grilles

200W RMS Total System Power

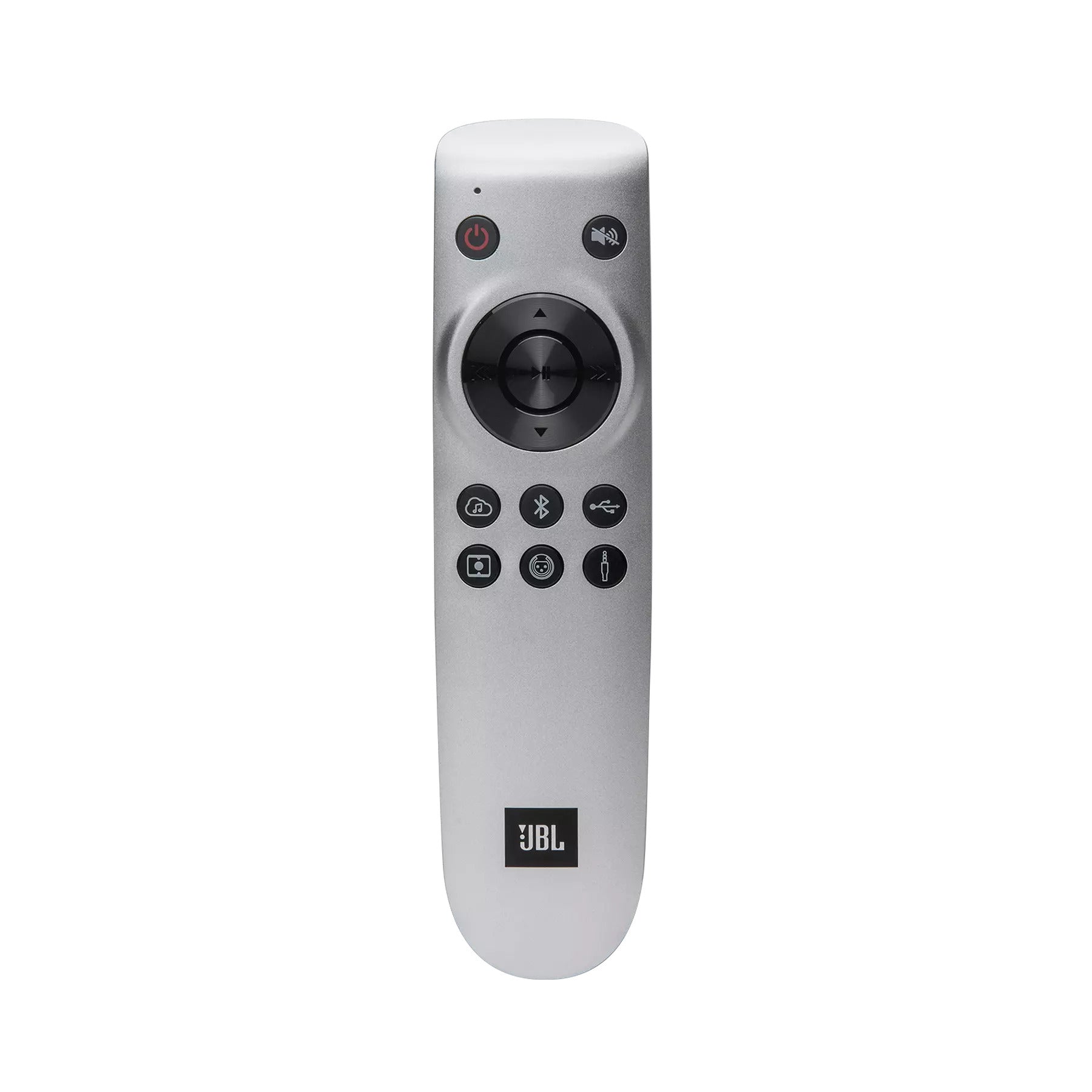

Bluetooth Wireless Remote Control and JBL Premium Audio App

What's in the box?

• 1x L42ms Integrated Music System
• 1x Speaker Grille
• 1x RF Remotea
• 1x Safety Booklet
• AC Power Cord(s) – Qty and Type Vary by Region

Type

Streaming tabletop loudspeaker system

Low Frequency Drivers

Dual 5.25" (130mm) Pure Pulp cone woofers

High Frequency Drivers

Dual 1” (25mm) Aluminum dome tweeters with waveguides

Midrange Driver

4” (100mm) Pure pulp cone midrange

Amplifier Power

125W RMS per woofer, 25W RMS per tweeter, 50W RMS for center (350W RMS total)

Sound Controls

Speaker placement compensation, selectable sound-field expander

Wireless Inputs

WiFi streaming, Bluetooth 4.2

Wired Inputs

HDMI ARC, ethernet, phono (MM), 3.5mm AUX

Resolution

Up to 32-bit, 192 kHz

Frequency Response

45 Hz - 25 kHz (-6 dB)

Maximum SPL

106 dB @ 1m

Subwoofer Output

2V RMS with auto-sense/engage HPF

Enclosure

Front-ported tabletop in satin walnut furniture-grade wood veneer

Grille

Black foam Quadrex grille

Dimensions with grille

8.5” H x 31.1” W x 11.3” D (216mm x 790mm x 287mm)

Remote Control Type

BTLE

Product Weight (Each)

35 lbs. (15.9 kg)

Shipping Weight

44 lbs. (20.0 kg)

Shipping Units of Measure

Each
