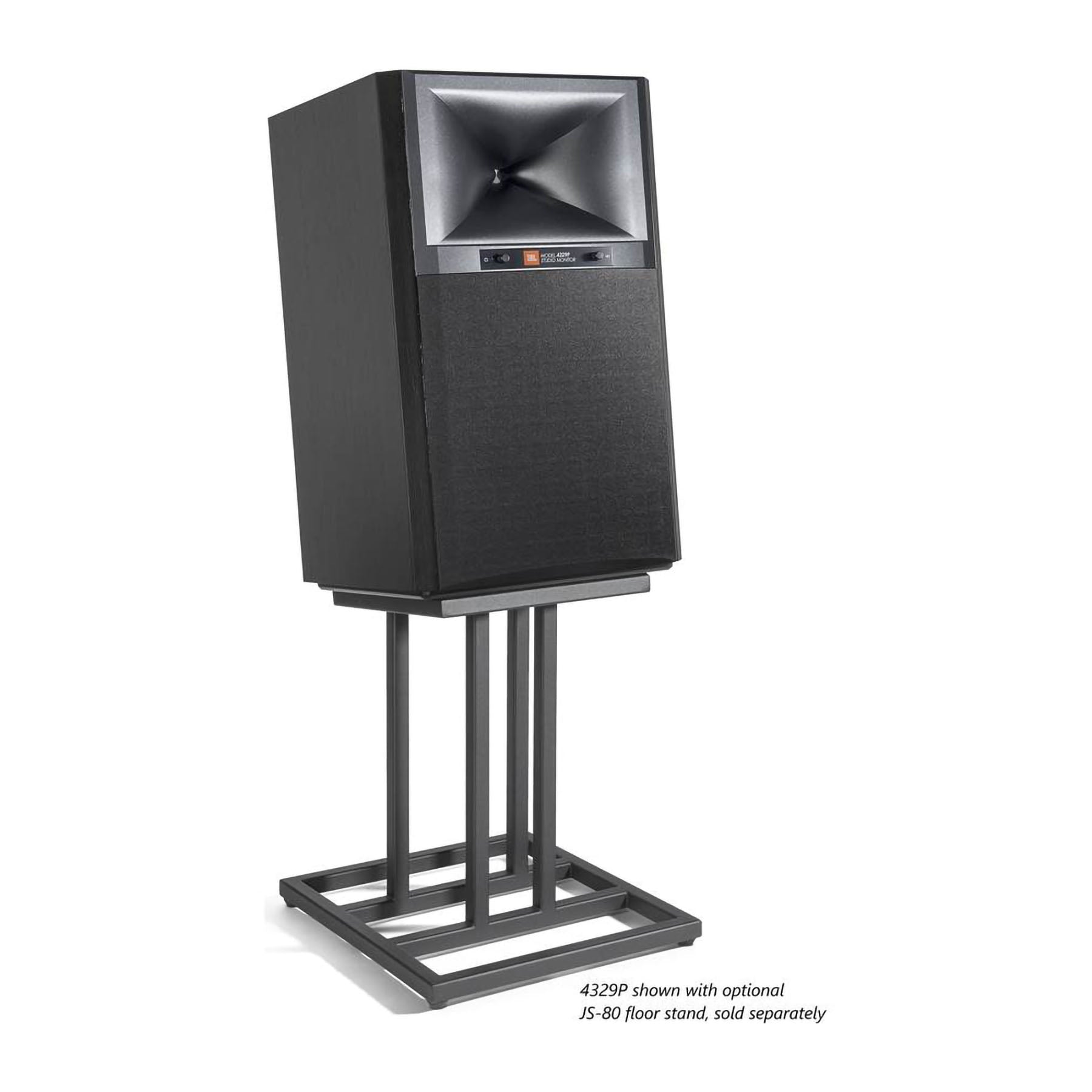

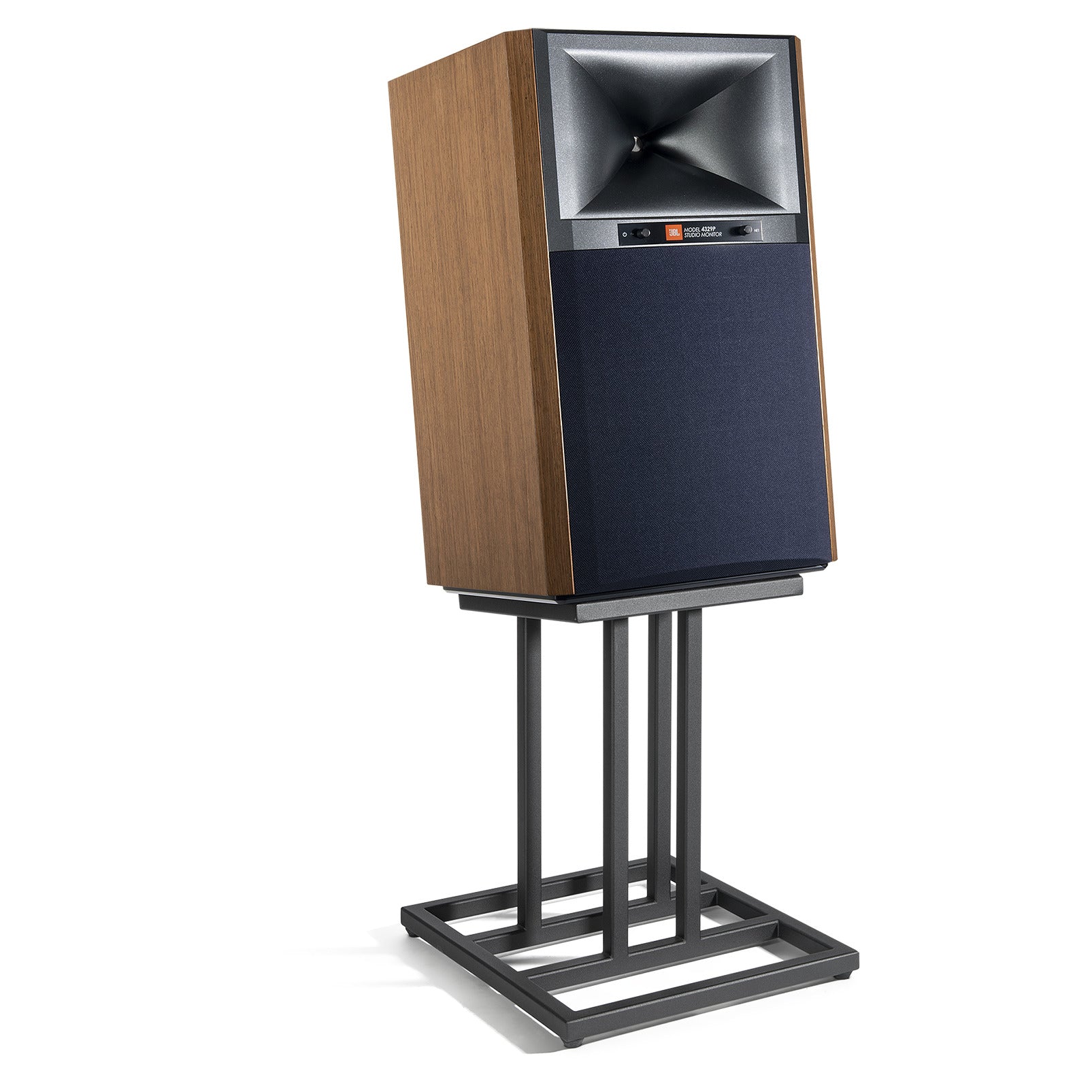

Walnut / JBL JS80 Stand (pair)
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: Designed and Engineered in the USA

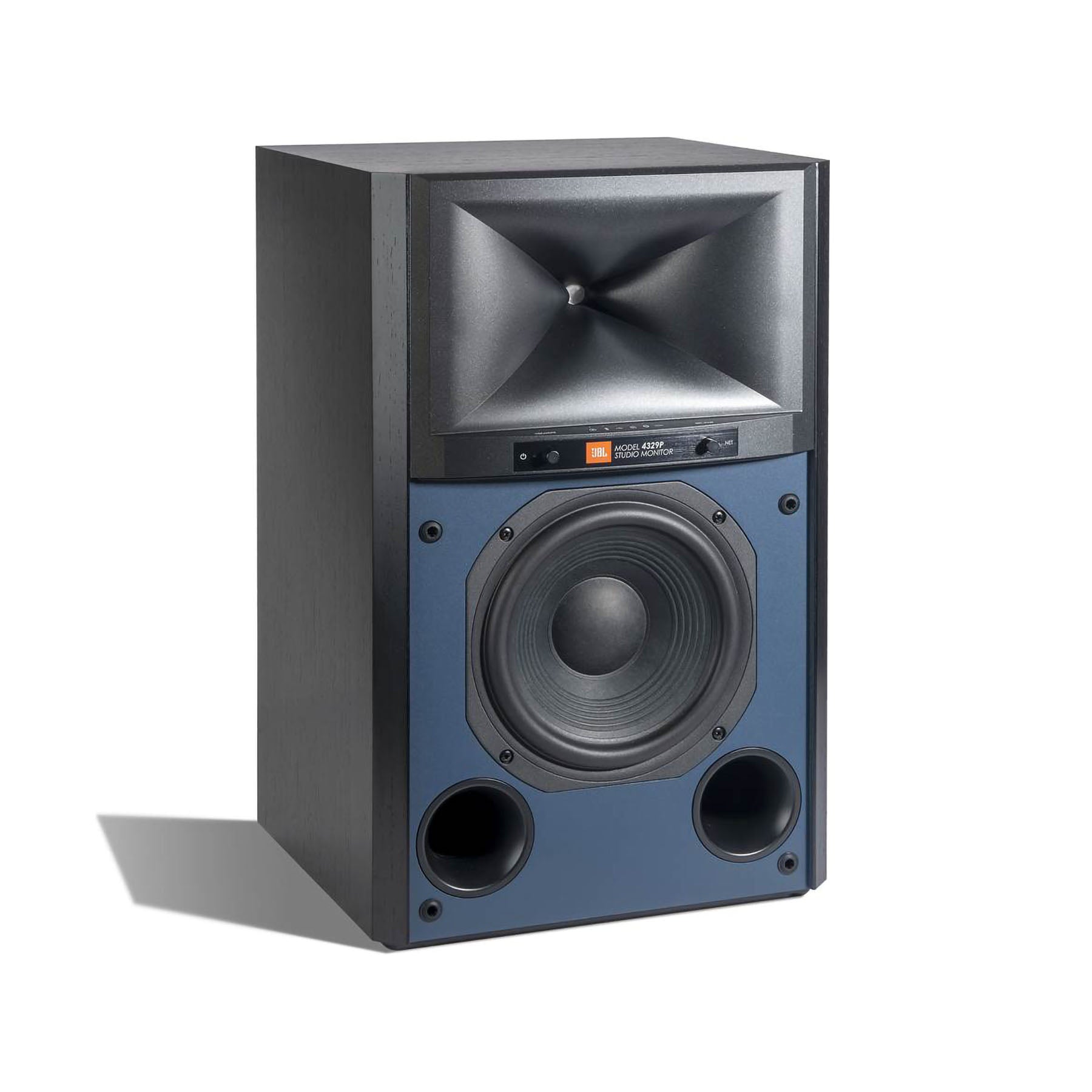

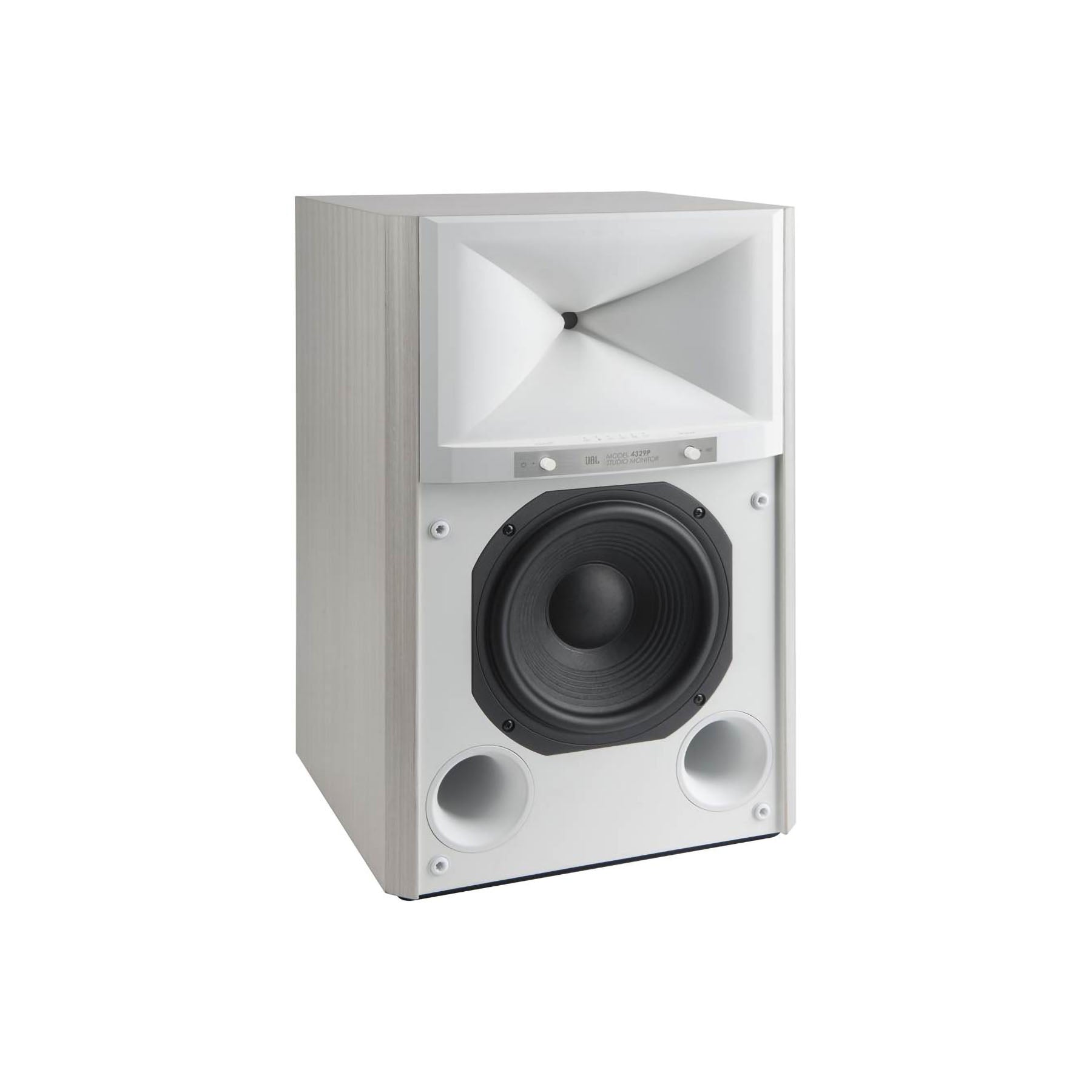

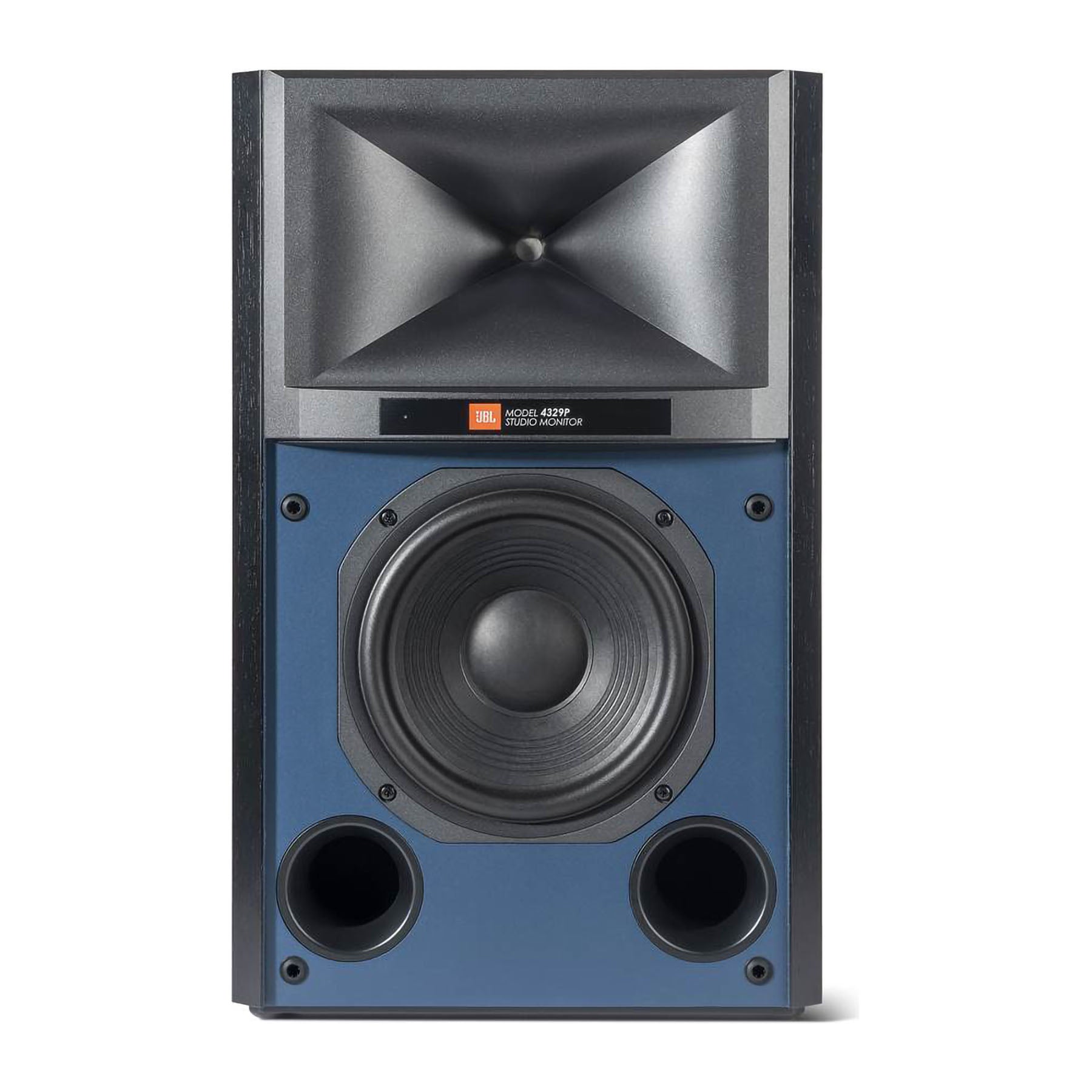

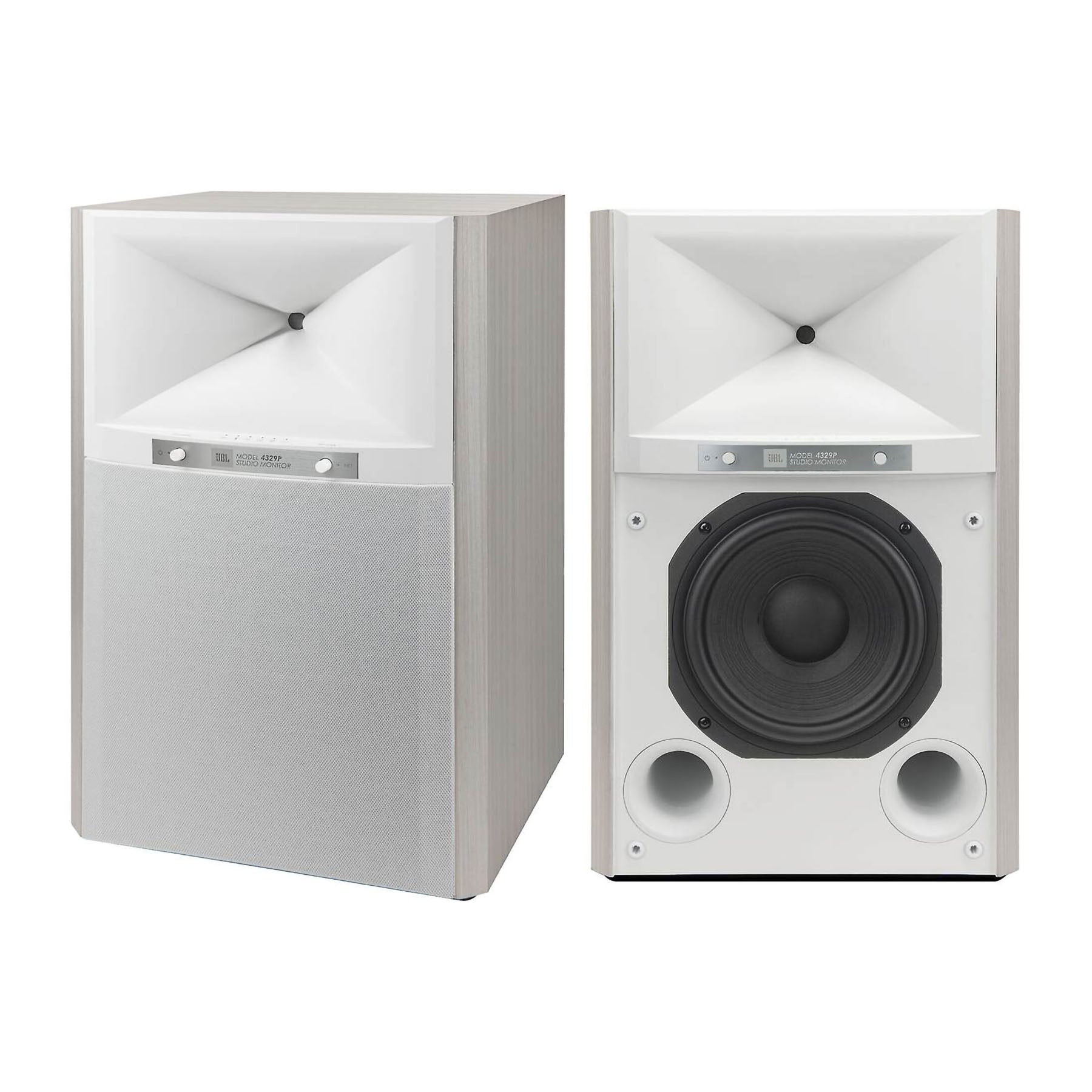

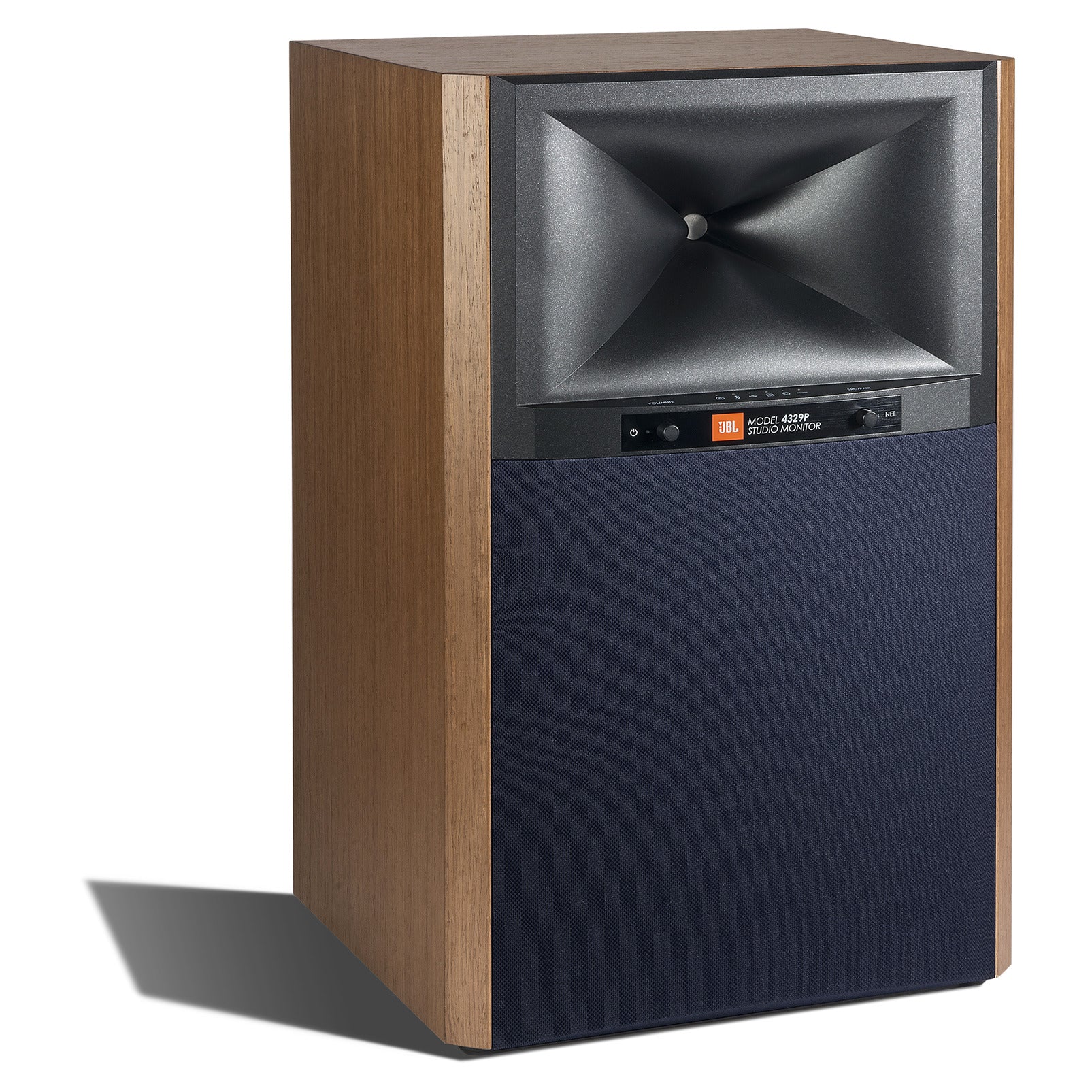

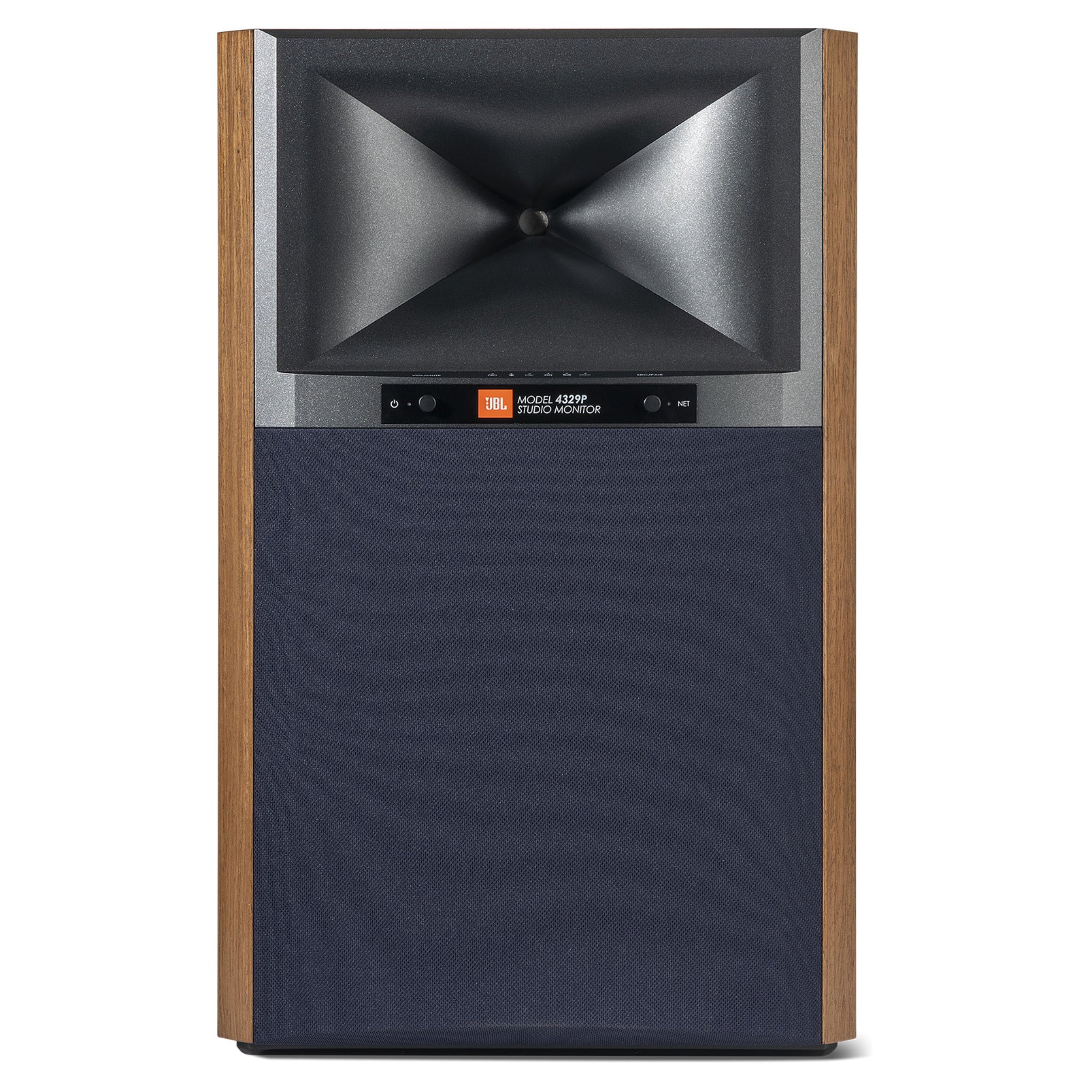

4329P Studio Monitor Powered Loudspeaker System
The JBL 4329P Studio Monitor Powered Loudspeaker is a completely self-contained amplified loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity opens up a world of possibilities for the music lover. Each speaker is powered by a 300-watt amplifier, delivering 250 watts of power to the woofer and 50 watts of power to the compression driver. Both accurately controlled by sophisticated DSP processing assuring each driver blends seamlessly creating a dynamic and immersive listening experience. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth 5.3 aptX Adaptive audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4329P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono inputs for use with balanced or unbalanced signals.
Patented JBL Driver Technologies: 2409H / 1-inch (25mm) Compression Driver with High-Definition Imaging™ Horn
600W Total RMS System Power
Wireless Streaming Audio via Chromecast, AirPlay 2, and Bluetooth
Features
JW200P-4 / 8-inch (200mm) Pure-pulp Black Paper Cone Woofers with Cast-frames
24-bit/192kHz High-resolution DAC
Extensive Digital and Analog Connectivity
Premium Wood Veneer Cabinet Finish

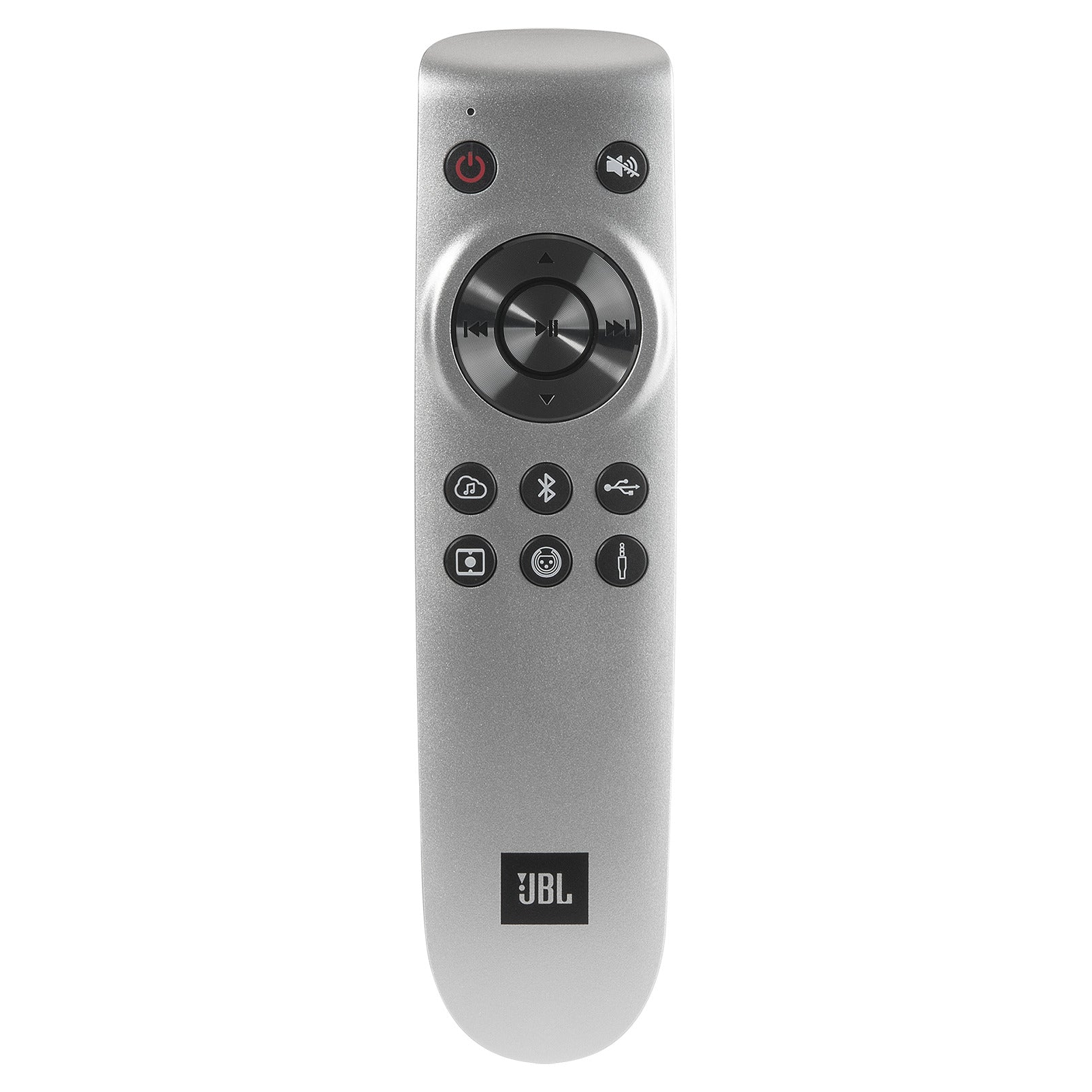

Bluetooth Wireless Remote Control
Type | Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity |
---|---|

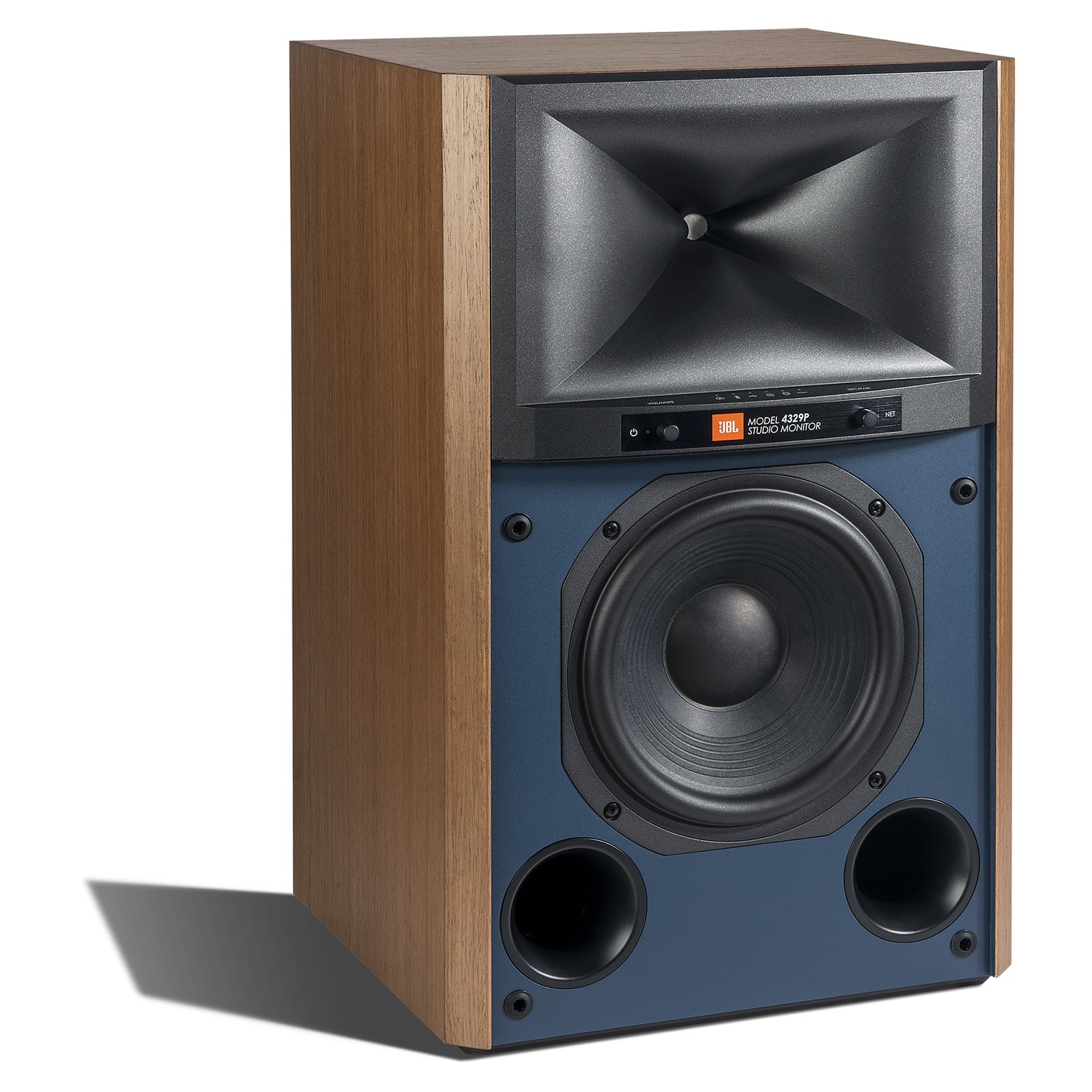

Low-Frequency Drivers | JW200P-4, 8-inch (200mm) Pure-pulp Black Paper Cone Woofers with Cast-frames |
High-Frequency Drivers | 2409H, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns |
Amplifier Power | 600W Class D System Power 300W RMS per Speaker (50W per HF Compression Driver + 250W per LF Woofer) |
Audio Resolution | Up to 24-bit, 192 kHz (Digital Link connection between speakers) Up to 24-bit, 96 kHz (Wireless connection between speakers) |
Frequency Response | 28 Hz - 25 kHz (-6 dB) |
Crossover Frequency | 1,675 Hz |
Dispersion | 90° Horizontal x 60° Vertical (2kHz to 15kHz) |

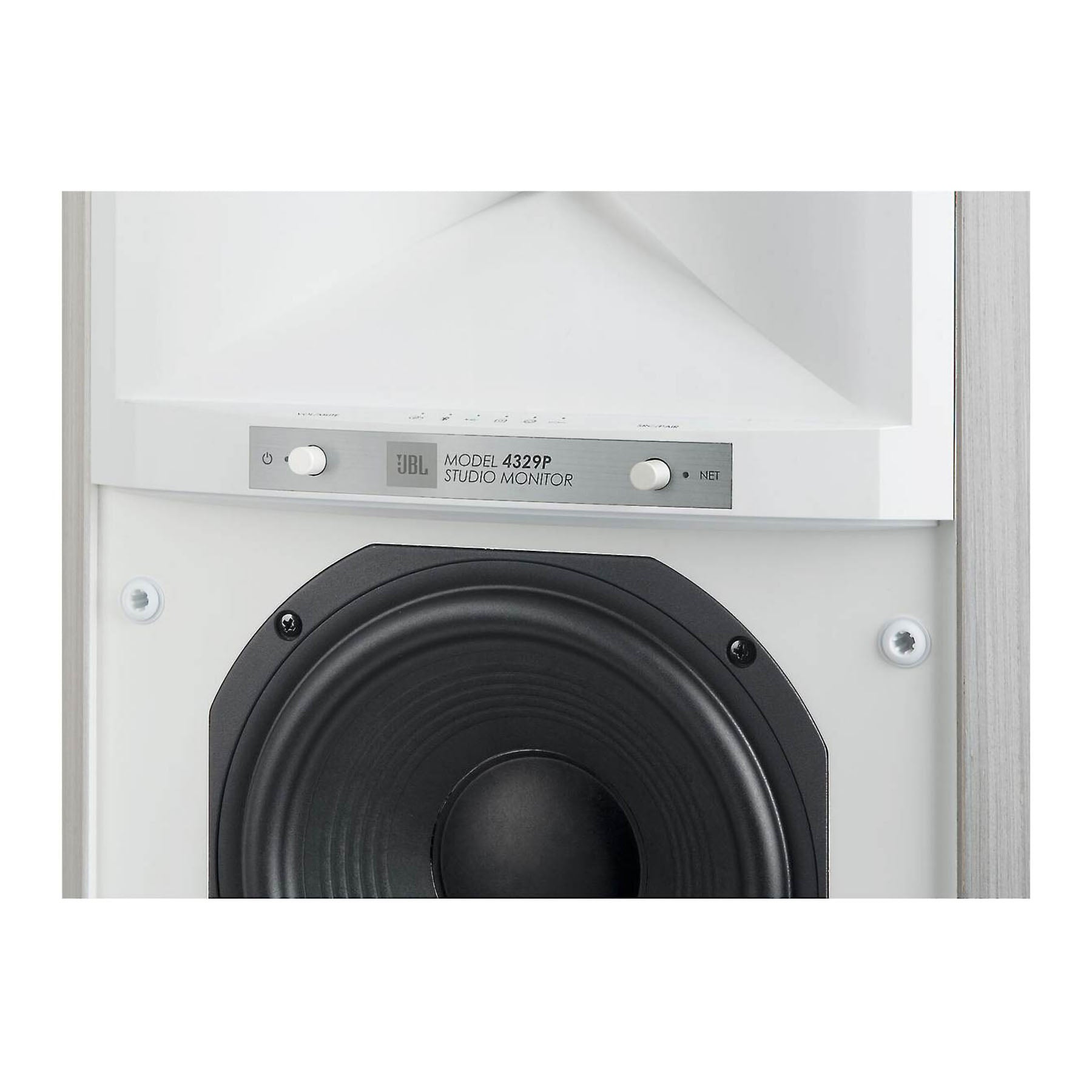

Sound Controls | Front Panel: Volume +/- and Source Selection Bluetooth Remote Boundary Compensation (Flat / -3dB) |
Wireless Inputs | WiFi streaming Bluetooth 5.3 |

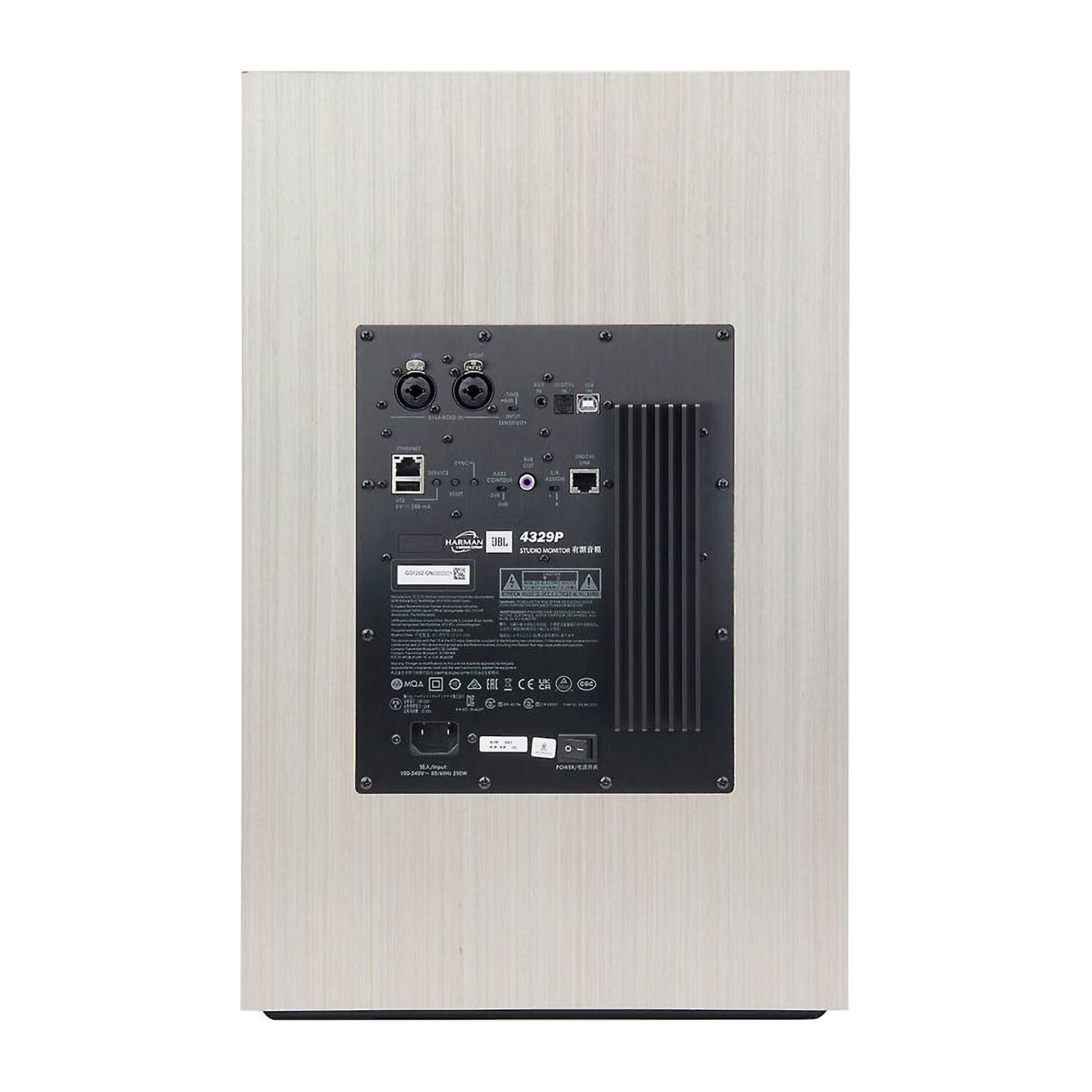

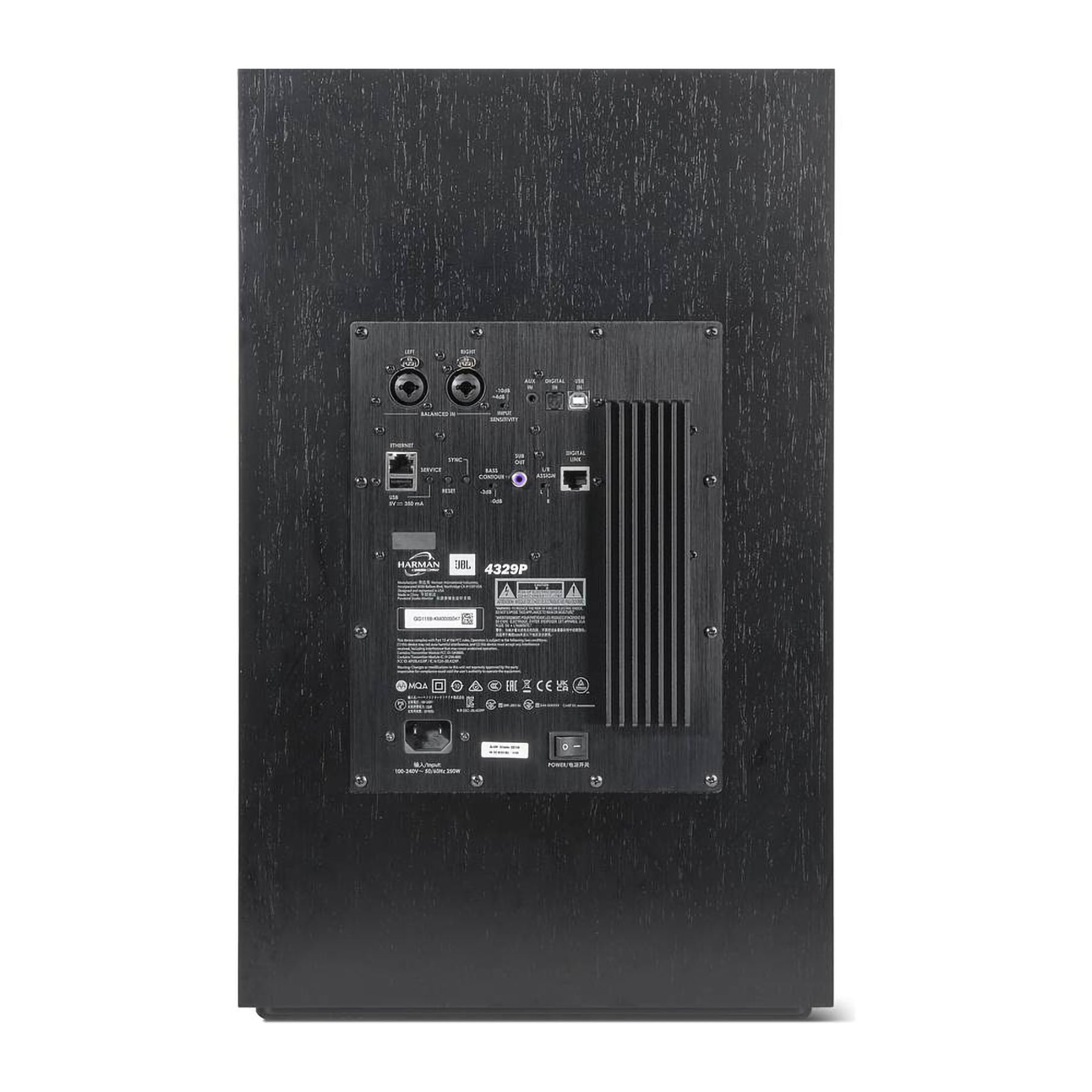

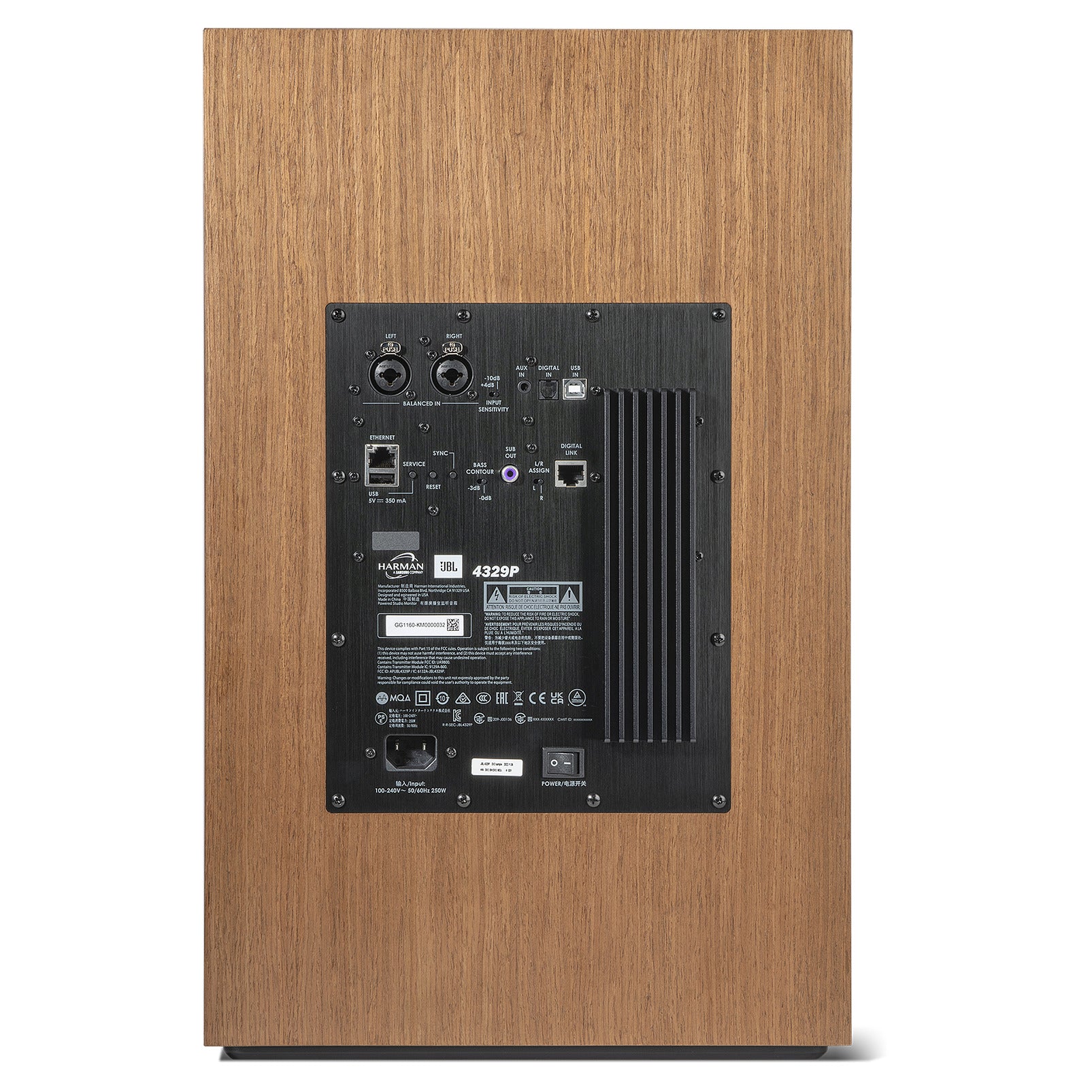

Wired Inputs | Analog: XLR/¼" Combo and 3.5mm stereo Digital: Asynchronous USB-B and Toslink/Optical |
Supported Digital Audio Sample Rates (PCM 2CH) | Streaming and Local Media: 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz SPDIF: Up to 192kHz USB-B: PCM 2-channel, up to 192kHz Bluetooth: Up to 48kHz, aptX Adaptive up to 96kHz |
Music Formats Supported (Local Media) | AAC / AIFF / ALAC / DSD64 (to PCM) / FLAC / MP3 / MP4 / MQA / OGG / WAV / WMA |
Subwoofer Output | Autosensing w/ Auto-engage of 80Hz High Pass Filter |
Remote Control Type | BTLE Wireless |
Bluetooth Audio | Version 5.3 Profiles: SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Vido Remote Control Profile) |
Enclosure | Bass-reflex Design with Dual Front-facing Ports 3/4" MDF Finished in Satin Walnut or Black Walnut Furniture-Grade Wood Veneer |

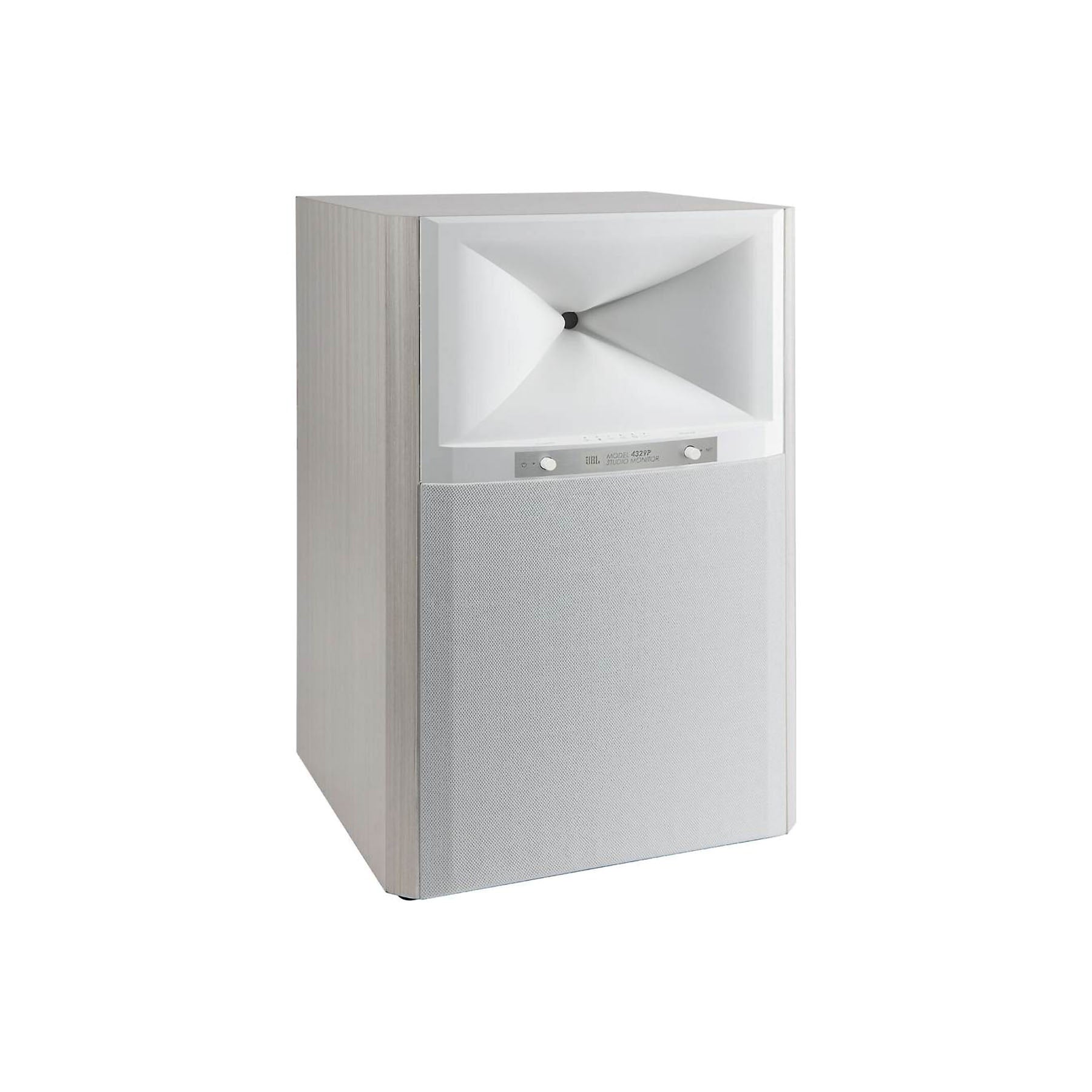

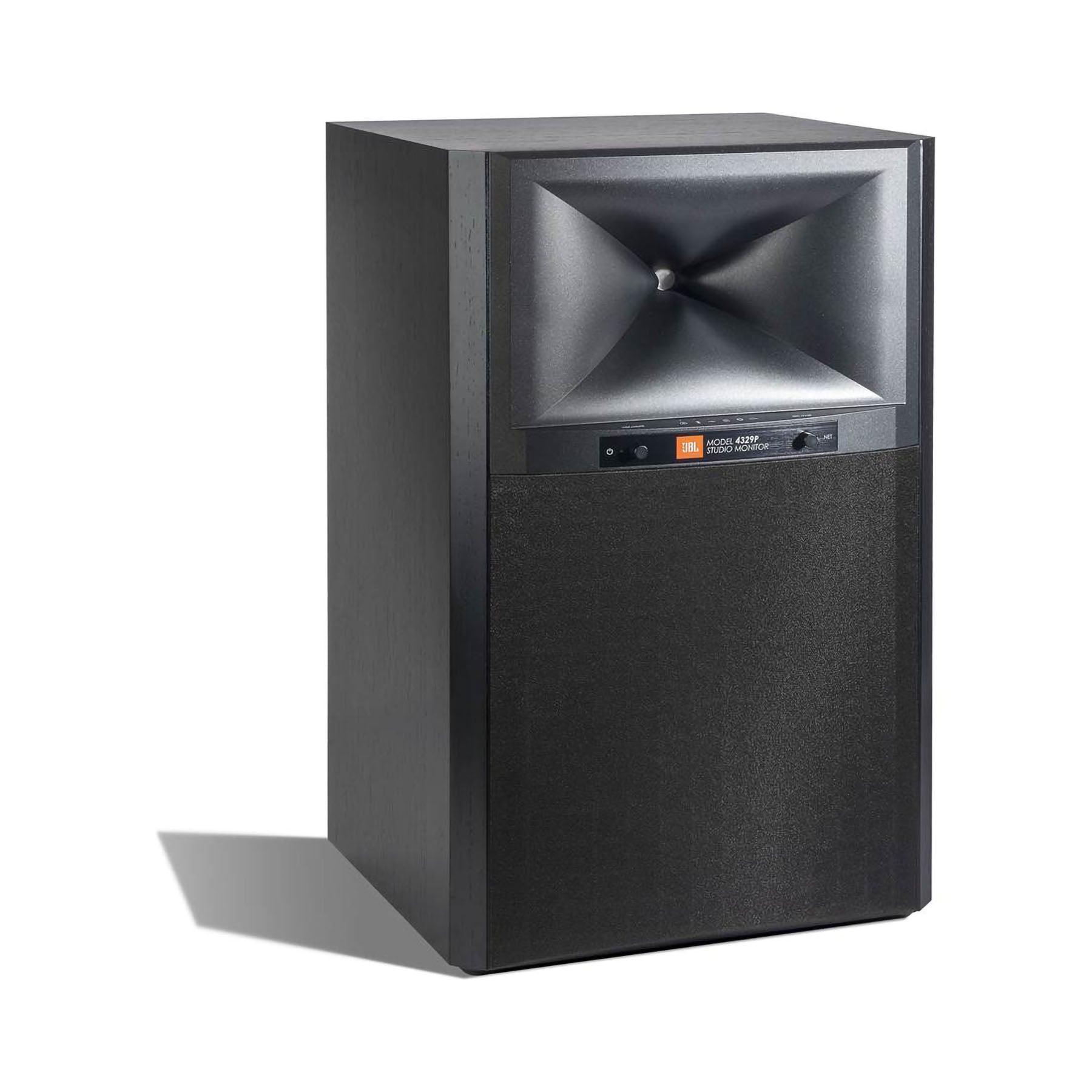

Grille | Dark Blue (with Walnut Cabinet) or Black (with Black Cabinet) Acoustically Transparent Cloth Grille |
Net Speaker Dimensions with grille | 20.3” H x12.6” W x 12.7” D 515.5mm x 320mm x 322.4mm |
Net Speaker Weight | Primary: 34.5 lbs (15.7kg) Secondary: 34.3 lbs (15.6kg) |
Shipping Units of Measure | System Pairs |
Gross Shipping Dimensions | 25.59” H x 30.31” W x 16.46” D 650mm x770mm x 418mm |
Gross Shipping Weight | 79.4 lbs (36.1 kg) |
AC Input Voltage | 100 - 240 VAC (+/-10%), 50/60Hz |
